Suzuki Kizashi (2010 year). Manual - part 20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

6) Replace the bulb, then follow the above

steps in reverse to restore the original

state.

Front turn signal lights

(3)

1) Start the engine. To facilitate bulb

replacement, turn the steering wheel

away from the front turn signal light

(2)

whose bulb is to be replaced, then turn

off the engine.

(1)

57L70041

57L70045

4) Remove the part of the bumper (3) indi-

3) Open the indicated end of the cover on

cated in the illustration.

the inside of the fender and remove the

bulb socket (2) by turning it counter-

clockwise.

4) Replace the bulb, then follow the above

steps in reverse to restore the original

state.

57L70044

2) Insert a flat blade screwdriver into the

hole and remove the clip (1) by twisting

the screwdriver as shown in the illustra-

tion.

57L71030

5) Disconnect the coupler with pushing

the lock release. Turn the bulb holder

counterclockwise and remove it.

7-52

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

Rear combination lights

License plate light

(reversing/turn signal/brake/tail lights)

(5)

(2)

(1)

(3)

(1)

(2)

(3)

(3)

57L71036

57L70022

(3) Reversing light

57L70019

1) Open the trunk lid and open the indi-

(4) Rear turn signal light

1) Remove the side trim (1) inside the

(5) Brake/tail light

cated end of the trim (1) on the inner

trunk.

side of the lid.

2) Open the indicated end of the rubber

- When opening the trim, remove the

foam cover (2) to access the lights and

cover (2) and clips (3) by prying them

(4)

replace the blown bulb(s).

off with a flat blade screwdriver.

(3)

3) Replace the blown bulb(s), then follow

the above steps in reverse to restore

the original state.

(2)

57L70020

7-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

4) Replace the bulb (6), then perform the

Wiper Blades

operations in 1) in the reverse order to

restore the original state.

NOTE:

• Make sure that the bulb is fitted correctly

in the holder.

• The right-side cover is marked “R” while

the left-side cover is marked “L”.

(4)

Trunk room light

(5)

80G083

If the wiper blades become brittle or dam-

aged, or make streaks when wiping,

replace the wiper blades.

To install new wiper blades, follow the pro-

cedures below.

CAUTION

(6)

57L71033

To avoid scratching or breaking the

1)

Open the trunk lid and remove the lens

window, do not let the wiper arm

strike the window while replacing the

by turning it counterclockwise.

2)

Replace the bulb, then perform the

wiper blade.

operations in 1) in the reverse order to

restore the original state.

NOTE:

57L70035

Some wiper blades may be different from

2)

Disconnect the coupler (4) with pushing

the ones described here depending on

the lock release.

vehicle specifications. If so, consult your

3)

Remove the cover (5).

SUZUKI dealer for proper replacement

method.

7-54

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

For windshield wipers

EXAMPLE

(1)

(2)

57L71038

60A260

70G119

2) Squeeze lock lever (1) towards wiper

3) Pull the locked end of the wiper blade

1) Hold the wiper arm away from the win-

arm (2) and remove the wiper frame

firmly to unlock the blade and slide the

dow.

from the arm as shown.

blade out as shown.

NOTE:

When raising both of the front wiper arms,

pull the driver’s side wiper arm up first.

When returning the wiper arms, lower the

passenger’s side wiper arm first. Other-

wise, the wiper arms may interfere with

each other.

7-55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

Installation

Windshield Washer Fluid

52D124

(or opposite side)

52D125

(3) Retainer

80JM078

(4) Locked end

4) If the new blade is provided without the

5) Install the new blade in the reverse

two metal retainers, move them from

order of removal, with the locked end

the old blade to the new one.

positioned toward the wiper arm. Make

sure the blade is properly retained by

all the hooks. Grasp the blade near the

locked end and pull in the direction of

the arrows to lock the end into place.

6) Reinstall wiper frame to arm, making

sure that the lock lever is snapped

securely into the arm.

57L71034

7-56

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

Check that there is washer fluid in the tank

Air Conditioning System

by looking at the washer fluid level gauge

If you do not use the air conditioner for a

which is attached to the cap of the washer

long period, such as during winter, it may

fluid tank. If the fluid level is near “LOW”

not give the best performance when you

mark, refill it.

start using it again. To help maintain opti-

Use a good quality windshield washer

mum performance and durability of your air

fluid, diluted with water as necessary.

conditioner, it needs to be run periodically.

Operate the air conditioner at least once a

WARNING

month for one minute with the engine

Do not use “anti-freeze” solution in

idling. This circulates the refrigerant and oil

the windshield washer reservoir. This

and helps protect the internal components.

can severely impair visibility when

sprayed on the windshield, and also

damage your vehicle’s paint.

CAUTION

Damage may result if the washer

motor is operated with no fluid in the

washer tank.

7-57

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE

EMERGENCY SERVICE

Tire Changing Tool

8-1

Jacking Instructions

8-2

Changing Wheels

8-5

Jump Starting Instructions

8-6

Towing a Disabled Vehicle

8-7

If the Starter Does Not Operate

8-7

If the Engine is Flooded

8-8

If the Engine Overheats

8-8

8

60G411

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE

Tire Changing Tool

CAUTION

Do not remove the spacer (5) under

(4)

the spare tire. The spare tire cannot

be held firmly without the spacer in

(1)

position.

(3)

(5)

57L81002

To remove the spare tire, remove the lug-

gage under-box (2) and turn the bolt (4)

counterclockwise.

WARNING

(2)

The jack should be used only to

57L81003

change wheels. It is important to read

the jacking instructions in this sec-

tion before attempting to use the

57L81001

jack.

The jack wheel brace and jack handle are

stowed in the luggage under-box (2) under

the trunk floorboard

(1). The floorboard

WARNING

can be kept raised using the hook (3).

After using the jack, jack handle and

wheel brace, be sure to stow them

securely or they can cause injury if

an accident occurs.

8-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE

Jacking Instructions

4) Block the front and rear of the wheel

diagonally opposite of the wheel being

lifted.

5) Place the spare wheel near the wheel

being lifted as shown in the illustration

in case that the jack slips.

(1)

79K058

75F062

(1) Jacking point

1)

Place the vehicle on level, hard ground.

(1)

(1)

6)

Position the jack as shown in the illus-

2)

Set the parking brake firmly and shift

tration and raise the jack by turning the

into “P” (Park) if your vehicle has a CVT,

jack-head groove fits around the jacking

or shift into “R” (Reverse) if your vehicle

point beneath the vehicle body.

has a manual transaxle.

WARNING

•

Be sure to shift into “P” (Park) for a

57L70047

CVT vehicle, or into “R” (Reverse)

for a manual transaxle vehicle

when you jack up the vehicle.

•

Never jack up the vehicle with the

transaxle in

“N” (Neutral). Other-

wise, an unstable jack may cause

an accident.

3)

Turn on the hazard warning flasher if

your vehicle is near traffic.

8-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE

To Raise the Vehicle with a Garage

WARNING

Jack

•

Apply the garage jack to one of the

•

Use the jack only to change wheels

points indicated below.

(3)

on level, hard ground.

•

Always support the raised vehicle with

•

Never jack up the vehicle on an

jack stands (commercially available) at

inclined surface.

the points indicated below.

•

Never raise the vehicle with the

jack in a location other than the

specified jacking point (shown in

the illustration) near the wheel to

be changed.

(2)

•

Make sure that the jack is raised at

least

51 mm (2 inches) before it

contacts the flange. Use of the jack

57L70032

when it is within 51 mm (2 inches)

(2) Jack handle

of being fully collapsed may result

(3) Wheel brace

in failure of the jack.

7) Continue to raise the jack slowly and

•

Never get under the vehicle when it

is supported by the jack.

smoothly until the tire clears the

ground. Do not raise the vehicle more

•

Never run the engine when the

vehicle is supported by the jack

than necessary.

and never allow passengers to

remain in the vehicle.

8-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE

(1) Front

(1)

(4)

(2) Jack stand

(3) Jacking point for onboard jack (Do not

use this point for a jack stand.)

(4) Rear

(5) Jacking point for onboard jack

(6) Front suspension frame

(5)

(7) Rear suspension frame

(3)

(2)

(8) Differential carrier

(9) Jacking point for garage jack

(10) Application point for two-column lift

and jack stand

(7)

(6)

CAUTION

Never apply a garage jack to the

(1)

exhaust pipe or engine undercover.

NOTE:

For more details, please contact an autho-

rized SUZUKI dealer.

(1)

(4)

2WD

i-AWD

(8)

(9)

(10)

57L70048

8-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE

Changing Wheels

Full Wheel Cover (if equipped)

To change a wheel, use the following pro-

cedure:

EXAMPLE

1)

Remove the jack, tools and spare wheel

from the vehicle.

2)

Loosen, but do not remove the wheel

nuts.

3)

Jack up the vehicle (follow the jacking

instructions in this section).

WARNING

•

Be sure to shift into “P” (Park) in

CVT, or shift into “R” (Reverse) in

manual transaxle when you jack up

81A057

the vehicle.

60G309

•

Never jack up the vehicle with the

Wheel tightening torque

(1) or (2) Flat end tool

transaxle in

“N” (Neutral). Other-

wise, unstable jack may cause an

140 Nm (103.3 lb-ft, 14.3 kg-m)

Your vehicle includes two tools, a wheel

accident.

brace and a jack crank, one of which has a

7) Lower the jack and fully tighten the nuts

flat end.

4)

Remove the wheel nuts and wheel.

in a crisscross fashion with a wrench as

Use the tool with the flat end to remove the

5)

Before installing the new wheel, clean

shown in the illustration.

full wheel cap, as shown above.

any mud or dirt off from the surface of

the nuts wheel and hub with a clean

WARNING

EXAMPLE

cloth. Clean the hub carefully; it may be

Use genuine wheel nuts and tighten

hot from driving.

them to the specified torque as soon

6)

Install the new wheel and replace the

as possible after changing wheels.

wheel nuts with their cone shaped end

Incorrect wheel nuts or improperly

facing the wheel. Tighten each nut

tightened wheel nuts may come

snugly by hand until the wheel is

loose or fall off, which can result in

54G117

securely seated on the hub.

an accident. If you do not have a

When installing the cover, make sure that it

torque wrench, have the wheel nut

is positioned so that it does not cover or

torque checked by an authorized

foul the air valve.

SUZUKI dealer.

8-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE

Jump Starting Instructions

2) Turn off all vehicle accessories, except

CAUTION

those necessary for safety reasons (for

example, headlights or hazard lights).

WARNING

Your vehicle should not be started by

pushing or towing. This starting

•

Never attempt to jump start your

method could result in permanent

vehicle if the battery appears to be

damage to the catalytic converter.

frozen. Batteries in this condition

2

3

Use jumper cables to start a vehicle

may explode or rupture if jump

with a weak or run-down battery.

starting is attempted.

•

When making jumper cable con-

(2)

When jump starting your vehicle, use

nections, be certain that your

the following procedure:

hands and the jumper cables

1

remain clear from pulleys, belts or

12V BATTERY

fans.

•

Batteries

produce flammable

hydrogen gas. Keep flames and

sparks away from the battery or an

(1)

explosion may occur. Never smoke

4

when working near the battery.

(3)

•

If the booster battery you use for

jump starting is installed in another

vehicle, make sure the two vehicles

EXAMPLE

are not touching each other.

57L81004

•

If your battery discharges repeat-

3) Make jumper cable connections as fol-

edly, for no apparent reason, have

lows:

your vehicle inspected by an autho-

60A269

1. Connect one end of the first jumper

rized SUZUKI dealer.

1)

Use only a 12-volt battery to jump start

cable to the positive (+) terminal of

•

To avoid harm to yourself or dam-

your vehicle. Position the good 12-volt

the discharged battery (1).

age to your vehicle or battery, fol-

battery close to your vehicle so that the

2. Connect the other end to the positive

low the jump starting instructions

jumper cables will reach both batteries.

(+) terminal of the booster battery

below precisely and in order. If you

When using a battery installed on

(2).

are in doubt, call for qualified road

another vehicle, DO NOT LET THE

3. Connect one end of the second

service.

VEHICLES TOUCH. Set the parking

jumper cable to the negative (-) ter-

brakes fully on both vehicles.

minal of the booster battery (2).

8-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE

4. Make the final connection to an

Towing a Disabled Vehicle

If the Starter Does Not

unpainted, heavy metal part

(i.e.

Operate

engine hook (3)) of the engine of the

Emergency Towing

vehicle with the discharged battery

If your vehicle is disabled, it may be towed

1)

While bringing the remote controller

(1).

by a tow truck using one of the following

with you, place the gearshift lever in the

methods:

“P” position and depress the brake

WARNING

1) Tow the vehicle with two wheels lifted

pedal.

by the tow truck and the other two

2)

Try pressing the engine switch to

Never connect the jumper cable

wheels on a towing dolly.

change the ignition mode to “START”

directly to the negative (-) terminal of

2) Use the appropriate towing method

with the headlights turned on to deter-

the discharged battery, or an explo-

specified for your vehicle in the “Towing

mine the battery condition. If the head-

sion may occur.

Your Vehicle (recreational towing)” sec-

lights go excessively dim or go off, it

tion, but with the wheels lifted by the

usually means that either the battery

4)

If the booster battery you are using is

tow truck instead of on a towing dolly.

has run down or battery terminal con-

installed on another vehicle, start the

Be sure to carefully follow the specific

tact is poor. Recharge the battery or

engine of the vehicle with the booster

instructions provided in the

“Towing

correct battery terminal contact if nec-

battery. Run the engine at moderate

Your Vehicle (recreational towing)” sec-

essary.

speed.

tion.

3)

If the headlights remain bright, check

5)

Start the engine of the vehicle with the

the fuses. If the reason for failure of the

discharged battery.

CAUTION

starter is not obvious, there may be a

6)

Remove the jumper cables in the exact

major electrical problem. Have the vehi-

reverse order in which you connected

If vehicle damage (such as steering

cle inspected by your authorized

them.

or drivetrain damage, etc.) prevents

SUZUKI dealer.

normal use of the towing procedures

for your vehicle described in the

“Towing Your Vehicle

(recreational

towing)” section, have your vehicle

towed with two wheels lifted by the

tow truck and the other two wheels

on a towing dolly.

8-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE

65D614

WARNING

• It is hazardous to remove the radia-

tor cap when the water temperature

is high, because scalding fluid and

steam may be blown out under

pressure. The cap should only be

taken off when the coolant temper-

ature has lowered.

• To prevent personal injury, keep

hands, tools and clothing away

from the engine cooling fan and air-

conditioner fan (if equipped). These

electric fans can automatically turn

on without warning.

8-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

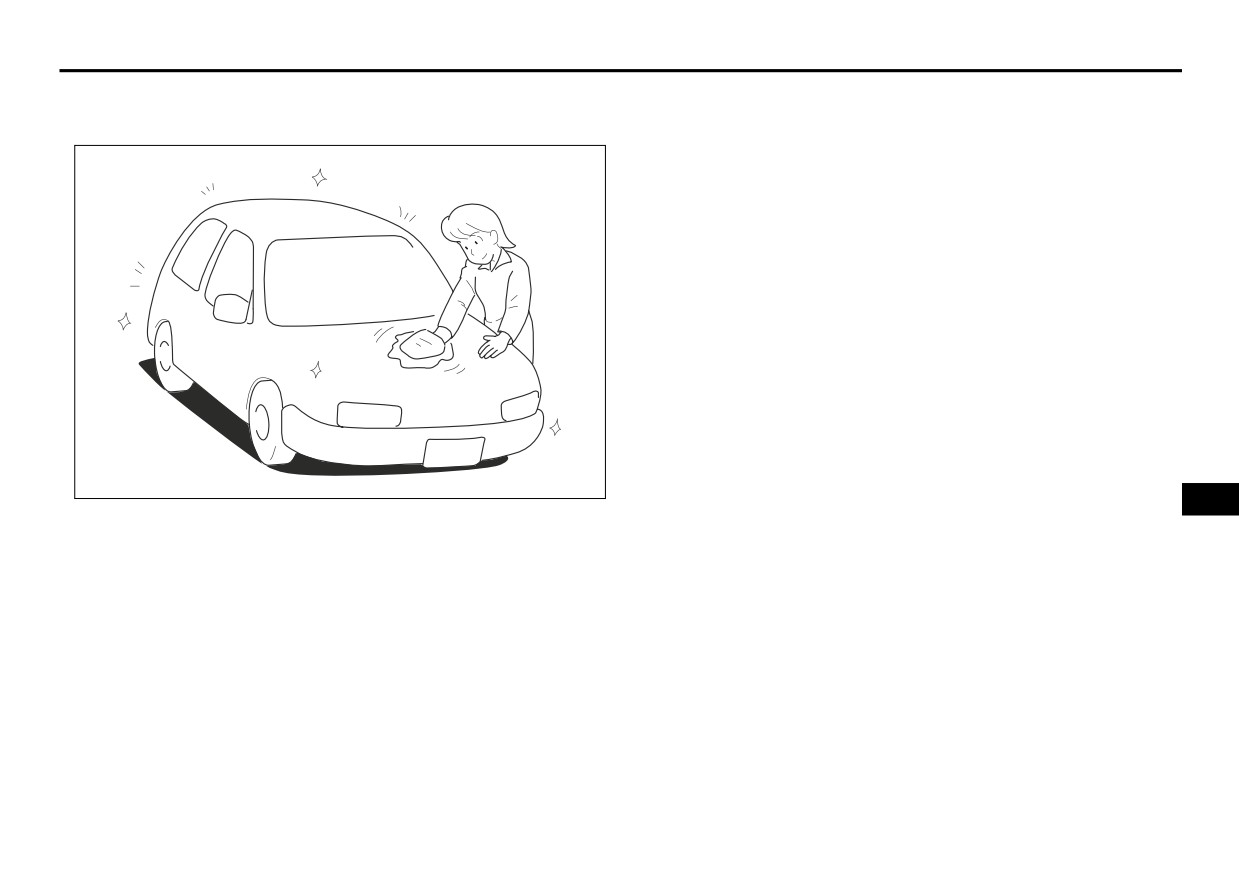

APPEARANCE CARE

APPEARANCE CARE

Corrosion Prevention

9-1

Vehicle Cleaning

9-3

60G412

9

Content      ..     18      19      20      21     ..
