Suzuki Kizashi (2010 year). Manual - part 6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

Intelligent All Wheel Drive (i-AWD)

Conditions for D.R.L. system operation

• The light does not go out in about 2 sec-

Indicator Light (if equipped)

1) The engine is running.

onds after changing the ignition mode to

2) The parking brake is released.

“ON” by pressing the engine switch.

3) The headlights are off.

Immobilizer/Keyless Start System

Transaxle Warning Light (if

Warning Light

equipped)

57L30044

When the 2WD/i-AWD switch is in the “i-

AWD” mode with the engine switch in the

“ON” mode, the light comes on and stays

80JM122

on.

80J219

When you press the engine switch to

For details, refer to “Using the 2WD/i-AWD

This light comes on when you press the

change the ignition mode to “ON”, the light

Switch” in the “OPERATING YOUR VEHI-

engine switch to change the ignition mode

comes on briefly so you can check that the

CLE” section.

to “ON” if there is any problem with the

light is working. If this light stays on, there

continuously variable transaxle (CVT).

is a problem with the system. This light

Daytime Running Light (D.R.L.) Indi-

• The light should normally come on when

flashes if you press the engine switch while

cator Light (if equipped)

the ignition mode is changed to “ON” by

the system is not sensing the remote con-

pressing the engine switch and stay on

troller. For details, refer to

“Immobilizer

for about 2 seconds before going out.

System” in this section.

NOTE:

i-AWD Warning Light (if equipped)

The following conditions may indicate

some problem with the CVT system. If any

of these conditions occurs, have your vehi-

cle inspected by an authorized SUZUKI

60B245

dealer.

With the D.R.L. system, the headlights

• The light comes on while driving.

light, but are dimmer than the low beam,

• The light does not come on even when

when the following three conditions are all

the ignition mode is changed to “ON” by

met. Whenever the D.R.L. system is oper-

pressing the engine switch.

57L30042

ating, the D.R.L. indicator light remains on.

When you press the engine switch to

change the ignition mode to “ON”, the light

2-76

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

comes on briefly so you can check that the

Electric Power Steering Warning

Master Warning Indicator Light

light is working.

Light

•

This light comes on if there is any prob-

lem with the intelligent all wheel drive (i-

AWD) system. The drive mode will then

automatically switch to the two-wheel

drive (2WD) mode.

•

The light flashes if the vehicle is in any of

the following conditions, and the drive

78K049

train mode will then automatically switch

80J408

When you press the engine switch to

to the 2WD mode.

This light comes on while the engine is

change the ignition mode to “ON”, the light

- Wheels of different diameters are fitted

running if there is any problem with the

comes on briefly so you can check that the

to the vehicle.

electric power steering system.

light is working. When the information dis-

- Drive train components overheat as a

• The light should normally come on when

play shows warning and indicator mes-

result of spinning of a drive wheel in

you press the engine switch to change

sages, this indicator light may also come

the mud or snow.

the ignition mode to “ON” and go out as

on or blink.

•

The light should normally come on when

soon as the engine is started.

you press the engine switch to change

For details, refer to “Information Display” in

the ignition mode to “ON” and continue

this section.

NOTE:

to light or go out depending on the drive

•

The following conditions may indicate a

train mode engaged.

problem with the electric power steering

system. In the event of any of these con-

NOTE:

ditions, have your vehicle inspected by

Should the light flash, immediately move

an authorized SUZUKI dealer.

the vehicle to a safe place and park it there

- The light comes on while driving.

to protect the drive train components. If

- The light does not come on even when

you let the engine run at idle for a while,

you press the engine switch to change

the light will stop flashing and then stay lit,

the ignition mode to “ON”.

and the i-AWD mode will resume.

- The light stays on after the engine has

started.

•

The electric power steering system

stops functioning if it has any problem.

Without the system operating, the steer-

ing wheel will require more effort to turn

than usual.

2-77

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

Speedometer

Tachometer

Fuel Gauge

EXAMPLE

EXAMPLE

EXAMPLE

(1)

(2)

57L21057

57L21058

57L21059

The speedometer indicates vehicle speed

The tachometer indicates engine speed in

When you press the engine switch to

in km/h and mph.

revolutions per minute.

change the ignition mode to

“ON”, this

gauge gives an approximate indication of

CAUTION

the amount of fuel in the fuel tank. “F”

stands for full and “E” stands for empty.

Never drive with the engine speed

indicator in the red zone or severe

If the indicator gets off the graduation of

engine damage can result.

“E” (not character “E”), refill the tank as

When downshifting to a lower gear,

soon as possible.

make sure not to operate with exces-

sive revolution speeds of the engine.

NOTE:

Refer to

“Downshifting maximum

The indicator moves a little depending on

allowable speeds” in the “OPERAT-

road conditions

(for example, slope or

ING YOUR VEHICLE” section.

curve) and driving conditions because of

fuel moving in the tank.

2-78

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

If the low fuel warning light (1) comes on,

Temperature Gauge

Brightness Control

fill the fuel tank immediately.

When the low fuel warning light (1) comes

on, a ding sounds once to remind you to fill

the fuel.

If you do not fill the fuel, a ding sounds

every time you press the engine switch to

change the ignition mode to “ON”.

CAUTION

Avoid driving with an extremely low

(1)

fuel level. Running out of fuel could

cause the engine to misfire, damag-

ing the catalytic converter.

57L21060

57L21080

NOTE:

The activation point of the low fuel warning

When the ignition mode has been changed

When the engine switch

is

pressed to

light (1) varies depending on road condi-

to “ON” by pressing the engine switch, this

change the ignition mode to

“ON”, the

tions

(for example, slope or curve) and

gauge indicates the engine coolant tem-

instrument panel lights come on.

driving conditions because of fuel moving

perature. Under normal driving conditions,

in the tank.

the indicator should stay within the normal,

Your vehicle has a system to automatically

acceptable temperature range between “H”

dim the brightness of the instrument panel

The mark (2) indicates that the fuel filler

and “C”. If the indicator approaches “H”,

lights when the parking lights or headlights

door is located on the left side of the vehi-

overheating is indicated. Follow the

are on.

cle.

instructions for engine overheating in the

You can change the brightness of the

“EMERGENCY SERVICE” section.

instrument panel lights regardless of

whether the parking lights or headlights

CAUTION

are off or on.

Continuing to drive the vehicle when

To increase the brightness of the instru-

engine overheating is indicated can

ment panel lights, turn the brightness con-

result in severe engine damage.

trol knob (1) clockwise.

To reduce the brightness of the instrument

panel lights, turn the brightness control

knob (1) counterclockwise.

2-79

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

NOTE:

Information Display

EXAMPLE

• If you do not turn the brightness control

The information display is shown when the

knob within about 5 seconds of activat-

ignition mode has been changed to “ON”

ing the brightness control display, the

by pressing the ignition switch.

brightness control display will be can-

celed automatically.

• When you reconnect the battery, the

brightness of the instrument panel lights

will be reinitialized. Readjust the bright-

ness according to your preference.

(B)

NOTE:

If you select the lowest brightness level

when the parking lights or headlights are

(1)

57L21081

on, the instrument panel lights other than

(C)

(A)

meter lights are turned off.

(D)

57L30067

(1) Information display

2-80

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

CVT Selector Position

(for continu-

EXAMPLE

ously variable transaxle)

EXAMPLE

(4)

(2)

57L21127

The display (A) shows the continuously

(3)

variable transaxle selector position (4).

Fuel Consumption/Driving Range/

57L30043

57L30068

Average Speed

(2) DISP switch

When the engine switch is pressed to

When there are no warning or indicator

(3) TRIP switch

change the ignition mode to

“ON”, the

messages on the display

(B), you can

message shown in the above illustration

select one of the following five indications

The information display shows the follow-

will appear on the display for several sec-

to appear on the display, instantaneous

ing information.

onds.

fuel consumption, average fuel consump-

Some warning and indicator messages

tion, driving range, average speed, or no

Display (A)

may appear on the display when the igni-

indication.

CVT selector position indicator (for contin-

tion mode is changed to “ACC” by pressing

uously variable transaxle)

the engine switch.

Display (B)

Warning and Indicator Messages/Fuel

Consumption/Driving

Range/Average

Speed

Display (C)

Trip meter/Thermometer

Display (D)

Odometer

2-81

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

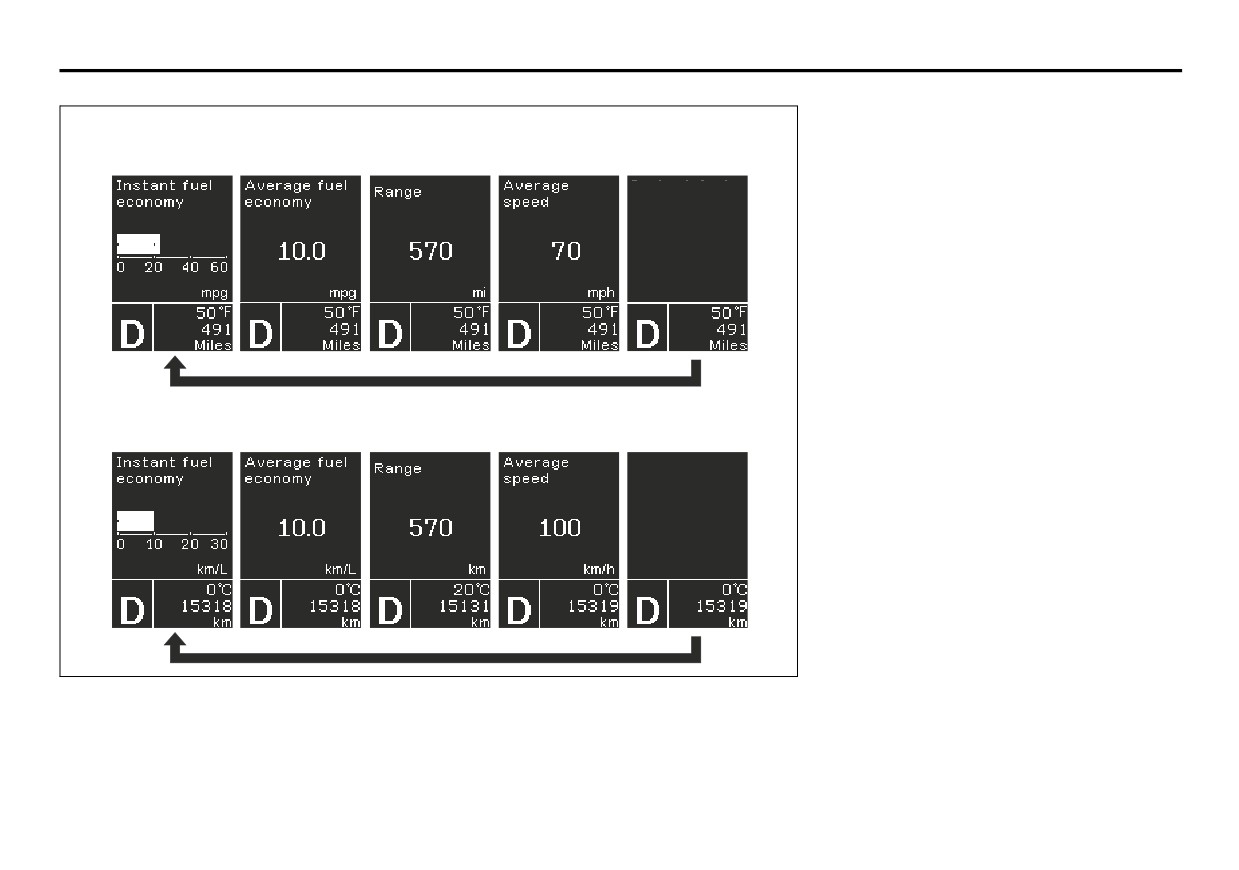

To switch the display indication, pull the

EXAMPLE

DISP switch (2) quickly.

Mile

(a)

(b)

(c)

(d)

(e)

NOTE:

The value of fuel consumption, driving

range and average speed shown in the dis-

play are affected by conditions such as the

following;

• road condition

• surrounding traffic condition

• driving condition

• vehicle condition

• a malfunction which causes the malfunc-

tion indicator light to come on or blink

Instantaneous fuel consumption

If you selected instantaneous fuel con-

Km

(a)

(b)

(c)

(d)

(e)

sumption the last time you drove the vehi-

cle, the display does not show the bar

graph when the engine switch is pressed

to change the ignition mode to “ON”. The

display shows the bar graph only when the

vehicle is moving.

57L21082

(a) Instantaneous fuel consumption

(b) Average fuel consumption

(c) Driving range

(d) Average speed

(e) No indication

2-82

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

Odometer/Trip meter/Thermometer

Odometer

Thermometer

When the engine switch is pressed to

The odometer records the total distance

The thermometer

indicates

the

outside

change the ignition mode to “ON”, the dis-

the vehicle has been driven.

temperature.

play (C) shows one of the following three

indications, trip meter A, trip meter B and

CAUTION

EXAMPLE

thermometer. Also, the display (D) shows

Keep track of your odometer reading

the odometer reading.

and check the maintenance schedule

regularly for required services.

EXAMPLE

Increased wear or damage to certain

parts can result from failure to per-

(f)

form required services at the proper

mileage intervals.

Trip meter

(g)

The trip meter can be used to measure the

distance traveled on short trips or between

fuel stops.

57L21084

You can use the trip meter A and trip meter

If the outside temperature nears freezing,

(h)

B independently.

the message shown in the above illustra-

To reset the trip meter to zero, pull and

tion will appear on the display.

(i)

hold the TRIP switch (3) for about 2 sec-

onds when the display shows the trip

NOTE:

meter.

The outside temperature indication is not

57L21083

the actual outside temperature when driv-

(f)

Trip meter A

ing at low speed, or when stopped.

(g) Trip meter B

(h) Thermometer

(i)

Odometer

To switch the display indication (C), pull the

TRIP switch (3) quickly.

2-84

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

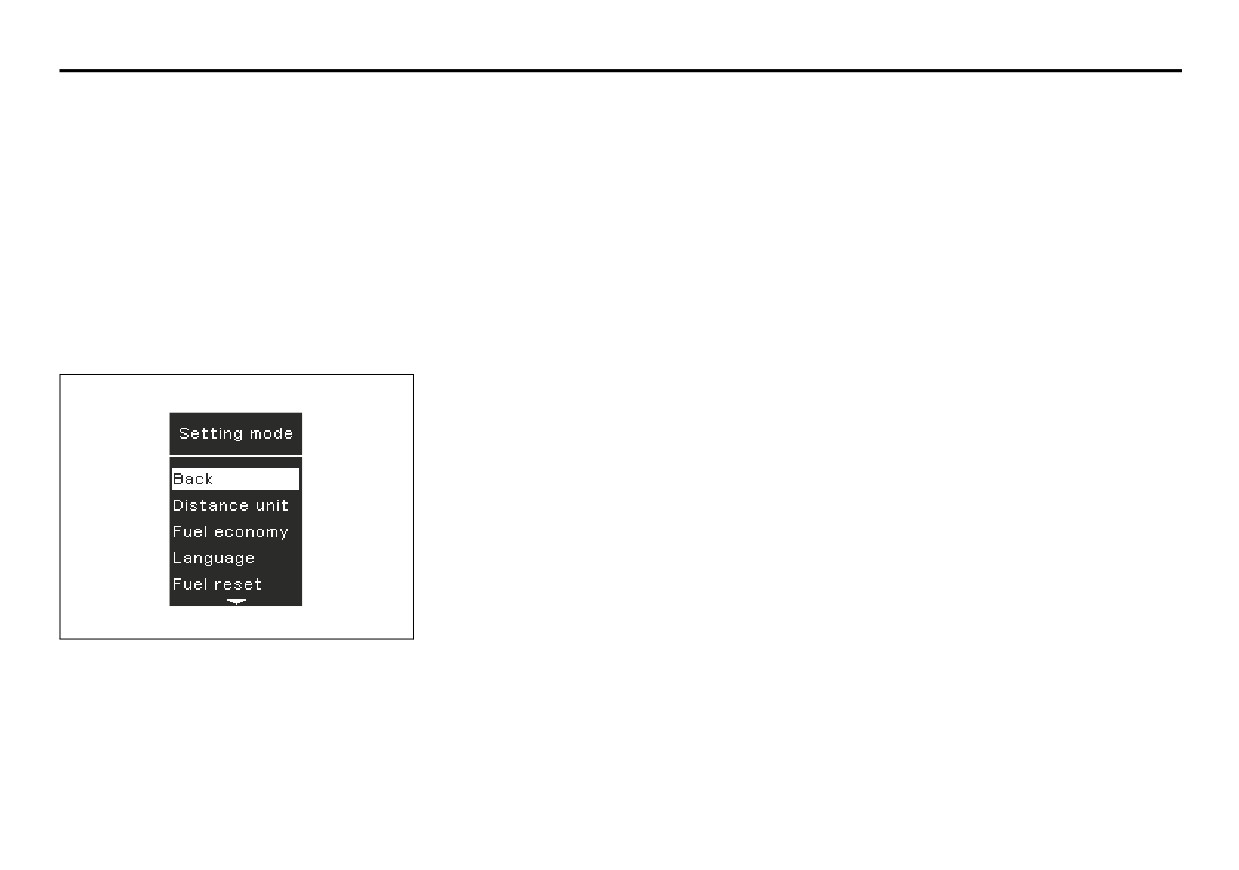

Setting Mode

NOTE:

Temperature units

When the ignition mode is changed to

• If you pull and hold the DISP switch (2)

You can change the units that temperature

“ON” by pressing the engine switch and

to enter the setting mode when the dis-

is displayed in.

the vehicle is stationary, you can enter the

play (B) shows average fuel consump-

setting mode of the information display by

tion or average speed, the value will be

NOTE:

pulling and holding the DISP switch (2) for

reset simultaneously. If you do not want

When you change the units that tempera-

more than 3 seconds.

to reset the value, pull the DISP switch

ture is displayed in, the air conditioning

quickly to switch the indication of the dis-

system temperature display units will be

•

To select the setting that you want to

play.

changed automatically.

change, pull the TRIP switch (3).

• If you press the engine switch or start to

•

To change the setting, pull the DISP

move the vehicle when the display is in

Foot lights

switch (2).

the setting mode, the setting mode will

The foot lights can be programmed for

•

To exit the setting mode, select “Back”

be canceled automatically.

interlocked operation with either lighting

and pull the DISP switch (2).

control or door operation and for no light-

Distance units

ing.

You can change the units odo/trip meter

distance is displayed in.

Default setting

If you select

“YES” and pull the DISP

NOTE:

switch (2), all settings will be reinitialized.

When you change the units odo/trip meter

distance is displayed in, the trip meter will

be reset automatically.

Fuel economy units

You can change the units that fuel con-

sumption is displayed in.

Language

57L21085

You can change the language of the infor-

NOTE:

mation display.

Current settings appear with reversed text

and background colors.

Avg. fuel economy reset

You can change when the value of average

fuel consumption is reset.

2-85

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

Warning and Indicator Messages

NOTE:

The display shows warning and indicator

• When the problem that causes a mes-

messages to let you know about certain

sage to appear is corrected, the mes-

vehicle problems.

sage will disappear.

A tone may also sound to alert you.

• If a message is displayed, and other

problems requiring a message occur, the

If warning and indicator messages appear

message for each of the problems will be

on the display, follow the messages.

alternately displayed about every 5 sec-

onds.

Master warning indicator

• When you pull and hold the DISP switch

(2) for about 2 seconds while a message

is displayed, the message will disappear

temporarily. If the problem that caused

the message is not corrected, the mes-

sage will appear again after 5 seconds.

78K049

When the display shows warning and indi-

cator messages, the master warning indi-

cator may also come on or blink.

2-86

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

Warning and indicator messages

Warning and Indicator

Master Warning

Sound

Cause and Remedy

Message

Indicator

Blinks

“Ping” (one time from interior

A door or the engine hood is not properly

(only while vehicle

buzzer; only while vehicle is

closed. Stop in a safe place and close the

is in motion)

in motion)

door or engine hood properly. (#1)

NOTE:

After disconnecting and reconnecting the

battery cable, the display image may show

that the passenger door is open even

though it is the driver’s door that is open.

The display will show the correct image

when you press the engine switch to

change the ignition mode to “ON”.

57L30073

Off

Off

This message is displayed when the “ACC”

position is selected as the power supply

position. (#1)

57L21087

(#1) This message will disappear for a while even if the problem that caused the message to appear is not corrected.

2-87

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

Warning and Indicator

Master Warning

Sound

Cause and Remedy

Message

Indicator

Off

Off

The brake pedal is depressed. Press the

engine switch to start the engine.

57L21088

CVT

Off

Off

The engine switch is pressed with the gear-

shift lever in a position other than “P” or “N”

and/or without depressing the brake pedal.

Try again as instructed by the message.

57L21089

2-88

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

Warning and Indicator

Master Warning

Sound

Cause and Remedy

Message

Indicator

Manual Transaxle

Off

Off

The engine switch is pressed without

depressing the brake and clutch pedals. Try

again as instructed by the message.

57L21120

CVT

Off

Off

The engine switch is pressed with the gear-

shift lever in a position other than “P”. Try

again as instructed by the message.

57L21090

2-89

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

Warning and Indicator

Master Warning

Sound

Cause and Remedy

Message

Indicator

Blinks

“Ping” (one time from interior

There is a problem with the steering lock

buzzer)

system.

Have your vehicle inspected by an autho-

rized SUZUKI dealer.

57L21091

Blinks

“Ping” (one time from interior

There is a problem with the keyless push

buzzer)

start system.

Have your vehicle inspected by an autho-

rized SUZUKI dealer.

57L21092

2-90

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

Warning and Indicator

Master Warning

Sound

Cause and Remedy

Message

Indicator

Blinks

Repeated beeps under cer-

The remote controller may be outside the

tain conditions

(for about

2

vehicle or its battery may have become dis-

seconds from exterior and/or

charged. Locate the remote controller or

interior buzzers)

touch the engine switch with the remote

controller.

If the message still appears, replace the

remote controller battery.

57L21093

57L21094

2-91

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

Warning and Indicator

Master Warning

Sound

Cause and Remedy

Message

Indicator

Blinks

Continuous beep (from inte-

The headlights and position lights are left

rior buzzer)

on. Turn them off.

57L21095

Off

Off

This message is displayed when the “ON”

position is selected as the power supply

position. (#1)

57L21096

(#1) This message will disappear for a while even if the problem that caused the message to appear is not corrected.

2-92

Content      ..     4      5      6      7     ..
