GENERAL INFORMATION

Identification Numbers

7-1

Safety Certification Label

7-2

Emission Compliance Label (for U.S.A.)

7-2

Warranties

7-2

On-Board Vehicle Computers and Event Data

Recorders

7-3

Reporting Safety Defects

7-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION

Identification Numbers

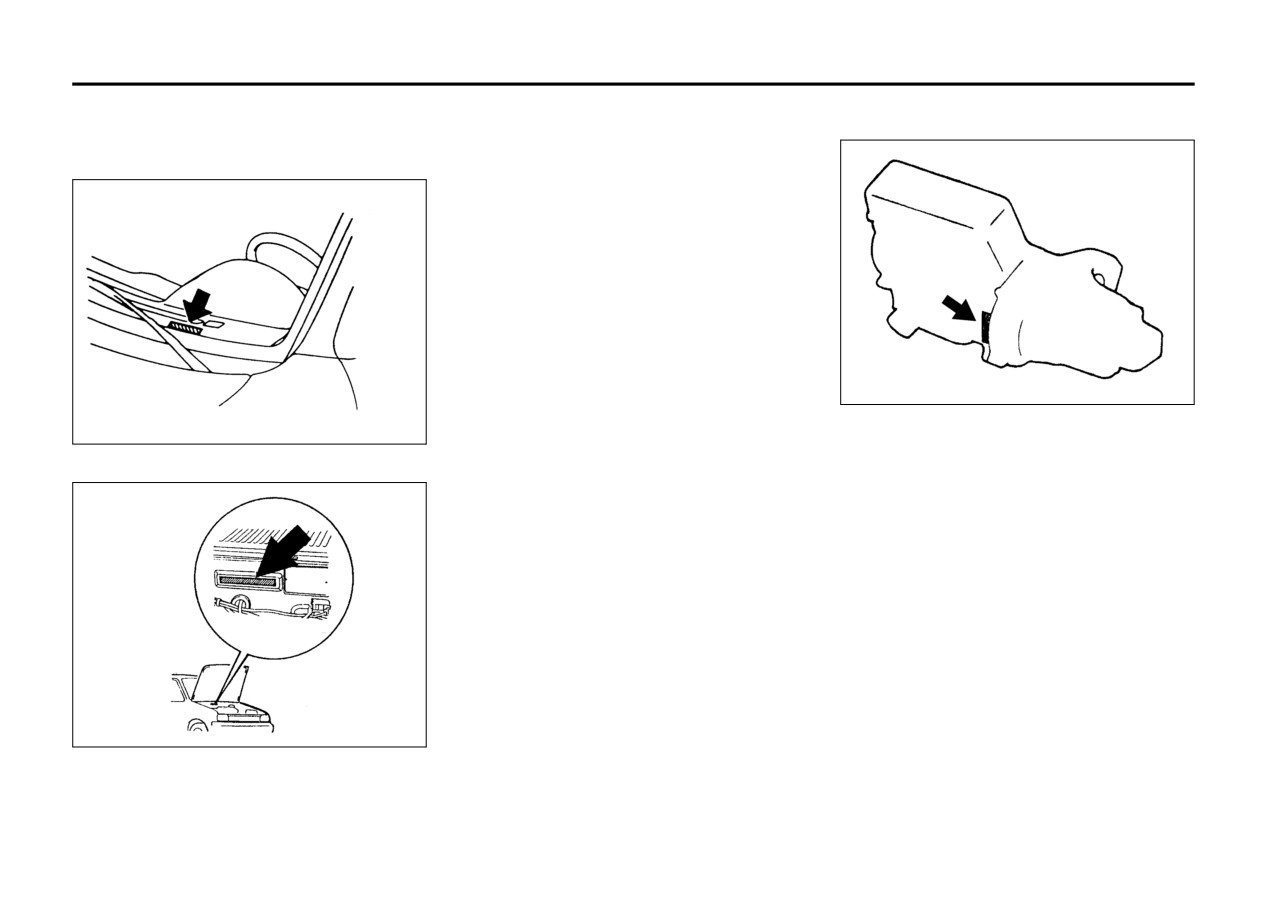

The Vehicle Identification Number

(VIN)

Engine Serial Number

may be found in the location shown in the

Vehicle Identification Number

above illustrations. This number is used to

your SUZUKI dealer when ordering parts

EXAMPLE (for some vehicles)

or referring to special service information.

60G128

The engine serial number is stamped on

60G152

the cylinder block as shown in the above

illustration.

54G081

7-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION

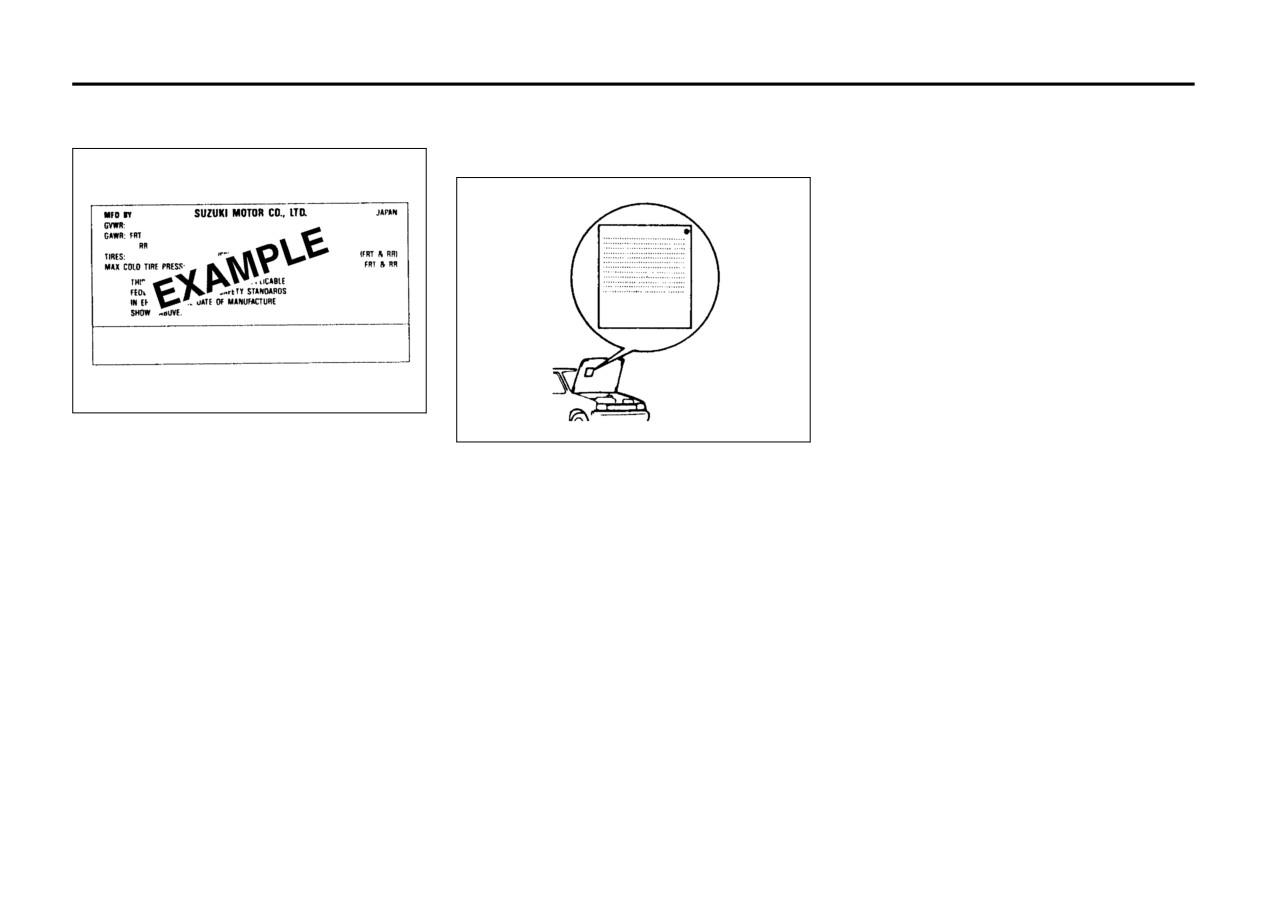

Safety Certification Label

Emission Compliance Label

Warranties

(for U.S.A.)

The warranties covering your vehicle are

explained in a separate New Vehicle War-

ranty Information booklet given to you at

the time of sale. Please read this booklet

carefully so you can understand your rights

and responsibilities.

For U.S.A.

The following warranties are provided with

your vehicle:

• New Vehicle Limited Warranty

• Limited Warranty For SUZUKI Parts or

Accessories

• Emission Components Defect Warranty

52D059

• Emission Performance Warranty

This label contains important safety-

60A412

related information about your vehicle. The

The EPA emission compliance label is

label is located on the driver’s door lock pil-

located under the hood. It provides much

lar.

of the information needed to perform an

engine tune-up on your vehicle.

7-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION

On-Board Vehicle Computers

operation of the vehicle. This stored

In addition, once SUZUKI collects or

information can assist technicians in

receives data, SUZUKI may use the

and Event Data Recorders

repairing the vehicle when malfunc-

data for research conducted by

Your vehicle is equipped with on-board

tions occur. Other information is stored

SUZUKI, make the data available for

computer systems which monitor and

only in the event of crash, by computer

outside research if need is shown and

control several aspects of vehicle per-

systems that are commonly called

confidentiality is assured, or make

formance, including the following:

Event Data Recorders (EDRs).

summary data which does not identify

•

Emission-related components and

specific vehicles available for outside

In a crash event, EDRs such as the

engine parameters such as engine

research.

Airbag Sensing and Diagnostic Mod-

speed and throttle position are moni-

ule (SDM) in your vehicle may record

Others, such as law enforcement per-

tored to provide emissions control

information about the condition of the

sonnel, may have access to the spe-

and to provide optimum fuel econ-

vehicle and how it was operated, such

cial equipment that can read the

omy. Your vehicle also has an on-

as data related to airbag readiness,

information if they have access to the

board diagnostic system which mon-

airbag performance, safety belt usage,

vehicle or storage device.

itors and records information about

and the severity of the collision. These

emission-related malfunctions.

data can help provide a better under-

•

Signals from various sensors are

standing of the circumstances in which

monitored to provide air bag deploy-

crashes and injuries occur and lead to

ment.

the designing of safer vehicles. The

•

If your vehicle is equipped with

SDM in your vehicle does not collect

antilock brakes, conditions such as

or store personal information.

vehicle speed and brake perfor-

mance are monitored, so that the

To read the stored information, special

ABS system can provide effective

equipment is needed and access to

antilock braking. If your vehicle has

the vehicle or storage device is

an Electronic Stability Program

required. SUZUKI will not access infor-

(ESP^®) system, conditions such as

mation about a crash event or share it

yaw rate, lateral acceleration, and

with others other than with the consent

brake fluid pressure are monitored,

of the vehicle owner or lessee, in

so that the ESP^® system can help

response to an official request from

the driver control the vehicle in diffi-

the police or similar government office,

cult driving situations.

as part of SUZUKI’s defense of litiga-

tion through the discovery process, or

Some information may be stored by

as required by law.

the on-board computers during normal

7-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION

Reporting Safety Defects

To contact American Suzuki, owners

in the continental United States can

If you believe that your vehicle has a

call toll-free 1-800-934-0934, or write

defect which could cause a crash or

to:

could cause injury or death, you

should immediately inform the

American Suzuki Motor Corporation

National Highway Traffic Safety

Automotive Customer Relations

Administration (NHTSA) in addition to

3251 East Imperial Highway

notifying American Suzuki Motor Corp.

Brea, CA 92821-6795

If NHTSA receives similar complaints,

For owners outside the continental

it may open an investigation, and if it

United States, please refer to the dis-

finds that a safety defect exists in a

tributor’s address listed in your War-

group of vehicles, it may order a recall

ranty Information booklet.

and remedy campaign. However,

For vehicles registered for use and

NHTSA cannot become involved in

principally operated in Canada please

individual problems between you, your

contact Suzuki Canada Inc. at 1-905-

SUZUKI dealer, or American Suzuki

889-2677 extension 2254 or write to:

Motor Corp.

Suzuki Canada Inc.

To contact NHTSA, you may call the

Customer Relations

Vehicle Safety Hotline toll-free at

100 East Beaver Creek Road

888-327-4236 (TTY: 1-800-424-9153);

Richmond Hill, On

go to http://www.safercar.gov; or write

L4B 1J6

to: Administrator, NHTSA,

400 Sev-

enth Street, SW., Washington, D.C.

20590. You can also obtain other infor-

mation about motor vehicle safety

from http://www.safercar.gov.
