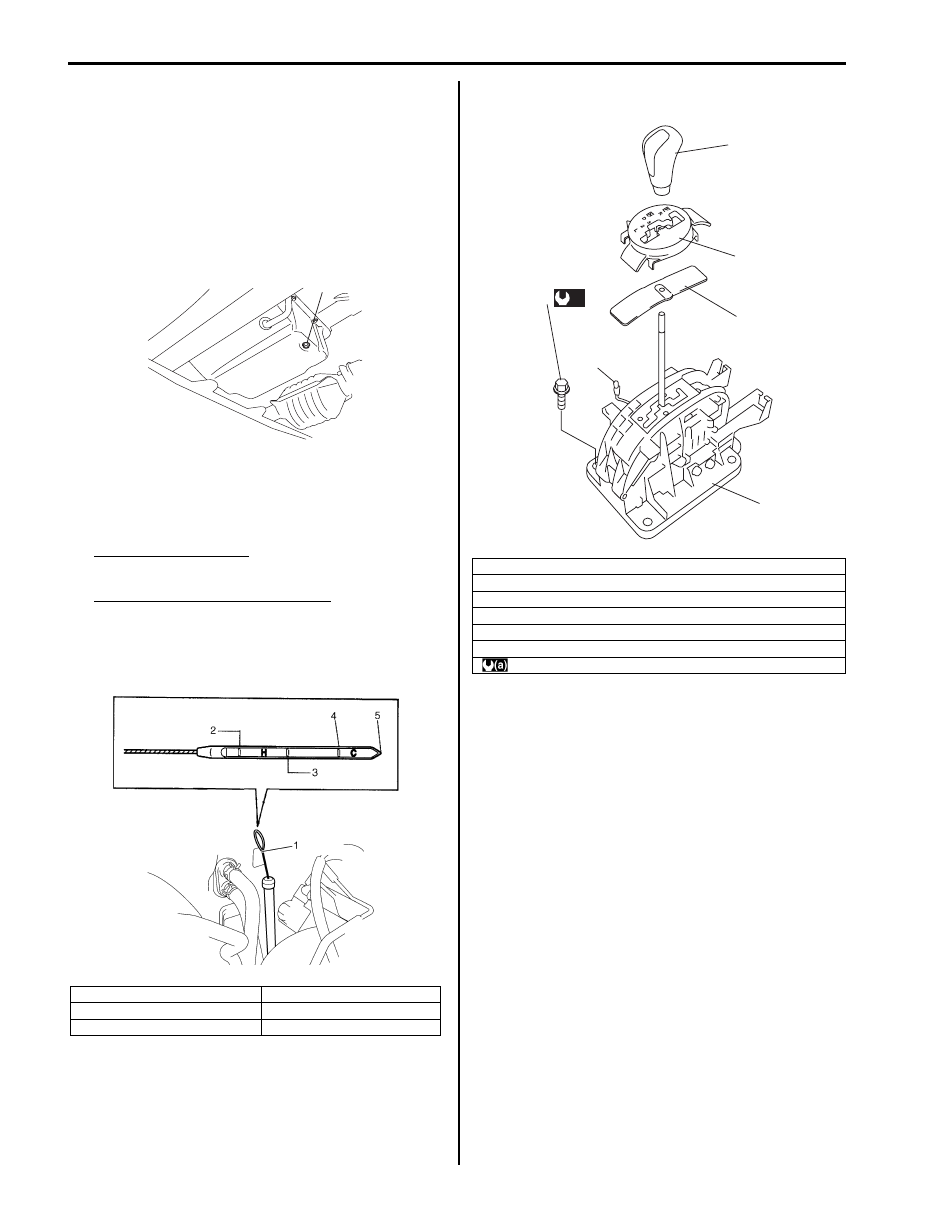

5A-87 Automatic Transmission/Transaxle:

A/T Fluid Change

S6JB0A5106002

1) Lift up vehicle.
2) When engine is cool, remove drain plug (1) from oil

pan and drain A/T fluid.

3) Install drain plug with new gasket.

Tightening torque
A/T fluid drain plug (a):  20 N·m (2.0 kgf-m, 14.5
lb-ft)

4) Lower vehicle and fill proper amount of specified

fluid.

5) Check fluid level referring to “At Normal Operating

Temperature” under “A/T Fluid Level Check”.

A/T fluid specification
: SUZUKI ATF 3317 or Mobil ATF 3309

A/T fluid capacity reference value
When draining from drain plug hole: Approx. 2.5
liters (5.33/4.40 US/lmp. pt.)
When overhauling: Approx. 7.2 liters (15.36/12.67
US/lmp. pt.)

Manual Selector Assembly Components

S6JB0A5106003

1. Dipstick

4. “FULL COLD”

2. “FULL HOT”

5. “LOW COLD”

3. “LOW HOT”

1, (a)

I5JB0A510030-03

I5JB0A510031-02

1. Manual lever assembly
2. Select indicator assembly
3. Illumination lamp assembly
4. Knob
5. Manual selector assembly mounting bolt
6. Slide cover

: 17.5 N

⋅m (1.75 kgf-m, 13.0 lb-ft)

4

2

6

1

5

(a)

3

I5JB0A510033-01

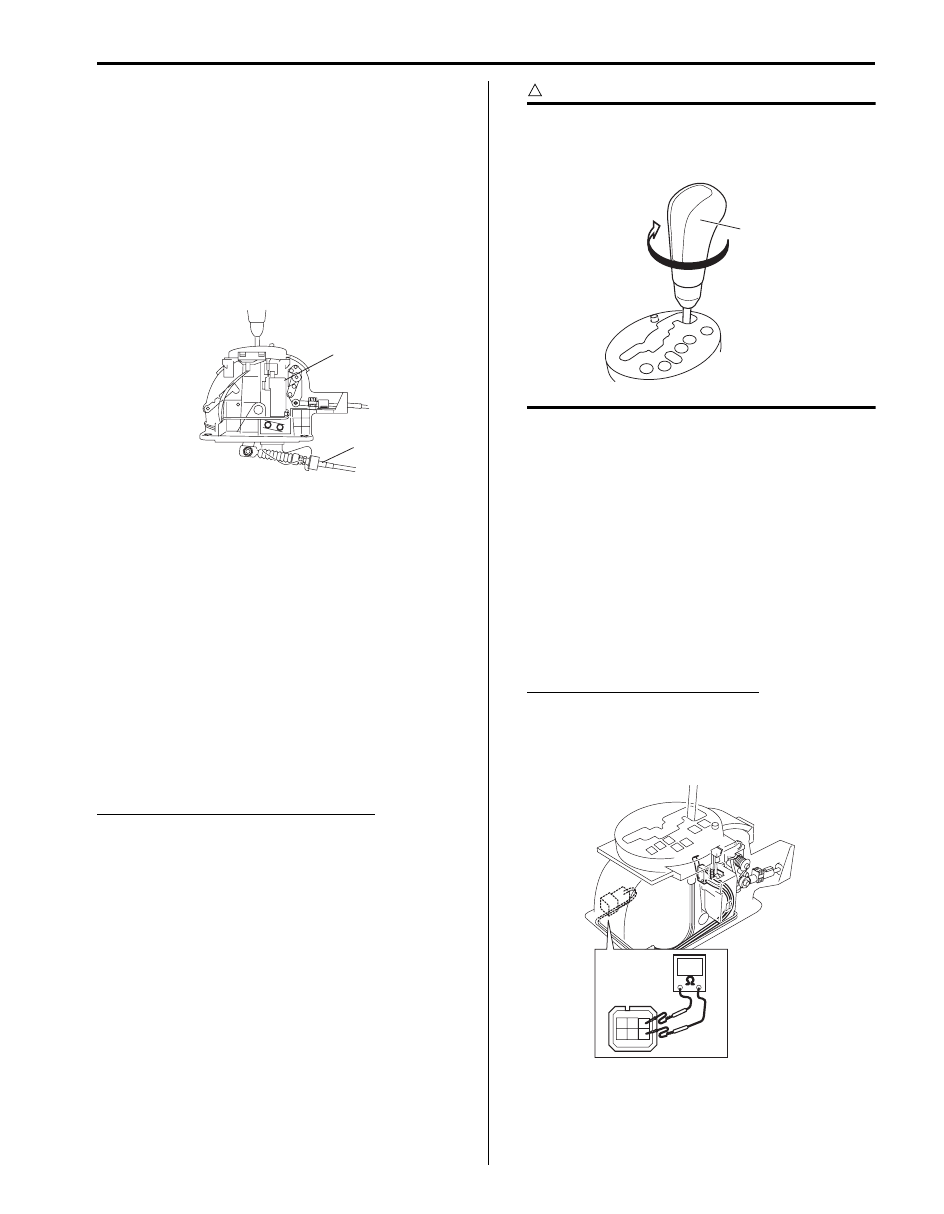

Automatic Transmission/Transaxle:  5A-88

Manual Selector Assembly Removal and
Installation

S6JB0A5106004

Removal

1) Disconnect negative cable at battery.
2) Remove front console box.
3) Disconnect shift lever switch connector.
4) Remove manual selector assembly mounting bolts.
5) Disconnect select cable (1) from manual selector

assembly (2).

Installation
Reverse removal procedure to install manual selector
assembly noting the following instructions.
• Tighten manual selector assembly mounting bolts to

specified torque.

Tightening torque
Manual selector assembly mounting bolt:  18 N·m
(1.8 kgf-m, 13.0 lb-ft)

• Adjust select cable referring to “Select Cable

Adjustment”

Select Lever Knob Installation

S6JB0A5106005

Screw select lever knob onto select lever by specified
numbers of rotation below.

Rotation numbers for select lever knob
Installation (a): 13 – 14 rotations

CAUTION

!



When installing select lever knob, do not turn
more than specified numbers of rotation.
Otherwise select lever knob is damaged.



Manual Selector Assembly Inspection

S6JB0A5106006

Check select lever for smooth and clear-cut movement
individually and position indicator for correct indication.
If a malfunction is found, replace select lever assembly.

“3” Position Switch Inspection

S6JB0A5106007

1) Disconnect negative cable at battery.
2) Remove front console box.
3) Disconnect manual selector connector (1).
4) Measure resistance between “3” position switch

terminals.

“3” position switch specification
Shift selector lever to “P”, “N” or “D” range: 3.96
– 4.04 k

Ω

Shift selector lever to “R”, “3”, “2” or “L” range:
0.99 – 1.01 k

Ω

1

2

I5JB0A510034-02

1,(a)

I4RS0A510058-01

I5JB0A510164-01

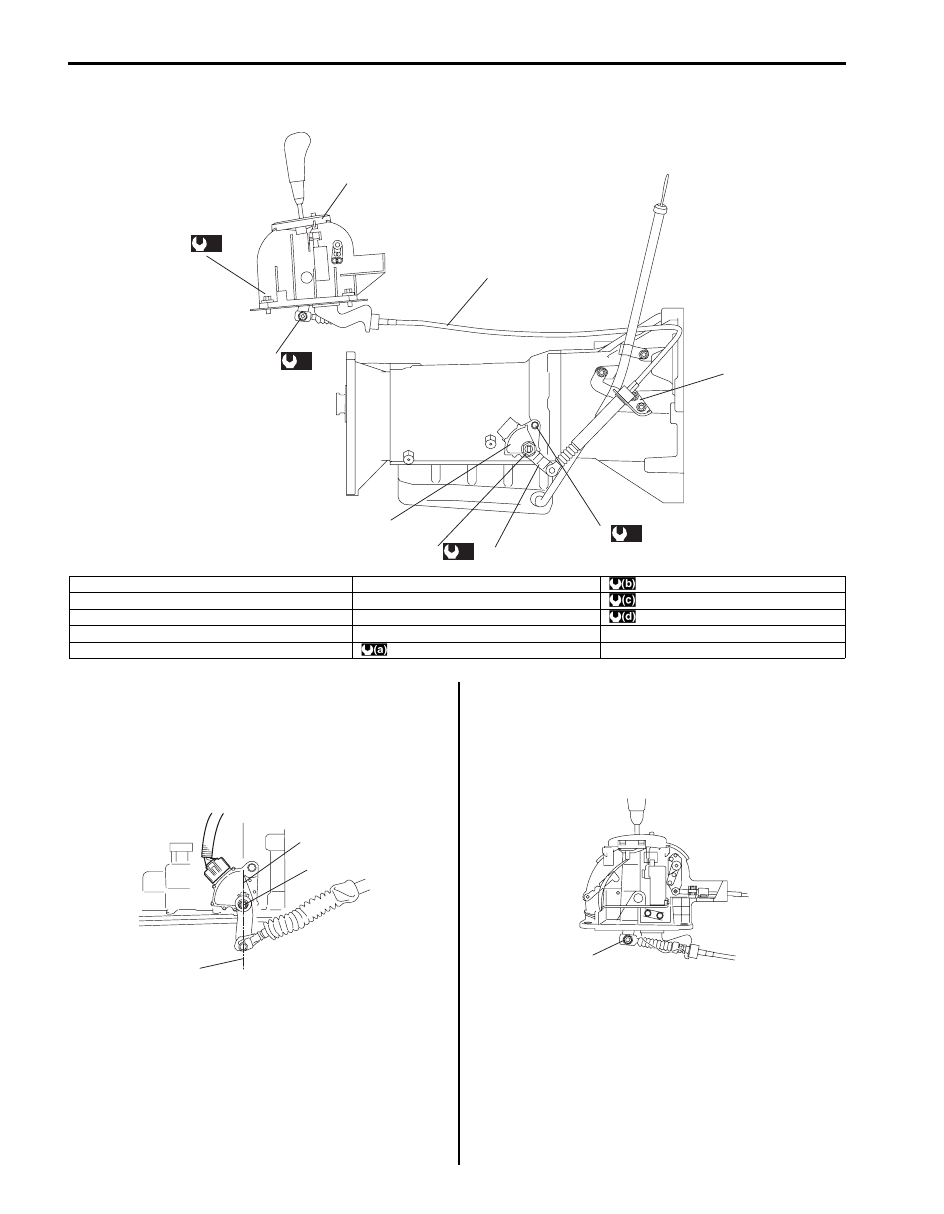

5A-89 Automatic Transmission/Transaxle:

Select Cable Component

S6JB0A5106008

Select Cable Adjustment

S6JB0A5106009

1) Loosen manual select cable nut.
2) Shift select lever to “N”.
3) Align center line (1) on manual shift shaft (2) to “N”

reference line (3) as shown in figure.

4) Tighten manual select cable nut (1) to specified

torque.

Tightening torque
Manual select cable nut (a):  13 N·m (1.3 kgf-m,
9.5 lb-ft)

5) After select cable was adjusted, check for the

following.
• Push vehicle with selector lever shifted to “P”.

Vehicle should not move.

• Vehicle can not be driven in “N”.
• Vehicle can be driven in “D”, “3”, “2” and “L”.
• Vehicle can be backed in “R”.

1

2

3

4

5

6

7

8

9

(a)

(b)

(c)

(d)

I5JB0A510035-01

1. Manual selector assembly

6. Manual select cable nut

: 13 N

⋅m (1.3 kgf-m, 9.5lb-ft)

2. Manual selector assembly mounting bolt

7. Manual select lever nut

: 12.5 N

⋅m (1.25 kgf-m, 9.0 lb-ft)

3. Select cable

8. Transmission range sensor

: 5.3 N

⋅m (0.53 kgf-m, 4.0 lb-ft)

4. Select cable bracket

9. Transmission range sensor bolt

5. Manual select lever

: 17.5 N

⋅m (1.75 kgf-m, 13.0 lb-ft)

1

2

3

I5JB0A510038-02

1, (a)

I5JB0A510036-02

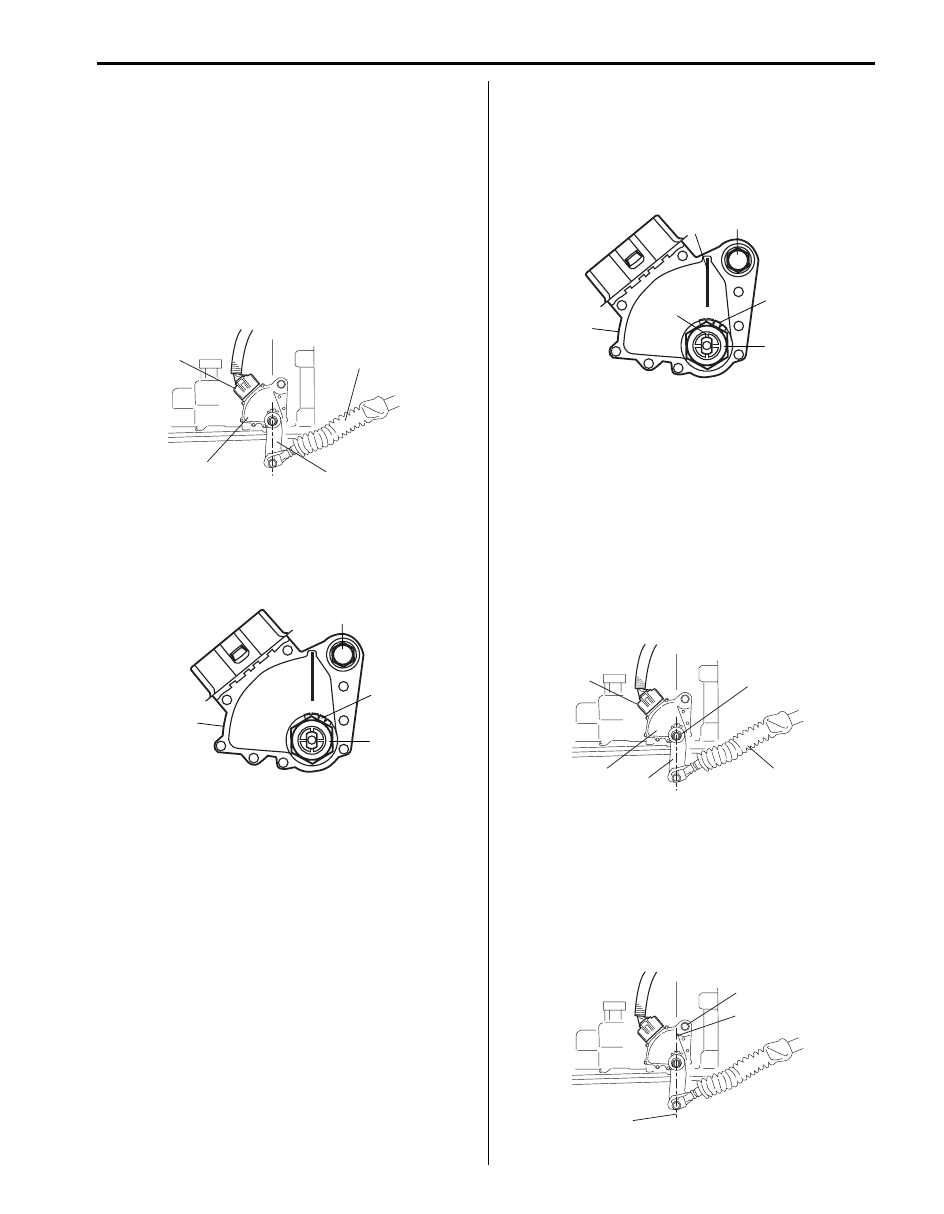

Automatic Transmission/Transaxle:  5A-90

Transmission Range Sensor Removal and
Installation

S6JB0A5106010

Removal

1) Disconnect negative cable at battery.
2) Hoist vehicle.
3) Disconnect transmission range sensor connector

(1).

4) Disconnect select cable (2) from manual select lever

(3).

5) Remove manual select lever (3) from transmission

range sensor (4).

6) Unbend bend parts of lock washer (1), then remove

manual shift shaft nut (2), lock washer (1) and
grommet.

7) Remove transmission range sensor (3) by removing

sensor bolt (4).

Installation

1) Install transmission range sensor (3) and tighten

sensor bolt (4) temporarily.

2) Install grommet, lock washer (1) and manual shift

shaft nut (2).
Tighten nut to specified torque. After tightening it,
bend claws of lock washer (1).

Tightening torque
Manual shift shaft nut (a):  12.5 N·m (1.25 kgf-m,
9.0 lb-ft)

3) After turning manual shift shaft fully

counterclockwise, turn it clockwise by 2 notches and
set it to “N” range.

4) With “N” reference line (5) on range sensor and shaft

center (6) aligned, tighten transmission range sensor
bolt (4) to specified torque.

Tightening torque
Transmission range sensor bolt (b):  5.3 N·m (
0.53 kgf-m, 4.0 lb-ft)

5) Install manual select lever (3) to transmission range

sensor (4).
Tighten nut to specified torque.

Tightening torque
Manual select lever nut (a):  12.5 N·m (1.25 kgf-
m, 9.0 lb-ft)

6) Connect select cable (2) to manual select lever (3).
7) Connect transmission range sensor connector (1).
8) Connect negative cable at battery.
9) Adjust select cable referring to “Select Cable

Adjustment”

Transmission Range Sensor Inspection and
Adjustment

S6JB0A5106011

1) Manual select lever to “N” range.
2) Check that center line (2) on manual shift and “N”

reference line (1) on sensor are aligned. If not,
loosen sensor bolt (3) and align them.

1

2

3

4

I5JB0A510037-01

4

3

1

2

I4JA01512011-01

6

5

4, (b)

3

1

2, (a)

I4JA01512012-01

2

3

4

(a)

1

I5JB0A510039-02

1

3

2

I5JB0A510040-01
