4F-8 Electronic Stability Program:

Terminal Arrangement of ESP

® Control Module Connector (Viewed from Terminal Side)

[B]: Diesel engine model

15. Other control modules are communicated

with CAN

30. ESP

® hydraulic unit / control module assembly

1. Battery

16. Stop light switch

31. Back up light switch

2. Main fuse box

17. Stop light

32. Back-up light

3. Ignition switch

18. ECM

33. ESP

® OFF switch

4. Junction block assembly

19. BCM

34. Power control unit

5. Steering angle sensor

20. Brake fluid level switch

35. Internal memory

6. CAN driver

21. Parking brake switch

36. Pump motor driver (transistor)

7. Combination meter

22. Yaw rate / G sensor assembly

37. Pump motor

8. SLIP indicator light

23. CAN driver (for yaw rate / G sensor

assembly)

38. Solenoid valve power supply driver (transistor)

9. ESP

® OFF light

24. Left-front wheel speed sensor

39. Solenoid valves

10. ESP

® warning light

25. Right-front wheel speed sensor

40. Solenoid valve driver (transistor)

11. ABS warning light

26. Left-rear wheel speed sensor

41. Master cylinder pressure sensor

12. EBD warning light (brake warning light)

27. Right-rear wheel speed sensor

13. Light driver module

28. Data link connector

Terminal

Circuit

Terminal

Circuit

E53-1

Solenoid valve power supply driver
(transistor)

E53-25

CAN communication line (low) for yaw
rate / G sensor assembly

E53-2

Right-front wheel speed sensor (–)

E53-26

—

E53-3

Right-front wheel speed sensor (+)

E53-27

—

E53-4

—

E53-28

—

E53-5

Left-rear wheel speed sensor (+)

E53-29

CAN communication line (high) for yaw
rate / G sensor assembly

E53-6

Left-rear wheel speed sensor (–)

E53-30

—

E53-7

ESP

® OFF switch signal

E53-31

Ground for yaw rate / G sensor assembly

E53-8

—

E53-32

Pump motor driver (transistor)

E53-9

—

E53-33

Data link connector

E53-10

—

E53-34

—

E53-11

Right-rear wheel speed sensor (–)

E53-35

Ignition switch

E53-12

Right-rear wheel speed sensor (+)

E53-36

—

E53-13

CAN communication line (high)

E53-37

Power source for yaw rate / G sensor
assembly

E53-14

Left-front wheel speed sensor (+)

E53-38

—

E53-15

Left-front wheel speed sensor (–)

E53-39

—

E53-16

Ground

E53-40

—

E53-17

—

E53-41

—

E53-18

—

E53-42

CAN communication line (high) for ECM

E53-19

—

E53-43

—

E53-20

—

E53-44

CAN communication line (low)

E53-21

—

E53-45

—

E53-22

—

E53-46

CAN communication line (low) for ECM

E53-23

—

E53-47

Ground

E53

I6JB01460009-02

Electronic Stability Program: 4F-9

Component Location

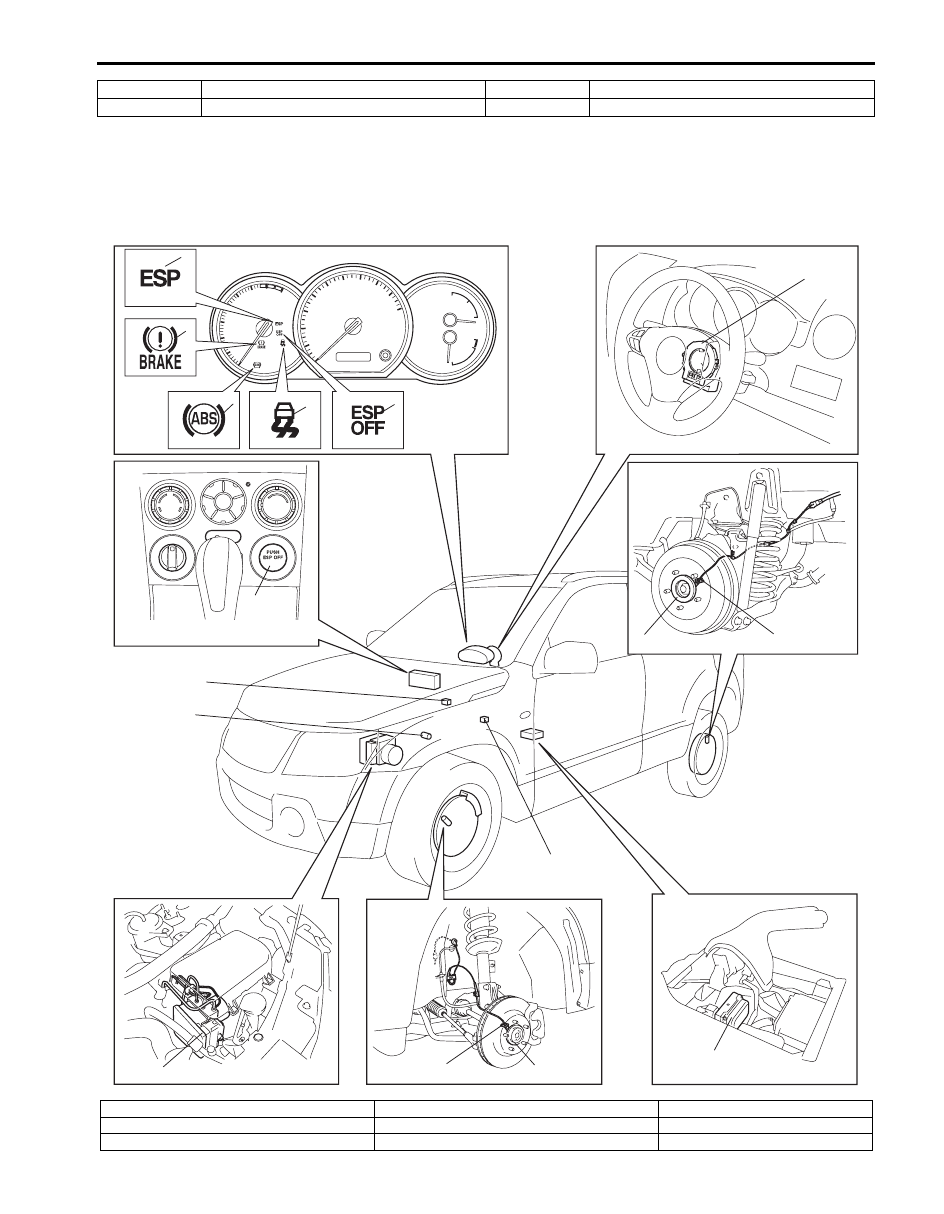

Electronic Stability Program Component Location

S6JB0A4603001

E53-24

—

Terminal

Circuit

Terminal

Circuit

I6JB01460010-03

1. ESP

® warning light

7. ESP

® OFF switch

13. Yaw rate / G sensor assembly

2. EBD warning light (brake warning light)

8. Rear wheel speed sensor

14. Data link connector

3. ABS warning light

9. Rear wheel encoder

15. Back up light switch

4F-10 Electronic Stability Program:

Diagnostic Information and Procedures

Electronic Stability Program Check

S6JB0A4604001

Refer to the following items for the details of each step.

4. SLIP indicator light

10. ESP

® hydraulic unit / control module assembly

16. Stop light switch

5. ESP

® OFF light

11. Front wheel speed sensor

6. Steering angle sensor

12. Front wheel encoder

Step

Action

Yes

)

Malfunction analysis

1) Perform “Customer complaint analysis: ”.
2) Perform “Problem symptom confirmation: ”.
3) Perform “DTC check, record and clearance: ” and

recheck DTC.

Is there any malfunction DTC?

Go to Step 4.

Go to Step 2.

)

Driving test

1) Perform “Step 2: Driving Test: ”.

Is trouble symptom identified?

Go to Step 3.

Go to Step 6.

)

DTC check

1) Perform “DTC Check”.

Is it malfunction code?

Go to Step 4.

Go to Step 5.

)

ESP

® check

1) Inspect and repair referring to applicable DTC flow.

Does trouble recur?

Go to Step 5.

Go to Step 7.

)

Brakes diagnosis

1) Inspect and repair referring to “Brakes Symptom

Diagnosis in Section 4A”.

Does trouble recur?

Go to Step 3.

Go to Step 7.

)

Intermittent problem check

1) Check intermittent troubles referring to “Intermittent and

Poor Connection Inspection in Section 00” and related
circuit of trouble code recorded in Step 1.

Does trouble recur?

Go to Step 4.

Go to Step 7.

)

Final confirmation test

1) Perform “Step 7: Final Confirmation Test: ”.

Does trouble recur?

Go to Step 3.

End.

Electronic Stability Program: 4F-11

Step 1: Malfunction Analysis
Customer complaint analysis
Record details of the problem (failure, complaint) and how it occurred as described by the customer.
For this purpose, use of such a questionnaire form as shown in the following will facilitate collecting information to the
point required for proper analysis and diagnosis.

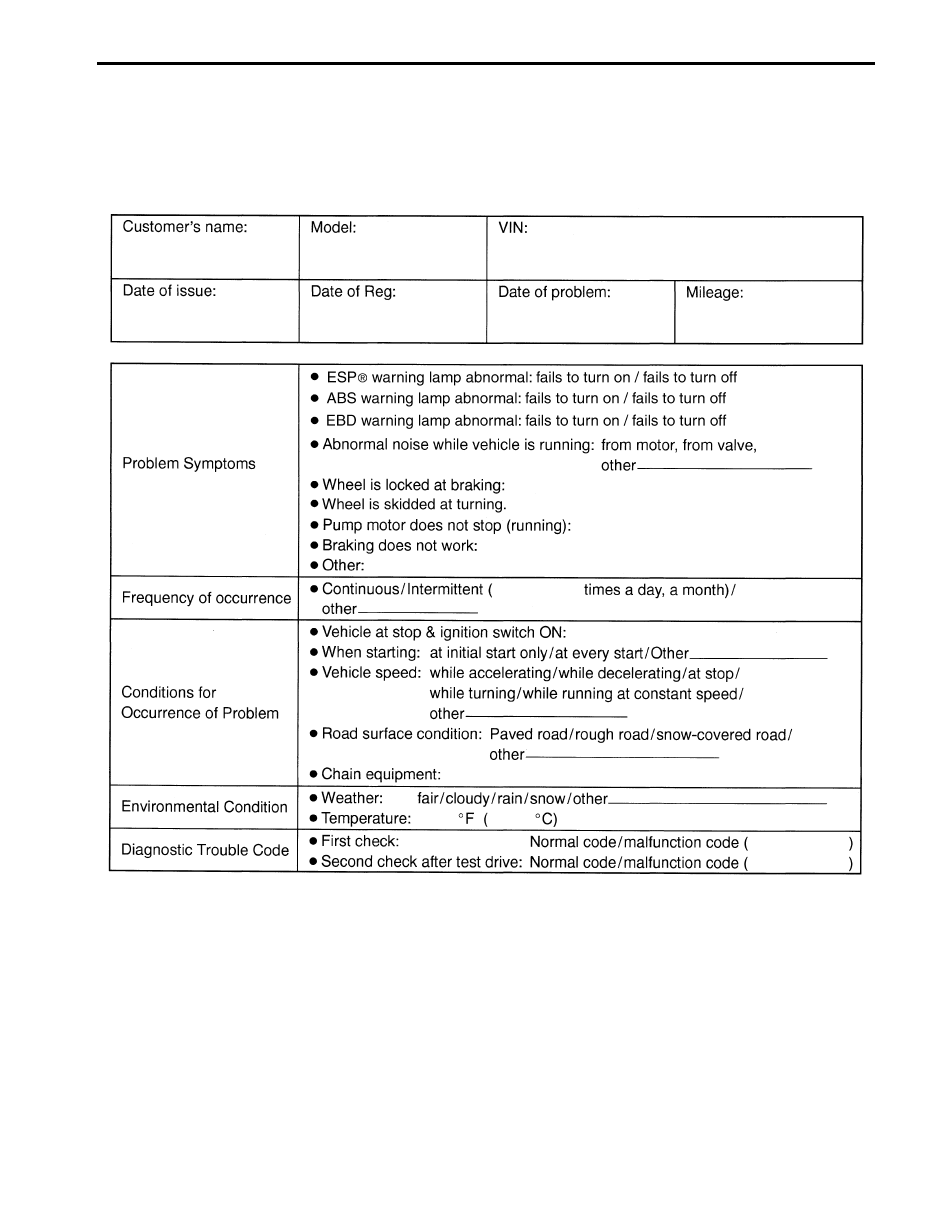

Customer questionnaire (Example)

Problem symptom confirmation
If symptom in “Customer Questionnaire” is found or reproduced in the vehicle, confirm the symptom is problem or not.
(This step should be done with the customer if possible.) Check warning lights related to brake system referring to
“EBD Warning Light (Brake Warning Light) Check in Section 4E”, “ABS Warning Light Check in Section 4E” and
“ESP

® Warning Light Check”.

DTC check, record and clearance
Perform “DTC Check” procedure, record it and then clear it referring to “DTC Clearance”.
Recheck DTC referring to “DTC Check”.
When DTC which is recorded at DTC check procedure is detected again after performing DTC clearance, go to “Step
4: ESP

® Check: ” to proceed the diagnosis.

When DTC which is recorded at DTC check procedure is not indicated anymore after performing DTC clearance,
ESP

® control module does not perform the system diagnosis, or temporary abnormality may occur, therefore go to

“Step 2: Driving Test: ” to proceed the diagnosis.

I6JB01460011-02
