3C-47 Transfer: Motor-Shift Type (Transfer with Shift Actuator)
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
1) Clear DTC using scan tool.
2) Start engine and drive vehicle at 50 km/h (31 mile/h) or more vehicle speed at least for 1 min.
3) Stop vehicle and check DTC.

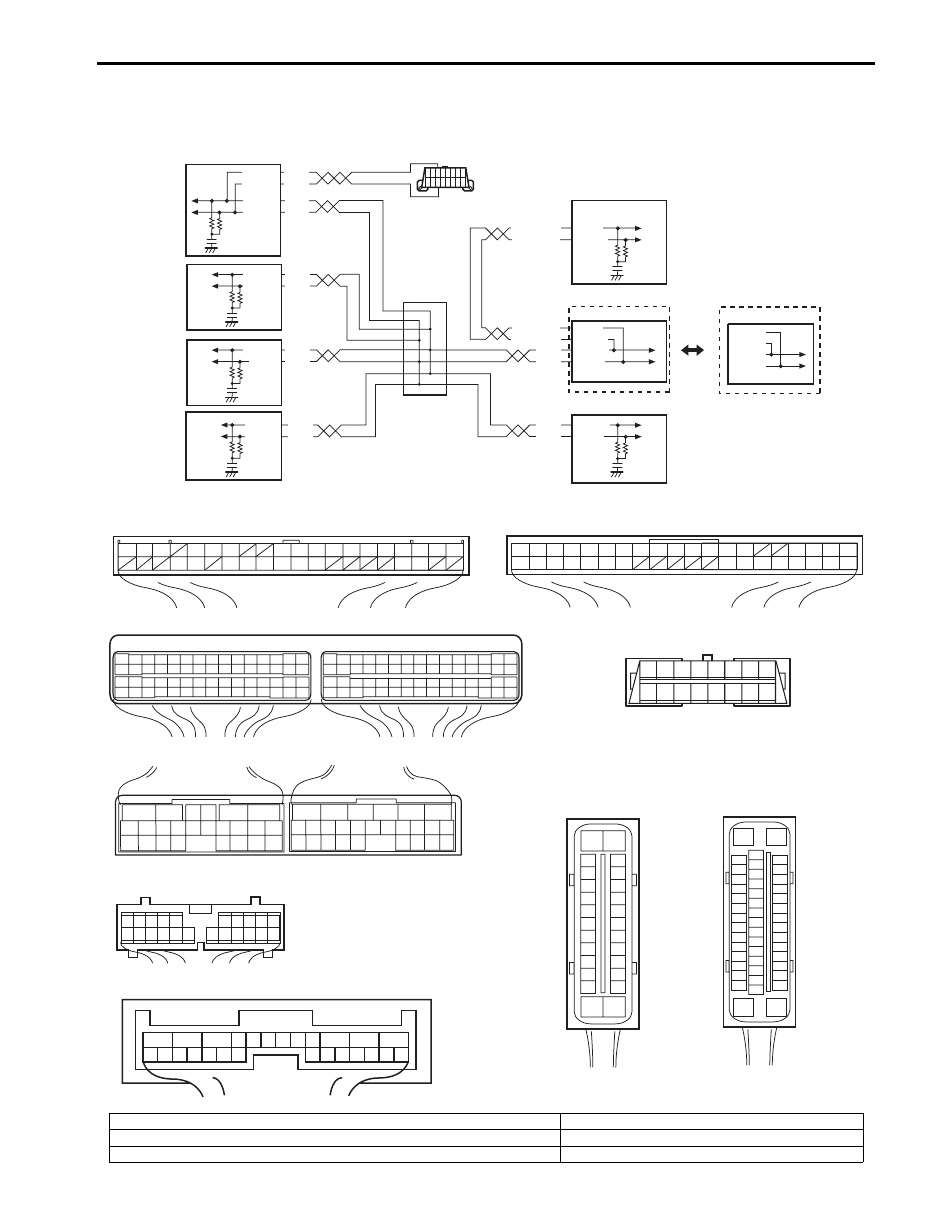

Troubleshooting
DTC detecting condition
Trouble area
CPP switch signal is input when vehicle speed is 30 km/h (19
mph).
• CPP switch
• CPP switch circuit
• 4WD control module
Step
Action
Yes
No
1
Was “4WD control system check” performed?
Go to Step 2.
Go to “4WD Control
System Check: Motor-
Shift Type (Transfer with
Shift Actuator)”.
2
CPP switch circuit check
1) Disconnect CPP switch connector with ignition switch
OFF.
2) Check for proper connection to terminal of CPP switch
connector.
3) If connection is OK, measure voltage between “BLK/
ORN” terminal of CPP switch connector and vehicle
body ground with ignition switch ON.
Is it 10 – 14 V?
Go to Step 3.
Go to Step 4.
3
CPP switch check
1) Check CPP switch referring to “Clutch Pedal Position
(CPP) Switch Inspection and Adjustment in Section 5C”.
Is switch in good condition?
Substitute a known-
good 4WD control
module and recheck.
Replace CPP switch.
4
Wire harness check
1) Disconnect connector from 4WD control module
connector “E91” with ignition switch OFF.
2) Check for proper connection to “E91-7” terminal of 4WD
control module connector.
3) If OK, measure resistance between “BLK/ORN” terminal
of CPP switch connector and “E91-7” terminal of 4WD
control module connector.
Is it 1 M
Ω
or more?
Substitute a known-
good 4WD control
module and recheck.
“BLK/ORN” wire is
shorted to ground
circuit.
