Suzuki Grand Vitara JB419. Manual - part 172

Instrumentation / Driver Info. / Horn:  9C-5

Oil Pressure Switch Inspection

S5JB0B9306007

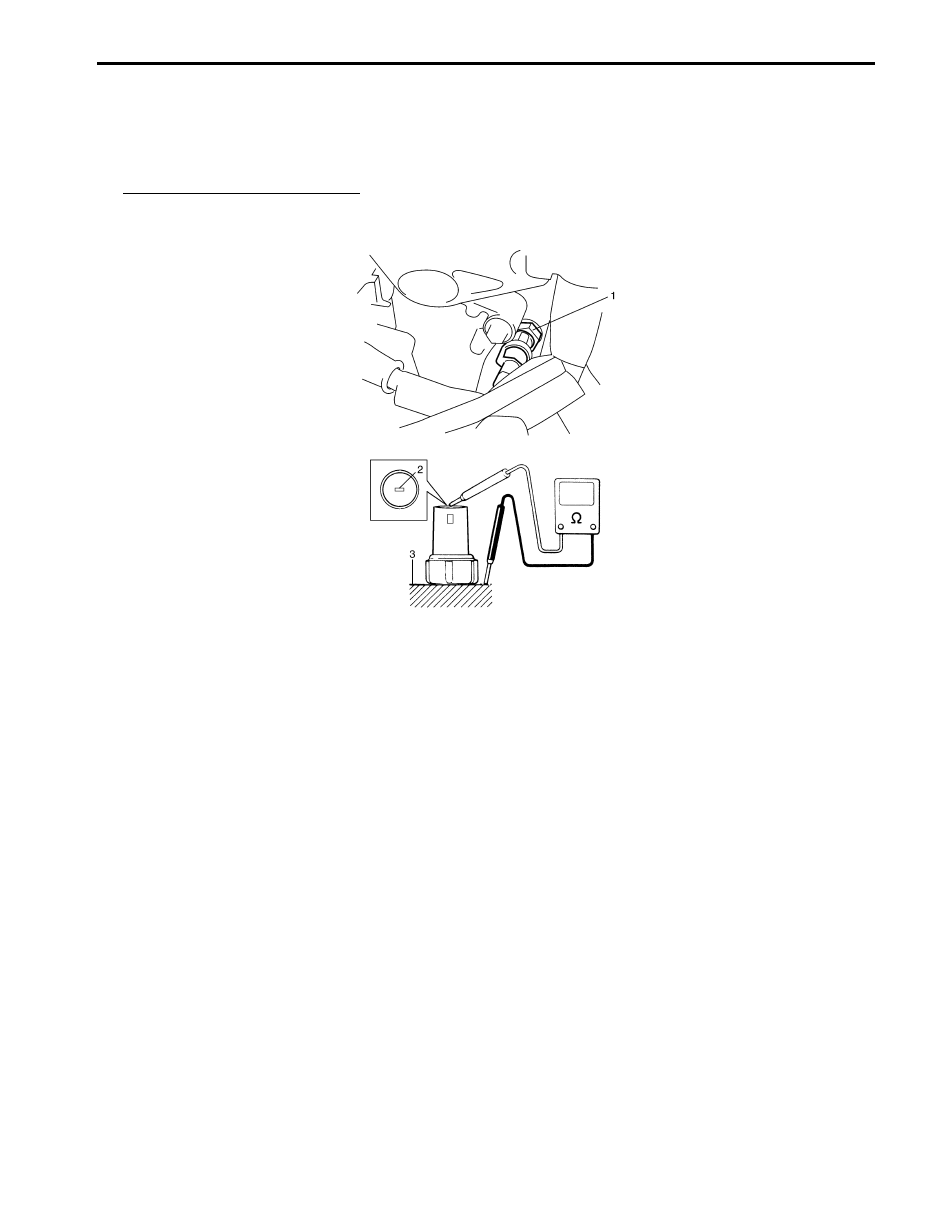

1) Disconnect connector from oil pressure switch (1).
2) Check for continuity between oil pressure switch terminal (2) and cylinder block (3) as shown.

If check result is not as specified, replace oil pressure switch (1).

Oil pressure sensor specification
During engine running: No continuity
At engine stop: Continuity

I5JB0B930004-01

9C-6 Instrumentation / Driver Info. / Horn:
