Suzuki Grand Vitara JB419. Manual - part 142
Wiring Systems: 9A-38

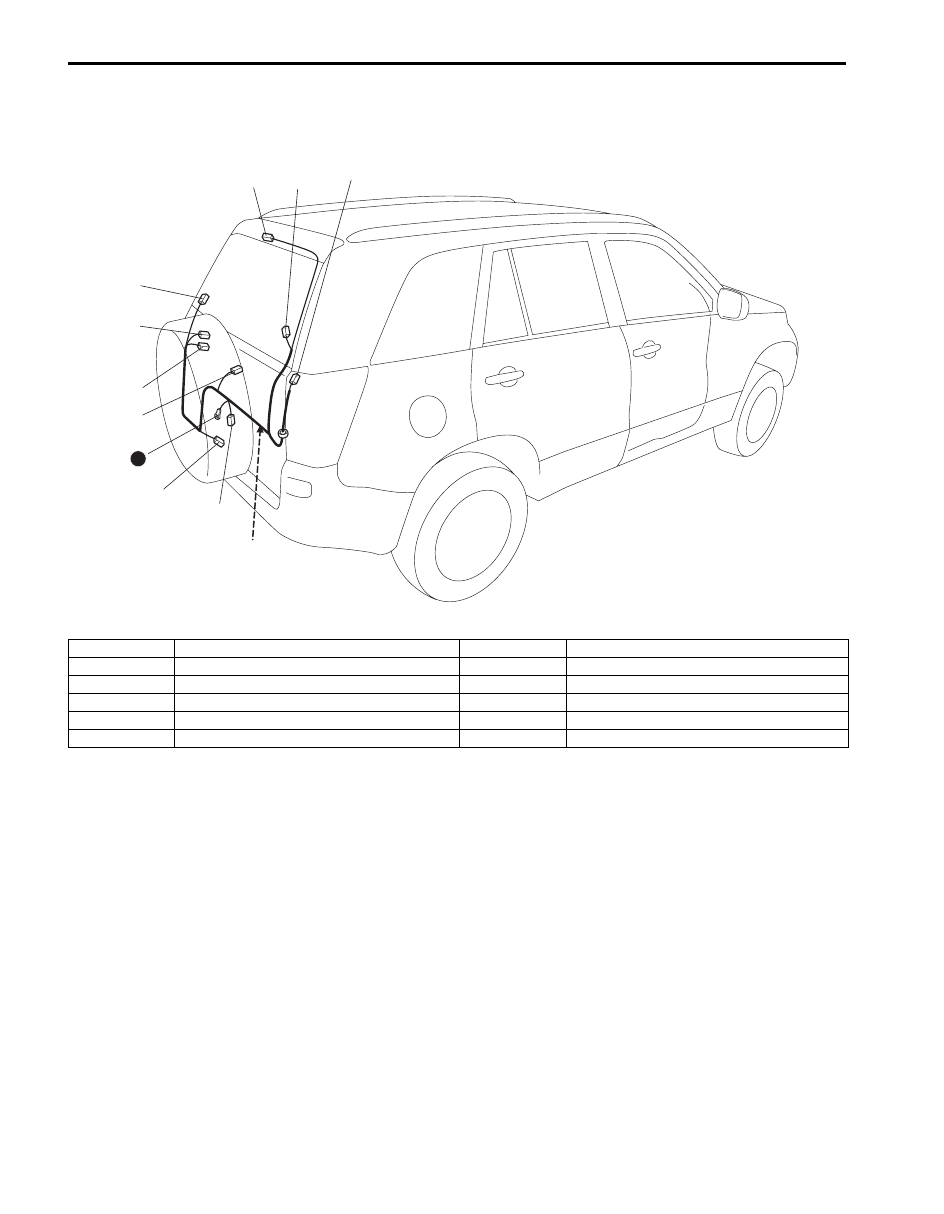

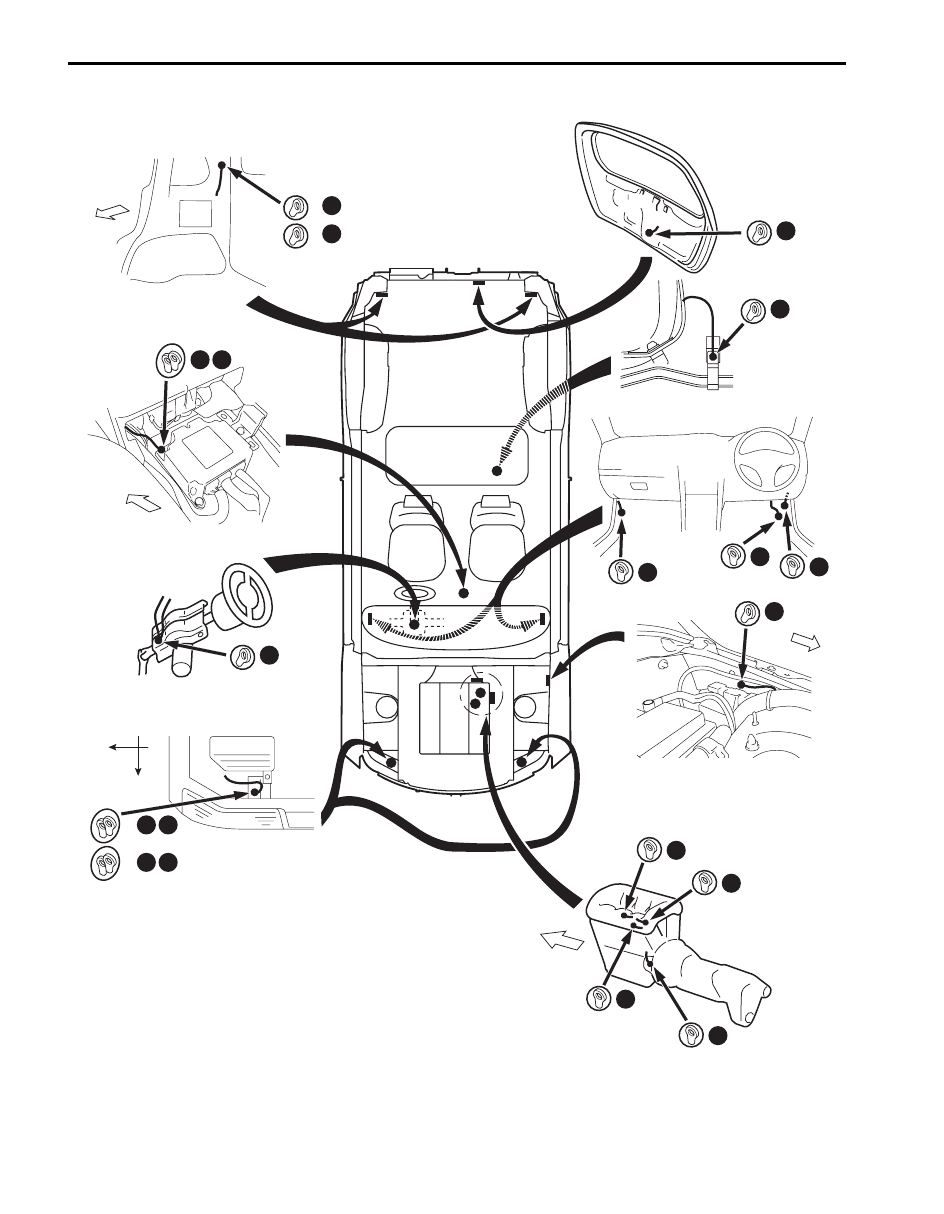

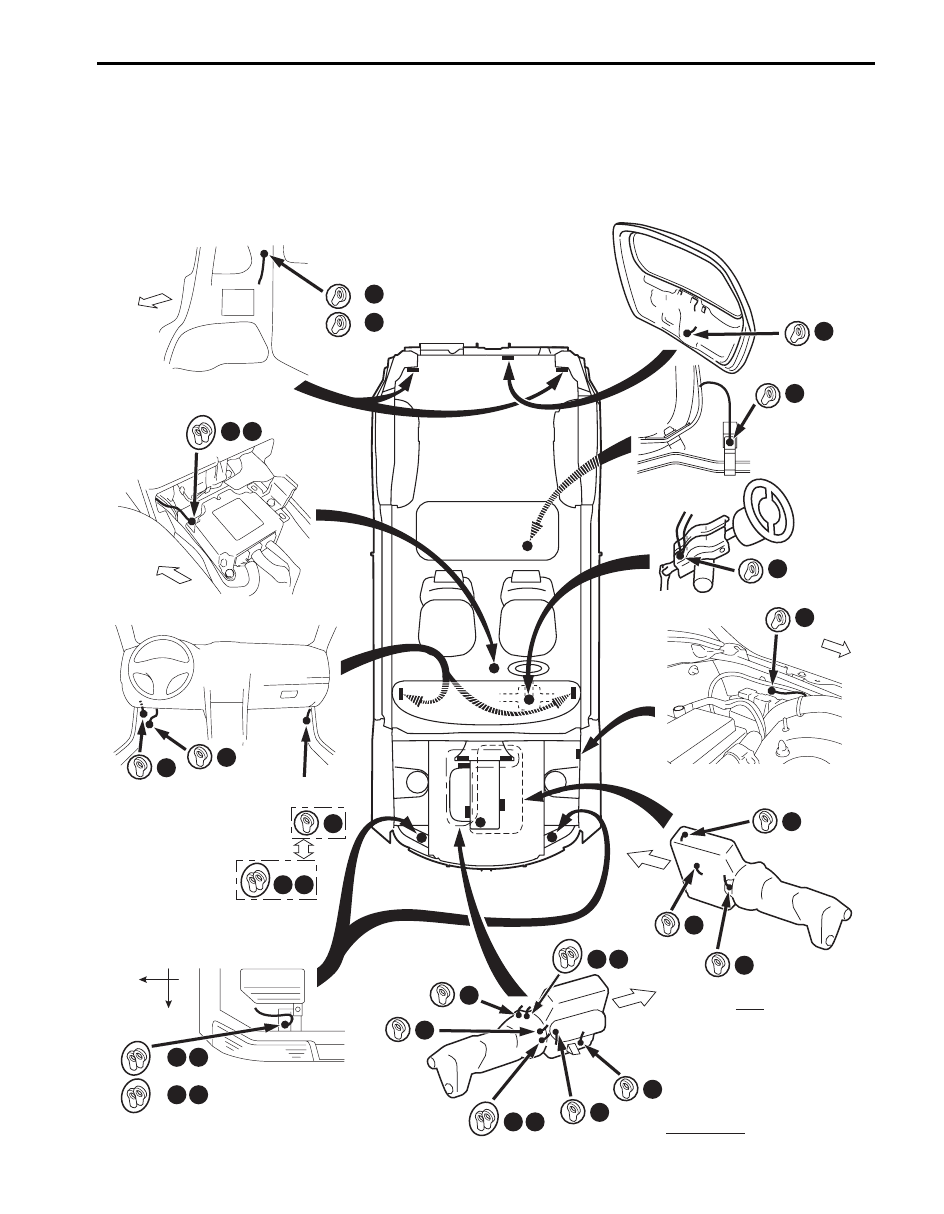

L: Floor harness
L: Luggage compartment light wire
R: Fuel pump wire
No./Color
Connective position
No./Color
Connective position
L01/N
Main harness (To E80)
L30/YEL
Side air-bag inflator (L)
L03/YEL
Main harness (To E79)
L31/GRY
Front door wire (Passenger side) (To J09)
L04/BLK
Turn signal relay
L32/YEL (8ch) A/B SDM
L05/N
J/B
L33/YEL (8ch) A/B SDM
L06/N
J/B
L34/N
Front door switch (Passenger side)
L07/GRY
Front door wire (Driver side) (To J01)
L35/YEL
Side air- bag sensor (L)
L08/N
Instrument panel harness (To G07)
L36/BLK
Pretensioner (Passenger side)
L09/BLU
Instrument panel harness (To G08)
L38/GRY
Wheel speed sensor (RL)
L10/N
Front door switch (Driver side)
L41/BLK
Side curtain air-bag (Passenger side)
L11/YEL
Side air-bag sensor (R)
L42/N
Rear end door wire (To O01)
L12/BLK
Pretensioner (Driver side)
L43/N
Rear combination lamp (L)
L14/N
Wheel speed sensor (RR)
L44/N
Keyless entry receiver
L15/GRY
Fuel pump wire (To R01)
L47/N
ACC socket #1
L18/BLK
Side curtain air-bag (Driver side)
L48/N
ACC socket #1
L19/N
Luggage compartment light wire (To L68)
L52/N
Licence plate light #1
L20/N
Rear combination lamp (R)
L53/N
Licence plate light #2
L22/N
J/C
L54/N
Rear end door switch
L23/N
J/C
L56/N
Seat belt switch
L25/YEL
Side air-bag inflator (R)
L57/N
Seat heater (Driver side)
L27/N
Instrument panel harness (To G72)
L59/N
Seat heater (Passenger side)
L28/N
Instrument panel harness (To G73)
L63/N
Rear speaker (R)
L29/YEL
Instrument panel harness (To G55)
L64/N
Rear speaker (L)
No./Color
Connective position
No./Color
Connective position
L68/N
Floor harness (To L19)
L69/N
Luggage compartment light
No./Color
Connective position
No./Color
Connective position
R01/GRY Floor harness (To L15)
R03/N
Fuel pump sub gauge
R02/GRY or
BLK
Fuel pump and gauge
