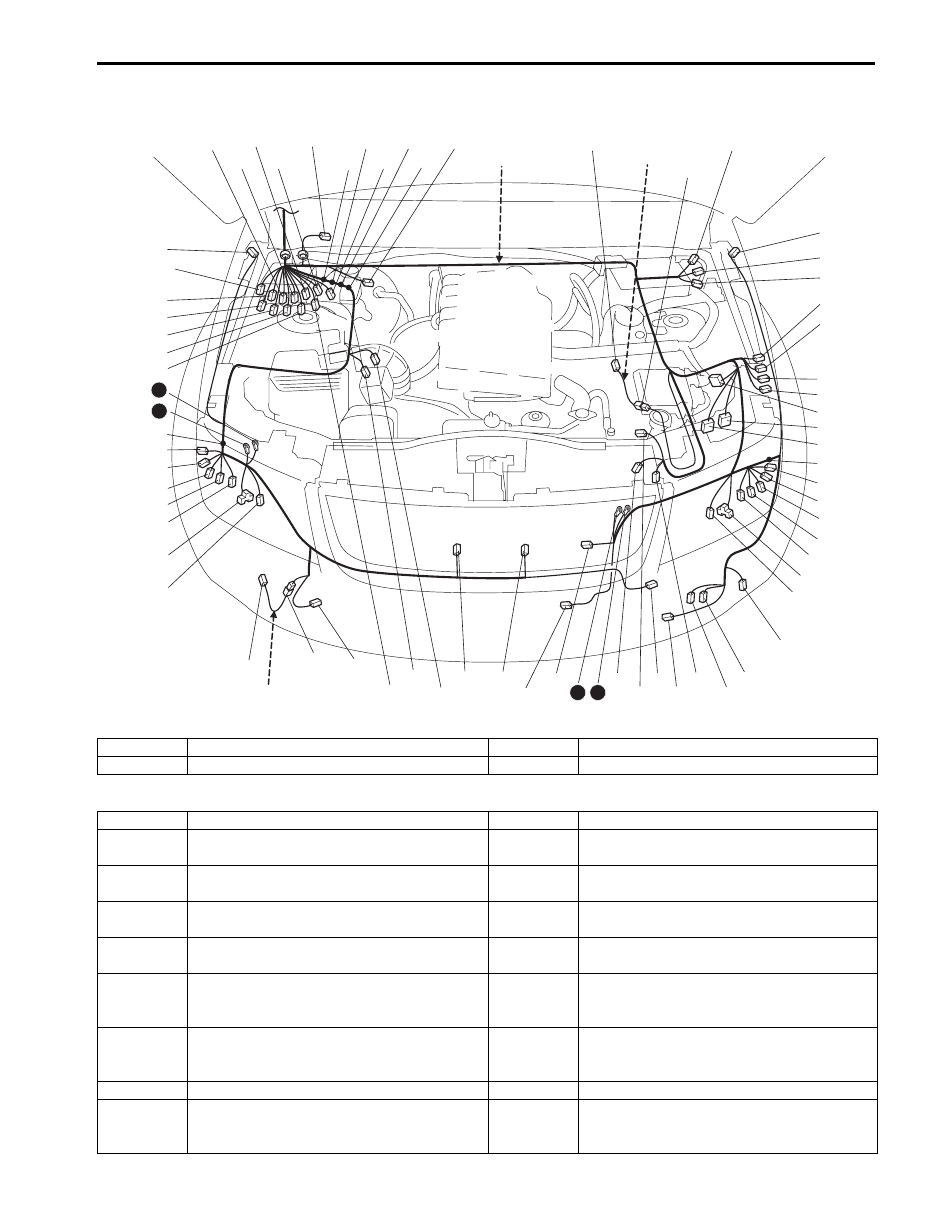

Wiring Systems: 9A-14 B: A/C compressor wire / E: Main harness, Front height sensor wire (Petrol RHD) B: A/C compressor wire E: Main harness 6 7 8 9 E54 (TO C34) E55 (TO C35) E40 E06 E36 E35 E32 E34 E45 E59 E07 E44 E09 E08 E46 E37 E12 E86 Front height sensor wire E33 E38 E61 E42 E64 E62 E63 E02 E13 E05 E16 E15 E22 E20 E48 E47 E49 E21 E50 E60 E03 E53 E28 E29 E30 E31 E19 E56 B02 E57 E58 E23 E26 E27 E24 E14 E04 E18 E25 E10 E11 E51 E41 E01 E B { E52 { E17 I5JB0B910906-04 No./Color Connective position No./Color Connective position B01/BLK Main Harness (To E17) B02/BLK A/C compressor No./Color Connective position No./Color Connective position E01/GRY Windshield wiper motor E33/BLK Fuse box No.2 (Heater motor relay & Main E02/GRY Brake fluid level switch E34/BLK (M16A) Fuse box No.2 (A/C compressor relay & E03/BLK ABS control module E35/N Power integration No.1 (Mirror heater relay E04/BLK A/C pressure sensor E36/N Power integration No.1 (Horn relay & Rear E05/N Wheel speed sensor (FR) E37/N (J20A, Power integration No.2 (A/C compressor E06/N Side turn signal light (R) E38/N (J20A, Power integration No.2 (A/T relay) E07/N Front position light (R) E40/GRY Power integration No.1 E08/BLK (3 dr) Headlight (R) E41/N (J20A, Power integration No.2 |
