9) Crank engine with fully charged battery, and read the

highest pressure on compression gauge.

NOTE

• For measuring compression pressure,

crank engine at least 250 r/min. by using
fully charged battery.

• If measured compression pressure is

lower than limit value, check installation
condition of special tool. If it is properly
installed, possibility is compression
pressure leakage from where piston ring or
valve contact.



Compression pressure
Standard:
2200 – 2600 kPa (22 – 26kgf/cm

2

, 319 – 392psi)

Limit:
Min. 2100 kPa (21 kgf/cm

2

, 304.5 psi)

Max. 2700 kPa (27 kgf/cm

2

, 391.5 psi)

Max. difference between any two cylinders:
400 kPa (4 kgf/cm

2

, 58 psi)

10) Carry out Steps 7) through 9) on each cylinder to

obtain 4 readings.

11) Disconnect negative (–) cable at battery.

12) After checking, install glow plugs referring to “Glow

Plug Removal and Installation in Section 1C”.

13) Connect ECM connectors and pre-heating unit

connector.

14) Connect negative (–) cable at battery.

Valve Lash (Clearance) Inspection

S5JB0B1404003

1) Remove negative cable at battery.
2) Remove cylinder head cover referring to “Cylinder

Head Cover Removal and Installation”.

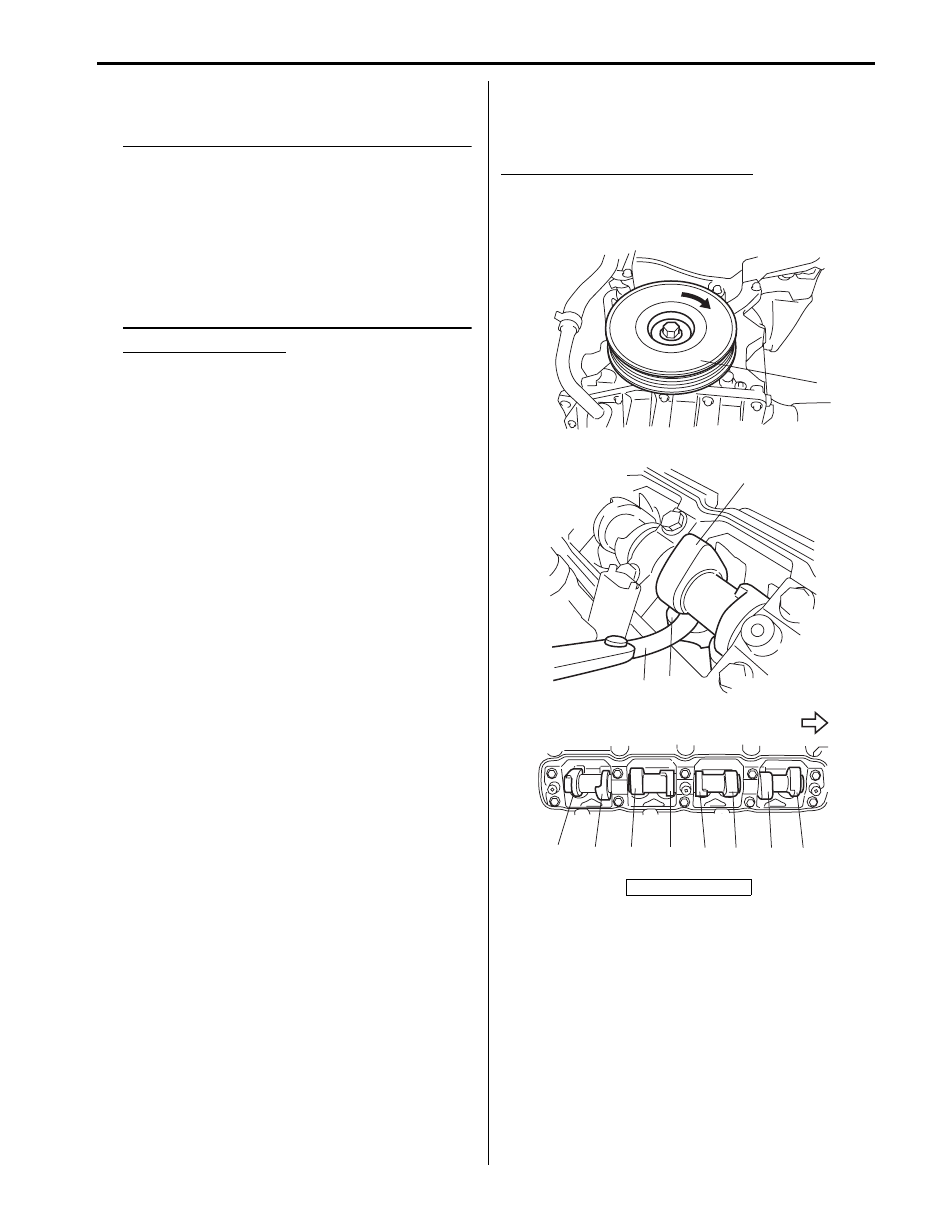

3) Turn crankshaft pulley (1) clockwise until cam lobe

(2) becomes perpendicular to tappet face (3) at
valves “1” and “6” as shown in figure.

4) Check valve lashes with thickness gauge (4)

according to the following procedure.
a) Check valve lashes at valves “1” and “6”.
b) Turn camshaft by 90

° by turning crankshaft

pulley with wrench.

c) Make sure that cam lobe is perpendicular to

tappet face at valves to be checked (in this case,
“5” and “8”), if not, adjust camshaft position by
turning crankshaft pulley. Check valve lashes.

d) In the same manner as b) – c), check valve

lashes at valves “4” and “7”.

e) In the same manner as b) – c) again, check

valve lashes at valves “2” and “3”.

If valve lash (clearance) is out of specification,
record valve lash (clearance) and adjust it to
specification referring to “Valve Lash (Clearance)
Adjustment”.

Valve lash (clearance) specification
When cold:

• Intake: 0.15 – 0.25 mm (0.0060 – 0.0098 in.)
• Exhaust: 0.35 – 0.45 mm (0.0138 – 0.0177 in.)

5. Fly wheel side

2

4

3

“8”

“7”

“6”

“5”

“4”

“3”

“2”

“1”

1

5

I5JB0B140003-03

1D-3 Engine Mechanical:

Valve Lash (Clearance) Adjustment

S5JB0B1404004

1) Measure valve lash (clearance) referring to “Valve

Lash (Clearance) Inspection”.

2) Remove tappet referring to “Camshaft and Tappet

Removal and Installation”.

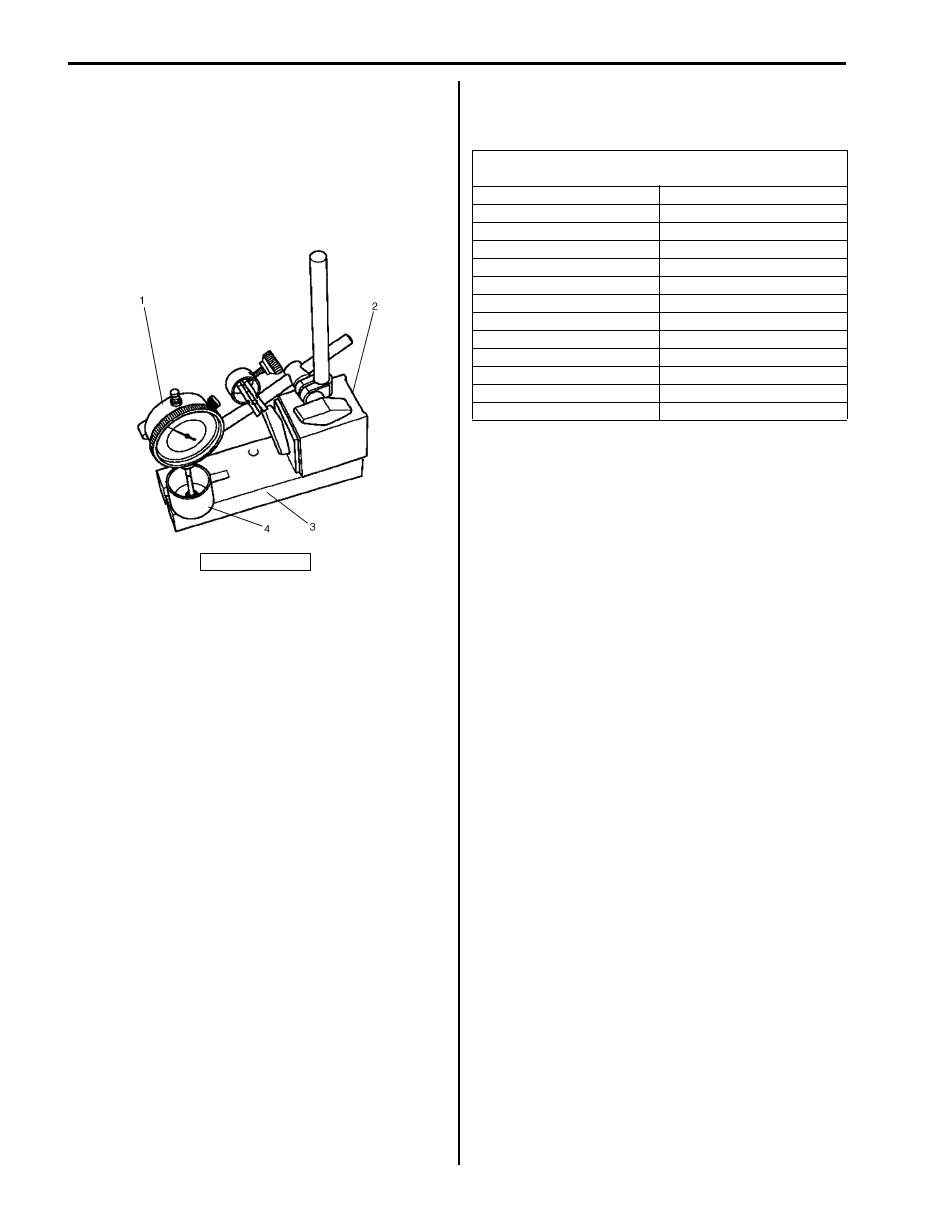

3) Using dial gauge (1), magnetic stand (2) and surface

plate (3), measure thickness of removed tappet.

4) Determine replacement tappet by calculating

thickness of new tappet with the following formula.
Intake side:
A = B + C – 0.200 mm (0.00787 in.)
Exhaust side:
A = B + C – 0.400 mm (0.01575 in.)
A: Thickness of new tappet
B: Thickness of removed tappet
C: Measured valve lash (clearance)
Example of intake side:
When thickness of removed tappet is 7.825 mm
(0.30807 in.), and measured valve lash (clearance)
is 0.275 mm (0.0108 in.):
A = 7.825 mm (0.30807 in.) + 0.275 mm (0.0108 in.)
– 0.200 mm (0.007382 in.) = 7.900 mm (0.31102 in.)
Calculated thickness of new tappet = 7.900 mm
(0.31102 in.)

5) Select new tappet with a thickness as close as

possible to calculated value.

Available new tappet

6) Install tappet and camshaft referring to “Camshaft

and Tappet Removal and Installation”.

7) Confirm valve lash (clearance) is within specification

referring to “Valve Lash (Clearance) Inspection”.

8) Install cylinder head cover referring to “Cylinder

Head Cover Removal and Installation”.

4. Tappet

I5JB0B140004-01

Thickness

mm (in.)

7.550 (0.29724)

7.875 (0.31004)

7.575 (0.29823)

7.900 (0.31102)

7.600 (0.29921)

7.925 (0.31201)

7.625 (0.30020)

7.950 (0.31299)

7.650 (0.30118)

7.975 (0.31398)

7.675 (0.30217)

8.000 (0.31496)

7.700 (0.30315)

8.025 (0.31595)

7.725 (0.30413)

8.050 (0.31693)

7.750 (0.30512)

8.075 (0.31791)

7.775 (0.30610)

8.100 (0.31890)

7.800 (0.30709)

8.125 (0.31988)

7.825 (0.30807)

8.150 (0.32087)

7.850 (0.30906)

Engine Mechanical:  1D-4

Repair Instructions

Air Cleaner Components

S5JB0B1406072

Air Cleaner Removal and Installation

S5JB0B1406073

Removal

1) Disconnect negative (–) cable at battery.
2) Disconnect MAF sensor connector.
3) Remove air cleaner.

Installation
Reverse removal procedure for installation.

Air Cleaner Filter Removal and Installation

S5JB0B1406001

Removal

1) Open air cleaner case (1) by unhooking its clamps

(2).

2) Remove air cleaner filter from case.

Installation
Reverse removal procedure for installation.

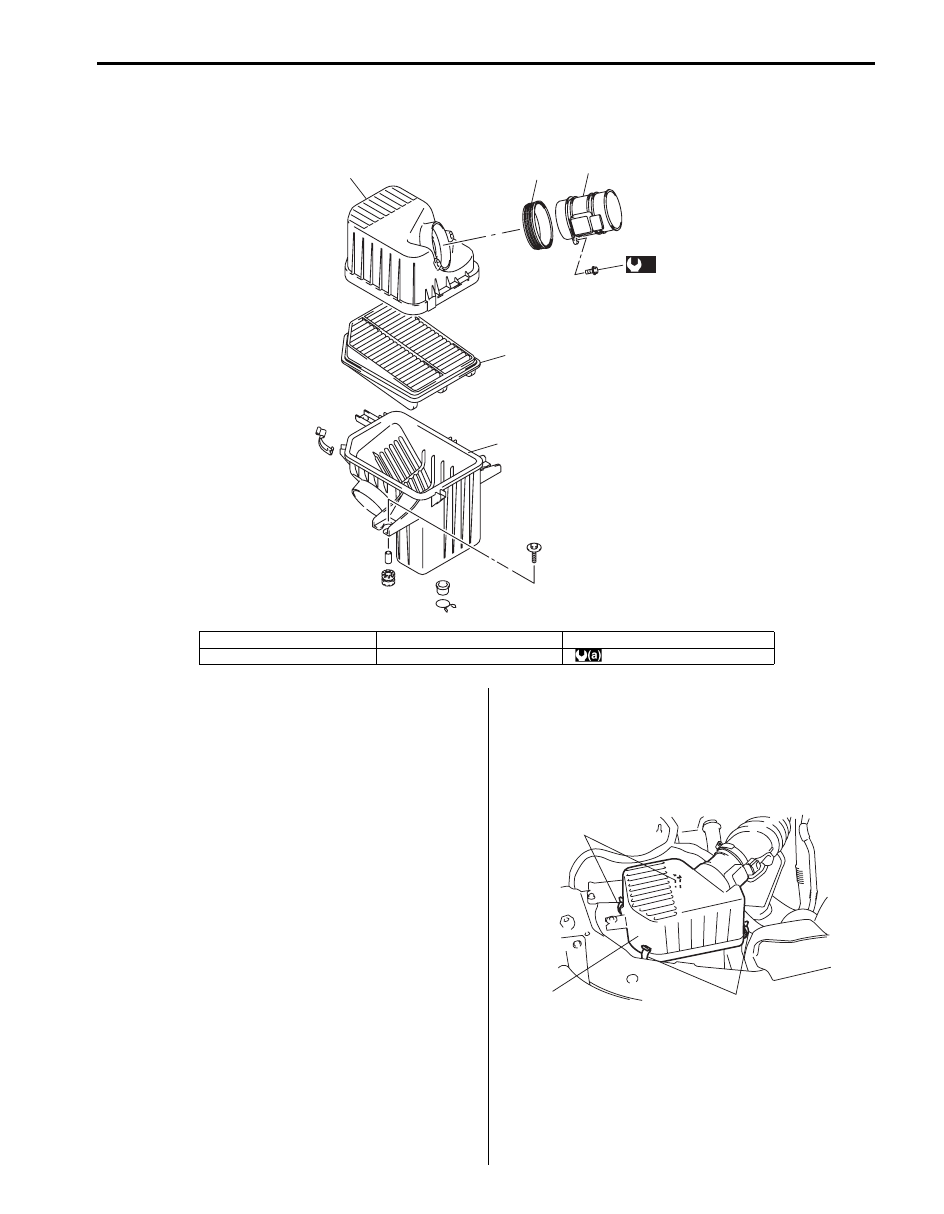

1. MAF sensor

3. Air cleaner filter

5. Gasket

2. Air cleaner upper case

4. Air cleaner lower case

: 6 N

⋅m (0.6 kgf-m, 4.5 lb-ft)

2

5

1

3

4

(a)

I5JB0B140143-01

2

2

1

I5JB0B140005-01

1D-5 Engine Mechanical:

Air Cleaner Filter Inspection and Cleaning

S5JB0B1406002

Inspection
Check air cleaner filter for dirt. Replace excessive dirty
filter.

Cleaning
Blow off dust by compressed air from air outlet side of
filter.

Intercooler and Air Intake Pipe Components

S5JB0B1406045

Intercooler Removal and Installation

S5JB0B1406046

Removal

1) Remove front bumper referring to “Front Bumper

Components in Section 9K in related manual” and
“Rear Bumper Components in Section 9K in related
manual”.

2) Remove resonator (1).

I2RH0B140150-01

5

5

5

4

1

3

2

5

6

7

(a)

(d)

(b)

(b)

(b)

(c)

9

8

(b)

I5JB0B140006-04

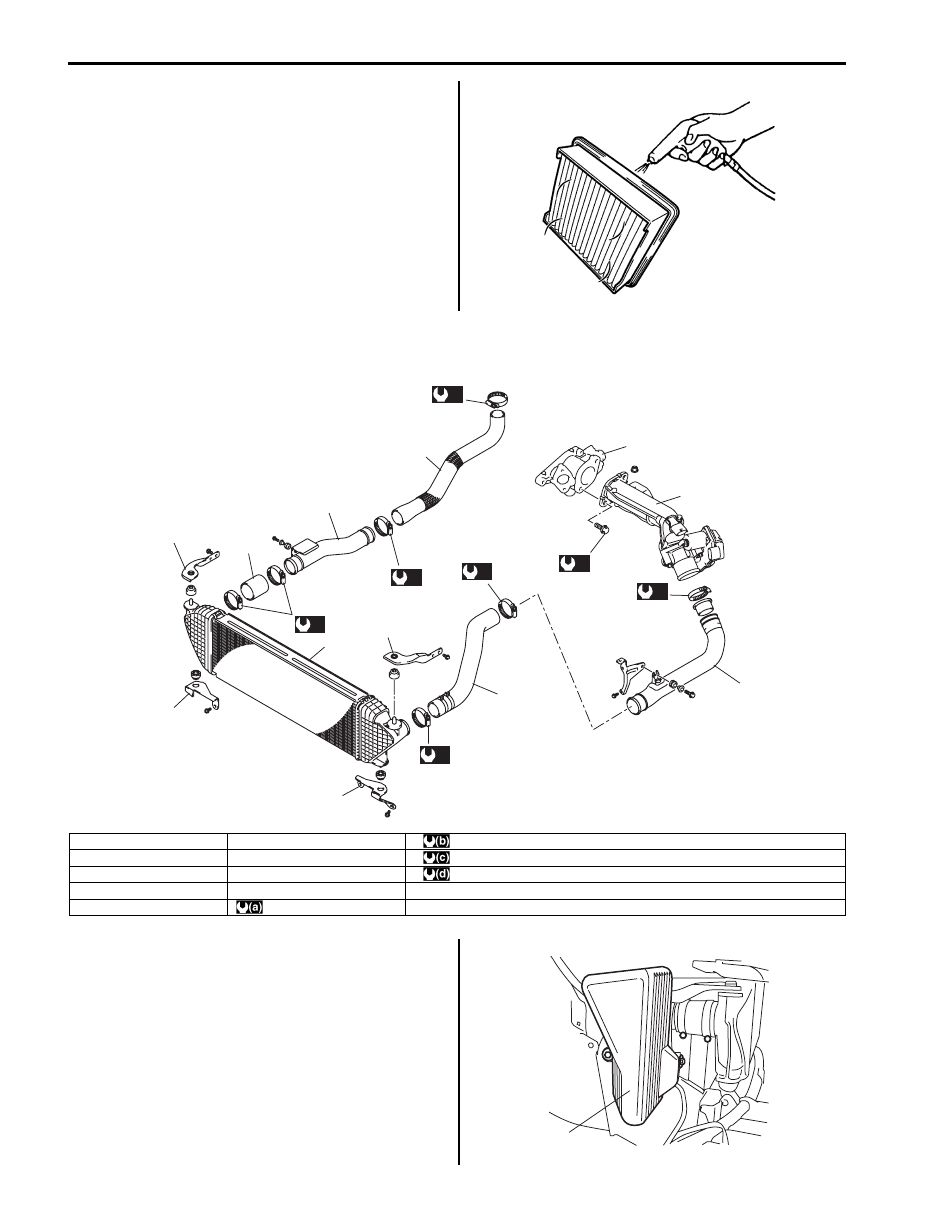

1. Intercooler

6. Intercooler outlet hose

: 4.5 N

⋅m (0.45 kgf-m, 3.5 lb-ft)

2. Turbocharger outlet hose

7. Intercooler outlet pipe

: 21 N

⋅m (2.1 kgf-m, 15.5 lb-ft)

3. Intercooler inlet pipe

8. Air intake pipe

: Tighten 5 N

⋅m (0.5 kgf-m, 4.0 lb-ft) and 5 N⋅m (0.5 kgf-m, 4.0 lb-ft) after 5 minutes.

4. Intercooler inlet hose

9. EGR valve

5. Intercooler blacket

: 5 N

⋅m (0.5 kgf-m, 4.0 lb-ft)
