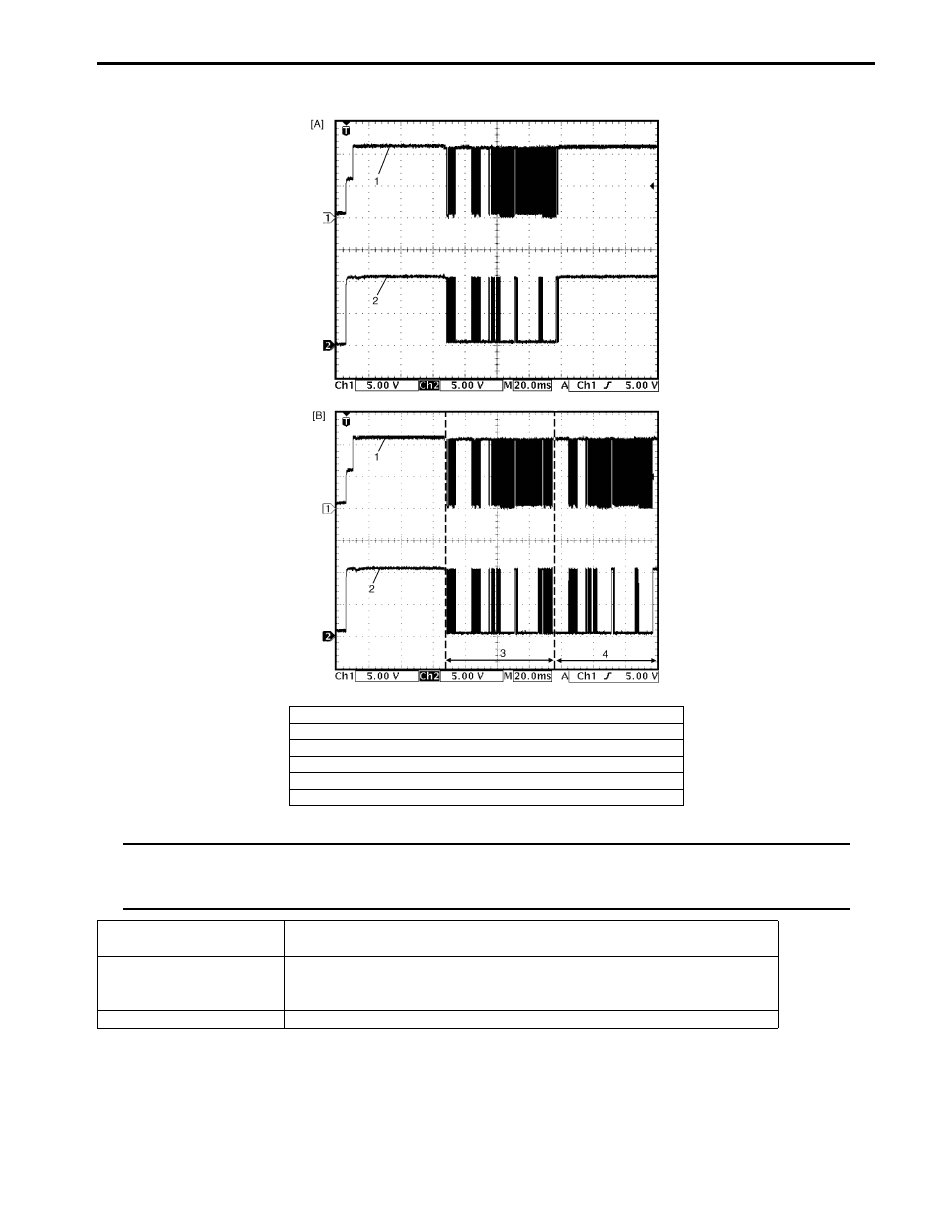

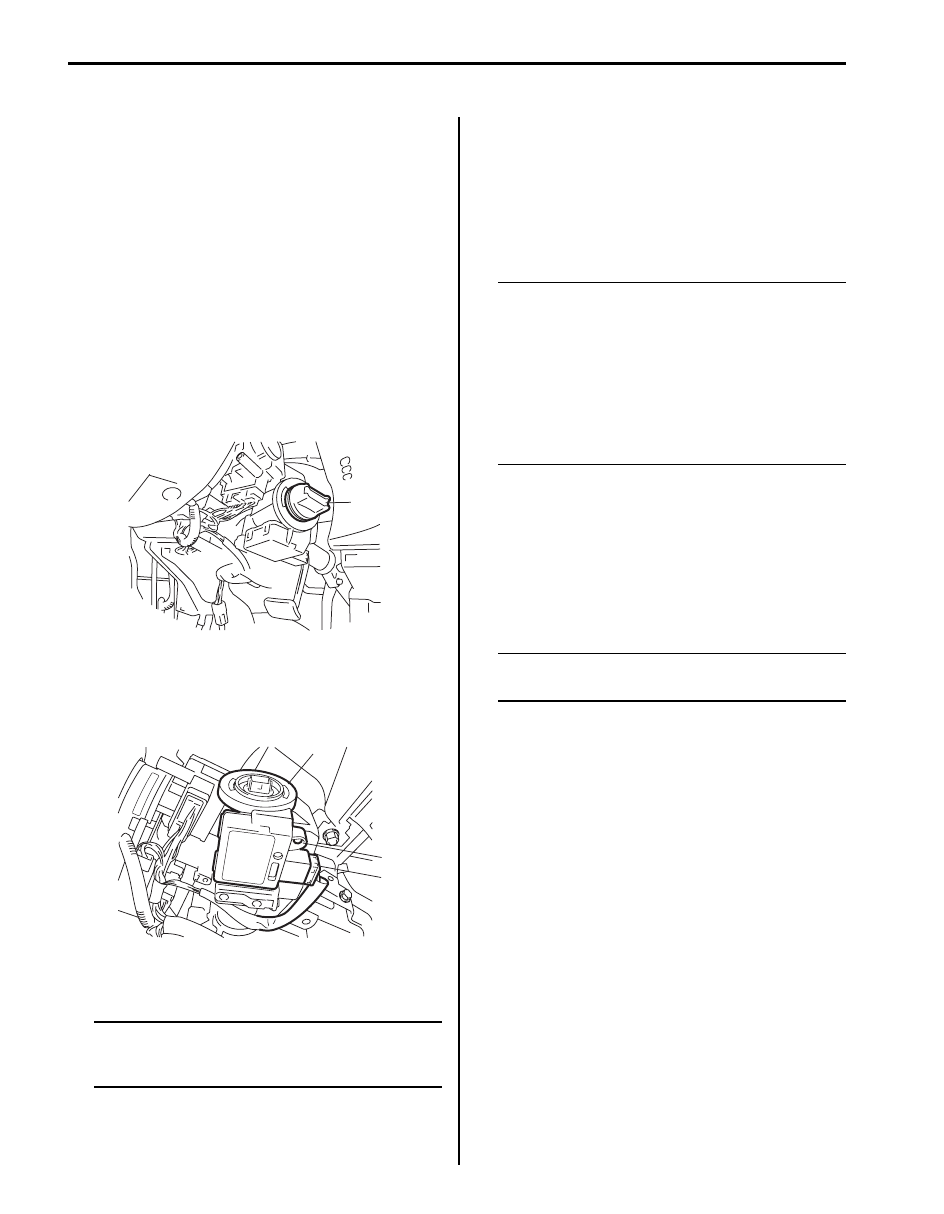

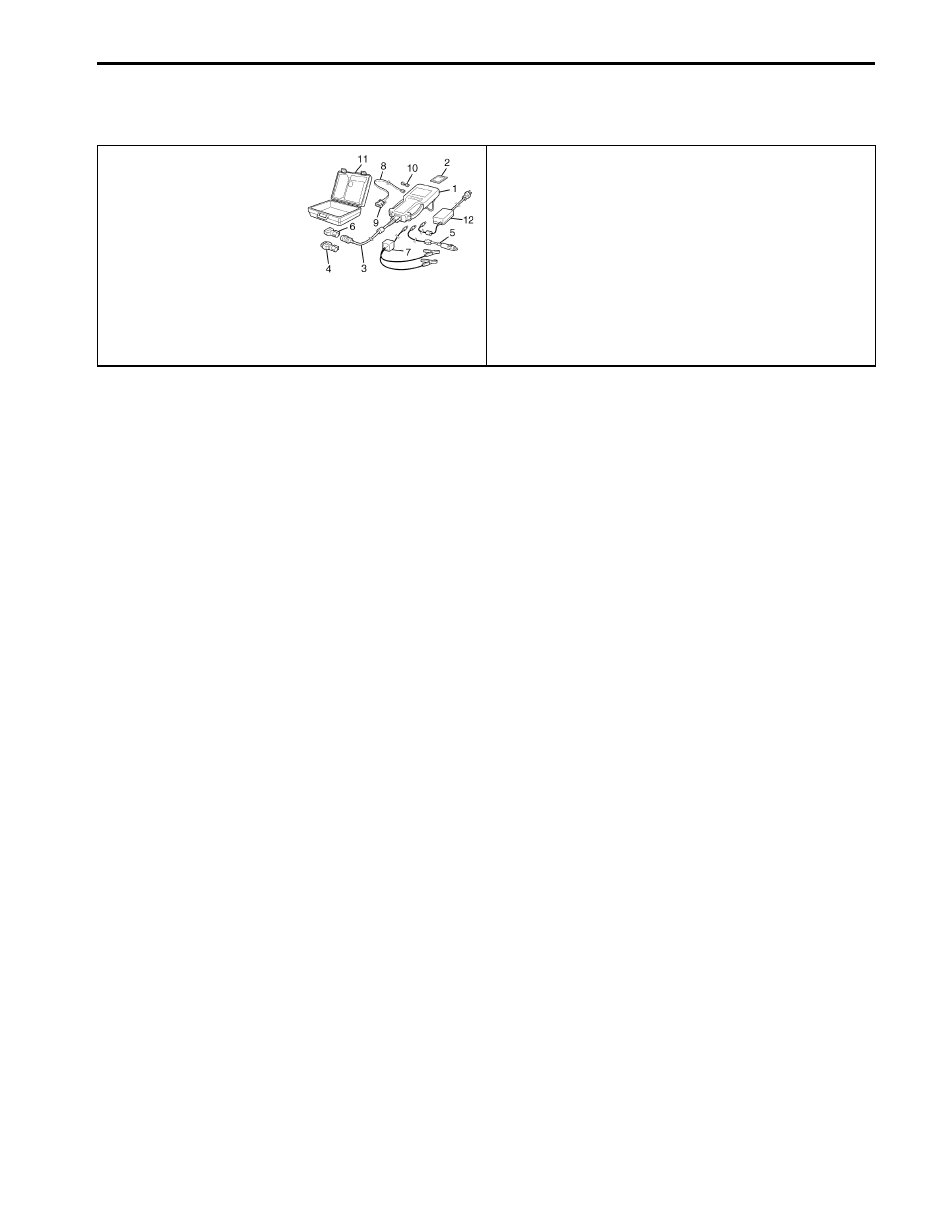

10C-24 Immobilizer Control System: Connector Terminal Circuit Normal Voltage Condition G24 1 BLK/ WHT Power supply About 12.0 V Ignition switch at ON position 0.0 V Ignition switch at OFF position 2 BLK Ground 0.0 V Ignition switch at ON position 0.0 V Ignition switch at OFF position 3 GRY/ BLU Serial communication line See the reference — 0.0 V Ignition switch at OFF position 4 PNK/ BLU Clock line See the reference — 0.0 V Ignition switch at OFF position 5 BLK/ RED Illumination ring ground 0 V • Ignition key not inserted to the key cylinder 0 V → 12 V • Ignition key at OFF position interior light faded out completely (As the interior light fades out, the voltage 0 V → 12 V • Door closed time interior light is completely faded out (As the interior light fades out, the voltage 6 WHT Illumination ring power About 12.0 V Ignition switch at ON position About 12.0 V Ignition switch at OFF position |
