9F-8 Security and Locks:

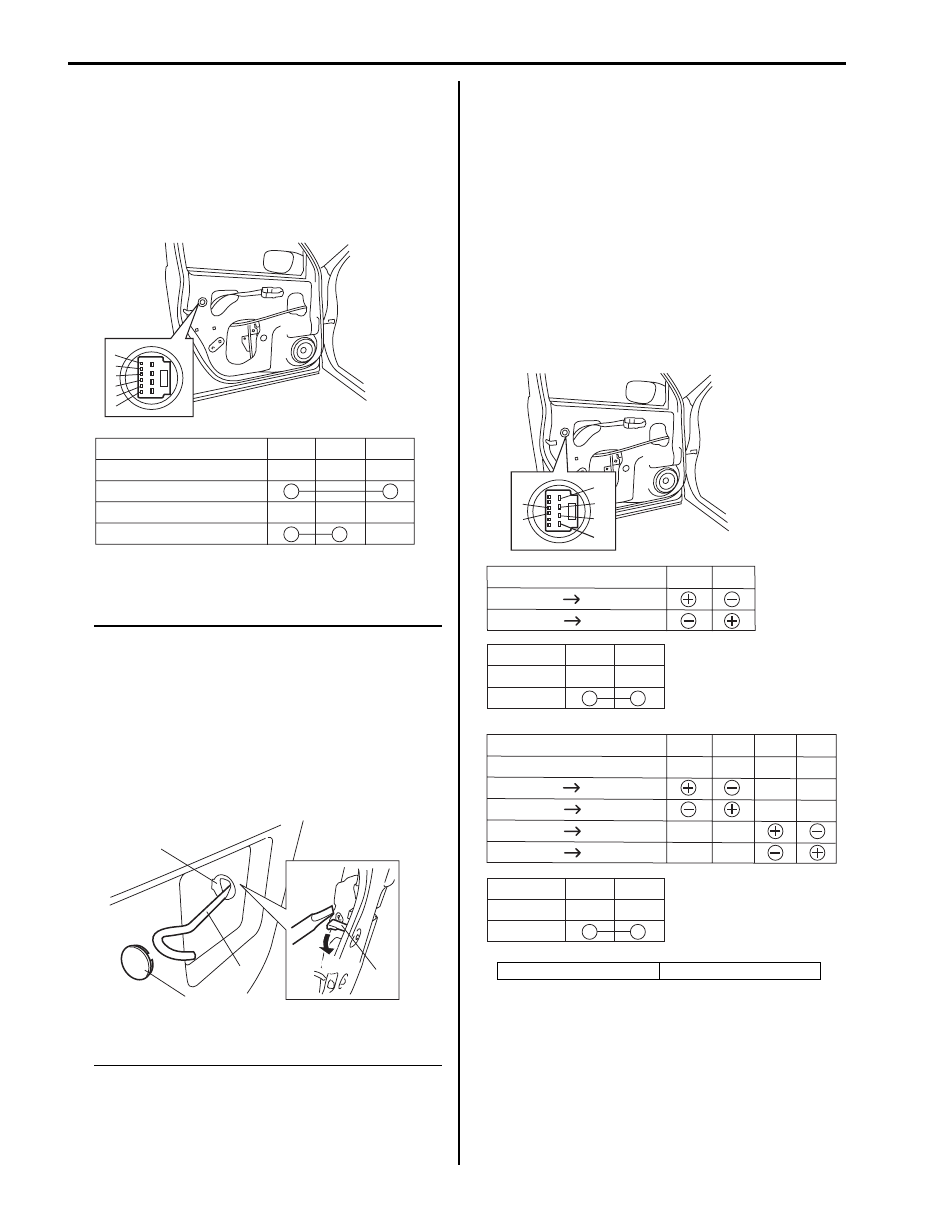

Door Key Cylinder Switch Inspection

S6JB0B9606005

1) Remove front door trim referring to Step 1) to 3) of

“Front Door Glass Removal and Installation in
Section 9E”

2) Check for continuity between terminals at each

switch position. If check result is not as specified,
replace door lock assembly.

Power Door Lock Actuator Inspection

S6JB0B9606006

NOTE
If rear end door is closed and the rear end
door lock actuator does not function in
unlock position, follows the procedures to
unlock the rear end door lock actuator.
1. Remove cap (1).
2. Penetrate door sealing cover (2) by jack

lever (3) or whatever to insert jack lever,
and push emergency lever (4) into unlock
position “a”.

3. After inspection replace door sealing

cover.



1) Remove door trim from door panel.

For front door, refer to Step 1) to 3) of “Front Door
Glass Removal and Installation in Section 9E”.
For rear door, refer to Step 1) to 3) of “Rear Door
Glass Removal and Installation in Section 9E”.
For rear end door, refer to Step 1) of “Rear End Door
Assembly Removal and Installation in Section 9J”.

2) Disconnect power door lock actuator coupler.
3) Connect battery positive (+) and negative (–)

terminals to the door lock actuator terminals (a, b, c,
d) as shown in figure.
If it does not operate as specified in the following
table, replace door lock assembly.

For front door

a

b

c

d

e

f

LOCK

OFF

UNLOCK

d

a

b

c

f

e

Right side switch terminals

Left side switch terminals

I5JB0A960008-01

2

3

1

4

“a”

I5JB0A960022-01

[A]: Without deadlock

[B]: With deadlock

[A]

[B]

a

b

c

d

e

f

Right side switch terminals

b

a

c

Lock

Unlock

Unlock

Lock

Deadlock

Unlock

Left side switch terminals

d

c

a

Deadlock

Lock

d

b

Lock

Unlock

f

e

Terminals

Lock

Unlock

Unlock

Lock

Terminals

d

a

Lock

Unlock

f

e

Terminals

I5JB0A960009-02

Security and Locks:  9F-9

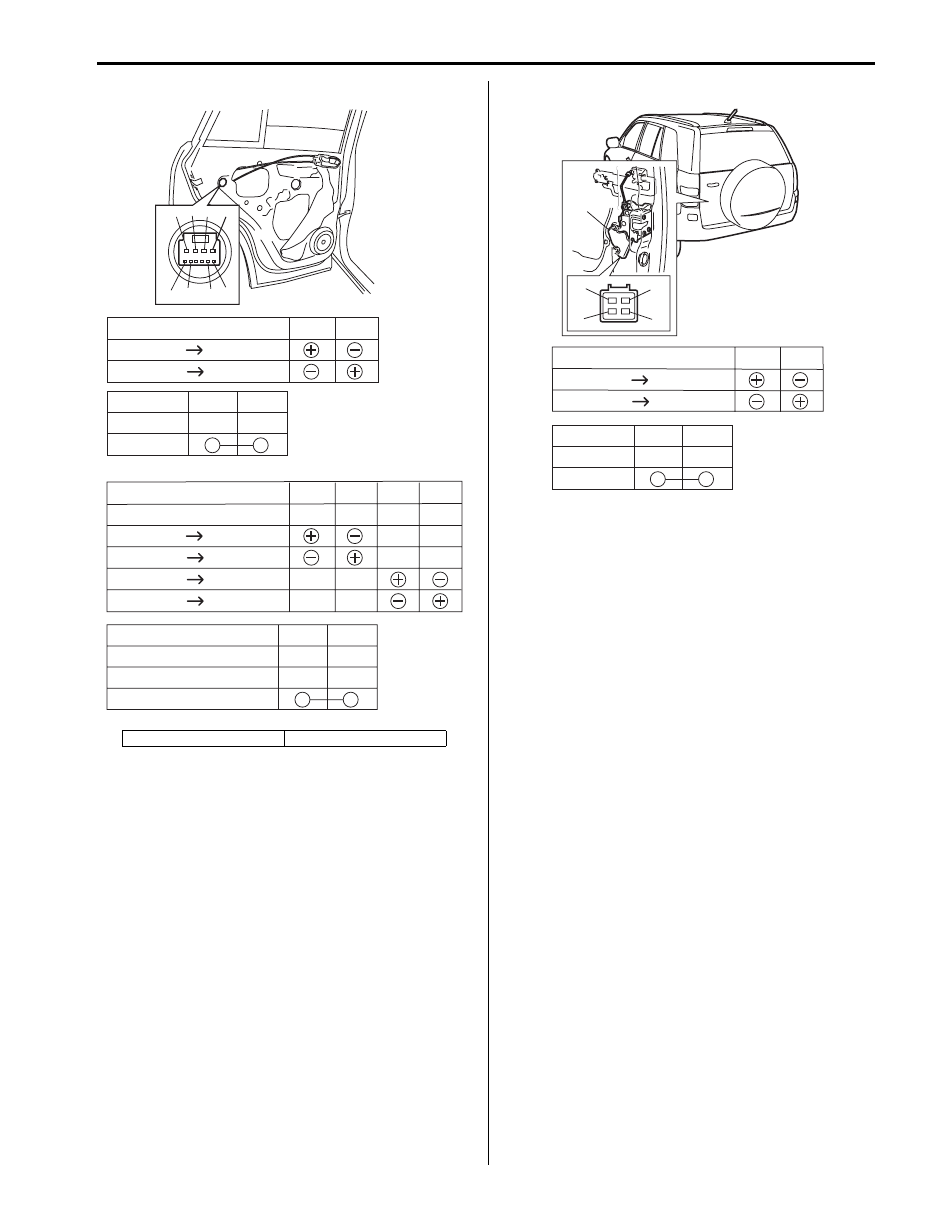

For rear door

For rear end door

[A]: Without deadlock

[B]: With deadlock

[A]

[B]

a

b

c

d

e

f

g

h

Lock

Unlock

g

h

e

f

Right side switch terminals

Left side switch terminals

Right side switch terminals

d

c

a

Lock

Unlock

Unlock

Lock

Deadlock

Lock

Left side switch terminals

b

a

c

Deadlock

Lock

b

d

Lock

Unlock

Unlock

Lock

Terminals

d

a

Lock

Unlock

f

g

Terminals

I5JB0A960010-01

Lock

Unlock

Unlock

Lock

Terminals

b

a

Lock

Unlock

c

d

Terminals

b

a

c

d

I5JB0A960011-02

9F-10 Security and Locks:

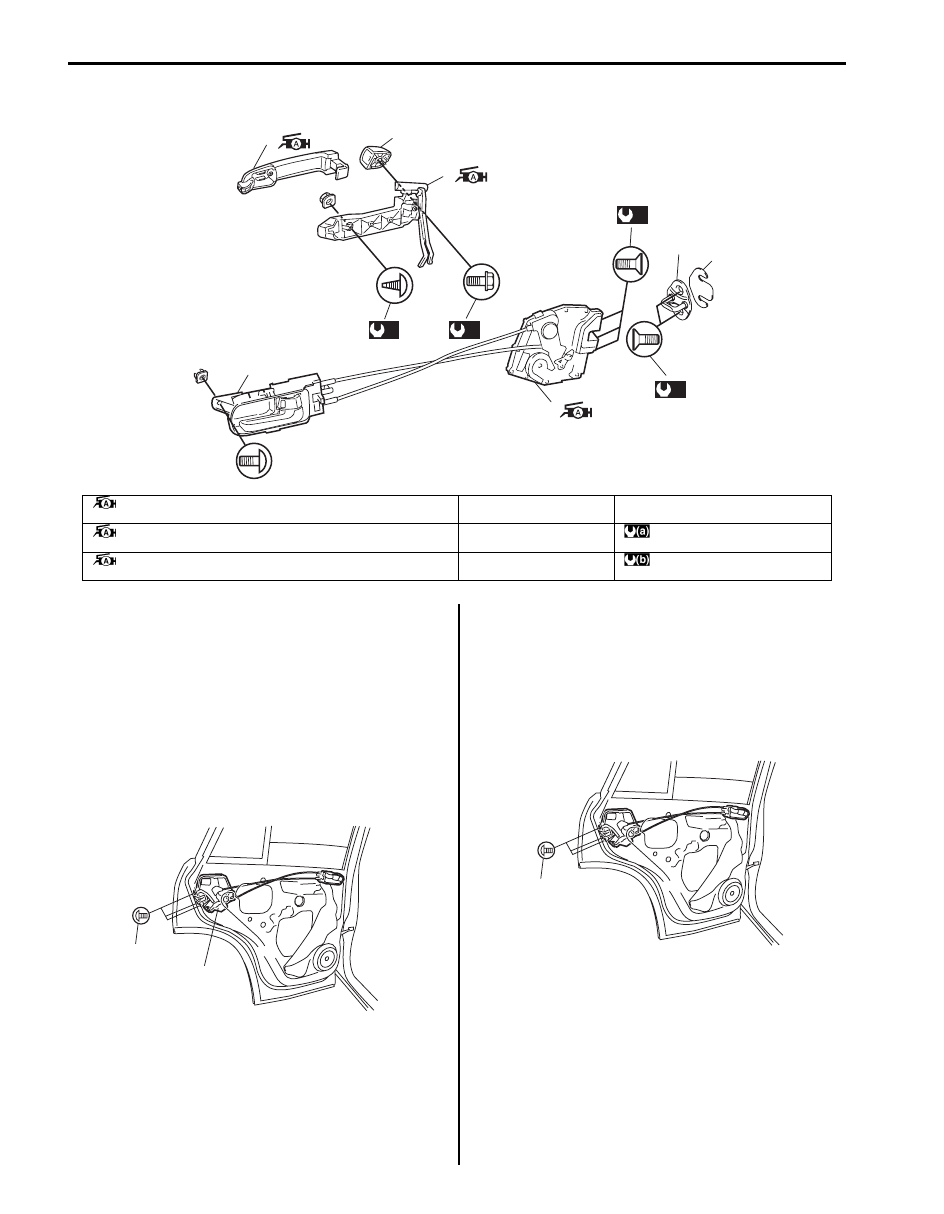

Rear Door Lock Assembly Components

S6JB0B9606007

Rear Door Lock Assembly Removal and
Installation

S6JB0B9606008

Removal

1) Remove rear door trim referring to step 1) to 3) of

“Rear Door Glass Removal and Installation in
Section 9E”.

2) Disconnect door lock motor lead wire.
3) Remove door latch mounting screws (1) and remove

door latch assembly (2).

Installation
Reverse removal procedure to install rear door lock
assembly referring to the following instruction and “Front
Door Lock Assembly Removal and Installation”.
• Tighten door latch screw to specified torque.

Tightening torque
Door latch screw (a):  5.0 N·m (0.5 kgf-m, 4.0 lb-ft)

Rear Door Lock Assembly Inspection

S6JB0B9606009

• Check that door opens and closes smoothly and

properly.

• Check that door stops in the secondary latched

position properly (preventing door from opening
freely) and that door closes completely in the fully
latched position.

• Adjust door latch striker position, if necessary.

(a)

(a)

(a)

(b)

1

7

2

6

3

4

5

I5JB0A960012-03

1. Outside handle

: Apply lithium grease 99000-25011 to sliding part.

4. Latch striker

7. Out side handle cap

2. Outside handle frame

: Apply lithium grease 99000-25011 to sliding part and spring.

5. Shim

: 5.0 N

⋅m (0.5 kgf-m, 4.0 lb-ft)

3. Rear door latch assembly

: Apply lithium grease 99000-25011 to sliding part.

6. Inside handle bezel

: 10 N

⋅m (1.0 kgf-m, 7.5 lb-ft)

1

2

I6JB0A960002-01

(a)

I5JB0A960014-01

Security and Locks:  9F-11

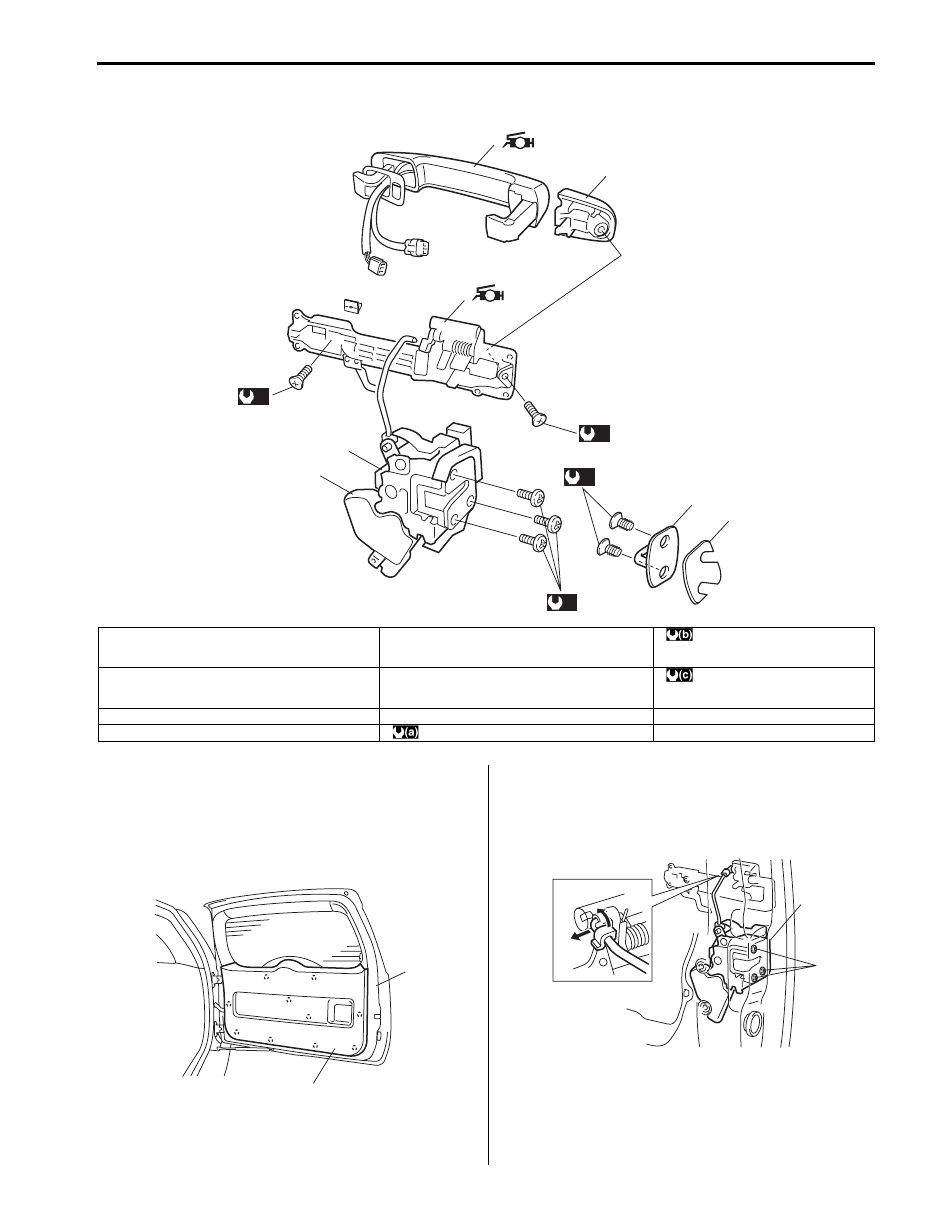

Rear End Door Lock Assembly Components

S6JB0B9606010

Rear End Door Lock Assembly Removal and
Installation

S6JB0B9606011

Removal

1) Remove door trim (1) from rear end door panel (2).

2) Disconnect door lock motor lead wire and door

opening control rod.

3) Loosen door latch bolts (1) and remove door latch

assembly (2).

(a)

(a)

(c)

(b)

5

7

A

2

3

4

6

1

A

I6JB0A960003-01

1. Rear end door latch assembly

(rear end door switch is built in this assembly)

5. Outside handle assembly

: Apply lithium grease 99000-25011 to sliding
part.

: 24 N

⋅m (2.4 kgf-m, 17.5 lb-ft)

2. Outside handle frame

: Apply lithium grease 99000-25011 to sliding part
and spring.

6. Emergency lever

: 5 N

⋅m (0.5 kgf-m, 4.0 lb-ft)

3. Latch striker

7. Outside handle cap

4. Shim

: 6 N

⋅m (0.6 kgf-m, 4.5 lb-ft)

2

1

I6JB0A960004-02

2

1

I5JB0A960017-01
