9C-17 Instrumentation / Driver Info. / Horn:

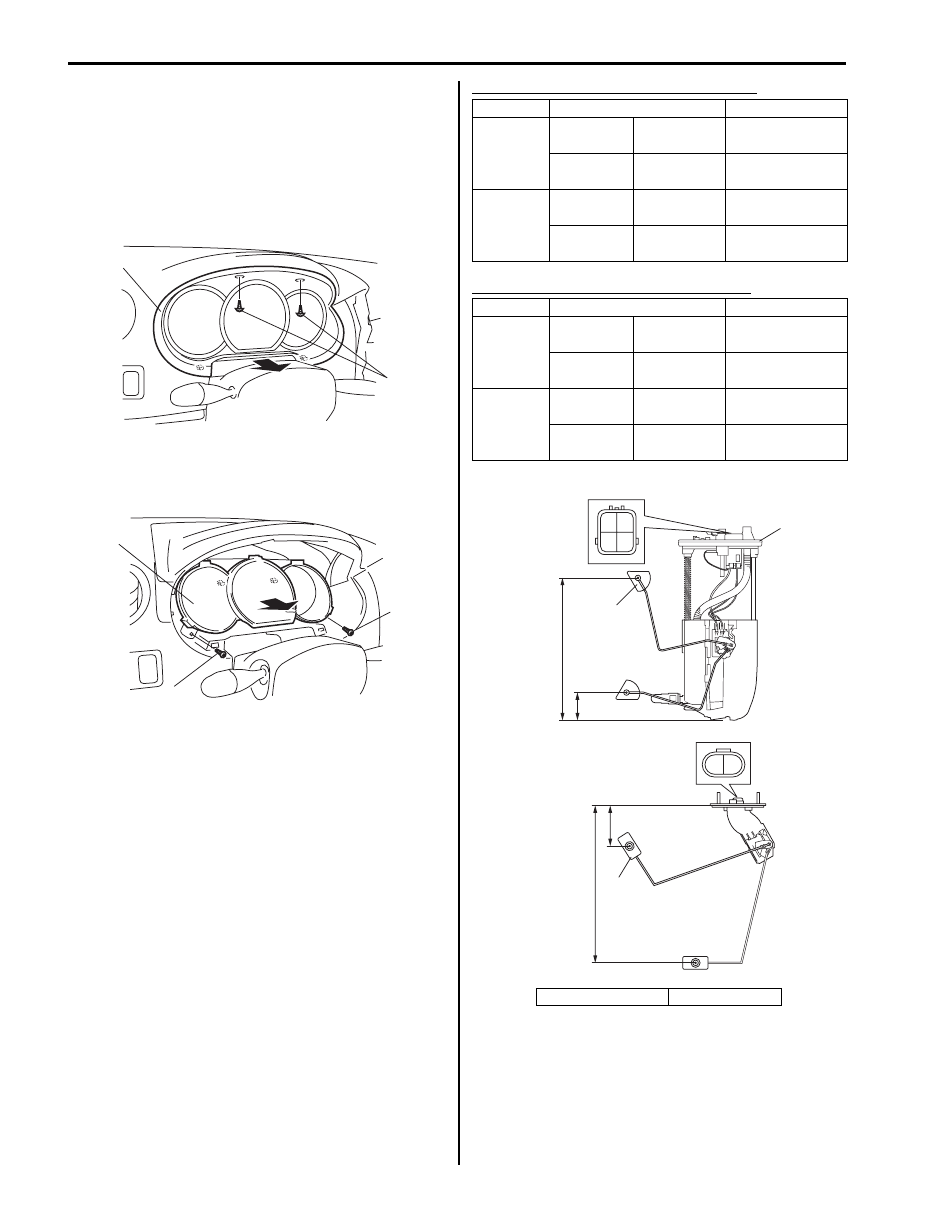

Combination Meter Removal and Installation
S6JB0B9306003
Removal
1) Disconnect negative (–) cable at battery.
2) Remove screws (1) fastening combination meter
cluster panel.
3) Remove combination meter cluster panel (2) pulling
it in arrow direction shown in figure.
4) Remove screws (1) fastening combination meter.
5) Remove combination meter (2) pulling it arrow
direction as shown.
Installation
Reverse removal procedure.
Fuel Level Sensor Removal and Installation
S6JB0B9306004
Main Fuel Level Sensor
For removal and installation, refer to “Fuel Pump
Assembly Removal and Installation in Section 1G”.
Sub Fuel Level Sensor
For removal and installation, refer to “Sub Fuel Level
Gauge Removal and Installation in Section 1G”.
Fuel Level Sensor Inspection
S6JB0B9306005
• Check that resistance between terminals “a” and “b”
of fuel level sensor changes with change of float
position.
• Check resistance between terminals “a” and “b” at
each float position in the following.
If the measured value is out of specification, replace
fuel pump and/or sub fuel level sensor.
Main fuel level sensor [A] specifications
Sub fuel level sensor [B] specifications
2
1
I5JB0A930005-04
1
2
1
I5JB0A930006-04
Float position
Resistance (
Ω)
3 door
model
Full Upper
“C”
194 mm
(7.64 in.)
19.0 – 21.0
Full Lower
“D”
42 mm
(1.65 in.)
111.9 – 115.3
5 door
model
Full Upper
“C”
206 mm
(8.11 in.)
19.0 – 21.0
Full Lower
“D”
38 mm
(1.50 in.)
129.8 – 133.2
Float position
Resistance (
Ω)
3 door
model
Full Upper
“C”
54 mm
(2.13 in.)
19.0 – 21.0
Full Lower
“D”
256 mm
(10.08 in.)
164.7 – 168.1
5 door
model
Full Upper
“C”
56 mm
(2.20 in.)
19.0 – 21.0
Full Lower
“D”
240 mm
(9.45 in.)
146.8 – 150.2
1. Fuel pump
2. Float
“C”
“D”
“D”
[A]
[B]
“b”
“a”
“b”
“a”
1
2
“C”
2
I6JB01930007-03
