9A-10 Wiring Systems:

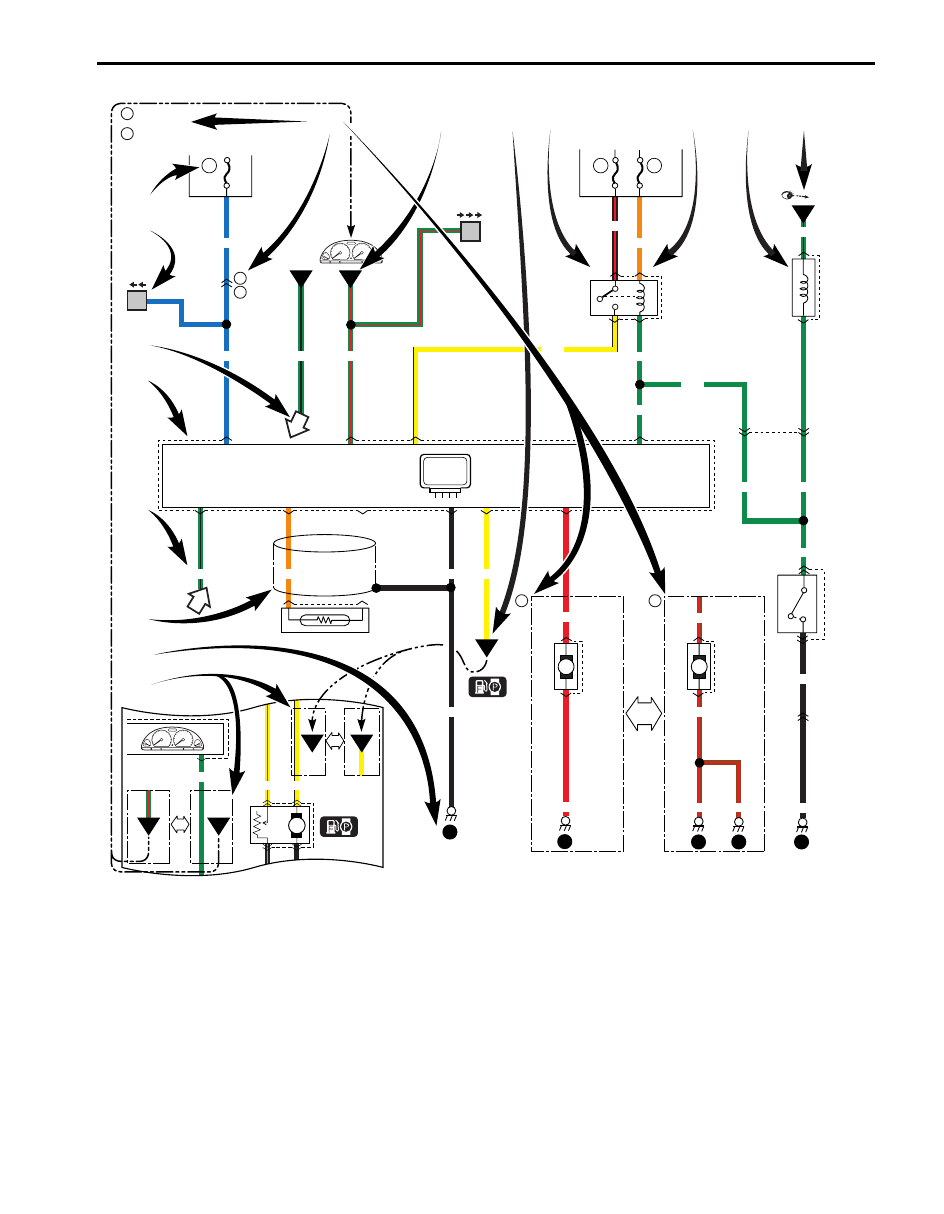

How to Read System Circuit Diagram

S6JB0B9101008

The circuit diagram is designed so the current flows from the top of the diagram (power source) to the bottom of the
diagram (ground) as if giving an image of water flow.
[A]: Fuse No.
[B]: Circuit jumping page / direction

NOTE
This means “Jump to the page directed with the arrow(s) by their number.
(For example:” Two arrows directing left” means” Jump to two pages before”.)
You will find the same symbol with the arrows directing opposite in the referenced page. The circuit
continues between the symbols.



[C]: Circuit jumping point / direction

NOTE
The circuit continues to the same symbol with opposite direction within the page.
You will find the other symbol in the direction of the arrow.



[D]: Terminals-in-one-connector mark
[E]: Wire color
[F]: Shield wire
[G]: Ground point
[H]: “From” or “To” (With ID letter (s))
[I]: Specification variation
The white arrow between A and B means “or”.
[J]: “From” (With ID letter (s))
[K] “To” (With ID letter (s))
[L]: Connector code
[M]: Terminal No.
[N]: Symbol mark
[O]: “SEE” mark

Wiring Systems:  9A-11

Connector Layout Diagram

Connector Layout Diagram

S6JB0B910A001

Refer to “Engine Compartment”.
Refer to “Instrument Panel”.
Refer to “Door, Roof”.
Refer to “Floor”.
Refer to “Rear”.
ESP

® is a registered trademark of Daimler Chrysler AG.

Switch

BLU

BLU

GRN/BLK

GRN/RED

GRN/BLK

1

2

GRN

GRN

C26

2

1

BLK

5

BLK

2

1

C40

GRN/BLK

"XX"

Solenoid

Fuse

Fuse

3

15A

Main
relay

ON

OFF

1

15A

6

20A

1

Sensor

1

2

8

BRN/RED

E52

1

2

E52

1

BRN/RED

RED

2

BRN/RED BRN/RED

Motor

M

M

6

5

5

A

B

A
B

5
6

1

2

5

6

4

6

4

4-DOOR

2-DOOR

2

C71
E03

E34
O06

C31
E19

[A]

[B]

[C]

[F]

[G]

[H]

[D]

[I]

[K] [L]

E33

7

5

E34

1

2

1

4

3

E08

ORN

WHT

YEL

RED

YEL

YEL/RED

GRN/RED

4

3

YEL

BLK/RED

ORN

GRN

GRN

B

A

GRN

GRN

2

XX

Cont.M

[J]

[E]

[N]

[O]

[M]

GB

GR

Y

Y

GB

P

3

4

2

3

L50

G20

1

GR

Y

BLK

BLK

GR

I4JA01910987-01

9A-12 Wiring Systems:

Engine Compartment

S6JB0B910A002

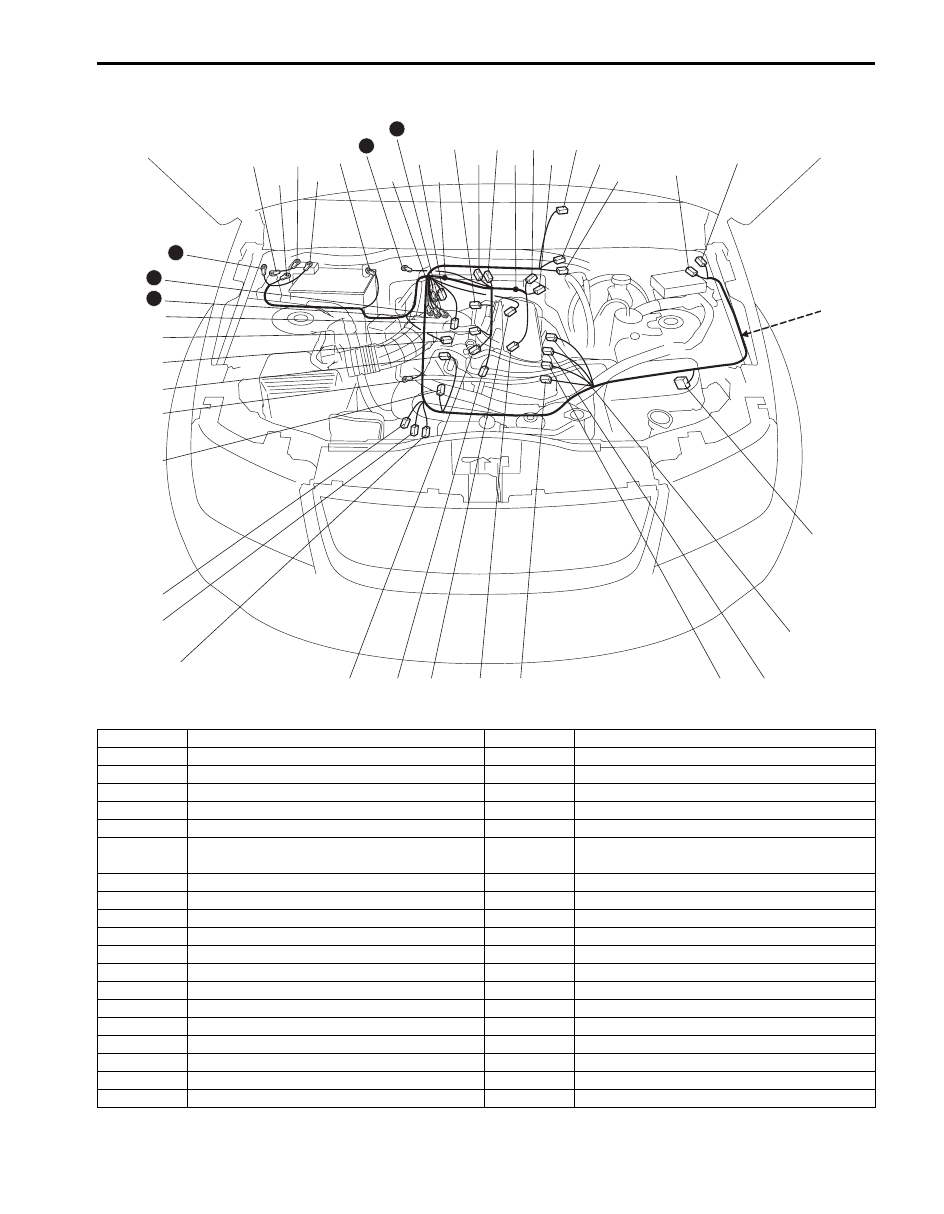

C: Engine harness (M16A RHD)

C: Engine harness

C34

 (TO E54)

C35

 (TO E55)

1

5

4

3

C03

C01

C31

C02

C30

C10

C08

C09

C55

C07

C47

C56

C23

C24

2

C12

C06

C11

C22

C14

C21

C20

C26

C05

C04

C40

C41

C33

C19

C17

C18

C37

C13

C36

C15

C32

C

I5JB0A910901-05

No./Color

Connective position

No./Color

Connective position

C01/-

Battery (–)

C21/GRN Generator #1

C02/-

Battery fuse box

C22/-

Generator #2

C03/-

Fuse box No.1

C23/BLK

Starting motor #1

C04/GRY Injector #1

C24/-

Starting motor #2

C05/GRY Injector #2

C26/GRY Knock sensor

C06/GRY Injector #3

C30/BLK

(M/T)

Back-up light switch

C07/GRY Injector #4

C31/-

Battery fuse box

C08/BLK

CMP sensor

C32/-

Fuse box No.1

C09/BLK

ECT sensor

C33/N

P/S pump pressure switch

C10/GRY EGR stepper motor

C34/N

Main harness (To E54)

C11/BLK

Throttle position sensor

C35/BLU

Main harness (To E55)

C12/BLK

MAP sensor

C36/GRY A/F sensor

C13/BLK

MAF sensor

C37/GRY ECM

C14/BLK

EVAP canister purge valve

C40/GRY IG coil #1 & #4

C15/N

Heated oxygen sensor

C41/GRY IG coil #2 & #3

C17/BLK

A/C compressor

C47/BLK

Noise filter

C18/N

Oil pressure switch

C55/-

Weld splice

C19/BLU VVT solenoid

C56/-

Weld splice

C20/N

CKP sensor

Wiring Systems:  9A-13

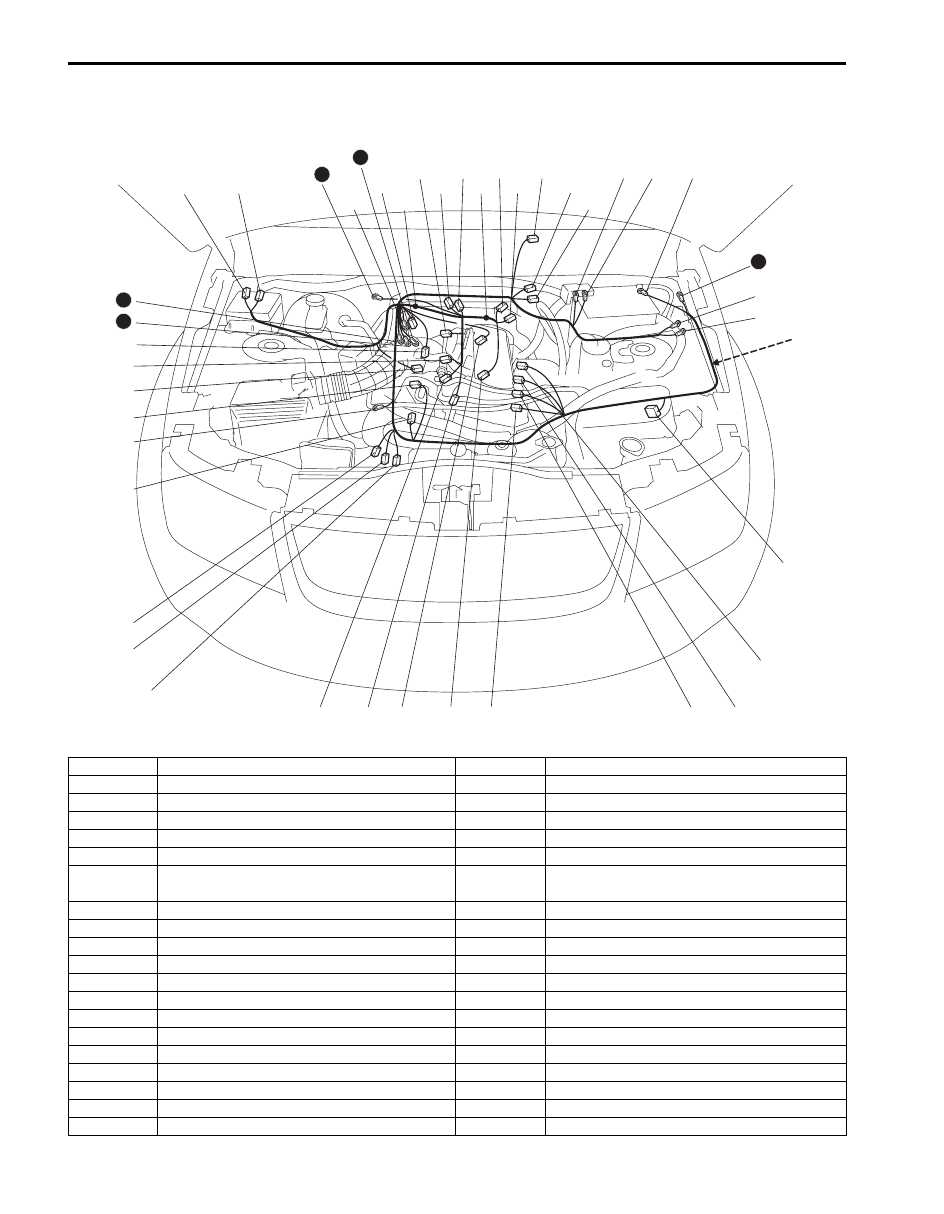

C: Engine harness (M16A LHD)

C: Engine harness

C34

 (TO E54)

C35

 (TO E55)

1

3

2

5

4

C03

C01

C31

C02

C30

C10

C08

C09

C55

C07

C47

C56

C23

C24

C12

C06

C11

C22

C14

C21

C20

C26

C05

C04

C40

C41

C33

C19

C17

C18

C37

C13

C36

C15

C32

C

I5JB0A910902-05

No./Color

Connective position

No./Color

Connective position

C01/-

Battery (–)

C21/GRN Generator #1

C02/-

Battery fuse box

C22/-

Generator #2

C03/-

Fuse box No.1

C23/BLK

Starting motor #1

C04/GRY Injector #1

C24/-

Starting motor #2

C05/GRY Injector #2

C26/GRY Knock sensor

C06/GRY Injector #3

C30/BLK

(M/T)

Back-up light switch

C07/GRY Injector #4

C31/-

Battery fuse box

C08/BLK

CMP sensor

C32/-

Fuse box No.1

C09/BLK

ECT sensor

C33/N

P/S pump pressure switch

C10/GRY EGR stepper motor

C34/N

Main harness (To E54)

C11/BLK

Throttle position sensor

C35/BLU

Main harness (To E55)

C12/BLK

MAP sensor

C36/GRY A/F sensor

C13/BLK

MAF sensor

C37/GRY ECM

C14/BLK

EVAP canister purge valve

C40/GRY IG coil #1 & #4

C15/N

Heated oxygen sensor

C41/GRY IG coil #2 & #3

C17/BLK

A/C compressor

C47/BLK

Noise filter

C18/N

Oil pressure switch

C55/-

Weld splice

C19/BLU VVT solenoid

C56/-

Weld splice

C20/N

CKP sensor
