7B-36 Air Conditioning System:

7

Position sensor signal circuit check
1) Connect HVAC control module connector with ignition

switch turned OFF.

2) Measure voltage between “WHT/RED” wire terminal of

temperature control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Go to Step 11.

Go to Step 8.

8

Position sensor signal circuit check
1) Disconnect connector from HVAC control module with

ignition switch turned OFF.

2) Measure resistance between “WHT/RED” wire terminal

of temperature control actuator connector and “G52-21”
terminal of HVAC control module connector.

Is resistance below 5

Ω

?

Go to Step 9.

“WHT/RED” wire open
or high resistance
circuit.

9

Position sensor signal circuit check
1) Measure resistance between “WHT/RED” wire terminal

of temperature control actuator connector and vehicle
body ground.

Is resistance infinity?

Go to Step 10.

“WHT/RED” wire
shorted to ground
circuit.

10 Position sensor signal circuit check

1) Measure voltage between “WHT/RED” wire terminal of

temperature control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 0 V?

Go to Step 11.

“WHT/RED” wire
shorted to other circuit.

11 Position sensor ground circuit check

1) Connect HVAC control module connector with ignition

switch turned OFF.

2) Measure resistance between “BLK/RED” wire terminal of

temperature control actuator connector and vehicle body
ground.

Is resistance below 5

Ω

?

Go to Step 13.

Go to Step 12.

12 Position sensor ground circuit check

1) Measure resistance between “G52-13” terminal of HVAC

control module connector and vehicle body ground.

Is resistance below 5

Ω

?

“BLK/RED” wire open or
high resistance circuit.

HVAC control module
faulty.

13 Temperature control actuator check

1) Check temperature control actuator referring to

“Temperature Control Actuator Inspection”.

Is it in good condition?

HVAC control module
faulty.

Temperature control
actuator faulty.

Step

Action

Yes

No

Air Conditioning System:  7B-37

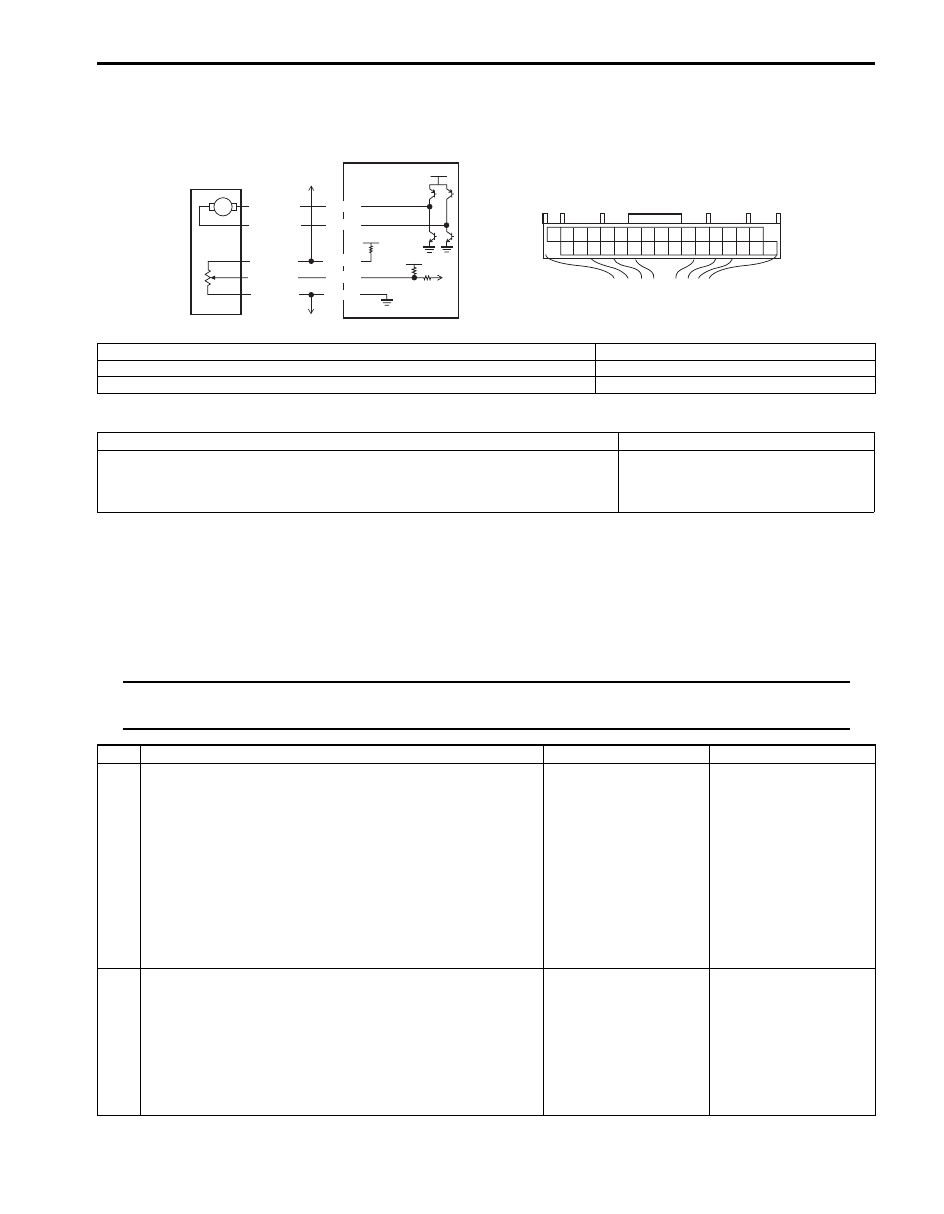

DTC B1512: Air Flow Control Actuator (Position Sensor) and/or Its Circuit Malfunction

S6JB0B7204016

Wiring Diagram

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure

1) Connect scan tool to DLC with ignition switch turned OFF.
2) Turn ON ignition switch and clear DTC using scan tool.
3) Check DTC.

DTC Troubleshooting

NOTE
When DTC B1502, B1503, B1511 and B1530 are indicated together, it is possible that “BLK/RED” wire
circuit open.



12V

5V

M

5V

G52-23

G52-29

G52-30

G52-13

GRY/RED

GRY/BLK

RED/WHT

WHT/BLU

BLK/RED

G52-14

[A]

2

3

4

1

13

14

30 29

23

I5JB0A720024-02

[A]: HVAC control unit connector “G52” (harness side view)

3. To other actuators

1. HVAC control module

4. To other sensors

2. Air flow control actuator

DTC Detecting Condition

Trouble Area

Air flow control actuator position sensor signal voltage is more than or less
than specified value for specified time continuously.

• Air flow control actuator circuit
• Air flow control actuator
• HVAC control module

Step

Action

Yes

No

1

Position sensor power supply circuit check
1) Disconnect air flow control actuator connector with

ignition switch turned OFF.

2) Check for proper connection to air flow control actuator

at “RED/WHT”, “WHT/BLU” and “BLK/RED” wire
terminals.

3) If OK, measure voltage between “RED/WHT” wire

terminal of air flow control actuator connector and
vehicle body ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Go to Step 6.

Go to Step 2.

2

Position sensor power supply circuit check
1) Disconnect temperature control actuator connector with

ignition switch turned OFF.

2) Measure voltage between “RED/WHT” wire terminal of

air flow control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Temperature control
actuator faulty.

Go to Step 3.

7B-38 Air Conditioning System:

3

Position sensor power supply circuit check
1) Disconnect air intake control actuator connector with

ignition switch turned OFF.

2) Measure voltage between “RED/WHT” wire terminal of

temperature control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Air intake control
actuator faulty.

Go to Step 4.

4

Position sensor power supply circuit check
1) Disconnect connector from HVAC control module with

ignition switch turned OFF.

2) Check for proper connection to HVAC control module

connector at “G52-14”, “G52-13” and “G52-23”
terminals.

3) If OK, measure resistance between “RED/WHT” wire

terminal of air flow control actuator connector and “G52-
14” terminal of HVAC control module connector.

Is resistance below 5

Ω

?

Go to Step 5.

“RED/WHT” wire open
or high resistance
circuit.

5

Position sensor power supply circuit check
1) Measure resistance between “RED/WHT” wire terminal

of air flow control actuator connector and vehicle body
ground.

Is resistance infinity?

Go to Step 6.

“RED/WHT” wire
shorted to ground
circuit.

6

Position sensor power supply circuit check
1) Measure voltage between “RED/WHT” wire terminal of

air flow control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 0 V?

Go to Step 7.

“RED/WHT” wire
shorted to other circuit.

7

Position sensor signal circuit check
1) Connect HVAC control module connector with ignition

switch turned OFF.

2) Measure voltage between “WHT/BLU” wire terminal of

air flow control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 4 – 6 V?

Go to Step 11.

Go to Step 8.

8

Position sensor signal circuit check
1) Disconnect connector from HVAC control module with

ignition switch turned OFF.

2) Measure resistance between “WHT/BLU” wire terminal

of air flow control actuator connector and “G52-23”
terminal of HVAC control module connector.

Is resistance below 5

Ω

?

Go to Step 9.

“WHT/BLU” wire open
or high resistance
circuit.

9

Position sensor signal circuit check
1) Measure resistance between “WHT/BLU” wire terminal

of air flow control actuator connector and vehicle body
ground.

Is resistance infinity?

Go to Step 10.

“WHT/BLU” wire
shorted to ground
circuit.

Step

Action

Yes

No

Air Conditioning System:  7B-39

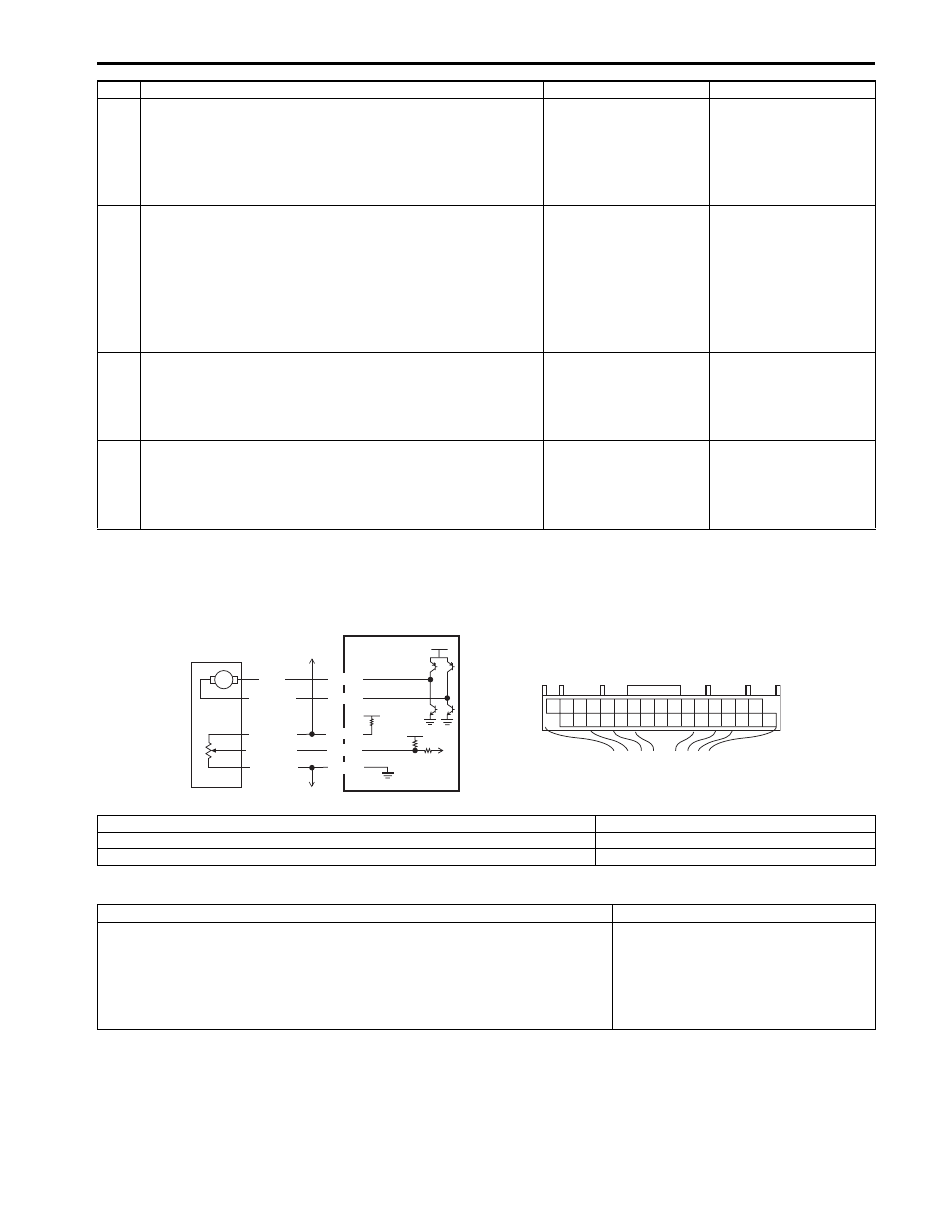

DTC B1513: Temperature Control Actuator and/or Its Circuit Malfunction

S6JB0B7204017

Wiring Diagram

DTC Detecting Condition and Trouble Area

10 Position sensor signal circuit check

1) Measure voltage between “WHT/BLU” wire terminal of

air flow control actuator connector and vehicle body
ground with ignition switch turned ON.

Is voltage 0 V?

Go to Step 11.

“WHT/BLU” wire
shorted to other circuit.

11 Position sensor ground circuit check

1) Connect HVAC control module connector with ignition

switch turned OFF.

2) Measure resistance between “BLK/RED” wire terminal of

air flow control actuator connector and vehicle body
ground.

Is resistance below 5

Ω

?

Go to Step 13.

Go to Step 12.

12 Position sensor ground circuit check

1) Measure resistance between “G52-13” terminal of HVAC

control module connector and vehicle body ground.

Is resistance below 5

Ω

?

“BLK/RED” wire open or
high resistance circuit.

HVAC control module
faulty.

13 Air flow control actuator check

1) Check air flow control actuator referring to “Air Flow

Control Actuator Inspection”.

Is it in good condition?

HVAC control module
faulty.

Air flow control actuator
faulty.

Step

Action

Yes

No

12V

5V

M

G52-21

G52-27

G52-28

GRY

GRY/BLU

WHT/RED

G52-13

G52-14

5V

RED/WHT

BLK/RED

[A]

2

3

4

1

13

14

21

27

28

I5JB0A720025-02

[A]: HVAC control module connector “G52” (harness side view)

3. To other actuators

1. HVAC control module

4. To other sensors

2. Temperature control actuator

DTC Detecting Condition

Trouble Area

Difference between target opening and actual opening is more than specified
value even though temperature control actuator has operated for 15 seconds.

• Temperature control actuator circuit
• Temperature control linkage
• Temperature control actuator
• HVAC unit
• HVAC control module
