5A-16 Automatic Transmission/Transaxle:

Diagnostic Information and Procedures

A/T System Check

S6JB0B5104001

Refer to the following items for the details of each step.

3. BCM

9. Input shaft speed sensor

15. Shift solenoid valve-B

21. AT relay in integration relay

No.2

4. Select lever assembly

including “4” position
switch

10. Transmission fluid temperature sensor-A

16. Pressure control solenoid valve-C

22. P/N mode switch

5. MIL

11. Transmission fluid temperature sensor-B

(if equipped)

17. TCC pressure control solenoid

valve

23. Transmission warning light

(non-E-OBD model)

6. Output shaft speed sensor

12. Pressure control solenoid valve-A

18. Shift solenoid valve-E

Step

Action

Yes

No

1

)

 Customer complaint analysis

1) Perform customer complaint analysis.

Was customer complaint analysis performed according to
instruction?

Go to Step 2.

Perform customer
complaint analysis.

2

)

 DTC / Freeze frame data check, record and clearance

1) Check for DTC (including pending DTC)

Is there any DTC (s)?

Print DTC and freeze
frame data or write them
down and clear them by
referring to “DTC
Clearance”.
Go to Step 3.

Go to Step 4.

3

)

 Visual inspection

1) Perform visual inspection.

Is there any faulty condition?

Repair or replace
malfunction part.
Go to Step 11.

Go to Step 5.

4

)

 Visual inspection

1) Perform visual inspection.

Is there any faulty condition?

Repair or replace
malfunction part.
Go to Step 11.

Go to Step 8.

5

)

 Trouble symptom confirmation

1) Confirm trouble symptom.

Is trouble symptom identified?

Go to Step 6.

Go to Step 7.

6

)

 Rechecking and record of DTC / Freeze frame data

1) Recheck for DTC and freeze frame data referring to

“DTC Check”.

Is there any DTC (s)?

Go to Step 9.

Go to Step 8.

7

)

 Rechecking and record of DTC / Freeze frame data

1) Recheck for DTC and freeze frame data referring to

“DTC Check”.

Is there any DTC (s)?

Go to Step 9.

Go to Step 10.

8

)

 A/T Basic Check and A/T Trouble Diagnosis

1) Check and repair according to “A/T Basic Check” and “A/

T Symptom Diagnosis”.

Are check and repair complete?

Go to Step 11.

Check and repair
malfunction part(s).
Go to Step 11.

9

)

 Troubleshooting for DTC

1) Check and repair according to applicable DTC diag. flow.

Are check and repair complete?

Go to Step 11.

Check and repair
malfunction part(s).
Go to Step 11.

10 ) Check for intermittent problem

1) Check for intermittent problem.

Is there any faulty condition?

Repair or replace
malfunction part(s).
Go to Step 11.

Go to Step 11.

Automatic Transmission/Transaxle:  5A-17

Step 1. Customer Complaint Analysis
Record details of the problem (failure, complaint) and how it occurred as described by the customer.
For this purpose, use of such a inspection form will facilitate collecting information to the point required for proper
analysis and diagnosis.

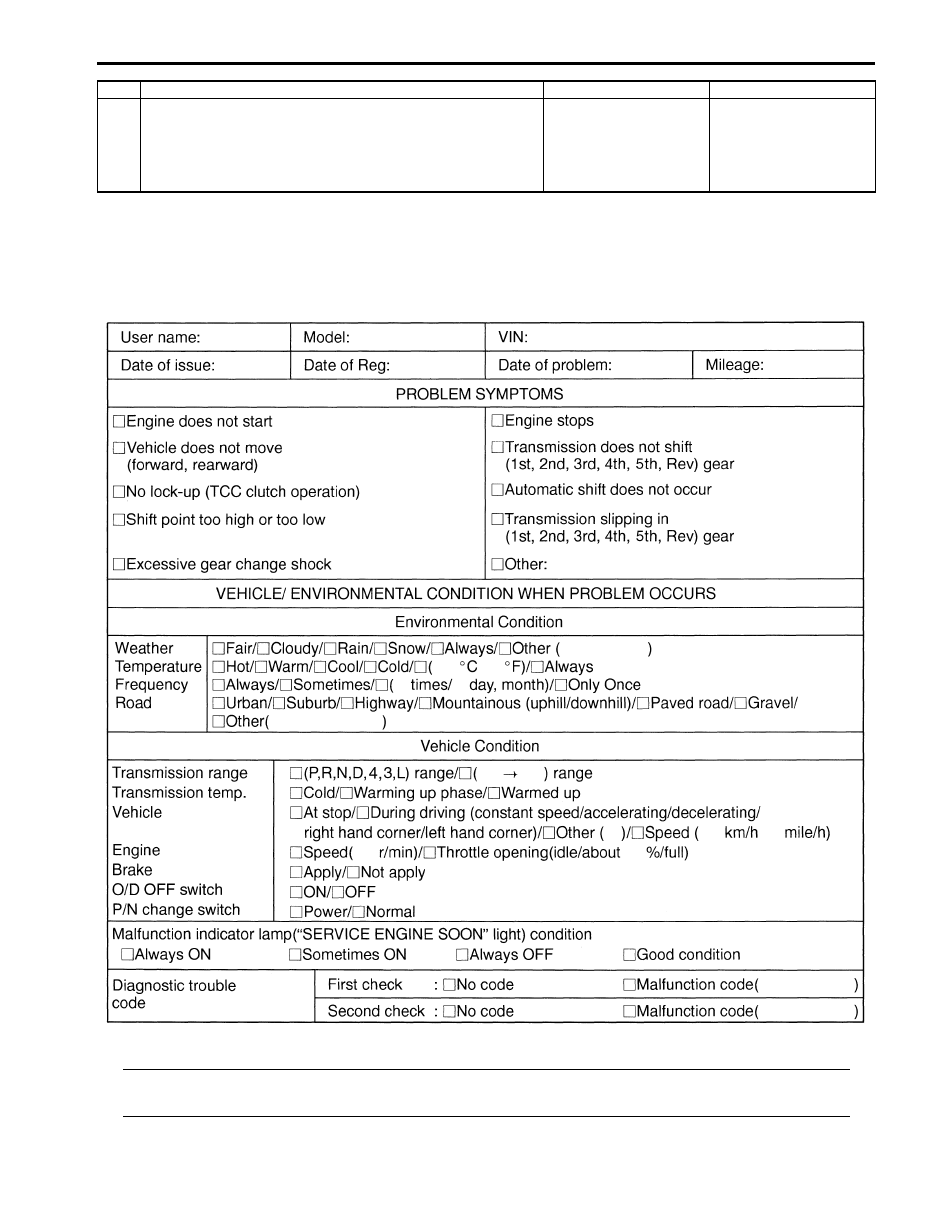

Customer problem inspection form (example)

NOTE
The form is a standard sample. It should be modified according to conditions characteristic of each
market.



11 ) Final confirmation test

1) Clear DTC if any.
2) Perform final confirmation test.

Is there any problem symptom, DTC or abnormal condition?

Go to Step 6.

End.

Step

Action

Yes

No

I6JB01510010-01

5A-18 Automatic Transmission/Transaxle:

Step 2. DTC/Freeze Frame Data Check, Record and Clearance
First, referring to “DTC Check”, check DTC (including pending DTC). If DTC exists, print or write down DTC and freeze
frame data and then clear them by referring to “DTC Clearance”. DTC indicates malfunction in the system but it is not
possible to know from it whether the malfunction is occurring now or it occurred in the past and normal condition has
been restored. In order to know that, check symptom in question according to Step 5 and then recheck DTC according
to Step 6.
Diagnosing a trouble based on the DTC in this step only or failure to clear the DTC in this step may result in an faulty
diagnosis, trouble diagnosis of a normal circuit or difficulty in troubleshooting which is otherwise unnecessary.

Step 3 and Step 4. Visual Inspection
As a preliminary step, be sure to perform visual check of the items that support proper function of the A/T and engine
referring to “Visual Inspection”.

Step 5. Trouble Symptom Confirmation
Check trouble symptoms based on information obtained in Step 1 ) “Customer Complaint Analysis” and Step 2 )
“DTC/Freeze Frame Data Check, Record and Clearance”.
Also, recheck DTC according to “DTC Confirmation Procedure” described in each DTC flow.

Step 6 and Step 7. Recheck and Record of DTC / Freeze Frame Data
Refer to “DTC Check” for checking procedure.

Step 8. A/T Basic Check and A/T Trouble Diagnosis
Perform A/T basic check according to “A/T Basic Check” first. When the end of the flow has been reached, check the
parts of the system suspected as a possible cause referring to “A/T Symptom Diagnosis” and based on symptoms
appearing on the vehicle (symptoms obtained through steps of customer complaint analysis, trouble symptom
confirmation and/or A/T basic check) and repair or replace faulty parts, if any.

Step 9. Troubleshooting for DTC
Based on the DTC indicated in Step 6 and 7 and referring to applicable DTC flow, locate the cause of the trouble,
namely in a sensor, switch, wire harness, connector, actuator, TCM or other part and repair or replace faulty parts.

Step 10. Check for Intermittent Problem
Check parts where an intermittent trouble is easy to occur (e.g., wire harness, connector, etc.), referring to
“Intermittent and Poor Connection Inspection in Section 00” and related circuit of DTC recorded in Step 2.

Step 11. Final Confirmation Test
Confirm that the problem symptom has gone and the A/T is free from any abnormal conditions.
If what has been repaired is related to the malfunction DTC, clear the DTC once, set conditions under which DTC was
detected and A/T and/or vehicle was repaired and confirm that no DTC is indicated.

Malfunction Indicator Lamp (MIL) Check (E-OBD model)

S6JB0B5104002

Refer to “Malfunction Indicator Lamp (MIL) Check in Section 1A”.

Transmission Warning Light Operation Check (Non-E-OBD model)

S6JB0B5104051

1) Turn ignition switch ON.
2) Check that transmission warning light lights for about 2 – 4 sec. and then goes OFF. If anything faulty is found,

advance “Transmission Warning Light Circuit Check – Light Does Not Come “ON” at Ignition Switch ON (Non-E-
OBD model)” or “Transmission Warning Light Circuit Check – Light Remains “ON” at Ignition Switch ON (Non-E-
OBD model)”.

“POWER” Lamp Operation Check

S6JB0B5104052

1) Turn ignition switch ON.
2) Check that “POWER” lamp lights for about 2 – 4 sec. and then goes OFF.

If anything faulty is found, advance to ““POWER” Light Circuit Check – Light Does Not Come “ON” at Ignition
Switch ON”.

Automatic Transmission/Transaxle:  5A-19

DTC Table

S6JB0B5104003

NOTE
A: Driving cycles when MIL lighting and storing DTC in TCM memory for E-OBD model.
B: Driving cycles when transmission warning light lighting and storing DTC in TCM memory for non-E-
OBD model.



DTC No.

Detecting Item

Detecting Condition

(DTC will set when detecting)

Driving Cycle

A

B

)

 P0705

Transmission Range Sensor
Circuit Malfunction (PRNDL
Input)

Multiple signals are inputted
simultaneously.

1 driving cycle

1 driving cycle

)

 P0707

Transmission Range Sensor
Circuit Low

No sensor signal is inputted.

2 driving cycles

2 driving cycles

)

 P0711

Transmission Fluid
Temperature Sensor Range /
Performance

Transmission Fluid Temperature
Sensor variation is less than
specified value even though
engine was running for specified
time after engine start.

2 driving cycles 2 driving cycles *2

)

 P0712

Transmission Fluid
Temperature Sensor “A” Circuit
Low

Sensor output voltage is too low.

1 driving cycle

1 driving cycle

)

 P0713

Transmission Fluid
Temperature Sensor “A” Circuit
High

Sensor output voltage is too
high.

1 driving cycle

1 driving cycle

)

 P0717

Input / Turbine Speed Sensor
Circuit No Signal

No sensor signal is detected
although output speed sensor
signal is inputted.

1 driving cycle

1 driving cycle

)

 P0722

Output Speed Sensor Circuit
No Signal

No sensor signal is inputted
although input speed sensor
signal is inputted.

1 driving cycle

1 driving cycle

)

 P0741

Torque Converter Clutch Circuit
Performance or Stuck Off

Difference in revolution between
engine and input shaft is too
large although TCM is
commanding TCC solenoid to
turn ON.

2 driving cycles 2 driving cycles *2

)

 P0742

Torque Converter Clutch Circuit
Stuck On

Difference in revolution between
engine and input shaft is too
small although TCM is
commanding TCC solenoid to
turn OFF.

2 driving cycles 2 driving cycles *2

)

 P0751

Shift Solenoid “A” Performance
or Stuck Off

The gear commanded by TCM
does not match the actual gear
when driving.

2 driving cycles 2 driving cycles *2

)

 P0752

Shift Solenoid “A” Stuck On

The gear commanded by TCM
does not match the actual gear
when driving.

2 driving cycles 2 driving cycles *2

)

 P0756

Shift Solenoid “B” Performance
or Stuck Off

The gear commanded by TCM
does not match the actual gear
when driving.

2 driving cycles 2 driving cycles *2

)

 P0757

Shift Solenoid “B” Stuck On

The gear commanded by TCM
does not match the actual gear
when driving.

2 driving cycles 2 driving cycles *2

)

 P0771

Shift Solenoid “E” Performance
or Stuck Off

The gear commanded by TCM
does not match the actual gear
when driving.

2 driving cycles 2 driving cycles *2

)

 P0772

Shift Solenoid “E” Stuck On

The gear commanded by TCM
does not match the actual gear
when driving.

2 driving cycles 2 driving cycles *2
