4-iv Table of Contents

Tightening Torque Specifications...................... 4F-51

Special Tools and Equipment ........................... 4F-51

Special Tool ...................................................... 4F-51

Precautions: 4-1

Brakes

Precautions

Precautions

Precautions for Brakes

S6JB0B4000001

Suspension Caution
Refer to “Suspension Caution in Section 00”.

Wheels and Tires Caution
Refer to “Wheels and Tires Caution in Section 00”.

Brake Caution
Refer to “Brakes Caution and Note in Section 00”.

General Precautions
Refer to “General Precautions in Section 00”.

Vehicle Lifting Points
Refer to “Vehicle Lifting Points in Section 0A”.

Fastener Caution
Refer to “Fastener Caution in Section 00”.

Fastener Information
Refer to “Fastener Information in Section 0A”.

4A-1 Brake Control System and Diagnosis:

Brakes

Brake Control System and Diagnosis

General Description

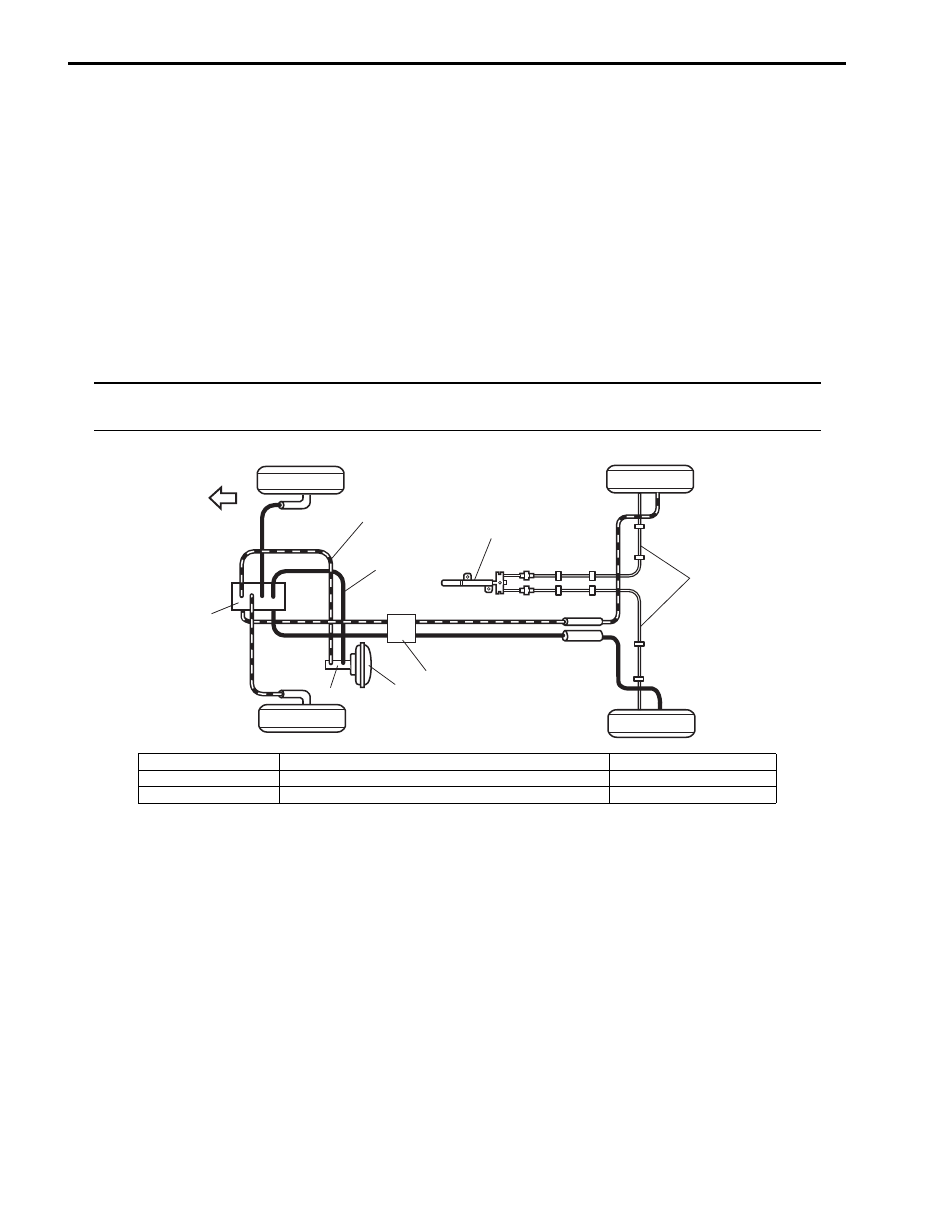

Brakes Construction

S6JB0B4101001

When the foot brake pedal is depressed, hydraulic pressure is developed in the master cylinder (2) to actuate pistons
(two in front and four in rear).
The master cylinder is a tandem master cylinder. Brake pipes are connected to the master cylinder and they make two
independent circuits. One connects front right and rear left brakes and the other connects front left and rear right
brakes.
In this brake system, the disc brake type is used for the front wheel brake and a drum brake type (leading / trailing
shoes) for the rear brake.
The parking brake system is mechanical. It applies brake force to only rear wheels by means of the cable and
mechanical linkage system. The same brake shoes are used for both parking and foot brakes.

NOTE
The difference between RHD model and LHD model is the location of the brake master and the brake
booster only.



A

2

8

1

5

3

4

6

7

I5JB0A410001-02

1. Brake booster

4. Primary side

7. Parking brake cable

2. Master cylinder

5. ABS (ESP

®) hydraulic unit / control module assembly

8. 4-way joint

3. Secondary side

6. Parking brake lever

A: Forward

Brake Control System and Diagnosis:  4A-2

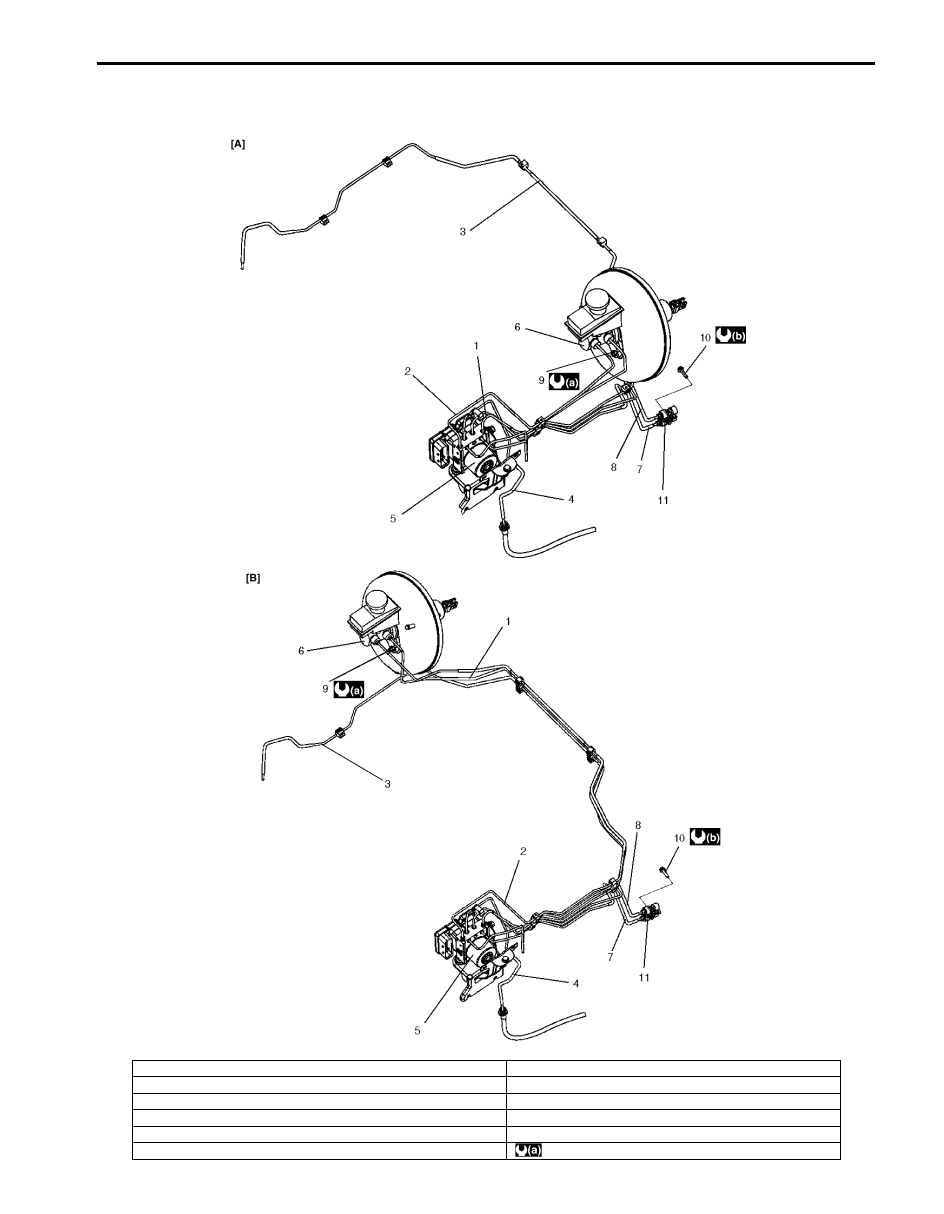

Front Brake Hose / Pipe Construction

S6JB0B4101002

I5JB0A410002-03

[A]: LHD model

7. From ABS (ESP

®) hydraulic unit to left rear brake

[B]: RHD model

8. From ABS (ESP

®) hydraulic unit to right rear brake

1. From master cylinder primary to ABS (ESP

®) hydraulic unit

9. Master cylinder fixing nut

2. From master cylinder secondary to ABS (ESP

®) hydraulic unit

10. Brake joint bolt

3. From ABS (ESP

®) hydraulic unit to right front brake

11. 4-way joint

4. From ABS (ESP

®) hydraulic unit to left front brake

: 18 N

⋅m (1.8 kgf-m, 13.0 lb-ft)
