1E-8 Engine Lubrication System:

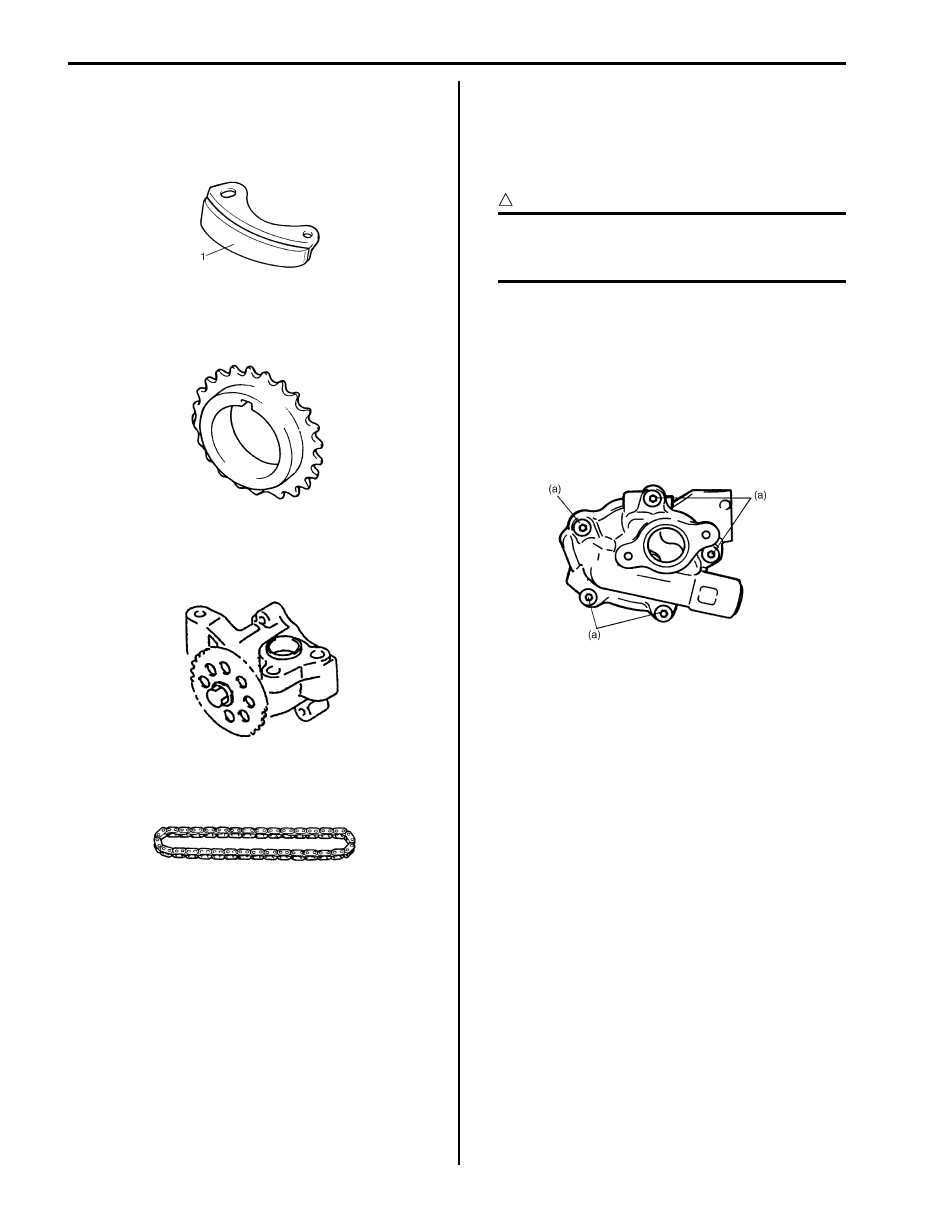

Oil Pump and Oil Pump Chain Inspection

S6JB0B1506006

Oil Pump Chain Guide
Check shoe (1) for wear or damage.

Oil Pump Drive Sprocket
Check teeth of sprocket for wear or damage.

Oil Pump Sprocket
Check teeth of sprocket for wear or damage.

Oil Pump Chain
Check oil pump chain for wear or damage.

Oil Pump Disassembly and Reassembly

S6JB0B1506007

Disassembly
Disassemble oil pump referring to “Oil Pump and Oil
Pump Chain Components”.

CAUTION

!



Do not remove oil pump sprocket or bolt.
Otherwise, oil pump sprocket and/or oil
pump rotor shaft might be damaged.



Reassembly

1) Wash, clean and then dry all disassembled parts.
2) Apply thin coat of engine oil to inner and outer rotors,

and inside surfaces of oil pump case.

3) Reassemble oil pump. After reassembling oil pump,

check to be sure that rotor turns smoothly by hand.

Tightening torque
Oil pump bolt (a):  12 N·m (1.2 kgf-m, 9.0 lb-ft)

IYSQ01153026-01

IYSQ01153027-01

IYSQ01153028-01

IYSQ01153029-01

IYSQ01153019-01

Engine Lubrication System:  1E-9

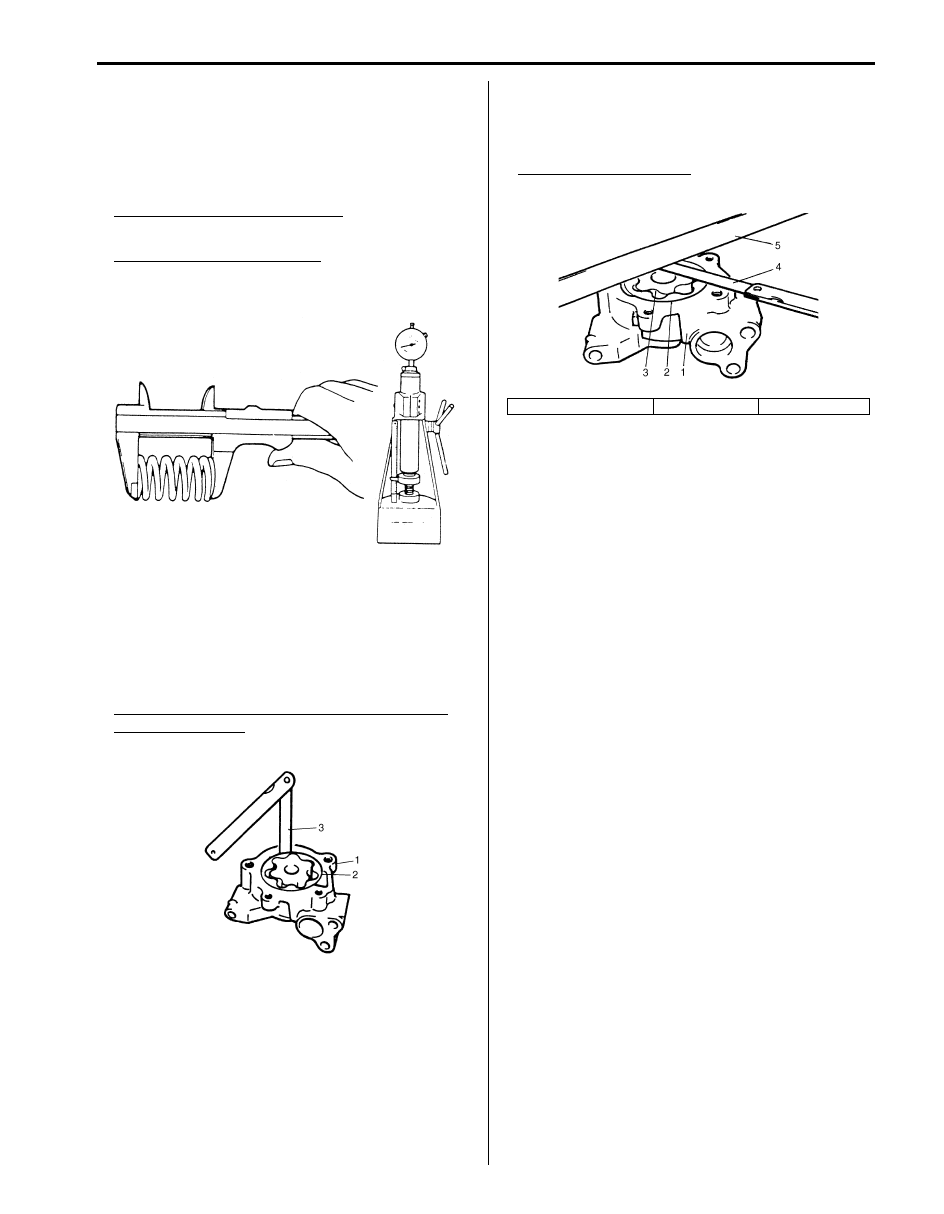

Oil Pump Inspection

S6JB0B1506008

• Check outer rotor, inner rotor and oil pump cases for

excessive wear or damage.

• Check relief valve for excessive wear or damage.
• Measure free length and tension of oil relief spring.

Spring (for oil pump) free length
63.47 mm (2.49 in.)

Spring (for oil pump) preload
80.38 – 88.22 N (8.04 – 8.82 kg, 58.14 – 63.80 lb) for
52.0 mm (2.05 in.)

• Radial clearance

Measure clearance of oil pump rotor and oil pump
case using thickness gauge.
Check radial clearance between outer rotor (2) and
case (1), using thickness gauge (3).
If clearance exceeds its limit, replace oil pump
assembly.

Radial clearance between oil pump outer rotor
and oil pump case
Limit: 0.19 mm (0.0075 in.)

• Side clearance

Using straightedge (5) and thickness gauge (4),
measure side clearance. If clearance exceeds its limit,
replace oil pump assembly.

Oil pump side clearance
Limit: 0.11 mm (0.0043 in.)

IYSQ01141105-01

IYSQ01153020-01

1. Oil pump case No.1

2. Outer rotor

3. Inner rotor

IYSQ01153021-01

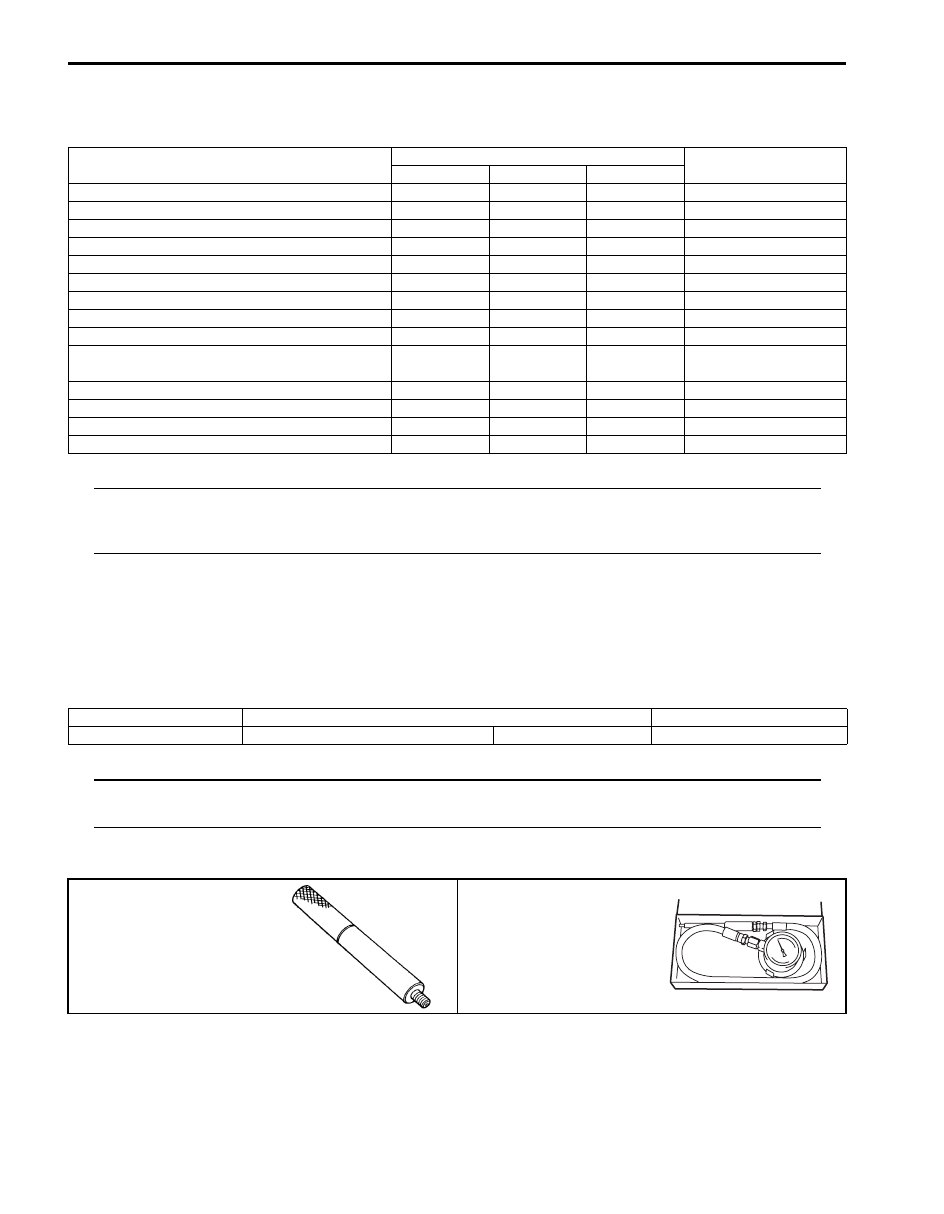

1E-10 Engine Lubrication System:

Specifications

Tightening Torque Specifications

S6JB0B1507001

NOTE
The specified tightening torque is also described in the following.
“Oil Pan and Oil Pump Strainer Components”
“Oil Pump and Oil Pump Chain Components”



Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A”.

Special Tools and Equipment

Recommended Service Material

S6JB0B1508001

NOTE
Required service material is also described in the following.
“Oil Pan and Oil Pump Strainer Components”



Special Tool

S6JB0B1508002

Fastening part

Tightening torque

Note

N

⋅m

kgf-m

lb-ft

Oil pressure switch

13

1.3

9.5

)

Oil pump strainer bolt

11

1.1

8.0

)

Upper oil pan bolt (M6)

11

1.1

8.0

)

Upper oil pan bolt (M8)

25

2.5

19.5

)

Upper oil pan nut

11

1.1

8.0

)

Oil pump strainer bracket bolt

11

1.1

8.0

)

Lower oil pan bolt

11

1.1

8.0

)

Lower oil pan nut

11

1.1

8.0

)

Engine oil drain plug

35

3.5

25.5

)

Drive plate cover (A/T) bolt or clutch housing
lower plate (M/T) bolt

11

1.1 8.0

)

Oil level gauge guide bolt

11

1.1

8.0

)

Oil pump mounting bolt

25

2.5

18.0

)

Oil pump chain guide bolt

11

1.1

8.0

)

Oil pump bolt

12

1.2

9.0

)

Material

SUZUKI recommended product or Specification

Note

Sealant

SUZUKI Bond No.1217G

P/No.: 99000–31260

)

 / )

09915–76510

09915–77311

Oil pressure gauge
attachment

Oil pressure gauge

)

)

Engine Cooling System:  1F-1

Engine

Engine Cooling System

General Description

Cooling System Description

S6JB0B1601001

The cooling system consists of the radiator cap, radiator,
coolant reservoir, hoses, water pump, cooling fan and
thermostat. The radiator is of tube-and-fin type.

Coolant Description

S6JB0B1601002

WARNING

!



• Do not remove radiator cap to check

engine coolant level; check coolant
visually at the see-through coolant
reservoir. Coolant should be added only to
reservoir as necessary.

• As long as there is pressure in the cooling

system, the temperature can be
considerably higher than the boiling
temperature of the solution in the radiator
without causing the solution to boil.
Removal of the radiator cap while engine is
hot and pressure is high will cause the
solution to boil instantaneously and
possibly with explosive force, spewing the
solution over engine, fenders and person
removing cap. If the solution contains
flammable anti-freeze such as alcohol (not
recommended for use at any time), there is
also the possibility of causing a serious
fire.

• Check to make sure that engine coolant

temperature is cold before removing any
part of cooling system.

• Also be sure to disconnect negative (–)

cable from battery terminal before
removing any part.



The coolant recovery system is standard. The coolant in
the radiator expands with heat, and the coolant is
overflowed to the reservoir.
When the system cools down, the coolant is drawn back
into the radiator.
The cooling system has been filled with a quality coolant
that is a 50/50 mixture of water and ethylene glycol
antifreeze.
This 50/50 mixture coolant solution provides freezing
protection to –36

°C (–33 °F).

• Maintain cooling system freeze protection at –36

°C (–

33

°F) to ensure protection against corrosion and loss

of coolant from boiling. This should be done even if
freezing temperatures are not expected.

• Add ethylene glycol base coolant when coolant has to

be added because of coolant loss or to provide added
protection against freezing at temperature lower than
–36

°C (–33 °F).

NOTE

• Alcohol or methanol base coolant or plain

water alone should not be used in cooling
system at any time as damage to cooling
system could occur.

• Coolant must be mixed with deminerated

water or distilled water.



Anti-freeze proportioning table

Coolant capacity
Engine, radiator and heater: 7.4 liters (15.64/13.03
US/lmp pt.)
Reservoir: 0.8 liters (1.69/1.41 US/lmp pt.)
Total: 8.2 liters (17.49/14.43 US/lmp pt.)

Freezing temperature

°C

–36

°F

–33

Anti-freeze / Anti-corrosion
coolant concentration

%

50

Ratio of compound to cooling
water

ltr.

4.1/4.1

US pt.

8.75/8.75

Imp pt.

7.22/7.22
