7-30

REPAIR

7

7.7 Lubrication System

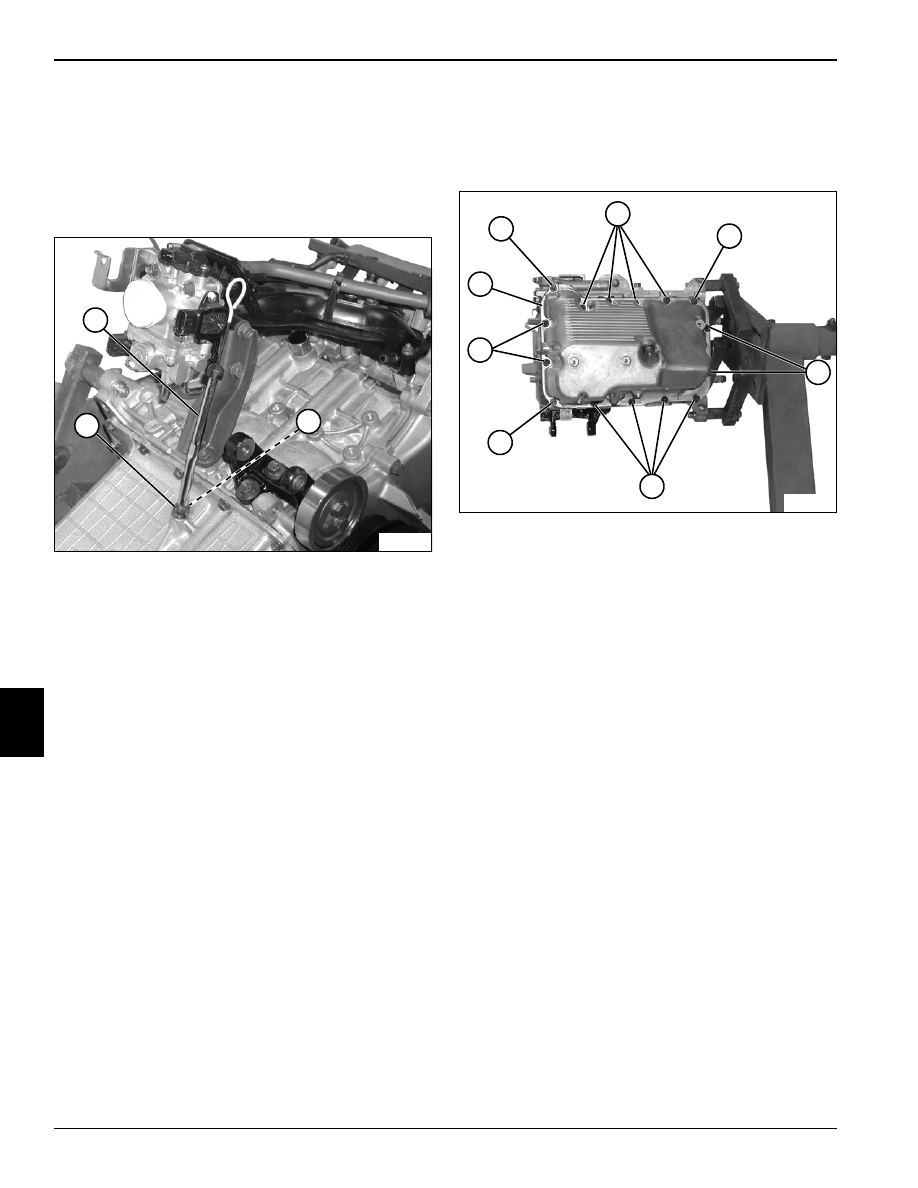

Dipstick Tube

Removal and Installation

See Figure 7-72.

Figure 7-72

1.

Remove nut (1).

2.

Remove dipstick tube (2) and O-ring (3).

3.

Inspect dipstick tube and O-ring. Replace as needed.

Installation Notes

Always use new O-rings, gaskets, and seals.

Install dipstick tube by reversing the order of removal.

Oil Pan

Removal

See Figure 7-73.

Figure 7-73

1.

Drain engine oil. (See “Change Engine Oil” on
page 3-2.)

2.

Remove twelve cap screws (2), three nuts (1), and oil
pan (3).

3.

Inspect oil pan. Replace as needed.

TN0713

1

2

3

TN0741

1

1

1

2

2

2

2

3

REPAIR

7-31

7

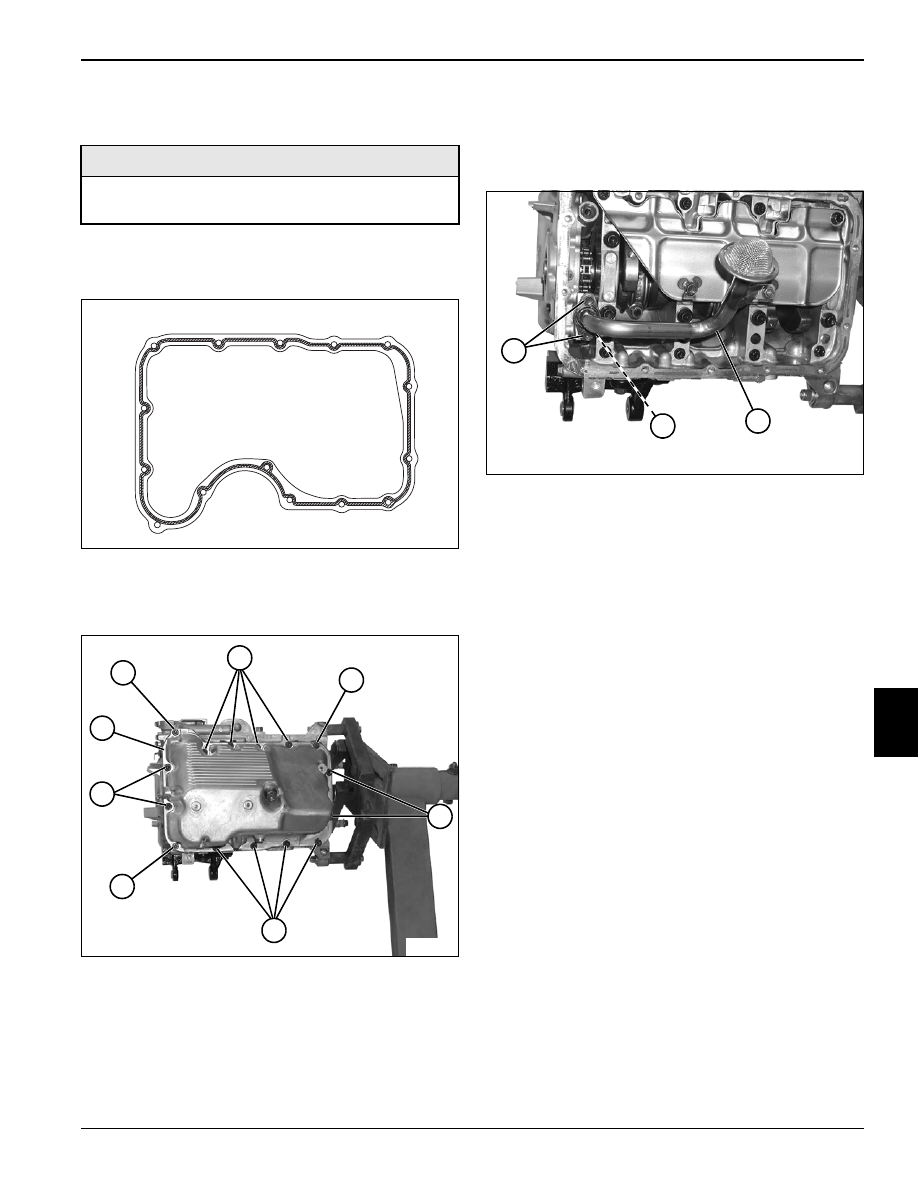

Installation

See Figures 7-74 and 7-75.

1.

Clean cylinder block, front cover, and oil pan mating
surfaces.

Figure 7-74

2.

Apply Three Bond™ 1215 Sealant to the oil pan
mating surface as shown.

Figure 7-75

3.

Install oil pan (3) using three nuts (1) and twelve cap
screws (2). Tighten to specification.

Oil Pan Torque: 97 lb-in. (11 N•m)

4.

Fill engine oil. (See “Change Engine Oil” on
page 3-2.)

Oil Pump Pickup

Removal and Installation

See Figure 7-76.

Figure 7-76

1.

Remove oil pan. (See “Oil Pan” on page 7-30.)

2.

Remove cap screws (1), oil pump pickup (2), and
O-ring (3).

3.

Inspect oil pump pickup and O-ring. Replace as
needed.

Installation Notes

Always use new O-rings, gaskets, and seals.

Install oil pump pickup with new O-ring by reversing the
order of removal.

Install oil pan. (See “Oil Pan” on page 7-30.)

Required Materials

Three Bond™ 1215 (Suzuki PN 99000-1080-15A) or
equivalent

TN0397

TN0741

1

1

1

2

2

2

2

3

TN0742

1

2

3

7-32

REPAIR

7

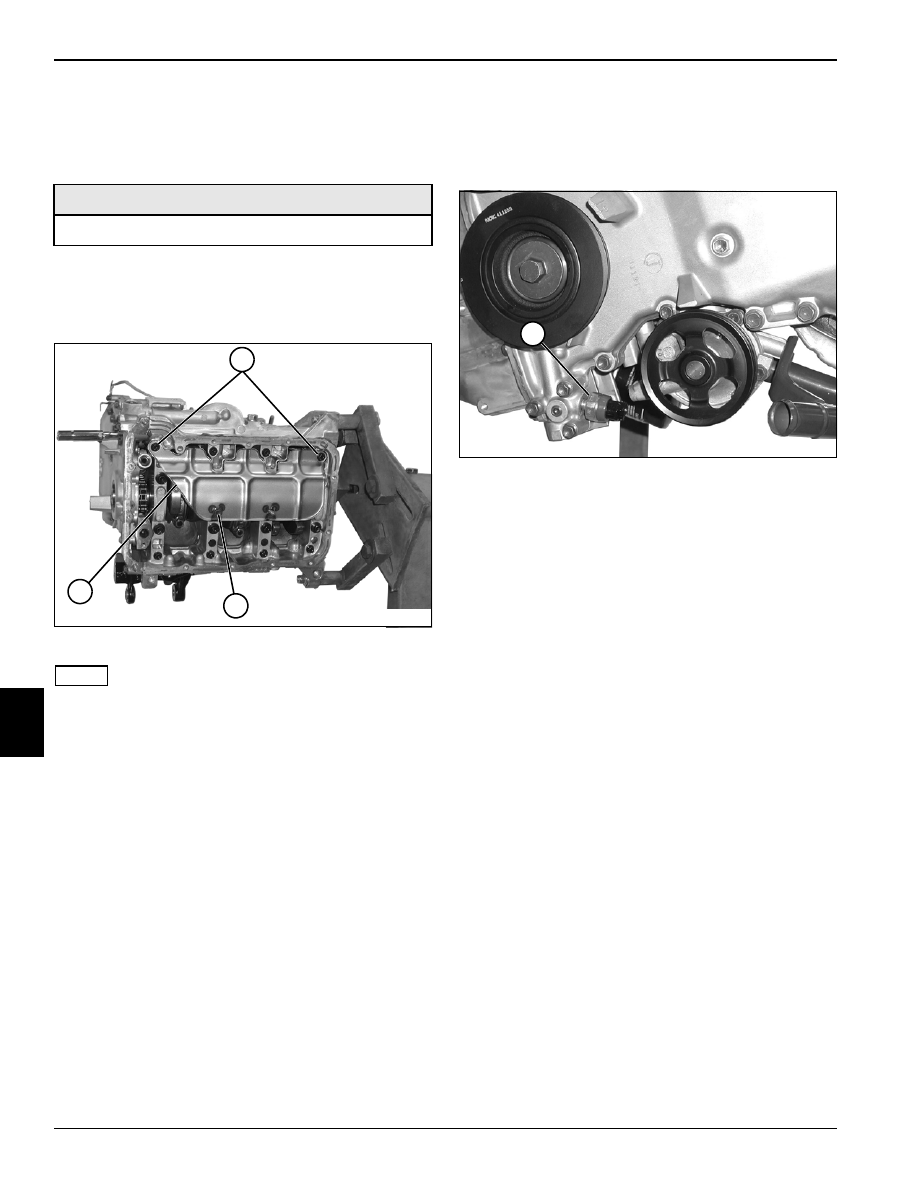

Crankshaft Baffle

Removal and Installation

See Figure 7-77.

1.

Remove oil pan. (See “Oil Pan” on page 7-30.)

2.

Remove oil pump pickup. (See “Oil Pump Pickup” on
page 7-31.)

Figure 7-77

NOTE

Cap screws (1) require the use of a 12-point 8 mm
socket.

3.

Remove cap screws (1 and 2) and crankshaft
baffle (3).

Installation Notes

Install crankshaft baffle by reversing the order of removal.

Install oil pump pickup. (See “Oil Pump Pickup” on
page 7-31.)

Install oil pan. (See “Oil Pan” on page 7-30.)

Oil Pressure Sending Unit

Removal and Installation

See Figure 7-78.

Figure 7-78

1.

Remove oil pressure sending unit (1).

2.

Inspect oil pressure sending unit. Replace as
needed.

Installation Notes

Apply thread sealant to the oil pressure sending unit
before installation.

Install oil pressure sending unit by reversing the order of
removal.

Required Tools

12-Point 8 mm Socket

TN0743

3

2

1

TN0715

1

REPAIR

7-33

7

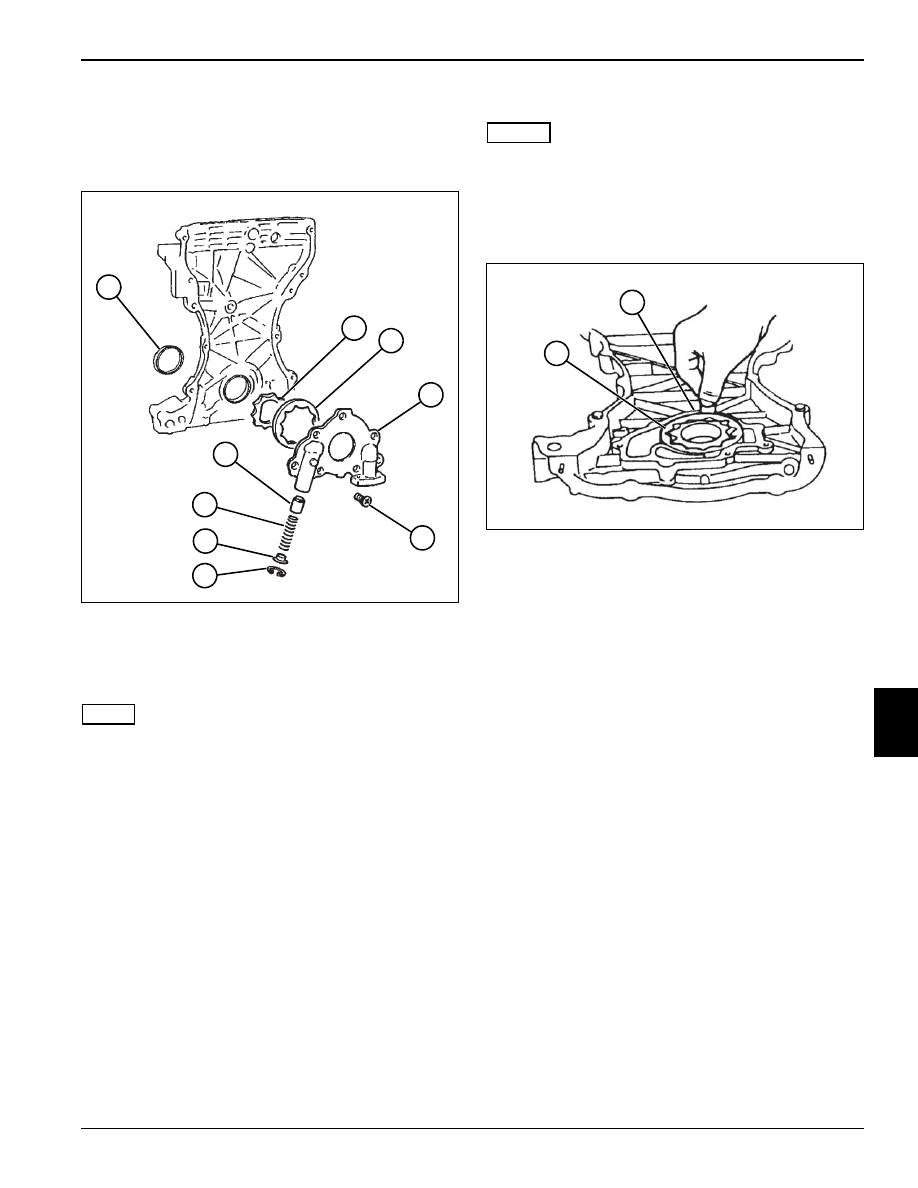

Oil Pump

Removal

See Figure 7-79.

Figure 7-79

1.

Remove front cover. (See “Front Cover” on
page 7-12.)

2.

Remove seven screws (5) and oil pump housing (4).

NOTE

Mark inner and outer rotor before removal to aid during
installation.

3.

Remove inner rotor (2) and outer rotor (3).

4.

Remove oil seal (1).

5.

Remove circlip (6), retainer (7), spring (8), and relief
valve (9).

6.

Inspect parts and replace as needed. (See
“Inspection” on page 7-33.)

Inspection

NOTES

Clean engine oil from oil pump rotor bore, and inner and
outer rotors, before performing measurements.

Outer Rotor Radial Clearance

See Figure 7-80.

Figure 7-80

1.

Using a feeler gauge, measure the clearance
between outer rotor (1) and the oil pump case rotor
bore (2). If the clearance is beyond the service limit,
replace the oil pump assembly.

Oil Pump Radial Clearance Limit:
0.0004—0.006 in. (0.10—0.15 mm)

TN0557

1

2

3

4

5

6

9

8

7

TN0391

1

2
