8-2. Steps to take in an emergency

Wh
e

tro
ub
le

●

The power back door (if equipped)

must be initialized. (



P.177)

■

When replacing the 12-volt bat-

tery

●

Use a 12-volt battery that con-

forms to European regulations.

●

Use a 12-volt battery that the case

size is same as the previous one

(LN1), 20 hour rate capacity

(20HR) is equivalent (45Ah) or

greater, and performance rating

(CCA) is equivalent (286A) or

greater.

• If the sizes differ, the 12-volt bat-

tery cannot be properly secured.

• If an improper 12-volt battery is

used, battery performance may

decrease and the EV system may

not be able to restart.

• If the 20 hour rate capacity is low,

even if the time period where the

vehicle is not used is a short time,

the 12-volt battery may discharge

and EV system may not be able to

start.

For details, consult your SUBARU

dealer.

WARNING

■

When removing the 12-volt

battery terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

Avoiding 12-volt battery fires

or explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the 12-volt battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the 12-volt battery.

■

12-volt battery precautions

The 12-volt battery contains poi-

sonous and corrosive acidic elec-

trolyte, while related parts contain

lead and lead compounds.

Observe the following precautions

when handling the 12-volt battery:

●

When working with the 12-volt

battery, always wear safety

glasses and take care not to

allow any battery fluids (acid) to

come into contact with skin,

clothing or the vehicle body.

●

Do not lean over the 12-volt bat-

tery.

548

8-2. Steps to take in an emergency

Stop the vehicle in a safe
place and turn off the air con-
ditioning system.

Leave the EV system operat-
ing and carefully lift the hood.

Check if the cooling fan is
operating.
If the fan is operating:
Wait until the “EV System
overheated Output power
reduced” message disap-

WARNING

●

In the event that battery fluid

(acid) comes into contact with

the skin or eyes, immediately

wash the affected area with

water and seek medical atten-

tion.

Place a wet sponge or cloth

over the affected area until

medical attention can be

received.

●

Always wash your hands after

handling the 12-volt battery and

other battery-related parts.

●

Do not allow children near the

12-volt battery.

■

When replacing the 12-volt

battery

●

When the vent plug is close to

the hold down clamp, the bat-

tery fluid (acid) may leak.

●

For information regarding bat-

tery replacement, contact your

SUBARU dealer.

NOTICE

■

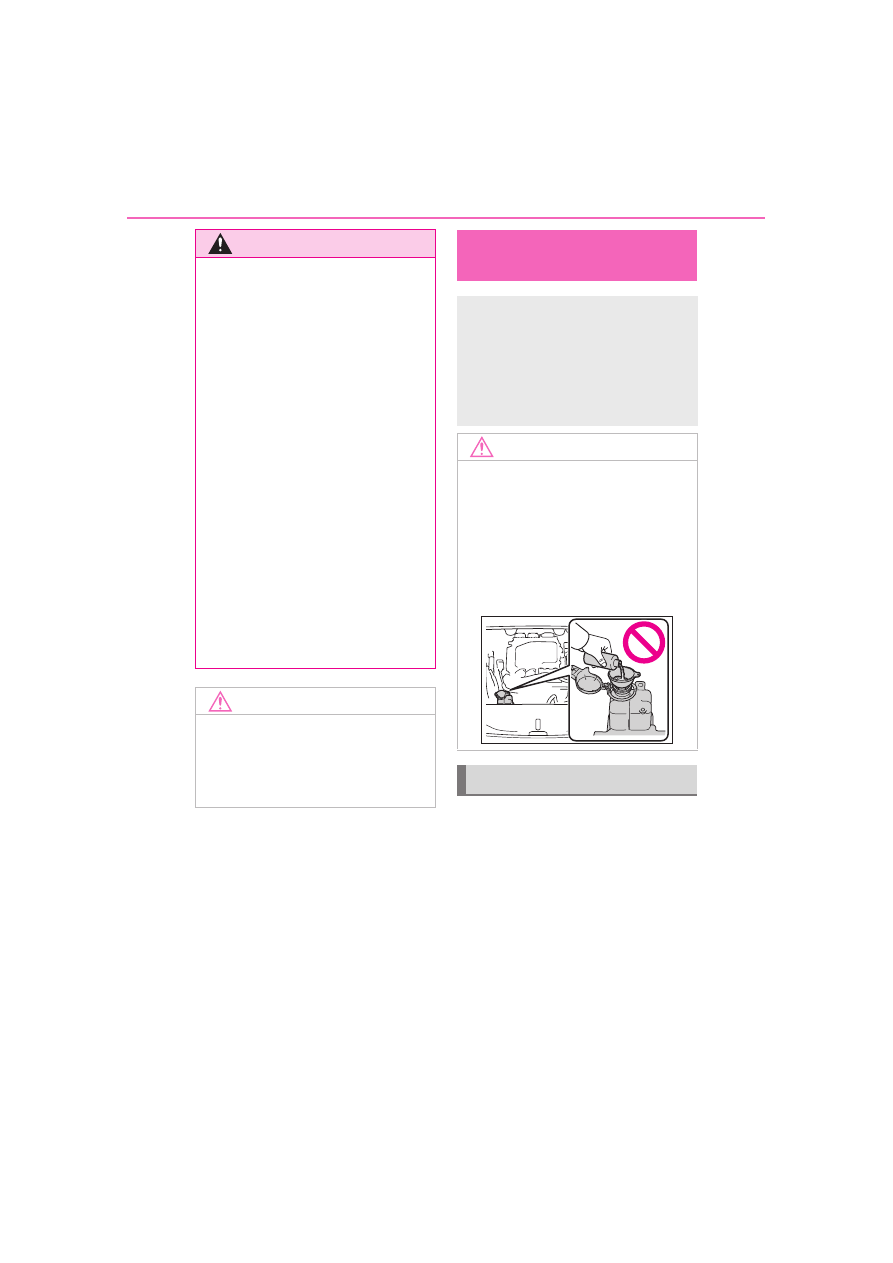

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fan.

If your vehicle over-

heats

When “EV System over-
heated Output power
reduced” is shown on the
multi-information display,
your vehicle may be over-
heating.

NOTICE

■

Cooling system coolant

The radiator coolant is exclusive

for radiator usage. Damage may

occur when water or any other

type of coolant is used, so never

use any other fluid. When there is

no “Genuine Traction Battery

Coolant”, immediately contact

your SUBARU dealer.

Correction procedures

549

8-2. Steps to take in an emergency

Wh
e

tro
ub
le

pears and then stop the EV
system. If the message does
not disappear, call your SUB-
ARU dealer.
If the fan is not operating:
Stop the EV system immedi-
ately and call your SUBARU
dealer.

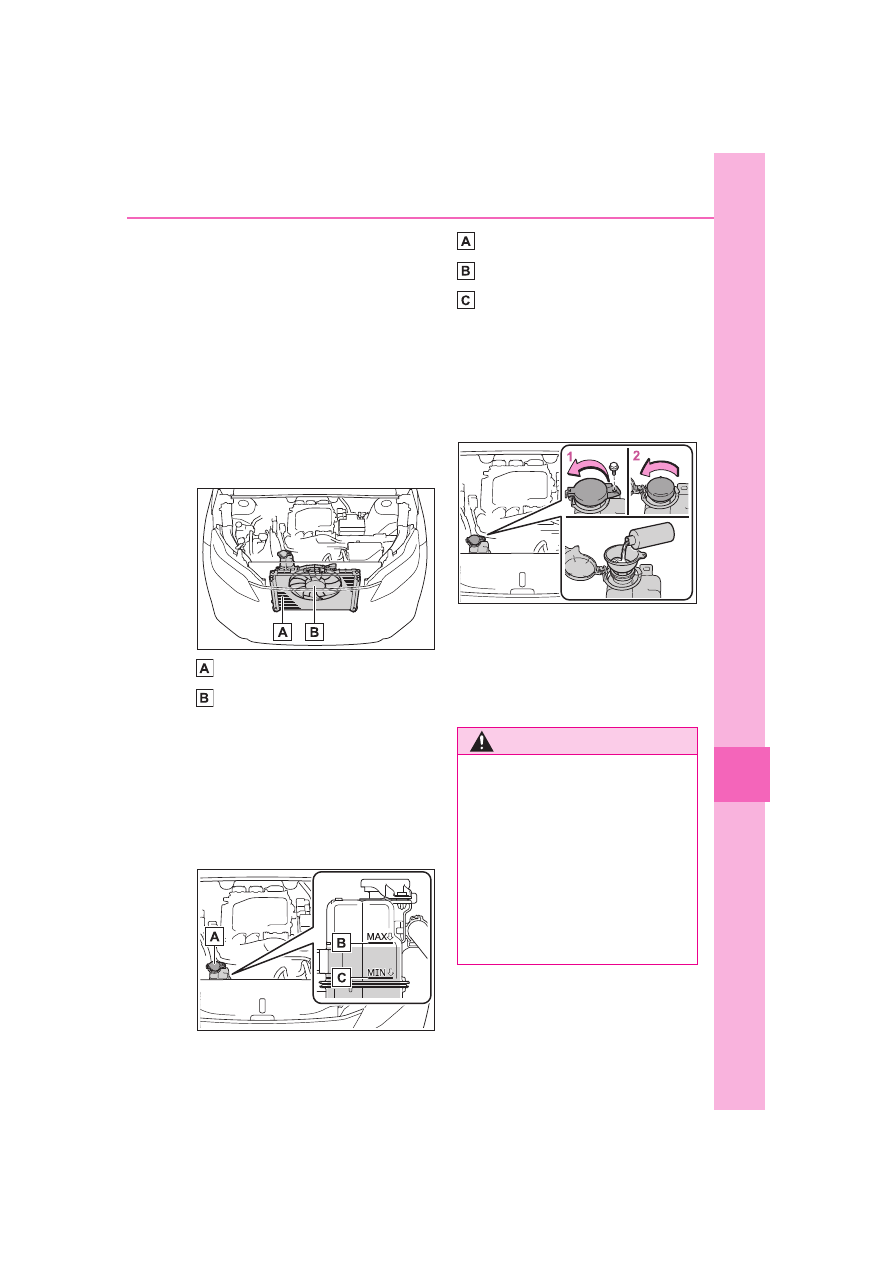

After the EV system has
cooled down, inspect the
hoses and radiator core (radi-
ator) for any leaks.

Radiator

Cooling fan

If a large amount of coolant leaks,
immediately contact your SUBARU
dealer.

The coolant level is satisfac-
tory if it is between the “MAX”
and “MIN” lines on the reser-
voir.

Reservoir

“MAX” line

“MIN” line

If the coolant is insufficient,
replenish with “Genuine Trac-
tion Battery Coolant”.

If you don’t have “Genuine Traction

Battery Coolant”, contact your

SUBARU dealer.

Remove the bolt.

Open the reservoir cap

Have the vehicle inspected at
the nearest your SUBARU
dealer.

WARNING

■

To prevent an accident or

injury when inspecting under

the hood of your vehicle

Observe the following precau-

tions.
Failure to do so may result in seri-

ous injury such as burns.

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The motor compartment

may be very hot.

550

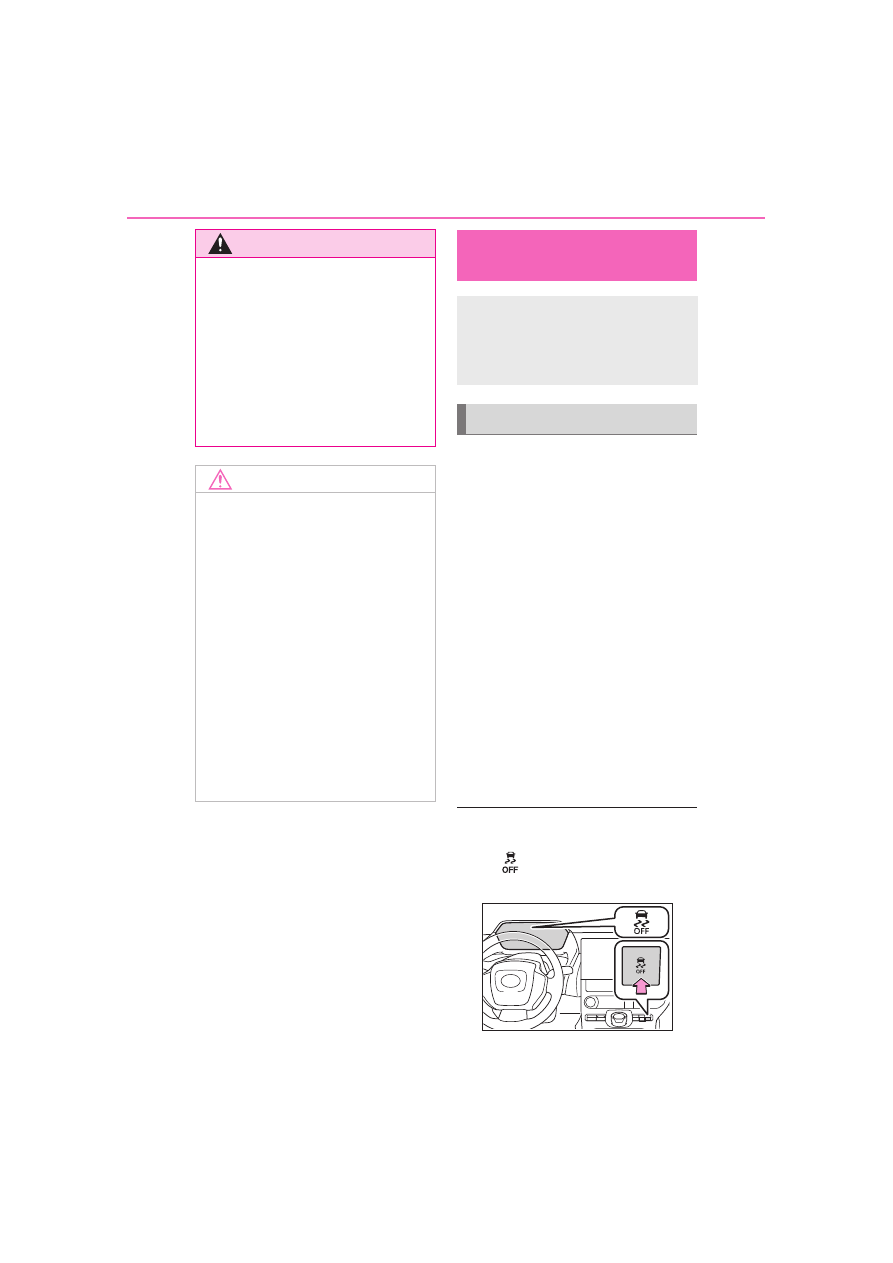

8-2. Steps to take in an emergency

Stop the EV system. Set the
parking brake and shift the
shift position to P.

Remove the mud, snow or
sand from around the stuck
tire.

Place wood, stones or some
other material under the front
wheels to help provide trac-
tion.

Restart the EV system

Shift the shift position to D or
R and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.

■

When it is difficult to free the

vehicle

Press

to turn off TRAC.

(



P.391)

WARNING

●

Keep hands and clothing (espe-

cially a tie, a scarf or a muffler)

away from the fan. Failure to do

so may cause the hands or

clothing to be caught, resulting

in serious injury.

●

Do not loosen the coolant reser-

voir cap while the EV system

and radiator are hot. High tem-

perature steam or coolant could

spray out.

NOTICE

■

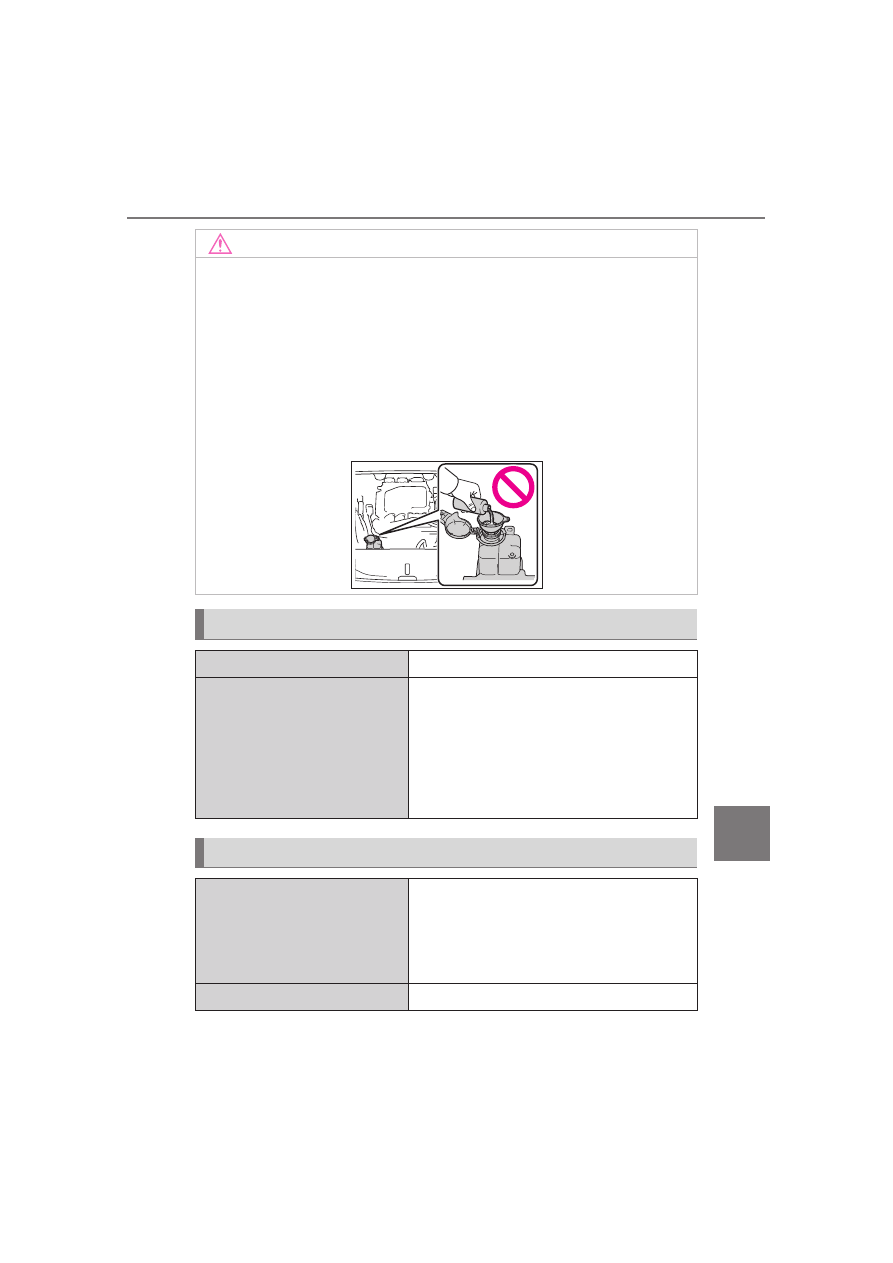

When adding coolant

Add coolant slowly after the EV

system has cooled down suffi-

ciently. Adding cool coolant to a

hot EV system too quickly can

cause damage to the EV system.

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust, etc.).

●

Do not use water or any other

coolant when refilling coolant.

Also, do not use any additive

agents for the coolant.

If the vehicle becomes

stuck

Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:

Recovering procedure

551

8-2. Steps to take in an emergency

Wh
e

tro
ub
le

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift posi-

tion

Be careful not to shift the shift

position with the accelerator pedal

depressed.
This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the tires and

depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

553

Ve
hi

cle

cifi

cat

Vehicle specifications

9-1. Specifications

Maintenance data .......

554

Tire information ...........

560

9-2. Customization

Customizable features

570

9-3. Initialization

Items to initialize .........

582

554

9-1. Specifications

9-1.Specifications

: Unladen vehicle

■

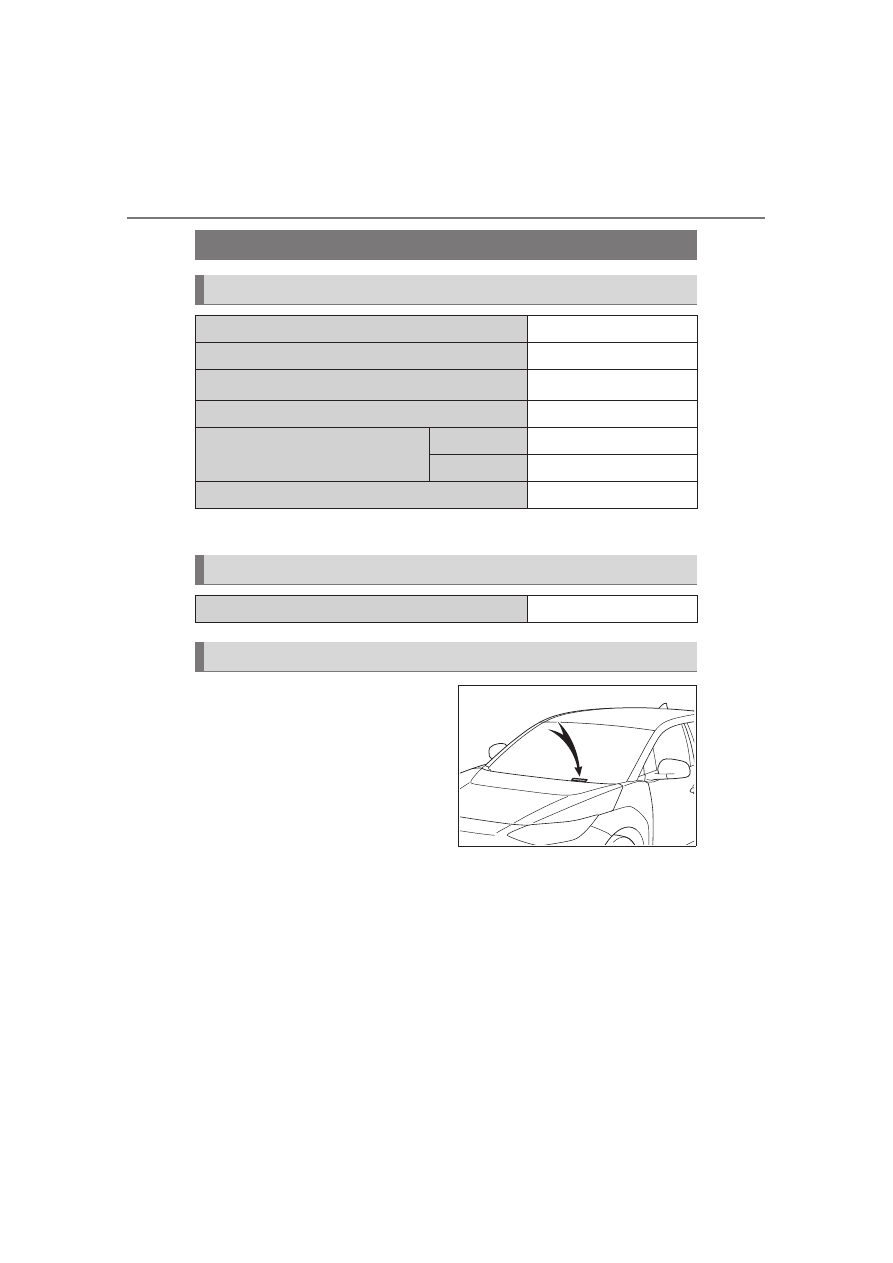

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your SUBARU. It is used in reg-
istering the ownership of your
vehicle.
This number is on the top left of
the instrument panel.

This number is also stamped
under the right-hand front seat.

Maintenance data

Dimensions and weights

Overall length

184.6 in. (4690 mm)

Overall width

73.2 in. (1860 mm)

Overall height

65.0 in. (1650 mm)

Wheelbase

112.2 in. (2850 mm)

Tread

Front

63.0 in. (1600 mm)

Rear

63.4 in. (1610 mm)

Vehicle capacity weight (Occupants + luggage)

1045 lb. (475 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

555

9-1. Specifications

Ve
hi

cle

cifi

cat

This number is also on the Certi-
fication Regulation Label.

■

Motor model type and
motor number

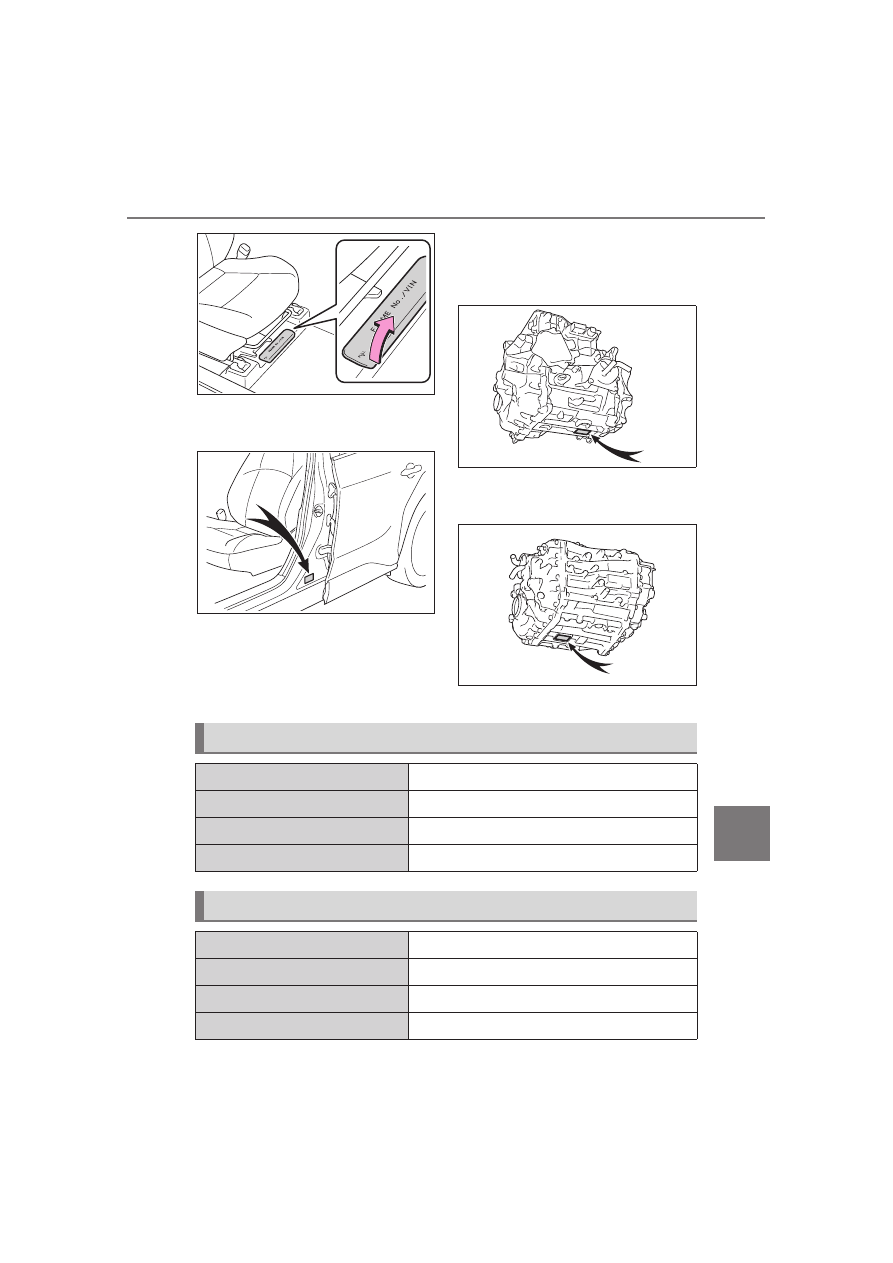

The motor model type and the
motor number are stamped on

the motor as shown.



Front electric motor (traction
motor)



Rear electric motor (traction
motor)

Front electric motor (traction motor)

Model

1YM

Type

Permanent magnet synchronous motor

Maximum output

80 kW

Maximum torque

124.3 ft•lbf (168.5 N•m, 17.2 kgf•m)

Rear electric motor (traction motor)

Model

1YM

Type

Permanent magnet synchronous motor

Maximum output

80 kW

Maximum torque

124.3 ft•lbf (168.5 N•m, 17.2 kgf•m)

556

9-1. Specifications

: The coolant capacity is the quantity of reference.

If replacement is necessary, contact your SUBARU dealer.

Traction battery

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

205 Ah

Quantity

96 cells

Nominal voltage

355.2 V

Cooling system

Capacity

7.8 qt. (7.4 L, 6.5 Imp. qt.)

Coolant type

Use either of the following:
• “Genuine Traction Battery Coolant”
• Similar high-quality ethylene glycol-

based, low electric conductivity coolant,
non-amine and non-borate coolant with
azole additives.

Do not use plain water alone.

557

9-1. Specifications

Ve
hi

cle

cifi

cat

NOTICE

■

Cooling system coolant

In order to ensure maximum performance of the traction battery cooling

system and limit risks of battery short-circuit and other damage to your

vehicle, SUBARU recommends using “Genuine Traction Battery Coolant”

or similar high-quality ethylene glycol-based, low electric conductivity

coolant, non-amine and non-borate coolant with azole additives.
SUBARU cannot guarantee that the use of a product other than “Genuine

Traction Battery Coolant” will prevent risks of battery short-circuit or other

damage.
Never use water as it will cause damage.
Do not reuse coolant that has been removed from the radiator.

Heater system

Capacity

4.2 qt. (4.0 L, 3.5 Imp. qt.)

Coolant type

Use either of the following:
• “SUBARU Super Coolant”
• Similar high-quality ethylene glycol-

based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology

Do not use plain water alone.

Electrical system (12-volt battery)

Specific voltage reading at
68°F (20°C):

12.0 V or More
In the case the voltage is less than stan-
dard, charge battery.
(Voltage is checked 20 minutes after the
motor and all lights turned off.)

Charging rates

5 A max.

558

9-1. Specifications

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your SUBARU dealer.

: The fluid capacity is the quantity of reference.

If replacement is necessary, contact your SUBARU dealer.

:Minimum pedal clearance when depressed with a force of 66 lbf (300 N,

31 kgf) while the EV system is operating.

Front eAxle

Fluid capacity

4.1 qt. (3.9 L, 3.4 Imp.qt.)

Fluid type

e-Transaxle Fluid TE

NOTICE

■

Front eAxle fluid type

Using transaxle fluid other than the above type may cause abnormal

noise or vibration, or ultimately damage the front eAxle of your vehicle.

Rear eAxle (rear electric motor)

Fluid capacity

3.3 qt. (3.1 L, 2.7 Imp.qt.)

Fluid type

e-Transaxle Fluid TE

NOTICE

■

Rear eAxle fluid type

Using transaxle fluid other than the above type may cause abnormal

noise or vibration, or ultimately damage the rear eAxle of your vehicle.

Brakes

Pedal clearance

2.28 in. (58 mm) Min.

Pedal free play

0.04 - 0.24 in. (1.0 - 6.0 mm)

Parking brake indicator

When pushing the parking brake switch for
1 to 4 seconds: turns off
When pulling the parking brake switch for
1 to 4 seconds: comes on

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

559

9-1. Specifications

Ve
hi

cle

cifi

cat

:Make sure to confirm that the brake system warning light (yellow) does

not illuminate. (If the brake system warning light illuminates, refer to
P.516)



Vehicles with 18-inch wheels



Vehicles with 20-inch wheels

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

235/60R18 103V

Tire inflation pressure
(Recommended cold tire infla-
tion pressure)

Front:

38 psi (260 kPa, 2.6 kgf/cm

or bar)

Rear:

38 psi (260 kPa, 2.6 kgf/cm

or bar)

Wheel size

18 x 7 1/2J

Wheel bolt torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

Tire size

235/50R20 100V

Tire inflation pressure
(Recommended cold tire infla-
tion pressure)

Front:

38 psi (260 kPa, 2.6 kgf/cm

or bar)

Rear:

38 psi (260 kPa, 2.6 kgf/cm

or bar)

Wheel size

20 x 7 1/2J

Wheel bolt torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

560

9-1. Specifications

Location of treadwear indicators (



P.474)

Load limit at maximum cold tire inflation pressure (



P.564)

Maximum cold tire inflation pressure (



P.564)

This means the pressure to which a tire may be inflated.

Tire size (



P.561)

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

Summer tires or all season tires (



P.474)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

DOT and Tire Identification Number (TIN) (



P.561)

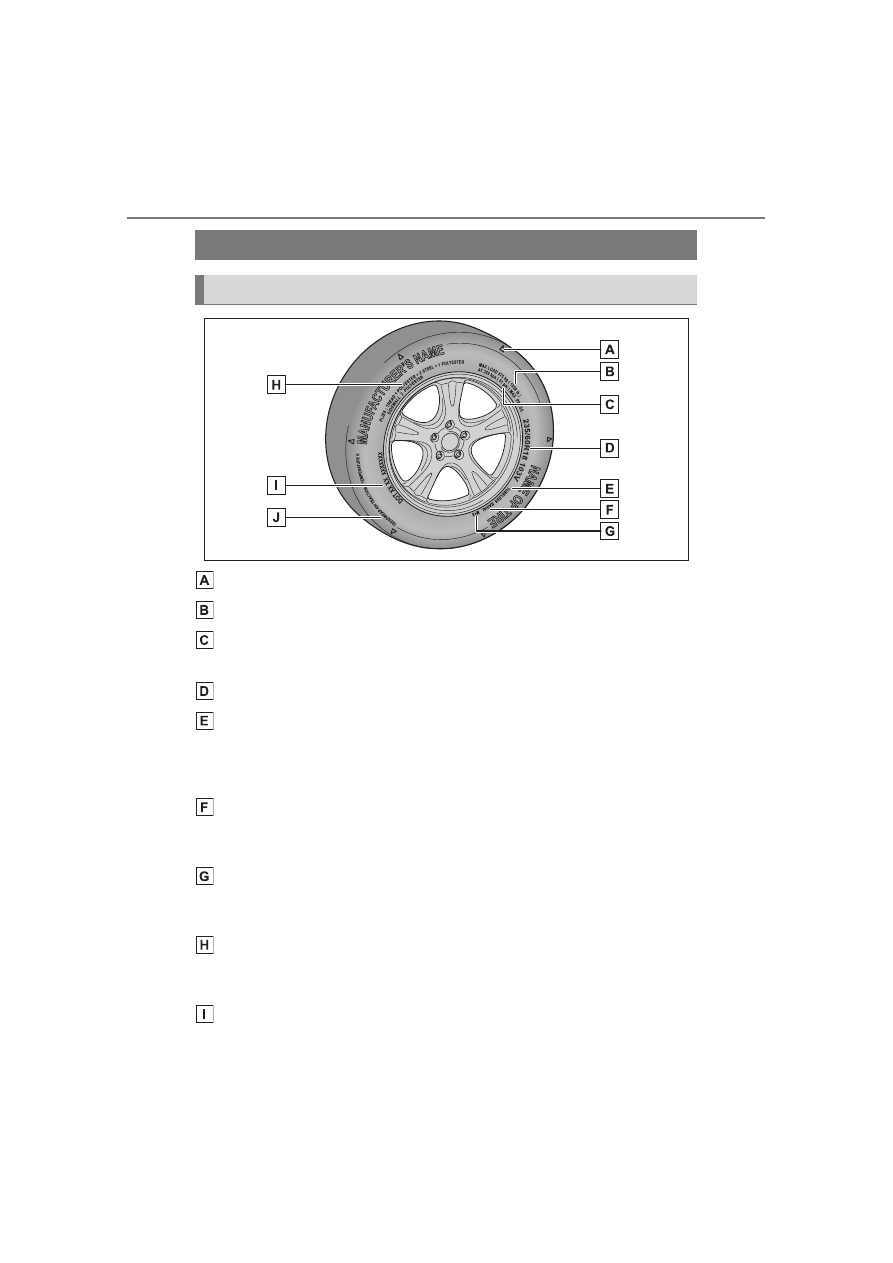

Tire information

Typical tire symbols

561

9-1. Specifications

Ve
hi

cle

cifi

cat

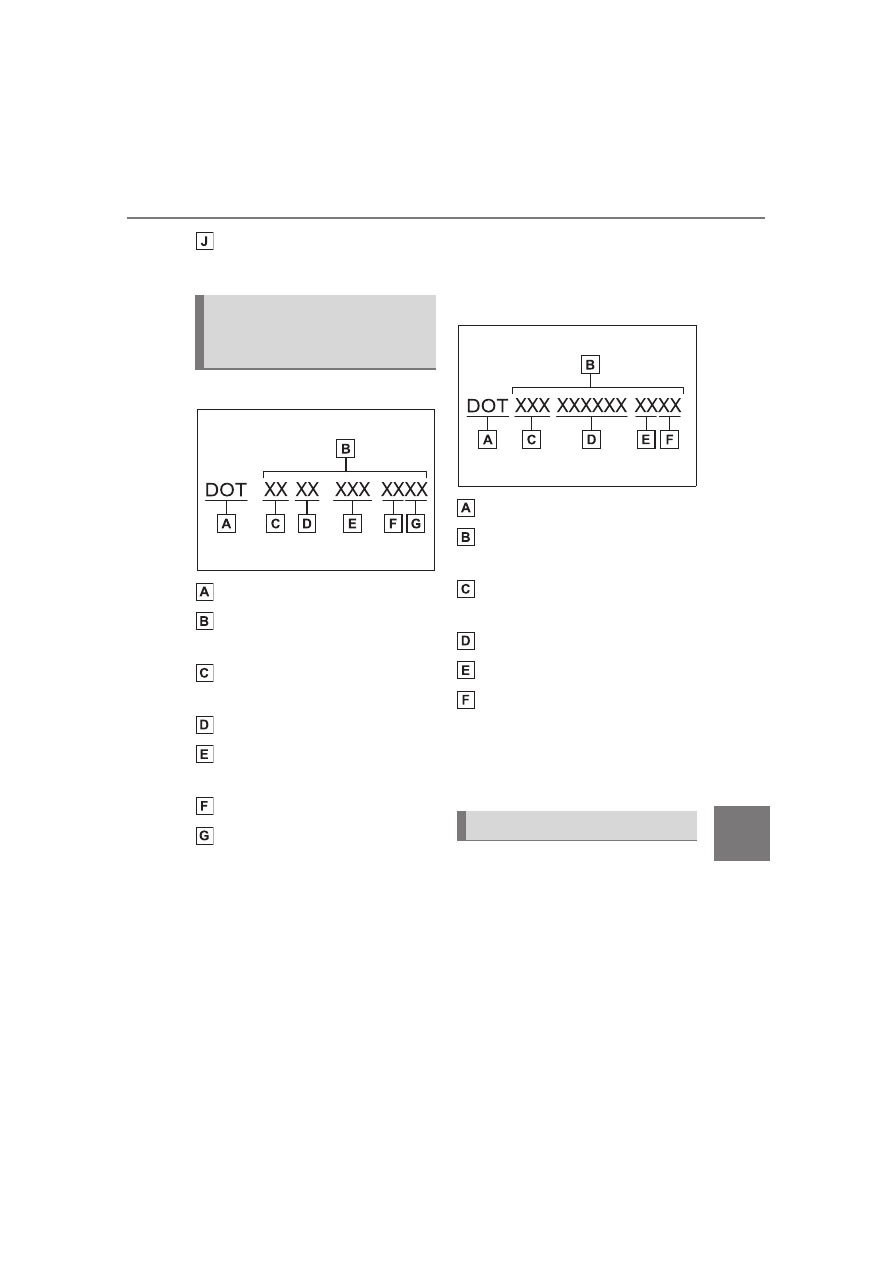

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.



Type A

DOT symbol

Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Tire size code

Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week

Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.



Type B

DOT symbol

Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Manufacturer’s code

Manufacturing week

Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

■

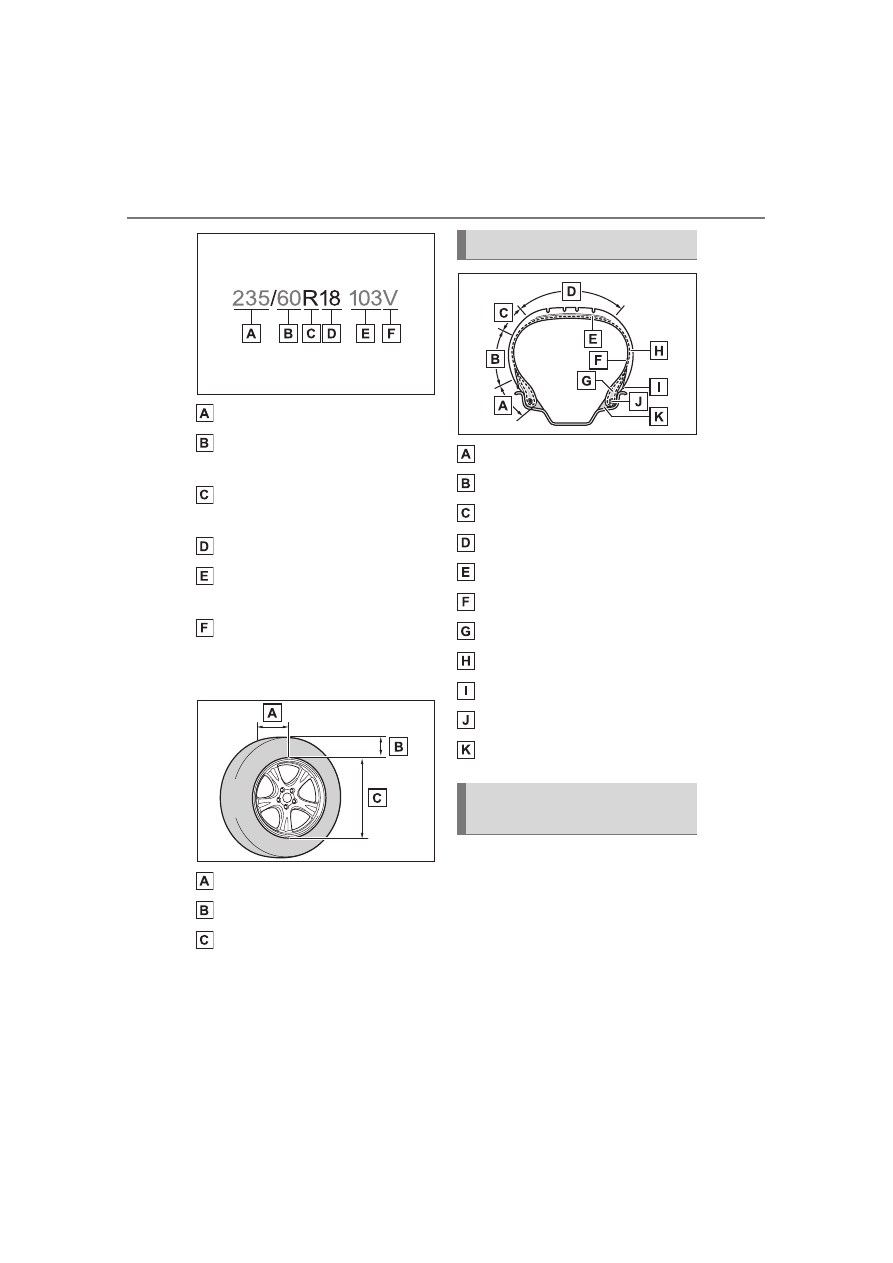

Typical tire size information

The illustration indicates typical
tire size.

Typical DOT and Tire
Identification Number
(TIN)

Tire size

562

9-1. Specifications

Section width (millimeters)

Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)

Load index (2 digits or 3 dig-
its)
Speed symbol (alphabet with
one letter)

■

Tire dimensions

Section width

Tire height

Wheel diameter

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

This information has been pre-
pared in accordance with regu-
lations issued by the National
Highway Traffic Safety Adminis-
tration of the U.S. Department of
Transportation.
It provides the purchasers
and/or prospective purchasers
of SUBARU vehicles with infor-

Tire section names

Uniform Tire Quality
Grading

563

9-1. Specifications

Ve
hi

cle

cifi

cat

mation on uniform tire quality
grading.

Your SUBARU dealer will help
answer any questions you may
have as you read this information.

■

DOT quality grades

All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to
these grades. Quality grades
can be found where applicable
on the tire sidewall between
tread shoulder and maximum
section width.

For example: Treadwear 200 Trac-
tion AA Temperature A

■

Treadwear

The treadwear grade is a com-
parative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test
course.

For example, a tire graded 150
would wear one and a half (1 - 1/2)
times as well on the government
course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use. Performance may differ
significantly from the norm due to
variations in driving habits, service
practices and differences in road
characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from high-
est to lowest, are AA, A, B and
C, and they represent the tire’s
ability to stop on wet pavement

as measured under controlled
conditions on specified govern-
ment test surfaces of asphalt
and concrete.

A tire marked C may have poor
traction performance.
Warning: The traction grade
assigned to this tire is based on
braking (straight ahead) traction
tests and does not include corner-
ing (turning) traction.

■

Temperature A, B, C

The temperature grades are A
(the highest), B, and C, repre-
senting the tire’s resistance to
the generation of heat and its
ability to dissipate heat when
tested under controlled condi-
tions on a specified indoor labo-
ratory test wheel.

Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure.
Grade C corresponds to a level of
performance which all passenger
car tires must meet under the Fed-
eral Motor Vehicle Safety Standard
No. 109.
Grades B and A represent higher
levels of performance on the labo-
ratory test wheel than the minimum
required by law.
Warning: The temperature grades
of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can cause
heat buildup and possible tire fail-
ure.

Content .. 32 33 34 35 ..
