CAUTION

Never use any temporary spare tire
other than the original. Using other
sizes may result in severe mechan-
ical damage to the drive train of your
vehicle.

The temporary spare tire is stored under
the under-floor storage compartment.

The temporary spare tire is smaller and
lighter than a conventional tire and is
designed for emergency use only. Re-
move the temporary spare tire and re-
install the conventional tire as soon as
possible because the spare tire is de-
signed only for temporary use.

Check the inflation pressure of the tem-
porary spare tire periodically to keep the
tire ready for use. For the correct tire
pressure, refer to “Tires”

�

P566.

When using the temporary spare tire, note
the following precautions.

Do not exceed 50 mph (80 km/h).

Do not put a tire chain on the temporary

spare tire. Because of the smaller tire size,
a tire chain will not fit properly.

Do not use two or more temporary

spare tires at the same time.

Do not drive over obstacles. This tire

has a smaller diameter, so road clearance
is reduced.

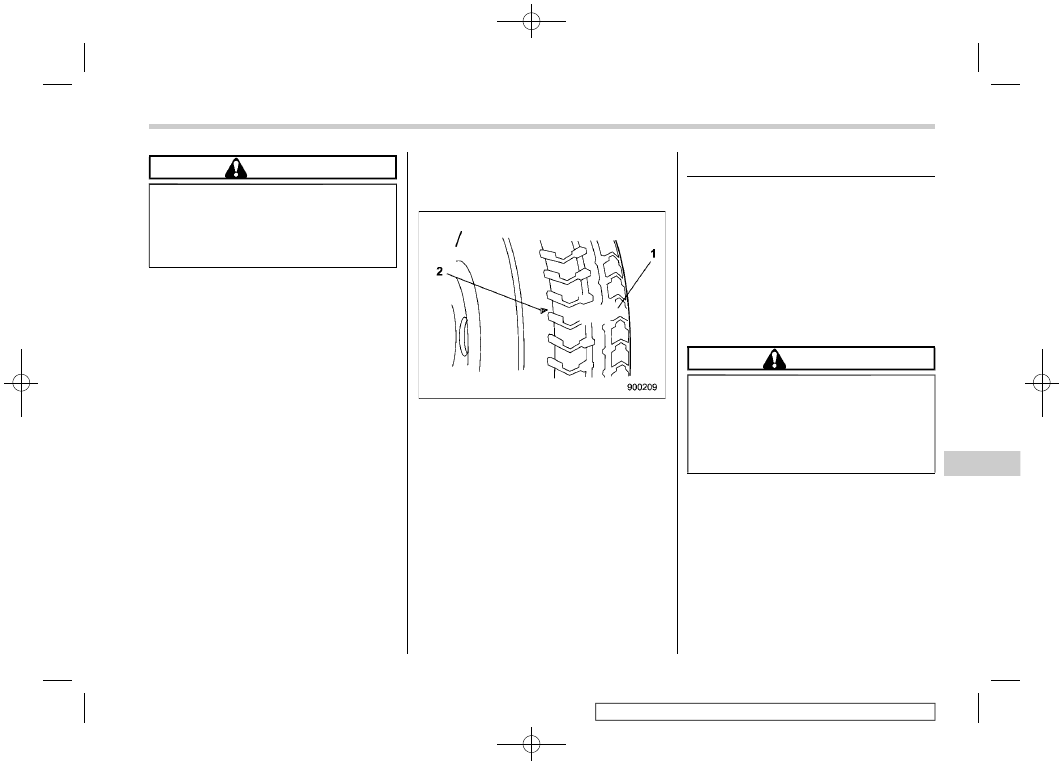

Tread wear indicator bar

Indicator location mark

When the wear indicator appears on

the tread, replace the tire.

The temporary spare tire must be used

only on a rear wheel. If a front wheel tire
gets punctured, replace the wheel with a
rear wheel and install the temporary spare
tire in place of the removed rear wheel.

9-3. Maintenance Tools

Your vehicle is equipped with the following
maintenance tools.

Jack

Jack handle

Screwdriver

Towing hook (eye bolt) (Outback/

Subaru Outback Wilderness)

Wheel nut wrench

Torque wrench (Outback)

CAUTION

The torque wrench is designed to be
used only when changing the posi-
tion of the crossbar. Do not use the
torque wrench in other cases. Other-
wise, the torque wrench may be
deformed.

– CONTINUED –

Maintenance Tools

479

In
Case

of
Emergency

(482,1)

NOTE

To use the jack handle, insert the jack
handle into the hole of the wheel nut
wrench.

Legacy

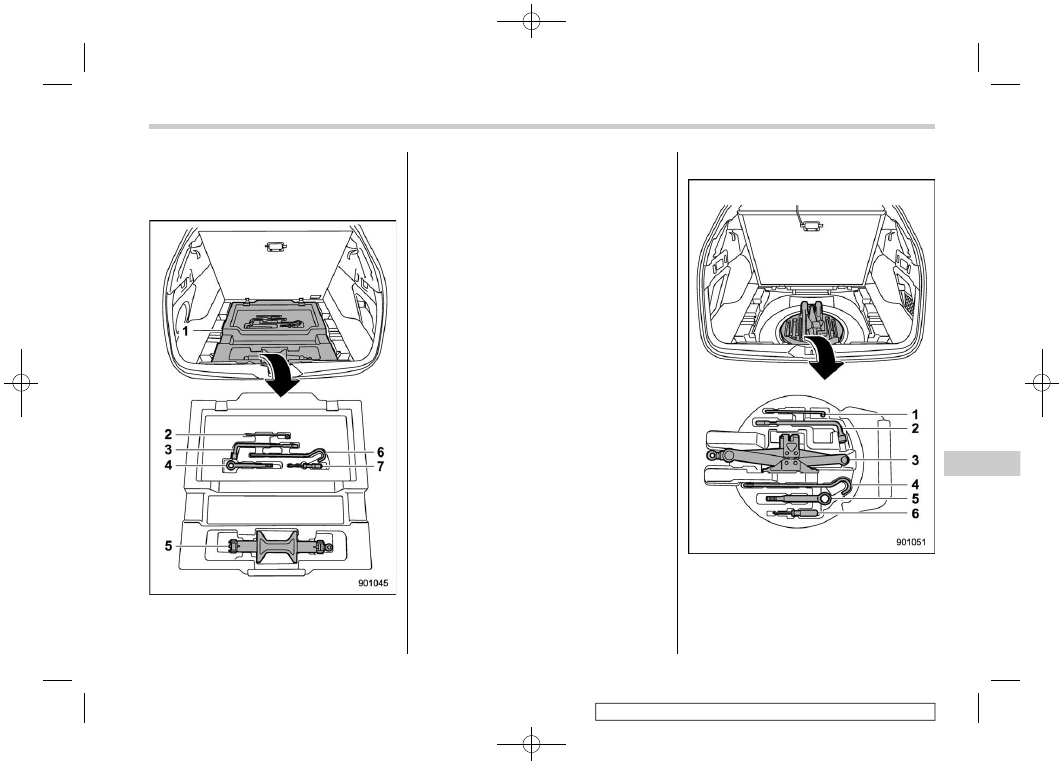

Under-floor storage compartment (Refer
to “Under-Floor Storage Compartment”

�

P343.)

Wheel nut wrench

Screwdriver

Jack handle

Jack

The maintenance tools are stored in the
under-floor storage compartment.
For the method to use the jack, refer to
“Flat Tires”

�

P482.

Maintenance Tools

480

(483,1)

Outback/Subaru Outback
Wilderness

Type A

Under-floor storage compartment (Refer
to “Under-Floor Storage Compartment”

�

P343.)

Torque wrench for roof rails

Wheel nut wrench

Towing hook (eye bolt)

Jack

Jack handle

Screwdriver

The maintenance tools are stored in the
under-floor storage compartment.
For the method to use the jack, refer to
“Flat Tires”

�

P482.

Type B

Torque wrench for roof rails (if equipped)

Wheel nut wrench

Jack

Jack handle

Towing hook (eye bolt)

Screwdriver

– CONTINUED –

Maintenance Tools

481

In
Case

of
Emergency

(484,1)

For the method to use the jack, refer to
“Flat Tires”

�

P482.

9-4. Flat Tires

If you have a flat tire while driving, never
brake suddenly; keep driving straight
ahead while gradually reducing speed.
Then slowly pull off the road to a safe
place.

Changing a Flat Tire

WARNING

Use only the jack and the jack

handle provided with your vehi-
cle. The jack supplied with the
vehicle is designed only for chan-
ging a tire. Never get under the
vehicle while supporting the ve-
hicle with this jack.

Do not jack up the vehicle on an

incline or a loose road surface.
The jack can come out of the
jacking point or sink into the
ground and this can result in
serious injury or death.

Before jacking up the vehicle, be

sure that there are no occupants
or cargo on board.

Do not jack up the vehicle with an

object on or underneath the jack.
The jack can be unstable and this

can result in a severe accident.

Always turn off the engine before

raising the flat tire off the ground
using the jack. Never swing or
push the vehicle supported with
the jack. The jack can come out of
the jacking point due to a jolt and
this can result in serious injury or
death.

All passengers must exit the

vehicle before you raise it with
the jack. Raising the vehicle with
someone inside of it could result
in serious injury or death.

Do not start the vehicle while it is

supported by the jack. Doing so
could result in serious injury or
death.

CAUTION

Do not hit and bend the disc rotor
backing plate when removing and
installing the tire. A bent backing
plate may scrape against the disc
rotor and cause noise while the
vehicle is in motion.

Flat Tires

482

(485,1)

NOTE

Contact a SUBARU dealer when jacking
up the vehicle using a garage jack.

1. Park on a hard, level surface, when-
ever possible, then stop the engine.
2. Apply the parking brake and shift the
select lever in the “P” (Park) position.
3. Turn on the hazard warning flasher and
unload all occupants and luggage from the
vehicle.

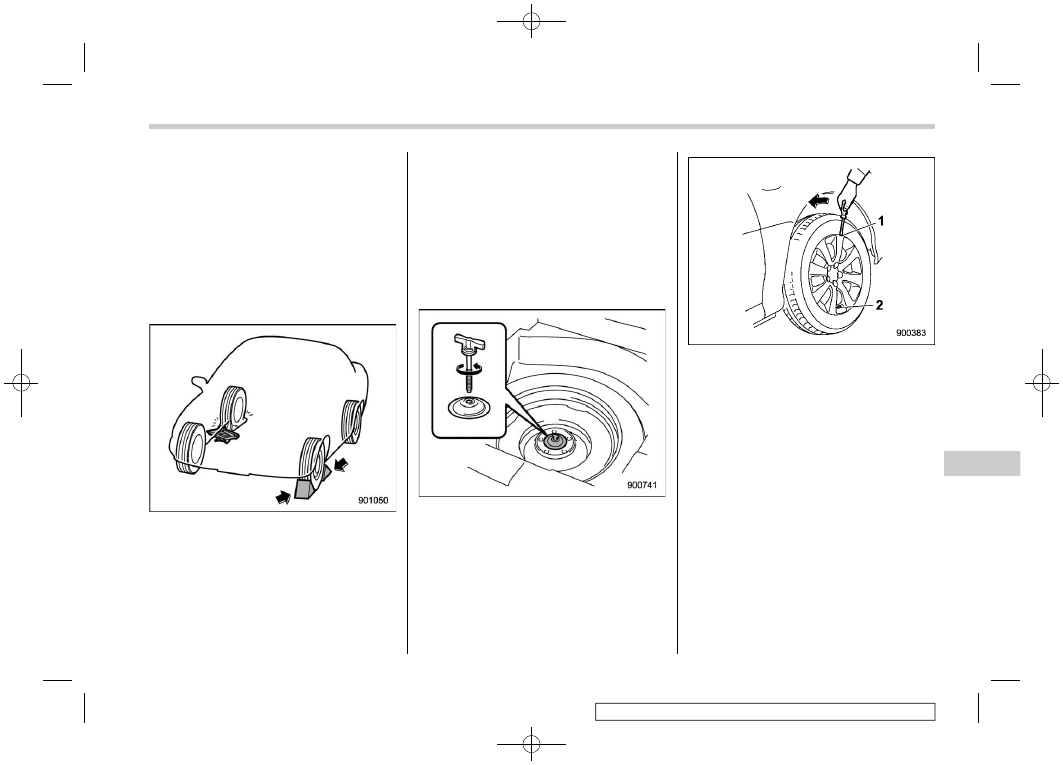

4. Put wheel blocks at the front and rear
of the tire diagonally opposite the flat tire.
5. Take out the jack, jack handle and
wheel nut wrench.
The tools and the spare tire are stored
under the floor of the trunk (Legacy) or the
cargo area (Outback/Subaru Outback
Wilderness). Refer to “Maintenance Tools”

�

P479.

NOTE

Make sure that the jack is well

lubricated before using it.

To take out the tools and spare tire,

store the cargo area cover to the
original position and open the under-
floor storage. Refer to “Under-Floor
Storage Compartment”

�

P343.

6. Take out the under-floor storage com-
partment and turn the attaching bolt
counterclockwise, then take the spare tire
out.

NOTE

Carefully read “Temporary Spare Tire”

�

P478 and strictly follow the instruc-

tions.

Notch

Valve hole

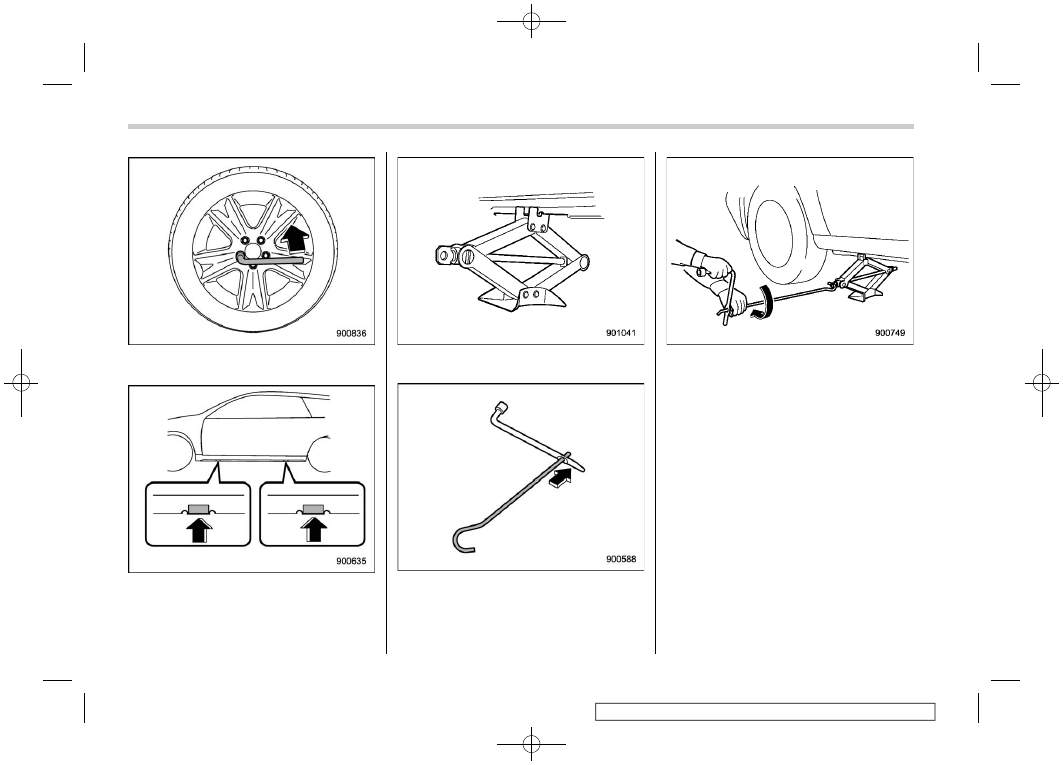

7. If your vehicle has wheel covers, insert
a flat-head screwdriver into the notch on
the opposite side of the valve hole and pry
the wheel cover to remove it.

– CONTINUED –

Flat Tires

483

In
Case

of
Emergency

(486,1)

8. Loosen the wheel nuts using the wheel
nut wrench but do not remove the nuts.

9. Place the jack under the side sill at the
front or rear jack-up point closest to the flat
tire.

Turn the jackscrew by hand until the jack
head engages firmly into the jack-up point.

10. Insert the jack handle into the hole of
the wheel nut wrench.

11. Insert the jack handle into the jack-
screw, and turn the handle until the tire
clears the ground. Do not raise the vehicle
higher than necessary.
12. Remove the wheel nuts and the flat
tire.

Flat Tires

484

(487,1)

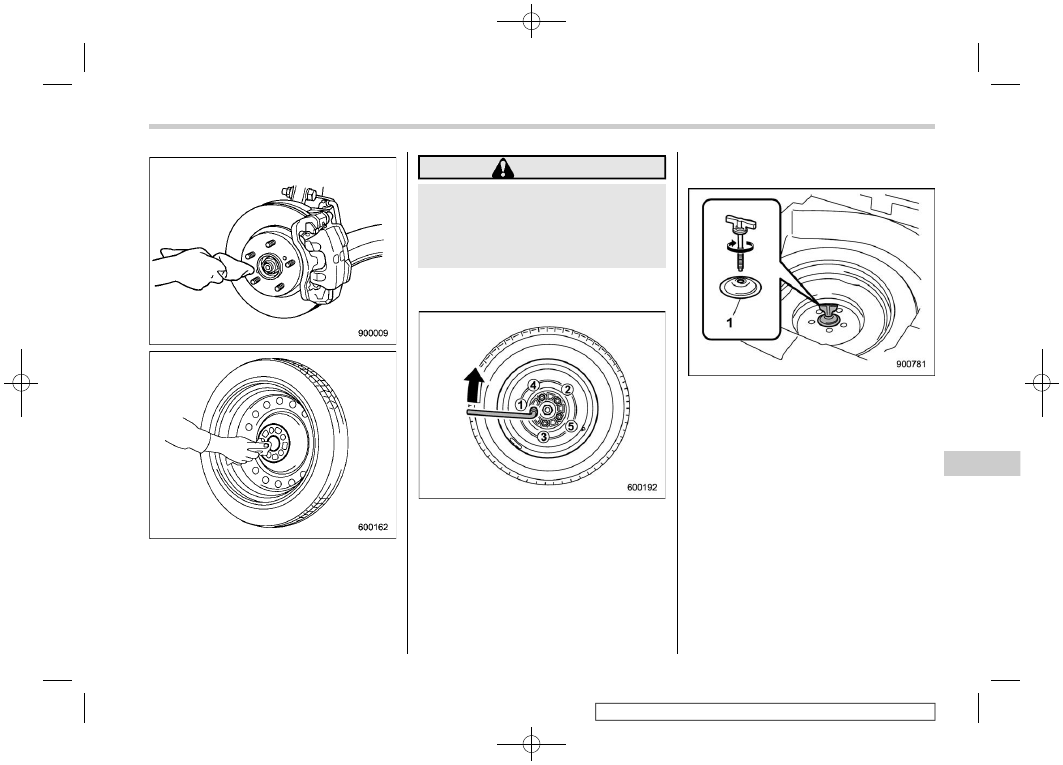

13. Before putting the spare tire on, clean
the mounting surface of the wheel and hub
with a cloth.
14. Put on the spare tire. Replace the
wheel nuts. Tighten them by hand.

WARNING

Do not use oil or grease on the wheel
studs or nuts when the spare tire is
installed. This could cause the nuts
to become loose and lead to an
accident.

15. Turn the jack handle counterclockwise
to lower the vehicle.

16. Use the wheel nut wrench to securely
tighten the wheel nuts to the specified
torque, following the tightening order in the
illustration.
For the wheel nut tightening torque, refer
to “Tires”

�

P566. Never use your foot on

the wheel nut wrench or a pipe extension
on the wrench because you may exceed
the specified torque. Have the wheel nut

torque checked at the nearest automotive
service facility.

Support holder

17. Store the flat tire in the spare tire
compartment. Install with the support
holder facing upward and secure the flat
tire by firmly tightening the attaching bolt.

NOTE

If you cannot fix the flat tire firmly, try
turning the support holder upside
down.

18. Store the jack, jack handle and wheel
nut wrench in their storage locations.

– CONTINUED –

Flat Tires

485

In
Case

of
Emergency

(488,1)

WARNING

Never place a tire or tire changing
tools in the passenger compartment
after changing wheels. In a sudden
stop or collision, loose equipment
could strike occupants and cause
injury. Store the tire and all tools in
the proper place.

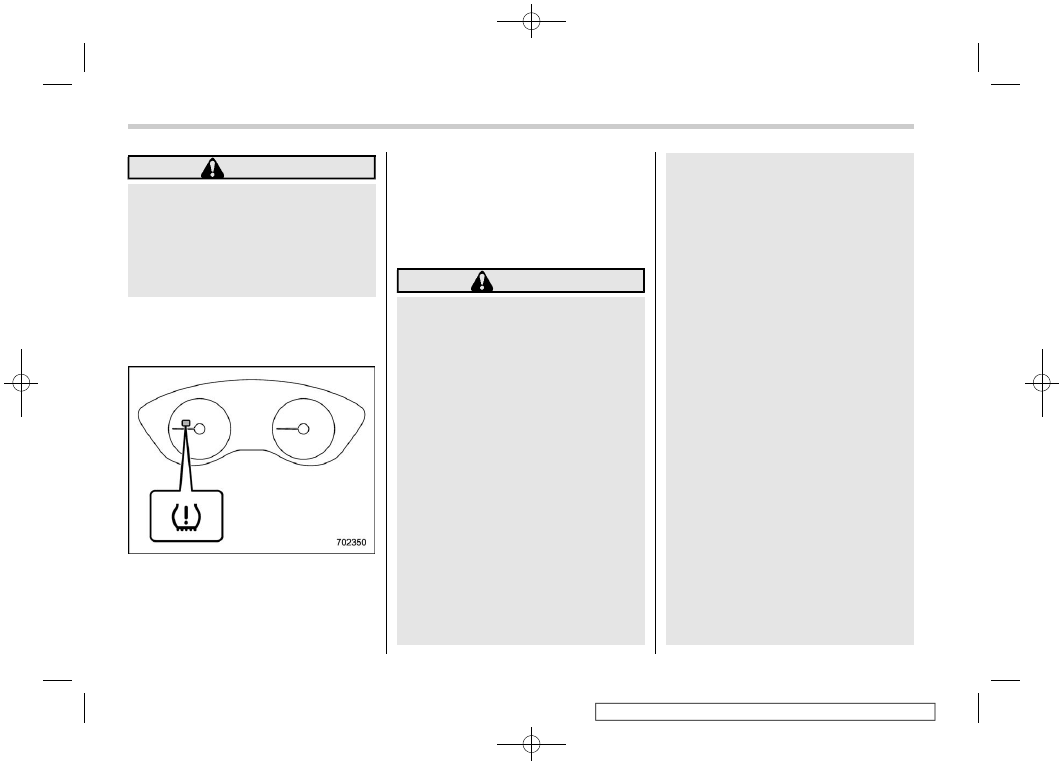

Tire Pressure Monitoring
System (TPMS) (U.S.-Spec.
Models)

Low tire pressure warning light

The tire pressure monitoring system pro-
vides the driver with the warning message
indicated by sending a signal from a
sensor that is installed in each wheel when

tire pressure is severely low.
The tire pressure monitoring system will
activate only when the vehicle is driven.
Also, this system may not react immedi-
ately to a sudden drop in tire pressure (for
example, a blow-out caused by running
over a sharp object).

WARNING

If the low tire pressure warning

light illuminates while driving,
never brake suddenly. Instead,
perform the following procedure.
Otherwise an accident involving
serious vehicle damage and ser-
ious personal injury could occur.

(1) Keep driving straight ahead

while gradually reducing
speed.

(2) Slowly pull off the road to a

safe place.

(3) Check the pressure for all four

tires and adjust the pressure
to the COLD tire pressure
shown on the vehicle placard
on the door pillar on the
driver’s side.

If this light still illuminates while

driving after adjusting the tire
pressure, a tire may have signifi-
cant damage and a fast leak that

causes the tire to lose air rapidly.
If you have a flat tire, replace it
with a spare tire as soon as
possible.

When a spare tire is mounted or a

wheel rim is replaced without the
original pressure sensor/trans-
mitter being transferred, the low
tire pressure warning light will
illuminate steadily after blinking
for approximately one minute.
This indicates the TPMS is unable
to monitor all four road wheels.
Contact your SUBARU dealer as
soon as possible for tire and
sensor replacement and/or sys-
tem resetting.

When a tire is repaired with liquid

sealant, the tire pressure warning
valve and transmitter may not
operate properly. If a liquid sea-
lant is used, contact your nearest
SUBARU dealer or other qualified
service shop as soon as possi-
ble. Make sure to replace the tire
pressure warning valve and
transmitter when replacing the
tire. You may reuse the wheel if
there is no damage to it and if the
sealant residue is properly
cleaned off.

If the light illuminates steadily

Flat Tires

486

(489,1)

after blinking for approximately
one minute, promptly contact a
SUBARU dealer to have the sys-
tem inspected.

TPMS Screen (U.S.-Spec.
Models)

This screen displays each tire pressure.
Refer to “Basic Screens”

�

P208.

9-5. Jump Starting

WARNING

Battery fluid is SULFURIC ACID.

Do not let it come in contact with
the eyes, skin, clothing or the
vehicle.

If battery fluid gets on you, thor-
oughly flush the exposed area
with water immediately. Get med-
ical help if the fluid has entered
your eyes.

If battery fluid is accidentally
swallowed, immediately drink a
large amount of milk or water,
and obtain immediate medical
help.

Keep everyone including chil-
dren away from the battery.

The gas generated by a battery

explodes if a flame or spark is
brought near it. Do not smoke or
light a match while jump starting.

Never attempt jump starting if the

discharged battery is frozen. It
could cause the battery to burst
or explode.

Whenever working on or around a

battery, always wear suitable eye

protectors, and remove metal
objects such as rings, bands or
other metal jewelry.

Be sure the jumper cables and

clamps on them do not have
loose or missing insulation.

Do not jump start unless cables in

suitable condition are available.

A running engine can be danger-

ous. Keep your fingers, hands,
clothing, hair and tools away
from the cooling fan, belts and
any other moving engine parts.
Removing rings, watches and
ties is advisable.

Jump starting is dangerous if it is

done incorrectly. If you are un-
sure about the proper procedure
for jump starting, consult a com-
petent mechanic.

When your vehicle does not start due to a
run down (discharged) battery, the vehicle
may be jump started by connecting your
battery to another battery (called the
booster battery) with jumper cables.

– CONTINUED –

Jump Starting

487

In
Case

of
Emergency

(491,1)

Booster battery

Strut mounting nut

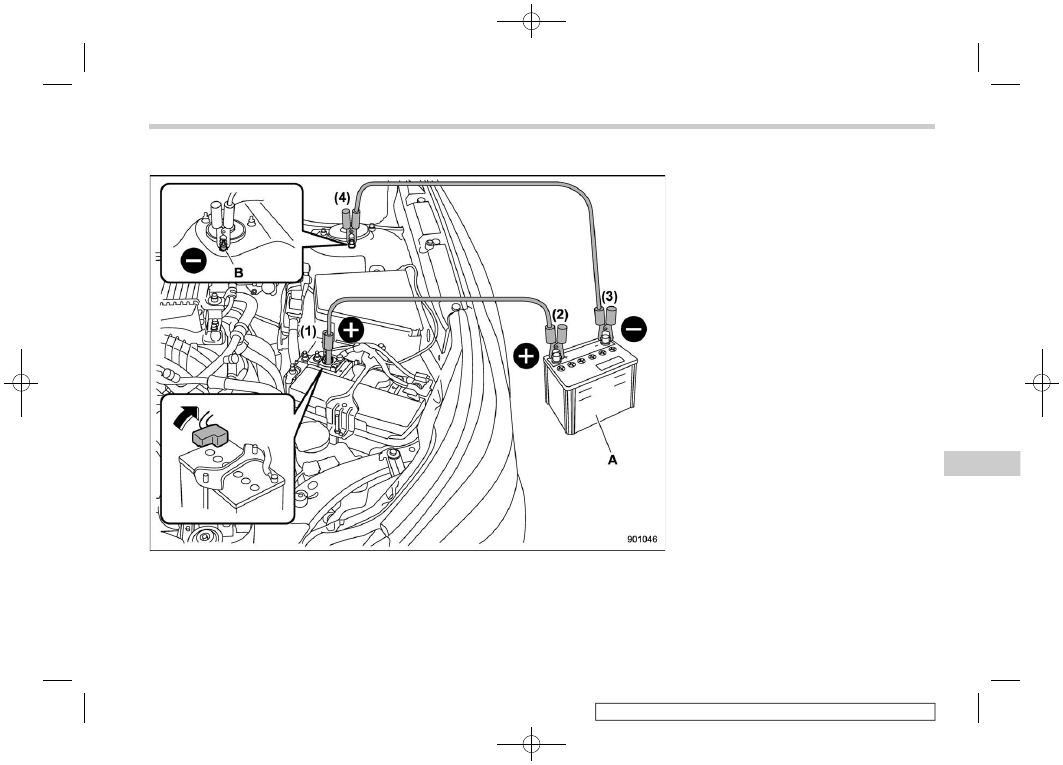

Connect one jumper cable to the positive
(+) terminal on the discharged battery.

Connect the other end of the jumper
cable to the positive (+) terminal of the
booster battery.

Connect one end of the other cable to the
negative (−) terminal of the booster
battery.

Connect the other end of the cable to the
strut mounting nut.

Make sure that the cables are not near any
moving parts and that the cable clamps are
not in contact with any other metal.

5. Start the engine of the vehicle with the
booster battery and run it at moderate
speed. Then start the engine of the vehicle
that has the discharged battery.
6. When finished, carefully disconnect
the cables in exactly the reverse order.

Jump Starting

489

In
Case

of
Emergency

(492,1)

9-6. Engine Overheating

WARNING

Never remove the radiator cap until
the engine has been shut off and has
fully cooled down. When the engine
is hot, the coolant is under pressure.
Removing the cap while the engine
is still hot could release a spray of
boiling hot coolant, which could
burn you very seriously.

CAUTION

If the engine overheats, the engine
speed or the vehicle speed may be
reduced. Stop the vehicle in a safe
place immediately.

If Steam Is Coming from the
Engine Compartment

Turn off the engine and get everyone away
from the vehicle until it cools down.

If No Steam Is Coming from
the Engine Compartment

NOTE

For details about how to check the
coolant level or how to add coolant,
refer to “Engine Coolant”

�

P524.

1. Keep the engine running at idling
speed.
2. Open the hood to ventilate the engine
compartment. Refer to “Engine Hood”

�

P517.

Confirm that the cooling fan is turning. If
the fan is not turning, immediately turn off
the engine and contact your authorized
dealer for repair.
3. After the engine coolant temperature
has dropped, turn off the engine.
If the temperature gauge stays in the
overheated zone, turn off the engine.
4. After the engine has fully cooled down,
check the coolant level in the reserve tank.
If the coolant level is below the “LOW”
mark, add coolant up to the “FULL” mark.
5. If there is no coolant in the reserve
tank, add coolant to the reserve tank. Then
remove the radiator cap and fill the radiator
with coolant.

If you remove the radiator cap from a hot
radiator, first wrap a thick cloth around the
radiator cap, then turn the cap counter-

clockwise slowly without pressing down
until it stops. Release the pressure from
the radiator. After the pressure has been
fully released, remove the cap by pressing
down and turning it.

Engine Overheating

490

(493,1)

9-7. Towing

WARNING

Never tow AWD vehicles with the
front wheels raised off the ground
while the rear wheels are on the
ground, or with the rear wheels
raised off the ground while the front
wheels are on the ground. This will
cause the vehicle to spin away due
to the operation or deterioration of
the center differential.

If towing is necessary, SUBARU recom-
mends it be done by your SUBARU dealer
or a commercial towing service.

Towing Hook and Tie-Down
Hooks/Holes

The towing hooks should be used only in
an emergency.
A towing hook is supplied with Outback/
Subaru Outback Wilderness only. Legacy
is not supplied with a towing hook (the
towing hook can be purchased at a
SUBARU dealer). On Legacy, the towing
access cover is on the rear bumper only.

SUBARU recommends towing be done
by your SUBARU dealer or a commer-
cial towing service.

CAUTION

Use only the specified towing

hook and tie-down hooks/holes.
Never use suspension parts or
other parts of the body for towing
or tie-down purposes.

Never use the tie-down hole clo-

sest to the muffler under the
vehicle for towing purposes.

Front towing hook (Outback/Subaru
Outback Wilderness):

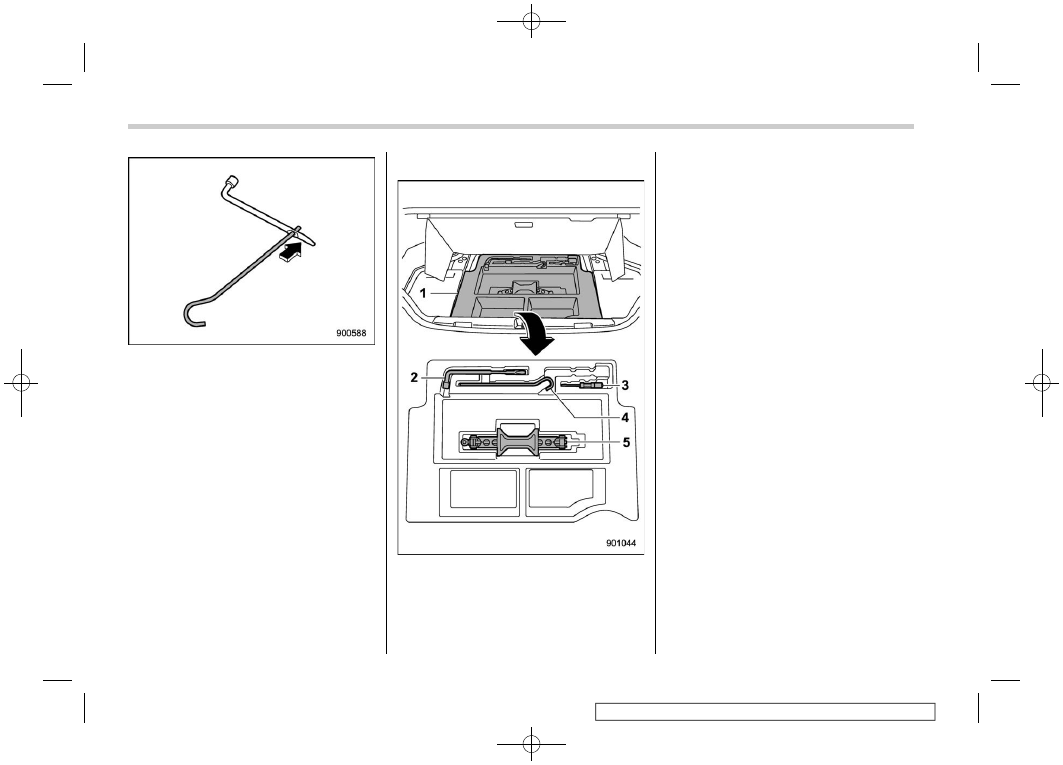

1. Take out the screwdriver, towing hook,
wheel nut wrench and jack handle from the
under-floor storage compartment.

Towing hook covers (Depending on the
vehicle, there may be only one cover.)

2. Cover the tip of a flat-head screwdriver
with vinyl tape or cloth so that it will not
scratch the bumper. Insert the flat-head
screwdriver into the cutout of the cover and

– CONTINUED –

Towing

491

In
Case

of
Emergency

(494,1)

pry open the cover.

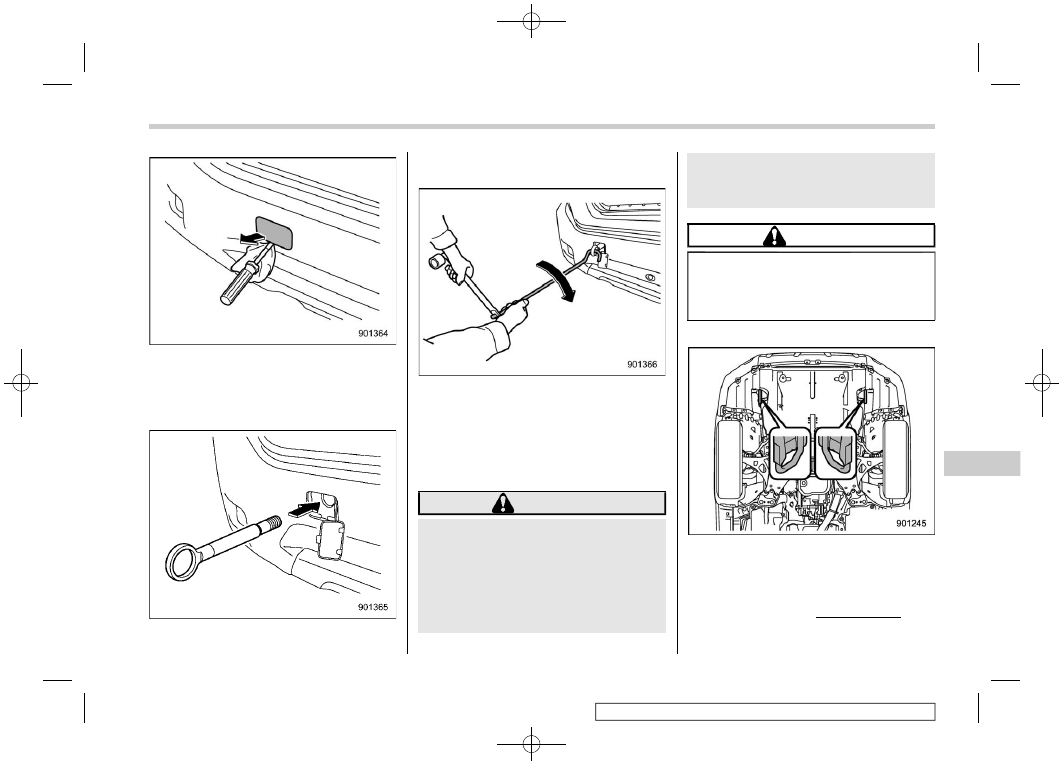

3. Screw the towing hook into the
threaded hole until the threads can no
longer be seen.

4. Tighten the towing hook securely using
the jack handle and wheel nut wrench.

After towing, remove the towing hook from
the vehicle and stow it in the under-floor
storage compartment.
Fit the towing hook cover on the bumper.

WARNING

Do not use the towing hook for

purposes other than towing your
vehicle.

Be sure to remove the towing

hook after towing. Leaving the
towing hook mounted on the
vehicle could interfere with prop-
er operation of the SRS airbag
system in a frontal collision.

CAUTION

To prevent deformation to the bum-
per and the towing hook, do not
apply excessive load to the towing
hook.

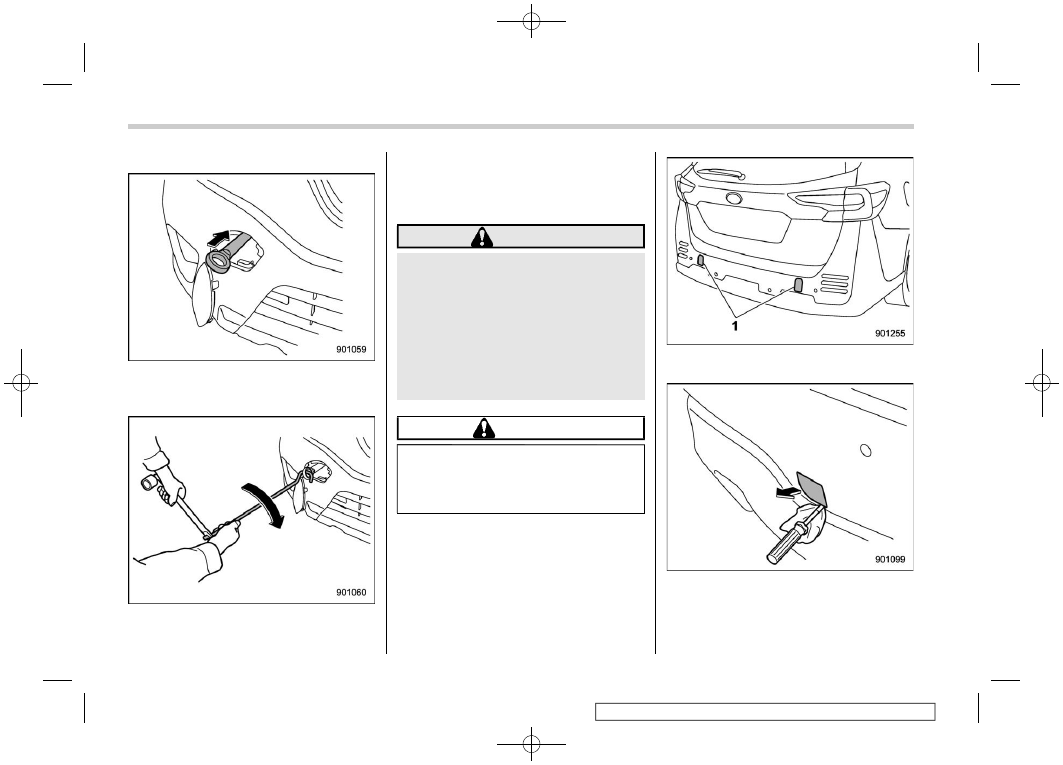

Rear towing hook:

1. Take out the screwdriver, towing hook,
wheel nut wrench and jack handle from the
under-floor storage compartment.

Towing hook covers (Depending on the
vehicle, there may be only one cover.)

Legacy

Towing

492

(495,1)

Outback/Subaru Outback Wilderness

2. Pry off the cover on the rear bumper
using a screwdriver, and you will find a
threaded hole for attaching the towing
hook.

3. Screw the towing hook into the

threaded hole until its thread can no longer
be seen.

4. Tighten the towing hook securely using
the jack handle and wheel nut wrench.

After towing, remove the towing hook from
the vehicle and stow it in the under-floor
storage compartment.
Fit the towing hook cover on the bumper.

WARNING

Do not use the towing hook for

purposes other than towing your
vehicle.

Be sure to remove the towing

hook after towing. Leaving the
towing hook mounted on the
vehicle could interfere with prop-

er operation of the fuel pump
shut off function when the vehi-
cle is struck from behind.

CAUTION

To prevent deformation to the bum-
per and the towing hook, do not
apply excessive load to the towing
hook.

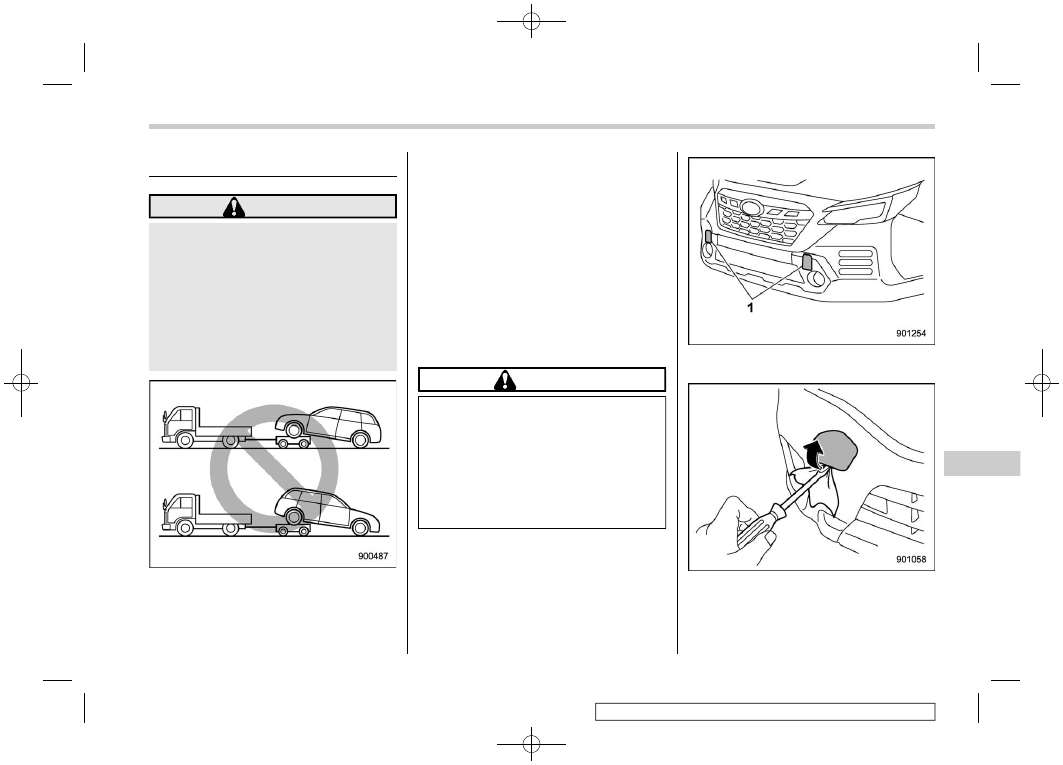

Front tie-down hooks:

The front tie-down hooks are located
between each of the front tires and the
front bumper.

Front Tie-down Hooks

are for tying down

the vehicle. They are not for towing.

– CONTINUED –

Towing

493

In
Case

of
Emergency

(496,1)

Rear tie-down holes:

Rear tie-down hole

The rear tie-down holes are located near
each of the jack-up reinforcements.
There is a plug in each rear tie-down hole.
To use the rear tie-down holes, remove the

plugs. After using the rear tie-down holes,
return the plugs to their original places.

WARNING

Use the rear tie-down holes only for
downward anchoring. If they are
used to anchor the vehicle in any
other direction, cables may slip out
of the holes, possibly causing a
dangerous situation.

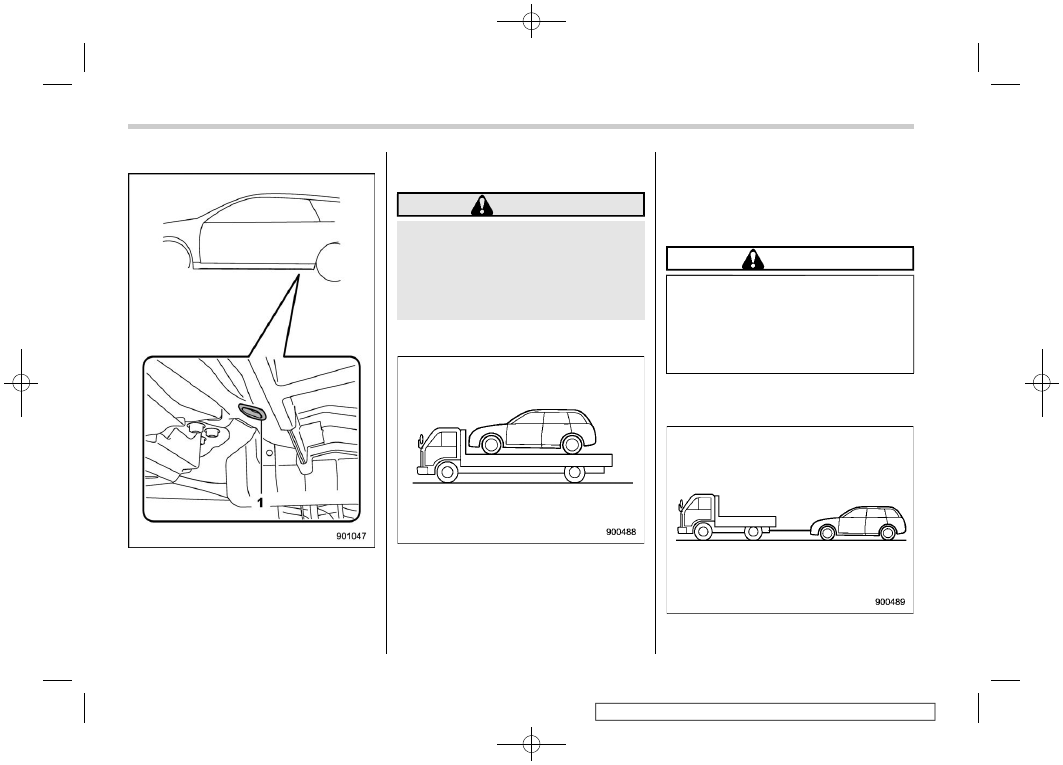

Using a Flat-Bed Truck

This is the best way to transport your
vehicle. Use the following procedures to
ensure safe transportation.
1. Shift the select lever into the “P”
position.
2. Apply the parking brake firmly.

3. Secure the vehicle onto the carrier
properly with safety chains. Each safety
chain should be equally tightened and care
must be taken not to pull the chains so
tightly that the suspension bottoms out.

CAUTION

Transport by flat-bed truck may
cause the headlights to become
misaligned. In such a case, have
the headlight alignment checked by
a SUBARU dealer after transporting
the vehicle by flat-bed truck.

Towing with All Wheels on the
Ground

Towing

494

Subaru Outback (2023 year). Manual in english - page 30
