Subaru Ascent (2022 year). Manual in english - page 2

(23,1)

&

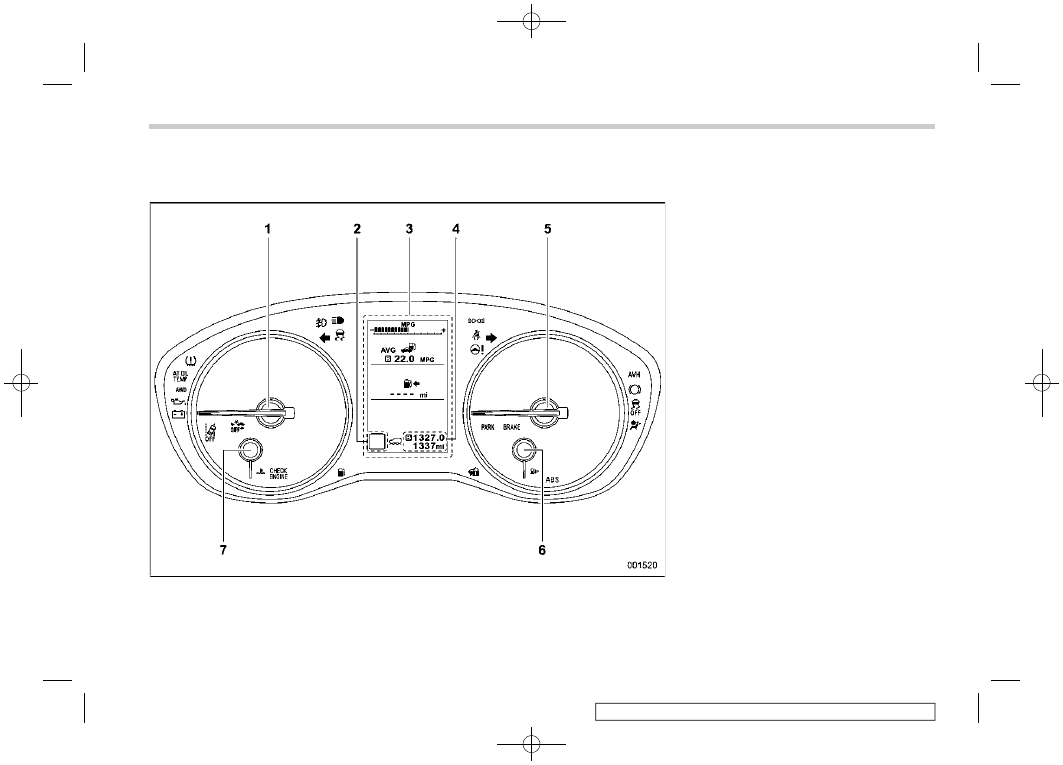

Combination meter

!

U.S.-spec. models

The illustration above is a typical example. For some models, the combination meter may be
slightly different than that shown in the illustration.

1)

Tachometer (page 170)

2)

Select lever/gear position indicator (page
193)

3)

Combination meter display (page 195)

4)

Trip meter and odometer (page 171)

5)

Speedometer (page 170)

6)

Fuel gauge (page 172)

7)

Engine coolant temperature gauge (page
172)

– CONTINUED –

21

0

(24,1)

!

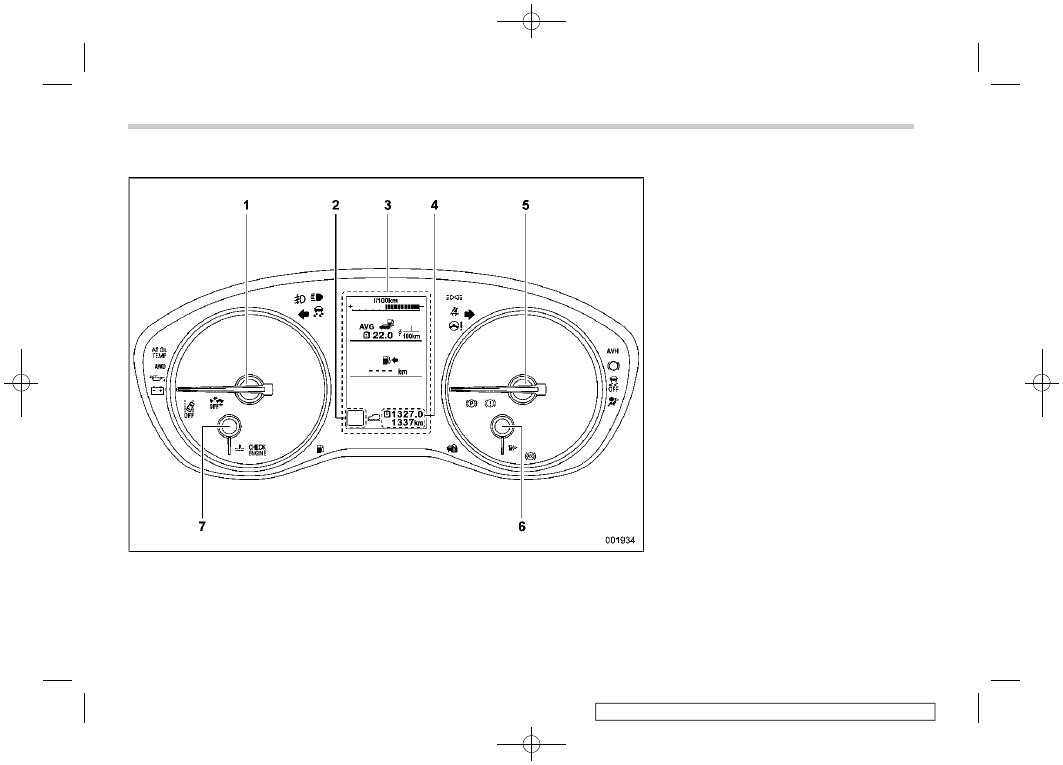

Except U.S.-spec. models

The illustration above is a typical example. For some models, the combination meter may be
slightly different than that shown in the illustration.

1)

Tachometer (page 170)

2)

Select lever/gear position indicator (page
193)

3)

Combination meter display (page 195)

4)

Trip meter and odometer (page 171)

5)

Speedometer (page 170)

6)

Fuel gauge (page 172)

7)

Engine coolant temperature gauge (page
172)

22

(25,1)

– CONTINUED –

23

0

(26,1)

&

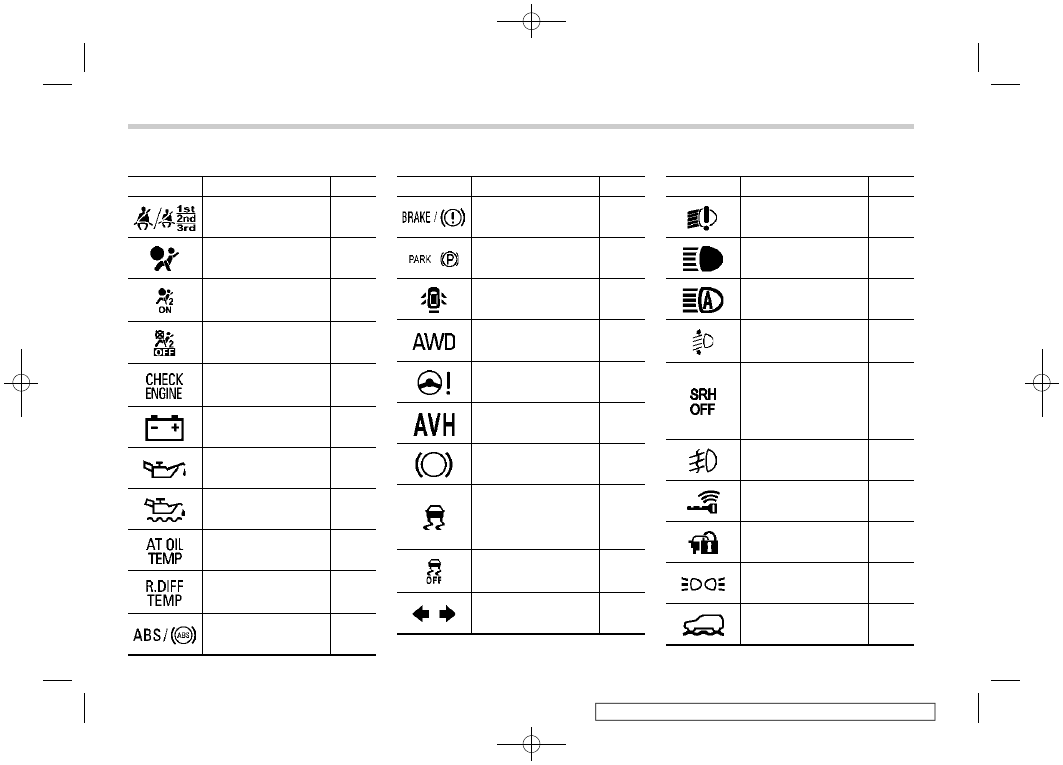

Warning and indicator lights

Mark

Name

Page

Seatbelt warning light

SRS airbag system
warning light

Front passenger’s
frontal airbag ON indi-
cator

Front passenger’s
frontal airbag OFF in-
dicator

CHECK ENGINE
warning light/Malfunc-
tion indicator light

Charge warning light

Oil pressure warning
light

Engine low oil level
warning light

AT OIL TEMP warning
light

Rear differential oil
temperature warning
light (if equipped)

ABS warning light

Mark

Name

Page

Brake system warning
light

/

Electronic parking
brake indicator light

Door open warning
light

AWD warning light

Power steering warn-
ing light

Auto Vehicle Hold ON
indicator light

Auto Vehicle Hold op-
eration indicator light

Vehicle Dynamics
Control warning light/
Vehicle Dynamics
Control operation indi-
cator light

Vehicle Dynamics
Control OFF indicator
light

Turn signal indicator
lights

Mark

Name

Page

LED headlight warning
light

High beam indicator
light

High beam assist indi-
cator light

Automatic headlight
beam leveler warning
light

Steering Responsive
Headlight warning
light/Steering Respon-
sive Headlight OFF in-
dicator light (if
equipped)

Front fog light indicator
light (if equipped)

Access key warning
indicator (if equipped)

Security indicator light

Headlight indicator
light

X-MODE indicator

24

(27,1)

Mark

Name

Page

Hill descent control in-
dicator

Low fuel warning light

Low tire pressure
warning light
(U.S.-spec. models)

Windshield washer
fluid warning light

BSD/RCTA warning
indicator (if equipped)

BSD/RCTA OFF indi-
cator (if equipped)

RAB warning indicator
(if equipped)

RAB OFF indicator (if
equipped)

Icy road surface warn-
ing indicator

One-touch Interior Illu-
mination indicator (if
equipped)

25

0

(28,1)

Function settings

&

Function settings and adjustments on the combination meter display

Setting adjustments to the following items can be manually changed within the combination meter display to meet your personal
requirements.

NOTE

For setting adjustments to the following items, refer to the appropriate page for details.

Item

Available settings

Factory default setting

Page refer-

ence for the

vehicle sys-

tem opera-

tion

1st menu/vehicle system

2nd menu/adjustable ve-
hicle system setting

3rd menu/selectable ve-
hicle system setting

Screen Settings

Welcome Screen

—

On/Off

On

Good-bye Screen

—

On/Off

On

Gauge Initial Movement

—

On/Off

On

Units

—

km, km/h, Liter/mile,
MPH, Gallon

U.S.-spec. models: mile,
MPH, Gallon
Other models: km, km/h,
Liter

Tire Pressure Units
(U.S.-spec. models)

—

kPa/PSi

PSi

Languages

—

English/Español/Fran-
çais

U.S.-spec. models: Eng-
lish
Other models: Français

26

(29,1)

Item

Available settings

Factory default setting

Page refer-

ence for the

vehicle sys-

tem opera-

tion

1st menu/vehicle system

2nd menu/adjustable ve-
hicle system setting

3rd menu/selectable ve-
hicle system setting

Warning Volume*

—

—

Max/Mid/Min

Mid

365 and 377
For details
about
EyeSight
system, refer
to the Own-
er’s Manual
supplement
for the
EyeSight
system.

Rear Seat Reminder

—

—

On/Off

On

EyeSight

Lead Vehicle Acquisition
Sound

—

On/Off

On

Refer to the
Owner’s
Manual sup-
plement for
the EyeSight
system.

Lead Vehicle Moving
Monitor Function

—

On/Off

On

Cruise Control Accelera-
tion Characteristics*

—

Lv.4 (Dynamic)/Lv.3
(Standard)/Lv.2 (Com-
fort)/Lv.1 (Eco)

Lv.3 (Standard)

Lane Centering

—

On/Off

On

EyeSight Assist monitor

EyeSight Assist Monitor
Red Indicator

On/Off

On

EyeSight Assist Monitor
Yellow Indicator

On/Off

On

EyeSight Assist Monitor
Green Indicator

On/Off

On

RAB (if equipped)

Sonar Audible Alarm

—

On/Off

On

SRH

—

—

On/Off

On

– CONTINUED –

27

0

(30,1)

Item

Available settings

Factory default setting

Page refer-

ence for the

vehicle sys-

tem opera-

tion

1st menu/vehicle system

2nd menu/adjustable ve-
hicle system setting

3rd menu/selectable ve-
hicle system setting

Vehicle Setting

Keyless Entry System

Audible Signal

On/Off

On

Hazard Warning Flasher

On/Off

On

Driver Door Unlock

Driver Door Only/All

Driver Door Only

Rear Gate/Trunk Unlock

Rear Gate/Trunk Only/All Rear Gate/Trunk Only

Defogger

—

15 minutes/Continuous

15 minutes

Interior Light

—

10 seconds/20 seconds/
30 seconds/Off

30 seconds

Auto Door Lock and Un-
lock

Auto Door Lock

Vehicle Speed/Shift Into
or Out of PARK/Off

Vehicle Speed

Auto Door Unlock

Shift Into or Out of PARK/
Ignition OFF/Driver Door
Open/Off

Driver Door Open

Auto Light Sensor

—

Max/Mid/Low/Min

Mid

Welcome Lighting

Approaching Time Set

30 seconds/60 seconds/
90 seconds/Off

30 seconds

Leaving Time Set

30 seconds/60 seconds/
90 seconds/Off

30 seconds

One-touch lane changer

—

On/Off

On

Ambient Lighting

—

On/Off

On

Default Settings

—

—

No/Yes

—

*: You can also set this while driving.

28

(31,1)

&

Individual settings and adjustments excluding combination meter display

NOTE

For setting adjustments to the following items, refer to the appropriate page for details.

Item

Function

Available settings

Factory default setting

Page

Alarm system

Alarm system

Operation/Non-operation

Operation

Remote keyless entry system

Audible signal

Operation/Non-operation

Operation

&

Function settings and adjustments performed by a dealer

A SUBARU dealer can change the setting adjustments of the following items to meet your personal requirements. Contact the nearest
SUBARU dealer for details.

Item

Function

Available settings

Factory default setting

Alarm system

Monitoring start delay time (after
closure of doors)

0 seconds/30 seconds

30 seconds

Reading lights, cargo area light, and
map lights illumination

ON/OFF

OFF

Keyless Access (if equipped)

Audible signal volume

Level 1 to 7

Level 5

Remote keyless entry system

Hazard warning flasher

Operation/Non-operation

Operation

Audible signal volume

Level 1 to 7

Level 5

Key lock-in prevention

Key lock-in prevention

Operation/Non-operation

Operation

Battery drainage prevention func-
tion

Battery drainage prevention func-
tion while doors are open

Operation/Non-operation

Operation

Seatbelt warning

Sounds a chime while driving

Operation/Non-operation

Operation

Auto on/off headlights

Auto-on/off wiper-linked

Operation/Non-operation

Operation

Reverse gear interlocked rear wiper Reverse gear interlocked rear wiper Operation/Non-operation

U.S.-spec. models: Non-operation
Other models: Operation

Auto dimmer cancel

Sensitivity of the operation of the
auto dimmer cancel

OFF/Min/Low/Mid/Hi/Max

Mid

– CONTINUED –

29

0

(32,1)

Item

Function

Available settings

Factory default setting

High beam assist function

High beam assist function

Operation/Non-operation

Operation

Power rear gate open function (if
equipped)

Power rear gate opening by remote
control key/access key

Non-operation/Pressing twice/
Pressing and holding

Pressing and holding

Automatic rain sensing windshield
wipers (if equipped)

Automatic adjusting mode of wiper
timing

Rain-sensing mode/Vehicle speed
interlocking mode

Rain-sensing mode

30

(33,1)

1-1. Seats .................................................................. 32

Safety tips ............................................................32

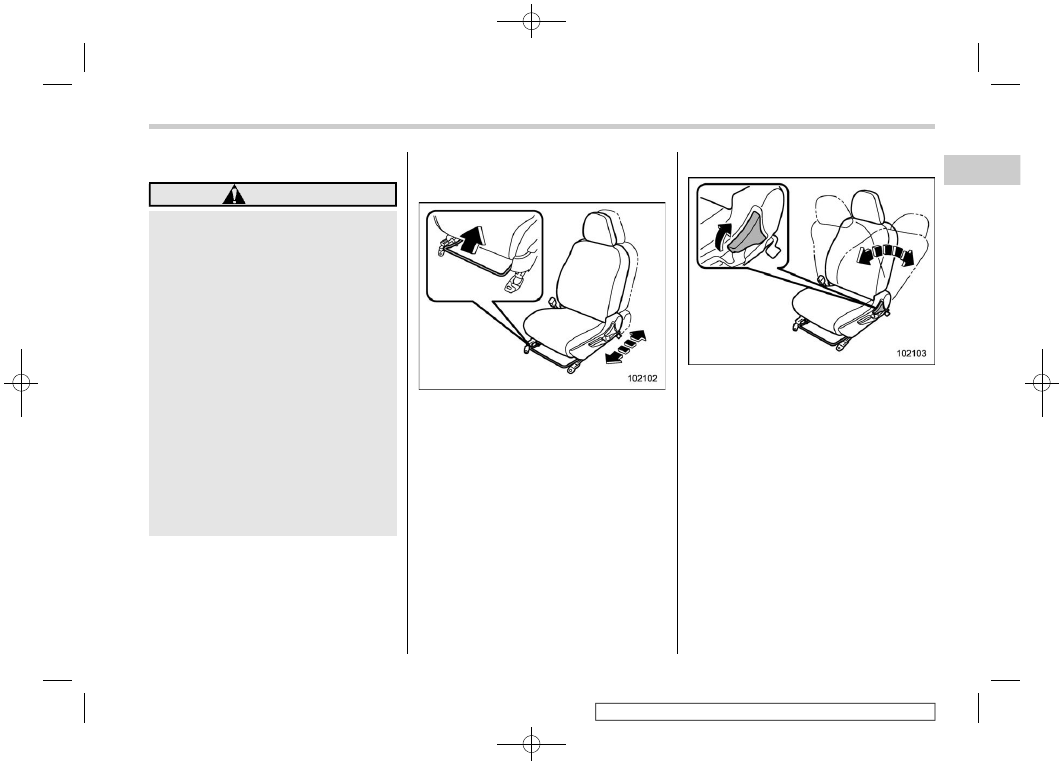

Manual seat (if equipped)......................................35

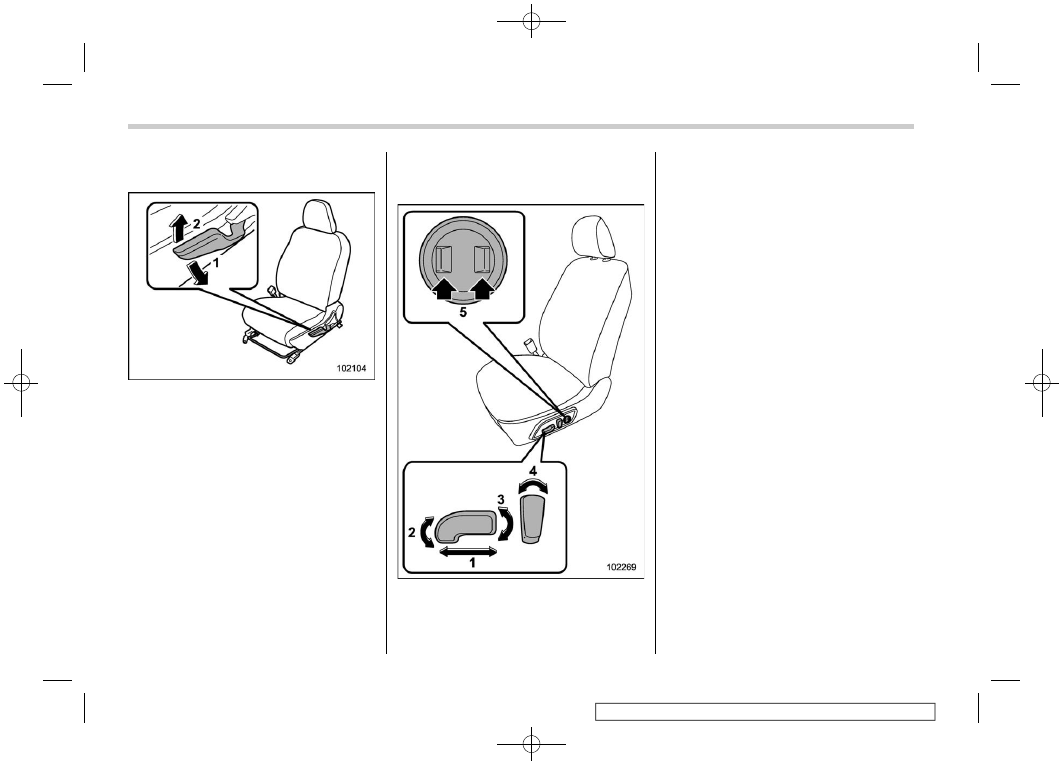

Power seat (if equipped) .......................................36
Second-row seats .................................................40
Third-row seats ....................................................44
Head restraints .....................................................47

1-2. Seat heater (if equipped).................................. 50

Front seat heater ..................................................51
Second-row seat heater ........................................51

1-3. Seat ventilation (if equipped)........................... 52
1-4. Seatbelts............................................................ 53

Seatbelt safety tips ...............................................53
Emergency Locking Retractor (ELR) .....................55
Automatic Locking Retractor/Emergency

Locking Retractor (ALR/ELR) ..............................55

Seatbelt warning light and chime ..........................55
Passengers seatbelt reminder ...............................55
Fastening the seatbelt ..........................................55
Seatbelt maintenance............................................62

1-5. Seatbelt pretensioners ..................................... 62

Front seatbelt with shoulder belt and lap belt

pretensioners .....................................................62

Second-row (window-side) seatbelts with

shoulder belt pretensioner ..................................63

System monitors ..................................................64
System servicing ..................................................64
Precautions against vehicle modification ..............64

1-6. Rear Seat Reminder ......................................... 65

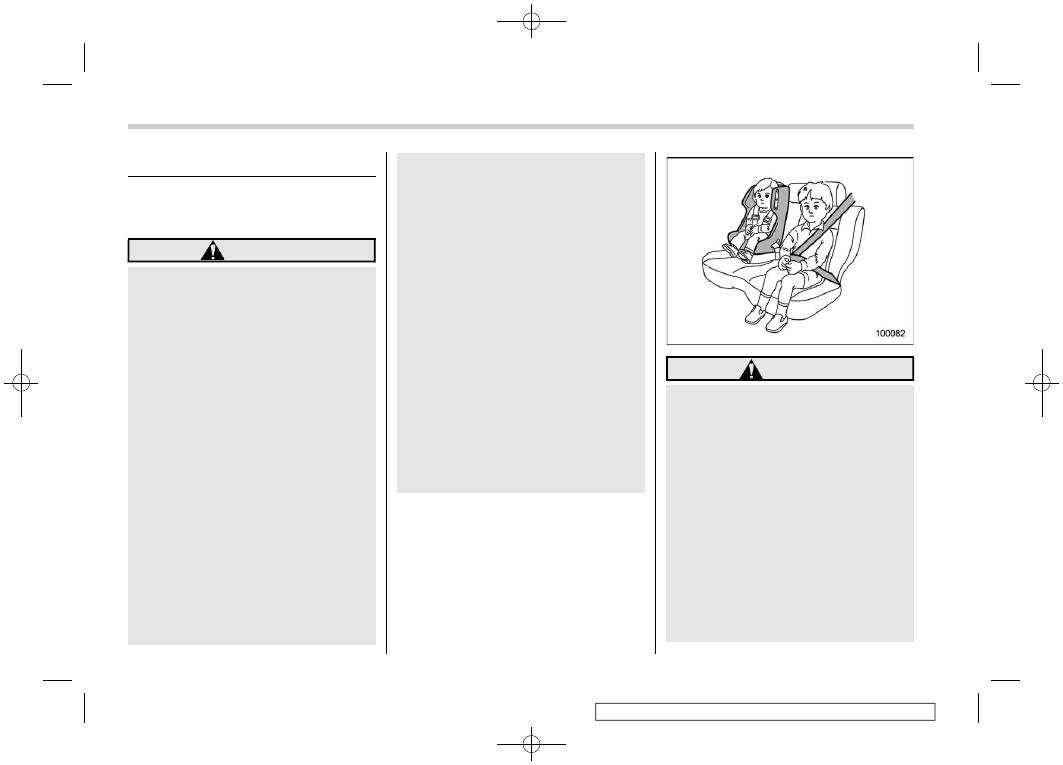

1-7. Child restraint systems.................................... 66

Safety precautions ...............................................66
Safety tips for installing child restraint systems ...67
Where to place a child restraint system ................67
Choosing a child restraint system ........................70
Installing child restraint systems with ALR/ELR

seatbelt..............................................................71

Installing a booster seat or booster cushion .........75
Installation of child restraint systems by use of

lower and top tether anchorages (LATCH) ..........77

Top tether anchorages .........................................82

1-8. SRS airbag (Supplemental Restraint System

airbag) ............................................................. 84

General precautions regarding SRS airbag

system...............................................................84

General precautions regarding SRS airbag

system for accessories and any objects .............86

General precautions regarding SRS airbag

system and children...........................................88

Components ........................................................91
SUBARU advanced frontal airbag system .............93
SRS side airbag and SRS curtain airbag ............. 104
SRS airbag system monitors .............................. 111
SRS airbag system servicing.............................. 113
Precautions against vehicle modification............ 114
How to contact the vehicle manufacturer

concerning modifications for persons with
disabilities that may affect the advanced
airbag system .................................................. 115

Seat, seatbelt and SRS airbags

1

Seat,

seatbelt

and

SRS

airbags

(34,1)

1-1. Seats

&

Safety tips

!

Safety tips for seat

WARNING

.

Never adjust the seat while driv-

ing, as personal injury or loss of
vehicle control may occur.

.

Before adjusting the seat, ensure

nothing is blocking the adjusting
mechanism.

.

After adjusting the seat, move it

back and forth to ensure the seat
is securely locked. If it is not, it
may move suddenly or the seat-
belt may not operate properly.

.

Do not put objects under the front

seats. They may interfere with the
front seat locking mechanism
and cause an accident.

.

Seatbelts provide maximum re-

straint when the occupant sits
back and upright in the seat. To
reduce the risk of sliding under
the seatbelt in a collision, the
front seatbacks should always
be used in the upright position
while the vehicle is running. If the
front seatbacks are not in the

upright position and a collision
occurs, the risk of sliding under
the lap belt and of the lap belt
sliding up over the abdomen will
increase, and both can result in
serious injury or death.

.

The SRS airbags deploy with

considerable speed and force.
Occupants who are not sitting
back and upright when the SRS
airbag deploys could suffer ser-
ious injury. Because the SRS
airbag needs enough space for
deployment, the driver should
always sit upright and well back
in the seat as far from the steer-
ing wheel as practical while still
maintaining full vehicle control,
and the front passenger should
move the seat as far back as
possible and sit upright and well
back in the seat.

WARNING

Seat children in the rear seat prop-
erly restrained at all times. The SRS
airbag deploys with considerable
speed and force and can injure or
even kill children, especially if they
are not restrained or improperly
restrained. Because children are
lighter and weaker than adults, their
risk of being injured from deploy-
ment is greater. For that reason, we
strongly recommend that ALL chil-
dren (including those in child re-
straint systems and those that have
outgrown child restraint devices) sit
in the REAR seat properly restrained
at all times in a child restraint device
or in a seatbelt, whichever is appro-

Seats

32

(35,1)

priate for the child’s age, height and
weight. Secure ALL types of child
restraint devices (including forward
facing child restraint systems) in the
REAR seats at all times.

NEVER INSTALL A CHILD RE-
STRAINT SYSTEM IN THE FRONT
PASSENGER’S SEAT. DOING SO
RISKS SERIOUS INJURY OR DEATH
TO THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO THE
SRS AIRBAG.

According to accident statistics,
children are safer when properly
restrained in the rear seating posi-
tions than in the front seating posi-
tions. For instructions and precau-
tions concerning child restraint sys-
tems, refer to “Child restraint sys-
tems”

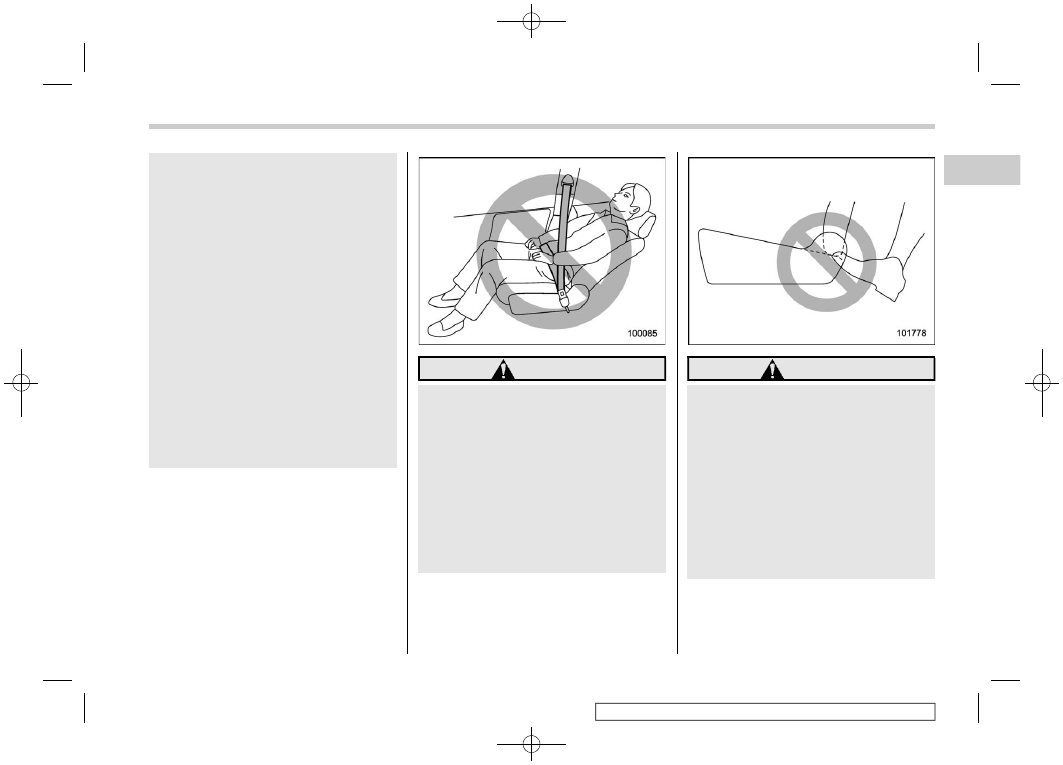

WARNING

To prevent the passenger from slid-
ing under the seatbelt in the event of
a collision, always put the seatback
in the upright position while the
vehicle is in motion. Also, do not
place objects such as cushions
between the passenger and the seat-
back. If you do so, the risk of sliding
under the lap belt and of the lap belt
sliding up over the abdomen will
increase, and both can result in
serious injury or death.

WARNING

Do not let rear passengers rest their
feet between the front seatback and
seat cushion. Doing so may interfere
with the proper operation of the
following systems and could result
in serious injury.

.

Occupant detection system

.

SRS side airbag

.

Seat heater (if equipped)

.

Power seat (if equipped)

.

Seat ventilation (if equipped)

– CONTINUED –

Seats

33

1

Seat,

seatbelt

and

SRS

airbags

(36,1)

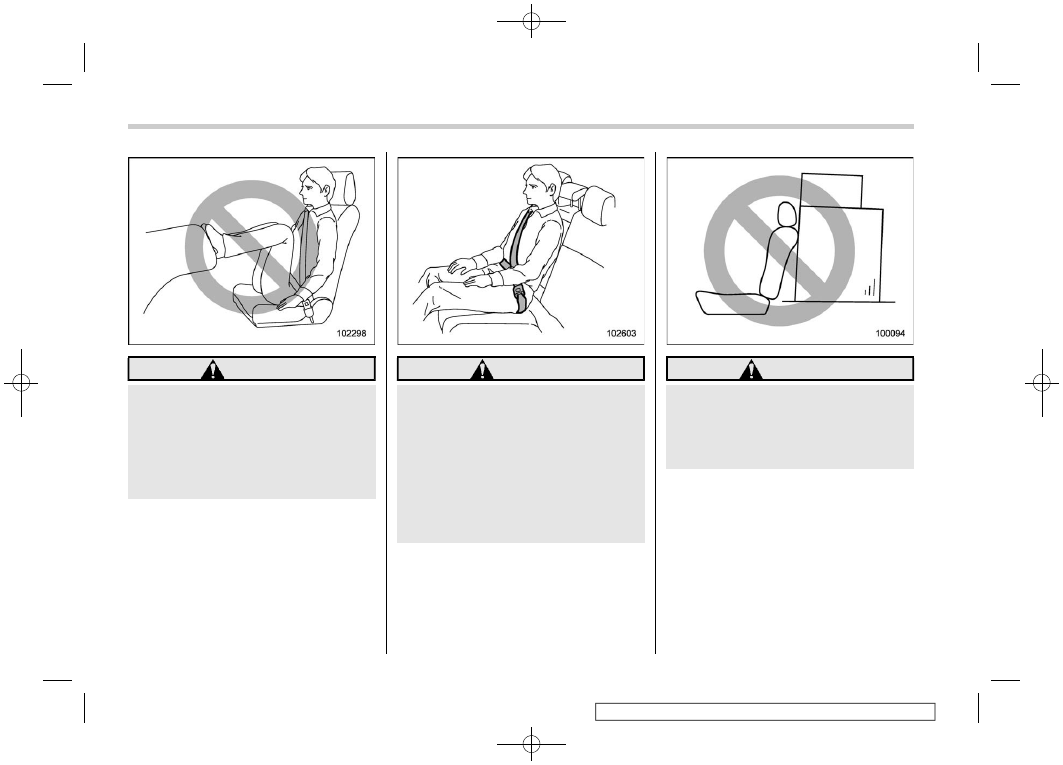

WARNING

Do not press your feet onto the
instrument panel. Doing so may
prevent the occupant detection
function of the SRS airbag system
from functioning correctly, and may
result in serious injury or death in
the event of an accident.

WARNING

Seatbelts provide maximum re-
straint when the occupant sits back
and upright in the seat. Do not place
cushions or any other materials
between occupants and seatbacks
or seat cushions. By doing so, the
risk of sliding under the lap belt and
of the lap belt sliding up over the
abdomen will increase, and both can
result in serious injury or death.

WARNING

Never stack luggage or other cargo
higher than the top of the seatback
as it could tumble forward and injure
passengers in the event of a sudden
stop or accident.

Seats

34

(37,1)

!

Safety tips for head restraint

WARNING

.

Never drive the vehicle with the

head restraints removed because
they are designed to reduce the
risk of serious neck injury in the
event that the vehicle is struck
from the rear. Also, never install
the head restraints the opposite
way round. Doing so will prevent
the head restraints from function-
ing as intended. Therefore, when
you remove the head restraints,
you must reinstall all head re-
straints correctly to protect vehi-
cle occupants.

.

All occupants, including the dri-

ver, should not operate a vehicle
or sit in a vehicle’s seat until the
head restraints are placed in their
proper positions in order to mini-
mize the risk of neck injury in the
event of a crash.

&

Manual seat (if equipped)

!

Forward and backward adjustment

Pull the lever upward and slide the seat to
the desired position. Then release the
lever and try to move the seat back and
forth to make sure that it is securely locked
into place.

!

Reclining the seatback

Pull the reclining lever up and adjust the
seatback to the desired position. Then
release the lever and make sure the
seatback is securely locked into place.
The seatback placed in a reclined position
can spring back upward with force when
the lever is pulled. While operating the
lever to return the seatback, hold the
seatback lightly so that it may be raised
back gradually.

– CONTINUED –

Seats

35

1

Seat,

seatbelt

and

SRS

airbags

(38,1)

!

Seat height adjustment (driver’s
seat)

1)

When the lever is pushed down, the seat
is lowered.

2)

When the lever is pulled up, the seat
rises.

The height of the seat can be adjusted by
moving the seat adjustment lever up and
down.

&

Power seat (if equipped)

!

Driver’s seat

1)

Seat position forward/backward con-
trol switch

To adjust the seat forward or backward,
move the control switch forward or

backward. During forward/backward ad-
justment of the seat, you cannot adjust
the seat cushion angle or seat cushion
height.

2)

Seat cushion angle control switch

To adjust the seat cushion angle, pull up
or push down the front end of the control
switch.

3)

Seat height control switch

To adjust the seat height, pull up or push
down the rear end of the control switch.

4)

Seatback angle (reclining) control
switch

To adjust the angle of the seatback, move
the control switch.

5)

Lumbar support control switch (if
equipped)

To adjust the lumbar support, push the
front side or rear side control switch.

Seats

36

Content .. 1 2 3 ..
