Subaru Crosstrek (2022 year). Manual in english - page 29

(470,1)

Specifications

These specifications are subject to change without notice.

Dimensions

in (mm)

Item

Overall length

176.5 (4,485)

Overall width

Models with rear gate light

71.7 (1,820)

Models without rear gate light

71.0 (1,800)

Overall height

63.6 (1,615)

Wheel base

104.9 (2,665)

Tread

Front

61.0 (1,550)

Rear

61.2 (1,555)

Ground clearance*

8.7 (220)

*1: Measured with vehicle empty

Specifications/Specifications

12-2

(471,1)

Engine

Engine model

FB20 (2.0 L, DOHC, non-turbo)

FB25 (2.5 L, DOHC, non-turbo)

Engine type

Horizontally opposed, liquid cooled 4 cylinder,

4 stroke direct injection gasoline engine

Horizontally opposed, liquid cooled 4 cylinder,

4-stroke direct injection gasoline engine

Displacement cu-in (cc)

122 (1,995)

152 (2,498)

Bore

Stroke in (mm)

3.31

3.54 (84.0

90.0)

3.70

3.54 (94.0

90.0)

Compression ratio

12.5 : 1

12.0 : 1

Firing order

1 – 3 – 2 – 4

Fuel

Fuel requirement

Fuel tank capacity

Unleaded gasoline with 87 AKI (90 RON) or higher

16.6 US gal (63 liters, 13.9 Imp gal)

For more details, refer to “Fuel”

7-3.

– CONTINUED –

Specifications/Specifications

12-3

(472,1)

Engine oil

For the checking, adding and replacing procedure or other details, refer to “Engine oil”

11-8.

NOTE

The procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommended
that you have this service performed by your SUBARU dealer.

Approved engine oil

Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.

Specifications/Specifications

12-4

(473,1)

Alternative engine oil

If the SUBARU approved oil is unavailable, the following alternative oil can be used.

NOTE

Each quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.

Oil grade

SAE viscosity No. and

applicable temperature

Engine oil capacity

API (American Petroleum Insti-
tute) classification

with the

words “RESOURCE CONSER-
VING”,

SN PLUS

with the words

“RESOURCE CONSERVING” or

with the words “RESOURCE

CONSERVING”

ILSAC (International Lubricant
Specification Advisory Commit-
tee)

GF-5

GF-6A

, which can

be identified with the ILSAC
certification mark (Starburst
mark)

0W-20 synthetic

oil is the required oil

for optimum engine performance and
protection. Conventional oil may be
used if synthetic oil is unavailable.

*: If 0W-20 synthetic oil is not available,

5W-30 conventional oil may be used
if replenishment is needed but should
be changed to 0W-20 synthetic oil at
the next oil change.

– Adding the oil from low level to

full level:
1.1 US qt (1.0 liter, 0.9 Imp qt)

– Changing the oil and oil filter:

2.0 L engine models: 4.7 US qt
(4.4 liters, 3.9 Imp qt)
2.5 L engine models: 4.4 US qt
(4.2 liters, 3.7 Imp qt)

– CONTINUED –

Specifications/Specifications

12-5

(474,1)

Manual transmission, front differential and rear differential gear oil

Oil

Manual transmission oil

Front differential gear oil (CVT

models)

Rear differential gear oil

Oil grade

SUBARU Extra MT*

API classification

GL-5 (75W-90)*

SUBARU Extra MT*

API classification GL-5
(75W-90)

API classification GL-5

SAE viscosity No.
and applicable
temperature

—

75W-90*

*: Recommended

Oil capacity*

3.5 US qt (3.3 liters, 2.9 Imp qt)

1.4 US qt (1.3 liters, 1.1 Imp qt)

0.8 US qt (0.8 liters, 0.7 Imp qt)

Remarks*

“Manual transmission oil”

11-

“Front differential gear oil (CVT models) and rear differential gear oil”

11-15

*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other

factors. After refilling the gearbox with oil, the oil level should be checked.

*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this type of oil.
*4: You may use this type of manual transmission oil. However, using this type of oil will detract from driveability and fuel efficiency.

Specifications/Specifications

12-6

(475,1)

Fluids

Fluid

Fluid type*

Fluid capacity*

Remarks*

Continuously variable transmission
fluid (CVT models)

Consult your SUBARU dealer.

2.0 L engine models:
10.8 US qt (10.2 liters, 9.0 Imp qt)
2.5 L engine models:
12.0 US qt (11.3 liters, 10.0 Imp qt)

“Continuously variable trans-
mission fluid”

11-15

Brake fluid

FMVSS No. 116, DOT 3 or DOT 4 brake
fluid

—

“Brake fluid”

11-15

Clutch fluid (MT models)

FMVSS No. 116, DOT 3 or DOT 4 brake
fluid

—

“Clutch fluid (MT models)”

11-

*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other

factors.

*3: For more details about maintenance and service, refer to the indicated section.

Engine coolant

Vehicle model

Coolant capacity

Coolant type

MT models

8.0 US qt (7.6 liters, 6.7 Imp qt)

SUBARU SUPER COOLANT

CVT models

2.0 L engine models

8.2 US qt (7.8 liters, 6.9 Imp qt)

2.5 L engine models

8.8 US qt (8.3 liters, 7.3 Imp qt)

The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. For more details about maintenance and service, refer to “Cooling system”

11-10.

– CONTINUED –

Specifications/Specifications

12-7

(476,1)

Electrical system

Battery type

Models without Auto Start Stop system

75D23L

Models with Auto Start Stop system

Q-85

Alternator

2.0 L engine models

12 V 130 A

2.5 L engine models

12 V 150 A

Spark plugs

2.0 L engine models

DILKAR7B8 (NGK)

2.5 L engine models

DILKAR7Q8 (NGK)

Tires

Tire size

P225/60R17 98H

225/55R18 98H

Wheel size

7 J

Pressure

Front

33 psi (230 kPa, 2.3 kgf/cm

)

Rear

32 psi (220 kPa, 2.2 kgf/cm

)

Wheel nut tightening torque

89 lbf·ft (120 N·m, 12 kgf·m)*

*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts

by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure,
refer to “Changing a flat tire”

9-5.

Specifications/Specifications

12-8

(477,1)

Temporary spare tires

U.S.-spec. models and Canada-spec. models

Other models

Temporary spare tire size

T145/80 D17

185/65 R17

Temporary spare tire inflation pressure
(recommended cold tire inflation pressure)

60 psi (420 kPa, 4.2 kgf/cm

)

42 psi (290 kPa, 2.9 kgf/cm

)

Brake disc

If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult your
SUBARU dealer.

Specifications/Specifications

12-9

(478,1)

Bulb chart

Safety precautions

WARNING

Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down. Otherwise, there is
a risk of sustaining a burn injury.

CAUTION

Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire.

Specifications/Bulb chart

12-10

(479,1)

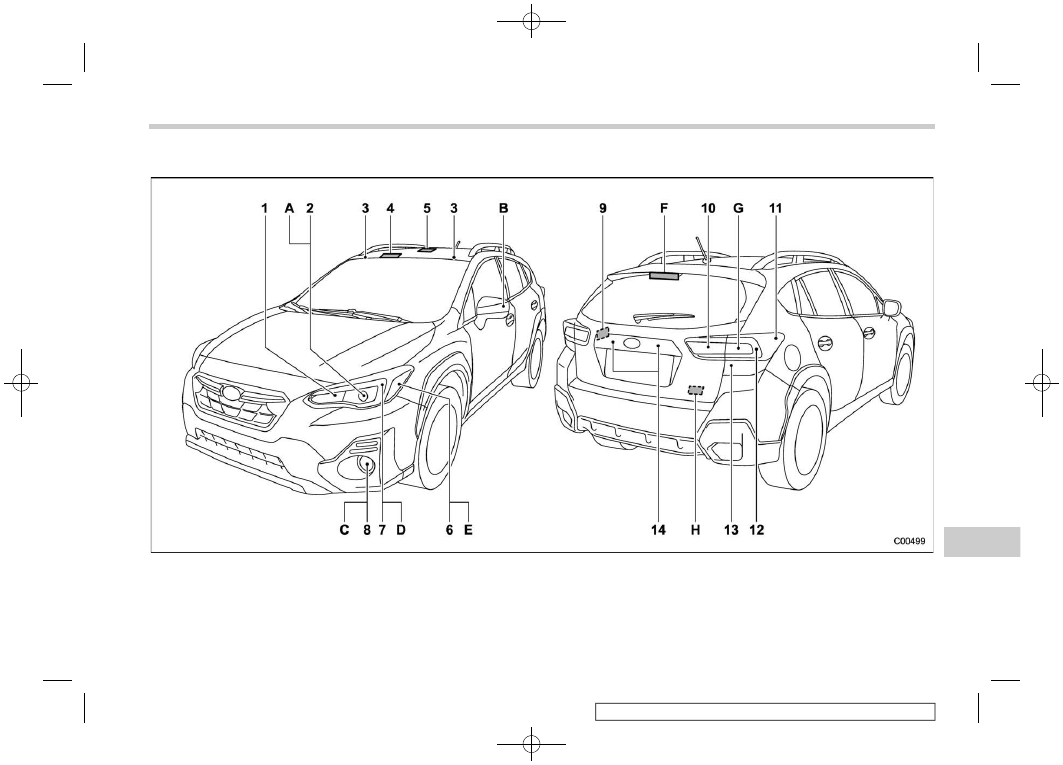

Bulb chart

NOTE

Lights indicated by letters are the LED (Light Emitting Diode) type. Consult your SUBARU dealer for replacement.

– CONTINUED –

Specifications/Bulb chart

12-11

(480,1)

Wattage

Bulb No.

Front turn signal light

12 V-8/28 W

7444NA

High beam headlight (models with halogen headlight)

12 V-60 W

HB3

Low beam headlight (models with halogen headlight)

12 V-55 W

H11

Vanity mirror light (if equipped)

12 V-2 W

—

Map light

12 V-8 W

—

Dome light

12 V-8 W

—

Front side marker light (models with halogen headlight)

12 V-5 W

W5W

Parking light/Front turn signal light (models with halogen
headlight)/Front position light

12 V-8/28 W

7444NA

Front fog light (if equipped)

12 V-19 W

H16

Cargo area light

12 V-5 W

W5W

10) Backup light

12 V-21 W

W21W

11) Rear side marker light

12 V-5 W

W5W

12) Tail light

12 V-5 W

W5W

13) Rear turn signal light

12 V-21 W

WY21W

14) License plate light

12 V-5 W

W5W

Wattage

Bulb No.

Specifications/Bulb chart

12-12

(481,1)

Wattage

Bulb No.

Low and high beam headlight (models with LED headlight)

—

Side turn signal light (if equipped)

—

Front fog light (if equipped)/Daytime running light (if equipped) —

—

Front position light (if equipped)/Daytime running light (if
equipped)

—

Front side marker light (models with LED head light)

—

High-mounted stop light

—

Stop light

—

Rear gate light (if equipped)

—

Specifications/Bulb chart

12-13

(482,1)

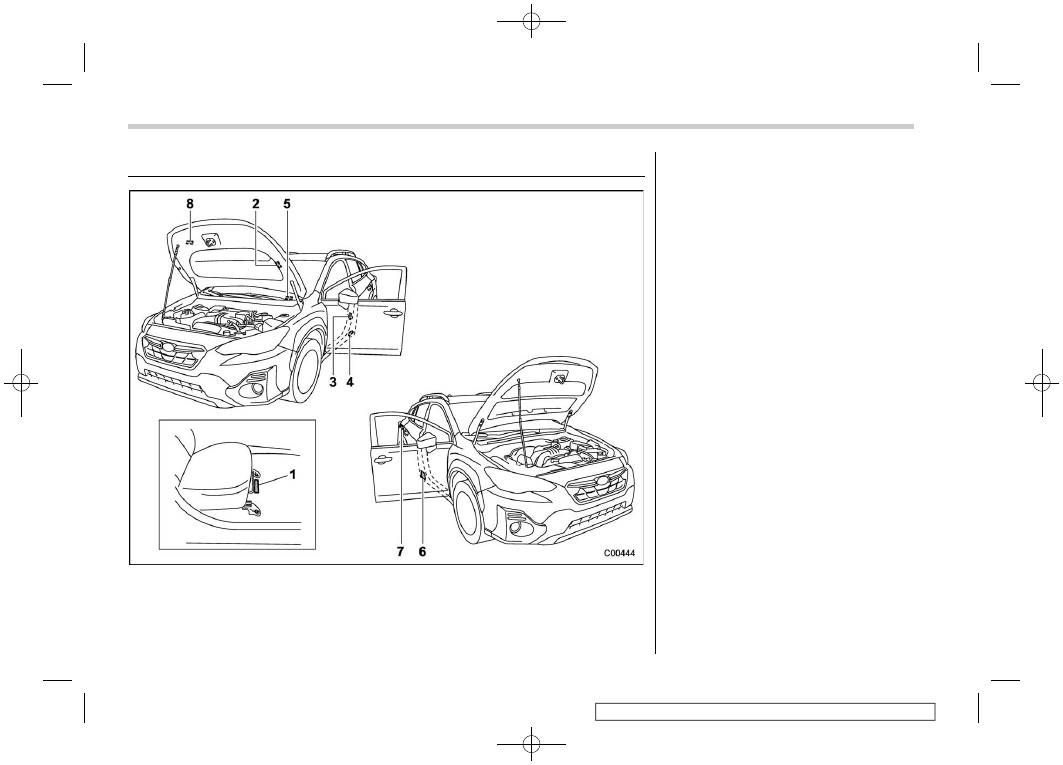

Vehicle identification

Vehicle identification number (under the
floor carpet of the right-hand front seat)

Emission control label

Tire inflation pressure label (vehicle
placard)

Certification label

Vehicle identification number

Model number label

Fuel label

Air conditioner label

Specifications/Vehicle identification

12-14

(485,1)

For U.S.A. .............................................................. 13-2
Tire information..................................................... 13-2

Tire labeling.......................................................... 13-2
Recommended tire inflation pressure .................... 13-4
Glossary of tire terminology .................................. 13-5
Tire care – maintenance and safety practices ...... 13-10
Determining compatibility of tire and vehicle

load capacities.................................................. 13-10

Adverse safety consequences of overloading

on handling and stopping and on tires .............. 13-10

Steps for Determining Correct Load Limit............ 13-11

Vehicle load limit – how to determine ...............13-11

Calculating total and load capacities varying

seating configurations ..................................... 13-12

Uniform tire quality grading standards............. 13-14

TREADWEAR...................................................... 13-15
TRACTION AA, A, B, C........................................ 13-15
TEMPERATURE A, B, C....................................... 13-15

Reporting safety defects (U.S.A.) ...................... 13-16
How to contact Transport Canada in order to

report a safety concern relating to
the vehicle (Canada)........................................ 13-16

Consumer information and Reporting safety defects

(486,1)

For U.S.A.

The following information has been
compiled according to Code of
Federal Regulations “Title 49, Part
575”.

Tire information

Tire labeling

Many markings (e.g. Tire size, Tire
Identification Number or TIN) are
placed on the sidewall of a tire by
tire manufacturers. These markings
can provide you with useful infor-
mation on the tire.

Tire size

Your vehicle comes equipped with
P-Metric tire size. It is important to
understand the sizing system in
selecting the proper tire for your
vehicles. Here is a brief review of
the tire sizing system with a break-
down of its individual elements.

P Metric

With the P-Metric system, Section
Width is measured in millimeters.
To convert millimeters into inches,
divide by 25.4. The Aspect Ratio
(Section Height divided by Section
Width) helps provide more dimen-
sional information about the tire
size.

Example:

(1)

P = Certain tire type used on

light duty vehicles such as passen-
ger cars
(2)

Section Width in millimeters

(3)

Aspect Ratio (= section height

section width).

(4)

R = Radial Construction

(5)

Rim diameter in inches

Load and Speed Rating
Descriptions

The load and speed rating descrip-
tions will appear following the size
designation.
They provide two important facts
about the tire. First, the number
designation is its load index. Sec-
ond, the letter designation indicates
the tire’s speed rating.

Consumer information and Reporting safety defects/For U.S.A.

13-2

(487,1)

Example:

(6)

Load Index: A numerical code

which specifies the maximum load
a tire can carry at the speed
indicated by its speed symbol, at
maximum inflation pressure.

For example, “90” means 1,323 lbs
(600 kg), “89” means 1,278 lbs (580
kg).

WARNING

Load indices apply only to the
tire, not to the vehicle. Putting
a load rated tire on any vehicle
does not mean the vehicle can
be loaded up to the tire’s rated
load.

(7)

Speed Rating: An alphabetical

system describing a tire’s capability
to travel at established and prede-
termined speeds.
For example, “V” means 149 mph
(240 km/h)

WARNING

Speed ratings apply only to

the tire, not to the vehicle.
Putting a speed rated tire on
any vehicle does not mean
the vehicle can be operated
at the tire’s rated speed.

The speed rating is void if

the tires are worn out, da-
maged, repaired, retreaded,
or otherwise altered from
their original condition. If
t i r e s a r e r e p a i r e d , r e -
treaded, or otherwise al-
tered, they may not be sui-
table for original equipment
tire designed loads and
speeds.

Tire Identification Number
(TIN)

Tire Identification Number (TIN) is
marked on the intended outboard
sidewall. The TIN is composed of
four groups. Here is a brief review of
the TIN with a breakdown of its

individual elements.

(1)

DOT symbol*

(2)

Manufacturer’s Identification

Mark
(3)

Tire Size Code

(4)

Tire Type Code

(5)

Date of Manufacture

The first two figures identify the
week, starting with “01” to represent
the first full week of the calendar
year; the second two figures repre-
sent the year. For example, 0101
means the 1st week of 2001.
*: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

Other markings

The following makings are also
placed on the sidewall.

– CONTINUED –

Consumer information and Reporting safety defects/Tire information

13-3

Content .. 27 28 29 30 ..
