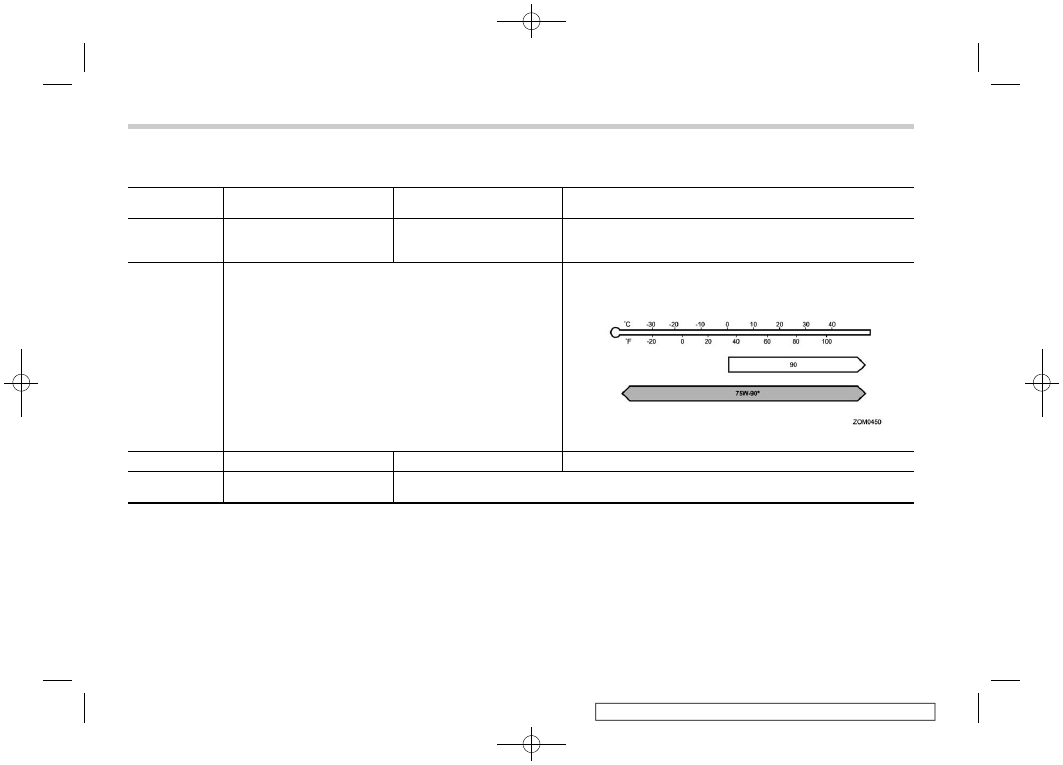

Manual transmission, front differential and rear differential gear oil

Oil

Manual transmission oil

Front differential gear oil

(CVT models)

Rear differential gear oil

Oil grade

SUBARU Extra MT*

API classification

GL-5 (75W-90)*

SUBARU Extra MT*

API classification GL-5
(75W-90)

API classification GL-5

SAE viscosity
No. and applic-
able tempera-
ture

—

75W-90*

*: Recommended

Oil capacity*

3.7 US qt (3.5 liters, 3.1 Imp qt) 1.4 US qt (1.3 liters, 1.1 Imp qt)

0.8 US qt (0.8 liters, 0.7 Imp qt)

Remarks*

“Manual transmission oil”

11-

“Front differential gear oil (CVT models) and rear differential gear oil”

11-15

*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other

factors. After refilling the gearbox with oil, the oil level should be checked.

*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this type of oil.
*4: You may use this type of manual transmission oil. However, using this type of oil will detract from driveability and fuel efficiency.

Specifications/Specifications

12-6

(451,1)

Fluids

Fluid

Fluid type*

Fluid capacity*

Remarks*

Continuously variable transmission
fluid (CVT models)

Consult your SUBARU dealer.

11.3 US qt (10.7 liters, 9.4 Imp qt)

“Continuously variable trans-
mission fluid”

11-15

Brake fluid

FMVSS No. 116, DOT 3 or DOT 4 brake
fluid

—

“Brake fluid”

11-15

Clutch fluid (MT models)

FMVSS No. 116, DOT 3 or DOT 4 brake
fluid

—

“Clutch fluid (MT models)”

11-

*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other

factors.

*3: For more details about maintenance and service, refer to the indicated section.

Engine coolant

Vehicle model

Coolant capacity

Coolant type

MT models

8.0 US qt (7.6 liters, 6.7 Imp qt)

SUBARU SUPER COOLANT

CVT models

8.2 US qt (7.8 liters, 6.9 Imp qt)

The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. For more details about maintenance and service, refer to “Cooling system”

11-10.

Electrical system

Battery type

75D23L

Alternator

12 V-130 A

Spark plugs

DILKAR7B8 (NGK)

– CONTINUED –

Specifications/Specifications

12-7

(452,1)

Tires

Tire size

P205/55R16 89V

205/50R17 89V

P225/40R18 88V

Wheel size

7 J

Pressure

Front

33 psi (230 kPa, 2.3 kgf/cm

)

Rear

32 psi (220 kPa, 2.2 kgf/cm

)

Wheel nut tightening torque

89 lbf·ft (120 N·m, 12 kgf·m)*

*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts

by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure,
refer to “Changing a flat tire”

9-6.

Temporary spare tires

U.S.-spec. models and Canada-spec. models

Temporary spare tire size

T135/80 D16

Temporary spare tire inflation pressure
(recommended cold tire inflation pressure)

60 psi (420 kPa, 4.2 kgf/cm

)

Brake disc

If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult your
SUBARU dealer.

Specifications/Specifications

12-8

(453,1)

Bulb chart

Safety precautions

WARNING

Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down. Otherwise, there is
a risk of sustaining a burn injury.

CAUTION

Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire.

– CONTINUED –

Specifications/Bulb chart

12-9

(454,1)

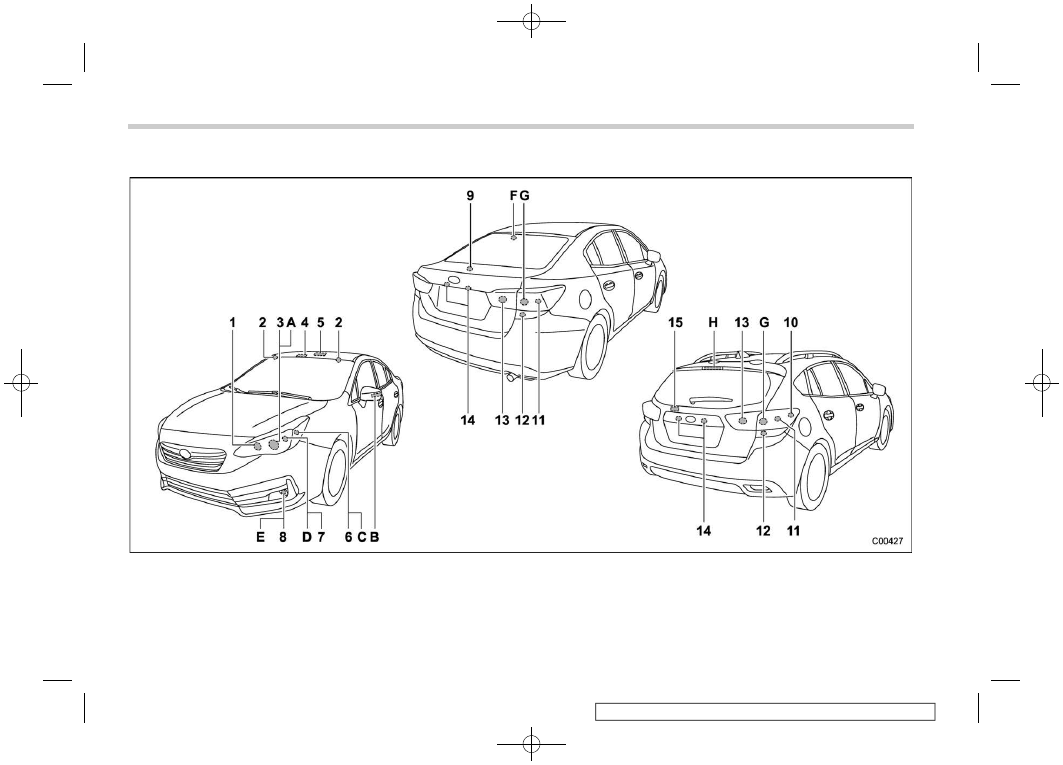

Bulb chart

NOTE

Lights indicated by letters are the LED (Light Emitting Diode) type. Consult your SUBARU dealer for replacement.

Specifications/Bulb chart

12-10

(455,1)

Wattage

Bulb No.

High beam headlight (models with halogen headlight)

12 V-60 W

HB3

Front turn signal light (models with LED headlight)

12 V-28 W

7444NA

Vanity mirror light (if equipped)

12 V-2 W

—

Low beam headlight (models with halogen headlight)

12 V-55 W

H11

Map light

12 V-8 W

—

Dome light

12 V-8 W

—

Front side marker light (models with halogen headlight)

12 V-5 W

W5W

Parking light/Front turn signal light (models with halogen
headlight)

12 V-8/28 W

7444NA

Front fog light (if equipped)

12 V-19 W

H16

Trunk light (sedan)

12 V-3.8 W

SAE#194

10) Rear side marker light (5-door models)

12 V-5 W

W5W

11) Tail light (5-door models)

12 V-5 W

W5W

Tail and rear side marker light (sedan)

12 V-5 W

W5W

12) Rear turn signal light

12 V-21 W

WY21W

13) Backup light

12 V-21 W

W21W

14) License plate light

12 V-5 W

W5W

15) Cargo area light (5-door models)

12 V-5 W

W5W

– CONTINUED –

Specifications/Bulb chart

12-11

(456,1)

Wattage

Bulb No.

Low and high beam headlight (models with LED headlight)

—

Side turn signal light (if equipped)

—

Front side marker light (models with LED headlight)

—

Parking light/Daytime running light (models with LED head-
light)

—

Daytime running light (if equipped, models with halogen
headlight)/Front fog light (if equipped)

—

High-mounted stop light (sedan)

—

Stop light

—

High-mounted stop light (5-door models)

—

Specifications/Bulb chart

12-12

(457,1)

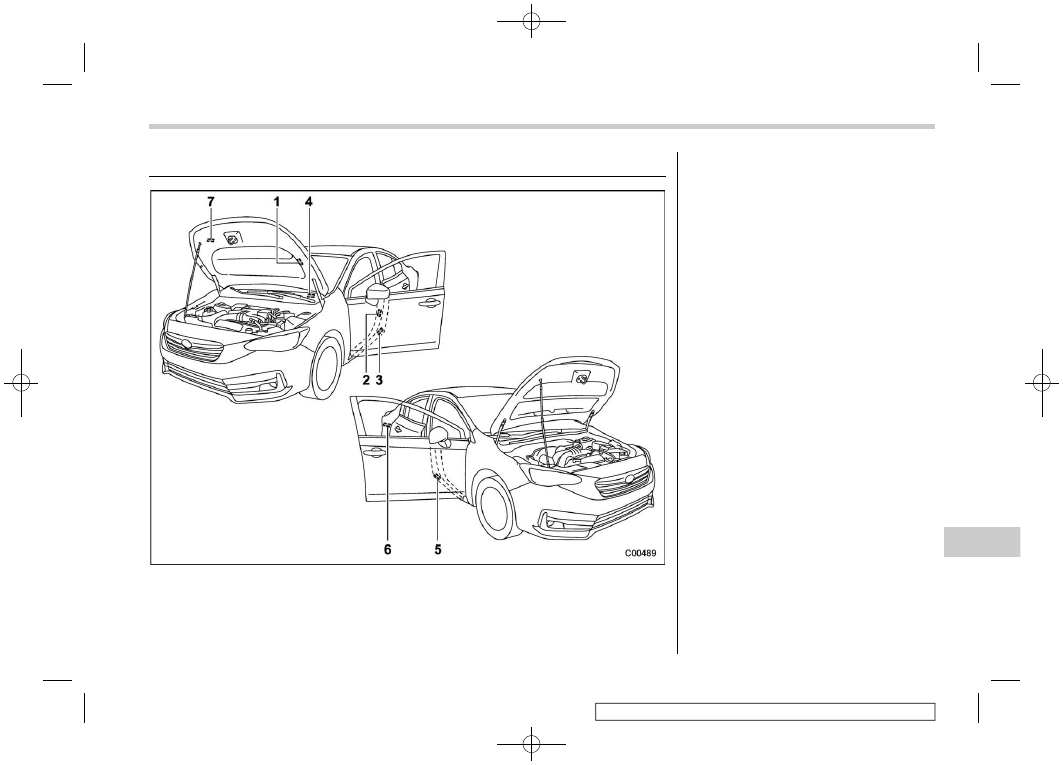

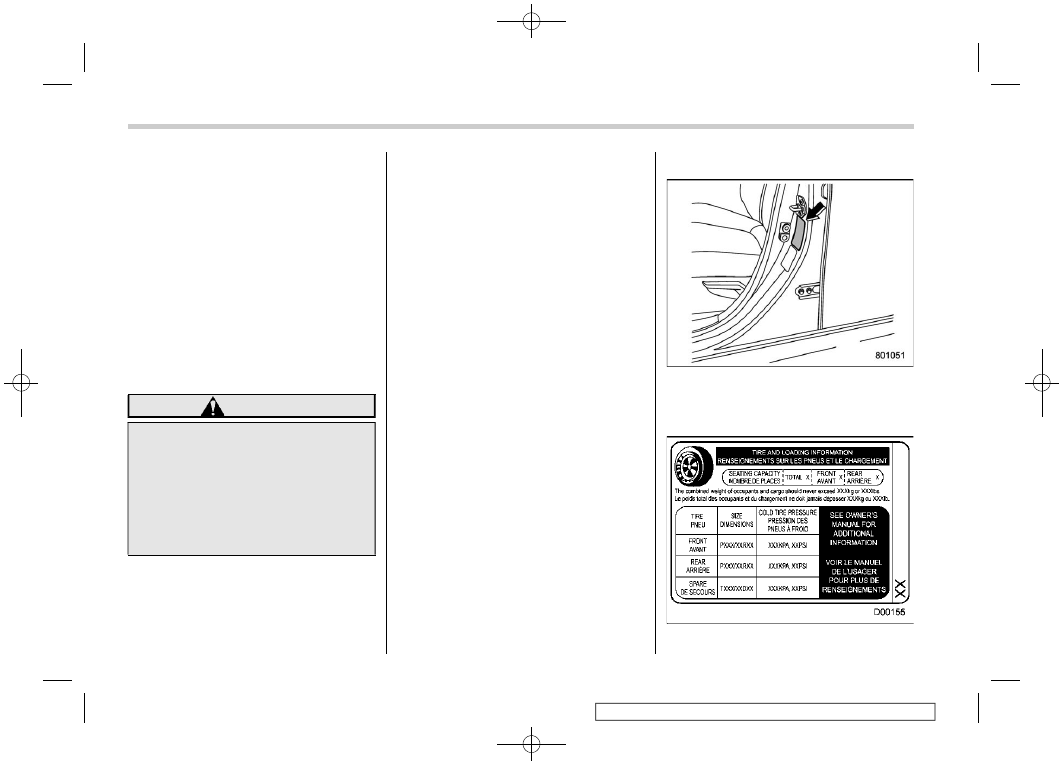

Vehicle identification

Emission control label

Tire inflation pressure label (vehicle
placard)

Certification label

Vehicle identification number plate

Model number label

Fuel label

Air conditioner label

Specifications/Vehicle identification

12-13

(459,1)

For U.S.A. .............................................................. 13-2
Tire information..................................................... 13-2

Tire labeling.......................................................... 13-2
Recommended tire inflation pressure .................... 13-4
Glossary of tire terminology .................................. 13-5
Tire care – maintenance and safety practices ...... 13-10
Determining compatibility of tire and vehicle

load capacities.................................................. 13-10

Adverse safety consequences of overloading

on handling and stopping and on tires .............. 13-10

Steps for Determining Correct Load Limit............ 13-11

Vehicle load limit – how to determine ...............13-11

Calculating total and load capacities varying

seating configurations ..................................... 13-12

Uniform tire quality grading standards............. 13-15

TREADWEAR...................................................... 13-15
TRACTION AA, A, B, C........................................ 13-15
TEMPERATURE A, B, C....................................... 13-16

Reporting safety defects (U.S.A.) ...................... 13-16
How to contact Transport Canada in order

to report a safety concern relating to
the vehicle (Canada)........................................ 13-17

Consumer information and Reporting safety defects

(460,1)

For U.S.A.

The following information has been
compiled according to Code of
Federal Regulations “Title 49, Part
575”.

Tire information

Tire labeling

Many markings (e.g. Tire size, Tire
Identification Number or TIN) are
placed on the sidewall of a tire by
tire manufacturers. These markings
can provide you with useful infor-
mation on the tire.

Tire size

Your vehicle comes equipped with
P-Metric tire size. It is important to
understand the sizing system in
selecting the proper tire for your
vehicles. Here is a brief review of
the tire sizing system with a break-
down of its individual elements.

P Metric

With the P-Metric system, Section
Width is measured in millimeters.
To convert millimeters into inches,
divide by 25.4. The Aspect Ratio
(Section Height divided by Section
Width) helps provide more dimen-
sional information about the tire
size.

Example:

(1)

P = Certain tire type used on

light duty vehicles such as passen-
ger cars
(2)

Section Width in millimeters

(3)

Aspect Ratio (= section height

section width).

(4)

R = Radial Construction

(5)

Rim diameter in inches

Load and Speed Rating
Descriptions

The load and speed rating descrip-
tions will appear following the size
designation.
They provide two important facts
about the tire. First, the number
designation is its load index. Sec-
ond, the letter designation indicates
the tire’s speed rating.

Consumer information and Reporting safety defects/For U.S.A.

13-2

(461,1)

Example:

(6)

Load Index: A numerical code

which specifies the maximum load
a tire can carry at the speed
indicated by its speed symbol, at
maximum inflation pressure.

For example, “90” means 1,323 lbs
(600 kg), “89” means 1,278 lbs (580
kg).

WARNING

Load indices apply only to the
tire, not to the vehicle. Putting
a load rated tire on any vehicle
does not mean the vehicle can
be loaded up to the tire’s rated
load.

(7)

Speed Rating: An alphabetical

system describing a tire’s capability
to travel at established and prede-
termined speeds.
For example, “V” means 149 mph
(240 km/h)

WARNING

Speed ratings apply only to

the tire, not to the vehicle.
Putting a speed rated tire on
any vehicle does not mean
the vehicle can be operated
at the tire’s rated speed.

The speed rating is void if

the tires are worn out, da-
maged, repaired, retreaded,
or otherwise altered from
their original condition. If
t i r e s a r e r e p a i r e d , r e -
treaded, or otherwise al-
tered, they may not be sui-
table for original equipment
tire designed loads and
speeds.

Tire Identification Number
(TIN)

Tire Identification Number (TIN) is
marked on the intended outboard
sidewall. The TIN is composed of
four groups. Here is a brief review of
the TIN with a breakdown of its

individual elements.

(1)

DOT symbol*

(2)

Manufacturer’s Identification

Mark
(3)

Tire Size Code

(4)

Tire Type Code

(5)

Date of Manufacture

The first two figures identify the
week, starting with “01” to represent
the first full week of the calendar
year; the second two figures repre-
sent the year. For example, 0101
means the 1st week of 2001.
*: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

Other markings

The following makings are also
placed on the sidewall.

– CONTINUED –

Consumer information and Reporting safety defects/Tire information

13-3

(462,1)

Maximum permissible infla-
tion pressure

The maximum cold inflation pres-
sure to which this tire may be
inflated. For example, “300 kPa
(44 PSI) MAX. PRESS”

Maximum load rating

The load rating at the maximum
permissible weight load for this tire.
For example, “MAX. LOAD 580 kg
(1,279 LBS) @ 300 kPa (44 PSI)
MAX. PRESS.”

WARNING

Maximum load rating applies
only to the tire, not to the
vehicle. Putting a load rated
tire on any vehicle does not
mean the vehicle can be
loaded up to the tire’s rated
load.

Construction type

Applicable construction of this tire.
For example, “TUBELESS STEEL

BELTED RADIAL”

Construction

The generic name of each cord
material used in the plies (both
sidewall and tread area) of this tire.
For example, “PLIES: TREAD 2
STEEL + 2 POLYESTER SIDE-
WALL 2 POLYESTER”

Uniform Tire Quality Grad-
ing (UTQG)

For details, refer to “

Uniform tire

quality grading standards”

13-15.

Recommended tire inflation
pressure

Recommended cold tire in-
flation pressure

For recommended cold tire inflation
pressure for your vehicle’s tires,
refer to “

Tires”

12-8.

Vehicle placard

The vehicle placard is attached to
the driver’s side door pillar.

Example:

Consumer information and Reporting safety defects/Tire information

13-4

(463,1)

The vehicle placard shows original
tire size, recommended cold tire
inflation pressure on each tire at
maximum loaded vehicle weight,
seating capacity and loading infor-
mation.

Adverse safety conse-
quences of under-inflation

Driving at high speeds with exces-
sively low tire pressures can cause
the tires to flex severely and to
rapidly become hot. A sharp in-
crease in temperature could cause
tread separation, and failure of the
tire(s). Possible resulting loss of
vehicle control could lead to an
accident.

Measuring and adjusting air
pressure to achieve proper
inflation

Check and, if necessary, adjust the
pressure of each tire (including the
spare) at least once a month and
before any long journey. Check the
tire pressures when the tires are
cold. Use a pressure gauge to

adjust the tire pressures to the
specific values. Driving even a short
distance warms up the tires and
increases the tire pressures. Also,
the tire pressures are affected by
the outside temperature. It is best to
check tire pressure outdoors before
driving the vehicle. When a tire
becomes warm, the air inside it
expands, causing the tire pressure
to increase. Be careful not to mis-
takenly release air from a warm tire
to reduce its pressure.

Glossary of tire terminology

Accessory weight

The combined weight (in excess of
those standard items which may be
replaced) of automatic transmis-
sion, power steering, power brakes,
power windows, power seats, radio,
and heater, to the extent that these
items are available as factory-in-
stalled equipment (whether in-
stalled or not).

Bead

The part of the tire that is made of

steel wires, wrapped or reinforced
by ply cords and that is shaped to fit
the rim.

Bead separation

A breakdown of the bond between
components in the bead.

Bias ply tire

A pneumatic tire in which the ply
cords that extend to the beads are
laid at alternate angles substantially
less than 90 degrees to the center-
line of the tread.

Carcass

The tire structure, except tread and
sidewall rubber which, when in-
flated, bears the load.

Chunking

The breaking away of pieces of the
tread or sidewall.

Cold tire pressure

The pressure in a tire that has been
driven less than 1 mile or has been
standing for three hours or more.

Cord

The strands forming the plies in the
tire.

– CONTINUED –

Consumer information and Reporting safety defects/Tire information

13-5

(464,1)

Cord separation

The parting of cords from adjacent
rubber compounds.

Cracking

Any parting within the tread, side-
wall, or inner liner of the tire
extending to cord material.

Curb weight

The weight of a motor vehicle with
standard equipment including the
maximum capacity of fuel, oil and
coolant, and if so equipped, air
conditioning and additional weight
optional engine.

Extra load tire

A tire designed to operate at higher
loads and higher inflation pressure
than the corresponding standard
tire.

Groove

The space between two adjacent
tread ribs.

Innerliner

The layer(s) forming the inside sur-
face of a tubeless tire that contains
the inflating medium within the tire.

Innerliner separation

The parting of the innerliner from
cord material in the carcass.

Intended outboard sidewall

(1)

The sidewall that contains a

whitewall, bears white lettering
or bears manufacturer, brand,
and/or model name molding that
is higher or deeper than the
same molding on the other side-
wall of the tire, or

(2)

The outward facing sidewall

of an asymmetrical tire that has a
particular side that must always
face outward when mounting on
a vehicle.

Light truck (LT) tire

A tire designated by its manufac-
turer as primarily intended for use
on lightweight trucks or multipur-
pose passenger vehicles.

Load rating

The maximum load that a tire is
rated to carry for a given inflation
pressure.

Maximum inflation pressure

The maximum cold inflation pres-

sure to which a tire may be inflated.

Maximum load rating

The load rating for a tire at the
maximum permissible inflation
pressure for that tire.

Maximum loaded vehicle weight

The sum of:

(a)

Curb weight

(b)

Accessory weight

(c)

Vehicle capacity weight

(d)

Production options weight

Maximum permissible inflation

pressure

The maximum cold inflation pres-
sure to which a tire may be inflated.

Measuring rim

The rim on which a tire is fitted for
physical dimension requirements.

Normal occupant weight

150 lbs (68 kg) times the number of
occupants specified in the second
column of Table 1 that is appended
to the end of this section.

Occupant distribution

Distribution of occupants in a vehi-
cle as specified in the third column
of Table 1 that is appended to the

Consumer information and Reporting safety defects/Tire information

13-6

(465,1)

end of this section.

Open splice

Any parting at any junction of tread,
sidewall, or innerliner that extends
to cord material.

Outer diameter

The overall diameter of an inflated
new tire.

Overall width

The linear distance between the
exteriors of the sidewalls of an
inflated tire, including elevations
due to labeling, decorations, or
protective bands or ribs.

Passenger car tire

A tire intended for use on passen-
ger cars, multipurpose passenger
vehicles, and trucks, that have a
gross vehicle weight rating (GVWR)
of 10,000 lbs (4,535 kg) or less.

Ply

A layer of rubber-coated parallel
cords.

Ply separation

A parting of rubber compound
between adjacent plies.

Pneumatic tire

A mechanical device made of rub-
ber, chemicals, fabric and steel or
o t h e r m a t e r i a l s , t h a t , w h e n
mounted on an automotive wheel,
provides the traction and contains
the gas or fluid that sustains the
load.

Production options weight

The combined weight of those
installed regular production options
weighing over 5.1 lbs (2.3 kg) in
excess of those standard items
which they replace, not previously
considered in curb weight or acces-
sory weight, including heavy duty
brakes, ride levelers, roof rack,
heavy duty battery, and special trim.

Radial ply tire

A pneumatic tire in which the ply
cords that extend to the beads are
laid at substantially 90 degrees to
the centerline of the tread.

Recommended inflation pres-

sure

The cold inflation pressure recom-
mended by a vehicle manufacturer.

Reinforced tire

A tire designed to operate at higher
loads and at higher inflation pres-
sures than the corresponding stan-
dard tire.

Rim

A metal support for a tire or a tire
and tube assembly upon which the
tire beads are seated.

Rim diameter

Nominal diameter of the bead seat.

Rim size designation

Rim diameter and width.

Rim type designation

The industry of manufacturer’s des-
ignation for a rim by style or code.

Rim width

Nominal distance between rim
flanges.

Section width

The linear distance between the
exteriors of the sidewalls of an
inflated tire, excluding elevations
due to labeling, decoration, or pro-
tective bands.

Sidewall

That portion of a tire between the

– CONTINUED –

Consumer information and Reporting safety defects/Tire information

13-7

(466,1)

tread and bead.

Sidewall separation

The parting of the rubber compound
from the cord material in the side-
wall.

Snow tire

A tire that attains a traction index
equal to or greater than 110, com-
pared to the ASTM E1136-93 Stan-
dard Reference Test Tire, when
using the snow traction test as
described in ASTM F-1805-00,
Standard Test Method for Single
Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered
Surfaces, and that is marked with
an Alpine Symbol “ ” on at least
one sidewall.

Test rim

The rim on which a tire is fitted for
testing, and it may be any rim listed
as appropriate for use with that tire.

Tread

That portion of a tire that comes into
contact with the road.

Tread rib

A tread section running circumfer-

entially around a tire.

Tread separation

Pulling away of the tread from the
tire carcass.

Treadwear indicators (TWI)

The projections within the principal
grooves designed to give a visual
indication of the degrees of wear of
the tread.

Vehicle capacity weight

The rated cargo and luggage load
plus 150 lbs (68 kg) times the
vehicle’s designated seating capa-
city.

Vehicle maximum load on the tire

Load on an individual tire that is
determined by distributing to each
axle its share of the maximum
loaded vehicle weight and dividing
by two.

Vehicle normal load on the tire

Load on an individual tire that is
determined by distributing to each
axle its share of the curb weight,
accessory weight, and normal oc-
cupant weight (distributed in accor-
dance with Table 1 that is appended

to the end of this section) and
dividing by 2.

Wheel-holding fixture

The fixture used to hold the wheel
and tire assembly securely during
testing.

Consumer information and Reporting safety defects/Tire information

13-8

Content .. 26 27 28 29 ..
