Subaru Outback (2022 year). Manual in english

(545,1)

Oil grade

SAE viscosity No. and

applicable temperature

Engine oil capacity

API (American Petroleum Insti-
tute) classification

with the

words “RESOURCE CONSER-
VING” or

SN PLUS

with the

words “RESOURCE CONSER-
VING”

ILSAC (International Lubricant
Specification Advisory Commit-
tee)

GF-5

, which can be identi-

fied with the ILSAC certification
mark (Starburst mark)

0W-20 synthetic

oil is the required oil

for optimum engine performance and
protection. Conventional oil may be
used if synthetic oil is unavailable.

*: If 0W-20 synthetic oil is not available,

5W-30 conventional oil may be used
if you need to add oil. However, you
should change to 0W-20 synthetic oil
at the next oil change.

2.5 L models

– Adding the oil from low level to

full level:
1.1 US qt (1.0 liter, 0.9 Imp qt)

– Changing the oil and oil filter:

4.4 US qt (4.2 liters, 3.7 Imp qt)

2.4 L models

– Adding the oil from L to F level:

1.1 US qt (1.0 liter, 0.9 Imp qt)

– Changing the oil and oil filter:

4.8 US qt (4.5 liters, 4.0 Imp qt)

– CONTINUED –

Specifications

543

Specifications

(546,1)

Front Differential and Rear Differential Gear Oil

Oil

Front differential gear oil

Rear differential gear oil

Oil grade

SUBARU Extra MT*

API classification GL-5 (75W-90)*

2.5 L models and 2.4 L for Legacy: SUBARU Extra MT*

or API

classification GL-5 (75W-90*

)

2.4 L for Outback/Subaru Outback Wilderness: API classifica-

tion GL-5 (75W-90*

or 90*

)

SAE viscosity No.
and applicable
temperature

75W-90*

*: Recommended

Oil capacity*

2.5 L models

1.4 US qt (1.3 liters, 1.1 Imp qt)

0.8 US qt (0.8 liters, 0.7 Imp qt)

2.4 L models

1.3 US qt (1.2 liters, 1.1 Imp qt)

Remarks*

“

Front Differential Gear Oil and Rear Differential Gear Oil”

P509

“

Front Differential Gear Oil and Rear Differential Gear Oil”

P509

*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other

factors. After refilling the gearbox with oil, the oil level should be checked.

*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this type of differential gear oil.
*4: You may use this type of differential gear oil. However, using this type of oil will detract from fuel efficiency.

Specifications

544

(547,1)

Fluids

Fluid

Fluid type*

Fluid capacity*

Remarks*

Continuously variable transmis-
sion fluid

Consult your SUBARU dealer.

2.5 L models:
· Legacy: 11.9 US qt (11.3 liters, 9.9 Imp qt)
· Outback: 12.4 US qt (11.7 liters, 10.3 Imp qt)
2.4 L models:
· Legacy: 12.3 US qt (11.6 liters, 10.2 Imp qt)
· Outback/Subaru Outback Wilderness: 12.6
US qt (11.9 liters, 10.5 Imp qt)

“

Continuously Variable Trans-

mission Fluid”

P509

Brake fluid

FMVSS No. 116, DOT 3 or DOT 4
brake fluid

—

“

Brake Fluid”

P510

*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other

factors.

*3: For more details about maintenance and service, refer to the indicated section.

Engine Coolant

Vehicle model

Coolant capacity

Coolant type

2.5 L models

9.5 US qt (9.0 liters, 7.9 Imp qt)

SUBARU SUPER COOLANT

2.4 L models

9.2 US qt (8.7 liters, 7.7 Imp qt)

The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. For more details about maintenance and service, refer to “

Cooling System”

P504.

– CONTINUED –

Specifications

545

Specifications

(548,1)

Electrical System

Battery type

LN2

Alternator

2.5 L models: 12 V-150 A
2.4 L models: 12 V-190 A

Spark plugs

2.5 L models

DILKAR7Q8 (NGK)

2.4 L models

SILKFR8A6 (NGK)

Tires

Item

Legacy

Outback

Subaru Outback

Wilderness

Tire size

225/55R17

97V

225/50R18

95V

225/65R17

102H

225/60R18

100H

225/65R17

102T

Wheel size

7 1/2J

Pressure

Front

33 psi (230 kPa, 2.3 kgf/cm

)

35 psi (240 kPa, 2.4 kgf/cm

)

Rear

32 psi (220 kPa, 2.2 kgf/cm

)

33 psi (230 kPa, 2.3 kgf/cm

)

Temporary spare tire/
Conventional tire

Size

T155/70 D17 110M

T155/80 D17 101M*

225/60 R18 100H*

225/65 R17 102T*

Pressure

60 psi (420 kPa, 4.2 kgf/cm

)

60 psi (420 kPa, 4.2 kgf/cm

Front: 35 psi (240 kPa, 2.4 kgf/cm

Rear: 33 psi (230 kPa, 2.3 kgf/cm

Wheel nut tightening torque

88.5 lbf·ft (120 N·m, 12.2 kgf·m)*

*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts

by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure,
refer to “

Changing a Flat Tire”

P462.

*2: Models with temporary spare tire
*3: Models with conventional tire

Specifications

546

(549,1)

Brake Pedal

in (mm)

Pedal clearance

2.68 (68)*

Pedal free play

0.02 - 0.07 (0.4 - 1.8)

*: Minimum value when pedal is operated with a force of 110 lbf (490 N, 50 kgf)

Brake Disc

If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult your
SUBARU dealer.

Brake Pad

in (mm)

Brake pad wear limit

0.06 (1.5)

Specifications

547

Specifications

(552,1)

Wattage

Bulb No.

Front turn signal lights

12 V-28 W

7444NA

Dome light

12 V-8 W

—

Vanity mirror lights

14 V-1.4 W

HTU

Door step lights (if equipped)

12 V-5 W

W5W

Cargo area light (Outback/Subaru Outback Wilderness)

12 V-13 W

SAE #912

Rear side marker lights (Outback/Subaru Outback
Wilderness)

12 V-5 W

W5W

Backup lights

12 V-16 W

W16W

Rear turn signal lights

12 V-21 W

WY21W

Trunk light (Legacy)

12 V-3.8 W

SAE #194

Front position lights

—

Daytime running lights

—

Map lights

—

Low and high beam headlights

—

Front fog lights (if equipped)

—

Front side marker lights

—

Side turn signal lights (if equipped)

—

High-mounted stop light

—

Tail lights (if equipped)

—

License plate lights

—

Tail and stop lights

—

Rear side marker lights (Legacy)

—

Rear gate light (Subaru Outback Wilderness)

—

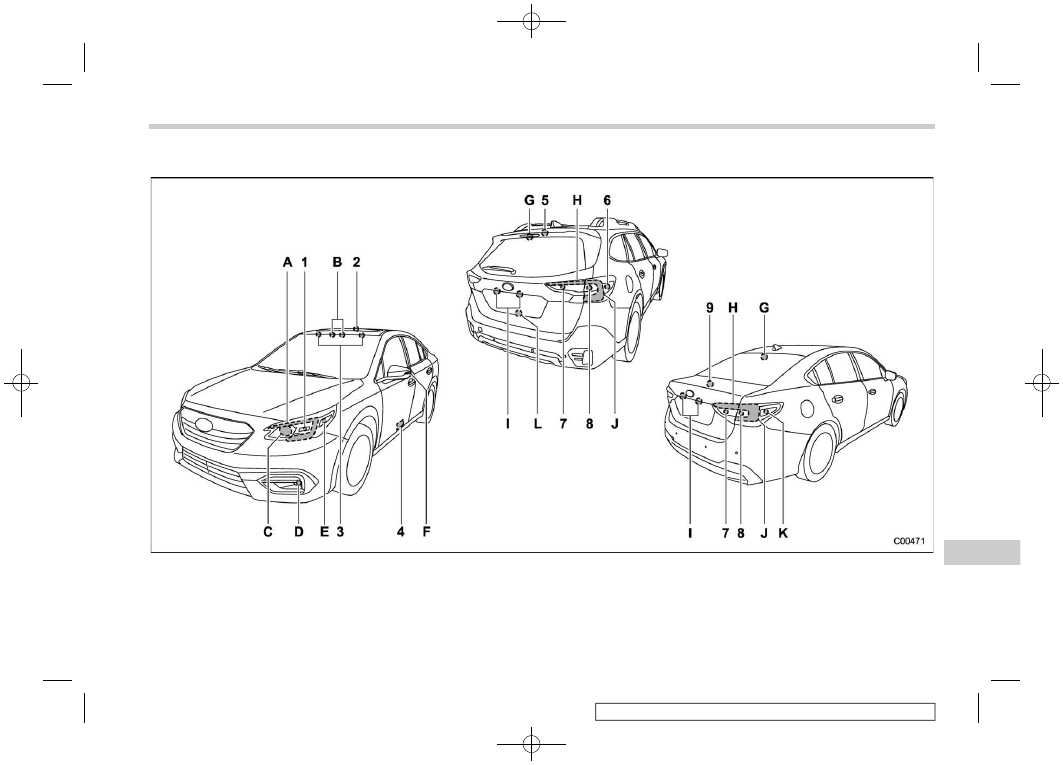

Bulb Chart

550

(553,1)

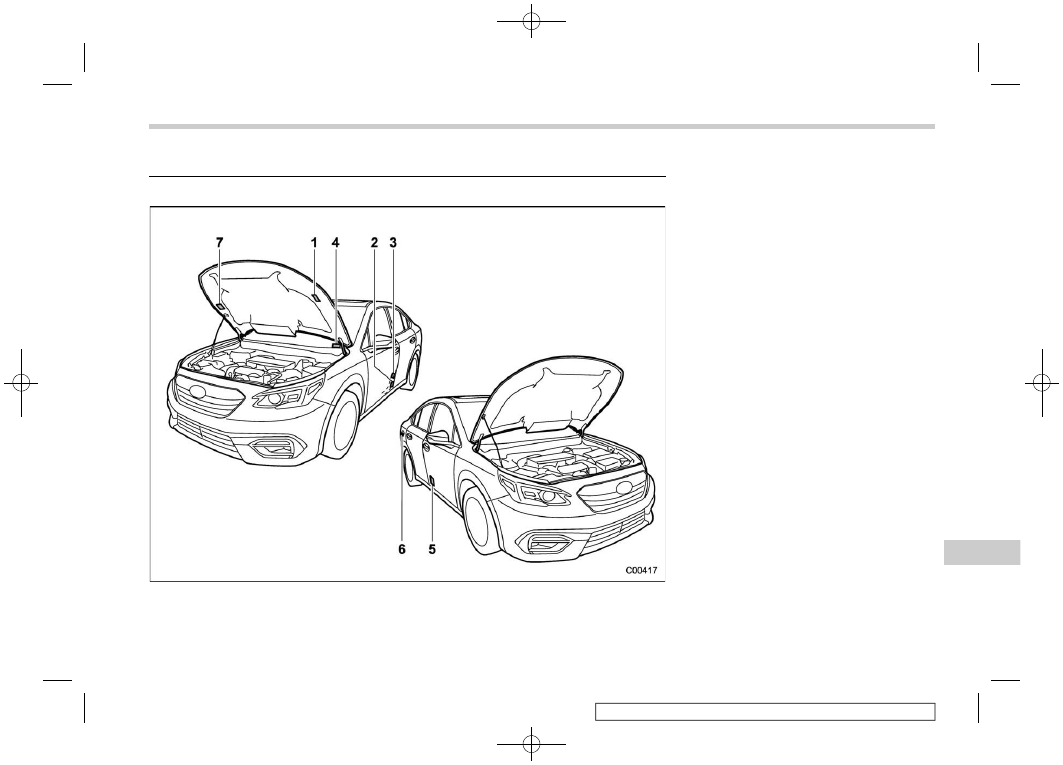

12-3. Vehicle Identification

Emission control label

Certification and bar code label

Tire inflation pressure label (vehicle
placard)

Vehicle identification number

Model number label

Fuel label

Air conditioner label

Vehicle Identification

551

Specifications

(554,1)

12-4. Function Settings

Function Settings and Adjustments on the Center Information Display

Setting adjustments can be manually changed within the center information display to meet your personal requirements. Refer to
“Center Information Display (CID)”

P211.

Individual Settings and Adjustments Excluding Center Information Display

For setting adjustments to the following items, refer to the appropriate page for details.

Item

Function

Available settings

Factory default setting

Page

Alarm system

Operation/Non-operation

Operation

145

Remote keyless entry system

Audible signal

Operation/Non-operation

Operation

136

Function Settings and Adjustments Performed by a Dealer

Item

Function

Available settings

Factory default

setting

Alarm system

Monitoring start delay time (after closing
doors)

0 seconds/30 seconds

30 seconds

Map lights/Dome light/Cargo area light
illumination (Outback/Subaru Outback
Wilderness)

ON/OFF

OFF

Keyless access with push-button

Audible signal volume*

Level 1 to 7

Level 5

Trunk open without key (Legacy)

ON/OFF

Remote keyless entry system

Audible signal volume*

Level 1 to 7

Level 5

Remote trunk open/power rear gate
open function*

Operation of trunk opening/power rear
gate opening by remote transmitter/ac-
cess key fob

Non-operation/Pressing twice/Pressing
and holding

Pressing and holding

Key lock-in prevention

Operation/Non-operation

Operation

Function Settings

552

(555,1)

Item

Function

Available settings

Factory default

setting

Battery drainage prevention function

Operation/Non-operation

Operation

Auto dimmer cancel

Sensitivity of the operation of the auto
dimmer cancel

OFF/Min/Low/Mid/Hi/Max

Mid

High beam assist function*

High beam assist function

Operation/Non-operation

Operation

Reverse gear interlocked rear wiper*

Reverse gear interlocked rear wiper op-
eration

Operation/Non-operation

U.S.-spec. models:
Non-operation
Other models: Op-
eration

*1: If equipped
*2: The audible signal volume cannot be set under level 5 for the warning chime.

Function Settings

553

Specifications

(557,1)

13-1. For U.S.A. ...................................................... 556
13-2. Tire Information ............................................ 556

Tire Labeling ...................................................... 556
Recommended Tire Inflation Pressure................. 558
Glossary of Tire Terminology .............................. 559
Tire Care – Maintenance and Safety Practices ..... 563
Vehicle Load Limit – How to Determine ............... 564
Determining Compatibility of Tire and Vehicle

Load Capacities................................................ 567

Adverse Safety Consequences of Overloading

on Handling and Stopping and on Tires ............ 567

Steps for Determining Correct Load Limit........... 568

13-3. Uniform Tire Quality Grading Standards .....568

TREADWEAR ..................................................... 569
TRACTION AA, A, B, C ....................................... 569
TEMPERATURE A, B, C ...................................... 569

13-4. Reporting Safety Defects (USA) ...................570
13-5. How to Contact Transport Canada in

Order to Report a Safety Concern
Relating to the Vehicle (Canada) .................570

Consumer Information and Reporting Safety Defects

Consumer

Information

and

Reporting

Safety

Defects

(558,1)

13-1. For U.S.A.

The following information has been
compiled according to Code of
Federal Regulations “Title 49, Part
575”.

13-2. Tire Information

Tire Labeling

Many markings (e.g. Tire size, Tire
Identification Number or TIN) are
placed on the sidewall of a tire by
tire manufacturers. These marking
can provide you with useful infor-
mation on the tire.

Tire size

Your vehicle comes equipped with
P-Metric tire size. It is important to
understand the sizing system in
selecting the proper tire for your
vehicles. Here is a brief review of
the tire sizing system with a break-
down of its individual elements.

P Metric

With the P-Metric system, Section
Width is measured in millimeters.
To convert millimeters into inches,
divide by 25.4. The Aspect Ratio
(Section Height divided by Section
Width) helps provide more dimen-
sional information about the tire
size.

Example:

(1)

P = Certain tire type used on

light duty vehicles such as passen-
ger cars
(2)

Section Width in millimeters

(3)

Aspect Ratio (= section height

section width).

(4)

R = Radial Construction

(5)

Rim diameter in inches

Load and Speed Rating
Descriptions

The load and speed rating descrip-
tions will appear following the size
designation.
They provide two important facts
about the tire. First, the number
designation is its load index. Sec-
ond, the letter designation indicates
the tire’s speed rating.

For U.S.A.

556

(559,1)

Example:

(6)

Load Index: A numerical code

which specifies the maximum load
a tire can carry at the speed
indicated by its speed symbol, at
maximum inflation pressure.
For example, “91” means 1,356 lbs
(615 kg), “90” means 1,323 lbs (600
kg), “89” means 1,279 lbs (580 kg)

WARNING

Load indices apply only to the
tire, not to the vehicle. Putting
a load rated tire on any vehicle
does not mean the vehicle can
be loaded up to the tire’s rated
load.

(7)

Speed Rating: An alphabetical

system describing a tire’s capability
to travel at established and prede-
termined speeds.
For example, “V” means 149 mph
(240 km/h)

WARNING

Speed ratings apply only to

the tire, not to the vehicle.
Putting a speed rated tire on
any vehicle does not mean
the vehicle can be operated
at the tire’s rated speed.

The speed rating is void if

the tires are worn out, da-
maged, repaired, retreaded,
or otherwise altered from
their original condition. If
t i r e s a r e r e p a i r e d , r e -
treaded, or otherwise al-
tered, they may not be sui-
table for original equipment
tire designed loads and
speeds.

Tire Identification Number
(TIN)

Tire Identification Number (TIN) is
marked on the intended outboard
sidewall. The TIN is composed of
four groups. Here is a brief review of
the TIN with a breakdown of its

individual elements.

(1)

DOT symbol*

(2)

Manufacturer’s Identification

Mark
(3)

Tire Size Code

(4)

Tire Type Code

(5)

Date of Manufacture

The first two figures identify the
week, starting with “01” to represent
the first full week of the calendar
year; the second two figures repre-
sent the year. For example, 0101
means the 1st week of 2001.
*: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

– CONTINUED –

Tire Information

557

Consumer

Information

and

Reporting

Safety

Defects

(560,1)

Other markings

The following makings are also
placed on the sidewall.

Maximum permissible infla-
tion pressure

The maximum cold inflation pres-
sure to which this tire may be
inflated. For example, “350 kPa
(51 PSI) MAX. PRESS”

Maximum load rating

The load rating at the maximum
permissible weight load for this tire.
For example, “MAX. LOAD 615 kg
(1,356 LBS) @ 350 kPa (51 PSI)
MAX. PRESS.”

WARNING

Maximum load rating applies
only to the tire, not to the
vehicle. Putting a load rated
tire on any vehicle does not
mean the vehicle can be
loaded up to the tire’s rated
load.

Construction type

Applicable construction of this tire.
For example, “TUBELESS STEEL
BELTED RADIAL”

Construction

The generic name of each cord
material used in the plies (both
sidewall and tread area) of this tire.
For example, “PLIES: TREAD 2
STEEL + 2 POLYESTER + 1
NYLON SIDEWALL 2 POLYE-
STER”

Uniform Tire Quality Grad-
ing (UTQG)

For details, refer to “

Uniform Tire

Quality Grading Standards”

P568.

Recommended Tire Inflation
Pressure

Recommended cold tire in-
flation pressure

For the recommended cold tire
inflation pressure for your vehicle’s
tires, refer to “

Tires”

P546.

Vehicle placard

The vehicle placard is affixed to the
driver’s side B-pillar.

Example:

Tire Information

558

(561,1)

The vehicle placard shows original
tire size, recommended cold tire
inflation pressure on each tire at
maximum loaded vehicle weight,
seating capacity and loading infor-
mation.

Adverse safety conse-
quences of under-inflation

Driving at high speeds with exces-
sively low tire pressures can cause
the tires to flex severely and to
rapidly become hot. A sharp in-
crease in temperature could cause
tread separation, and failure of the
tire(s). Possible resulting loss of
vehicle control could lead to an
accident.

Measuring and adjusting air
pressure to achieve proper
inflation

Check and, if necessary, adjust the
pressure of each tire (including the
spare) at least once a month and
before any long journey. Check the
tire pressures when the tires are
cold. Use a pressure gauge to

adjust the tire pressures to the
specific values. Driving even a short
distance warms up the tires and
increases the tire pressures. Also,
the tire pressures are affected by
the outside temperature. It is best to
check tire pressure outdoors before
driving the vehicle. When a tire
becomes warm, the air inside it
expands, causing the tire pressure
to increase. Be careful not to mis-
takenly release air from a warm tire
to reduce its pressure.

Glossary of Tire Terminology

Accessory weight

The combined weight (in excess of
those standard items which may be
replaced) of automatic transmis-
sion, power steering, power brakes,
power windows, power seats, radio,
and heater, to the extent that these
items are available as factory-in-
stalled equipment (whether in-
stalled or not).

Bead

The part of the tire that is made of

steel wires, wrapped or reinforced
by ply cords and that is shaped to fit
the rim.

Bead separation

A breakdown of the bond between
components in the bead.

Bias ply tire

A pneumatic tire in which the ply
cords that extend to the beads are
laid at alternate angles substantially
less than 90 degrees to the center-
line of the tread.

Carcass

The tire structure, except tread and
sidewall rubber which, when in-
flated, bears the load.

Chunking

The breaking away of pieces of the
tread or sidewall.

Cold tire pressure

The pressure in a tire that has been
driven less than 1 mile or has been
standing for three hours or more.

Cord

The strands forming the plies in the
tire.

– CONTINUED –

Tire Information

559

Consumer

Information

and

Reporting

Safety

Defects

Subaru Outback (2022 year). Manual in english - page 34
