Subaru XV Crosstrek (2016 year). Instruction

NOTE

. After replacing or adding the engine
oil, if the engine oil level is within the
normal range when restarting the en-
gine on a level surface, the warning
light will turn off.

. The warning light may illuminate
temporarily in the following conditions
because a low oil level may be detected
as a result of significant oil movement
in the engine.

– when the vehicle is considerably
inclined on an uphill or steep slope
– when the vehicle has continu-
ously accelerated and decelerated
– when the vehicle is continuously
turned
– when the vehicle is driven on a
road that alternates continuously
between uphill and downhill

Windshield washer
fluid warning light

This light illuminates when the fluid level in
the windshield washer fluid tank de-
creases to the lower limit (approximately
1.1 US qt, 1.0 liter, 0.9 Imp qt).

AT OIL TEMP warning
light (CVT models)

If this light illuminates when the engine is
running, it may indicate that the transmis-
sion fluid temperature is too hot.

If the light illuminates while driving, im-
mediately stop the vehicle in a safe place
and let the engine idle until the warning
light turns off.

! Transmission control system warn-

ing

If the

“AT OIL TEMP” warning light flashes

after the engine has started, it may
indicate that the transmission control
system is not working properly. Contact
your nearest SUBARU dealer for service
immediately.

Low tire pressure
warning light (U.S.-spec.
models)

When the ignition switch is turned to the

“ON” position, the low tire pressure warn-
ing light will illuminate for approximately 2
seconds to check that the tire pressure
monitoring system (TPMS) is functioning
properly. If there is no problem and all tires
are properly inflated, the light will turn off.
Each tire, including the spare (if provided),

should be checked monthly when cold
and inflated to the inflation pressure
recommended by the vehicle manufac-
turer on the vehicle placard or tire inflation
pressure label. (If your vehicle has tires of
a different size than the size indicated on
the vehicle placard or tire inflation pres-
sure label, you should determine the
proper tire inflation pressure for those
tires.)

As an added safety feature, your vehicle
has been equipped with a tire pressure
monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or
more of your tires is significantly under-
inflated. Accordingly, when the low tire
pressure telltale illuminates, you should
stop and check your tires as soon as
possible, and inflate them to the proper
pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle

’s handling and

stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance,
and it is the driver

’s responsibility to

maintain correct tire pressure, even if
under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.

Instruments and controls/Warning and indicator lights

– CONTINUED –

3-19

Instruments and controls/Warning and indicator lights

Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction,
the telltale will flash for approximately one
minute and then remain continuously
illuminated. This sequence will continue
upon subsequent vehicle start-ups as long
as the malfunction exists. When the
malfunction indicator is illuminated, the
system may not be able to detect or signal
low tire pressure as intended. TPMS
malfunctions may occur for a variety of
reasons, including the installation of re-
placement or alternate tires or wheels on
the vehicle that prevent the TPMS from
functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your
vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS
to continue to function properly.
Should the warning light illuminate stea-
dily after blinking for approximately one
minute, have the system inspected by
your nearest SUBARU dealer as soon as
possible.

WARNING

If this light does not illuminate

briefly after the ignition switch is
turned ON or the light illuminates
steadily after blinking for approxi-
mately one minute, you should have
your Tire Pressure Monitoring Sys-
tem checked at a SUBARU dealer as
soon as possible.

If this light illuminates while driving,
never brake suddenly and keep
driving straight ahead while gradu-
ally reducing speed. Then slowly
pull off the road to a safe place.
Otherwise an accident involving
serious vehicle damage and serious
personal injury could occur.

If this light still illuminates while
driving after adjusting the tire pres-
sure, a tire may have significant
damage and a fast leak that causes
the tire to lose air rapidly. If you have
a flat tire, replace it with a spare tire
as soon as possible.

When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/transmitter
being transferred, the Low tire pres-
sure warning light will illuminate
steadily after blinking for approxi-
mately one minute. This indicates
the TPMS is unable to monitor all
four road wheels. Contact your
SUBARU dealer as soon as possible

for tire and sensor replacement and/
or system resetting.

If the light illuminates steadily after
blinking for approximately one min-
ute, promptly contact a SUBARU
dealer to have the system inspected.

CAUTION

The tire pressure monitoring system
is NOT a substitute for manually
checking tire pressure. The tire
pressure should be checked peri-
odically (at least monthly) using a
tire gauge. After any change to tire
pressure(s), the tire pressure mon-
itoring system will not re-check tire
inflation pressures until the vehicle
is first driven more than 20 mph (32
km/h). After adjusting the tire pres-
sures, increase the vehicle speed to
at least 20 mph (32 km/h) to start the
TPMS re-checking of the tire infla-
tion pressures. If the tire pressures
are now above the severe low
pressure threshold, the low tire
pressure warning light should turn
off a few minutes later. Therefore, be
sure to install the specified size for
the front and rear tires.

3-20

ABS warning light

CAUTION

. If any of the following conditions

occur, we recommend that you
have the ABS repaired at the first
available opportunity by your
SUBARU dealer.
– The warning light does not

illuminate when the ignition
switch is turned to the

“ON”

position.

– The warning light illuminates

when the ignition switch is
turned to the

“ON” position,

but it does not turn off even
when the vehicle speed ex-
ceeds approximately 25 mph
(40 km/h).

– The warning light illuminates

during driving.

. When the warning light is on (and

the brake system warning light is
off), the ABS function shuts
down. However, the conventional
brake system continues to oper-
ate normally.

The ABS warning light illuminates to-
gether with the brake system warning light

if the EBD system malfunctions. For
further details of the EBD system mal-
function warning, refer to

“Electronic

Brake Force Distribution (EBD) system
warning

” F3-22.

NOTE

If the warning light behavior is as
described in the following conditions,
the ABS may be considered normal.
. The warning light illuminates when
the ignition switch is turned to the

“ON” position and turns off approxi-
mately 2 seconds after the engine has
started.

. The warning light illuminates right
after the engine is started but turns off
immediately, remaining off.

. The warning light remains illumi-
nated after the engine has been started,
but it turns off when the vehicle speed
reaches approximately 25 mph (40
km/h).

. The warning light illuminates during
driving, but it turns off immediately and
remains off.

When driving with an insufficient battery
voltage such as when the engine is jump
started, the ABS warning light may illumi-
nate. This is due to the low battery voltage
and does not indicate a malfunction.
When the battery becomes fully charged,

the light will turn off.

Brake system
warning light (red)

The light illuminates with the parking
brake applied while the ignition switch is
in the

“ON” position. It turns off when the

parking brake is fully released.

WARNING

. Driving with the brake system

warning light on is dangerous.
This indicates your brake system
may not be working properly. If
the light remains illuminated,
have the brakes inspected by a
SUBARU dealer immediately.

. If at all in doubt about whether

the brakes are operating prop-
erly, do not drive the vehicle.
Have your vehicle towed to the
nearest SUBARU dealer for re-
pair.

The brake system warning light has the
following functions.

! Brake fluid level warning
This light illuminates when the brake fluid
level has dropped to near the

“MIN” level

of the brake fluid reservoir with the ignition

Instruments and controls/Warning and indicator lights

– CONTINUED –

3-21

Instruments and controls/Warning and indicator lights

switch in the

“ON” position and with the

parking brake fully released.

If the brake system warning light should
illuminate while driving (with the parking
brake fully released and with the ignition
switch positioned in

“ON”), it could be an

indication of leaking of brake fluid or worn
brake pads. If this occurs, immediately
stop the vehicle at the nearest safe
location and check the brake fluid level.
If the fluid level is below the

“MIN” mark in

the reservoir, do not drive the vehicle.
Have the vehicle towed to the nearest
SUBARU dealer for repair.
! Electronic Brake Force Distribution

(EBD) system warning

The brake system warning light also
illuminates if a malfunction occurs in the
EBD system. In that event, it illuminates
together with the ABS warning light.
The EBD system may be malfunctioning if
the brake system warning light and ABS
warning light illuminate simultaneously
during driving.
Even if the EBD system fails, the conven-
tional braking system will still function.
However, the rear wheels will be more
prone to locking when the brakes are
applied harder than usual and the vehi-
cle

’s motion may therefore become some-

what harder to control.

If the brake system warning light and ABS
warning light illuminate simultaneously,
take the following steps.
1. Stop the vehicle in the nearest safe,
flat location.
2. Shut down the engine, apply the
parking brake and then restart it.
3. Release the parking brake. Even if
both warning lights turn off, the EBD
system may be malfunctioning. Drive
carefully to the nearest SUBARU dealer
and have the system inspected.
4. If both warning lights illuminate again
and remain illuminated after the engine
has been restarted, shut down the engine
again, apply the parking brake, and check
the brake fluid level.
5. If the brake fluid level is not below the

“MIN” mark, the EBD system may be
malfunctioning. Drive carefully to the
nearest SUBARU dealer and have the
system inspected.
6. If the brake fluid level is below the

“MIN” mark, DO NOT drive the vehicle.
Instead, have the vehicle towed to the
nearest SUBARU dealer for repair.

Low fuel warning light

The low fuel warning light illuminates
when the tank is nearly empty, at approxi-
mately 2.6 US gal (10.0 liters, 2.2 Imp gal).

It only operates when the ignition switch is
in the

“ON” position.

CAUTION

Promptly put fuel in the tank when-
ever the low fuel warning light
illuminates. Engine misfires as a
result of an empty tank could cause
damage to the engine.

NOTE

This light does not turn off unless the
tank is replenished up to an internal
fuel quantity of approximately 4.5 US
gal (17 liters, 3.7 Imp gal).

Hill start assist warning
light/Hill start assist
OFF indicator light

! Hill start assist warning light
While the engine is running, if there are
any malfunctions in the Hill start assist
system, the warning light will illuminate.

WARNING

When the Hill start assist warning
light illuminates, have the vehicle
inspected at an authorized SUBARU

3-22

dealer.

! Hill start assist OFF indicator light
While the Hill start assist system is
deactivated, the Hill start assist OFF
indicator light illuminates continuously to
inform the driver that the Hill start assist
system is not operational.

Door open warning
light

The warning light illuminates if any door,
the rear gate (5-door models) or trunk lid
(4-door models) is not fully closed. This
function is effective even if the ignition
switch is in the

“LOCK”/“OFF” or “ACC”

position, or the key is removed from the
ignition switch.

Always make sure this light is not illumi-
nated before you start to drive.

All-Wheel Drive warn-
ing light (CVT models)

This light blinks if the vehicle is driven with
tires of differing diameters fitted on the
wheels or with an excessively low air
pressure in any of the tires.

WARNING

If the AWD warning light flashes,
promptly park in a safe location then
check whether all four tires are the
same diameter and whether any of
the tires has a puncture or has lost
air pressure for some other reason.
Continuing to drive with the AWD
warning light flashing can lead to
powertrain damage.

Power steering warn-
ing light

This warning light illuminates when the
ignition switch is turned to the

“ON”

position and turns off after the engine
has started. This indicates that the warn-
ing system is working properly.

While the engine is running, this warning
light illuminates when a malfunction has
been detected in the electric power steer-
ing system.

CAUTION

When the power steering warning
light is illuminated, there may be
more resistance when the steering
wheel is operated. Drive carefully to

the nearest SUBARU dealer and
have the vehicle inspected immedi-
ately.

NOTE

If the steering wheel is operated in the
following ways, the power steering
control system may temporarily limit
the power assist in order to prevent the
system components, such as the con-
trol computer and drive motor, from
overheating.
. The steering wheel is operated fre-
quently and turned sharply while the
vehicle is maneuvered at extremely low
speeds, such as while frequently turn-
ing the steering wheel during parallel
parking.

. The steering wheel remains in the
fully turned position for a long period
of time.

At this time, there will be more resis-
tance when steering. However this is
not a malfunction. Normal steering
force will be restored after the steering
wheel is not operated for a while and
the power steering control system has
an opportunity to cool down. However,
if the power steering is operated in a
non-standard way which causes power
assist limitation to occur too fre-

Instruments and controls/Warning and indicator lights

– CONTINUED –

3-23

Instruments and controls/Warning and indicator lights

quently, that may result in a malfunc-
tion of the power steering control
system.

Vehicle Dynamics
Control warning light/
Vehicle Dynamics Con-
trol operation indicator
light

! Vehicle Dynamics Control warning

light

CAUTION

The Vehicle Dynamics Control sys-
tem provides its ABS control
through the electrical circuit of the
ABS. Accordingly, if the ABS is
inoperative, the Vehicle Dynamics
Control system becomes unable to
provide ABS control. As a result, the
Vehicle Dynamics Control system
also becomes inoperative, causing
the warning light to illuminate.
Although both the Vehicle Dynamics
Control system and ABS are inop-
erative in this case, the ordinary
functions of the brake system are
still available. You will be safe while
driving with this condition, but drive

carefully and have your vehicle
checked at a SUBARU dealer as
soon as possible.

NOTE

. If the electrical circuit of the Vehicle
Dynamics Control system itself mal-
functions, the warning light only illumi-
nates. At this time, the ABS (Anti-lock
Brake System) remains fully opera-
tional.

. The warning light illuminates when
the electronic control system of the
ABS/Vehicle Dynamics Control system
malfunctions.

The Vehicle Dynamics Control system is
probably inoperative under any of the
following conditions. Have your vehicle
checked at a SUBARU dealer immedi-
ately.
. The warning light does not illuminate
when the ignition switch is turned to the

“ON” position.

. The warning light illuminates while the
vehicle is running.

NOTE

If the warning light behavior is as
described in the following examples,
the Vehicle Dynamics Control system
may be considered normal.

. The warning light illuminates when
the ignition switch is turned to the

“ON” position and turns off approxi-
mately 2 seconds after the engine has
started.

. The warning light illuminates right
after the engine is started but turns off
immediately, remaining off.

. The warning light illuminates after
the engine has started and turns off
while the vehicle is subsequently being
driven.

. The warning light illuminates during
driving, but it turns off immediately and
remains off.

. The warning light illuminates when
the engine has stalled and continues to
illuminate after the engine has been
restarted. However, it will turn off once
the vehicle starts moving.

! Vehicle Dynamics Control opera-

tion indicator light

The indicator light flashes during activa-
tion of the skid suppression function and
during activation of the traction control
function.

NOTE

. The light may remain illuminated for
a short period of time after the engine
has been started, especially in cold
weather. This does not indicate the

3-24

existence of a problem. The light
should turn off as soon as the engine
has warmed up.

. The indicator light illuminates when
the engine has developed a problem
and the CHECK ENGINE warning light/
malfunction indicator light is on.

The Vehicle Dynamics Control system is
probably malfunctioning under the follow-
ing condition. Have your vehicle checked
at a SUBARU dealer as soon as possible.
. The light does not turn off even after
the lapse of several minutes (the engine
has warmed up) after the engine has
started.

Vehicle Dynamics
Control OFF indicator
light

The light illuminates when the Vehicle
Dynamics Control OFF switch is pressed
to deactivate the Vehicle Dynamics Con-
trol system.

The Vehicle Dynamics Control system is
probably malfunctioning under any of the
following conditions. Have your vehicle
checked at a SUBARU dealer immedi-
ately.
. The light does not illuminate when the
ignition switch is turned to the

“ON”

position.

. The light does not turn off even once
several seconds have elapsed after the
ignition switch has been turned to the

“ON” position.

& Warning chimes and warning

indicator of the keyless ac-
cess with push-button start
system (if equipped)

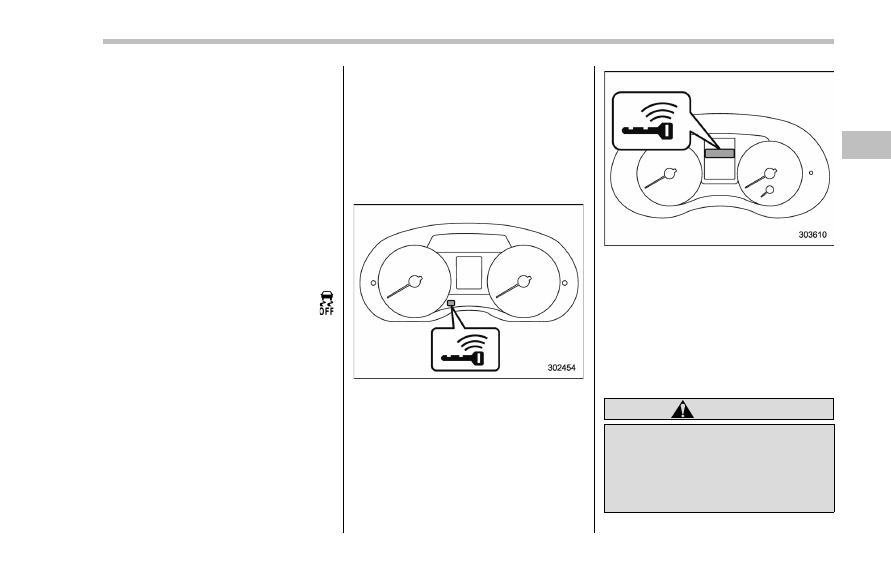

Access key warning indicator (type A)

Access key warning indicator (type B)

The keyless access with push-button start
system sounds a warning chime and
flashes the access key warning indicator
on the combination meter in order to
minimize improper operations and help
protect your vehicle from theft.
When the warning chime sounds and/or
the warning indicator flashes, take the
appropriate action.

WARNING

Never drive the vehicle if the indi-
cator on the push-button ignition
switch is flashing in green when
starting the engine. This indicates
the status that the steering wheel is
not released and could result in an

Instruments and controls/Warning and indicator lights

– CONTINUED –

3-25

Instruments and controls/Warning and indicator lights

accident involving serious injury or
death.

CAUTION

. When starting the engine again

after the operation indicator on
the push-button ignition switch
flashes in green, if the operation
indicator is still flashing in green,
there could be a steering lock
m a l f u n c t i o n . C o n t a c t y o u r
SUBARU dealer as soon as pos-
sible.

. When the operation indicator on

the push-button ignition switch
flashes in orange, contact a
SUBARU dealer immediately.

NOTE

. When doors are not locked because
the access key is left inside the trunk,
you cannot open the trunk lid by
pushing the trunk opener button on
the trunk lid. Pull the trunk lid release
lever upward to open the trunk lid.
Refer to

“To open the trunk lid from

inside

” F2-39.

. Do not leave the access key inside
the trunk. Depending on the status of
the access key and situation, the trunk
lockout protect function may not oper-
ate. Make sure that you carry the
access key, and close the trunk lid.

. Even when the access key is within
the operating ranges inside the vehicle,
the access key warning for engine start
may be provided depending on the
status of the access key and the
environmental conditions.

. When the access key is taken out of
the vehicle through an open window,
the access key takeout warning or
passenger access key takeout warning
will not be provided.

! List of warnings

CAUTION

When any of the following warnings
occurs even if the access key warn-
ing indicator does not appear, take
the appropriate action.

3-26

Inside warning

chime

Outside warning

chime

Access key

warning indica-

tor on meter

Operation indica-

tor on push-but-

ton ignition switch

Status

Action

Ding,

ding ...

(intermittent)

—

The driver

’s door was opened while

the push-button ignition switch is

“ACC” and the select lever is in the

“P” position.

Switch the push-button ignition
switch to

“OFF”, or close the driver’s

door.
*When exiting the vehicle, be sure to
switch the push-button ignition
switch to

“OFF”.

The push-button ignition switch was
switched to

“OFF” while the driver’s

door is open.

Close the driver

’s door.

Ding

Short beep

(2 seconds)

—

Lockout warning:
An attempt was made to lock all
doors while the access key is left
inside the vehicle.

Take out the access key from the
vehicle, and lock the doors.
*The doors cannot be locked while
the access key is inside the vehicle.
*A chirp sound will be heard, and all
doors will be unlocked.

—

Short beep

(2 seconds)

—

Trunk lockout warning:
The trunk was closed with the
access key in it while all doors are
locked (or during the automatic lock
time period) (4-door).

Take out the access key from the
trunk, and close the trunk.
*By pressing the trunk opener button
after this warning chime sounds, the
trunk can be unlocked.

Access key lock-in warning:
The door lock sensor was touched
while the push-button ignition switch
is

“OFF” and the access key is

inside the vehicle.

Take out the access key from the
vehicle, and lock the doors.
*If the access key is inside the
vehicle, the doors cannot be locked.

—

Beep, beep,

beep, beep,

beep

(5 times)

—

Door ajar warning:
The door lock sensor is touched
while the ignition switch is in the

“OFF” position and one of the doors

including the rear gate is opened.

Close the doors securely and lock
them.
*If one of the doors including the rear
gate is opened, the doors cannot be
locked.

Instruments and controls/Warning and indicator lights

– CONTINUED –

3-27

Instruments and controls/Warning and indicator lights

Inside warning

chime

Outside warning

chime

Access key

warning indica-

tor on meter

Operation indica-

tor on push-but-

ton ignition switch

Status

Action

Ding

Long beep (60
seconds max.)

—

Power warning:
The door lock sensor was touched
while carrying the access key, the
push-button ignition switch is in a
position other than

“OFF” and the

select lever is in the

“P” position.

Return the access key inside the
vehicle, or switch the push-button
ignition switch to

“OFF”.

*If the push-button ignition switch is
not switched to

“OFF”, the doors

cannot be locked.

Ding,

ding ...

(7 seconds)

—

(Flashes 1 sec.

intermittent)

—

Access key warning:
The vehicle was driven while the
access key is not inside the vehicle.

Carry the access key, and drive the
vehicle.

Ding

—

(Flashes 1 sec.

intermittent)

—

Access key warning for engine
start:
The push-button ignition switch was
pressed while the access key is not
inside the vehicle.

Carry the access key, and press the
push-button ignition switch.

Ding

Beep, beep,

beep (3 times)

(Flashes 1 sec.

intermittent)

—

Access key takeout warning:
The driver exited the vehicle with the
access key and closed the driver

’s

door while the push-button ignition
switch is in a position other than

“OFF” and the select lever is in the

“P” position.

Switch the push-button ignition
switch to

“OFF”, and get out of the

vehicle.

Ding

Beep, beep,

beep (3 times)

(Flashes 1 sec.

intermittent)

—

Passenger access key takeout
warning:
A fellow passenger exited the vehi-
cle with the access key and closed a
door other than the driver

’s door

while the push-button ignition switch
is in a position other than

“OFF”.

Return the access key to inside the
vehicle, or switch the push-button
ignition switch to

“OFF”.

3-28

Inside warning

chime

Outside warning

chime

Access key

warning indica-

tor on meter

Operation indica-

tor on push-but-

ton ignition switch

Status

Action

Long beep

(continuous)

Long beep

(continuous)

(Flashes 1 sec.

intermittent)

—

The driver exited the vehicle with the
access key and closed the driver

’s

door while the push-button ignition
switch is in a position other than

“OFF” and the select lever is in a

position other than the

“P” position.

Shift the select lever to the

“P”

position, switch the push-button
ignition switch to

“OFF” and exit the

vehicle.

Long beep

(continuous)

—

Select lever position warning:
The engine is turned off by pressing
the push-button ignition switch and
the select lever is in a position other
than the

“P” position.

Start the engine, shift the select
lever to the

“P” position, switch the

push-button ignition switch to

“OFF”

and exit the vehicle.

Long beep

(continuous)

—

Select lever position warning:
The driver

’s door was opened while

the push-button ignition switch is in
a position other than

“OFF” and the

select lever is in a position other
than the

“P” position.

Shift the select lever to the

“P”

position, switch the push-button
ignition switch to

“OFF” and exit the

vehicle.

Ding

—

The battery of the access key is low.

Replace the battery of the access
key.

Ding

—

Flashes in green

(15 seconds

max.)

Steering lock warning:
The engine start procedure was
performed, but the steering is still
locked.

While turning the steering wheel
right and left lightly, depress the
brake pedal and press the push-
button ignition switch.

Ding

—

Flashes in orange

System malfunction warning:
A malfunction was detected in the
power system or steering lock.

Contact a SUBARU dealer immedi-
ately and have the vehicle in-
spected.

Instruments and controls/Warning and indicator lights

– CONTINUED –

3-29

Instruments and controls/Warning and indicator lights

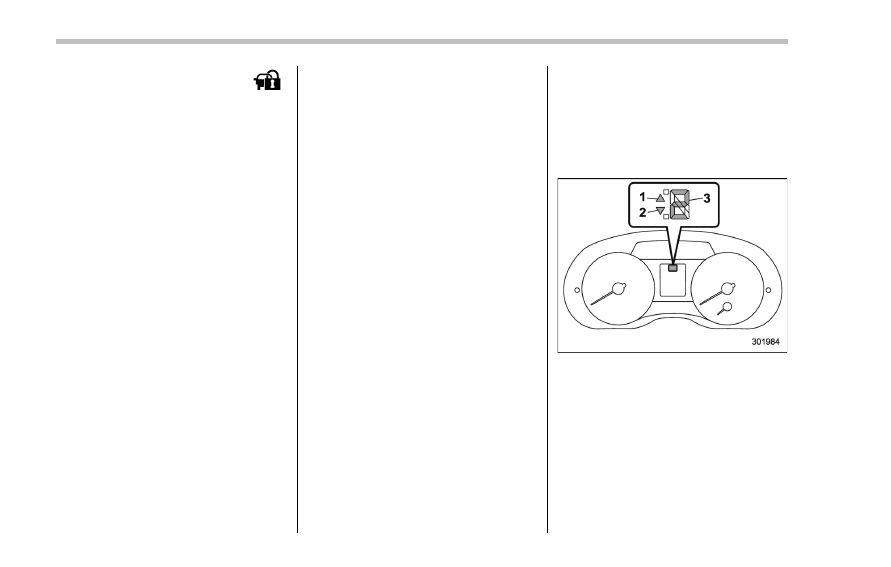

Security indicator light

This indicator light shows the status of the
alarm system. It also indicates operation
of the immobilizer system.

! Alarm system
It blinks to show the driver the operational
status of the alarm system. For detailed
information, refer to

“Alarm system” F2-

27.
! Immobilizer system
The security indicator light starts blinking
in the following conditions.

For models with

“keyless access with

push-button start system

”:

. Immediately after the push-button igni-
tion switch is turned to the

“OFF” position.

. Immediately after the driver’s door is
opened or closed when all of the following
conditions are met.

– The push-button ignition switch is in
the

“ON” or “ACC” position.

– The access key is outside the
vehicle.
– The engine is not running.

In the event that the push-button ignition
switch is pressed to turn it on or to start
the engine carrying an unauthorized key
(for example, the key is unregistered or
the ID code does not match), the power is

not switched to

“ON” and the security

indicator light continues blinking.
For models without

“keyless access

with push-button start system

”:

. Approximately 60 seconds after the
ignition switch is turned from the

“ON”

position to the

“ACC” or “LOCK” position.

. Immediately after the key is pulled out.

If the indicator light does not blink in the
above conditions, it may indicate that
immobilizer system may be malfunction-
ing. Contact your nearest SUBARU dealer
immediately.

In the event that an unauthorized key (for
example, an unauthorized duplicate) is
used to start the engine, the security
indicator light illuminates. For details
about the immobilizer system, refer to

“Immobilizer” F2-3.

NOTE

. The security indicator light remains
off in the following conditions. This is
normal and does not indicate a mal-
function.

– while the engine is running

– for approximately 60 seconds
after the ignition switch is turned
from the

“ON” position to the

“ACC” or “LOCK”/“OFF” position

. Even if the security indicator light

blinks irregularly or its fuse blows (the
light does not blink if its fuse is blown),
the immobilizer system will function
normally.

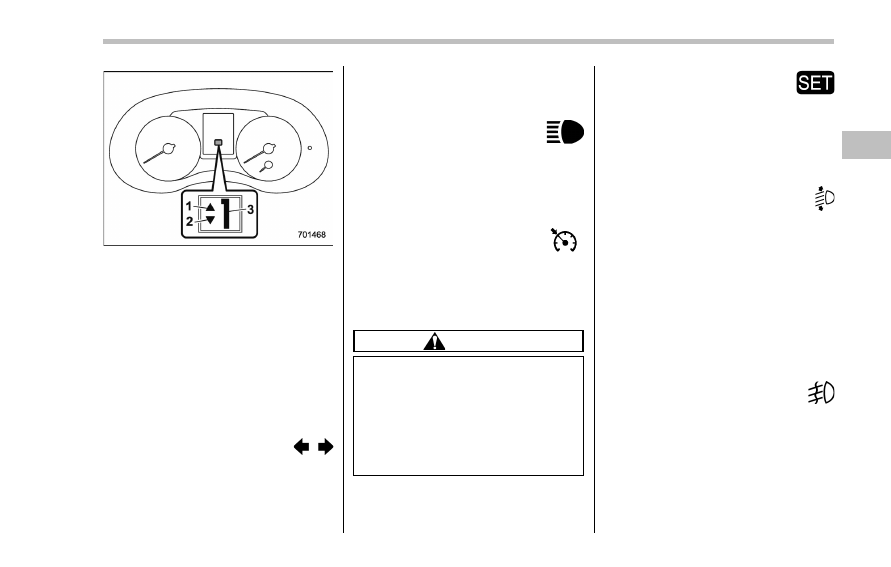

& Select lever/gear position in-

dicator (CVT models)

Type A
1)

Upshift indicator

Downshift indicator

Select lever/gear position indicator

3-30

Type B
1)

Upshift indicator

Downshift indicator

Select lever/gear position indicator

This indicator shows the position of the
select lever.

For models with manual mode, when the
manual mode is selected, the gear posi-
tion indicator (which shows the current
gear selection) and the upshift/downshift
indicator light up. Refer to

“Continuously

variable transmission

” F7-23.

Turn signal indicator
lights

These lights show the operation of the turn
signal or lane change signal.
If the indicator lights do not blink or blink

rapidly, the turn signal bulb may be burned
out. Replace the bulb as soon as possible.
Refer to

“Replacing bulbs” F11-36.

High beam indicator
light

This light shows that the headlights are in
the high beam mode.
This indicator light also illuminates when
the headlight flasher is operated.

Cruise control indica-
tor light (if equipped)

This light illuminates when the cruise
control main button is pressed to activate
the cruise control function. For details,
refer to

“To set cruise control” F7-45.

CAUTION

If the CHECK ENGINE warning light/
malfunction indicator light illumi-
nates, the cruise control indicator
light flashes at the same time. At
this time, avoid driving at high
speed and have your vehicle in-
spected at a SUBARU dealer as
soon as possible.

Cruise control set in-
dicator light (if
equipped)

This light illuminates when vehicle speed
has been set to use the cruise control
function. Refer to

“To set cruise control”

F7-45.

Automatic headlight
beam leveler warning
light (models with HID
headlights)

This light illuminates when the automatic
headlight beam leveler does not operate
normally.
If this light illuminates while driving or does
not turn off approximately 3 seconds after
turning the ignition switch to the

“ON”

position, have your vehicle inspected at
your SUBARU dealer.

Front fog light indicator
light (if equipped)

This indicator light illuminates while the
front fog lights are illuminated.

Instruments and controls/Warning and indicator lights

– CONTINUED –

3-31

Instruments and controls/Information display

Headlight indicator
light (if equipped)

This indicator light illuminates under the
following conditions.
. when the light switch is turned to the

“

” or “ ” position

. when the light control switch is in the

“AUTO” position and the headlights illumi-
nate automatically

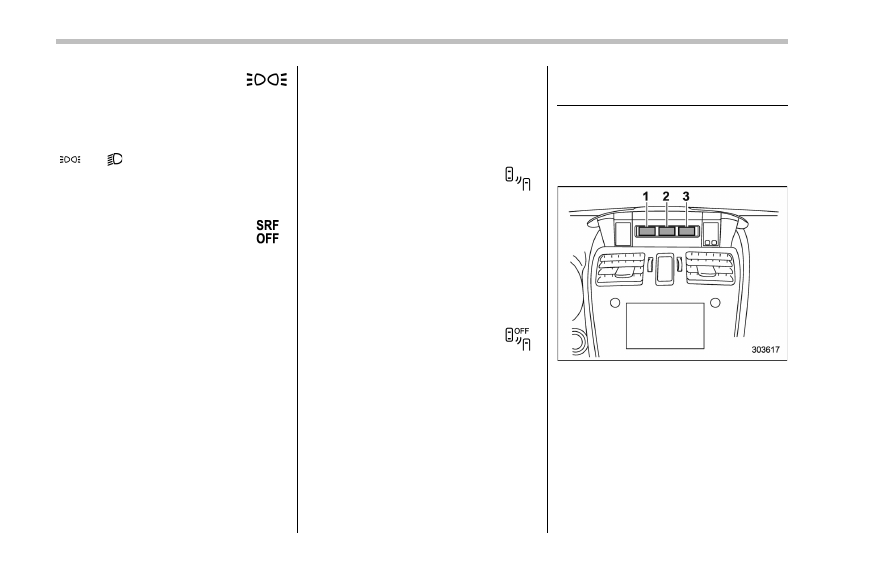

Steering responsive
fog lights warning indi-
cator/Steering respon-
sive fog lights OFF in-
dicator (models with
EyeSight system)

NOTE

For details about the steering respon-
sive fog lights system, refer to

“Steer-

ing responsive fog lights system (mod-
els with EyeSight system)

” F3-95.

! Steering responsive fog lights

warning indicator

This indicator appears when the steering
responsive fog lights system malfunctions.
When this indicator appears while the
system is activated, contact your
SUBARU dealer for an inspection.

! Steering responsive fog lights OFF

indicator

This indicator appears when the steering
responsive fog lights system is deacti-
vated. This indicator disappears when the
system is activated.

BSD/RCTA warning in-
dicator (if equipped)

This warning indicator appears when the
BSD/RCTA is malfunctioning. In this case
the BSD/RCTA warning indicator will be
shown on the multi information display of
the combination meter. When this indica-
tor appears, have your vehicle inspected
by your SUBARU dealer as soon as
possible.

BSD/RCTA OFF indica-
tor (if equipped)

The indicator appears when the BSD/
RCTA OFF switch is pressed to deactivate
the BSD/RCTA. In this case the BSD/
RCTA OFF indicator will be shown on the
multi information display of the combina-
tion meter. For details, refer to

“BSD/

RCTA (5-door models

— if equipped)”

F7-50.

Information display (if
equipped)

NOTE

For models with color multi function
display, refer to

“Multi function dis-

play

” F3-42.

Outside temperature indicator

Driving information display

Clock

With the ignition switch in the

“ACC”

position, the clock appears on the display.

With the ignition switch in the

“ON”

position, the outside temperature indica-
tor, driving information display and clock
all appear on the display.

3-32

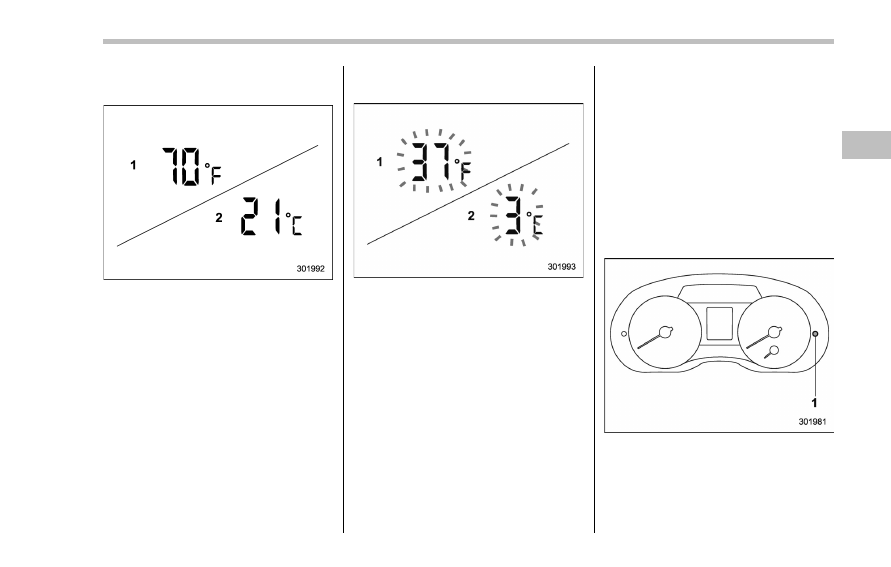

& Outside temperature indica-

tor

U.S.-spec. models

Except U.S.-spec. models

The outside temperature indicator shows
the outside temperature in a range from

−40 to 1228F (−40 to 508C).

The indicator can give a false reading
under any of the following conditions.
. When there is too much sun.

. During idling; while running at low
speeds in a traffic jam; when the engine
is restarted immediately following a shut-
down.
. When the actual outside temperature
falls outside the specified indicator range.

! Road surface freeze warning indi-

cation

U.S.-spec. models

Except U.S.-spec. models

When the outside temperature drops to
37

8F (38C) or lower, the temperature

indication flashes to show that the road
surface may be frozen.
If the outside temperature drops to 37

8C) or lower while the display is giving

an indication other than the outside
temperature, the display switches to the
outside temperature indication and flashes
for 5 seconds before returning to its
original indication.
If the display is already indicating an
outside temperature of 37

8F (38C) or lower

when the ignition switch is turned to the

“ON” position, the indication does not
flash.

NOTE

The outside temperature indication
may differ from the actual outside
temperature. The road surface freeze
warning indication should be treated
only as a guide. Be sure to check the
condition of the road surface before
driving.

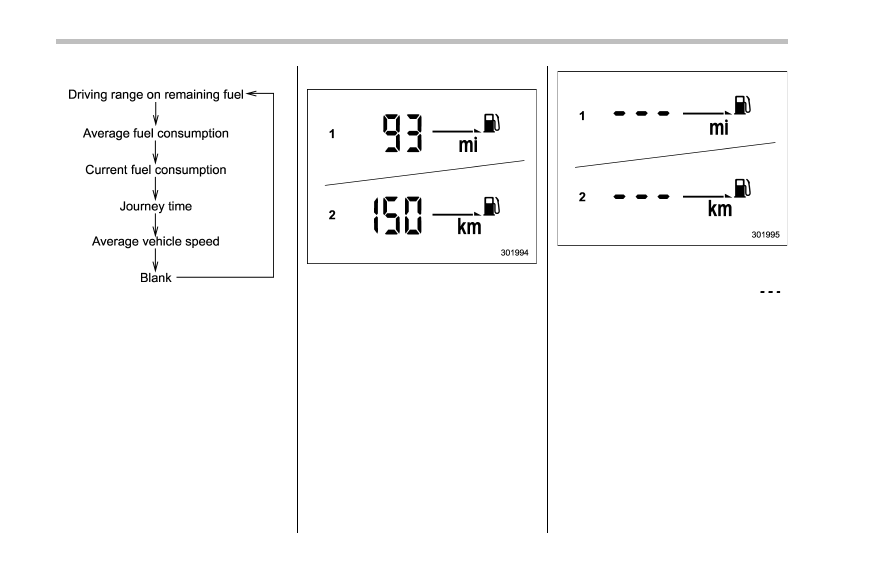

& Driving information display

Information display selection knob

With the ignition switch in the

“ON”

position, each successive press of the
information display selection knob
switches the display in the following

Instruments and controls/Information display

– CONTINUED –

3-33

Instruments and controls/Information display

sequence.

! Driving range on remaining fuel

U.S.-spec. models

Except U.S.-spec. models

The driving range indicates the distance
that can be driven taking into account the
amount of fuel remaining in the tank and
the average rate of fuel consumption.
When the low fuel warning light illumi-
nates, the driving range display flashes for
5 seconds. (The display first switches to
the driving range value if a different value
was previously displayed.)

U.S.-spec. models

Except U.S.-spec. models

If the driving range is shown as

“

”,

there is only a tiny amount of fuel left in the
tank. You must refuel the vehicle immedi-
ately.

NOTE

The driving range on remaining fuel is
only a guide. The indicated value may
differ from the actual driving range on
remaining fuel, so you must immedi-
ately fill the tank when the low fuel
warning light illuminates.

3-34

Subaru XV Crosstrek (2016 year). Instruction - part 11
