Subaru XV Crosstrek (2016 year). Instruction - part 2

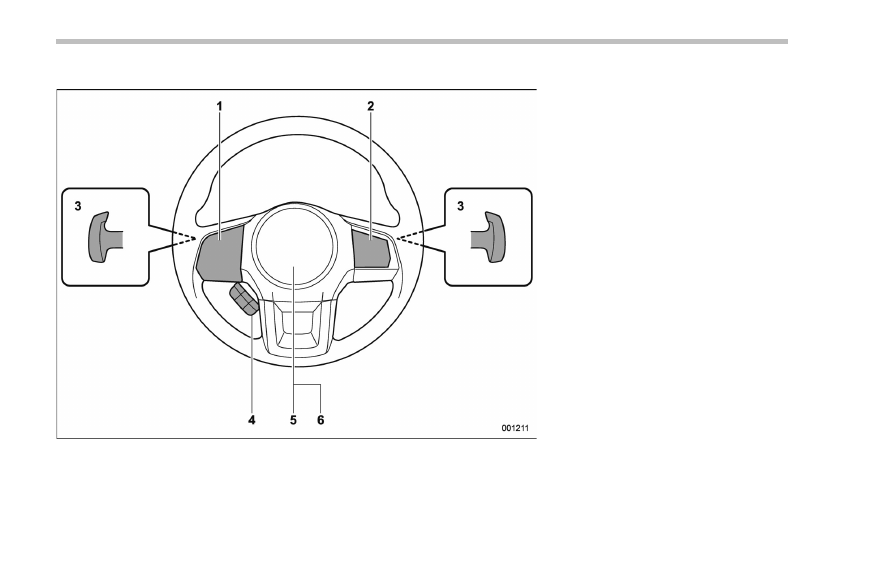

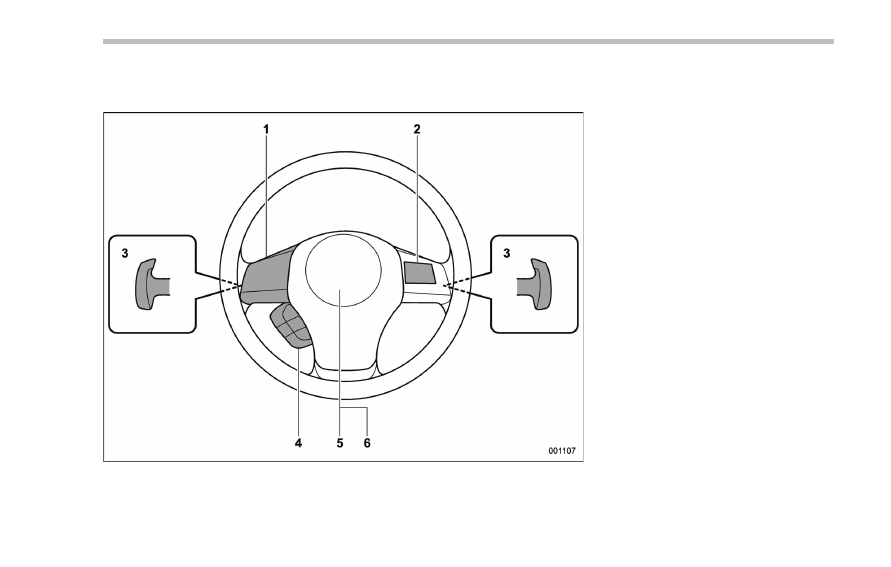

& Steering wheel

! Except Crosstrek models

Audio control switches (page 5-63)/
Talk switch for voice command system
(page 5-82)/Hands-free phone switches
(page 5-73)

Cruise control (page 7-45)

Shift paddle (page 7-26)

Multi information display control switches
(page 3-38)

SRS airbag (page 1-39)

Horn (page 3-111)

– CONTINUED –

! Crosstrek models

Audio control switches (page 5-63)/
Talk switch for voice command system
(page 5-82)/Hands-free phone switches
(page 5-73)

Cruise control (page 7-45)

Shift paddle (page 7-26)

Multi information display control switches
(page 3-38)

SRS airbag (page 1-39)

Horn (page 3-111)

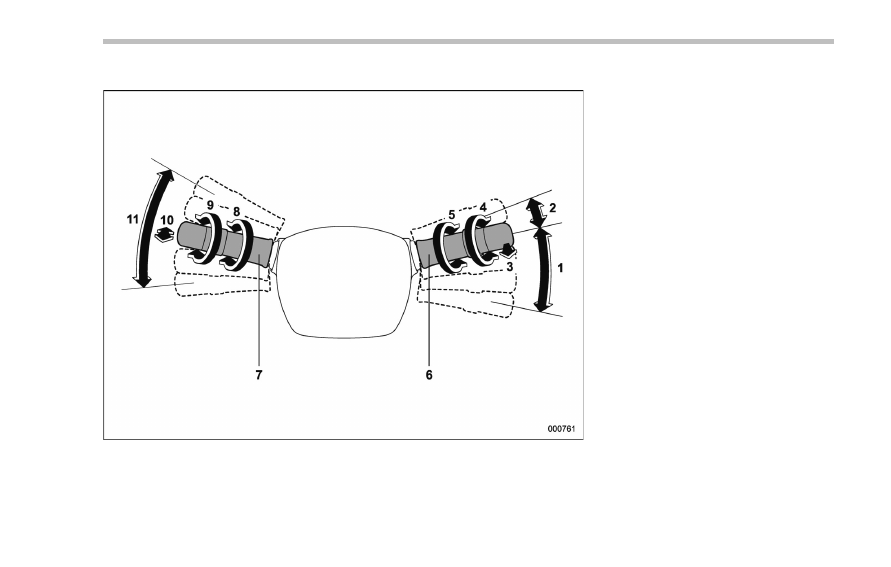

& Light control and wiper control levers/switches

Windshield wiper (page 3-96)

Mist (page 3-97)

Windshield washer (page 3-98)

Rear window wiper and washer switch
(page 3-99)

Wiper intermittent time control switch
(page 3-98)

Wiper control lever (page 3-97)

Light control switch (page 3-89)

Fog light switch (page 3-94)

Headlight ON/OFF/AUTO (page 3-89)

10) Headlight flasher High/Low beam

change (page 3-91)

11) Turn signal lever (page 3-92)

– CONTINUED –

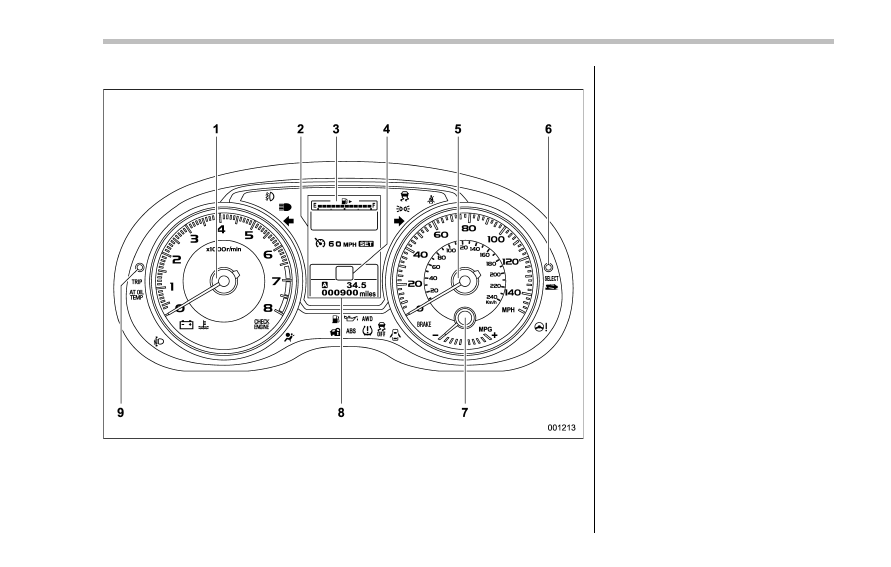

& Combination meter

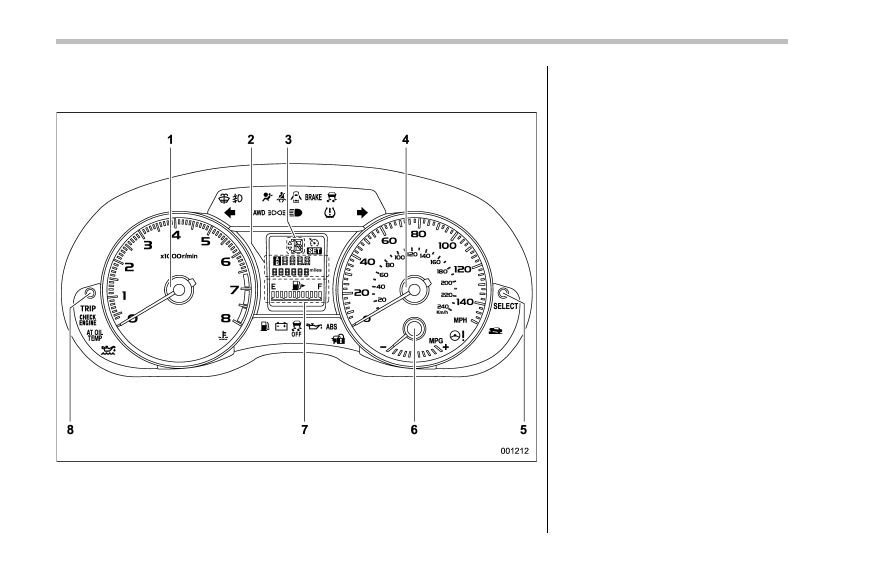

! U.S.-spec. models (type A)

The illustration above is a typical example. For some models, the combination meter
may be slightly different than that shown in the illustration.

Tachometer (page 3-11)

Trip meter and odometer (page 3-10)

Select lever/gear position indicator
(page 3-30)

Speedometer (page 3-10)

Information display selection knob
(page 3-32)

ECO gauge (page 3-12)

Fuel gauge (page 3-12)

Trip meter A/B selection and trip meter
reset knob (page 3-11)

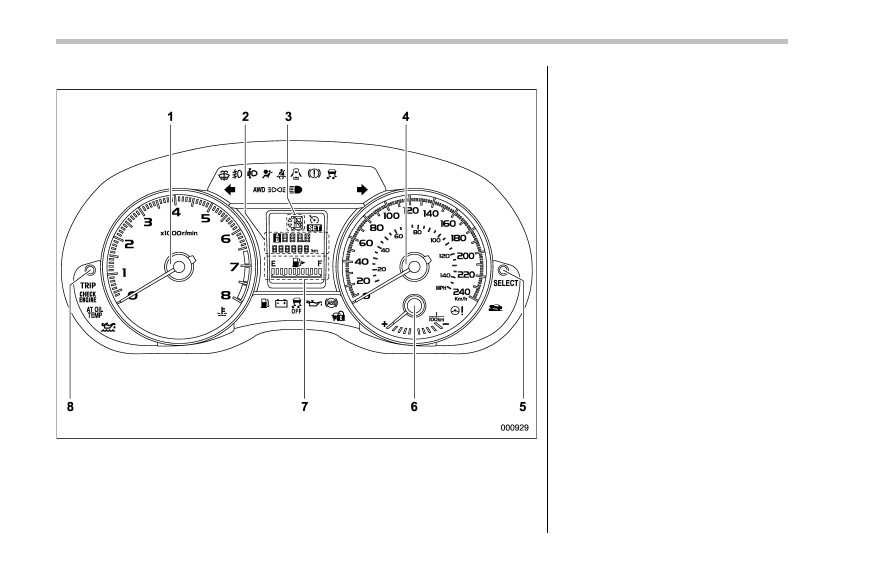

! U.S.-spec. models (type B)

The illustration above is a typical example. For some models, the combination meter
may be slightly different than that shown in the illustration.

Tachometer (page 3-11)

Multi information display (page 3-38)

Fuel gauge (page 3-12)

Select lever/gear position indicator
(page 3-30)

Speedometer (page 3-10)

Information display selection knob
(page 3-32)

ECO gauge (page 3-12)

Trip meter and odometer (page 3-10)

Trip meter A/B selection and trip meter
reset knob (page 3-11)

– CONTINUED –

! Except U.S.-spec. models (type A)

The illustration above is a typical example. For some models, the combination meter
may be slightly different than that shown in the illustration.

Tachometer (page 3-11)

Trip meter and odometer (page 3-10)

Select lever/gear position indicator
(page 3-30)

Speedometer (page 3-10)

Information display selection knob
(page 3-32)

ECO gauge (page 3-12)

Fuel gauge (page 3-12)

Trip meter A/B selection and trip meter
reset knob (page 3-11)

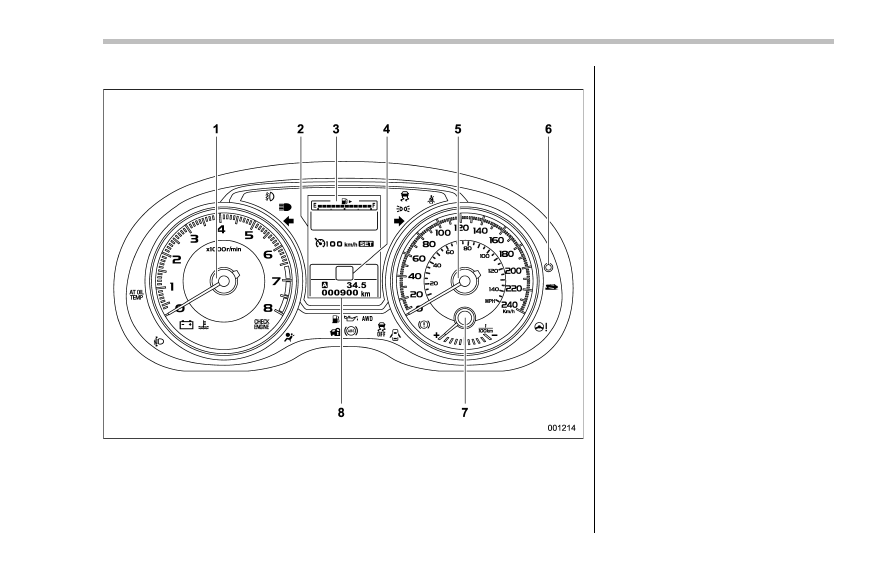

! Except U.S.-spec. models (type B)

The illustration above is a typical example. For some models, the combination meter
may be slightly different than that shown in the illustration.

Tachometer (page 3-11)

Multi information display (page 3-38)

Fuel gauge (page 3-12)

Select lever/gear position indicator
(page 3-30)

Speedometer (page 3-10)

Trip meter A/B selection and trip meter
reset knob (page 3-11)

ECO gauge (page 3-12)

Trip meter and odometer (page 3-10)

– CONTINUED –

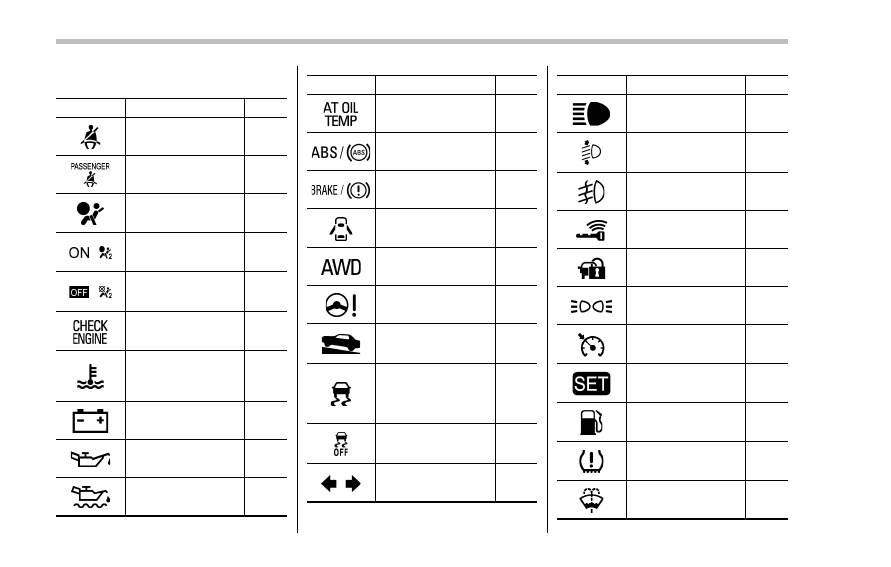

& Warning and indicator lights

Mark

Name

Page

Seatbelt warning light

3-14

Front passenger

’s

seatbelt warning light

3-14

SRS airbag system
warning light

3-15

Front passenger

’s

frontal airbag ON indi-
cator

3-16

Front passenger

’s

frontal airbag OFF in-
dicator

3-16

CHECK ENGINE
warning light/Malfunc-
tion indicator light

3-16

Coolant temperature
low indicator light/
Coolant temperature
high warning light

3-17

Charge warning light

3-18

Oil pressure warning
light

3-18

Engine oil level warn-
ing light

3-18

Mark

Name

Page

AT OIL TEMP warning
light (CVT models)

3-19

ABS warning light

3-21

Brake system warning
light

3-21

Door open warning
light

3-23

AWD warning light
(CVT models)

3-23

Power steering warn-
ing light

3-23

Hill start assist warn-
ing light/Hill start assist
OFF indicator light

3-22

Vehicle Dynamics
Control warning light/
Vehicle Dynamics
Control operation indi-
cator light

3-24

Vehicle Dynamics
Control OFF indicator
light

3-25

Turn signal indicator
lights

3-31

Mark

Name

Page

High beam indicator
light

3-31

Automatic headlight
beam leveler warning
light (if equipped)

3-31

Front fog light indicator
light (if equipped)

3-31

Access key warning
indicator (if equipped)

3-25

Security indicator light

3-30

Headlight indicator
light (if equipped)

3-32

Cruise control indica-
tor light (if equipped)

3-31

Cruise control set in-
dicator light (if
equipped)

3-31

Low fuel warning light

3-22

Low tire pressure
warning light
(U.S.-spec. models)

3-19

Windshield washer
fluid warning light

3-19

Mark

Name

Page

Steering responsive
fog lights warning in-
dicator/Steering re-
sponsive fog lights
OFF indicator (models
with EyeSight system)

3-32

BSD/RCTA warning
indicator (if equipped)

3-32

BSD/RCTA OFF indi-
cator (if equipped)

3-32

Function settings

A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Contact
the nearest SUBARU dealer for details. If your vehicle is equipped with a multi function display, the settings for some of these functions
can be changed using the display. For details, refer to

“Multi function display” F3-42.

Item

Function

Possible settings

Default setting

Alarm system

Operation/Non-operation

Operation

Monitoring start delay time (after
closure of doors)

0 seconds/30 seconds

30 seconds

Impact sensor operation (only
models with shock sensors (dealer
option))

Operation/Non-operation

Non-operation

Passive arming (models without

“Keyless Access with Push-button

Start system

”)

Operation/Non-operation

Non-operation

Dome light and map lights illumina-
tion (models with moonroof)

ON/OFF

OFF

Dome light illumination (models
without moonroof)

Keyless Access (if equipped)

Hazard warning flasher

Operation/Non-operation

Operation

Audible signal

Operation/Non-operation

Operation

Audible signal volume

Level 1 to 7

Level 5

Door unlock selection function (dri-
ver

’s door unlock)

Driver

’s door only/All doors

Driver

’s door only

Door unlock selection function (rear
gate unlock)

Rear gate only/All doors

Rear gate only

Remote keyless entry system

Hazard warning flasher

Operation/Non-operation

Operation

Audible signal

Operation/Non-operation

Operation

Audible signal volume

Level 1 to 7

Level 5

Item

Function

Possible settings

Default setting

Key lock-in prevention

Operation/Non-operation

Operation

Defogger and deicer system for
models with the automatic climate
control system

Rear window defogger, outside
mirror defogger and windshield wi-
per deicer

Operation for 15 minutes/
Continuous operation

Operation for 15 minutes

Dome light

Operation of dome light/map light/
cargo area light OFF delay timer

OFF/10 seconds/20 seconds/30
seconds

30 seconds

Map light for models with a moon-
roof

Cargo area light (5-door)

Battery drainage prevention func-
tion

Operation/Non-operation

Operation

Seatbelt warning

Sounds a chime while driving

Operation/Non-operation

Operation

Auto on/off headlights (if equipped) Sensitivity of the operation of the

auto on/off headlights

Low/Normal/High/Very high

Normal

Welcome lighting function (if
equipped)

Welcome lighting function (when
approaching)

OFF/30 seconds/60 seconds/90
seconds

30 seconds

Welcome lighting function (when
exiting)

OFF/30 seconds/60 seconds/90
seconds

30 seconds

Reverse gear interlocked rear wiper
(5-door)

Reverse gear interlocked rear wiper
operation

Operation/Non-operation

U.S.-spec. models: Non-operation
Other models: Operation

One-touch lane changer

Operation of the one-touch lane
changer

Operation/Non-operation

Operation

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Front seats...........................................................

1-2

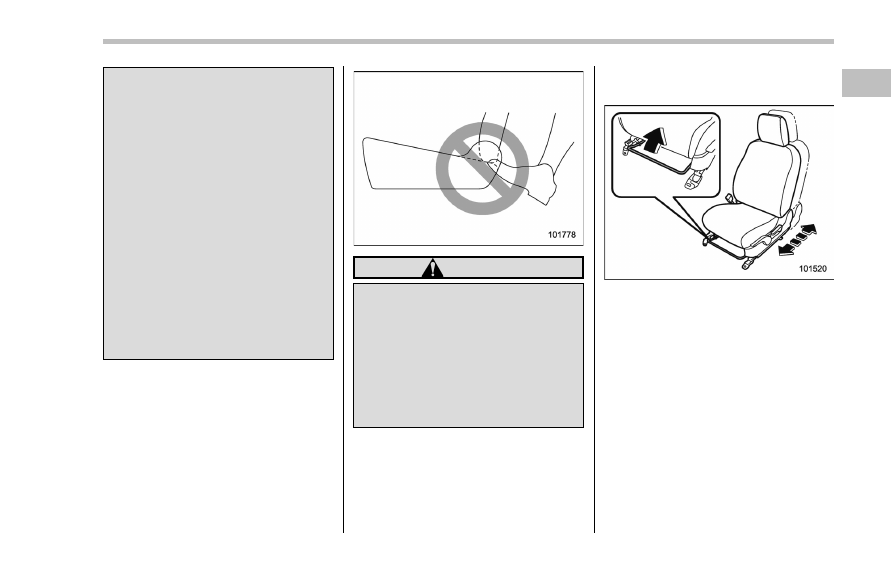

Forward and backward adjustment ......................

1-3

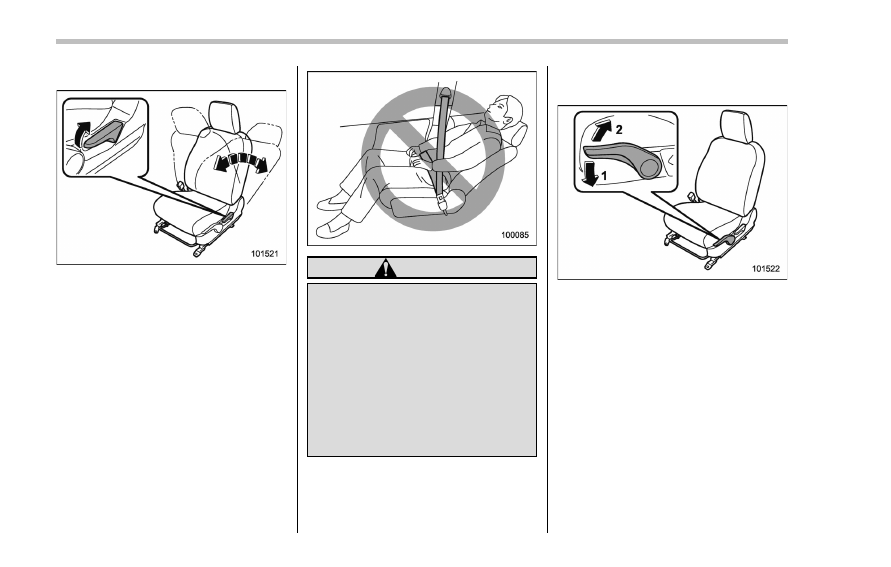

Reclining the seatback ........................................

1-4

Seat height adjustment (driver

’s seat) ..................

1-4

Head restraint adjustment....................................

1-5

Seat heater (if equipped) ....................................

1-6

Safety precautions ..............................................

1-6

Operation............................................................

1-7

Rear seats............................................................

1-7

Armrest (if equipped)...........................................

1-8

Head restraint adjustment....................................

1-8

Folding down the rear seatback ..........................

1-10

Seatbelts .............................................................

1-11

Seatbelt safety tips.............................................

1-11

Emergency Locking Retractor (ELR) ...................

1-12

Automatic Locking Retractor/Emergency Locking

Retractor (ALR/ELR) .........................................

1-12

Seatbelt warning light and chime ........................

1-13

Fastening the seatbelt ........................................

1-13

Seatbelt maintenance .........................................

1-20

Front seatbelt pretensioners .............................

1-20

Seatbelt with shoulder belt pretensioner .............

1-20

Seatbelt with shoulder belt and lap belt

pretensioners ..................................................

1-22

System monitors ...............................................

1-24

System servicing ...............................................

1-24

Precautions against vehicle modification ............

1-24

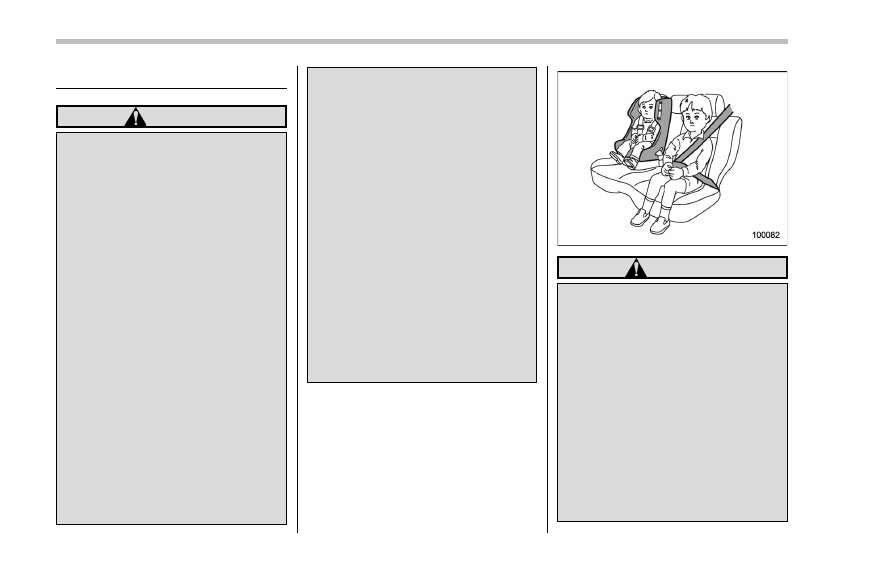

Child restraint systems .....................................

1-25

Where to place a child restraint system ..............

1-26

Choosing a child restraint system ......................

1-27

Installing child restraint systems with ALR/ELR

seatbelt ...........................................................

1-28

Installing a booster seat.....................................

1-32

Installation of child restraint systems by use of

lower and tether anchorages (LATCH) ..............

1-33

Top tether anchorages .......................................

1-36

*SRS airbag (Supplemental Restraint

System airbag)................................................

1-39

General precautions regarding SRS airbag

system ............................................................

1-39

Components ......................................................

1-46

SUBARU advanced frontal airbag system ...........

1-48

SRS side airbag and SRS curtain airbag.............

1-58

SRS airbag system monitors..............................

1-67

SRS airbag system servicing .............................

1-69

Precautions against vehicle modification ............

1-70

Seat, seatbelt and SRS airbags

Seat, seatbelt and SRS airbags/Front seats

Front seats

WARNING

. Never adjust the seat while driv-

ing to avoid loss of vehicle con-
trol and personal injury.

. Before adjusting the seat, make

sure the hands and feet of rear
seat passengers and cargo are
clear of the adjusting mechan-
ism.

. After adjusting the seat, push it

slightly to make sure it is se-
curely locked. If the seat is not
securely locked, it may move or
the seatbelt may not operate
properly.

. Do not put objects under the front

seats. They may interfere with
front seat locking and cause an
accident.

. Seatbelts provide maximum re-

straint when the occupant sits
well back and upright in the seat.
To reduce the risk of sliding
under the seatbelt in a collision,
the front seatbacks should be
always used in the upright posi-
tion while the vehicle is running.
If the front seatbacks are not

used in the upright position in a
collision, the risk of sliding under
the lap belt and of the lap belt
sliding up over the abdomen will
increase, and both can result in
serious internal injury or death.

. The SRS airbags deploy with

considerable speed and force.
Occupants who are out of proper
position when the SRS airbag
deploys could suffer very serious
injuries. Because the SRS airbag
needs enough space for deploy-
ment, the driver should always
sit upright and well back in the
seat as far from the steering
wheel as practical while still
maintaining full vehicle control
and the front passenger should
move the seat as far back as
possible and sit upright and well
back in the seat.

WARNING

Place children in the rear seat
properly restrained at all times. The
SRS airbag deploys with consider-
able speed and force and can injure
or even kill children, especially if
they are not restrained or impro-
perly restrained. Because children
are lighter and weaker than adults,
their risk of being injured from
deployment is greater. For that rea-
son, we strongly recommend that
ALL children (including those in
child seats and those that have
outgrown child restraint devices)
sit in the REAR seat properly re-
strained at all times in a child
restraint device or in a seatbelt,

1-2

whichever is appropriate for the
child

’s age, height and weight. Se-

cure ALL types of child restraint
devices (including forward facing
child seat) in the REAR seats at all
times.

NEVER INSTALL A REARWARD FA-
CING CHILD SEAT IN THE FRONT
SEAT. DOING SO RISKS SERIOUS
INJURY OR DEATH TO THE CHILD
BY PLACING THE CHILD

’S HEAD

TOO CLOSE TO THE SRS AIRBAG.

According to accident statistics,
children are safer when properly
restrained in the rear seating posi-
tions than in the front seating posi-
tions. For instructions and precau-
tions concerning child restraint sys-
tems, refer to

“Child restraint sys-

tems

” F1-25.

WARNING

Do not let rear passengers rest their
feet between the front seatback and
seat cushion. Doing so may lead to
defective operation of the following
systems and could result in serious
injury.
. Occupant detection system
. SRS side airbag
. Seat heater (if equipped)

& Forward and backward ad-

justment

Pull the lever upward and slide the seat to
the desired position. Then release the
lever and try to move the seat back and
forth to make sure that it is securely locked
into place.

Seat, seatbelt and SRS airbags/Front seats

– CONTINUED –

1-3

Seat, seatbelt and SRS airbags/Front seats

& Reclining the seatback

Pull the reclining lever up and adjust the
seatback to the desired position. Then
release the lever and make sure the
seatback is securely locked into place.
The seatback placed in a reclined position
can spring back upward with force when
the lever is pulled. While operating the
lever to return the seatback, hold the
seatback lightly so that it may be raised
back gradually.

WARNING

To prevent the passenger from slid-
ing under the seatbelt in the event of
a collision, always put the seatback
in the upright position while the
vehicle is in motion. Also, do not
place objects such as cushions
between the passenger and the
seatback. If you do so, the risk of
sliding under the lap belt and of the
lap belt sliding up over the abdomen
will increase, and both can result in
serious internal injury or death.

& Seat height adjustment (dri-

ver

’s seat)

When the lever is pushed down, the seat
is lowered.

When the lever is pulled up, the seat
rises.

The height of the seat can be adjusted by
moving the seat adjustment lever up and
down.

1-4

Content .. 1 2 3 ..
