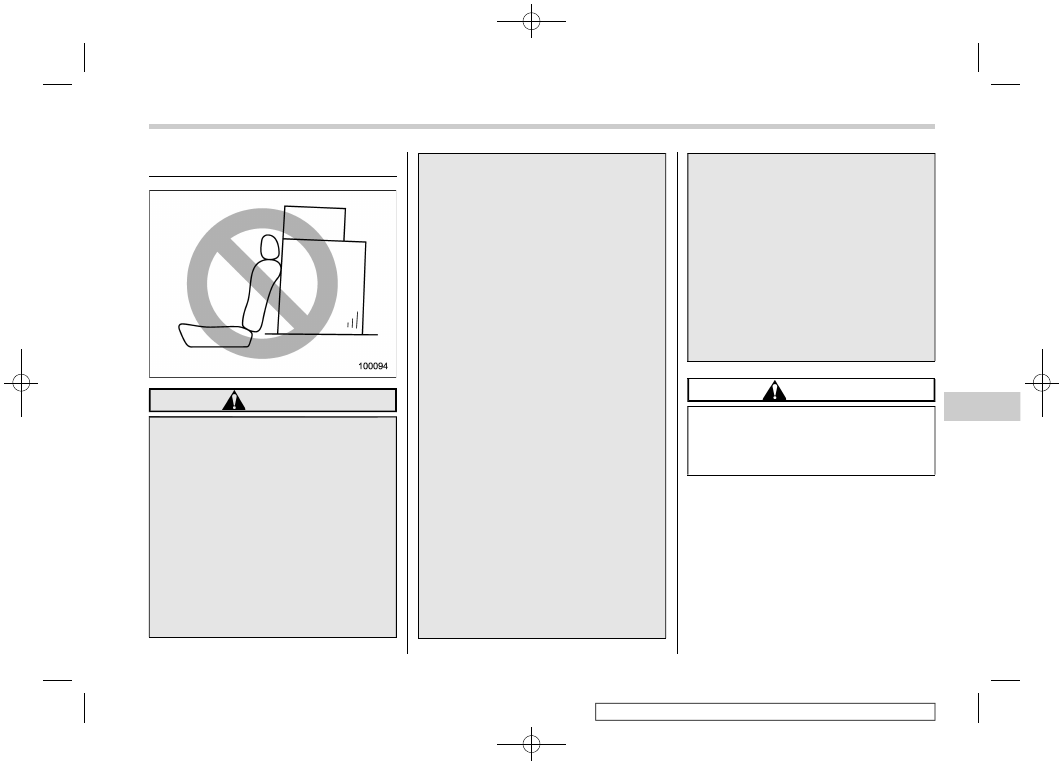

Loading your vehicle

WARNING

Never allow passengers to ride

on a folded rear seatback or in the
trunk. Doing so may result in
serious injury.

Never stack luggage or other

cargo higher than the top of the
seatback because it could tumble
forward and injure passengers in
the event of a sudden stop or
accident. Keep luggage or cargo
low, as close to the floor as
possible.

Stow cargo and luggage in the

trunk whenever possible.

To prevent cargo and luggage

from sliding forward during brak-
ing, do not stack anything in the
enlarged trunk. Keep cargo and
luggage low, as close to the floor
as possible.

When you carry something inside

the vehicle, secure it whenever
you can to prevent it from being
thrown around inside the vehicle
during sudden stops, sharp turns
or in an accident.

Do not pile heavy loads on the

roof. These loads raise the vehi-
cle’s center of gravity and make it
more prone to tip over.

Secure lengthy items properly to

prevent them from shooting for-
ward and causing serious injury
during a sudden stop.

Never exceed the maximum load

limit. If you do, some parts on
your vehicle can break, or it can
change the way your vehicle
handles. This could result in loss
of control and cause personal
injury. Also, overloading can
shorten the life of your vehicle.

Do not place cargo or luggage in

or on the following locations as
the item may get under the

clutch, brake, or accelerator ped-
al and prevent the pedals from
being depressed properly, block
the driver’s vision, or hit the
driver or passengers, causing
an accident:

– At the feet of the driver

– On the front passenger or rear

seats (when stacking items)

– On the rear shelf

– On the instrument panel

– On the dashboard

CAUTION

Do not carry spray cans, containers
with flammable or corrosive liquids
or any other dangerous items inside
the vehicle.

NOTE

For better fuel economy, do not carry
unneeded cargo.

– CONTINUED –

Driving tips/Loading your vehicle

8-11

(356,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

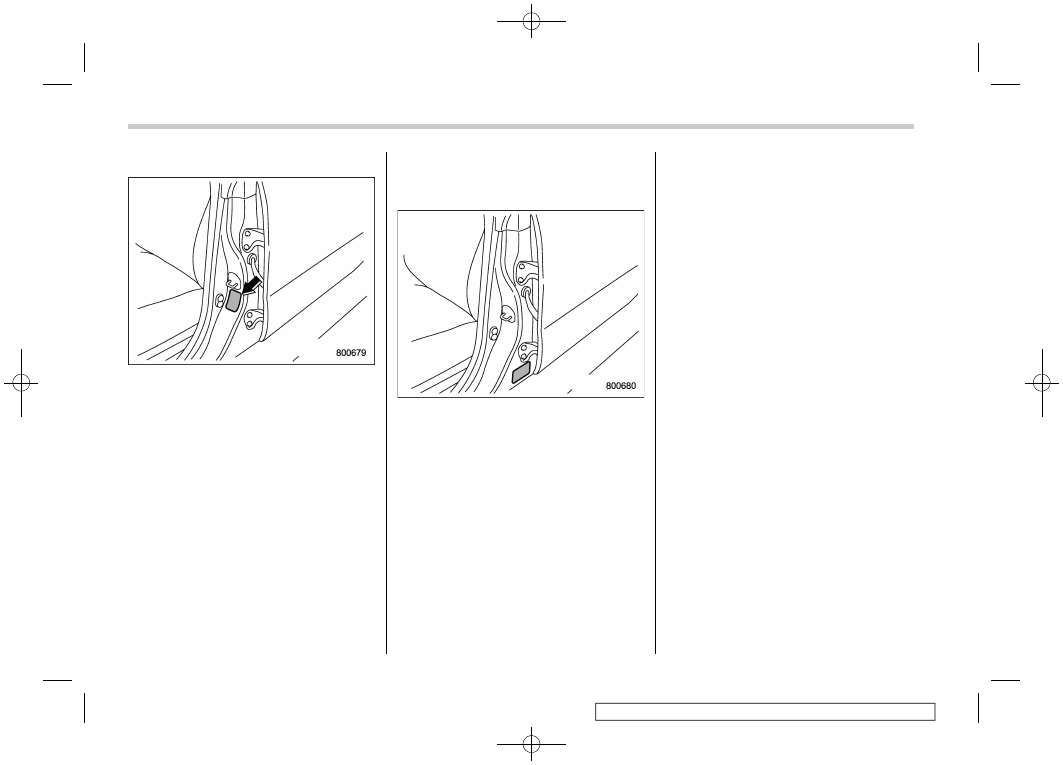

Vehicle capacity weight

Vehicle placard

The load capacity of your vehicle is
determined by weight, not by available
cargo space. The maximum load you can
carry in your vehicle is shown on the
vehicle placard attached to the driver’s
side door pillar. It includes the total weight
of the driver and all passengers and their
belongings, any optional equipment such
as a roof rack or bike carrier, etc.

GVWR and GAWR (Gross Ve-
hicle Weight Rating and
Gross Axle Weight Rating)

Certification label

The certification label attached to the
driver’s side doorjamb shows GVWR
(Gross Vehicle Weight Rating) and GAWR
(Gross Axle Weight Rating).

The GVW (Gross Vehicle Weight) must
never exceed the GVWR. GVW is the
combined total of weight of the vehicle,
fuel, driver, all passengers, luggage, and
any optional equipment. Therefore, the
GVW changes depending on the situation.
The GVWR equals Curb Weight (actual
weight of your vehicle – including standard
equipment, fluids, emergency tools and
spare tire assembly) plus the vehicle

capacity weight.

In addition, the total weight applied to each
axle (GAW) must never exceed the
GAWR. The front and rear GAWs can be
adjusted by relocating luggage inside the
vehicle.
Even if the total weight of your luggage is
lower than the vehicle capacity weight,
either front or rear GAW may exceed the
GAWR, depending on the distribution of
the luggage.
When possible, the load should be evenly
distributed throughout the vehicle.

If you carry heavy loads in the vehicle, you
should confirm that GVW and front and
rear GAWs are within the GVWR and
GAWR by putting your vehicle on a vehicle
scale, found at a commercial weighing
station.

Do not use replacement tires with a lower
load range than the originals because they
may lower the GVWR and GAWR limita-
tions. Replacement tires with a higher load
range than the originals do not increase
the GVWR and GAWR limitations.

Driving tips/Loading your vehicle

8-12

(357,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

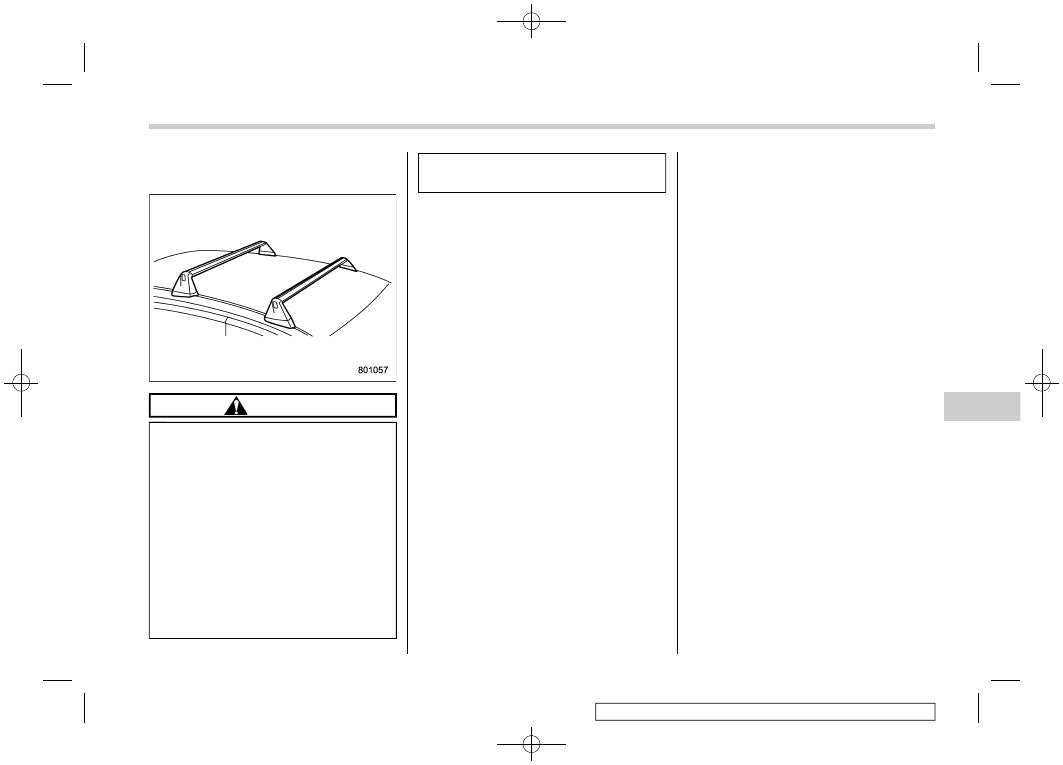

Roof molding and crossbar (if
equipped)

CAUTION

For cargo carrying purposes, the

roof molding must be used to-
gether with a roof crossbar kit
and the appropriate carrying at-
tachment. Otherwise, damage to
the roof or paint or a dangerous
road hazard due to loss of cargo
could result.

When using the roof crossbar kit,

make sure that the total weight of
the crossbars, carrying attach-
ment and cargo does not exceed
the maximum load limit. Over-
loading may cause damage to

the vehicle and create a safety
hazard.

Cargo can be carried after securing the
roof crossbar kit to the roof molding and
installing the appropriate carrying attach-
ment. When installing the roof crossbar kit,
follow the manufacturer’s instructions.

When carrying cargo on the roof using the
roof crossbar kit and carrying attachments,
never exceed the maximum load limit as
explained below. You should also be
careful that the vehicle does not exceed
the Gross Vehicle Weight Rating (GVWR)
and front and rear Gross Axle Weight
Rating (GAWR). For information about
loading cargo into or onto your vehicle,
refer to “Loading your vehicle” F8-11. The
maximum total load on the roof (including
crossbars, carrying attachments and car-
go) must not exceed 88 lbs (40 kg). Refer
to the crossbar installation instructions for
the maximum crossbar capacity. Place the
heaviest load at the bottom, close to the
roof, and evenly distribute the cargo.
Always properly secure all cargo.

Installing carrying attachments on
the crossbars

When installing any carrying attachments
such as the load carriers, crossbars, bike
carrier, ski carrier, kayak carrier, cargo

basket, etc., follow the manufacturer’s
instructions of the load capacity and make
sure that the attachments are securely
installed. Use only attachments designed
specifically for the crossbars. Before oper-
ating the vehicle, make sure that the cargo
is properly secured on the attachment.

NOTE

Remember that the vehicle’s center of
gravity is altered with the weight of the
load on the roof, thus affecting the
driving characteristics.
Drive carefully. Avoid rapid starts, hard
cornering and abrupt stops. Crosswind
effects will be increased.

– CONTINUED –

Driving tips/Loading your vehicle

8-13

(358,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

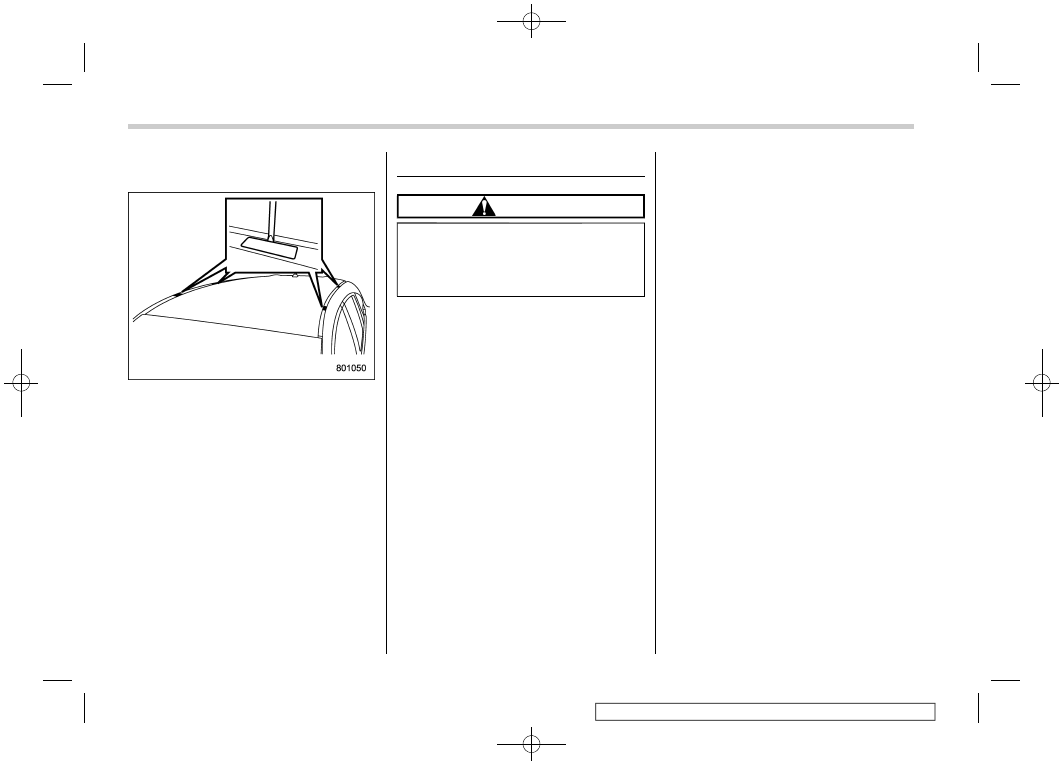

Removal and installation of the
crossbars

Each of the two roof moldings has two
mounting points for crossbars. Each
mounting point is fitted with a cover. Use
a screwdriver to remove the covers. When
installing the crossbars on the roof mold-
ing, follow the manufacturer’s instructions.

Trailer towing

CAUTION

Your vehicle is neither designed nor
intended to be used for trailer tow-
ing. Therefore, never tow a trailer
with your vehicle.

SUBARU assumes no responsibility for
injuries or vehicle damage that may result
from trailer towing, from any trailer towing
equipment or from any errors or omissions
in the instructions accompanying such
equipment. SUBARU warranties do not
apply to vehicle damage or malfunction
caused by trailer towing.

Driving tips/Trailer towing

8-14

(361,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

If you park your vehicle in case of an

emergency ............................................................ 9-2

Temporary spare tire (if equipped) ........................ 9-2
Maintenance tools................................................... 9-3
Flat tires................................................................... 9-4

Changing a flat tire ................................................ 9-4
Tire pressure monitoring system (TPMS)

(U.S.-spec. models) .............................................. 9-8

Jump starting .......................................................... 9-9

How to jump start .................................................. 9-9

Engine overheating............................................... 9-11

If steam is coming from the engine

compartment ...................................................... 9-11

If no steam is coming from the engine

compartment ...................................................... 9-11

Towing ................................................................... 9-12

Towing and tie-down hooks/holes ......................... 9-12
Using a flat-bed truck ........................................... 9-15
Towing with all wheels on the ground ................... 9-16

Electronic parking brake – if the electronic

parking brake cannot be released (models
with electronic parking brake system) ............ 9-16

Access key fob – if access key fob does not

operate properly ................................................ 9-17

Locking and unlocking ......................................... 9-17
Switching power status ........................................ 9-17
Starting engine ..................................................... 9-18

Moonroof (if equipped) – if the moonroof does

not close............................................................. 9-19

If your vehicle is involved in an accident........... 9-19

In case of emergency

(362,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

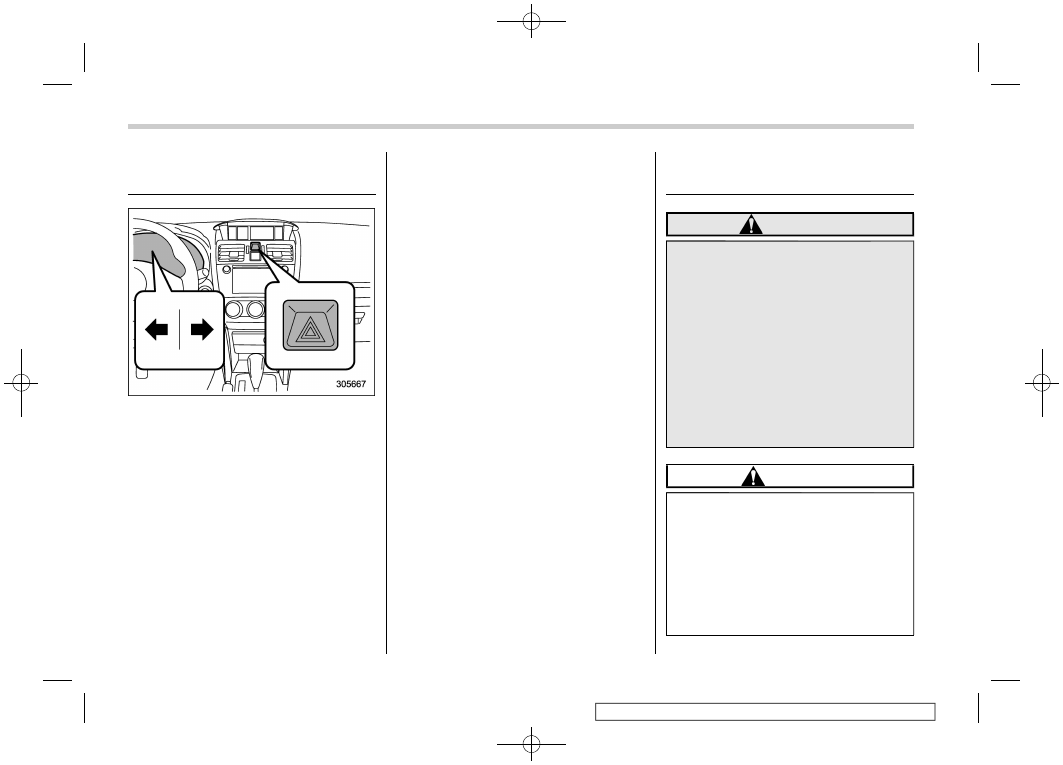

If you park your vehicle in
case of an emergency

Use the hazard warning flasher in day or
night to warn other drivers when you have
to park your vehicle under emergency
conditions.
Avoid stopping on the road. It is best to
safely pull off the road if a problem occurs.

You can activate the hazard warning
flasher regardless of the ignition switch
position.
Turn on the hazard warning by pushing the
hazard warning flasher switch. Turn it off
by pushing the switch again.

NOTE

When the hazard warning flasher is on,
the turn signals do not work.

Temporary spare tire (if
equipped)

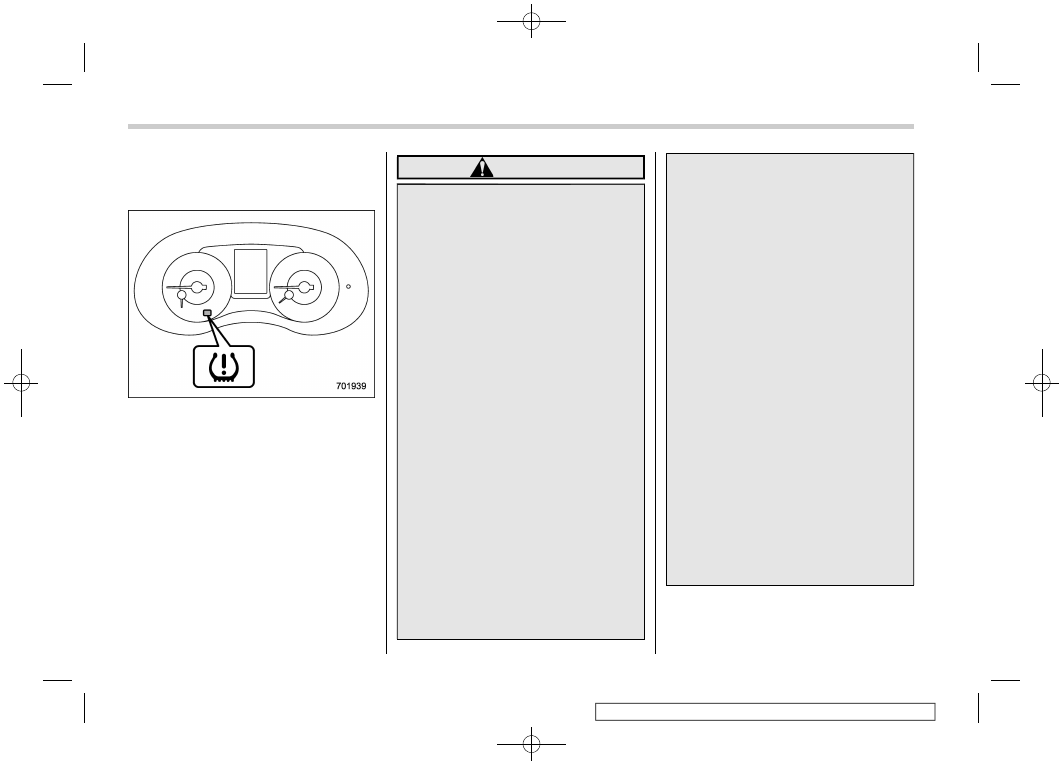

WARNING

When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/transmitter
being transferred, the low tire pres-
sure warning light will illuminate
steadily after blinking for approxi-
mately one minute. This indicates
the tire pressure monitoring system
(TPMS) is unable to monitor all four
road wheels. Contact your SUBARU
dealer as soon as possible for tire
and sensor replacement and/or sys-
tem resetting.

CAUTION

Never use any temporary spare

tire other than the original. Using
other sizes may result in severe
mechanical damage to the drive
train of your vehicle.

Always conform to the following

instructions when using the tem-
porary spare tire. Otherwise, a
seriously dangerous situation

In case of emergency/If you park your vehicle in case of an emergency

9-2

(363,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

may occur.

The temporary spare tire is smaller and
lighter than a conventional tire and is
designed for emergency use only. Re-
move the temporary spare tire and re-
install the conventional tire as soon as
possible because the spare tire is de-
signed only for temporary use.

Check the inflation pressure of the tem-
porary spare tire periodically to keep the
tire ready for use. For the correct tire
pressure, refer to “Temporary spare tires”
F12-9.

When using the temporary spare tire, note
the following.
.

Drive with caution when temporary

spare tire is fitted. Avoid hard acceleration
and braking, or fast cornering, as control of
the vehicle may be lost.
.

Do not exceed 50 mph (80 km/h).

Do not put a tire chain on the temporary

spare tire. Because of the smaller tire size,
a tire chain will not fit properly.
.

Do not use two or more temporary

spare tires at the same time.
.

Do not drive over obstacles. This tire

has a smaller diameter, so road clearance
is reduced.

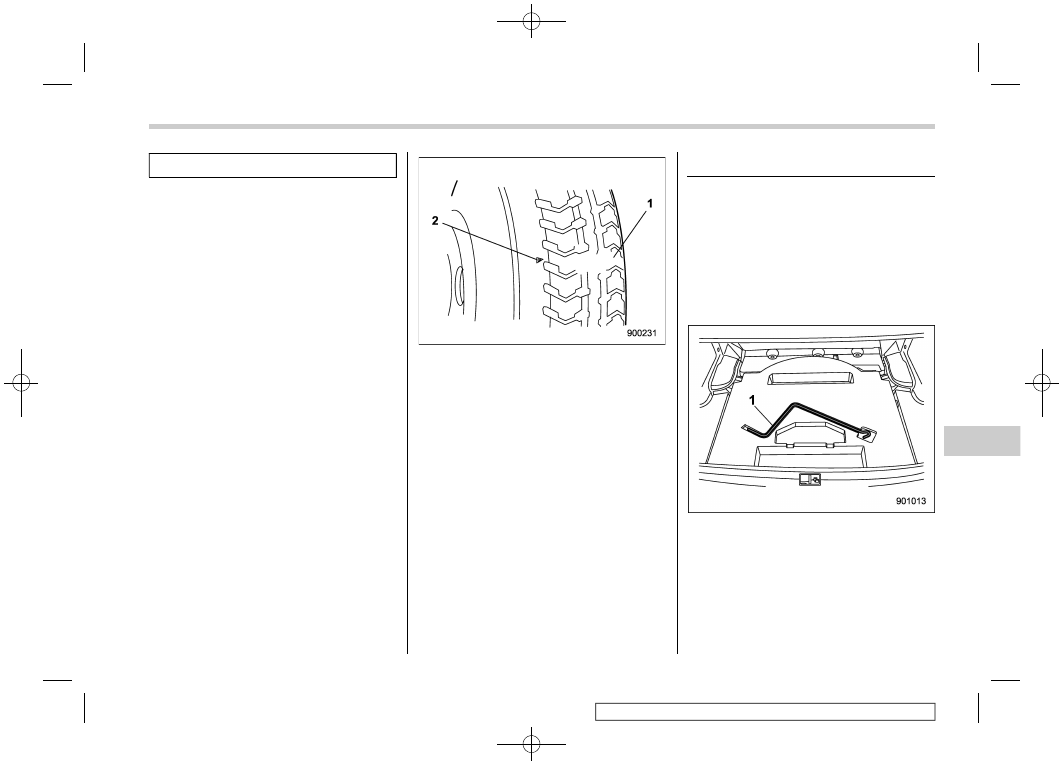

Tread wear indicator bar

Indicator location mark

When the wear indicator appears on

the tread, replace the tire.
.

The temporary spare tire must be used

only on a rear wheel. If a front wheel tire
gets punctured, replace the wheel with a
rear wheel and install the temporary spare
tire in place of the removed rear wheel.
.

Always set the driver’s control center

differential to the manual mode and adjust
the initial LSD torque to the minimum.

Maintenance tools

Your vehicle is equipped with the following
maintenance tools.

Jack

Jack handle

Screwdriver

Towing hook (eye bolt)

Wheel nut wrench

Jack handle

– CONTINUED –

In case of emergency/Maintenance tools

9-3

(364,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

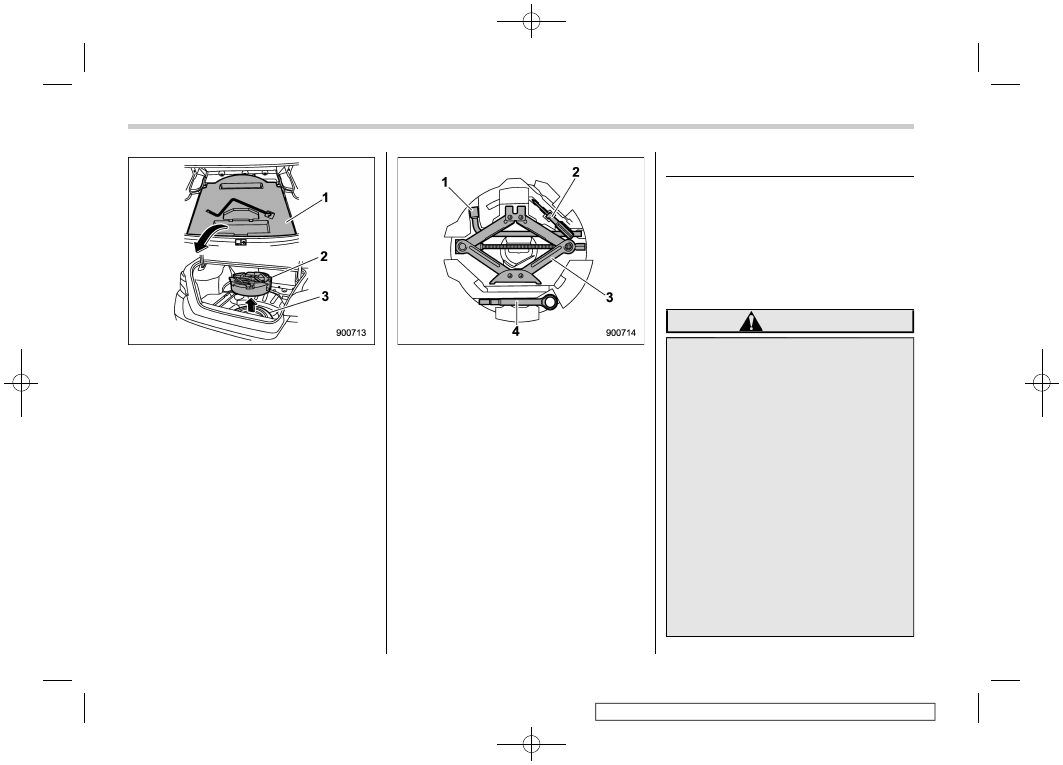

Under-floor storage compartment (if
equipped) (Refer to “Under-floor storage
compartment” F6-11.)

Tool bucket

Spare tire

Wheel nut wrench

Screwdriver

Jack

Towing hook (eye bolt)

A jack handle is stored under the floor of
the trunk. A jack and a towing hook are
stored in the tool bucket that is located in
the recess of the spare tire wheel. A
screwdriver and a wheel nut wrench are
stored in the vinyl bag. You can also store
these tools in the tool bucket.

NOTE

For how to use the jack, refer to “Flat
tires” F9-4.

Flat tires

If you have a flat tire while driving, never
brake suddenly; keep driving straight
ahead while gradually reducing speed.
Then slowly pull off the road to a safe
place.

Changing a flat tire

WARNING

Use only the jack provided with

your vehicle. The jack supplied
with the vehicle is designed only
for changing a tire. Never get
under the vehicle while support-
ing the vehicle with this jack.

Do not jack up the vehicle on an

incline or a loose road surface.
The jack can come out of the
jacking point or sink into the
ground and this can result in a
severe accident.

Before using the jack, be sure

that there are no occupants or
cargo in the vehicle.

Always turn off the engine before

raising the flat tire off the ground
using the jack. Never swing or
push the vehicle supported with

In case of emergency/Flat tires

9-4

(365,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

the jack. The jack can come out of
the jacking point due to a jolt and
this can result in a severe acci-
dent.

1. Park on a hard, level surface, when-
ever possible, then stop the engine.
2. Set the parking brake securely and
shift the shift lever in reverse (MT models)
or the select lever to the “P” (Park) position
(CVT models).
3. Turn on the hazard warning flasher and
have everyone get out of the vehicle.

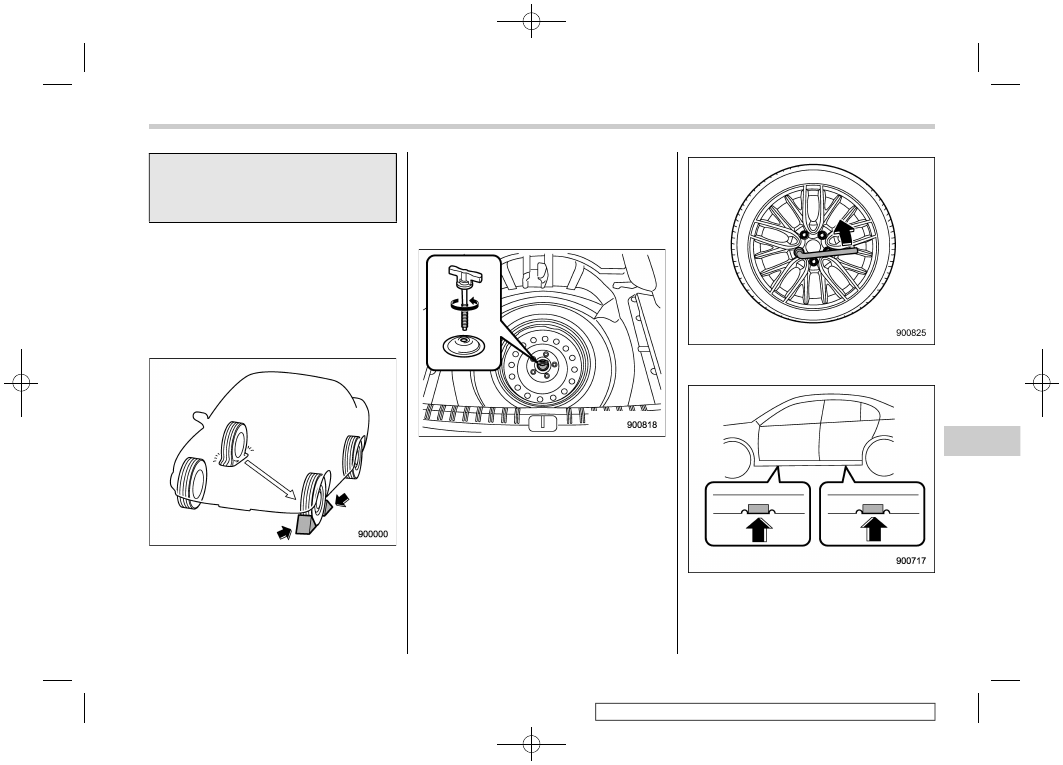

4. Put wheel blocks at the front and rear
of the tire diagonally opposite the flat tire.
5. Take out the jack, jack handle and
wheel nut wrench.
The tools and the spare tire are stored

under the floor of the trunk. Refer to
“Maintenance tools” F9-3.

NOTE

Make sure that the jack is well lubri-
cated before using it.

6. Take out the tool bucket and turn the
attaching bolt counterclockwise, then take
the spare tire out.

NOTE

If the spare tire provided in your vehicle
is a temporary spare tire, carefully read
“Temporary spare tire” F9-2 and
strictly follow the instructions.

7. Loosen the wheel nuts using the wheel
nut wrench but do not remove the nuts.

Jack-up points

8. Place the jack under the side sill at the
front or rear jack-up point closest to the flat
tire.

– CONTINUED –

In case of emergency/Flat tires

9-5

(366,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

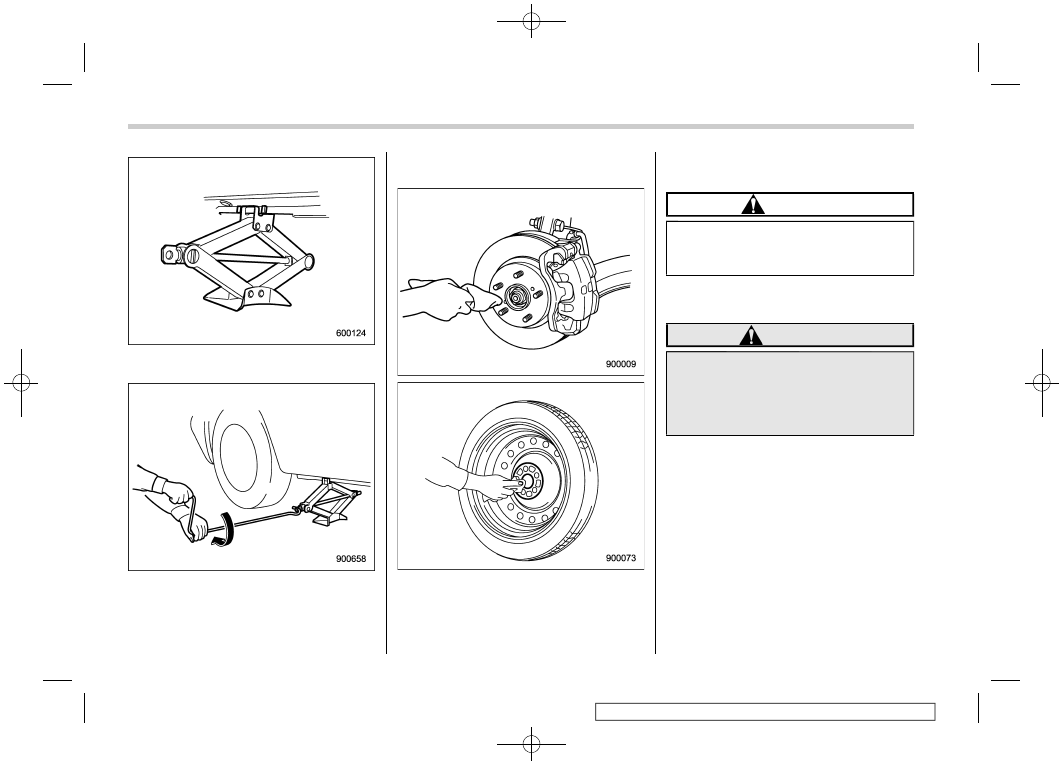

Turn the jackscrew by hand until the jack
head engages firmly into the jack-up point.

9. Insert the jack handle into the jack-
screw, and turn the handle until the tire
clears the ground. Do not raise the vehicle
higher than necessary.

10. Remove the wheel nuts and the flat
tire.

11. Before putting the spare tire on, per-
form the following steps.

Clean the mounting surface of the

wheel and hub with a cloth.

Clean the threaded parts with a cloth

and check the conditions there.

CAUTION

If the threaded part was damaged,
you should immediately contact
your SUBARU dealer.

12. Put on the spare tire. Replace the
wheel nuts. Tighten them by hand.

WARNING

Do not use oil or grease on the wheel
studs or nuts when the spare tire is
installed. This could cause the nuts
to become loose and lead to an
accident.

13. Turn the jack handle counterclockwise
to lower the vehicle.

In case of emergency/Flat tires

9-6

(367,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

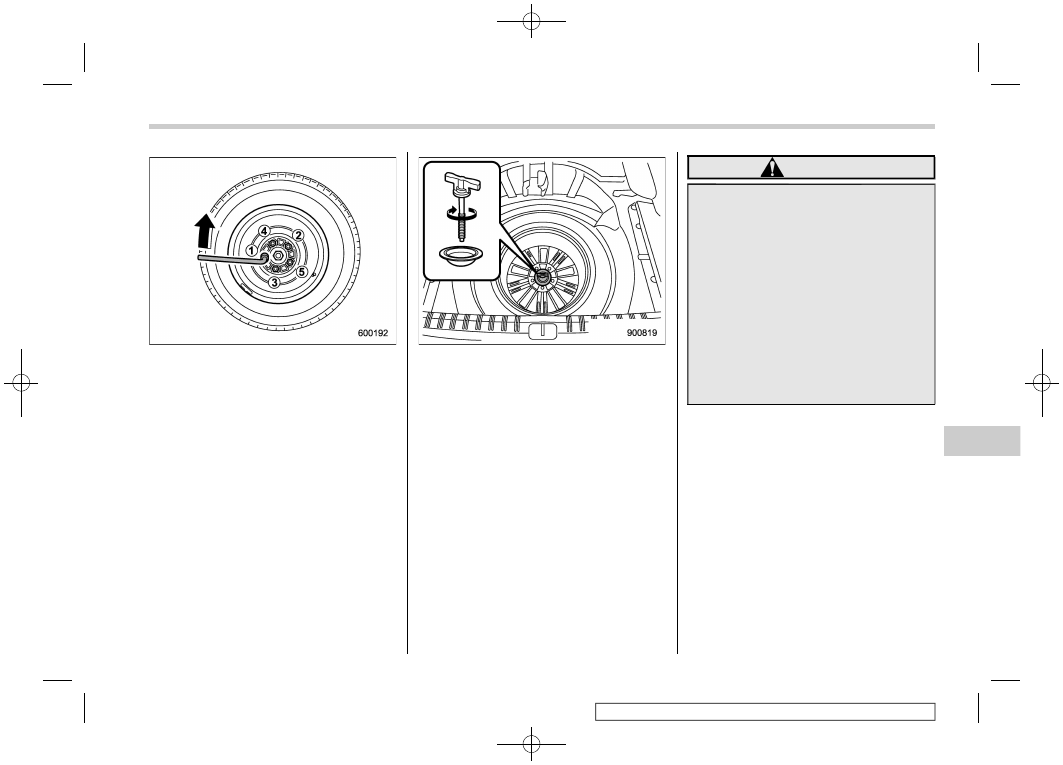

14. Use the wheel nut wrench to securely
tighten the wheel nuts to the specified
torque, following the tightening order in the
illustration.
For the wheel nut tightening torque, refer
to “Tires” F12-8. Never use your foot on
the wheel nut wrench or a pipe extension
on the wrench because you may exceed
the specified torque. Have the wheel nut
torque checked at the nearest automotive
service facility.

Except STI

15. Store the flat tire in the spare tire
compartment. For except STI models, put
in the spacer and tighten the attaching bolt
firmly.
Also store the jack, jack handle and wheel
nut wrench in their storage locations.

WARNING

Never place a tire or tire changing

tools in the passenger compart-
ment after changing wheels. In a
sudden stop or collision, loose
equipment could strike occu-
pants and cause injury. Store
the tire and all tools in the proper
place.

When you store a flat tire, be sure

to set the rear seatback to the
upright position. If you fold down
the seatback, an accident or
injury may occur when the flat
tire suddenly moves.

– CONTINUED –

In case of emergency/Flat tires

9-7

(368,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Tire pressure monitoring
system (TPMS) (U.S.-spec.
models)

Low tire pressure warning light

The tire pressure monitoring system pro-
vides the driver with the warning message
indicated by sending a signal from a
sensor that is installed in each wheel when
tire pressure is severely low.
The tire pressure monitoring system will
activate only when the vehicle is driven.
Also, this system may not react immedi-
ately to a sudden drop in tire pressure (for
example, a blow-out caused by running
over a sharp object).

WARNING

If the low tire pressure warning

light illuminates while driving,
never brake suddenly. Instead,
perform the following procedure.

(1) Keep driving straight ahead

while gradually reducing
speed.

(2) Slowly pull off the road to a

safe place. Otherwise an acci-
dent involving serious vehicle
damage and serious personal
injury could occur.

(3) Check the pressure for all four

tires and adjust the pressure
to the COLD tire pressure
shown on the vehicle placard
on the door pillar on the
driver’s side.

If this light still illuminates while

driving after adjusting the tire
pressure, a tire may have signifi-
cant damage and a fast leak that
causes the tire to lose air rapidly.
If you have a flat tire, refer to “Flat
tires” F9-4.

When a spare tire is mounted or a

wheel rim is replaced without the
original pressure sensor/trans-
mitter being transferred, the low

tire pressure warning light will
illuminate steadily after blinking
for approximately one minute.
This indicates the TPMS is unable
to monitor all four road wheels.
Contact your SUBARU dealer as
soon as possible for tire and
sensor replacement and/or sys-
tem resetting.

When a tire is repaired with liquid

sealant, the tire pressure warning
valve and transmitter may not
operate properly. If a liquid sea-
lant is used, contact your nearest
SUBARU dealer or other qualified
service shop as soon as possi-
ble. Make sure to replace the tire
pressure warning valve and
transmitter when replacing the
tire. You may reuse the wheel if
there is no damage to it and if the
sealant residue is properly
cleaned off.

If the light illuminates steadily
after blinking for approximately
one minute, promptly contact a
SUBARU dealer to have the sys-
tem inspected.

In case of emergency/Flat tires

9-8

(369,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Jump starting

WARNING

Battery fluid is SULFURIC ACID.

Do not let it come in contact with
the eyes, skin, clothing or the
vehicle.

If battery fluid gets on you, thor-
oughly flush the exposed area
with water immediately. Get med-
ical help if the fluid has entered
your eyes.

If battery fluid is accidentally
swallowed, immediately drink a
large amount of milk or water,
and obtain immediate medical
help.

Keep everyone including chil-
dren away from the battery.

The gas generated by a battery

explodes if a flame or spark is
brought near it. Do not smoke or
light a match while jump starting.

Never attempt jump starting if the

discharged battery is frozen. It
could cause the battery to burst
or explode.

Whenever working on or around a

battery, always wear suitable eye

protectors, and remove metal
objects such as rings, bands or
other metal jewelry.

Be sure the jumper cables and

clamps on them do not have
loose or missing insulation.

Do not jump start unless cables
in suitable condition are avail-
able.

A running engine can be danger-

ous. Keep your fingers, hands,
clothing, hair and tools away
from the cooling fan, belts and
any other moving engine parts.
Removing rings, watches and
ties is advisable.

Jump starting is dangerous if it

done incorrectly. If you are un-
sure about the proper procedure
for jump starting, consult a com-
petent mechanic.

When your vehicle does not start due to a
run down (discharged) battery, the vehicle
may be jump started by connecting your
battery to another battery (called the
booster battery) with jumper cables.

How to jump start

1. Make sure the booster battery is 12
volts and the negative terminal is
grounded.
2. If the booster battery is in another
vehicle, do not let the two vehicles touch.
3. Turn off all unnecessary lights and
accessories.
4. Connect the jumper cables exactly in
the sequence illustrated.

– CONTINUED –

In case of emergency/Jump starting

9-9

(370,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

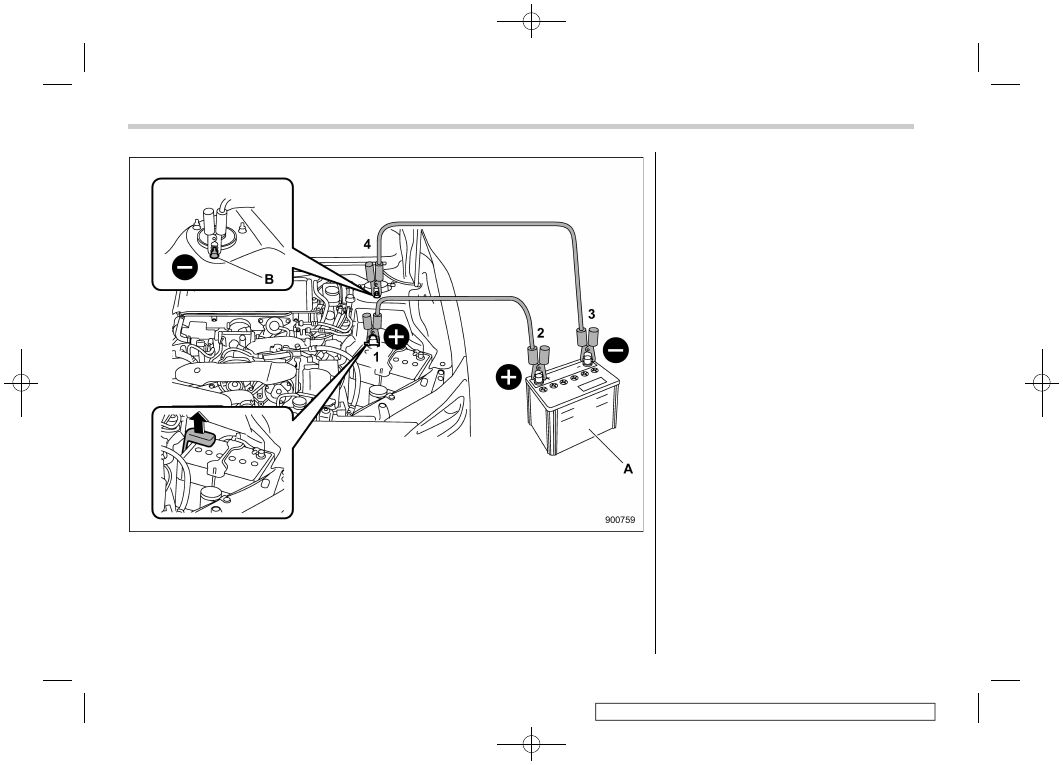

Booster battery

Strut mounting nut

(1) Connect one jumper cable to the
positive (+) terminal on the discharged
battery.
(2) Connect the other end of the
jumper cable to the positive (+) term-
inal of the booster battery.
(3) Connect one end of the other cable
to the negative (−) terminal of the
booster battery.
(4) Connect the other end of the cable
to the strut mounting nut of the vehicle
with the discharged battery.

Make sure that the cables are not near any
moving parts and that the cable clamps are
not in contact with any other metal.
5. Start the engine of the vehicle with the
booster battery and run it at moderate
speed. Then start the engine of the vehicle
that has the discharged battery.
6. When finished, carefully disconnect
the cables in exactly the reverse order.

In case of emergency/Jump starting

9-10

(371,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Engine overheating

WARNING

Never attempt to remove the radiator
cap until the engine has been shut
off and has fully cooled down. When
the engine is hot, the coolant is
under pressure. Removing the cap
while the engine is still hot could
release a spray of boiling hot cool-
ant, which could burn you very
seriously.

If the engine overheats, safely pull off the
road and stop the vehicle in a safe
location.

If steam is coming from the
engine compartment

Turn off the engine and get everyone

away from the vehicle until it cools down.
.

Contact an authorized SUBARU deal-

er.

If no steam is coming from the
engine compartment

1. Keep the engine running at idling
speed.
2. Open the engine hood to ventilate the
engine compartment. Refer to “Engine
hood” F11-9.
Confirm that the cooling fan is turning. If
the fan is not turning, immediately turn off
the engine and contact an authorized
SUBARU dealer for repair.
3. After the engine coolant temperature
has dropped, turn off the engine.

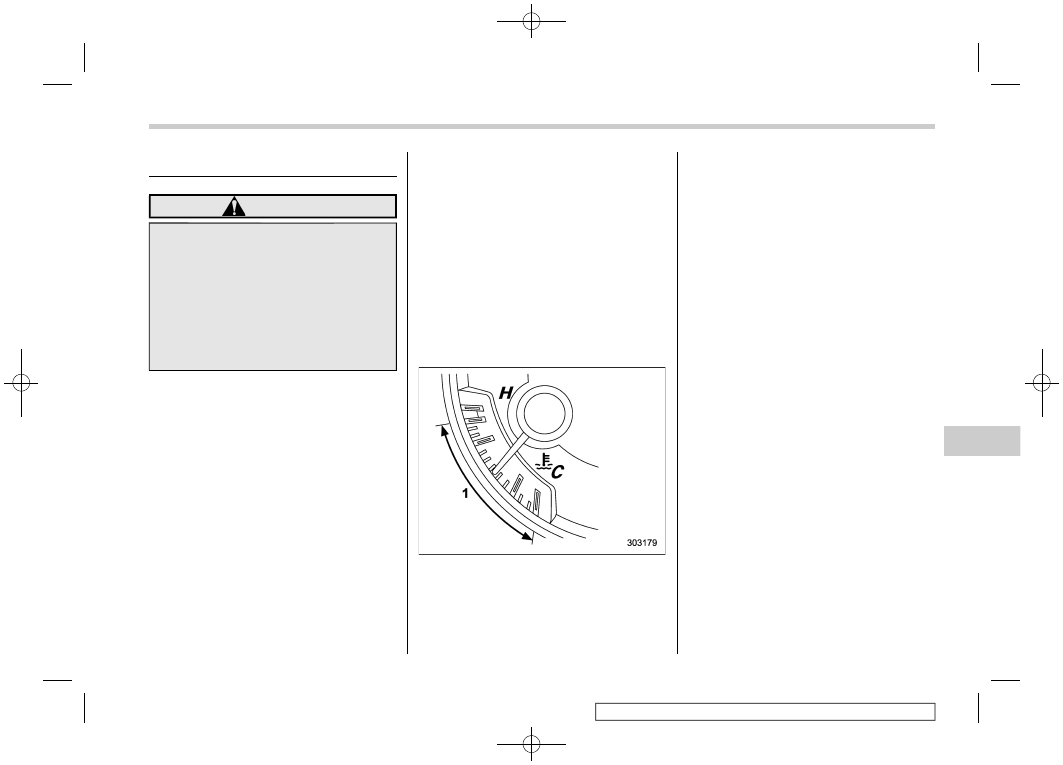

Temperature gauge
1)

Normal operating range

If temperature gauge stays in the over-
heated zone, turn off the engine. Refer to
“Temperature gauge” F3-11.

4. After the engine has fully cooled down,
check the coolant level in the reserve tank.
If the coolant level is below the “LOW”
mark, add coolant up to the “FULL” mark.

NOTE

For details about how to check the
coolant level or how to add coolant,
refer to “Engine coolant” F11-17.

5. If there is no coolant in the reserve
tank, add coolant to the reserve tank. Then
remove the radiator cap and fill the radiator
with coolant.

If you remove the radiator cap from a hot
radiator, first wrap a thick cloth around the
radiator cap, then turn the cap counter-
clockwise slowly without pressing down
until it stops. Release the pressure from
the radiator. After the pressure has been
fully released, remove the cap by pressing
down and turning it.

In case of emergency/Engine overheating

9-11

(372,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

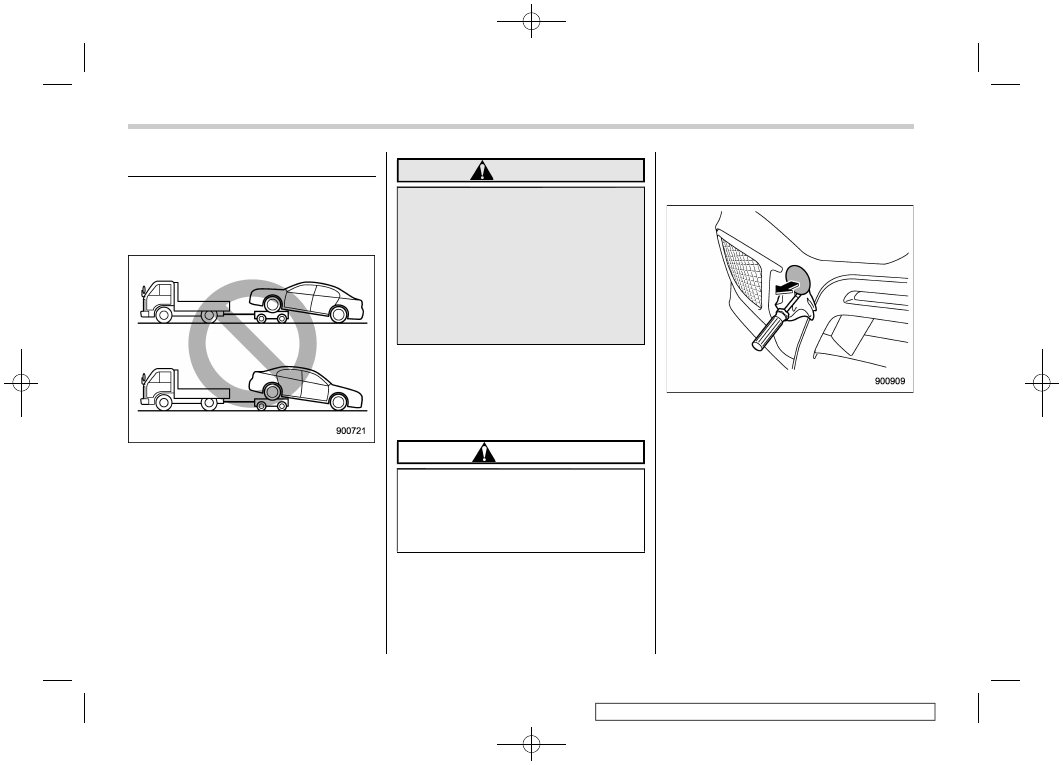

Towing

If towing is necessary, it is best done by
your SUBARU dealer or a commercial
towing service. Observe the following
procedures for safety.

WARNING

Never tow AWD models (both CVT
and MT models) with the front
wheels raised off the ground while
the rear wheels are on the ground, or
with the rear wheels raised off the
ground while the front wheels are on
the ground. This will cause the
vehicle to spin away due to the
operation or deterioration of the
center differential.

Towing and tie-down hooks/
holes

The towing hook should be used only in an
emergency.

CAUTION

Use only the specified towing hook
and tie-down hooks/holes. Never
use suspension parts or other parts
of the body for towing or tie-down
purposes.

Front towing hook:
1. Take the towing hook, screwdriver and
wheel nut wrench out of the tool bucket.

2. Cover the tip of a flat-head screwdriver
with vinyl tape or cloth so that it will not
scratch the bumper. Insert the flat-head
screwdriver into the cutout of the cover and
pry open the cover.

In case of emergency/Towing

9-12

Subaru WRX STI (2019 year). Instruction - part 22
