Subaru WRX STI (2019 year). Instruction

(103,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Locking using lock lever
1)

Rotate the lock lever forward.

Close the door.

Locking using power door locking switch
1)

Press the front side (lock side) of the
power door locking switch.

Close the door.

In this case, all closed doors are locked at
the same time.

Always make sure that all doors and the
trunk lid are locked before leaving your
vehicle.

NOTE

Make sure that you do not leave the key
inside the vehicle when locking the
doors from the outside without the key.

Locking and unlocking from
the inside

Unlock

Lock

To lock the door from the inside, rotate the
lock lever forward. To unlock the door from
the inside, rotate the lock lever rearward.

The red mark on the lock lever appears
when the door is unlocked.

Pull the inside door handle to open an
unlocked door.

Always make sure that all doors and the
trunk lid are closed before starting to drive.

– CONTINUED –

Keys and doors/Door locks

2-5

(104,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

WARNING

Keep all doors locked when you
drive, especially when small chil-
dren are in your vehicle.

Along with the proper use of seat-
belts and child restraints, locking
the doors reduces the chance of
being thrown out of the vehicle in an
accident.

It also helps prevent passengers
from falling out by preventing a door
from being accidentally opened, and
intruders from unexpectedly open-
ing doors and entering your vehicle.

Battery drainage prevention
function

If a door is not completely closed, the
interior lights will remain illuminated as a
result. However, several lights will be
automatically turned off by the battery
drainage prevention function to prevent
the battery from discharging. The following
interior lights will be affected by this
function.

Item

Switch

position

Automatically turning

off

Map lights*

OFF*

Approximately 20

minutes later

Dome light

DOOR

Approximately 20

minutes later

Ignition
switch light

—

Approximately 20

minutes later

Trunk light

—

Approximately 20

minutes later

*: The battery drainage prevention function
affects only the map lights on models with the
moonroof, and only when the map light switches
are in the OFF position. The map lights on
models without the moonroof do not turn off
automatically, so push the light switches manu-
ally to turn them off.

The operational/non-operational setting of
this function can be changed by a
SUBARU dealer. Contact your SUBARU
dealer to change the setting.

NOTE

The factory setting (default setting)

for this function is set as “operational”.
.

When leaving the vehicle, make sure

that all doors and the trunk lid are
completely closed.
.

The battery drainage prevention

function does not operate while the
key is in the ignition switch.

Keys and doors/Door locks

2-6

(105,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Power door locking switches

Lock

Unlock

All doors can be locked and unlocked by
the power door locking switches located at
the driver’s side and the front passenger’s
side doors.

To lock the doors, push the front side of the
switch.
To unlock the doors, push the rear side of
the switch.

When you close the doors after you set the
door locks, the doors remain locked.

NOTE

Make sure that you do not leave the key
inside the vehicle before locking the
doors from the outside using the power
door locking switches.

Key lock-in prevention func-
tion

This function prevents the doors from
being locked under the following condi-
tions.
.

The key is still in the ignition switch

(models without “keyless access with
push-button start system”)
.

The ignition switch is in the “ON”

position (models with “keyless access with
push-button start system”)

This function’s operational/non-opera-
tional setting can be changed by a
SUBARU dealer. Contact a SUBARU
dealer for details.

NOTE

The factory setting (default setting)

for this function is set as “operational”.
.

When leaving the vehicle, make sure

you are holding the key before locking
the doors.
.

When getting out of the vehicle from

a rear door, make sure to unlock all the

doors by pushing the unlock side of the
power door locking switch.

If a rear door is unlocked from the
inside door lever then the door is
opened and closed, the Key lock-in
prevention function will be triggered.
All doors will be unlocked, the Key lock-
in prevention warning indicator “

”

will appear and the warning chime will
also sound.

Behavior with key lock-in preven-
tion function operational

With the driver’s door open, the doors are
automatically kept unlocked even if the
front side of the power door locking switch
is pressed.

Behavior with key lock-in preven-
tion function non-operational

If the lock lever is turned to the front

(“LOCK”) position with the driver’s door
open and the driver’s door is then closed
with the lock lever in that position, the
driver’s door is locked.
.

If the spare key is used to lock the

driver’s door from the outside of the
vehicle, the door is locked.

Keys and doors/Power door locking switches

2-7

(106,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Keyless access with push-
button start system (if
equipped)

You can perform the following operations
using “keyless access with push-button
start system” when you are holding the
access key fob.
.

Locking and unlocking of the doors

Opening the trunk

Starting and stopping the engine. For

details, refer to “Models with push-button
start systems” F7-11.
.

Arming and disarming the alarm sys-

tem. For details, refer to “Alarm system”
F2-24.

Safety precautions

Regarding radio wave

WARNING

If you wear an implanted pacemaker
or an implanted defibrillator, stay at
least 8.7 in (22 cm) away from the
transmitting antennas installed on
the vehicle.

The radio waves from the transmit-
ting antennas on the vehicle could
adversely affect the operation of

implanted pacemakers and im-
planted defibrillators.

If you wear electric medical equip-
ment other than an implanted pace-
maker or an implanted defibrillator,
before using the keyless access
with push-button start system, refer
to “Radio waves used for the key-
less access with push-button start
system” F2-10, and contact the
electric medical equipment manu-
facturer for more information. The
radio waves from the transmitting
antennas on the vehicle could ad-
versely affect the operation of the
electric medical equipment.

NOTE

The status of the access key fob and
environmental conditions may interfere
with the communication between the
access key fob and the vehicle under
the following conditions.
.

When you operate near a source of

strong radio waves or other interfer-
ence, such as a broadcast station or
power transmission lines
.

When products that transmit radio

waves are used, such as an access key
fob or a remote transmitter key fob of
another vehicle

When you carry the access key fob

of your vehicle together with an access
key fob or a remote transmitter of
another vehicle
.

When the access key fob is placed

near wireless communication equip-
ment such as a cell phone, or near a
metallic object
.

When metallic accessories are at-

tached to the access key fob
.

When you carry the access key fob

with electronic appliances such as a
laptop computer
.

When the battery of the access key

fob is discharged

In such cases, it may not be possible to
lock or unlock the doors or start the
engine.

Regarding malfunction

CAUTION

Never leave or store the access

key fob inside the vehicle or
within 6.6 ft (2 m) around the
vehicle (e.g., in the garage). The
access key fob may be locked
inside the vehicle, or the battery
may discharge rapidly. Note that
the push-button ignition switch
may not turn on in some cases

Keys and doors/Keyless access with push-button start system

2-8

(107,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

depending on the location of the
access key fob.

The access key fob contains

electronic components. Observe
the following precautions to pre-
vent malfunctions or battery dis-
charge.

– It is recommended that the

battery be replaced by a
SUBARU dealer to avoid the
damage at the time of replace-
ment.

– Do not get the access key fob

wet. If the access key fob gets
wet, wipe it off immediately
and let it dry completely.

– Do not apply strong impacts to

the access key fob.

– Never leave the access key

fob in direct sunlight or any-
where that may become hot,
such as on the dashboard.

– Do not wash the access key

fob in an ultrasonic washer.

– Do not leave the access key

fob in humid or dusty loca-
tions, or near personal com-
puters or home electric appli-
ances.

– Keep the access key fob away

from magnetic sources.

– Do not leave the access key

fob near a battery charger or
any electrical accessories.

– Do not apply metallic window

tint or attach metallic objects
to the windows.

– Do not fit non genuine acces-

sories or parts.

NOTE

After the vehicle battery is dis-

charged or replaced, initialization of
the steering lock system may be re-
quired to start the engine. In this case,
perform the following procedure to
initialize the steering lock.

1) Turn the push-button ignition
switch to the “OFF” position. For de-
tails, refer to “Switching power status”
F3-7.
2) Open and close the driver’s door.
3) Wait for approximately 10 seconds.

When the steering is locked, the initi-
alization is completed.
.

Do not leave the access key fob in

the following places.

– On the instrument panel
– On the floor

– Inside the glove box
– Inside the door trim pocket
– On the rear seat
– On the rear shelf
– Inside the trunk

If you do, the following situations
may occur.

– The access key fob is mistakenly
locked inside the vehicle.
– A false warning issues although
no malfunction actually occurs.
– No warning issues even when
any malfunction occurs.

– CONTINUED –

Keys and doors/Keyless access with push-button start system

2-9

(108,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Regarding setting

NOTE

You can change the operational/non-

operational setting for the keyless
access function. For the setting proce-
dure, refer to “Disabling keyless ac-
cess function” F2-14.
.

For detailed information about the

operation method for the push-button
ignition switch while the keyless ac-
cess function is switched to the non-
operational mode, refer to “Access key
fob – if access key fob does not operate
properly” F9-17.

Radio waves used for the keyless
access with push-button start sys-
tem

The keyless access with push-button start
system uses radio waves of 134 kHz, in
addition to the radio waves used for the
remote keyless entry system. The radio
waves are periodically output from the
antennas installed on the vehicle as shown
in the following illustration.

Antenna

Locking and unlocking by
holding the access key fob

With the access key fob carried within the
operating range, you can lock/unlock the
doors just by touching the door handle.

NOTE

You can lock/unlock the vehicle with
the remote keyless entry system. For
details, refer to “Remote keyless entry
system” F2-18

Operating ranges

Antenna

Operating range

The operating ranges of the door locking/
unlocking functions and the trunk lid open-
ing function are approximately 16 to 32 in
(40 to 80 cm) from the respective door

Keys and doors/Keyless access with push-button start system

2-10

(109,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

handles and the trunk ornament.

LED indicator

When the access key fob is within either of
the operating ranges of the front doors, the
LED indicator on the access key fob
flashes. When the keyless access func-
tions are disabled, the LED indicator does
not flash unless a button on the access key
fob is pressed.

How to lock and unlock

Unlocking

Carry the access key fob, and grip the door
handle.
.

When the driver’s door handle is

gripped, only the driver’s door will be
unlocked.
.

When the front passenger’s door han-

dle is gripped, all doors will be unlocked.

Also, an electronic chirp will sound twice
and the hazard warning flashers will flash
twice.

Opening trunk

Trunk opener button

Carry the access key fob, and press the
trunk opener button.
.

Only the trunk lid will be unlocked and

opened.
.

An electronic chirp will sound twice and

the hazard warning flashers will flash
twice.

– CONTINUED –

Keys and doors/Keyless access with push-button start system

2-11

(110,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Locking

Door lock sensor (above and below)

Carry the access key fob, close all doors
and the trunk lid and touch the door lock
sensor on the door handle.
.

All doors will be locked.

An electronic chirp will sound once and

the hazard warning flashers will flash once

NOTE

After touching the door lock sensor to
lock all of the doors, if you touch the
door lock sensor once more to attempt
the lock operation without first unlock-
ing the doors, nothing will happen,
even if the door lock sensor is touched.
In this case, perform the unlocking
operation once first. You can then
touch the door lock sensor to lock the

doors.

Door unlock selection function

You can unlock only the door(s) that has/
have been selected.
You can change the setting as follows.
.

Operate the multi-function display (col-

or LCD). For details, refer to “Keyless
Access setting” F3-62
.

Have the setting changed by a

SUBARU dealer.

Unlock using PIN Code Ac-
cess

Trunk opener button

While all doors are locked, you can unlock
the doors without a key by operating the
trunk opener button.

NOTE

PIN Code Access will be helpful if the
key is accidentally left in the vehicle. It
is recommended that a 5-digit security
code (PIN code) is registered.

Preparation for registering a PIN
code

1. Close all doors (including the trunk).
2. Press and hold the “ ” button on the
access key fob. Then all doors (including
the trunk) will be locked.
3. Keep the “ ” button pressed, and
press the trunk opener button within 5
seconds after step 2.
4. Press and hold the trunk opener button
for more than 5 seconds. Then a chirp will
sound.
5. Press the “ ” button on the access key
fob while the chirp sounds.
Then the chirp will stop and the prepara-
tion is complete.

NOTE

If you do not press the “ ” button on
the access key fob, the chirp will sound
for 30 seconds. In this case, the pre-
paration for registering a PIN code does
not complete even if the chirp stops.

Keys and doors/Keyless access with push-button start system

2-12

(111,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Registration for a PIN code

For example, to register “32468” as the
PIN code, perform the following proce-
dure.

1. Press the trunk opener button three
times.
2. After a buzzer (ding) sounds once,
press the trunk opener button twice.
3. After a buzzer (ding) sounds once,
press the trunk opener button four times.
4. After a buzzer (ding) sounds once,
press the trunk opener button six times.
5. After a buzzer (ding) sounds once,
press the trunk opener button eight times.
6. Perform steps 1 to 5 again within
approximately 30 seconds after the buzzer
starts sounding intermittently.
7. All doors will be unlocked and locked.
Then the PIN code will be registered.

NOTE

If you make an error during the

registration procedure, open the dri-
ver’s door and then close it. Then, start
over from the procedure described in
“Preparation”.
.

To protect your vehicle from theft,

you cannot register “00000”, “11111” to
“99999” or “12345” as a PIN code.
.

Do not register your vehicle license

plate number or simple numbers such
as “11122” or “12121” as a PIN code.
Doing so will increase the risk of
vehicle theft.
.

When you try to register “22222”, the

registered PIN code will be deleted. You
cannot unlock the doors by PIN Code
Access until a new code is registered.
.

After registering a new PIN code,

make sure that you can unlock the
doors using the PIN code.
.

When you delete the PIN code while

the keyless access function is dis-
abled, the keyless access function will
be enabled.
.

Reregister the PIN code in the fol-

lowing case.

– when you forget the PIN code
– when you want to change the PIN
code

Unlocking

Perform steps 1 to 5 described in “Regis-
tration”.

NOTE

You cannot unlock by PIN Code

Access in the following cases.

– when the access key fob is within
the operating ranges
– when the ignition switch is in the
“ACC” or “ON” position

If you make an operation error dur-

ing the unlocking procedure, start over
with the unlocking procedure after
waiting for 5 seconds or longer.
.

To protect your vehicle from theft, a

buzzer will sound if incorrect PIN codes
are entered five times continuously. If
this occurs, you cannot unlock the
doors by PIN Code Access for 5
minutes.

Power saving function

The keyless access function will be dis-
abled in the following cases to protect the
battery of the access key fob and the
vehicle battery.

Case 1: When the keyless access function
and the remote keyless entry system have
not been used for 2 weeks or longer while
all doors are locked

– CONTINUED –

Keys and doors/Keyless access with push-button start system

2-13

(112,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Case 2: When the access key fob has
been left in the operating range for 10
minutes or longer while all doors are
locked

Recovery from power saving mode

When one of the following is operated, the
keyless access function will be recovered.
Case 1:
.

Unlock the doors by operating any

procedure other than gripping the front
passenger’s door handle
.

Lock or unlock the doors

Open a door and then close it

Case 2:
.

Unlock the doors by gripping the door

handle
.

Lock the doors by touching the door

lock sensor
.

Lock or unlock the doors by using the

remote keyless entry system
.

Lock or unlock the doors by using the

power door locking switch
.

Open either of the front doors

Selecting audible signal op-
eration

Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock. If desired, you may
change the volume of the audible signal
or turn it off. For details, refer to “Keyless
buzzer volume setting” F3-61.

Warning chimes and warning
indicator

The warning chime and the access key
warning light serve the following purposes:
.

To minimize improper operation of the

keyless access with push-button start
system
.

To protect your vehicle from theft

For details, refer to “Warning chimes and
warning indicator of the keyless access
with push-button start system” F3-28.

Disabling keyless access
function

WARNING

If you wear an implanted pacemaker
or an implanted defibrillator, operate
the driver’s door to disable the key-
less access function. Otherwise, the
operation of an implanted pace-
maker or implanted defibrillator
may be affected by the radio waves
from the transmitter antenna.

When the vehicle is not going to be used
for a long time, or when you choose not to
use the keyless access function, the key-
less access function can be disabled.

NOTE

The locking and unlocking function

by the remote keyless entry system is
not disabled.
.

To start the engine while the func-

tions are disabled, perform the proce-
dure described in “Starting engine”
F9-18.
.

We recommend that you disable the

keyless access functions under the
following conditions.

– When the vehicle is not going to
be used for an extended period of

Keys and doors/Keyless access with push-button start system

2-14

(113,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

time
– When the keyless access func-
tions are not going to be used

Disabling functions

By operating the access key fob

If you have registered a PIN code for PIN
Code Access, you can disable the keyless
access function by operating the access
key fob. For details about registering a PIN
code, refer to “Registration for a PIN code”
F2-13.
1. Open the driver’s door.

2. Rotate the lock lever forward.

3. Press and hold the “ ” button and “

”

button on the access key fob simulta-
neously for more than 5 seconds.

A chirp sound will be heard, and the
function will be disabled.

By operating the driver’s door

1. Sit in the driver’s seat, and close the
door.

2. Push the rear side (unlock side) of the
power door locking switch.
3. Within 5 seconds after step 2 is
performed, open the driver’s door.
4. Within 5 seconds after step 3 is
performed, push the rear side (unlock
side) of the power door locking switch
twice while the door is open.
5. Within 10 seconds after step 4 is
performed, close and open the driver’s
door twice.
6. Within 10 seconds after step 5 is
performed, push the rear side (unlock
side) of the power door locking switch
twice while the door is open.

– CONTINUED –

Keys and doors/Keyless access with push-button start system

2-15

(114,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

7. Within 10 seconds after step 6 is
performed, close and open the driver’s
door once.
8. Within 5 seconds after step 7 is
performed, close the door. A chirp sound
will be heard, and the functions will be
disabled.

NOTE

In steps 4 and 6, press the power door
locking switch slowly. If the switch is
pressed quickly, the functions may not
be disabled.

Enabling functions

When the procedure to disable the func-
tions is performed again, the functions are
enabled.

NOTE

The keyless access function will be

enabled only if you perform the proce-
dure in the same manner you disabled
the function (for example, when dis-
abling by operating the driver’s door,
the function will not be enabled even if
you operate the access key fob).

Press the push-button ignition

switch if you do not know the proce-
dure in which the keyless access func-
tion was disabled.

– When disabling by operating the
driver’s door: a chirp will not be
heard
– When disabling by operating the
access key fob: a chirp will be heard

When access key fob does
not operate properly

Refer to “Access key fob – if access key
fob does not operate properly” F9-17.

Replacing battery of access
key fob

Refer to “Replacing battery of access key
fob” F11-52.

Replacing access key fob

Access key fobs can be replaced at
SUBARU dealers. For more details, con-
tact a SUBARU dealer.

Certification for keyless ac-
cess with push-button start
system

U.S.-spec. models

FCC ID: HYQ14AHK
FCC ID: Y8PFJ17-1
FCC ID: Y8PSSPIMB02

CAUTION

FCC WARNING

Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.

NOTE

This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This de-
vice may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.

Keys and doors/Keyless access with push-button start system

2-16

(115,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

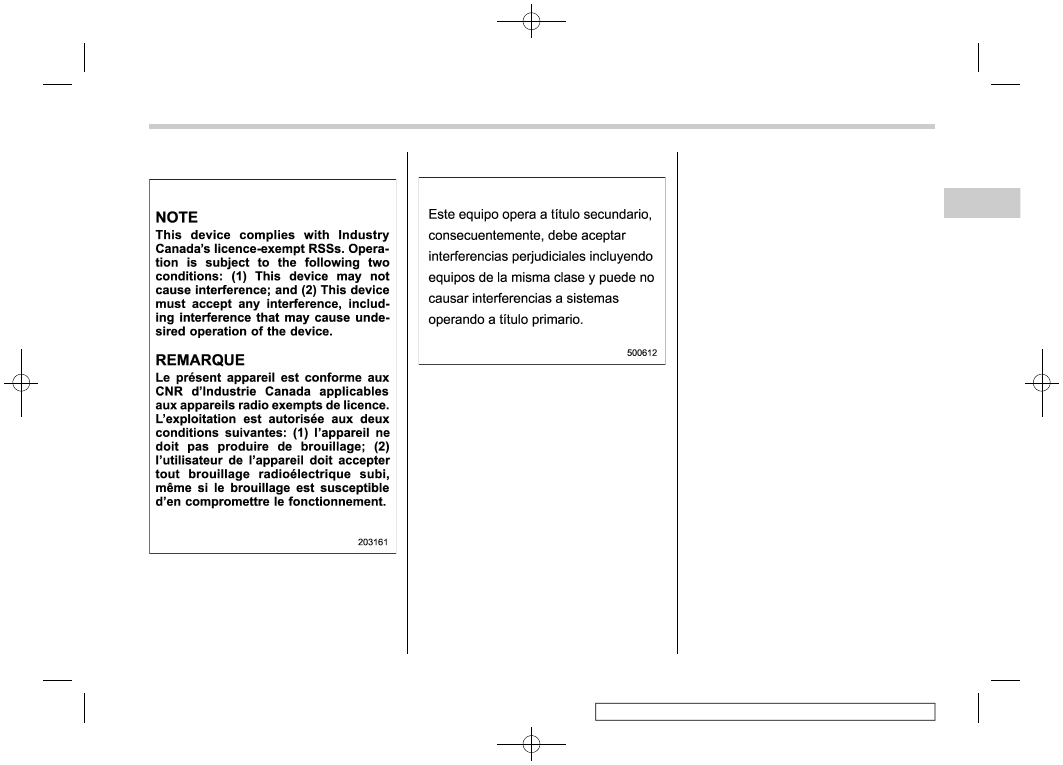

Canada-spec. models

Mexico-spec. models

IFT
RLVDE1415-1661
14AHK
DENSO

Tips

Operating range tips

Regarding malfunction:
The keyless access function may not
operate properly due to the following
reasons.
.

The access key fob is placed too close

to the vehicle body (in this case, repeat the
operation from further away).
.

The access key fob is placed near the

ground or in an elevated location from the

ground, even if it is in the operating range.
.

The status of the access key fob and

the radio wave conditions around the
vehicle (in this case, perform the proce-
dure described in “Locking and unlocking”
F9-17.)

Precautions:
.

When the access key fob is within the

operating range, it is possible for anyone,
even someone who is not carrying the
access key fob, to operate the keyless
access function. Please note that the
keyless access function is only available
for the following items when the access
key fob is detected within operating range.

– Door handle
– Door lock sensor
– Trunk opener button

It is not possible to lock the doors using

the keyless access function when the
access key fob is inside the vehicle.
However, depending on the status of the
access key fob and the environmental
conditions, the access key fob may be
locked inside the vehicle. Before locking,
make sure that you have the access key
fob.
.

The operating ranges may be reduced,

or the keyless access function may not
operate in the following cases:

– When the battery of the access key

– CONTINUED –

Keys and doors/Keyless access with push-button start system

2-17

(116,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

fob is discharged
– When the access key fob is in a
location with strong radio waves or
noise (e.g., near a radio tower, power
plant, broadcast station or an area
where wireless equipment is used)
– While talking on a cell phone

In such a case, perform the procedure
described in “Locking and unlocking” F9-
17
.

When an access key fob is in the

operating range, if the door handle be-
comes wet due to exposure to a significant
amount of water when the vehicle is
washed or during heavy rain, the doors
may be locked or unlocked.

Keyless access function tips

Turn off the push-button ignition switch

before locking the doors using the keyless
access function. It is not possible to lock
the doors using the keyless access func-
tion when the push-button ignition switch is
on the “ACC” or “ON” position. For details
about turning off the push-button ignition
switch, refer to “Switching power status”
F3-7.
.

If the door handle is gripped or the door

lock sensor is touched with a gloved hand,
the doors may not be locked or unlocked.
.

If the door lock sensor is touched three

times or more repeatedly, the system will

ignore the sensor operation.
.

When performing the locking proce-

dure too quickly, doors may not be locked.
After the locking procedures, it is recom-
mended to pull the REAR door handles to
confirm that the doors have been locked.
.

It is possible to lock the doors even

when one of the doors is open. After
performing the locking procedure, close
the opened door to lock it.
.

Within 3 seconds after locking the

doors by touching the door lock sensor, it
is not possible to unlock doors by gripping
the door handle.
.

When locking, be sure to carry the

access key fob to prevent locking the
access key fob in the vehicle.
.

The settings of the hazard warning

flasher operation and the volume of the
audible signal can be changed by your
SUBARU dealer. Contact your SUBARU
dealer for details. You can also change the
setting of the hazard warning flasher
operation by operating the multi-function
display (color LCD). For details, refer to
“Hazard warning flasher setting” F3-61.

Remote keyless entry system

CAUTION

Do not expose the remote trans-

mitter to severe shocks, such as
those experienced as a result of
dropping or throwing.

Do not take the remote transmit-

ter apart except when replacing
the battery.

Do not get the remote transmitter

wet. If it gets wet, wipe it dry with
a cloth immediately.

When you carry the remote trans-

mitter on an airplane, do not
press the button of the remote
transmitter while in the airplane.
When any button of the remote
transmitter is pressed, radio
waves are sent and may affect
the operation of the airplane.
When you carry the remote trans-
mitter in a bag on an airplane,
take measures to prevent the
buttons of the remote transmitter
from being pressed.

For models with “keyless access with
push-button start system”, the access
key fob is used as the transmitter for the

Keys and doors/Remote keyless entry system

2-18

(117,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

remote keyless entry system. For models
without “keyless access with push-button
start system”, the transmitter for the
remote keyless entry system is located
inside the key head.

The remote keyless entry system has the
following functions.
.

Locking and unlocking the doors with-

out a key
.

Opening the trunk without a key

Sounding a panic alarm

Arming and disarming the alarm sys-

tem. For detailed information, refer to
“Alarm system” F2-24.

The operable distance of the remote key-
less entry system is approximately 30 feet
(10 meters). However, this distance will
vary depending on environmental condi-
tions. The system’s operable distance will
be shorter in areas near a facility or
electronic equipment emitting strong radio
waves such as a power plant, broadcast
station, TV tower, or remote controller of
home electronic appliances.

NOTE

For models with “keyless access

with push-button start system”, the
remote keyless entry system will not
be activated when the push-button
ignition switch is in any position other

than the “OFF” position.
.

For models without “keyless access

with push-button start system”, the
remote keyless entry system will not
be activated when the key is inserted in
the ignition switch.

Access key fob
1)

Lock/arm button

Unlock/disarm button

Trunk opener button

PANIC button

Transmitter
1)

Lock/arm button

Unlock/disarm button

Trunk opener button

PANIC button

NOTE

The hazard warning flashers will flash
once or twice when the transmitter
button is pressed in the following
cases.
– When locking the doors
– When unlocking the doors
– When unlocking the trunk lid

Operation of the hazard warning
flashers in the above cases can be set
to “On” or “Off” by a SUBARU dealer.
Consult your SUBARU dealer for de-

– CONTINUED –

Keys and doors/Remote keyless entry system

2-19

(118,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

tails. Also, you can change the setting
using the multi-function display (color
LCD). For details, refer to “Hazard
warning flasher setting” F3-61.

Locking the doors

Press the lock/arm button to lock all doors.
An electronic chirp will sound once and the
hazard warning flashers will flash once.
If any of the doors or the trunk lid is not fully
closed, an electronic chirp will sound five
times and the hazard warning flashers will
flash five times to alert you that the doors
(or the trunk lid) are not properly closed.
When you close the door, it will automati-
cally lock and then an electronic chirp will
sound once and the hazard warning
flashers will flash once.

Unlocking the doors

Press the unlock/disarm button to unlock
the driver’s door. An electronic chirp will
sound twice and the hazard warning
flashers will flash twice. To unlock all
doors, briefly press the unlock/disarm
button a second time within 5 seconds.

NOTE

If the interval between the first and
second presses of the unlock/disarm
button (for unlocking of all of the doors)
is extremely short, the system may not
respond.

Opening the trunk lid

The trunk lid opens when the “

” button

is pressed continuously for at least 2
seconds. An electronic chirp will sound
twice and the turn signal lights will flash
twice.

NOTE

You can disable the “

” button on the

access key fob/transmitter. Contact
your SUBARU dealer to change the
setting.

Vehicle finder function

Use this function to find your vehicle
parked among many vehicles in a large
parking lot. Provided you are within 30 feet
(10 meters) of the vehicle, pressing the
lock/arm button three times in a 5-second
period will cause your vehicle’s horn to
sound once and its hazard warning
flashers to flash three times.

NOTE

If the interval between presses is too
short when you press the lock/arm
button three times, the system may
not respond to the signals from the
access key fob/remote transmitter.

Sounding a panic alarm

To activate the alarm, press the “PANIC”
button once.
The horn will sound and the hazard
warning flashers will flash.
To deactivate the panic alarm, press any
button on the access key fob/remote
transmitter. Unless a button on the access
key fob/remote transmitter is pressed, the
alarm will be deactivated after approxi-
mately 30 seconds.

Selecting audible signal op-
eration (models without
“keyless access with push-
button start system”)

Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock. If desired, you may turn
the audible signal off.

Perform the following steps to deactivate
the audible signal. You can also use the

Keys and doors/Remote keyless entry system

2-20

Subaru WRX STI (2019 year). Instruction - part 7
