The following information has been

compiled according to Code of

Federal Regulations “Title 49, Part

575”.

Tire information

& Tire labeling

Many markings (e.g. Tire size, Tire

Identification Number or TIN) are

placed on the sidewall of a tire by

tire manufacturers. These markings

can provide you with useful infor-

mation on the tire.

! Tire size

Your vehicle comes equipped with

P-Metric tire size. It is important to

understand the sizing system in

selecting the proper tire for your

vehicle. Here is a brief review of the

tire sizing system with a breakdown

of its individual elements.

! P Metric

With the P-Metric system, Section

Width is measured in millimeters.

To convert millimeters into inches,

divide by 25.4. The Aspect Ratio

(Section Height divided by Section

Width) helps provide more dimen-

sional information about the tire

size.

Example:

(1) P = Certain tire type used on

light duty vehicles such as passen-

ger cars
(2) Section Width in millimeters
(3) Aspect Ratio (= section height
7 section width).

(4) R = Radial Construction
(5) Rim diameter in inches

! Load and Speed Rating Descrip-

tions

The load and speed rating descrip-

tions will appear following the size

designation.
They provide two important facts

about the tire. First, the number

designation is its load index. Sec-

ond, the letter designation indicates

the tire’s speed rating.

Example:

(6) Load Index: A numerical code

which specifies the maximum load

a tire can carry at the speed

indicated by its speed symbol, at

maximum inflation pressure.
For example, “104” means 1,984

lbs (900 kg), “100” means 1,764 lbs

(800 kg), “90” means 1,323 lbs (600

kg).

WARNING

Load indices apply only to the

tire, not to the vehicle. Putting

a load rated tire on any vehicle

does not mean the vehicle can

be loaded up to the tire’s rated

load.

(7) Speed Rating: An alphabetical

system describing a tire’s capability

to travel at established and prede-

termined speeds.
For example, “H” means 130 mph

(210 km/h).

WARNING

Speed ratings apply only to

the tire, not to the vehicle.

Putting a speed rated tire on

any vehicle does not mean

the vehicle can be operated

at the tire’s rated speed.

The speed rating is void if

the tires are worn out, da-

maged, repaired, retreaded,

or otherwise altered from

their original condition. If

tires are repaired, re-

treaded, or otherwise al-

tered, they may not be sui-

table for original equipment

tire designed loads and

speeds.

! Tire Identification Number (TIN)

Tire Identification Number (TIN) is

marked on the intended outboard

sidewall. The TIN is composed of

four groups. Here is a brief review

of the TIN with a breakdown of its

individual elements.

(1) Manufacturer’s Identification

Mark
(2) Tire Size
(3) Tire Type Code
(4) Date of Manufacture
The first two figures identify the

week, starting with “01” to represent

the first full week of the calendar

year; the second two figures repre-

sent the year. For example, 0101

means the 1st week of 2001.

! Other markings

The following makings are also

placed on the sidewall.

! Maximum permissible inflation

pressure

The maximum cold inflation pres-

sure to which this tire may be

inflated. For example, “300 kPa

(44 PSI) MAX. PRESS”.

Consumer information and Reporting safety defects

13-3

– CONTINUED –

13-4

Consumer information and Reporting safety defects

! Maximum load rating

The load rating at the maximum

permissible weight load for this tire.

For example, “MAX. LOAD 730 kg

(1609 LBS) @ 300 kPa (44 PSI)

MAX. PRESS.”

WARNING

Maximum load rating applies

only to the tire, not to the

vehicle. Putting a load rated

tire on any vehicle does not

mean the vehicle can be

loaded up to the tire’s rated

load.

! Construction type

Applicable construction of this tire.
For example, “TUBELESS STEEL

BELTED RADIAL”

! Construction

The generic name of each cord

material used in the plies (both

sidewall and tread area) of this tire.
For example, “PLIES: TREAD 2

STEEL + 2 POLYESTER + 1

NYLON SIDEWALL 2 POLYE-

STER”

! Uniform Tire Quality Grading

(UTQG)

For details, refer to “Uniform tire

quality grading standards” F13-14

& Recommended tire inflation

pressure

! Recommended cold tire infla-

tion pressure

For the recommended cold tire

inflation pressure for your vehicle’s

tires, refer to “Tires” F12-8

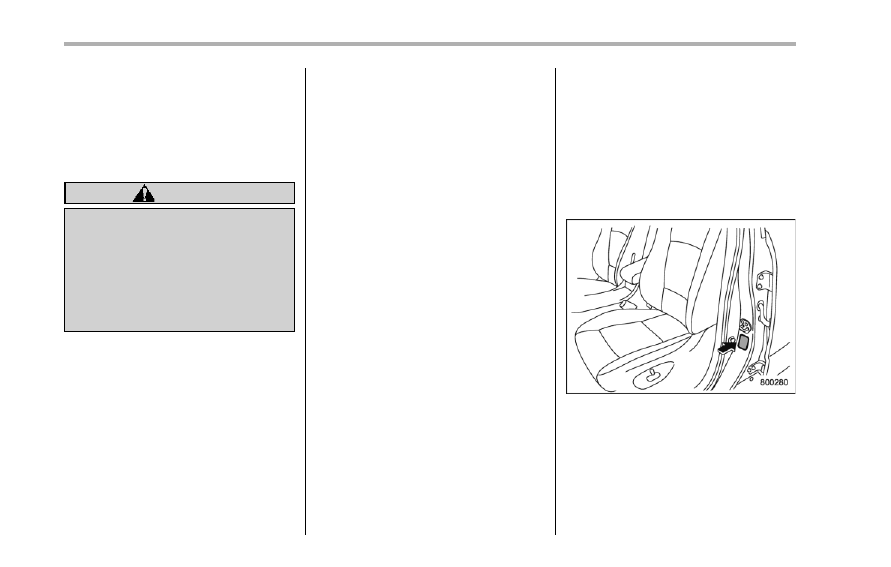

! Vehicle placard

The vehicle placard is affixed to the

driver’s side B-pillar.

Example:

The vehicle placard shows original

tire size, recommended cold tire

inflation pressure on each tire at

maximum loaded vehicle weight,

seating capacity and loading infor-

mation.

! Adverse safety consequences

of under-inflation

Driving at high speeds with exces-

sively low tire pressures can cause

the tires to flex severely and to

rapidly become hot. A sharp in-

crease in temperature could cause

tread separation, and failure of the

tire(s). Possible resulting loss of

vehicle control could lead to an

accident.

! Measuring and adjusting air

pressure to achieve proper in-
flation

Check and, if necessary, adjust the

pressure of each tire (including the

spare) at least once a month and

before any long journey. Check the

tire pressures when the tires are

cold. Use a pressure gauge to

adjust the tire pressures to the

specific values. Driving even a

short distance warms up the tires

and increases the tire pressures.

Also, the tire pressures are affected

by the outside temperature. It is

best to check tire pressure out-

doors before driving the vehicle.

When a tire becomes warm, the air

inside it expands, causing the tire

pressure to increase. Be careful not

to mistakenly release air from a

warm tire to reduce its pressure.

& Glossary of tire terminology

Accessory weight

The combined weight (in excess of

those standard items which may be

replaced) of automatic transmis-

sion, power steering, power brakes,

power windows, power seats, radio,

and heater, to the extent that these

items are available as factory-in-

stalled equipment (whether in-

stalled or not).

Bead

The part of the tire that is made of

steel wires, wrapped or reinforced

by ply cords and that is shaped to fit

the rim.

Bead separation

A breakdown of the bond between

components in the bead.

Bias ply tire

A pneumatic tire in which the ply

cords that extend to the beads are

laid at alternate angles substantially

less than 90 degrees to the center-

line of the tread.

Carcass

The tire structure, except tread and

Consumer information and Reporting safety defects

13-5

– CONTINUED –

13-6

Consumer information and Reporting safety defects

sidewall rubber which, when in-

flated, bears the load.

Chunking

The breaking away of pieces of the

tread or sidewall.

Cold tire pressure

The pressure in a tire that has been

driven less than 1 mile or has been

standing for three hours or more.

Cord

The strands forming the plies in the

tire.

Cord separation

The parting of cords from adjacent

rubber compounds.

Cracking

Any parting within the tread, side-

wall, or inner liner of the tire

extending to cord material.

Curb weight

The weight of a motor vehicle with

standard equipment including the

maximum capacity of fuel, oil and

coolant, and if so equipped, air

conditioning and additional weight

optional engine.

Extra load tire

A tire designed to operate at higher

loads and higher inflation pressure

than the corresponding standard

tire.

Groove

The space between two adjacent

tread ribs.

Innerliner

The layer(s) forming the inside sur-

face of a tubeless tire that contains

the inflating medium within the tire.

Innerliner separation

The parting of the innerliner from

cord material in the carcass.

Intended outboard sidewall

(1)

The sidewall that contains a

whitewall, bears white lettering

or bears manufacturer, brand,

and/or model name molding that

is higher or deeper than the

same molding on the other side-

wall of the tire, or

(2)

The outward facing sidewall

of an asymmetrical tire that has

a particular side that must al-

ways face outward when mount-

ing on a vehicle.

Light truck (LT) tire

A tire designated by its manufac-

turer as primarily intended for use

on lightweight trucks or multipur-

pose passenger vehicles.

Load rating

The maximum load that a tire is

rated to carry for a given inflation

pressure.

Maximum inflation pressure

The maximum cold inflation pres-

sure to which a tire may be inflated.

Maximum load rating

The load rating for a tire at the

maximum permissible inflation

pressure for that tire.

Maximum loaded vehicle weight

The sum of:

(a)

Curb weight

(b)

Accessory weight

(c)

Vehicle capacity weight

(d)

Production options weight

Maximum permissible inflation

pressure

The maximum cold inflation pres-

sure to which a tire may be inflated.

Measuring rim

The rim on which a tire is fitted for

physical dimension requirements.

Normal occupant weight

150 lbs (68 kg) times the number of

occupants specified in the second

column of Table 1 that is appended

to the end of this section.

Occupant distribution

Distribution of occupants in a vehi-

cle as specified in the third column

of Table 1 that is appended to the

end of this section.

Open splice

Any parting at any junction of tread,

sidewall, or innerliner that extends

to cord material.

Outer diameter

The overall diameter of an inflated

new tire.

Overall width

The linear distance between the

exteriors of the sidewalls of an

inflated tire, including elevations

due to labeling, decorations, or

protective bands or ribs.

Passenger car tire

A tire intended for use on passen-

ger cars, multipurpose passenger

vehicles, and trucks, that have a

gross vehicle weight rating (GVWR)

of 10,000 lbs (4,535 kg) or less.

Ply

A layer of rubber-coated parallel

cords.

Ply separation

A parting of rubber compound

between adjacent plies.

Pneumatic tire

A mechanical device made of rub-

ber, chemicals, fabric and steel or

other materials, that, when

mounted on an automotive wheel,

provides the traction and contains

the gas or fluid that sustains the

load.

Production options weight

The combined weight of those

installed regular production options

weighing over 5.1 lbs (2.3 kg) in

excess of those standard items

which they replace, not previously

considered in curb weight or acces-

sory weight, including heavy duty

brakes, ride levelers, roof rack,

heavy duty battery, and special

trim.

Radial ply tire

A pneumatic tire in which the ply

cords that extend to the beads are

laid at substantially 90 degrees to

the centerline of the tread.

Recommended inflation pres-

sure

The cold inflation pressure recom-

mended by a vehicle manufacturer.

Reinforced tire

A tire designed to operate at higher

loads and at higher inflation pres-

sures than the corresponding stan-

dard tire.

Rim

A metal support for a tire or a tire

and tube assembly upon which the

tire beads are seated.

Rim diameter

Nominal diameter of the bead seat.

Rim size designation

Rim diameter and width.

Consumer information and Reporting safety defects

13-7

– CONTINUED –

13-8

Consumer information and Reporting safety defects

Rim type designation

The industry of manufacturer’s des-

ignation for a rim by style or code.

Rim width

Nominal distance between rim

flanges.

Section width

The linear distance between the

exteriors of the sidewalls of an

inflated tire, excluding elevations

due to labeling, decoration, or

protective bands.

Sidewall

That portion of a tire between the

tread and bead.

Sidewall separation

The parting of the rubber com-

pound from the cord material in

the sidewall.

Test rim

The rim on which a tire is fitted for

testing, and it may be any rim listed

as appropriate for use with that tire.

Tread

That portion of a tire that comes

into contact with the road.

Tread rib

A tread section running circumfer-

entially around a tire.

Tread separation

Pulling away of the tread from the

tire carcass.

Treadwear indicators (TWI)

The projections within the principal

grooves designed to give a visual

indication of the degrees of wear of

the tread.

Vehicle capacity weight

The rated cargo and luggage load

plus 150 lbs (68 kg) times the

vehicle’s designated seating capa-

city.

Vehicle maximum load on the

tire

Load on an individual tire that is

determined by distributing to each

axle its share of the maximum

loaded vehicle weight and dividing

by 2.

Vehicle normal load on the tire

Load on an individual tire that is

determined by distributing to each

axle its share of the curb weight,

accessory weight, and normal oc-

cupant weight (distributed in accor-

dance with Table 1 that is ap-

pended to the end of this section)

and dividing by 2.

Wheel-holding fixture

The fixture used to hold the wheel

and tire assembly securely during

testing.

Table 1 — Occupant loading and distribution for vehicle normal load for

various designated seating capacities

Designated seating

capacity, number of

occupants

Vehicle normal load,

number of occupants

Occupant distribution in a

normally loaded vehicle

2 through 4

2 in front.

5 through 10

2 in front, 1 in second

seat.

11 through 15

2 in front, 1 in second

seat, 1 in third seat, 1 in

fourth seat.

16 through 22

2 in front, 2 in second

seat, 2 in third seat, 1 in

fourth seat.

& Tire care – maintenance and

safety practices

Check on a daily basis that the

tires are free from serious damage,

nails, and stones. At the same time,

check the tires for abnormal wear.

Inspect the tire tread regularly

and replace the tires before their

tread wear indicators become visi-

ble. When a tire’s tread wear

indicator becomes visible, the tire

is worn beyond the acceptable limit

and must be replaced immediately.

With a tire in this condition, driving

at even low speeds in wet weather

can cause the vehicle to hydro-

plane. Possible resulting loss of

vehicle control can lead to an

accident.

Consumer information and Reporting safety defects

13-9

– CONTINUED –

13-10

Consumer information and Reporting safety defects

To maximize the life of each tire

and ensure that the tires wear

uniformly, it is best to rotate the

tires every 7,500 miles (12,000 km).

For information about the tire rota-

tion order, refer to “Tire rotation”

F11-26

Replace any damaged or

unevenly worn tires at the time of

rotation. After tire rotation, adjust

the tire pressures and make sure

the wheel nuts are correctly tigh-

tened. For information about the

tightening torque and tightening

sequence for the wheel nuts, refer

to “Flat tires” F9-6

& Vehicle load limit – how to

determine

The load capacity of your vehicle is

determined by weight, not by avail-

able cargo space. The load limit of

your vehicle is shown on the

vehicle placard attached to the

driver’s side B-pillar. Locate the

statement “The combined weight

of occupants and cargo should

never exceed XXX kg or XXX lbs”

on your vehicle’s placard.
The vehicle placard also shows

seating capacity of your vehicle.
The total load capacity includes the

total weight of driver and all pas-

sengers and their belongings, any

cargo, any optional equipment such

as a trailer hitch, roof rack or bike

carrier, etc., and the tongue load of

a trailer. Therefore cargo capacity

can be calculated by the following

method.
Cargo capacity = Load limit − (total

weight of occupants + total weight

of optional equipment + tongue

load of a trailer (if applicable))

For information about vehicle load-

ing, refer to “Loading your vehicle”

F8-12

For information about towing capa-

city and weight limits, refer to
“Trailer towing” F8-21

! Calculating total and load ca-

pacities varying seating con-

figurations

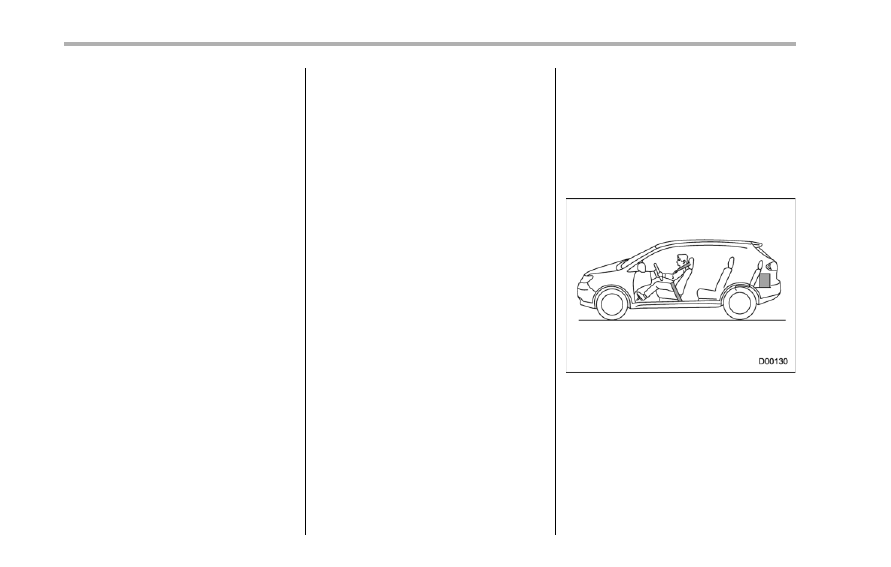

Calculate the available load capa-

city as shown in the following

examples.

Example 1A

Vehicle capacity weight of the

vehicle is 1,157 lbs (525 kg), which

is indicated on the vehicle placard

with the statement “The combined

weight of occupants and cargo

should never exceed 525 kg or

1,157 lbs”.

For example, if the vehicle has one

occupant weighing 154 lbs (70 kg)

plus cargo weighing 882 lbs (400

kg).

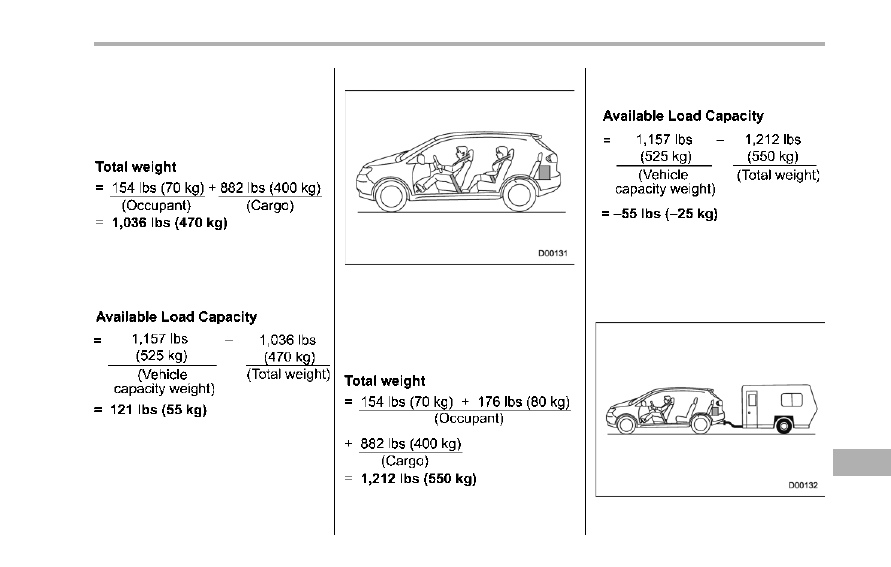

Calculate the total weight.

Calculate the available load ca-

pacity by subtracting the total

weight from the vehicle capacity

weight of 1,157 lbs (525 kg).

The result of step 2 shows that a

further 121 lbs (55 kg) of cargo can

be carried.

Example 1B

For example, if a person weighing

176 lbs (80 kg) now enters the

same vehicle (bringing the number

of occupants to two), the calcula-

tions are as follows.

Calculate the total weight.

Calculate the available load ca-

pacity.

The total weight now exceeds

the capacity weight by 55 lbs (25

kg), so the cargo weight must be

reduced by 55 lbs (25 kg) or more.

Example 2A

Vehicle capacity weight of the

Consumer information and Reporting safety defects

13-11

– CONTINUED –

13-12

Consumer information and Reporting safety defects

vehicle is 1,157 lbs (525 kg), which

is indicated on the vehicle placard

with the statement “The combined

weight of occupants and cargo

should never exceed 525 kg or

1,157 lbs”.
For example, the vehicle has one

occupant weighing 165 lbs (75 kg)

plus cargo weighing 705 lbs (320

kg). In addition, the vehicle is fitted

with a trailer hitch weighing 22 lbs

(10 kg), to which is attached a

trailer weighing 1,764 lbs (800 kg).

10% of the trailer weight is applied

to the trailer tongue (i.e. Tongue

load = 176 lbs (80 kg)).

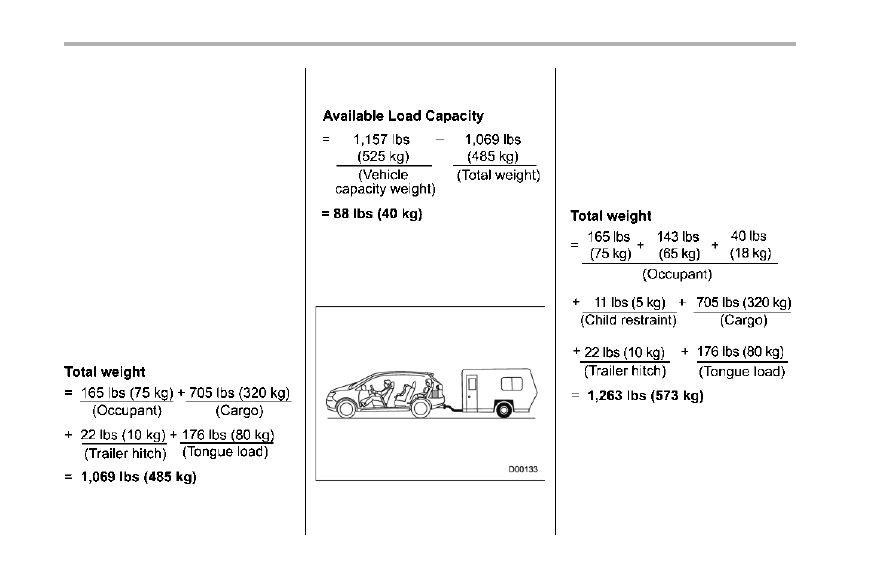

Calculate the total weight.

Calculate the available load ca-

pacity.

The result of step 2 shows that a

further 88 lbs (40 kg) of cargo can

be carried.

Example 2B

For example, if a person weighing

143 lbs (65 kg) and a child weighing

40 lbs (18 kg) now enter the same

vehicle (bringing the number of

occupants to three), and a child

restraint system weighing 11 lbs (5

kg) is installed in the vehicle for the

child to use, the calculations are as

follows.

Calculate the total weight.

Calculate the available load ca-

pacity.

The total weight now exceeds

the capacity weight by 105 lbs (48

kg), so the cargo weight must be

reduced by 105 lbs (48 kg) or more.

& Determining compatibility of

tire and vehicle load capaci-

ties

The sum of four tires’ maximum

load ratings must exceed the max-

imum loaded vehicle weight

(“GVWR”). In addition, sum of the

maximum load ratings of two front

tires and of two rear tires must

exceed each axle’s maximum

loaded capacity (“GAWR”). Original

equipment tires are designed to

fulfill those conditions.
The maximum loaded vehicle

weight is referred to Gross Vehicle

Weight Rating (GVWR). And each

axle’s maximum loaded capacity is

referred to Gross Axle Weight Rat-

ing (GAWR). The GVWR and each

axle’s GAWR are shown on the

vehicle certification label affixed to

the driver’s door.
The GVWR and front and rear

GAWRs are determined by not only

the maximum load rating of tires but

also loaded capacities of the vehi-

cle’s suspension, axles and other

parts of the body.
Therefore, this means that the

vehicle cannot necessarily be

loaded up to the tire’s maximum

load rating on the tire sidewall.

& Adverse safety conse-

quences of overloading on

handling and stopping and

on tires

Overloading could affect vehicle

handling, stopping distance, vehicle

and tire as shown in the following.

This could lead to an accident and

possibly result in severe personal

injury.

Vehicle stability will deteriorate.

Heavy and/or high-mounted

loads could increase the risk of

rollover.

Stopping distance will increase.

Brakes could overheat and fail.

Suspension, bearings, axles and

other parts of the body could break

or experience accelerated wear

that will shorten vehicle life.

Tires could fail.

Tread separation could occur.

Tire could separate from its rim.

& Steps for Determining Cor-

rect Load Limit

Locate the statement “The com-

bined weight of occupants and

cargo should never exceed XXX

kg or XXX lbs.” on your vehicle’s

placard.

Determine the combined weight

of the driver and passengers that

will be riding in your vehicle.

Subtract the combined weight of

the driver and passengers from

Consumer information and Reporting safety defects

13-13

– CONTINUED –

13-14

Consumer information and Reporting safety defects

XXX kg or XXX lbs.

The resulting figure equals the

available amount of cargo and

luggage load capacity. For exam-

ple, if the “XXX” amount equals

1,400 lbs (635 kg) and there will be

five- 150 lbs (68 kg) passengers in

your vehicle, the amount of avail-

able cargo and luggage load capa-

city is 650 lbs. (1,400 − 750 (5 6

150) = 650 lbs).

Determine the combined weight

of luggage and cargo being loaded

on the vehicle. That weight may not

safely exceed the available cargo

and luggage load capacity calcu-

lated in Step 4.

If your vehicle will be towing a

trailer, load from your trailer will be

transferred to your vehicle. Consult

this manual to determine how this

reduces the available cargo and

luggage load capacity of your ve-

hicle.

Uniform tire quality grading

standards

This information indicates the rela-

tive performance of passenger car

tires in the area of treadwear,

traction, and temperature resis-

tance. This is to aid the consumer

in making an informed choice in the

purchase of tires.
Quality grades can be found where

applicable on the tire sidewall be-

tween tread shoulder and maxi-

mum section width. For example:

Treadwear 200 Traction AA Tem-
perature A

The quality grades apply to new

pneumatic tires for use on passen-

ger cars. However, they do not

apply to deep tread, winter type

snow tires, space-saver or tempor-

ary use spare tires, tires with

nominal rim diameters of 12 inches

or less, or to some limited produc-

tion tires.

All passenger car tires must con-

form to Federal Safety Require-

ments in addition to these grades.

& Treadwear

The treadwear grade is a compara-

tive rating based on the wear rate of

the tire when tested under con-

trolled conditions on a specified

government test course.
For example, a tire graded 150

would wear one and one-half (1-

1/2) times as well on the govern-

ment course as a tire graded 100.

The relative performance of tires

depends upon the actual conditions

of their use, however, and may

depart significantly from the norm

due to variations in driving habits,

service practices and differences in

road characteristics and climate.

& Traction AA, A, B, C

The traction grades, from highest to

lowest, are AA, A, B and C. Those

grades represent the tire’s ability to

stop on wet pavement as measured

under controlled conditions on spe-

cified government test surfaces of

asphalt and concrete. A tire marked

C may have poor traction perfor-

mance.

WARNING

The traction grade assigned to

this tire is based on straight-

ahead braking traction tests,

and does not include accel-

eration, cornering, hydroplan-

ing, or peak traction charac-

teristics.

& Temperature A, B, C

The temperature grades are A (the

highest), B, and C, representing the

tire’s resistance to the generation of

heat and its ability to dissipate heat

when tested under controlled con-

ditions on a specified indoor labora-

tory test wheel. Sustained high

temperature can cause the material

of the tire to degenerate and reduce

tire life, and excessive temperature

can lead to sudden tire failure. The

grade C corresponds to a level of

performance which all passenger

car tires must meet under the

Federal Motor Vehicle Safety Stan-

dards No. 109. Grades B and A

represent higher levels of perfor-

mance on the laboratory test wheel

than the minimum required by law.

WARNING

The temperature grade for this

tire is established for a tire

that is properly inflated and

not overloaded. Excessive

speed, underinflation, or ex-

cessive loading, either sepa-

rately or in combination, can

cause heat buildup and possi-

ble tire failure.

Reporting safety defects

(U.S.A.)

If you believe that your vehicle has

a defect which could cause a

crash or could cause injury or

death, you should immediately in-

form the National Highway Traffic

Safety Administration (NHTSA) in

addition to notifying Subaru of

America, Inc.
If NHTSA receives similar com-

plaints, it may open an investiga-

tion, and if it finds that a safety

defect exists in a group of vehi-

cles, it may order a recall and

remedy campaign. However,

NHTSA cannot become involved

in individual problems between

you, your dealer, or Subaru of

America, Inc. To contact NHTSA,

you may call the Vehicle Safety

Hotline toll-free at 1-888-327-4236

(TTY: 1-800-424-9153); go to

http://www.safercar.gov; or write

to: Administrator, NHTSA, 1200

New Jersey Avenue, SE, West

Consumer information and Reporting safety defects

13-15

– CONTINUED –

Subaru Tribeca (2014 year). Instruction - part 25
