北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

same or equivalent type of the
battery.

Batteries shall not be exposed to

excessive heat such as bright
sunlight, fire or the like.

NOTE

Replace only with the same or

equivalent type of battery recom-
mended by the manufacturer.
.

Dispose of used batteries according

to the local laws.
.

Mount the battery in the correct

orientation to prevent fluid leakage.
Be careful not to bend the terminals. It
may result in a malfunction.
.

It is recommended that the battery

should be replaced by a SUBARU deal-
er.
.

Use a new battery.

After replacing the battery, confirm

that the access key fob/transmitter
functions properly.

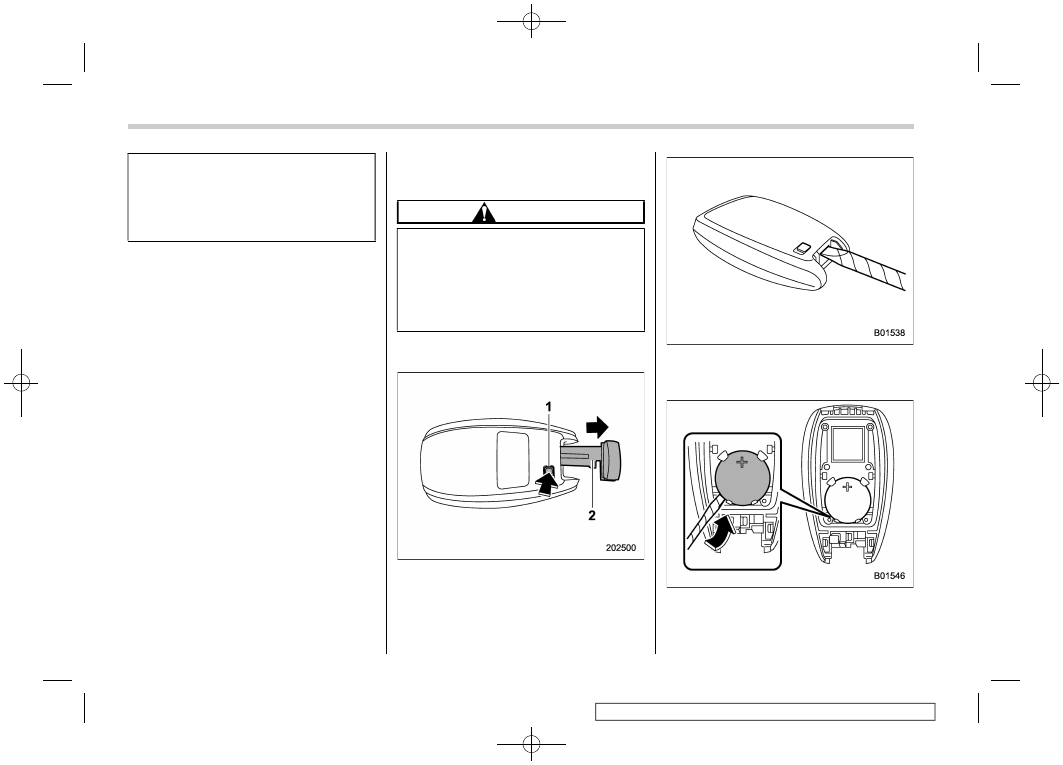

Replacing battery of access
key fob

CAUTION

When removing or fitting the

access key fob cover, make sure
that the plastic part does not
come off or become misaligned.

Before replacing the battery, re-

move any static electricity.

Battery: Button battery CR2032 or
equivalent

Release button

Emergency key

1. Take out the emergency key.

2. Wrap a flat-head screwdriver with vinyl
tape or a cloth, and insert it in the gap to
remove the cover.

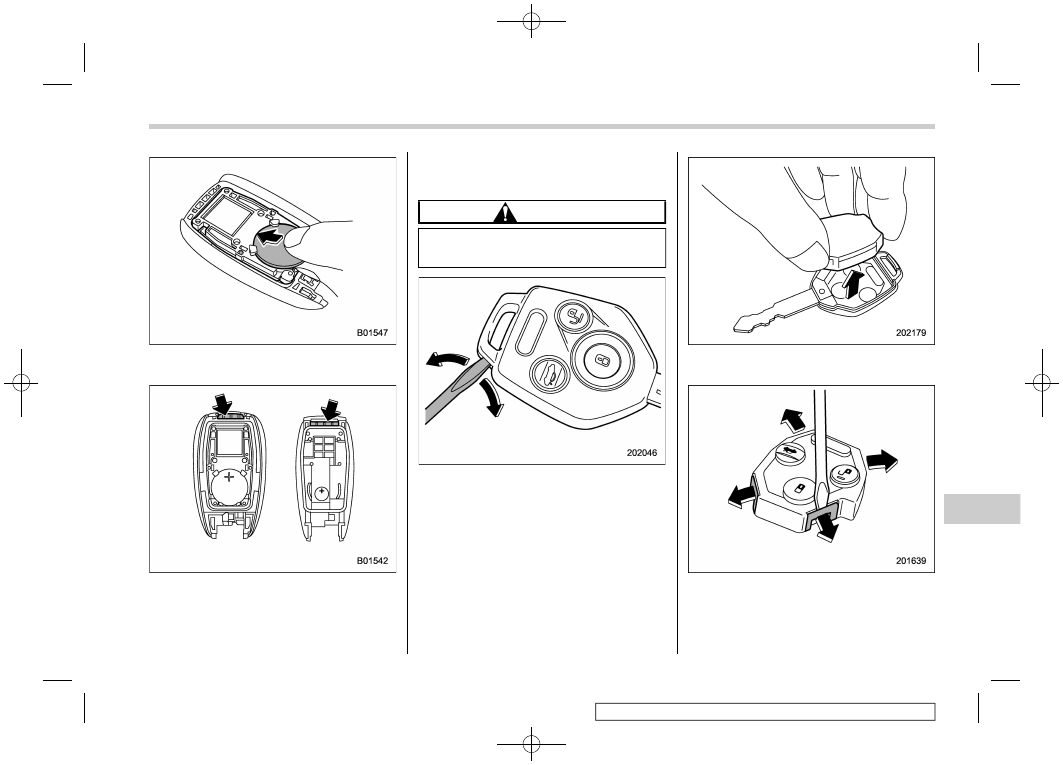

3. Take out the battery using a flat-head
screwdriver with vinyl tape or a cloth.

Maintenance and service/Replacing battery

11-50

(473,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

4. Insert a new battery with its positive (+)
side facing upward as shown in the figure.

5. Attach the cover to the access key fob
by fitting the projections and recesses
together.

Replacing battery of trans-
mitter

CAUTION

Before replacing the battery, remove
any static electricity.

1. Open the key head using a flat-head
screwdriver.

2. Remove the transmitter case from the
key head.

3. Open the transmitter case by releasing
the hooks.

– CONTINUED –

Maintenance and service/Replacing battery

11-51

(474,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

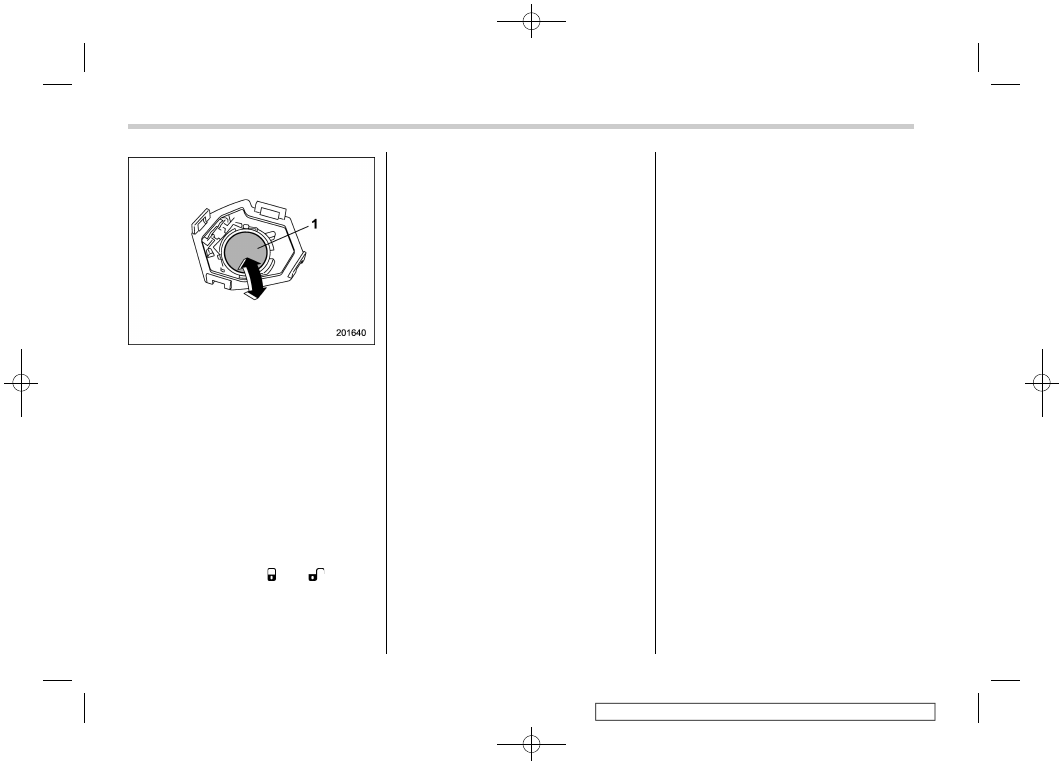

Negative (−) side facing up

4. Replace the old battery with a new
battery (Type CR1620 or equivalent) mak-
ing sure to install the new battery with the
negative (−) side facing up.
5. Put together the transmitter case by
fitting the hooks on the case.
6. Reinstall the transmitter case in the
key head.
7. Refit the removed half of the key head.

After the battery is replaced, the trans-
mitter must be synchronized with the
remote keyless entry system’s control
unit. Press either the “ ” or “

” button

six times to synchronize the unit.

Maintenance and service/Replacing battery

11-52

(477,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Specifications........................................................ 12-2

Dimensions........................................................... 12-2
Engine .................................................................. 12-3
Fuel ...................................................................... 12-3
Engine oil ............................................................. 12-4
Front differential and rear differential gear oil........ 12-7
Fluids ................................................................... 12-8
Engine coolant...................................................... 12-8
Electrical system .................................................. 12-9

Tires..................................................................... 12-9
Brake disc ............................................................ 12-9

Fuses and circuits .............................................. 12-10

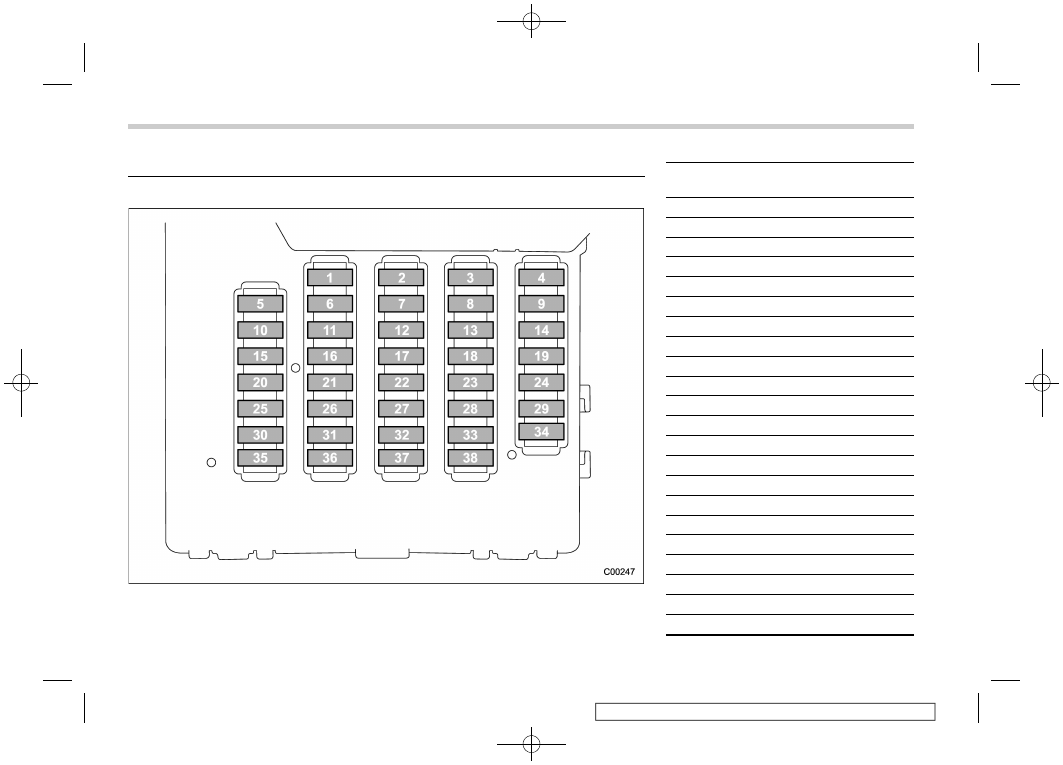

Fuse panel located in the passenger

compartment ................................................... 12-10

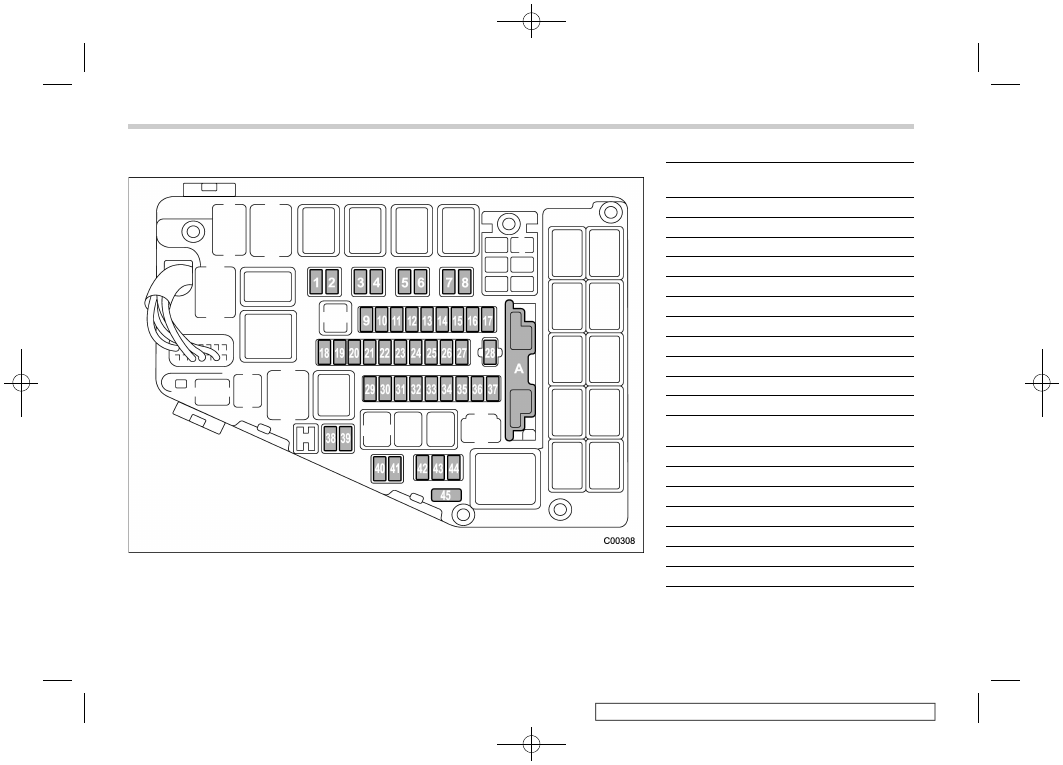

Fuse panel located in the engine compartment ... 12-12

Bulb chart............................................................ 12-14

Safety precautions.............................................. 12-14
Bulb chart .......................................................... 12-15

Vehicle identification .......................................... 12-18

Specifications

(478,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Specifications

These specifications are subject to change without notice.

Dimensions

in (mm)

Item

Legacy

Outback

2.5 L

3.6 L

2.5 L

3.6 L

Drive system

AWD

Transmission type

CVT

Overall length

189.1 (4,802)

189.9 (4,824)

Overall width

72.4 (1,840)

Overall height

59.0 (1,500)

66.1 (1,680)*

65.2 (1,655)*

64.0 (1,625)*

Wheelbase

108.3 (2,750)

108.1 (2,745)

Tread

Front

62.2 (1,580)

61.8 (1,570)

Rear

62.8 (1,595)

62.2 (1,580)

Ground clearance*

5.9 (150)

8.7 (220)

*1: Measured with vehicle empty
*2: Models with high profile roof rails
*3: Models with low profile roof rails (U.S.-spec. models)
*4: Models with low profile roof rails (except U.S.-spec. models)
CVT: Continuously variable transmission
AWD: All-Wheel Drive

Specifications/Specifications

12-2

(479,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Engine

Engine model

FB25

(2.5 L, DOHC, non-turbo)

EZ36

(3.6 L, DOHC, non-turbo)

Engine type

Horizontally opposed, liquid cooled 4 cylinder,

4 stroke gasoline engine

Horizontally opposed, liquid cooled 6 cylinder,

4 stroke gasoline engine

Displacement cu-in (cc)

152 (2,498)

222 (3,630)

Bore 6 Stroke in (mm)

3.70 6 3.54 (94.0 6 90.0)

3.62 6 3.58 (92.0 6 91.0)

Compression ratio

10.3 : 1

10.5 : 1

Firing order

1 – 3 – 2 – 4

1 – 6 – 3 – 2 – 5 – 4

Fuel

Fuel requirement

Fuel tank capacity

Unleaded gasoline with 87 AKI (90 RON) or higher

18.5 US gal (70 liters, 15.4 Imp gal)

– CONTINUED –

Specifications/Specifications

12-3

(480,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Engine oil

For the checking, adding and replacing procedure or other details, refer to “Engine oil” F11-11.

NOTE

The procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommended
that you have this service performed by your SUBARU dealer.

Approved engine oil

Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.

Alternative engine oil

If the SUBARU approved oil is unavailable, the following alternative oil can be used.

NOTE

Each quantity indicated is only a guideline. The necessary quantity for replacement may differ slightly depending on the

temperature and other factors.
.

In choosing an oil, you want the proper quality and viscosity, as well as one that will enhance fuel economy. Oils of lower

viscosity provide better fuel economy. However, in hot weather, oil of higher viscosity is required to properly lubricate the
engine. The following table lists the recommended viscosities and applicable temperatures.
.

When adding oil, different brands may be used together as long as they are the same API classification and SAE viscosity

as those recommended by SUBARU.

Specifications/Specifications

12-4

(481,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

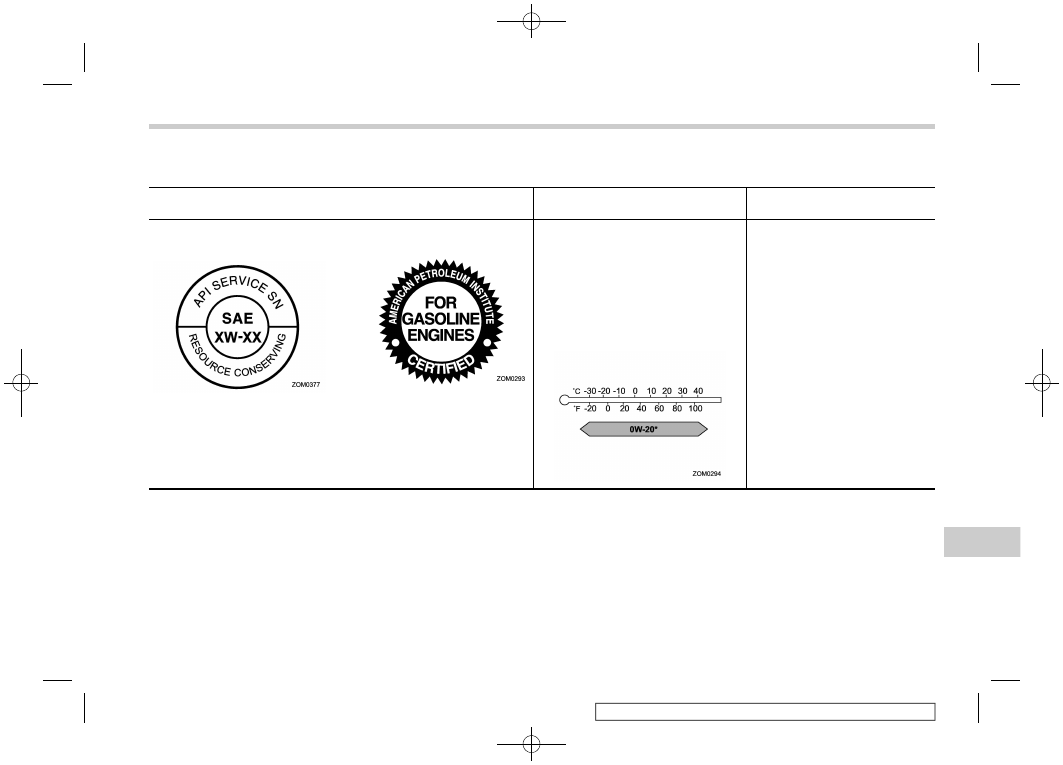

2.5 L models

Oil grade

SAE viscosity No. and

applicable temperature

Engine oil capacity

API (American Petroleum Insti-
tute) classification SN with the
words “RESOURCE CONSER-
VING”

ILSAC (International Lubricant
Specification Advisory Commit-
tee) GF-5, which can be identi-
fied with the ILSAC certification
mark (Starburst mark)

0W-20 synthetic oil is the required oil
for optimum engine performance and
protection. Conventional oil may be
used if synthetic oil is unavailable.

*: If 0W-20 synthetic oil is not available,
5W-30 or 5W-40 conventional oil may
be used if you need to add oil. However,
you should change to 0W-20 synthetic
oil at the next oil change.

– Adding the oil from low level to

full level:
1.1 US qt (1.0 liter, 0.9 Imp qt)

– Changing the oil and oil filter:

5.1 US qt (4.8 liters, 4.2 Imp qt)

– CONTINUED –

Specifications/Specifications

12-5

(482,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

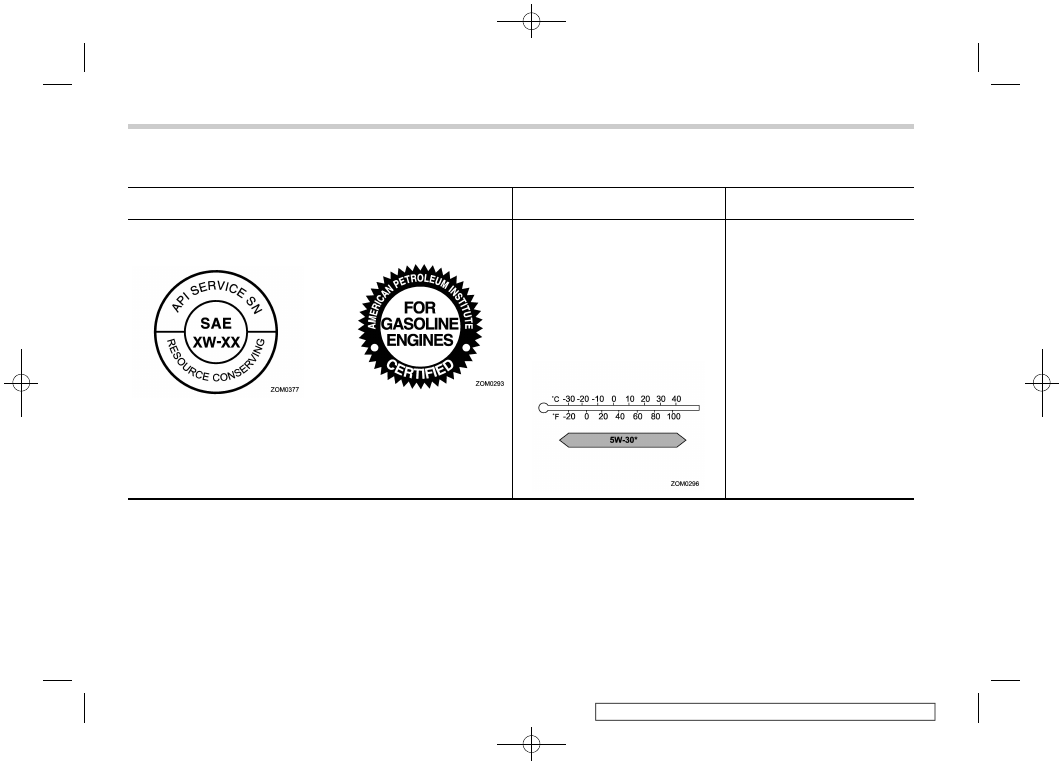

3.6 L models

Oil grade

SAE viscosity No. and

applicable temperature

Engine oil capacity

API (American Petroleum Insti-
tute) classification SN with the
words “RESOURCE CONSER-
VING”

ILSAC (International Lubricant
Specification Advisory Commit-
tee) GF-5, which can be identi-
fied with the ILSAC certification
mark (Starburst mark)

Your vehicle is designed to use 5W-30
conventional motor oil, however 5W-30
synthetic may be used for optimum
engine performance.

*: If 5W-30 synthetic oil is not available,
10W-30 or 10W-40 conventional oil
may be used if you need to add oil.
However, you should change to 5W-30
synthetic or conventional oil at the next
oil change.

– Adding the oil from L to F level:

1.1 US qt (1.0 liter, 0.9 Imp qt)

– Changing the oil and oil filter:

6.9 US qt (6.5 liters, 5.7 Imp qt)

Specifications/Specifications

12-6

(483,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

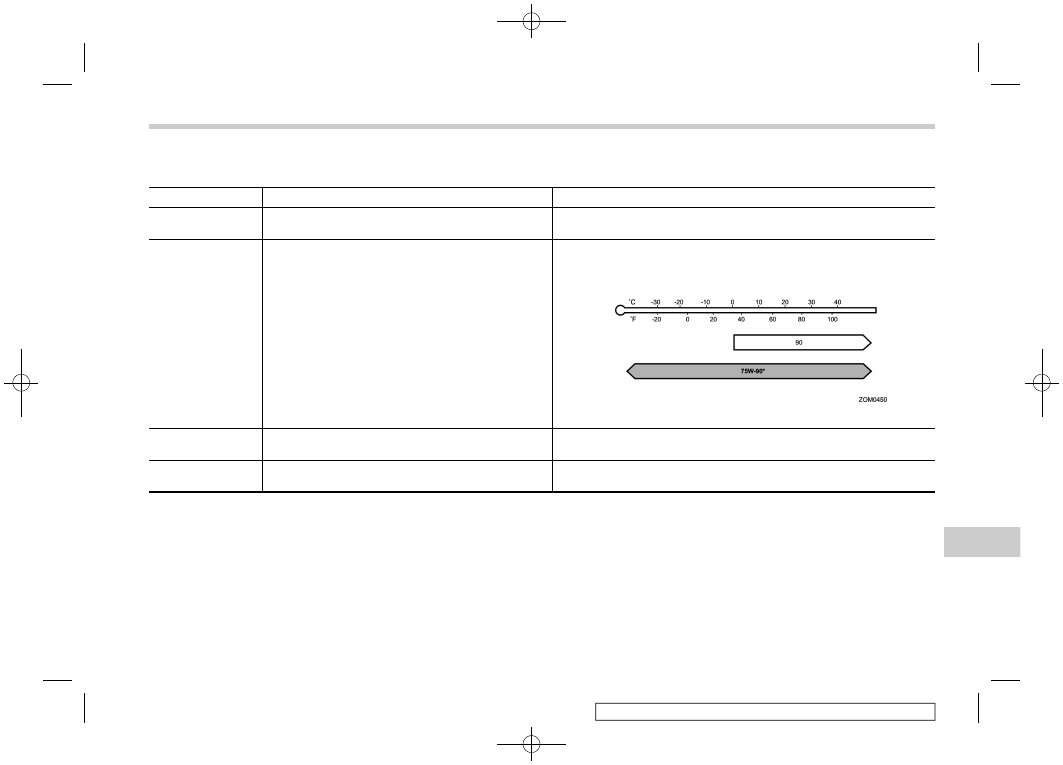

Front differential and rear differential gear oil

Oil

Front differential gear oil

Rear differential gear oil

Oil grade

SUBARU Extra MT*

API classification GL-5 (75W-90)*

2.5 L models: SUBARU Extra MT*

or API classification GL-5 (75W-90*

)

3.6 L models: API classification GL-5 (75W-90*

or 90*

)

SAE viscosity No.
and applicable tem-
perature

—

75W-90*

*: Recommended

Oil capacity*

2.5 L models: 1.3 US qt (1.2 liters, 1.1 Imp qt)
3.6 L models: 1.5 US qt (1.4 liters, 1.2 Imp qt)

0.8 US qt (0.8 liters, 0.7 Imp qt)

Remarks*

“Front differential gear oil and rear differential gear oil”

F11-19

“Front differential gear oil and rear differential gear oil” F11-19

*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other

factors. After refilling the gearbox with oil, the oil level should be checked.

*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this type of differential gear oil.
*4: You may use this type of differential gear oil. However, using this type of oil will detract from fuel efficiency.

– CONTINUED –

Specifications/Specifications

12-7

(484,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Fluids

Fluid

Fluid type*

Fluid capacity*

Remarks*

Continuously variable transmis-
sion fluid

Consult your SUBARU dealer.

2.5 L models:
· Legacy: 11.9 US qt (11.3 liters, 9.9 Imp qt)
· Outback: 12.4 US qt (11.7 liters, 10.3 Imp qt)
3.6 L models:
13.4 US qt (12.7 liters, 11.2 Imp qt)

“Continuously variable trans-
mission fluid” F11-19

Brake fluid

FMVSS No. 116, DOT 3 or DOT 4
brake fluid

–

“Brake fluid” F11-19

*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other

factors.

*3: For more details about maintenance and service, refer to the indicated section.

Engine coolant

Vehicle model

Coolant capacity

Coolant type

2.5 L models

8.2 US qt (7.8 liters, 6.9 Imp qt)

SUBARU Super Coolant

3.6 L models

7.4 US qt (7.0 liters, 6.2 Imp qt)

The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. For more details about maintenance and service, refer to “Cooling system” F11-14.

Specifications/Specifications

12-8

(485,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Electrical system

Battery type

75D23R

Alternator

2.5 L models: 12 V-150 A
3.6 L models: 12 V-130 A

Spark plugs

2.5 L models

SILZKAR7B11 (NGK)

3.6 L models

SILFR6C11 (NGK)

Tires

Item

Legacy

Outback

Tire size

225/55R17

97V

225/50R18

95H

225/65R17

102H

225/60R18

100H

Wheel size

17 6 7J

17 6 7 1/2J

18 6 7 1/2J

17 6 7J

18 6 7J

Pressure

Front

33 psi (230 kPa, 2.3 kgf/cm

)

35 psi (240 kPa, 2.4 kgf/cm

)

Rear

32 psi (220 kPa, 2.2 kgf/cm

)

33 psi (230 kPa, 2.3 kgf/cm

)

Temporary spare tire

Size

T155/70 D17 110M

T155/80 R17 101M

Pressure

60 psi (420 kPa, 4.2 kgf/cm

)

Wheel nut tightening torque

88.5 lbf·ft (120 N·m, 12.2 kgf·m)*

*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts

by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure,
refer to “Changing a flat tire” F9-5.

Brake disc

If you need information on the usage limit value of brake discs and the method for measuring them, consult your SUBARU dealer.

Specifications/Specifications

12-9

(486,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Fuses and circuits

Fuse panel located in the passenger compartment

Fuse

panel

Fuse

rating

Circuit

7.5 A

START1

20 A

12 V SOCKET

7.5 A

IG1-1

15 A

AUDIO NAVI

15 A

UNIT IG2-2

20 A

P/W R.LH

10 A

CIGAR

15 A

A/C IG

7.5 A

ACC

7.5 A

UNIT IG2-1

30 A

P/W MAIN1

7.5 A

START2

Empty

7.5 A

UNIT+B

7.5 A

METER IG

20 A

P/W R.RH

7.5 A

MIR

7.5 A

LAMP IG

7.5 A

IG1-2

10 A

SRS AIR BAG

20 A

P/W PASS1

15 A

SEAT HTR R

Specifications/Fuses and circuits

12-10

(487,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Fuse

panel

Fuse

rating

Circuit

10 A

DRL

20 A

P/W MAIN2

Empty

10 A

BACK UP

15 A

WIPER DEICER

20 A

TRAIL R.FOG

20 A

P/W PASS2

Empty

7.5 A

SMT

15 A

SEAT HTR F

7.5 A

KEY SW

7.5 A

P/W ALL

20 A

SUN ROOF

Empty

7.5 A

STOP

7.5 A

EYE SIGHT

– CONTINUED –

Specifications/Fuses and circuits

12-11

(488,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Fuse panel located in the engine compartment

Main fuse

Fuse

panel

Fuse

rating

Circuit

7.5 A

HORN RH

7.5 A

HORN LH

10 A

ILLUMI

10 A

TAIL

15 A

H/L LO RH

15 A

H/L LO LH

10 A

H/L HI RH

10A

H/L HI LH

7.5 A

DCM

15 A

D/L

Empty

Empty*

7.5 A

ALT-S*

20 A

FUEL

15 A

HAZARD

30 A

IG2

7.5 A

PU B/UP

7.5 A

OBD

Empty

Specifications/Fuses and circuits

12-12

(489,1)

北米Model "A2550BE-A" EDITED: 2018/ 5/ 9

Fuse

panel

Fuse

rating

Circuit

20 A*

25 A*

O2 HTR

15 A

E/G2

15 A

ETC

15 A

E/G1

15 A

AVCS

15 A

INJ

7.5 A

CVT SSR

20 A

TCU

Empty

30 A

BACKUP

7.5 A

Empty*

ACTGS*

25 A

Empty*

SUB FAN*

25 A

Empty*

MAIN FAN*

30 A

ABS SOL

20 A

AUDIO

25 A

R.DEF

15 A

BLOWER

15 A

BLOWER

10 A

F.FOG RH

10 A

F.FOG LH

Fuse

panel

Fuse

rating

Circuit

Empty

15 A

STRG/H

15 A

R.WIPER

15 A

F.WASH

30 A

F.WIPER

Empty

*1: 2.5 L models
*2: 3.6 L models

Specifications/Fuses and circuits

12-13

Subaru Outback (2019 year). Instruction - part 29
