rear and the roof crossbars and
roof tent are tightly secured to
the vehicle. If these conditions
are not met, the load limit will be
lower.

The maximum load limit of the

roof crossbars must be obtained
from the manufacturer or retailer
of the roof rack. When driving the
vehicle, the maximum roof rail
load is 176 lbs (80 kg) or the
crossbar load limit (whichever is
lower).

Roof tents can only be used on

vehicles originally equipped with
roof rails. Otherwise, damage to
the vehicle’s roof may occur.

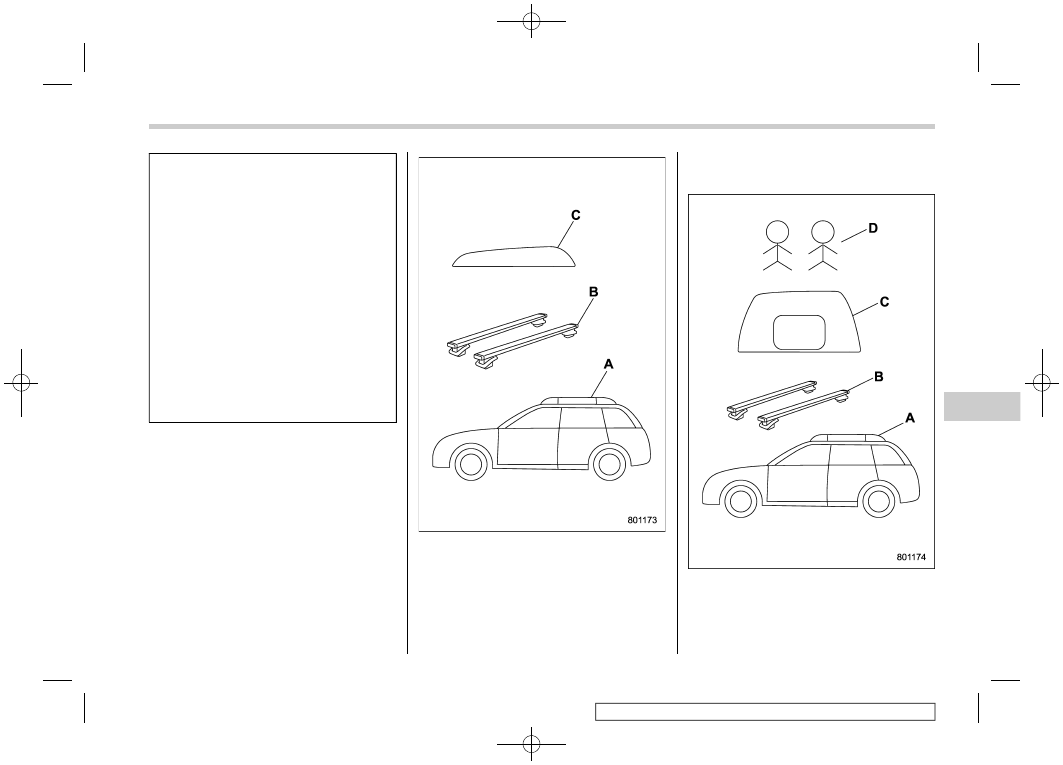

On vehicles equipped with roof rails, roof
tents may be used under certain condi-
tions at your own risk.

When driving the vehicle

The total weight on the roof rails, including
the roof crossbars and roof tent, must not
exceed the vehicle’s roof rail load of 176
lbs (80 kg), evenly distributed.

Roof rails

Roof crossbars

Roof tent

B + C < 176 lbs (80 kg)

When the vehicle is parked on level
ground

Roof rails

Roof crossbars

Roof tent

Occupants in the roof tent

– CONTINUED –

Driving tips/Loading your vehicle

8-15

(364,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

The total weight on the roof rails –
including the roof crossbars, roof tent,
and all occupants and contents in the roof
tent – must not exceed either the vehicle’s
roof rail load limit (700 lbs (317 kg)), evenly
distributed, or the load limit of the roof
crossbars, whichever is lower.

Load limit of the roof rail (A).
B + C + D < 700 lbs (317 kg)

Exceeding this load limit could cause
damage to the vehicle or racking system.
The vehicle must never be driven with
occupants in the roof tent. Before the
vehicle is driven, occupants and cargo
must be removed from the roof tent and
the roof rail load must be restored to within
the roof rail load limit of 176 lbs (80 kg).
Refer to the user manual that accompa-
nied the roof tent for important safety
information and instructions on the proper
installation and use of the tent.

Trailer towing

CAUTION

Your vehicle is neither designed nor
intended to be used for trailer tow-
ing. Therefore, never tow a trailer
with your vehicle.

SUBARU assumes no responsibility for
injuries or vehicle damage that may result
from trailer towing, from any trailer towing
equipment or from any errors or omissions
in the instructions accompanying such
equipment. SUBARU warranties do not
apply to vehicle damage or malfunction
caused by trailer towing.

Driving tips/Trailer towing

8-16

(367,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

If you park your vehicle in case of an

emergency ............................................................ 9-2

Temporary spare tire .............................................. 9-2
Maintenance tools................................................... 9-3

Tool locations ........................................................ 9-4
Using the jack........................................................ 9-5

Flat tires................................................................... 9-6

Changing a flat tire ................................................ 9-6
Tire pressure monitoring system (TPMS)

(U.S.-spec. models) ............................................. 9-10

Jump starting ........................................................ 9-11

How to jump start ................................................. 9-11

Engine overheating............................................... 9-13

If steam is coming from the engine

compartment ...................................................... 9-13

If no steam is coming from the engine

compartment ..................................................... 9-13

Towing ................................................................... 9-14

Towing hooks and tie-down hooks/holes............... 9-14
Using a flat-bed truck ........................................... 9-17
Towing with all wheels on the ground ................... 9-18

Access key fob – if access key fob does not

operate properly ................................................ 9-18

Locking and unlocking ......................................... 9-19
Switching power status ........................................ 9-19
Starting engine ..................................................... 9-19

Rear gate – if the rear gate cannot be

opened................................................................ 9-20

Moonroof (if equipped) – if the moonroof

does not close ................................................... 9-21

If your vehicle is involved in an accident........... 9-21

In case of emergency

(368,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

If you park your vehicle in
case of an emergency

The hazard warning flasher should be
used in day or night to warn other drivers
when you have to park your vehicle under
emergency conditions.
Avoid stopping on the road. It is best to
safely pull off the road if a problem occurs.

The hazard warning flasher can be acti-
vated regardless of the ignition switch
position.

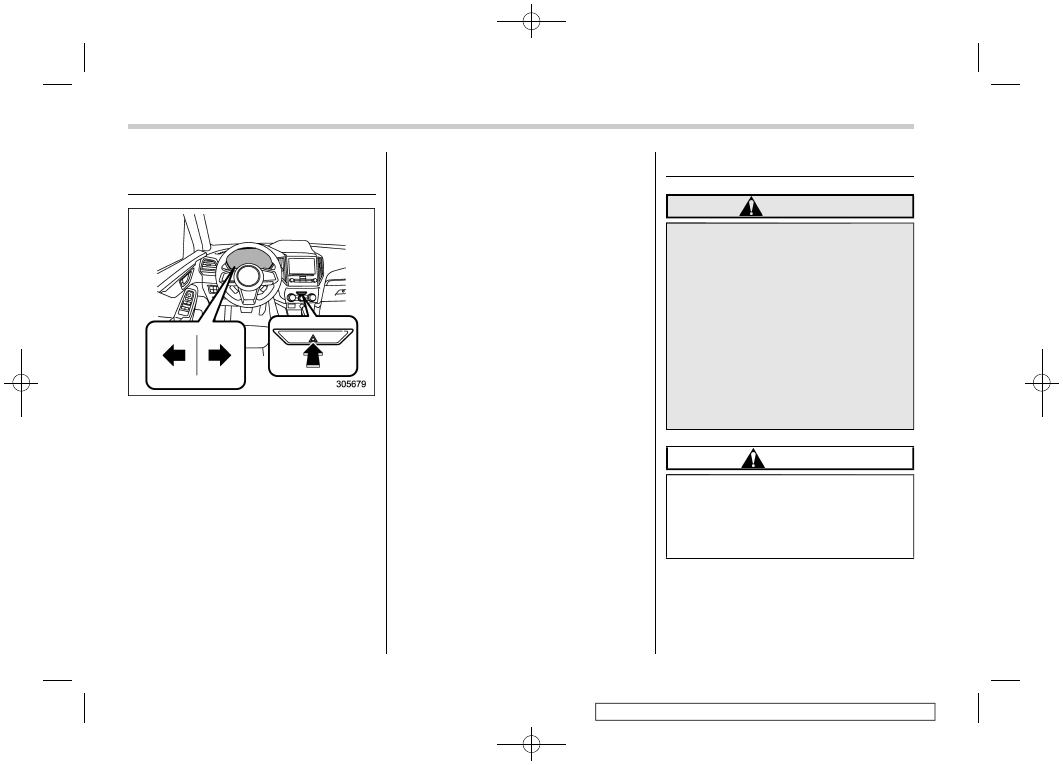

Turn on the hazard warning by pushing the
hazard warning flasher switch. Turn it off
by pushing the switch again.

NOTE

When the hazard warning flasher is on,
the turn signals do not work.

Temporary spare tire

WARNING

When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/transmitter
being transferred, the low tire pres-
sure warning light will illuminate
steadily after blinking for approxi-
mately one minute. This indicates
the tire pressure monitoring system
(TPMS) is unable to monitor all four
road wheels. Contact your SUBARU
dealer as soon as possible for tire
and sensor replacement and/or sys-
tem resetting.

CAUTION

Never use any temporary spare tire
other than the original. Using other
sizes may result in severe mechan-
ical damage to the drive train of your
vehicle.

The temporary spare tire is smaller and
lighter than a conventional tire and is
designed for emergency use only. Re-
move the temporary spare tire and re-
install the conventional tire as soon as

In case of emergency/If you park your vehicle in case of an emergency

9-2

(369,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

possible because the spare tire is de-
signed only for temporary use.

Check the inflation pressure of the tem-
porary spare tire periodically to keep the
tire ready for use. The correct pressure is
60 psi (420 kPa, 4.2 kgf/cm

When using the temporary spare tire, note
the following.
.

Drive with caution when the temporary

spare tire is installed. Avoid hard accel-
eration and braking, or fast cornering, as
control of the vehicle may be lost.
.

Do not exceed 50 mph (80 km/h).

Do not put a tire chain on the temporary

spare tire. Because of the smaller tire size,
a tire chain will not fit properly.
.

Do not use two or more temporary

spare tires at the same time.
.

Do not drive over obstacles. This tire

has a smaller diameter, so road clearance
is reduced.

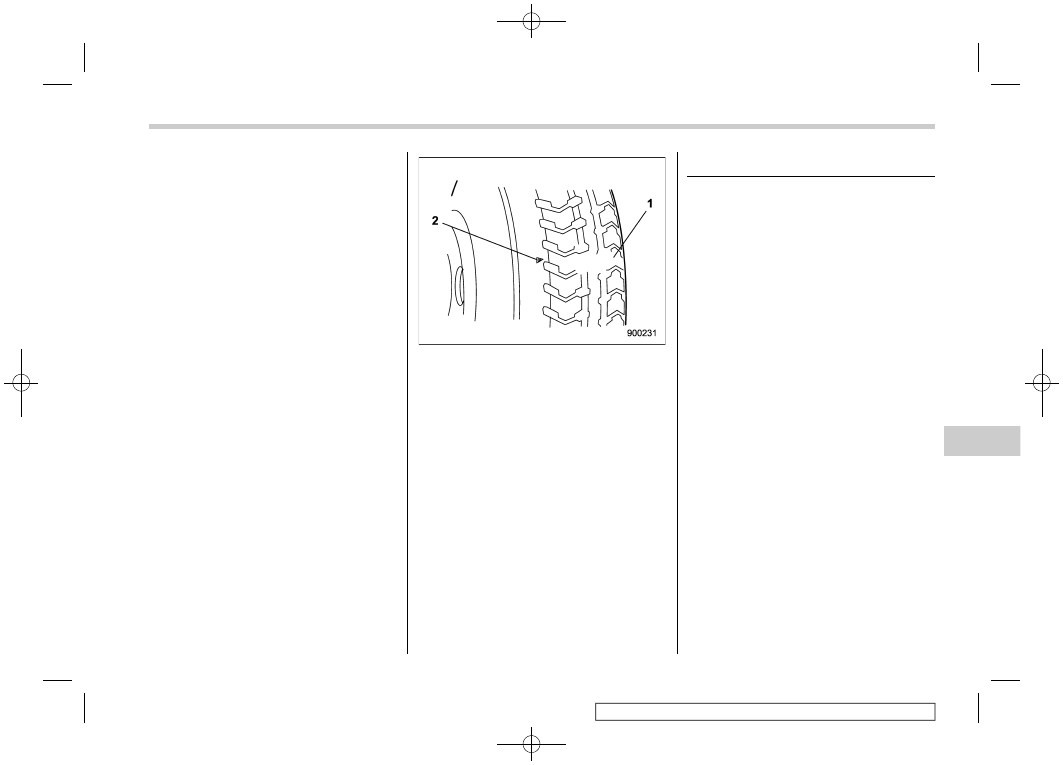

Tread wear indicator bar

Indicator location mark

When the wear indicator appears on

the tread, replace the tire.
.

The temporary spare tire must be used

only on a rear wheel. If a front wheel tire
gets punctured, replace the wheel with a
rear wheel and install the temporary spare
tire in place of the removed rear wheel.

Maintenance tools

Your vehicle is equipped with the following
maintenance tools.

Jack

Jack handle

Screwdriver

Towing hook (eye bolt)

Wheel nut wrench

– CONTINUED –

In case of emergency/Maintenance tools

9-3

(370,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Tool locations

Jack handle

Sedan

5-door models

Under-floor storage compartment (if
equipped) (Refer to “Under-floor storage
compartment (sedan – if equipped)” F6-
15.)

Tool bucket

Spare tire

Sedan

5-door models

Wheel nut wrench

Screwdriver

Jack

Towing hook (eye bolt)

A jack handle is stored under the floor of
the trunk (sedan) or the cargo area (5-door
models). A jack and a towing hook are
stored in the tool bucket that is located in
the recess of the spare tire wheel.

Also, a tool bag that contains a wheel nut
wrench and a screwdriver is equipped with
the vehicle. Open the tool bag and store
the tools in the tool bucket as illustrated in
order that all tools are ready for use at any
time.

In case of emergency/Maintenance tools

9-4

(371,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Using the jack

1. Park on a hard, level surface, when-
ever possible, then stop the engine.
2. Apply the parking brake securely and
shift the shift lever in reverse (MT models)
or the select lever to the “P” (Park) position
(CVT models).
3. Turn on the hazard warning flasher and
have everyone get out of the vehicle.

4. Put wheel blocks at the front and rear
of the tire diagonally opposite the tire that
you are going to replace.

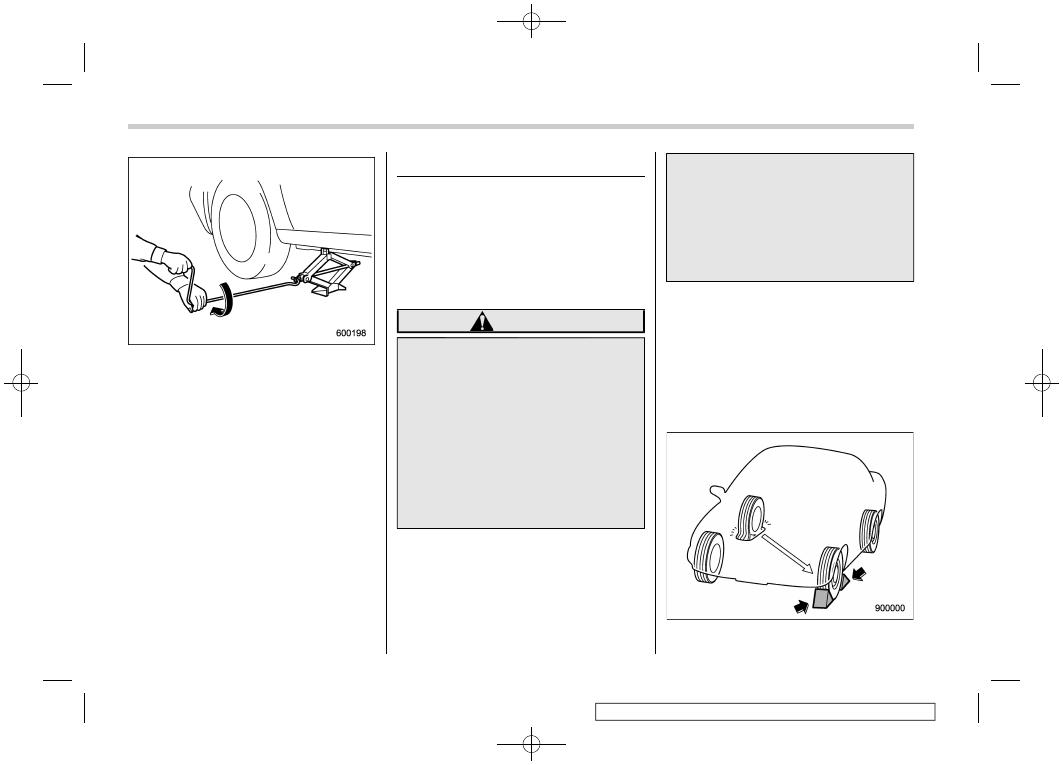

5. Take out the jack, jack handle and
wheel nut wrench.

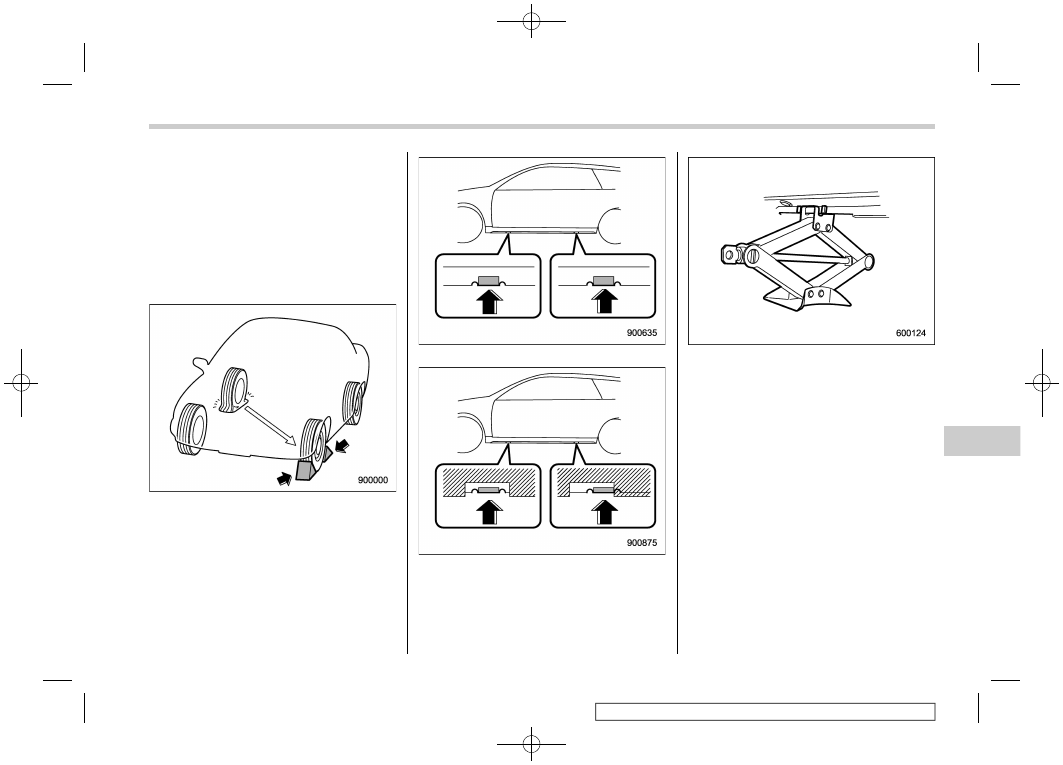

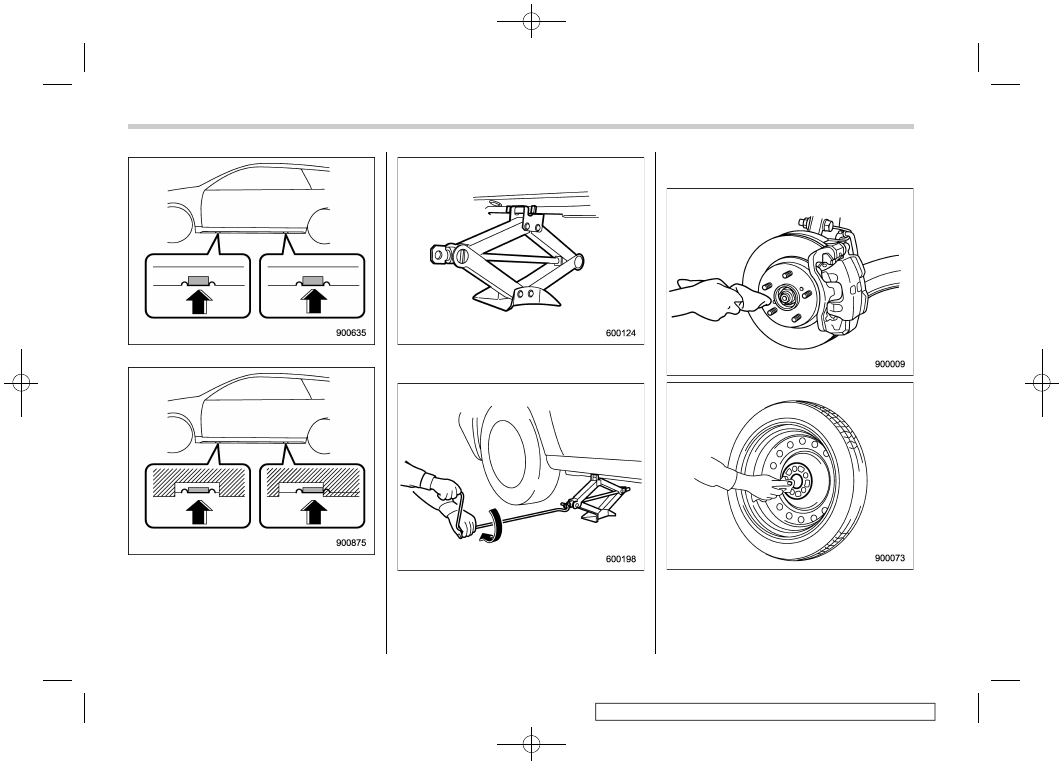

Jack-up points (type A models)

Jack-up points (type B models)

6. Place the jack under the side sill at the
front or rear jack-up point closest to the tire
that you are going to replace.

Turn the jackscrew by hand until the jack
head engages firmly into the jack-up point.

– CONTINUED –

In case of emergency/Maintenance tools

9-5

(372,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

7. Insert the jack handle into the jack-
screw, and turn the handle until the tire
clears the ground. Do not raise the vehicle
higher than necessary.

Flat tires

If you have a flat tire while driving, never
brake suddenly; keep driving straight
ahead while gradually reducing speed.
Then slowly pull off the road to a safe
place.

Changing a flat tire

WARNING

Do not jack up the vehicle on an

incline or a loose road surface.
The jack can come out of the
jacking point or sink into the
ground and this can result in a
severe accident.

Use only the jack provided with

your vehicle. The jack supplied
with the vehicle is designed only
for changing a tire. Never get
under the vehicle while support-
ing the vehicle with this jack.

Always turn off the engine before

raising the flat tire off the ground
using the jack. Never swing or
push the vehicle supported with
the jack. The jack can come out of
the jacking point due to a jolt and
this can result in a severe acci-
dent.

4. Put wheel blocks at the front and rear

In case of emergency/Flat tires

9-6

(373,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

of the tire diagonally opposite the flat tire.
5. Take out the jack, jack handle and
wheel nut wrench.
The tools and the spare tire are stored
under the floor of the trunk (sedan) or the
cargo area (5-door models). Refer to
“Maintenance tools” F9-3.

NOTE

Make sure that the jack is well lubri-
cated before using it.

6. Take out the tool bucket and turn the
attaching bolt counterclockwise, then take
the spare tire out.

NOTE

If the spare tire provided in your vehicle
is a temporary spare tire, carefully read
“Temporary spare tire” F9-2 and

strictly follow the instructions.

7. If your vehicle has wheel covers,
remove them by holding and pulling the
areas indicated in the illustration.

CAUTION

Use gloves to protect your hands
when removing wheel covers.

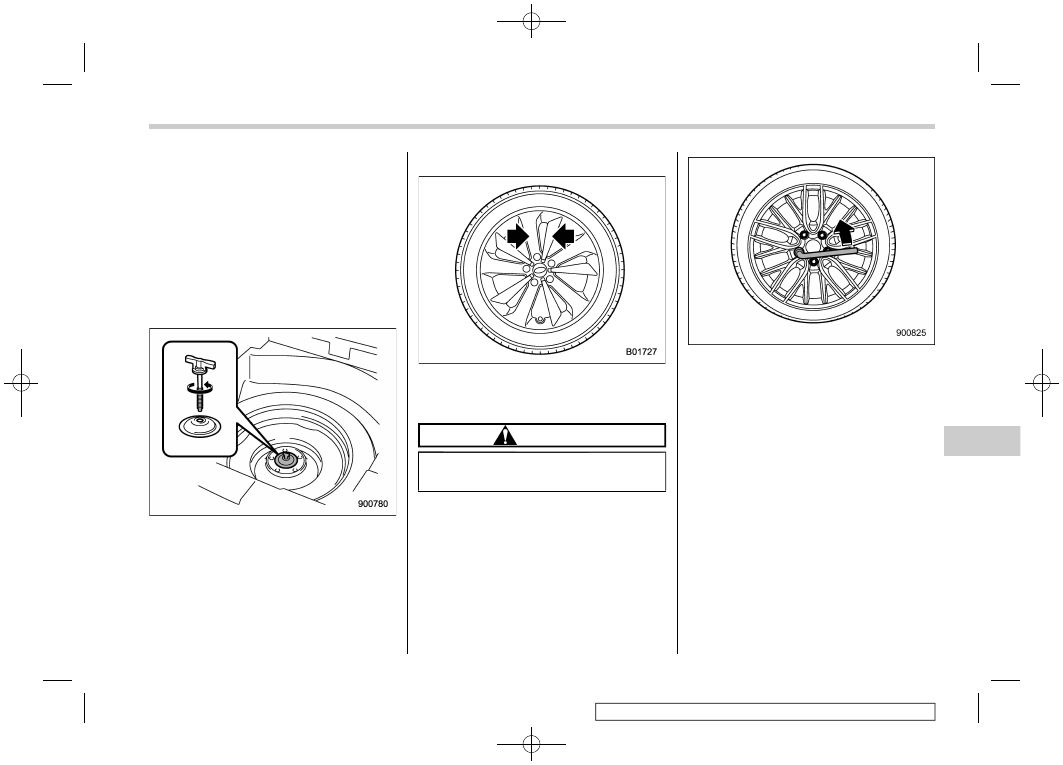

8. Loosen the wheel nuts using the wheel
nut wrench but do not remove the nuts.

– CONTINUED –

In case of emergency/Flat tires

9-7

(374,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Jack-up points (type A models)

Jack-up points (type B models)

9. Place the jack under the side sill at the
front or rear jack-up point closest to the flat
tire.

Turn the jackscrew by hand until the jack
head engages firmly into the jack-up point.

10. Insert the jack handle into the jack-
screw, and turn the handle until the tire
clears the ground. Do not raise the vehicle
higher than necessary.

11. Remove the wheel nuts and the flat
tire.

12. Before putting the spare tire on, clean
the mounting surface of the wheel and hub
with a cloth.

In case of emergency/Flat tires

9-8

(375,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

13. Put on the spare tire. Replace the
wheel nuts. Tighten them by hand.

WARNING

Do not use oil or grease on the wheel
studs or nuts when the spare tire is
installed. This could cause the nuts
to become loose and lead to an
accident.

14. Turn the jack handle counterclockwise
to lower the vehicle.

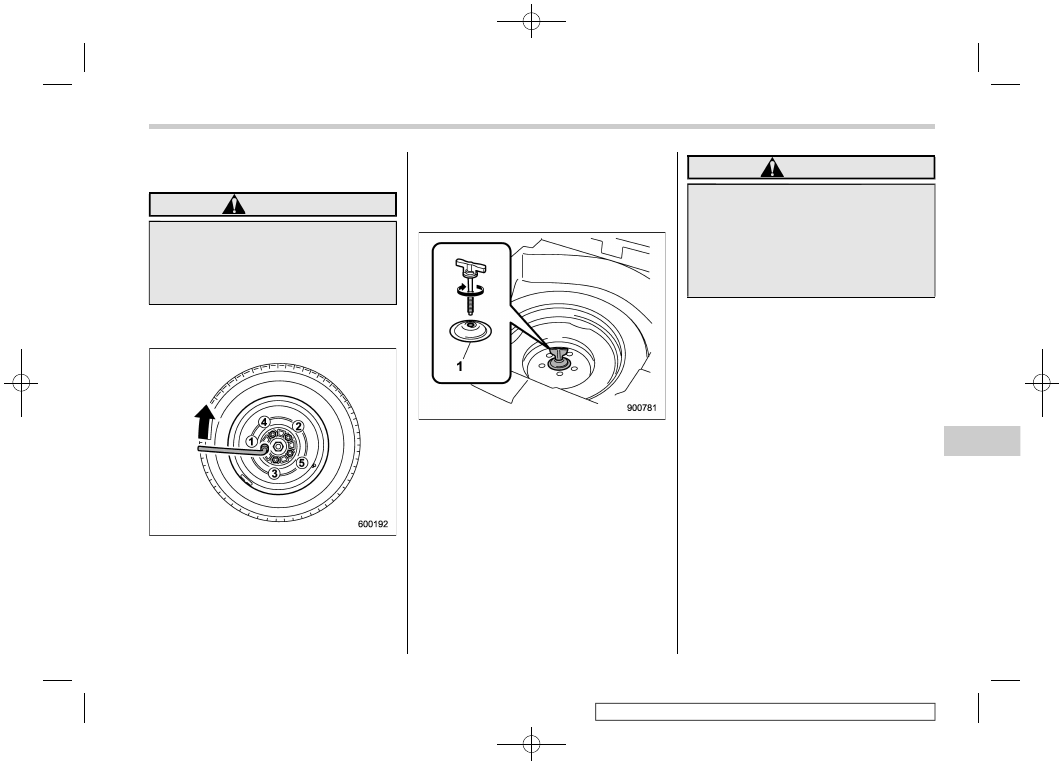

15. Use the wheel nut wrench to securely
tighten the wheel nuts to the specified
torque, following the tightening order in the
illustration.
For the wheel nut tightening torque, refer
to “Tires” F12-8. Never use your foot on

the wheel nut wrench or a pipe extension
on the wrench because you may exceed
the specified torque. Have the wheel nut
torque checked at the nearest automotive
service facility.

Support holder

16. Store the flat tire in the spare tire
compartment. Install with the support
holder facing upward and secure the flat
tire by firmly tightening the attaching bolt.

NOTE

If you cannot fix the flat tire firmly, try
turning the support holder upside
down.

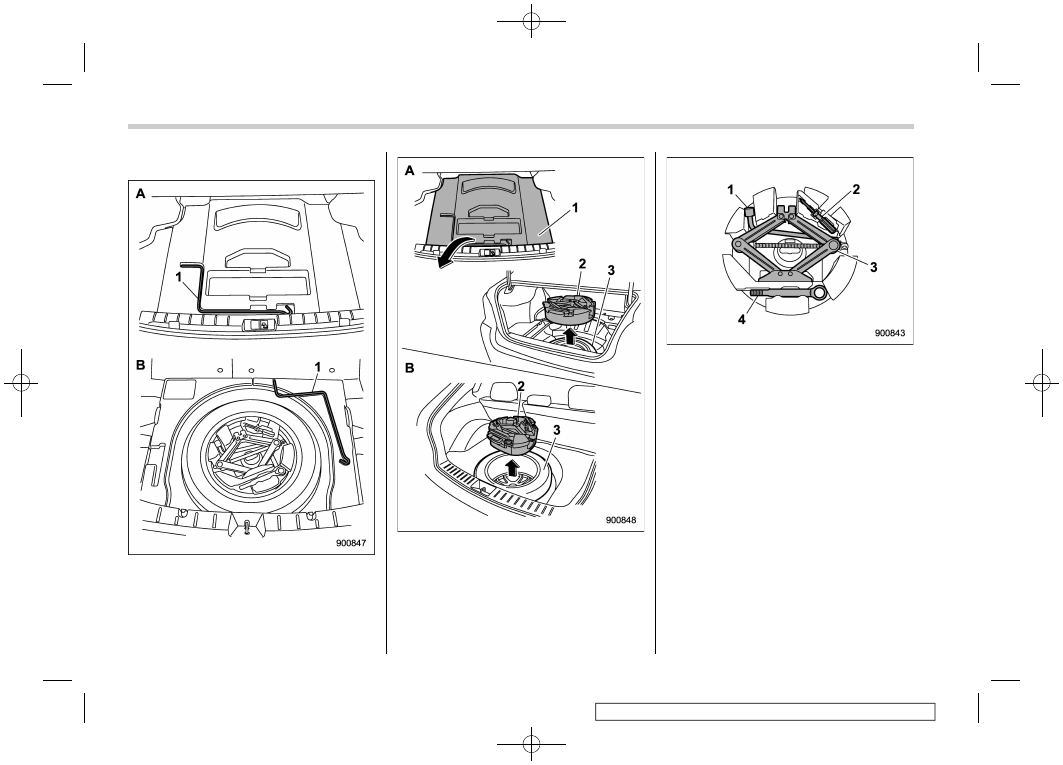

17. Store the jack, jack handle and wheel
nut wrench in their storage locations.

WARNING

Never place a tire or tire changing
tools in the passenger compartment
after changing wheels. In a sudden
stop or collision, loose equipment
could strike occupants and cause
injury. Store the tire and all tools in
the proper place.

– CONTINUED –

In case of emergency/Flat tires

9-9

(376,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Tire pressure monitoring
system (TPMS)
(U.S.-spec. models)

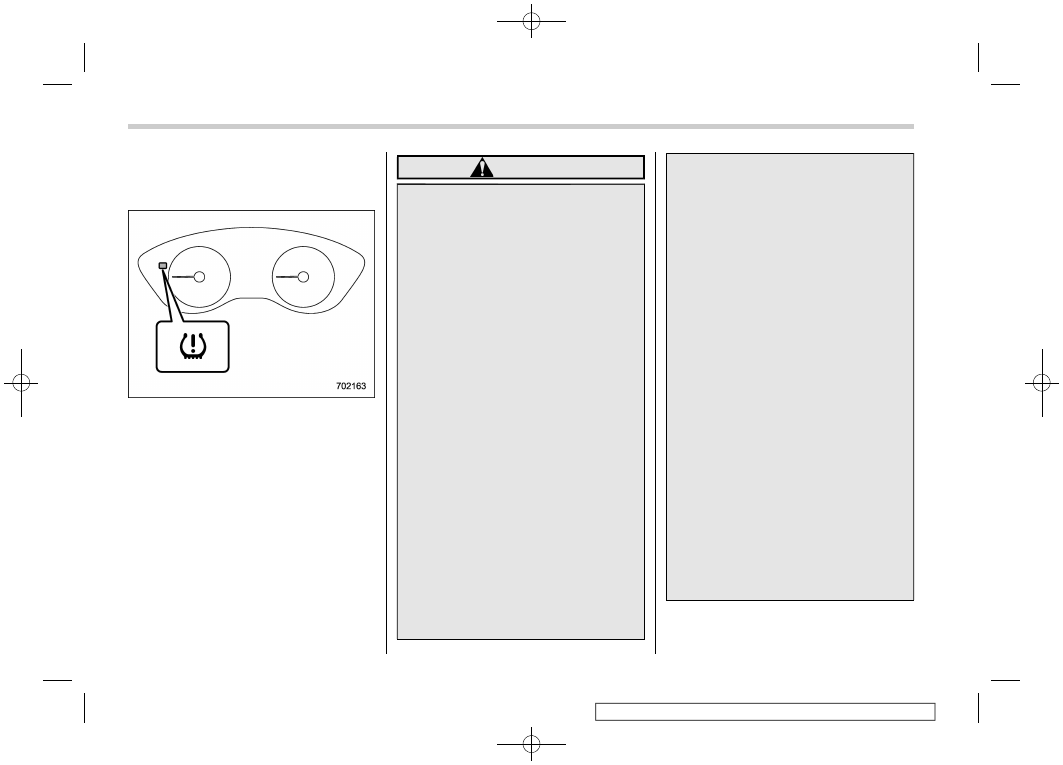

Low tire pressure warning light

The tire pressure monitoring system pro-
vides the driver with the warning message
indicated by sending a signal from a
sensor that is installed in each wheel when
tire pressure is severely low.
The tire pressure monitoring system will
activate only when the vehicle is driven.
Also, this system may not react immedi-
ately to a sudden drop in tire pressure (for
example, a blow-out caused running over
a sharp object).

WARNING

If the low tire pressure warning

light illuminates while driving,
never brake suddenly. Instead,
perform the following procedure.
Otherwise an accident involving
serious vehicle damage and ser-
ious personal injury could occur.

(1) Keep driving straight ahead

while gradually reducing
speed.

(2) Slowly pull off the road to a

safe place.

(3) Check the pressure for all four

tires and adjust the pressure
to the COLD tire pressure
shown on the vehicle placard
on the door pillar on the
driver’s side.

If this light still illuminates while

driving after adjusting the tire
pressure, a tire may have signifi-
cant damage and a fast leak that
causes the tire to lose air rapidly.
If you have a flat tire, replace it
with a spare tire as soon as
possible.

When a spare tire is mounted or a

wheel rim is replaced without the
original pressure sensor/trans-

mitter being transferred, the low
tire pressure warning light will
illuminate steadily after blinking
for approximately one minute.
This indicates the TPMS is unable
to monitor all four road wheels.
Contact your SUBARU dealer as
soon as possible for tire and
sensor replacement and/or sys-
tem resetting.

When a tire is repaired with liquid

sealant, the tire pressure warning
valve and transmitter may not
operate properly. If a liquid sea-
lant is used, contact your nearest
SUBARU dealer or other qualified
service shop as soon as possi-
ble. Make sure to replace the tire
pressure warning valve and
transmitter when replacing the
tire. You may reuse the wheel if
there is no damage to it and if the
sealant residue is properly
cleaned off.

If the light illuminates steadily
after blinking for approximately
one minute, promptly contact a
SUBARU dealer to have the sys-
tem inspected.

In case of emergency/Flat tires

9-10

(377,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Jump starting

WARNING

Battery fluid is SULFURIC ACID.

Do not let it come in contact with
the eyes, skin, clothing or the
vehicle.

If battery fluid gets on you, thor-
oughly flush the exposed area
with water immediately. Get med-
ical help if the fluid has entered
your eyes.

If battery fluid is accidentally
swallowed, immediately drink a
large amount of milk or water,
and obtain immediate medical
help.

Keep everyone including chil-
dren away from the battery.

The gas generated by a battery

explodes if a flame or spark is
brought near it. Do not smoke or
light a match while jump starting.

Never attempt jump starting if the

discharged battery is frozen. It
could cause the battery to burst
or explode.

Whenever working on or around a

battery, always wear suitable eye
protectors, and remove metal
objects such as rings, bands or
other metal jewelry.

Be sure the jumper cables and

clamps on them do not have
loose or missing insulation.

Do not jump start unless cables
in suitable condition are avail-
able.

A running engine can be danger-

ous. Keep your fingers, hands,
clothing, hair and tools away
from the cooling fan, belts and
any other moving engine parts.
Removing rings, watches and
ties is advisable.

Jump starting is dangerous if it

done incorrectly. If you are un-
sure about the proper procedure
for jump starting, consult a com-
petent mechanic.

When your vehicle does not start due to a
run down (discharged) battery, the vehicle
may be jump started by connecting your
battery to another battery (called the
booster battery) with jumper cables.

How to jump start

1. Make sure the booster battery is 12
volts and the negative terminal is
grounded.
2. If the booster battery is in another
vehicle, do not let the two vehicles touch.
3. Turn off all unnecessary lights and
accessories.

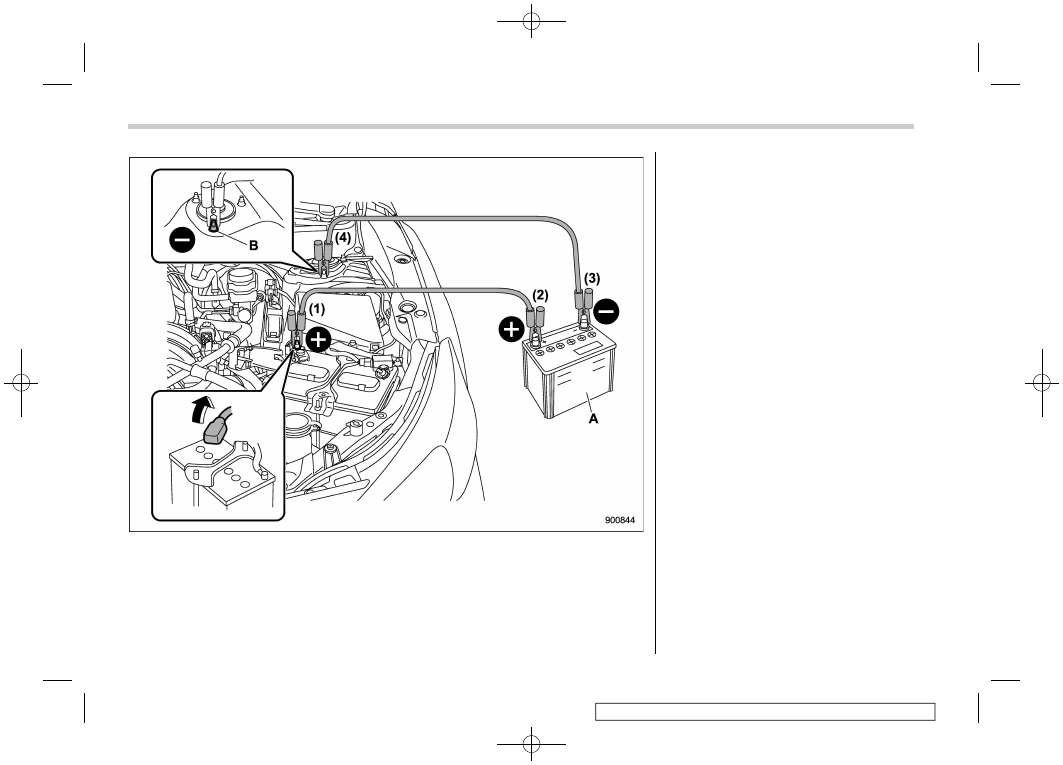

4. Connect the jumper cables exactly in
the sequence illustrated.

– CONTINUED –

In case of emergency/Jump starting

9-11

(378,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Booster battery

Strut mounting nut

(1) Connect one jumper cable to the
positive (+) terminal on the discharged
battery.
(2) Connect the other end of the
jumper cable to the positive (+) term-
inal of the booster battery.
(3) Connect one end of the other cable
to the negative (−) terminal of the
booster battery.
(4) Connect the other end of the cable
to the strut mounting nut of the vehicle
with the discharged battery.

Make sure that the cables are not near any
moving parts and that the cable clamps are
not in contact with any other metal.
5. Start the engine of the vehicle with the
booster battery and run it at moderate
speed. Then start the engine of the vehicle
that has the discharged battery.
6. When finished, carefully disconnect
the cables in exactly the reverse order.

In case of emergency/Jump starting

9-12

(379,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Engine overheating

WARNING

Never attempt to remove the radiator
cap until the engine has been shut
off and has fully cooled down. When
the engine is hot, the coolant is
under pressure. Removing the cap
while the engine is still hot could
release a spray of boiling hot cool-
ant, which could burn you very
seriously.

If the engine overheats, safely pull off the
road and stop the vehicle in a safe
location.

If steam is coming from the
engine compartment

Turn the ignition switch to the “LOCK”/

“OFF” position and get everyone away
from the vehicle until it cools down.
.

Contact an authorized SUBARU deal-

er.

If no steam is coming from the
engine compartment

1. Keep the engine running at idling
speed.
2. Open the engine hood to ventilate the
engine compartment. Refer to “Engine
hood” F11-5.
Confirm that the cooling fan is turning. If
the fan is not turning, immediately turn off
the engine and contact an authorized
SUBARU dealer for repair.

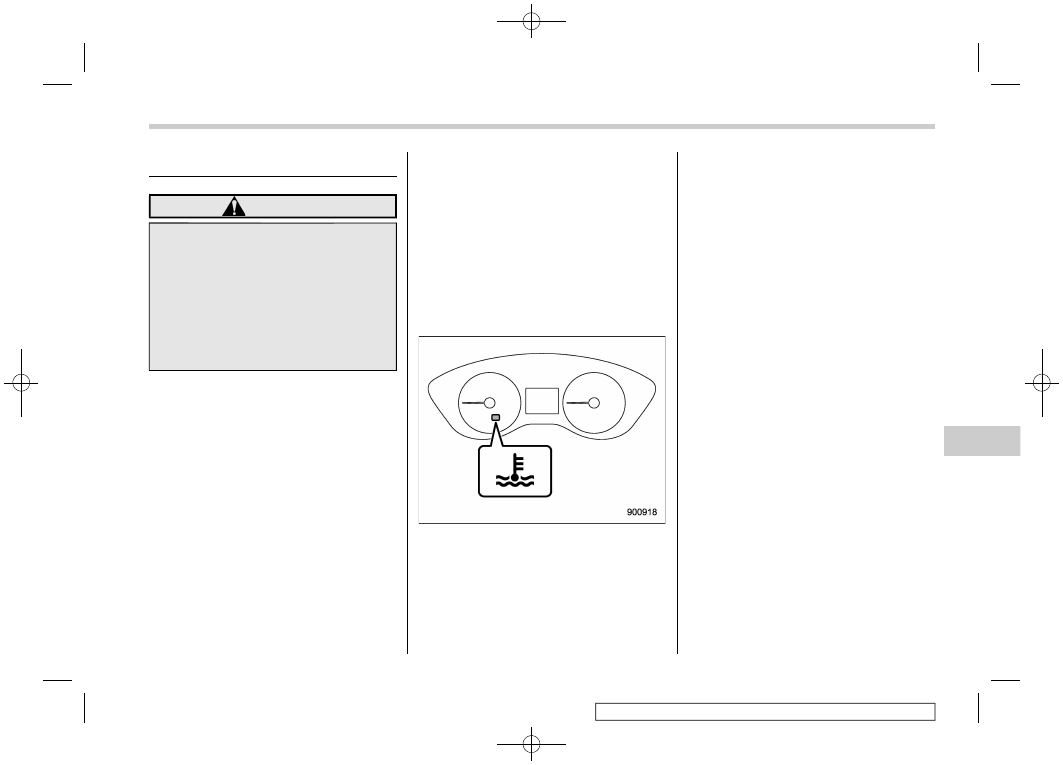

Coolant temperature high warning light
(red)

3. After the coolant temperature high
warning light that has blinked or illumi-
nated in RED turns off, turn off the engine.
For details about the warning light, refer to
“Coolant temperature low indicator light/

Coolant temperature high warning light”
F3-17.
4. After the engine has fully cooled down,
check the coolant level in the reserve tank.
If the coolant level is below the “LOW”
mark, add coolant up to the “FULL” mark.

NOTE

For details about how to check the
coolant level or how to add coolant,
refer to “Engine coolant” F11-11.

5. If there is no coolant in the reserve
tank, add coolant to the reserve tank. Then
remove the radiator cap and fill the radiator
with coolant.

If you remove the radiator cap from a hot
radiator, first wrap a thick cloth around the
radiator cap, then turn the cap counter-
clockwise slowly without pressing down
until it stops. Release the pressure from
the radiator. After the pressure has been
fully released, remove the cap by pressing
down and turning it.

In case of emergency/Engine overheating

9-13

(380,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Towing

If towing is necessary, it is best done by
your SUBARU dealer or a commercial
towing service. Observe the following
procedures for safety.

WARNING

Never tow AWD models with the
front wheels raised off the ground
while the rear wheels are on the
ground, or with the rear wheels
raised off the ground while the front
wheels are on the ground. This will
cause the vehicle to spin away due
to the operation or deterioration of
the center differential.

Towing hooks and tie-down
hooks/holes

The towing hook should be used only in an
emergency.

CAUTION

Use only the specified towing hooks
and tie-down hooks/holes. Never
use suspension parts or other parts
of the body for towing or tie-down
purposes.

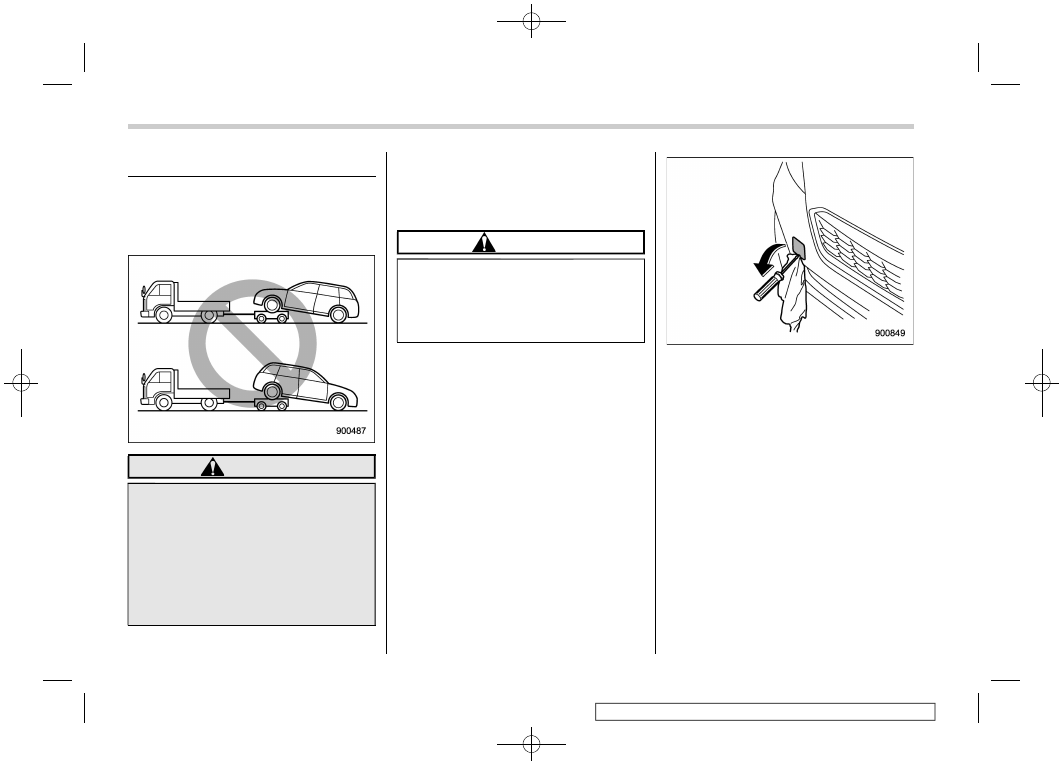

Front towing hook

1. Take the towing hook and screwdriver
out of the tool bucket. Take the jack handle
out of the trunk (sedan) or cargo area (5-
door models).

2. Cover the tip of a flat-head screwdriver
with vinyl tape or cloth so that it will not
scratch the bumper. Insert the flat-head
screwdriver into the cutout of the cover and
pry open the cover.

In case of emergency/Towing

9-14

Subaru Impreza (2019 year). Instruction - part 23
