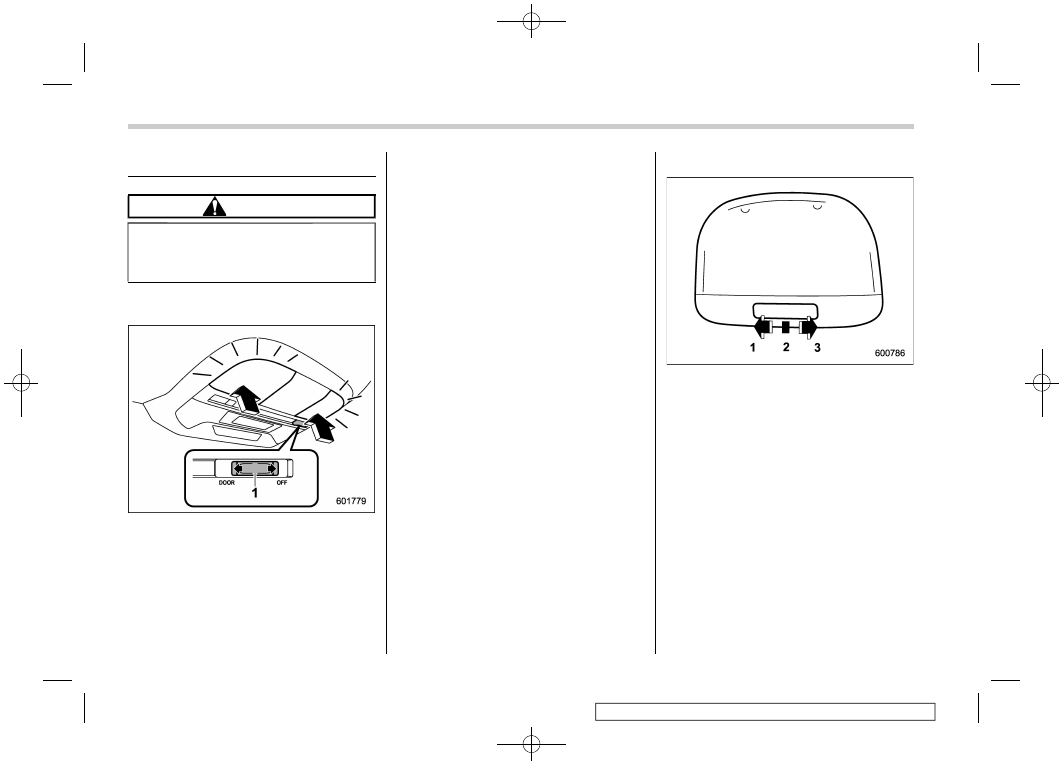

Interior lights

CAUTION

When leaving your vehicle, make
sure the lights are turned off to
avoid battery discharge.

Map lights

Door interlock switch

To turn on the map light, push the lens.
To turn it off, push the lens again.

Automatic illumination

When the door interlock switch is in the
“DOOR” position, the map lights illuminate
automatically in the following cases.
.

Any of the doors other than the rear

gate (if equipped) is opened.
.

The doors are unlocked using the

keyless access function (if equipped).
Refer to “Locking and unlocking by holding
the access key fob” F2-6.
.

The doors are unlocked using the

remote keyless entry system. Refer to
“Remote keyless entry system” F2-17.
.

The ignition switch is turned from the

“ACC” position to the “LOCK”/“OFF” posi-
tion.

Dome light

DOOR

OFF

The dome light switch has the following
positions.

ON: The light remains on continuously.
OFF: The light remains off.
DOOR: The dome light illuminates auto-
matically in the following cases.
.

Any of the doors or the rear gate is

opened.
.

The doors or the rear gate are unlocked

using the keyless access function (if
equipped). Refer to “Locking and unlock-
ing by holding the access key fob” F2-6.
.

The doors or the rear gate are unlocked

Interior equipment/Interior lights

6-2

(253,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

using the remote keyless entry transmitter.
Refer to “Remote keyless entry system”
F2-17.
.

The ignition switch is turned from the

“ACC” position to the “LOCK”/“OFF” posi-
tion.

Cargo area light

DOOR

OFF

DOOR: The light illuminates when the rear
gate is opened. The light remains illumi-
nated for several seconds and gradually
turns off after the rear gate is closed.
OFF: The light remains off.

OFF delay timer

The following lights have an automatic
illumination function.
.

dome light

map light

cargo area light

When the interior light switch is set to the
“DOOR” position, the light will automati-
cally turn on and turn off depending on the
locking and unlocking of the doors, the
opening and closing of the doors, as well
as the position of the ignition switch.

NOTE

The setting for the period of time in
which the lights remain on (OFF delay
timer) can be changed by a SUBARU
dealer. Contact your SUBARU dealer
for details. For models with the combi-
nation meter display (color LCD), the
setting can also be changed by operat-
ing the combination meter display
(color LCD). For details, refer to “Vehi-
cle Setting” F3-39.

Sun visors

To block out glare, swing down the visors.
To use the sun visor at a side window,
swing it down and move it sideways.

– CONTINUED –

Interior equipment/Sun visors

6-3

(254,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

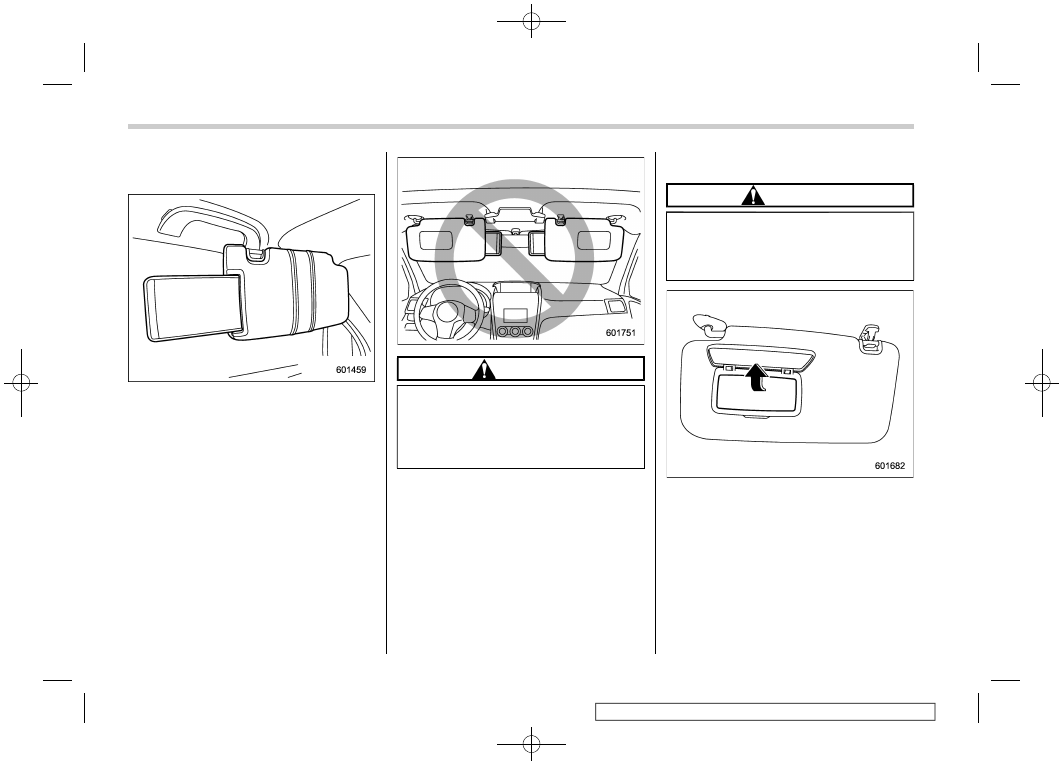

Sun visor extension plate (if
equipped)

With the sun visor positioned over the side
window, you can use the sun visor exten-
sion plate to prevent glare through the gap
between the sun visor and center pillar. To
use the extension plate, pull it toward the
rear of the vehicle. When you have
finished using it, stow it by pushing it
toward the front of the vehicle.

CAUTION

Do not pull out the extension plate
with the sun visor positioned over
the windshield. The extension plate
would obstruct your view of the
rearview mirror.

Vanity mirror

CAUTION

Keep the vanity mirror cover closed
while the car is being driven to avoid
being temporarily blinded by the
glare of bright light.

To use the vanity mirror, swing down the
sun visor and open the vanity mirror cover.

Interior equipment/Sun visors

6-4

(255,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

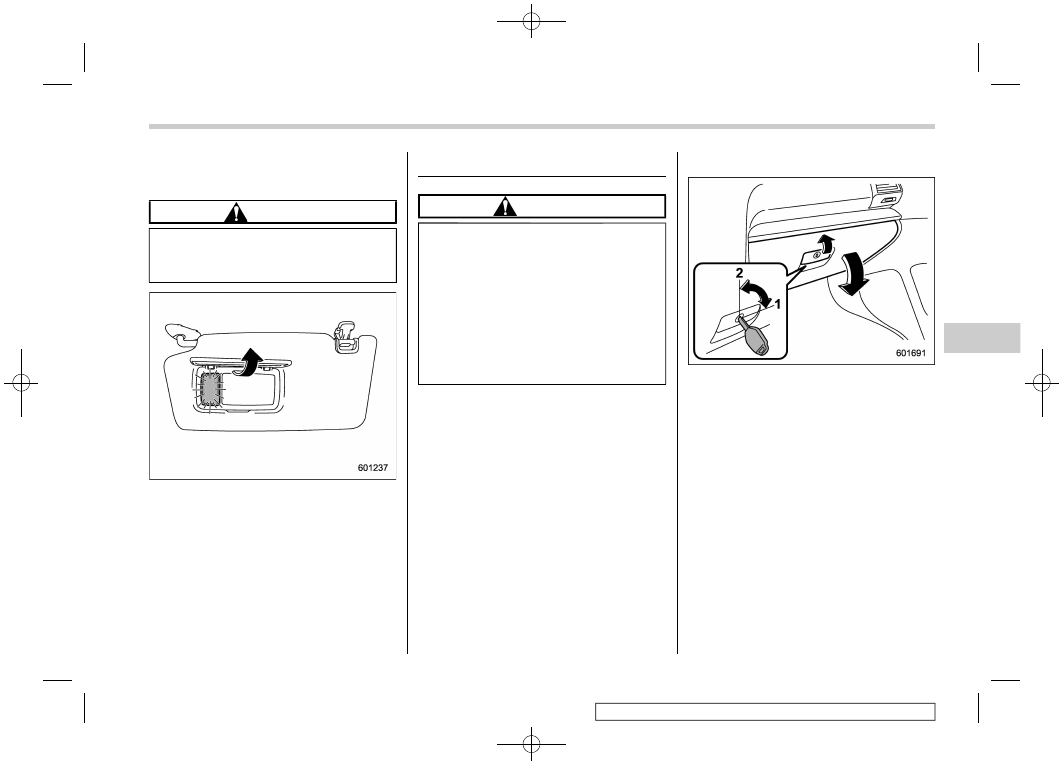

Vanity mirror with light (if
equipped)

CAUTION

Keep the vanity mirror cover closed
while the car is being driven to avoid
being distracted by the light.

To use the vanity mirror, swing down the
sun visor and open the vanity mirror cover.
The light beside the vanity mirror illumi-
nates when the mirror cover is opened.

NOTE

Use of the vanity mirror light for a long
period of time while the engine is not
running can cause battery discharge.

Storage compartment

CAUTION

Always keep the storage com-

partment closed while driving to
reduce the risk of injury in the
event of a sudden stop or an
accident.

Do not store spray cans, contain-

ers with flammable or corrosive
liquids or any other dangerous
items in the storage compart-
ment.

Glove box

Rotate the key clockwise to lock.

Rotate the key counterclockwise to un-
lock.

To open the glove box, pull the handle.
To close it, push the lid firmly upward.

NOTE

The emergency key is directional. If

the key cannot be inserted, change the
direction that the grooved side is facing
and insert it again.
.

For models with the “keyless access

with push-button start system”, use the
emergency key to lock or unlock the
glove box.

– CONTINUED –

Interior equipment/Storage compartment

6-5

(256,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

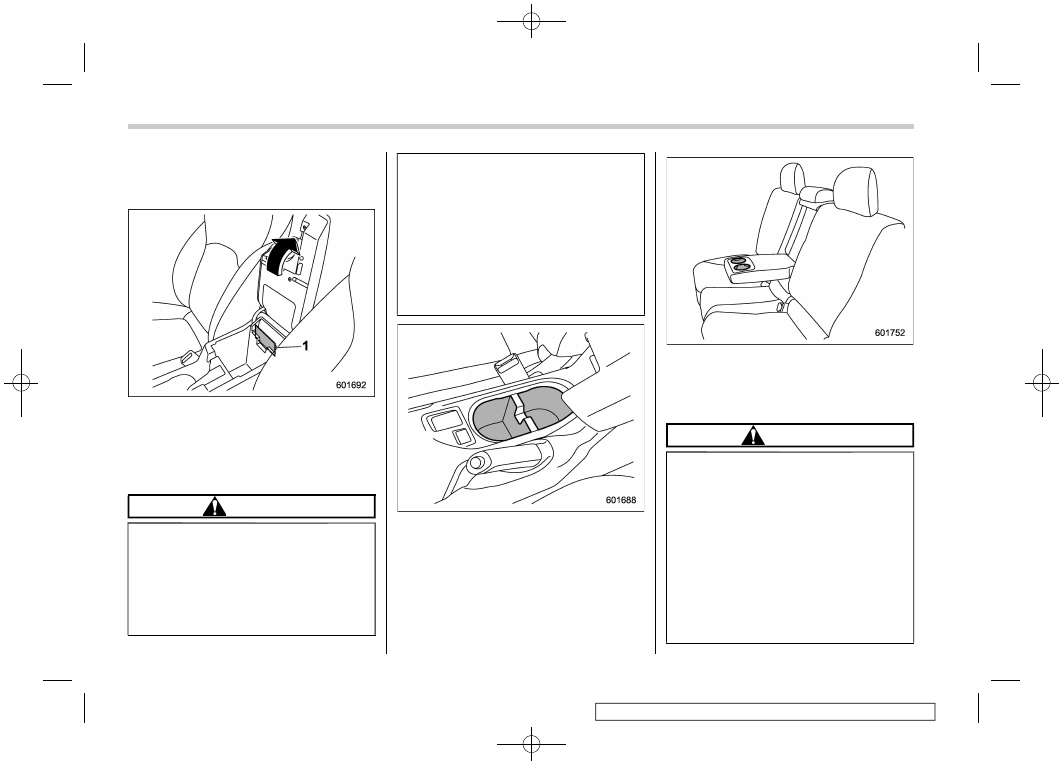

Center console

The center console box provides a storage
space.

Card holder

The top of the console can be used as an
armrest.

Cup holders

CAUTION

Do not pick up a cup from the cup

holder or put a cup in the holder
while you are driving, as this may
distract you and lead to an acci-
dent.

Take care to avoid spills. Bev-

erages, if hot, might scald you

and/or your passengers. Spilled
beverages may also damage up-
holstery or carpets.

When a cup in the rear passen-

ger’s cup holder contains a bev-
erage, do not fold down the rear
seatback. Otherwise, the bever-
age could spill and, if the bev-
erage is hot, it could scald you
and/or your passengers.

Front passenger’s cup holder

A dual cup holder is built into the center
console.

Rear passenger’s cup holder (if equipped)

A dual cup holder is built into the armrest.

Bottle holders

CAUTION

Do not pick up a bottle from the

bottle holder or put a bottle in the
holder while you are driving, as
this may distract you and lead to
an accident.

When placing a beverage in a

bottle holder, make sure it is
capped. Otherwise, the beverage
could spill when opening/closing
the door or while driving and, if
the beverage is hot, it could scald
you and/or your passengers.

Interior equipment/Storage compartment

6-6

(257,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

The bottle holder equipped on each door
trim can be used to hold beverage bottles
and other items.

Accessory power outlets

Electrical power (12V DC) is available at
any of the accessory power outlets when
the ignition switch is in either the “ACC” or
“ON” position. Accessory power outlets
are located in the following places.

Power outlet below the climate control
dials

Power outlet in the center console

You can use an in-vehicle electrical appli-
ance by connecting it to an outlet.
The maximum power rating of an appli-
ance that can be connected is 120W.

CAUTION

Do not attempt to use a cigarette

lighter in the accessory power
outlets.

Do not place any foreign objects,

especially metal ones such as
coins or aluminum foil, into the
accessory power outlet. That
could cause a short circuit. Al-
ways put the cap on the acces-
sory power outlet when it is not in
use.

– CONTINUED –

Interior equipment/Accessory power outlets

6-7

(258,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

Use only electrical appliances

which are designed for 12V DC.

The maximum power rating of an
appliance that can be connected
is 120W. Do not use an appliance
which exceeds the indicated wat-
tage for each outlet.

When using appliances con-

nected to two outlets simulta-
neously, the total power con-
sumed by them must not exceed
120W. Overloading the accessory
power outlet can cause a short
circuit. Do not use double adap-
ters or more than one electrical
appliance.

If the plug on your electric appli-

ance is either too loose or too
tight for the accessory power
outlet, this can result in a poor
contact or cause the plug to get
stuck. Only use plugs that fit
properly.

Use of an electric appliance in the

accessory power outlet for a long
period of time while the engine is
not running can cause battery
discharge.

Before driving your vehicle, make

sure that the plug and the cord on
your electrical appliance will not

interfere with your shifting gears
and operating the accelerator
and brake pedals. If they do, do
not use the electrical appliance
while driving.

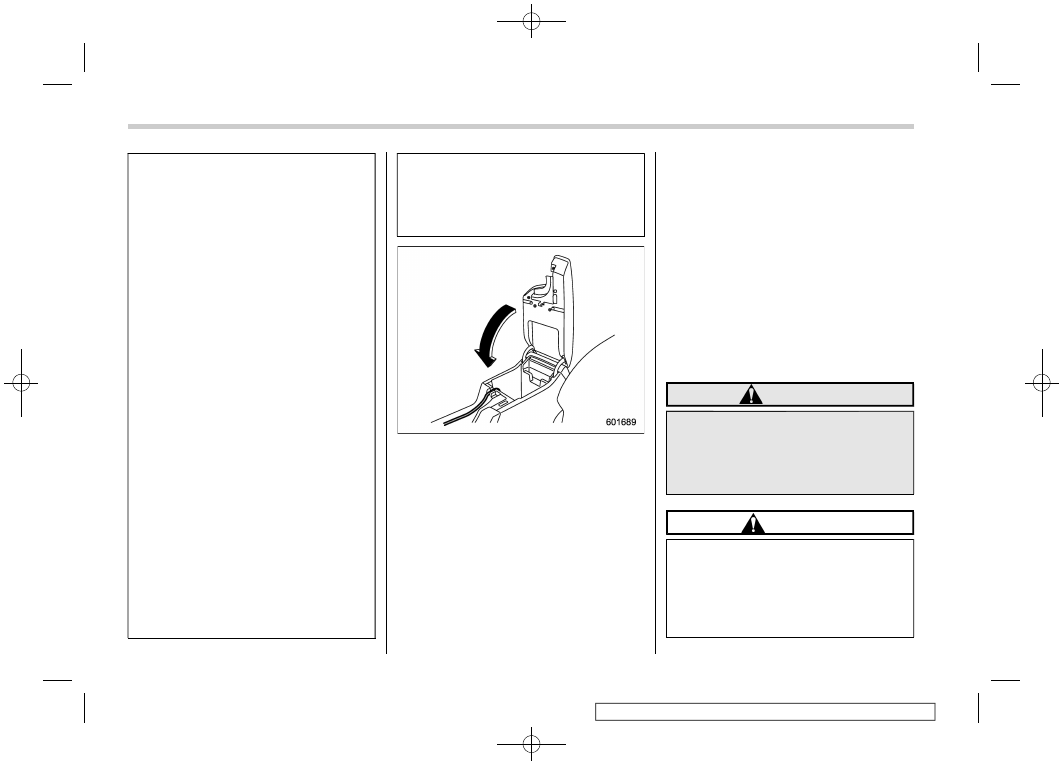

NOTE

When the lid of the center console is
closed, an opening remains between
the center console and the lid to allow
the power outlet in the center console
to be used. Pass the cord of the
electrical appliance through this open-
ing.

Use with a cigarette lighter
(dealer option)

To use the accessory power outlet as a

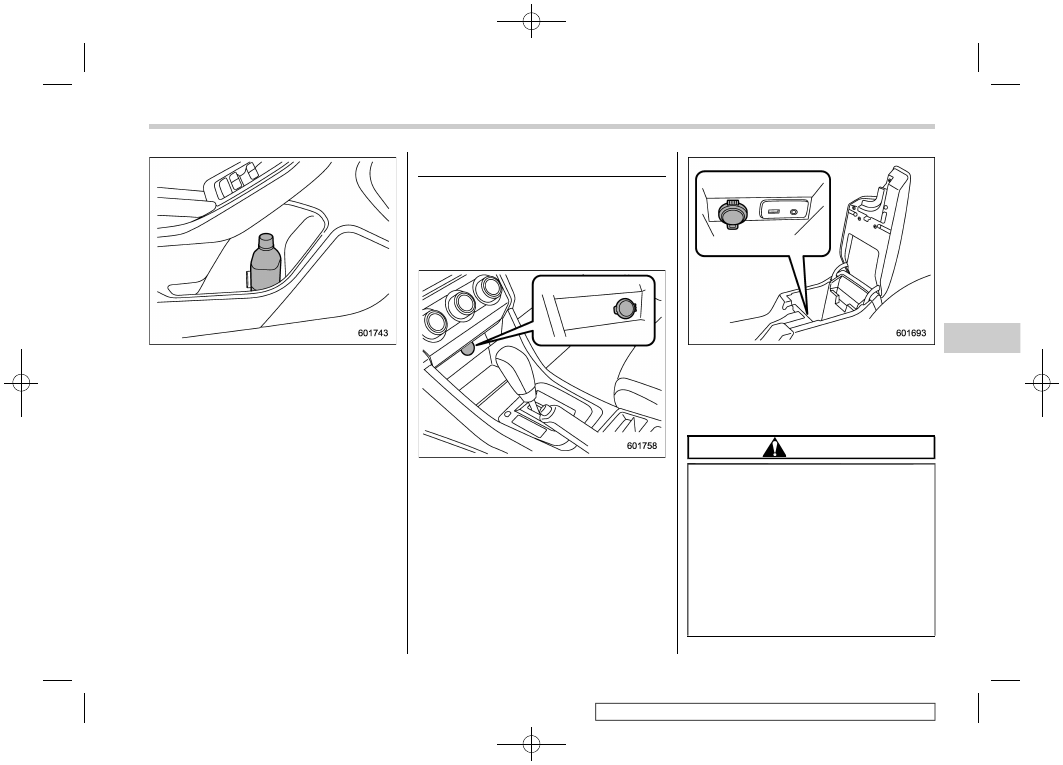

cigarette lighter socket, purchase the
cigarette lighter plug, which is an optional
accessory. A cigarette lighter plug is
available from your SUBARU dealer.
The cigarette lighter operates only when
the ignition switch is in the “ON” or “ACC”
position.
To use the cigarette lighter, push in the
knob and wait a few moments. It will
automatically spring up when ready for
use.

WARNING

To avoid being burned, never grasp
the lighter by the end with the
heating element. Doing so could
result in injury and could also da-
mage the heating element.

CAUTION

Do not hold the lighter pushed in,

because it will overheat.

The electrical power socket is

originally designed to use a gen-
uine SUBARU cigarette lighter
plug. Do not use a non-genuine

Interior equipment/Accessory power outlets

6-8

(259,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

cigarette lighter plug in the sock-
et. Doing so may cause a short-
circuit and overheating, resulting
in a fire.

If the socket is ever used for a

plug-in accessory such as a cell
phone, that may damage the
portion of the socket’s internal
mechanism that causes a cigar-
ette lighter plug to “pop out” after
its lighter element is heated.
Therefore, do not place a cigar-
ette lighter plug in a socket that
has been used, even once, to
power a plug-in accessory. Doing
so may cause the plug to stick
and overheat, creating a potential
fire hazard.

USB power supply

CAUTION

The specification of a USB term-

inal that can be used is the A-
type. If a different specification of
terminal is connected, power
supply or charging may not be
possible, or the device may mal-
function.

There is no guarantee even when

a connected device malfunctions
or data is damaged. The connec-
tion of a device shall be per-
formed at your responsibility.

To avoid an electric shock or a

malfunction, observe the follow-
ing precautions.

– Do not connect a USB hub.

– Do not insert any metal or

other foreign object into the
USB terminal.

– Do not spill water or other

liquid on the USB terminal.

When you have connected a

cable, pay attention not to pull
on the connected cable with your
legs. Otherwise, it may result in
injury to you by falling over, or a

malfunction of the connected
device.

If a device is connected for a long

time when the engine is not
running, doing so may cause the
risk of a discharged battery. Even
when the engine is running, we
recommend that you do not con-
nect a device for an unnecessa-
rily long time.

Do not connect a malfunctioning

device. Doing so may cause the
risk of smoke and fire.

NOTE

The USB power supply is designed

to supply a maximum rated power of DC
5V/2.1A or DC 5V/1A. Before connect-
ing a device, be sure to read the
instruction manual of the device and
check whether or not this specification
of the output is supported by the
device. If a device that requires power
exceeding the maximum rating is con-
nected, power supply or charging may
not be possible. Even if charging could
be completed, the time required for
charging may be longer than when the
genuine charger for that device is used.
.

Depending on the device, charging

may be possible only when a special

– CONTINUED –

Interior equipment/USB power supply

6-9

(260,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

cable is used. In this case, be sure to
connect the device using the special
cable.
.

When a device that communicates

with a PC is connected, power supply
or charging may not be possible.
.

When connect a device for charging,

disconnect the device promptly after
charging is completed.

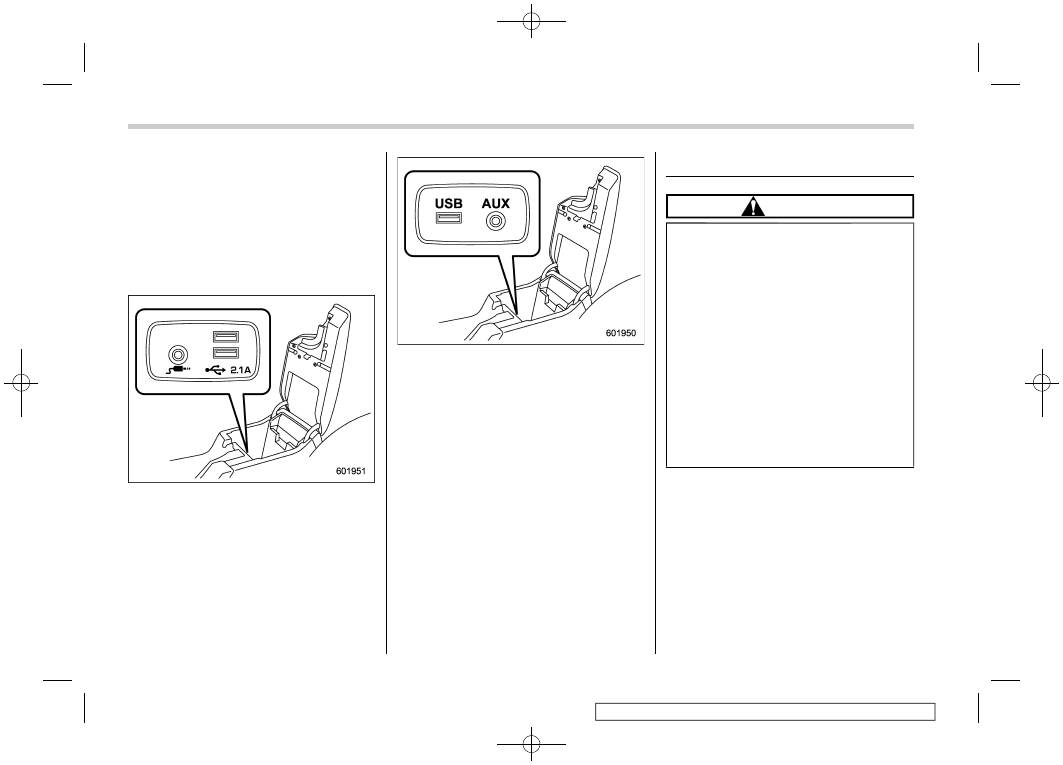

2 terminal type USB power supply
-

DC 5V/2.1A*

Audio devices can be connected and
used.

*: The available electricity of the two USB
terminals is a maximum of 4.2 A.

1 terminal type USB power supply
-

DC 5V/1A

Audio devices can be connected and
used

When the ignition switch is in the “ACC” or
“ON” position and a USB electronic device
is connected to the USB terminal, DC 5V
power can be supplied to the device. Use
the USB terminal to use or charge an
electronic device.

Ashtray (dealer option)

CAUTION

Do not use ashtrays as waste

receptacles or leave a lighted
cigarette in an ashtray. This could
cause a fire.

Always extinguish matches and

cigarettes before putting them
into the ashtray, and then close
the ashtray securely. If you keep
the ashtray open, the fire of the
cigarette may spread to another
cigarette butt and start a fire.

Do not put flammable material in

the ashtray.

Do not leave a lot of cigarette

butts in the ashtray.

NOTE

Particles of ash and tobacco will accu-
mulate around the hinges of the ash-
tray’s inner lid. Clean them off using a
toothbrush or a similar narrow-ended
implement.

Interior equipment/Ashtray (dealer option)

6-10

(261,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

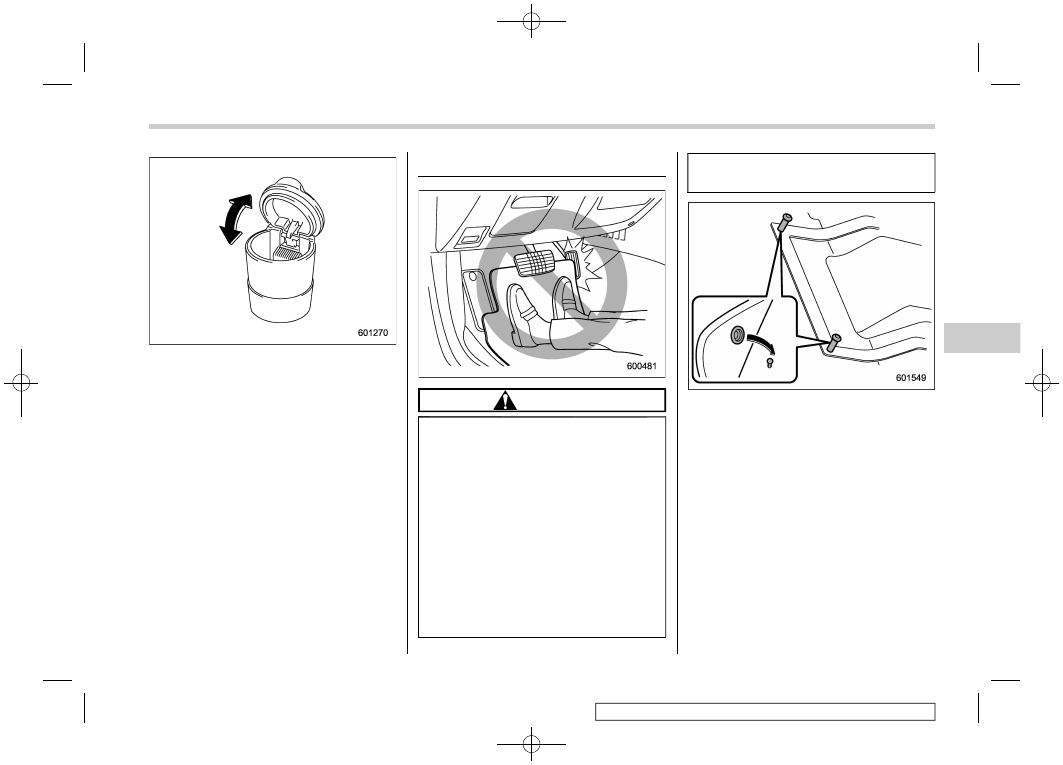

The portable ashtray can be installed in
each cup holder or bottle holder. For the
locations of the cup holders, refer to “Cup
holders” F6-6. For the locations of the
bottle holders, refer to “Bottle holders” F6-
6.

When using the ashtray, open the lid of the
ashtray. Fully close the lid after using the
ashtray to help reduce residual smoke.

Floor mat

CAUTION

If the floor mat slips forward and
interferes with the movement of the
pedals during driving, it could cause
an accident. Observe the following
precautions to prevent the floor mat
from slipping forward.

Be sure to use a genuine
SUBARU floor mat or an equiva-
lent designed with grommets in
the correct locations.

Make sure that the driver’s floor

mat is placed in its proper loca-
tion and is correctly secured on
its retaining pins.

Do not use more than one floor

mat.

Retaining pins are located on the driver’s
side floor.
The floor mat should be properly secured
using the built-in grommets, by placing the
grommets over the pins and pushing them
downward.

Interior equipment/Floor mat

6-11

(262,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

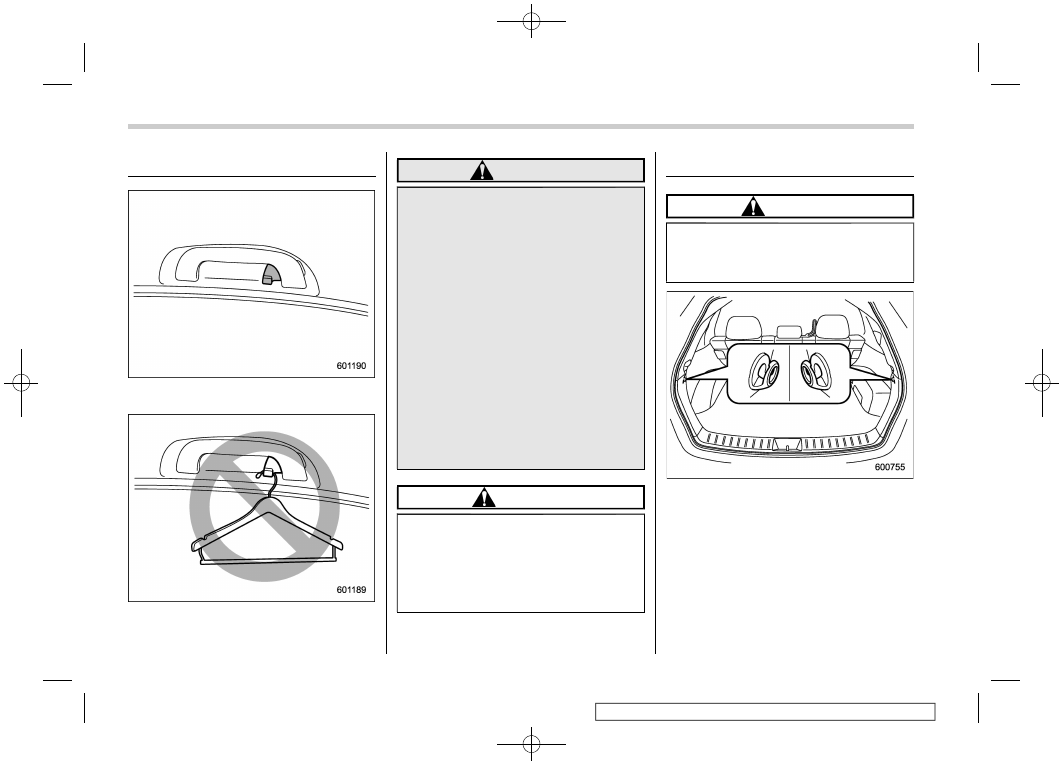

Coat hook

A coat hook is attached to the rear
passenger’s hand grip.

WARNING

Obey the following instructions.

Do not hang coat hangers or

other hard or pointed objects on
the coat hooks. Hang clothing
directly on the coat hooks with-
out using hangers.

Before hanging clothing on the

coat hooks, make sure there are
no pointed objects in the pock-
ets.

If these instructions are ignored, the
following may occur in sudden
stops or in a collision.

serious injuries by the items

thrown through the cabin.

incorrect SRS curtain airbag de-

ployment

CAUTION

Never hang anything on the coat
hook that might obstruct the driver’s
view or that could cause injury in
sudden stops or in a collision. And
do not hang items on the coat hook
that weigh 11 lbs (5 kg) or more.

Shopping bag hook

CAUTION

Do not hang items on the shopping
bag hook that weigh 6 lbs (3 kg) or
more.

A shopping bag hook is attached to each
side of the cargo area.

Interior equipment/Coat hook

6-12

(263,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

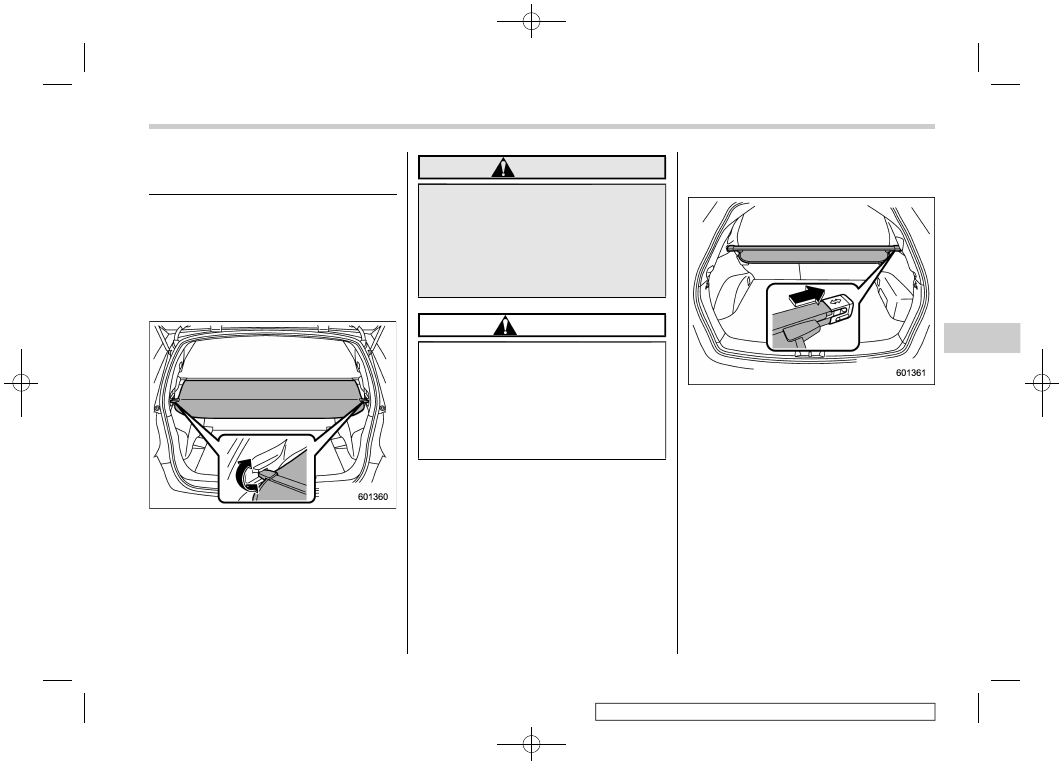

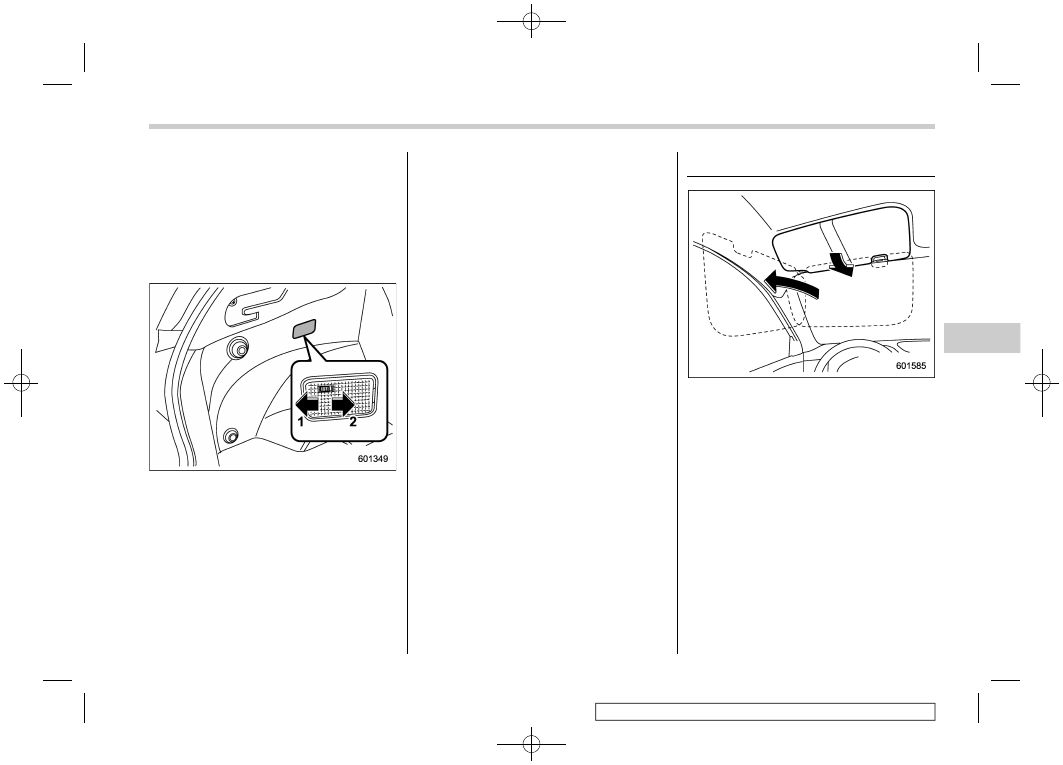

Cargo area cover (if
equipped)

The cargo area cover is provided for
covering the cargo area and to protect its
contents from direct sunlight. This cover is
detachable to make room for additional
cargo.

Using the cover

To extend the cover, pull the end of the
cover out of the housing, then insert its
hooks into the catches as shown. To
rewind it, unhook it from the catches and
it will rewind automatically. You should
hold on to the cover and guide it back into
the cover housing while it is rewinding.

WARNING

Do not place anything on the ex-
tended cover. Putting excessive
weight on the extended cover can
break it and an object on the cover
could tumble forward in the event of
a sudden stop or collision. This
could cause serious injury.

CAUTION

Be careful not to scratch the rear
gate stays while extending and re-
winding the cover.

Scratches on the stays could cause
leakage of gas from the stays, which
may result in their inability to hold
the rear gate open.

To remove the cover housing

1. Rewind the cover.

2. Push the cover housing to the right
side and shorten it.
3. Take it off the retainer.

– CONTINUED –

Interior equipment/Cargo area cover

6-13

(264,1)

北米Model "A1340BE-A" EDITED: 2018/ 4/ 2

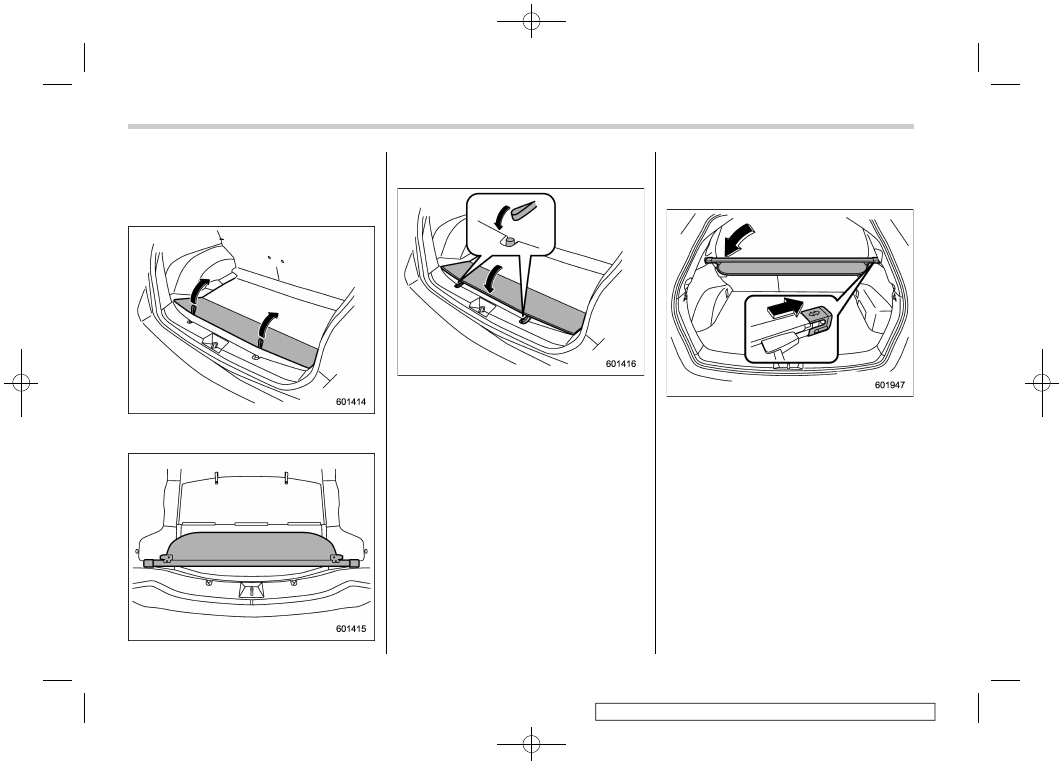

Stowage of the cargo area
cover

The cargo area cover can be stowed in
under the cargo floor.

1. Raise and fold the rear end of the cargo
floor board.

2. Stow the cover housing in the cargo
area end.

3. Put the cargo floor board back while
hanging two retaining straps on the hooks
that are located on the rear wall of cargo
area.

To install the cover housing

The right end of the cargo area cover is a
sliding structure.

1. Insert the right end of the cover into the
recessed portion with the arrow mark
facing upward.
2. Hold the cover housing securely and
insert the left end of the cover into the
recessed portion.

Interior equipment/Cargo area cover

6-14

Content .. 14 15 16 17 ..
