Subaru BRZ (2019 year). Instruction - part 1

BRZ_U

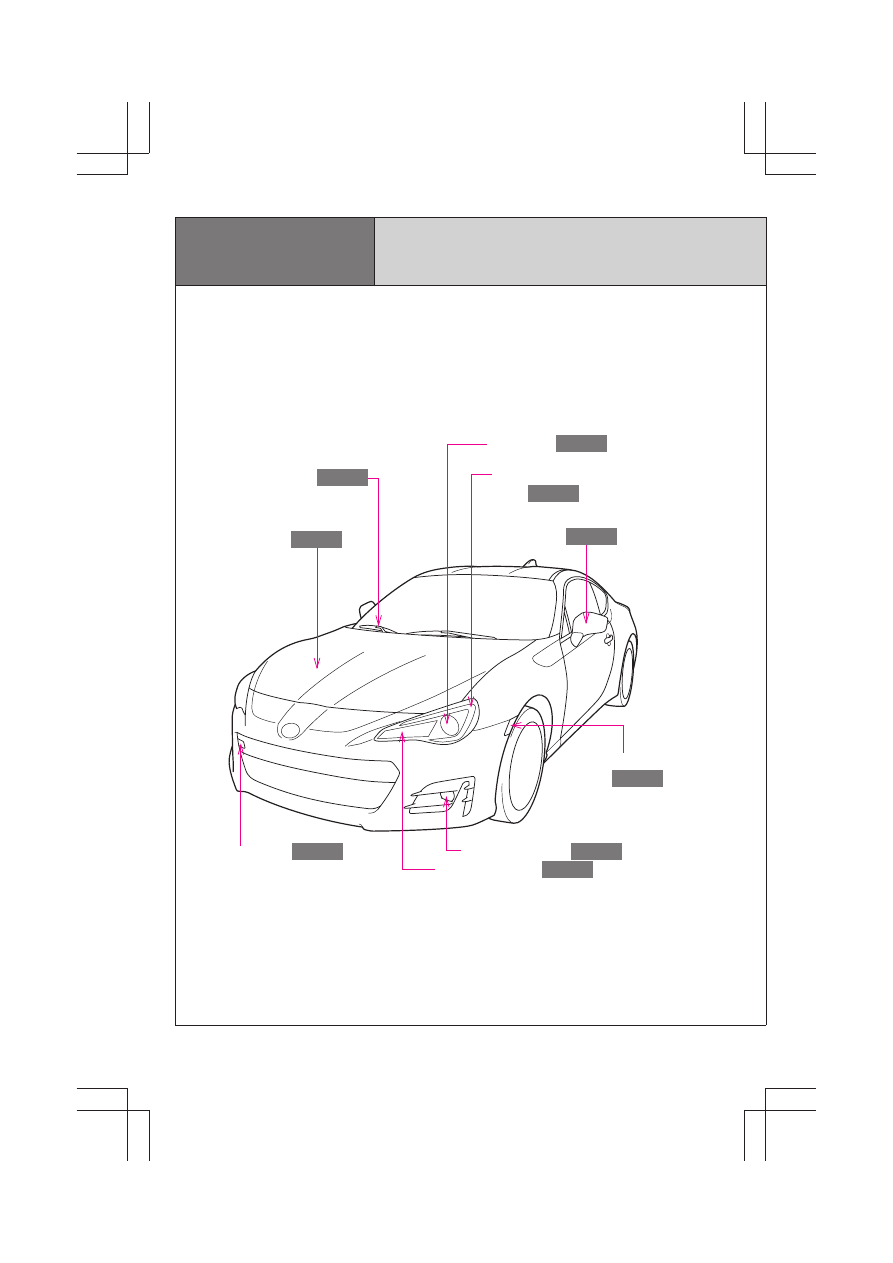

Engine hood

P. 353

Windshield wipers

P. 240

Headlights

P. 233

Parking lights/daytime running
lights

P. 233

Front side marker
lights

P. 233

Turn signal lights

P. 195

Front fog lights *

P. 239

Pictorial index

Exterior

Towing eyelet

P. 413

Outside rear view
mirrors

P. 71

BRZ_U

Tires

●

Rotation

●

Replacement

●

Inflation pressure

●

Information

P. 369
P. 451
P. 377
P. 502

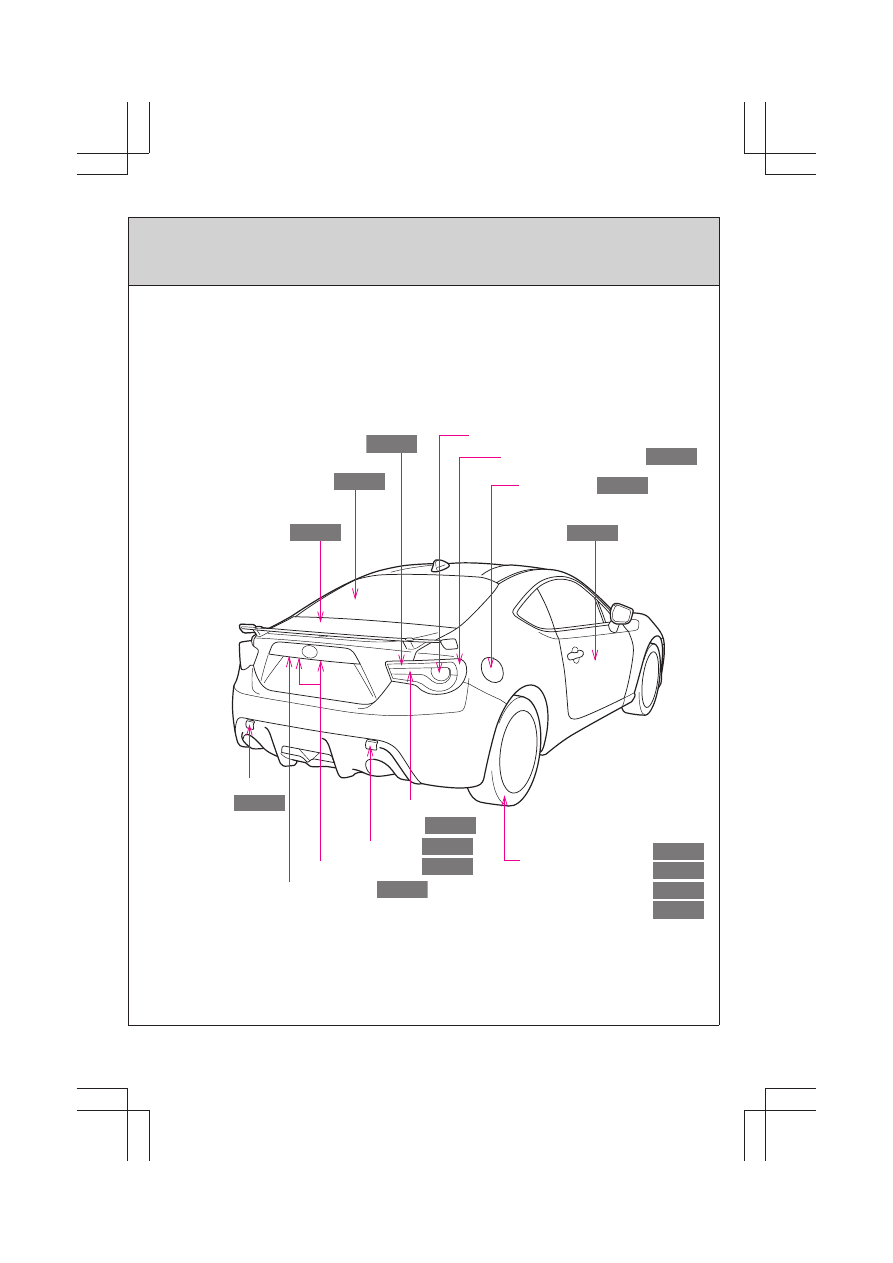

Fuel filler lid

P. 78

Turn signal lights

P. 195

Rear side marker lights

P. 233

: If equipped

License plate lights

P. 233

Towing eyelet

P. 413

Towing eyelet

P. 413

Rear view camera

P. 248

Stop lights

Rear window defogger

P. 298

Trunk lid

P. 46

Tail lights/stop lights

P. 233

Doors

P. 43

BRZ_U

Pictorial index

Interior

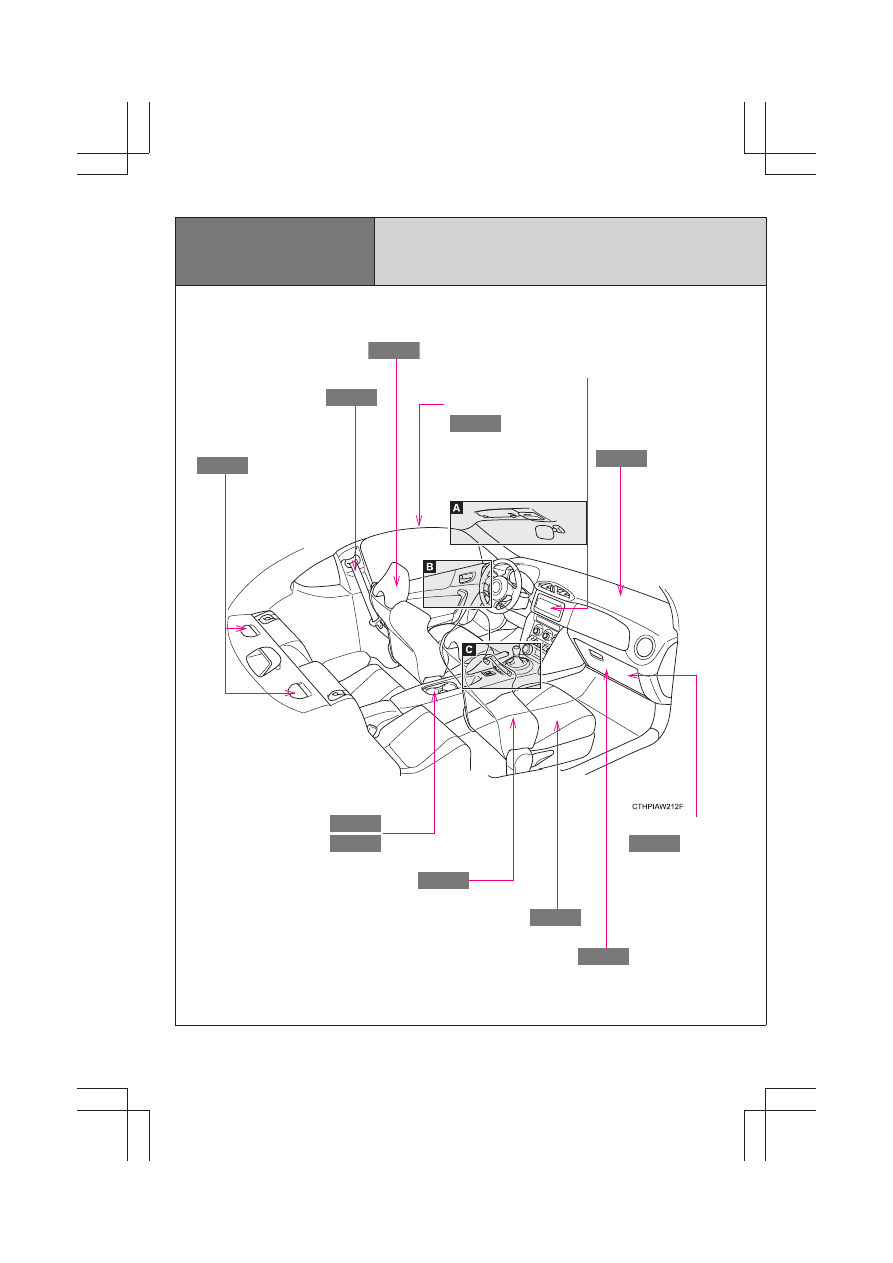

Power outlet

P. 312

Head restraints

P. 58

Seatbelts

P. 60

Cup holders

Console tray

P. 307
P. 307

SRS side airbags

P. 93

Front seats

P. 53

Glove box

P. 305

SRS curtain airbags

P. 93

Child restraint
anchor brackets

P. 146

Display Audio system *

Navigation system *

SRS front
passenger airbag

P. 93

BRZ_U

Anti-glare inside rear view mirror

P. 69

Interior light

P. 303

Vanity mirrors

P. 310

Sun visors

P. 309

: If equipped

: Refer to the Owner’s Manual supplement for the audio system.

: Refer to the Owner’s Manual supplement for the navigation system.

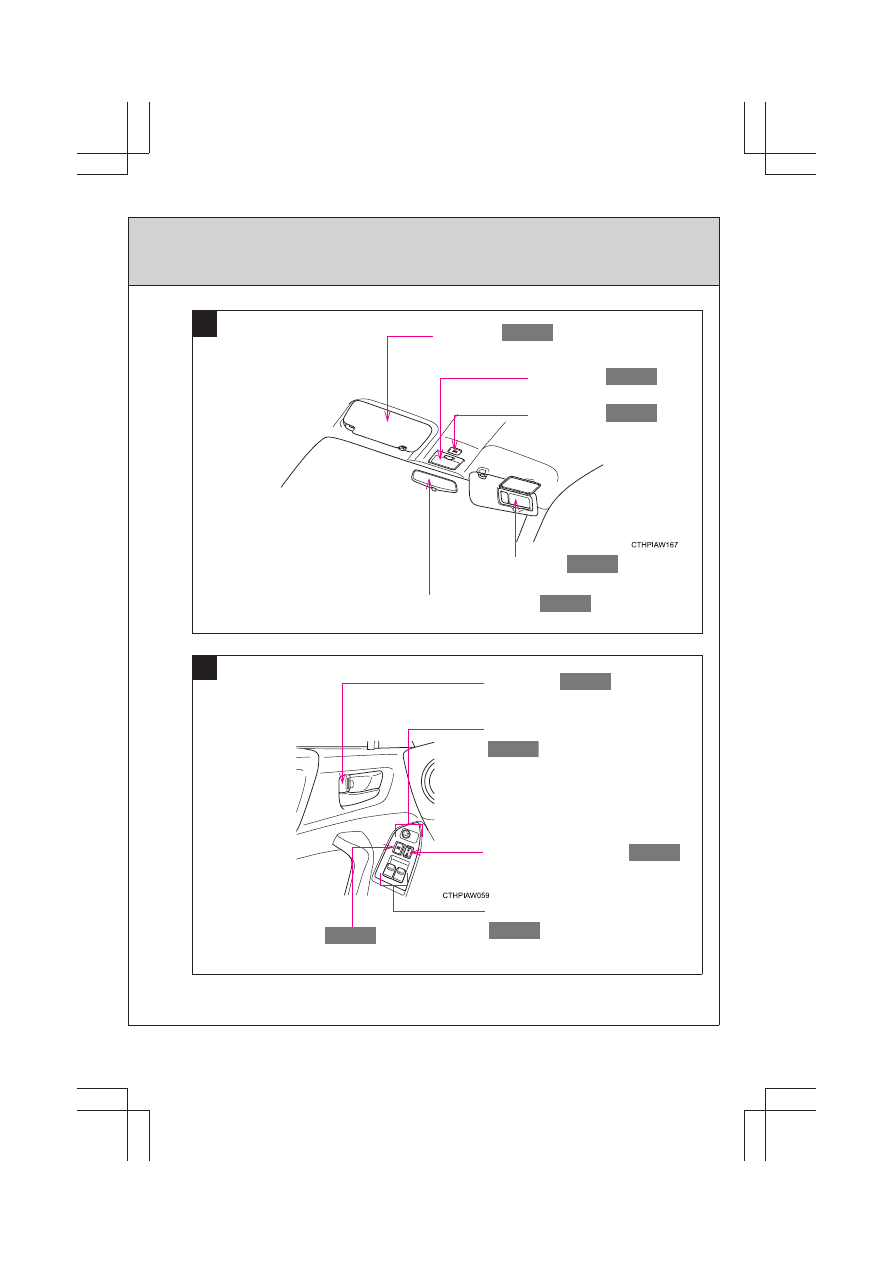

Lock levers

P. 44

Outside rear view mirror switch

P. 71

Window lock switch

P. 74

Power window switches

P. 74

Power door lock switch

P. 44

Microphone

P. 301

BRZ_U

: If equipped

Pictorial index

Interior

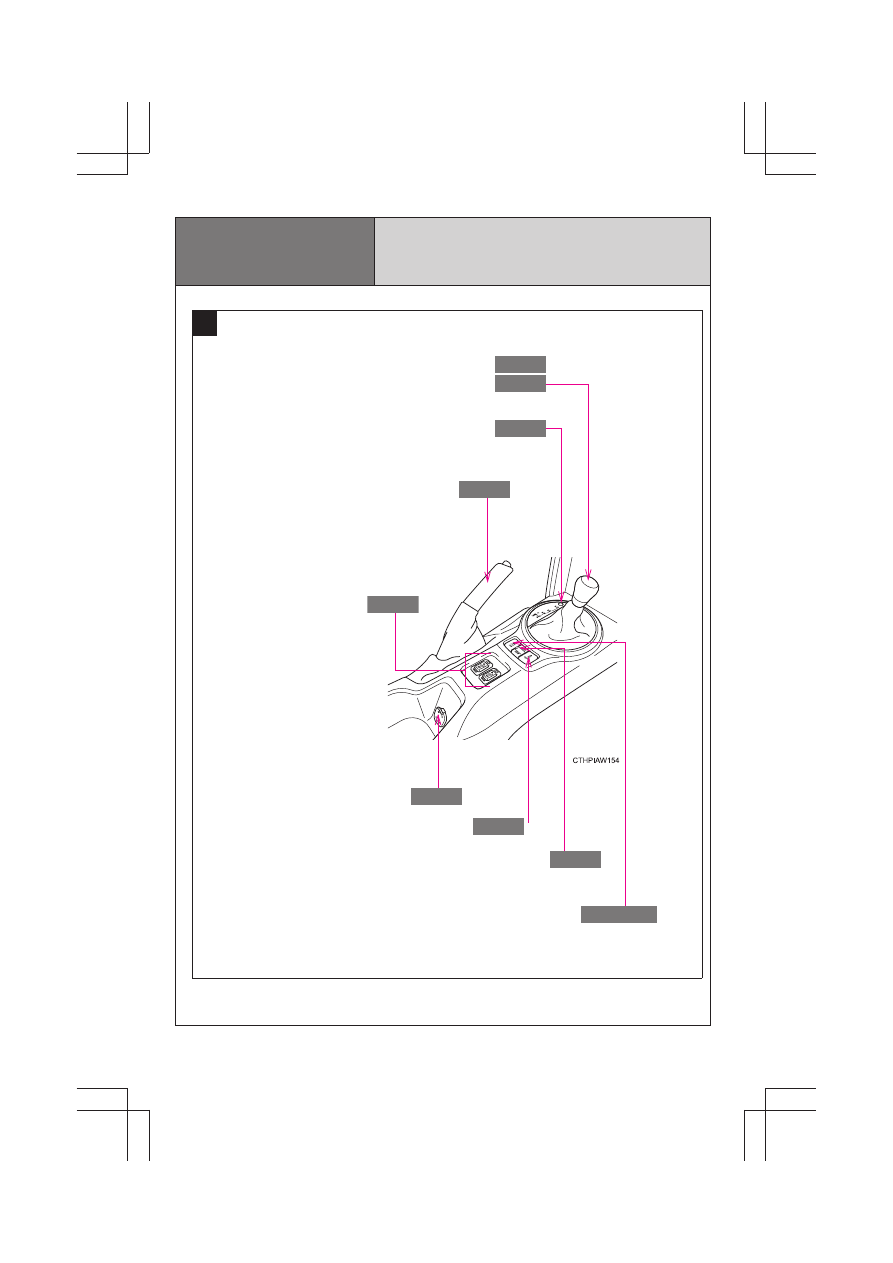

Select lever *

Shift lever *

P. 185

P. 192

Parking brake lever

P. 197

Vehicle stability control (VSC)/TRAC off switch

P. 258, 259

Seat heater switches *

P. 314

“TRACK” switch

P. 259

Power outlet

P. 312

Shift lock release button *

P. 468

Driving pattern selector switch *

P. 187

BRZ_U

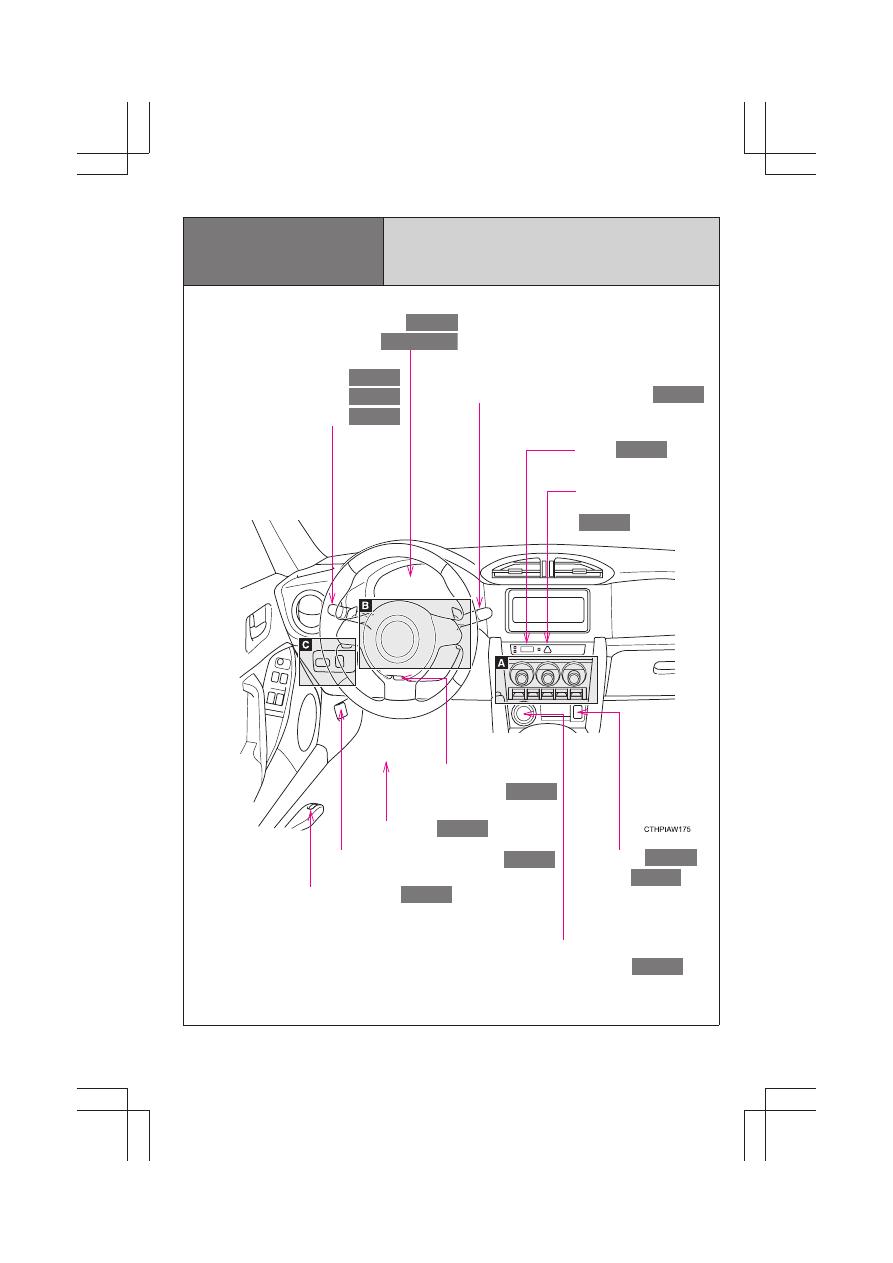

Headlight switch

Turn signal lever

Fog light switch *

P. 233
P. 195
P. 239

Gauges and meters

Multi-information display

P. 199

P. 210, 218

Clock

P. 311

Windshield wiper and washer switch

P. 240

Hazard warning
flasher switch

P. 412

Tilt and telescopic steering
lock release lever

P. 67

Floor mat *

P. 316

Engine hood lock release lever

P. 353

Fuel filler lid opener

P. 78

Push-button ignition switch (vehicles with a keyless
access with push button start system)

P. 172

AUX port *

USB port

P. 300

Pictorial index

Instrument panel

: If equipped

BRZ_U

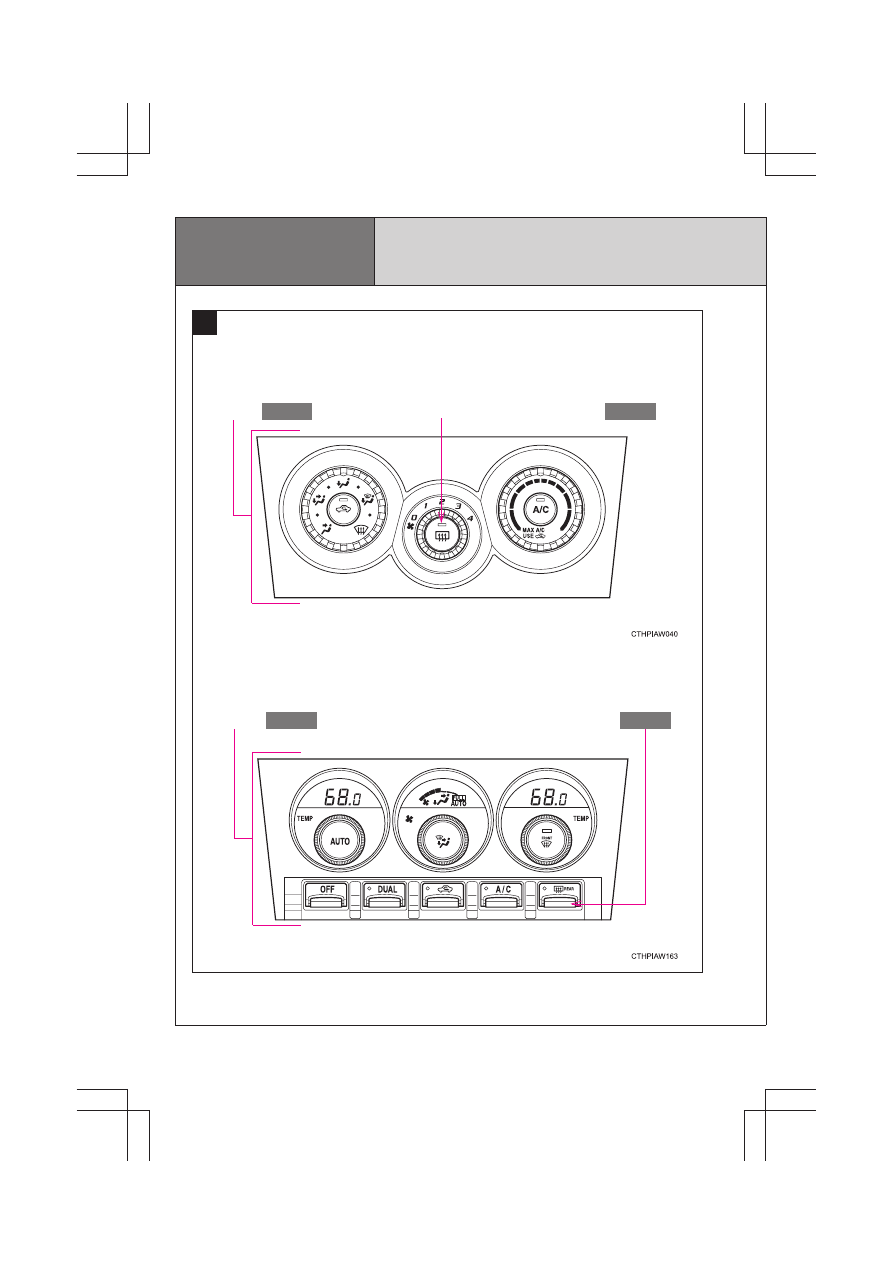

Vehicles with a manual air conditioning system

Air conditioning
system

P. 282

Vehicles with an automatic air conditioning system

Rear window and outside rear
view mirror defoggers

P. 298

Air conditioning
system

P. 289

Rear window and outside rear view mirror defoggers
switch*

/rear window defogger switch *

P. 298

Pictorial index

Instrument panel

BRZ_U

Paddle shift levers *

P. 188, 190

Cruise control
switch

P. 243

Horn
SRS driver airbag

P. 198

P. 93

: If equipped

: Refer to the Owner’s Manual supplement for the audio system.

: Refer to the Owner’s Manual supplement for the navigation system.

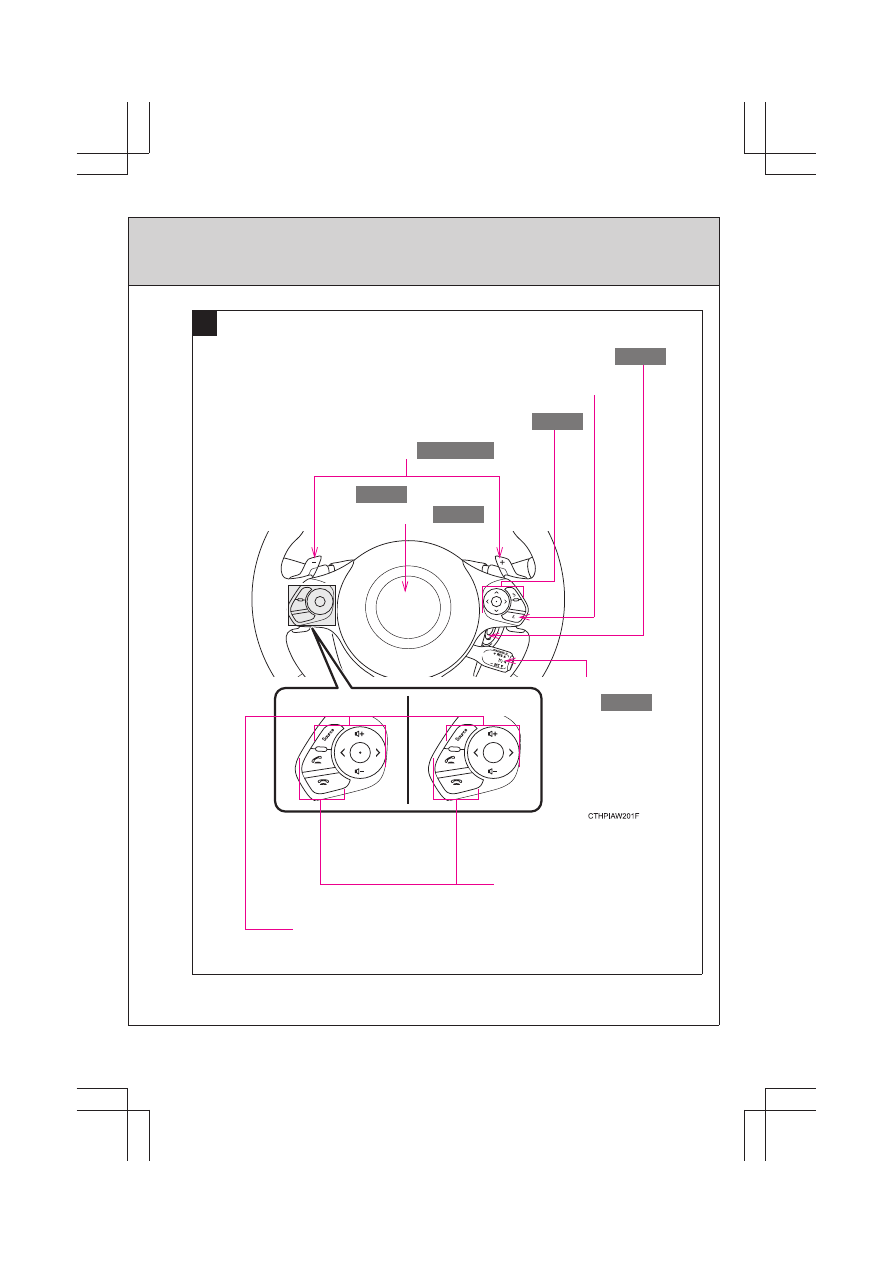

Talk switch *

, *

Type A

Type B

Audio remote control switches *

, *

Telephone switches *

, *

Meter control switches *

P. 219

Engine (ignition) switch (vehicles without a keyless access

with push button start system)

P. 182

BRZ_U

Instrument panel light control dial

P. 201

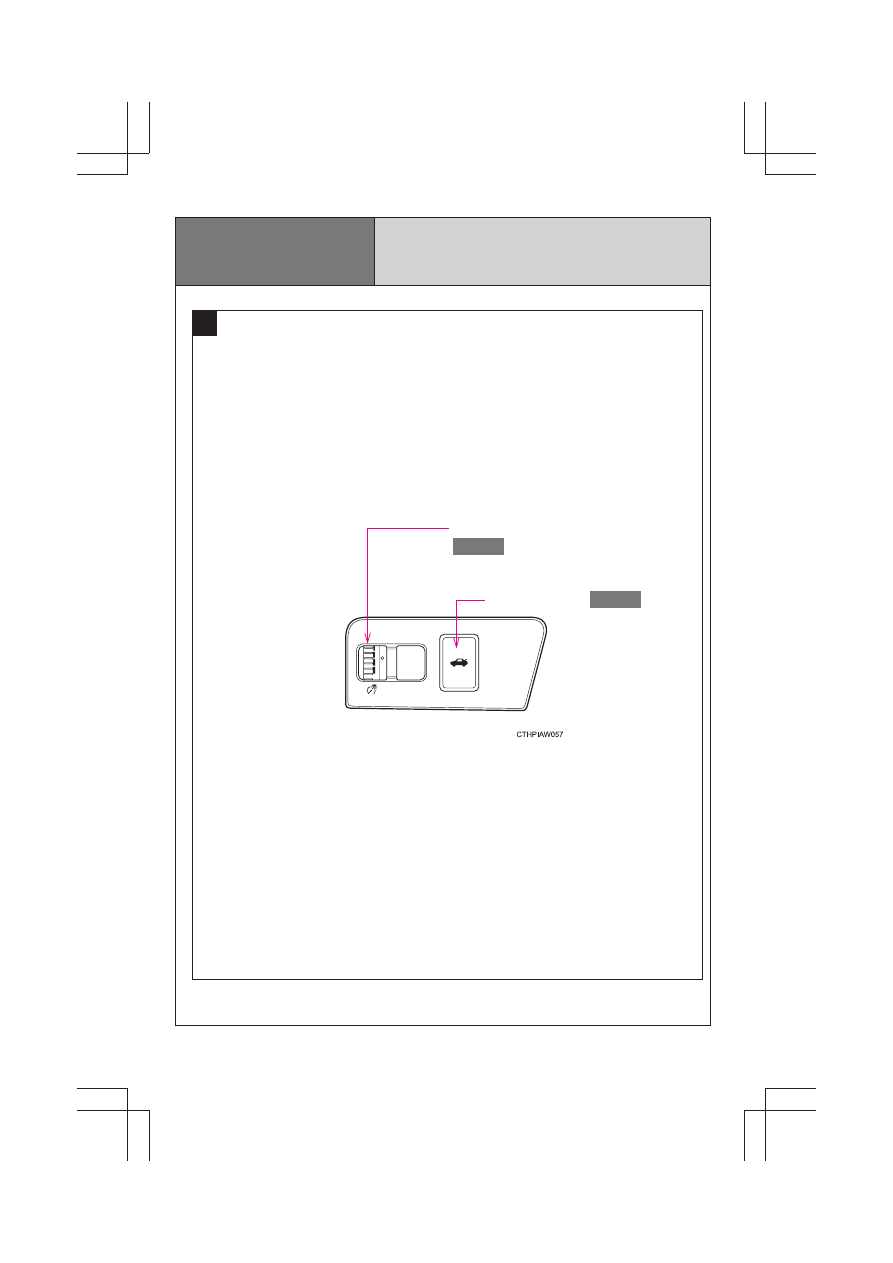

Trunk lid opener

P. 46

Pictorial index

Instrument panel

BRZ_U

For your information

Warranties

■

Warranties for U.S.A.

SUBARU vehicles distributed by Subaru of America, Inc. and sold at retail by
an authorized SUBARU dealer in the United States come with the following
warranties:

● SUBARU Limited Warranties
● Federal Emission Control Systems Warranties
● California Emissions Control Systems Warranties
All warranty information, including applicability, details of coverage and
exclusions, is in the “Warranty and Maintenance Booklet”. Read these war-
ranties carefully.

■

Warranties for Canada

All SUBARU vehicles distributed by Subaru Canada, Inc. and sold at retail by
an authorized SUBARU dealer in Canada come with the following warran-
ties:

● SUBARU Limited Warranty
● Emission Control System Warranty
All warranty information, including details of coverage and exclusions, is in
the “Warranty and Service Booklet”. Read these warranties carefully.

■

Warranties except for U.S.A. and Canada

All warranty information, including details of coverage and exclusions, is in
the “Warranty and Maintenance Booklet”. Read these warranties carefully.

BRZ_U

Main Owner’s Manual

Please note that this manual applies to all models and explains all equip-
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.

All specifications provided in this manual are current at the time of printing.
However, because of the SUBARU policy of continual product improvement,
we reserve the right to make changes at any time without notice and without
incurring any obligation to make changes on vehicles previously sold.

Depending on specifications, the vehicle shown in the illustration may differ
from your vehicle in terms of color and equipment.

Noise from under vehicle after turning off the engine

Approximately five to ten hours after the engine is turned off, you may hear
sound coming from under the vehicle for several minutes. This is the sound
of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your SUBARU

A wide variety of non-genuine spare parts and accessories for SUBARU
vehicles are currently available in the market. You should know that
SUBARU does not warrant these products and is not responsible for their
performance, repair, or replacement, or for any damage they may cause to,
or adverse effect they may have on, your SUBARU vehicle.

This vehicle should not be modified with non-genuine SUBARU products.
Modification with non-genuine SUBARU products could affect its perfor-
mance, safety or durability, and may even violate governmental regulations.
In addition, damage or performance problems resulting from the modification
may not be covered under warranty.

BRZ_U

Installation of a mobile two-way radio system

The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:

● Multiport fuel injection system/sequential multiport fuel injection system
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seatbelt pretensioner system
Be sure to check with your SUBARU dealer for precautionary measures or
special instructions regarding installation of a mobile two-way radio system.

BRZ_U

Event data recorder

This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed
to record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fas-

tened;

• How far (if at all) the driver was depressing the accelerator and/or brake

pedal; and,

• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situ-
ation occurs; no data are recorded by the EDR under normal driving condi-
tions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.
● Disclosure of the EDR data
SUBARU will not disclose the data recorded in an EDR to a third party
except when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle)

is obtained

• In response to an official request by the police, a court of law or a govern-

ment agency

• For use by SUBARU in a law suit
However, if necessary, SUBARU may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing

information about the specific vehicle or vehicle owner

BRZ_U

Scrapping of your SUBARU

The SRS airbag and seatbelt pretensioner devices in your SUBARU contain
explosive chemicals. If the vehicle is scrapped with the airbags and seatbelt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seatbelt pretensioner
removed and disposed of by a qualified service shop or by your SUBARU
dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Your vehicle has components that may contain perchlorate. These
components may include airbag, seatbelt pretensioners, and transmitter
batteries.

WARNING

■

General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.

■

General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to
have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

BRZ_U

Symbols used throughout this manual

Warnings & Cautions

Symbols used in illustrations

WARNING

This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.

CAUTION

This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your SUBARU and its
equipment.

Safety symbol

The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen.”

Arrows indicating operations

Indicates the action (pushing, turning,

etc.) used to operate switches and

other devices.
Indicates the outcome of an operation

(e.g. a lid opens).

Before driving

BRZ_U

1-1. Key information

Keys ................................... 22

1-2. Opening, closing and

locking the doors and
trunk lid

Keyless access with push

button start system .......... 25

Remote keyless entry

system ............................. 38

Doors ................................. 43
Trunk lid ............................. 46

1-3. Adjustable components

(seats, mirrors,
steering wheel)

Front seats .........................  53
Rear seats..........................  56
Head restraints...................  58
Seatbelts ............................  60
Steering wheel ...................  67
Anti-glare inside rear

view mirror ....................... 69

Outside rear view

mirrors.............................. 71

1-4. Opening and closing

the windows

Power windows .................. 74

1-5. Refueling

Opening the fuel tank

cap ................................... 78

1-6. Security system

Engine immobilizer

system ............................. 82

Theft prevention labels

(U.S.A.) ............................ 86

Alarm.................................. 87

1-7. Safety information

Correct driving posture....... 91
SRS airbag (Supplemental

Restraint System
airbag).............................. 93

Front passenger occupant

detection system ............ 131

Child restraint

systems.......................... 141

Installing child

restraints ........................ 146

Content .. 1 2 ..
