Subaru Ascent (2019 year). Instruction

(483,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Engine

Engine model

FA24

(2.4 L, DOHC, turbo)

Engine type

Horizontally opposed, liquid cooled 4 cylinder, 4-stroke direct injection gasoline engine

Displacement cu-in (cc)

146 (2,387)

Bore 6 Stroke in (mm)

3.70 6 3.39 (94.0 6 86.0)

Compression ratio

10.6 : 1

Firing order

1 – 3 – 2 – 4

Fuel

Fuel requirement

Fuel tank capacity

Unleaded gasoline with 87 AKI (90 RON) or higher

19.3 US gal (73 liters, 16.1 Imp gal)

For more details, refer to “Fuel” FP311.

– CONTINUED –

Specifications

481

Specifications

(484,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Engine oil

For the checking, adding and replacing procedure or other details, refer to “Engine oil” FP444.

NOTE

The procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommended
that you have this service performed by your SUBARU dealer.

Approved engine oil

Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.

Specifications

482

(485,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

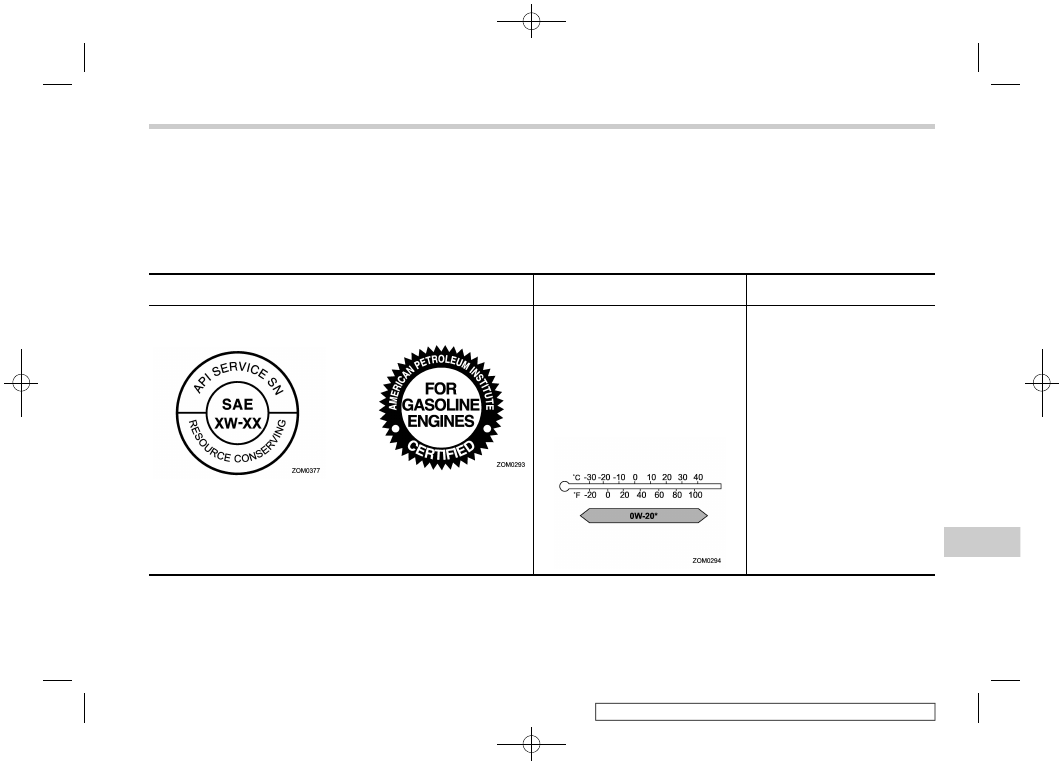

Alternative engine oil

If the SUBARU approved oil is unavailable, the following alternative oil can be used.

NOTE

Each quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.

Oil grade

SAE viscosity No. and

applicable temperature

Engine oil capacity

API (American Petroleum Insti-
tute) classification SN with the
words “RESOURCE CONSER-
VING”

ILSAC (International Lubricant
Specification Advisory Commit-
tee) GF-5, which can be identi-
fied with the ILSAC certification
mark (Starburst mark)

0W-20 synthetic oil is the required oil
for optimum engine performance and
protection. Conventional oil may be
used if synthetic oil is unavailable.

*: If 0W-20 synthetic oil is not available,
5W-30 conventional oil may be used if
replenishment is needed but should be
changed to 0W-20 synthetic oil at the
next oil change.

– Adding the oil from low level to

full level:
1.1 US qt (1.0 liter, 0.9 Imp qt)

– Changing the oil and oil filter:

4.8 US qt (4.5 liters, 4.0 Imp qt)

– CONTINUED –

Specifications

483

Specifications

(486,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

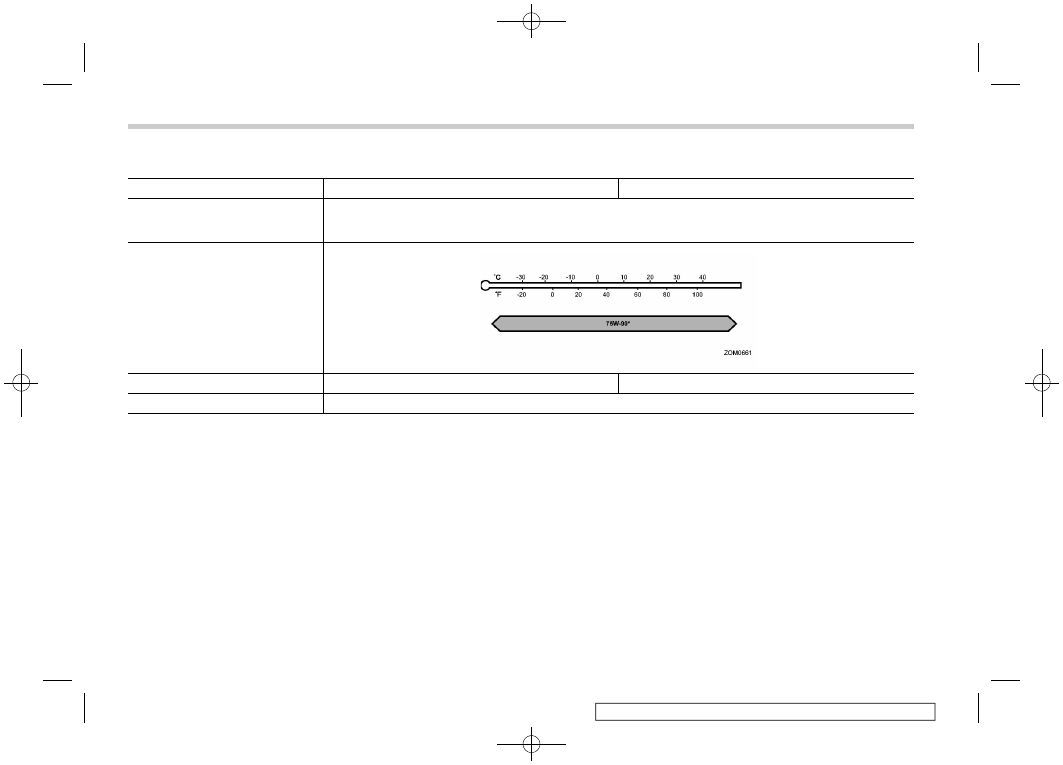

Front differential and rear differential gear oil

Oil

Front differential gear oil

Rear differential gear oil

Oil grade

SUBARU Extra MT*

API classification GL-5
(75W-90)

SAE viscosity No. and applicable
temperature

Oil capacity*

1.3 US qt (1.2 liters, 1.1 Imp qt)

0.8 US qt (0.8 liters, 0.7 Imp qt)

Remarks*

“Front differential gear oil and rear differential gear oil” FP451

*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. After refilling the gearbox with oil, the oil level should be checked.
*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this type of oil.
*4: Continuously variable transmission type TR690SXXXX (To check the model number for the Continuously variable transmission type, refer to “Vehicle

identification” FP495.)
*5: Continuously variable transmission type TR690GXXXX (To check the model number for the Continuously variable transmission type, refer to “Vehicle

identification” FP495.)

Specifications

484

(487,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Fluids

Fluid

Fluid type*

Fluid capacity*

Remarks*

Continuously variable
transmission fluid

Consult your SUBARU dealer.

Models with air-cooled continuously variable transmission fluid
cooler: 12.7 US qt (12.0 liters, 10.6 Imp qt)*

Models without air-cooled continuously variable transmission fluid
cooler: 12.3 US qt (11.6 liters, 10.2 Imp qt)*

“Continuously variable
transmission fluid” FP450

Brake fluid

FMVSS No. 116, DOT 3
or DOT 4 brake fluid

–

“Brake fluid” FP451

*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors.
*3: For more details about maintenance and service, refer to the indicated section.
*4: Continuously variable transmission type TR690SXXXX (To check the model number label for the continuously variable transmission type, refer to
“Vehicle identification” FP495.)
*5: Continuously variable transmission type TR690GXXXX (To check the model number label for the continuously variable transmission type, refer to
“Vehicle identification” FP495.)

Engine coolant

Coolant capacity

Coolant type

11.7 US qt (11.1 liters, 9.8 Imp qt)

SUBARU Super Coolant

The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. For more details about maintenance and service, refer to “Cooling system” FP446.

– CONTINUED –

Specifications

485

Specifications

(488,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Electrical system

Battery type

75D23L

Alternator

12V-190A

Spark plugs

SILKFR8A6 (NGK)

Tires

Tire size

245/60R18 105H

245/50R20 102H

Wheel size

18 6 7.5 J

20 6 7.5 J

Pressure

Front

35 psi (240 kPa, 2.4 kgf/cm

)

33 psi (230 kPa, 2.3 kgf/cm

)

Rear

35 psi (240 kPa, 2.4 kgf/cm

)

33 psi (230 kPa, 2.3 kgf/cm

)

Wheel nut tightening torque

89 lbf·ft (120 N·m, 12 kgf·m)*

*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts
by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure,
refer to “Changing a flat tire” FP412.

Temporary spare tires

Temporary spare tire size

T165/90 D18

Temporary spare tire inflation pressure
(recommended cold tire inflation pressure)

60 psi (420 kPa, 4.2 kgf/cm

)

Specifications

486

(489,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Brake pedal

in (mm)

Pedal clearance

2.68 (68)*

Pedal free play

0.016 - 0.07 (0.4 - 1.8)

*1: Minimum value when pedal is operated with a force of 110 lbf (490 N, 50 kgf)

Brake disc

If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult your
SUBARU dealer.

Brake pad

in (mm)

Brake pad wear limit

Front

0.063 (1.6)

Rear

0.059 (1.5)

Specifications

487

Specifications

(490,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

12-2. Fuses and circuits

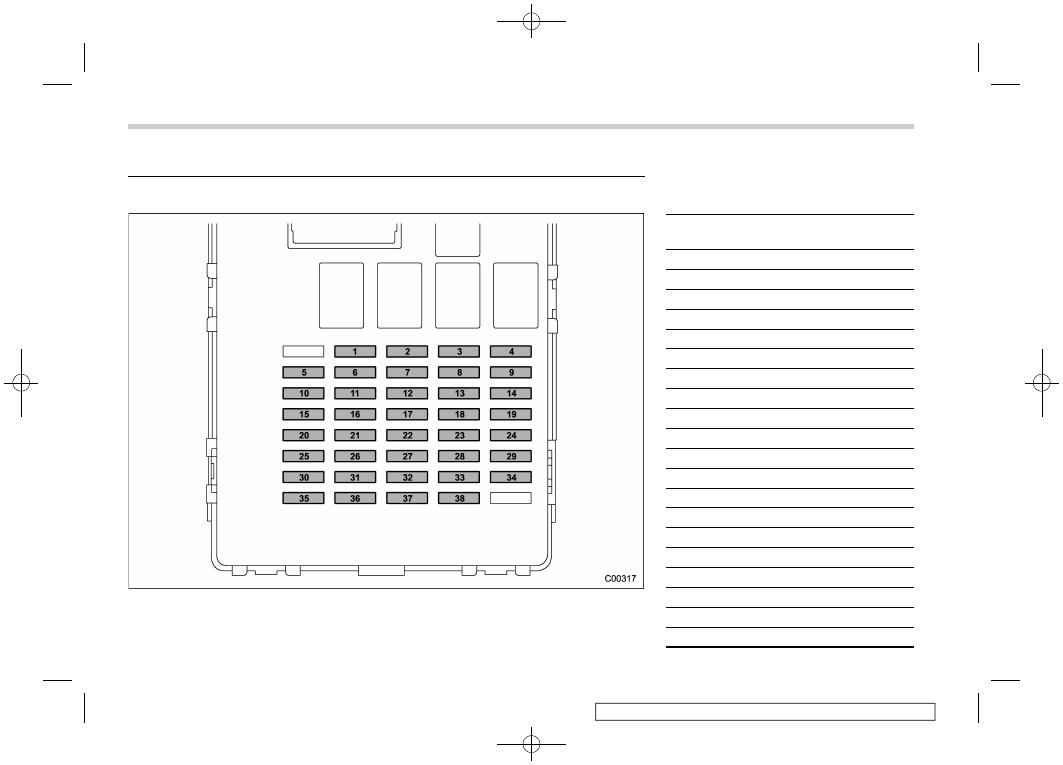

Fuse panel located in the passenger compartment

Fuse

panel

Fuse

rating

Circuit

Empty

20A

CIGAR

7.5A

IG A-1

15A

AUDIO NAVI

15A

IG B-2

Empty

15A

A/C IG

7.5A

ACC

7.5A

IG B-1

Empty

7.5A

IG A-3

10A

UNIT +B

7.5A

METER IG

Empty

7.5A

MIRROR

7.5A

LAMP IG

10A

IG A-2

10A

SRS AIR BAG

Fuses and circuits

488

(491,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Fuse

panel

Fuse

rating

Circuit

Empty

15A

STRG/H

10A

DRL

Empty

10A

BACK UP

15A

SEAT HTR F

15A

TRAIL

Empty

7.5A

ILLUMI

7.5A

KEY SW A

Empty

7.5A

KEY SW B

7.5A

STOP

7.5A

EYE SIGHT

– CONTINUED –

Fuses and circuits

489

Specifications

(492,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

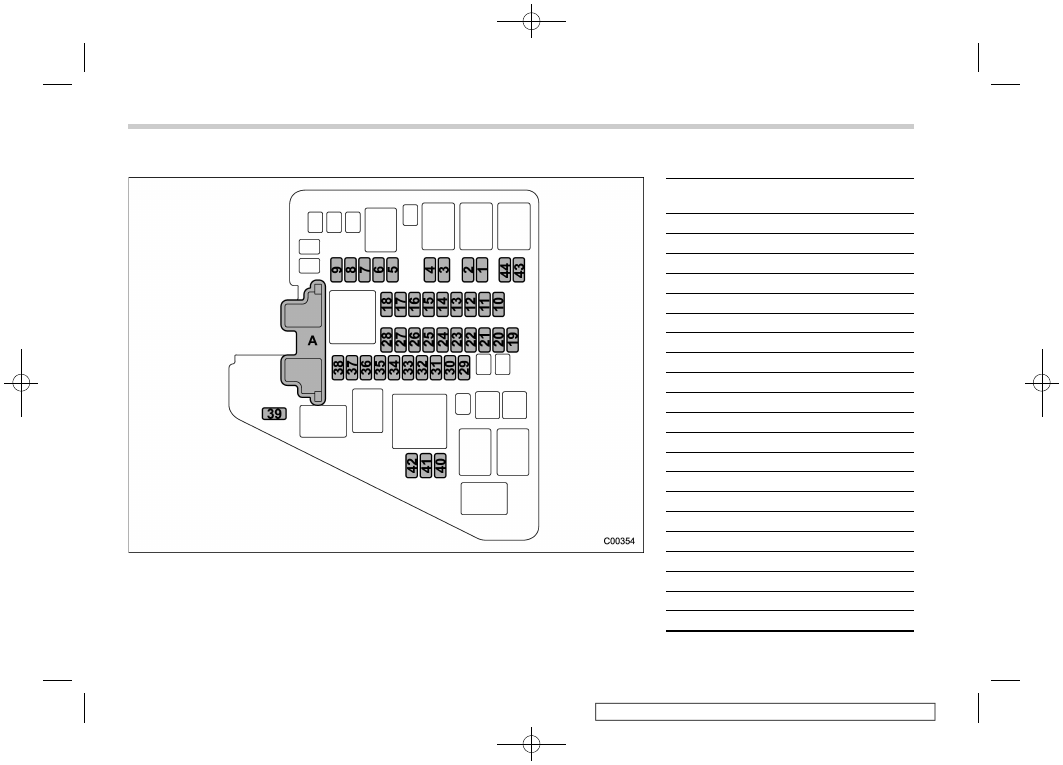

Fuse panel located in the engine compartment

Main fuse

Fuse

panel

Fuse

rating

Circuit

7.5A

HORN HI

7.5A

HORN LO

15A

H/L LO RH

15A

H/L LO LH

10A

DCM

10A

H/L HI RH

10A

H/L HI LH

10A

TAIL

30A

JB-B

25A

FUEL

7.5A

OBD

10A

ODS

7.5A

PU B/UP

15A

HAZARD

Empty

10A

MB-B

20A

SOCKET

20A

D/L

15A

ETC

10A

E/G2

7.5A

CVT SSR

Fuses and circuits

490

(493,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Fuse

panel

Fuse

rating

Circuit

20A

Empty

20A

O2 HTR

Empty

20A

TCU

15A

IG COIL

15A

E/G1

30A

BACKUP

15A

R_S/H

30A

VDC SOL

15A

F. FOG

30A

R. DEF

20A

AUDIO

15A

DEICER

Empty

20A

BLOWER

20A

BLOWER

Empty

15A

R. WIPER

15A

F. WASH

30A

F. WIPER

Empty

Fuses and circuits

491

Specifications

(496,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

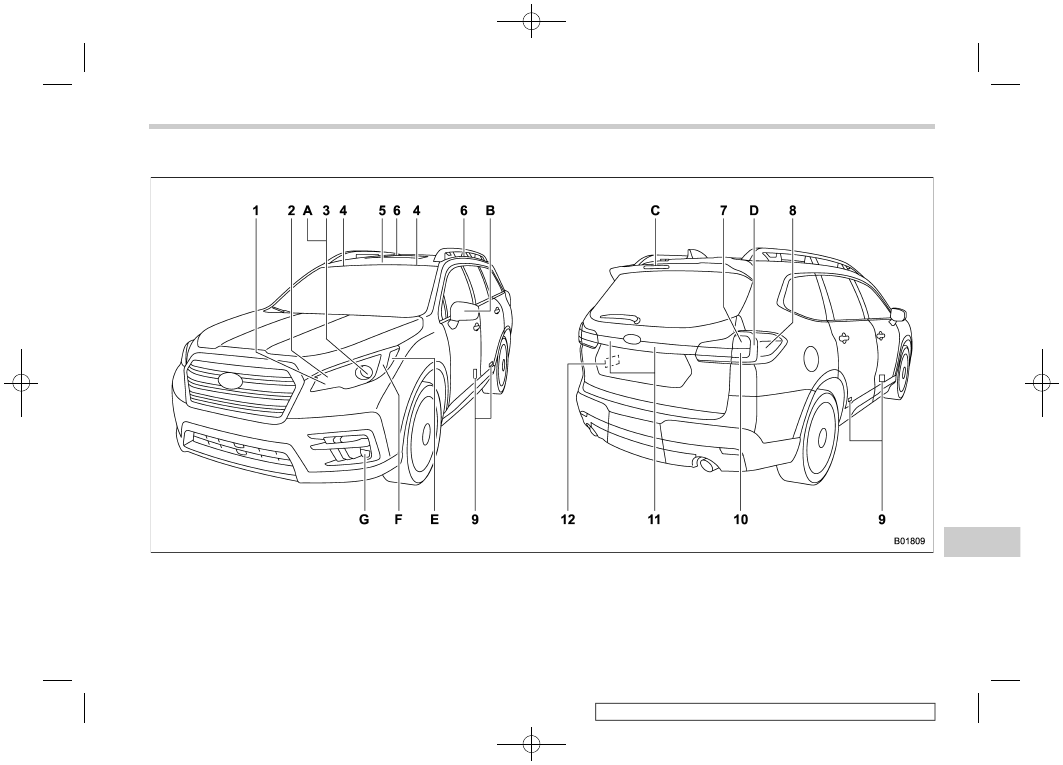

Wattage

Bulb No.

Front turn signal light (models with halogen headlight)

12V-28W

7444NA

Front turn signal light (models with LED headlight)

12V-28W

7444NA

High beam headlight (models with halogen headlight)

12V-60W

HB3

Low beam headlight (models with halogen headlight)

12V-55W

H11

Vanity mirror light

14V-1.4W

–

Map lights

12V-8W

–

Rear reading light (if equipped)

12V-8W

–

Rear turn signal light

12V-21W

WY21W

Rear side marker light

12V-5W

W5W

Door step light (if equipped)

12V-5W

–

10) Backup light

12V-16W

W16W

11) License plate light

12V-5W

W5W

12) Cargo area light

12V-5W

–

Low and high beam headlight (models with LED headlight)

–

Side turn signal light (if equipped)

–

High-mounted stop light

–

Stop light/Tail light

–

Front side marker light

–

Front position light/Daytime running light

–

Front fog light (if equipped)

–

Bulb chart

494

(497,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

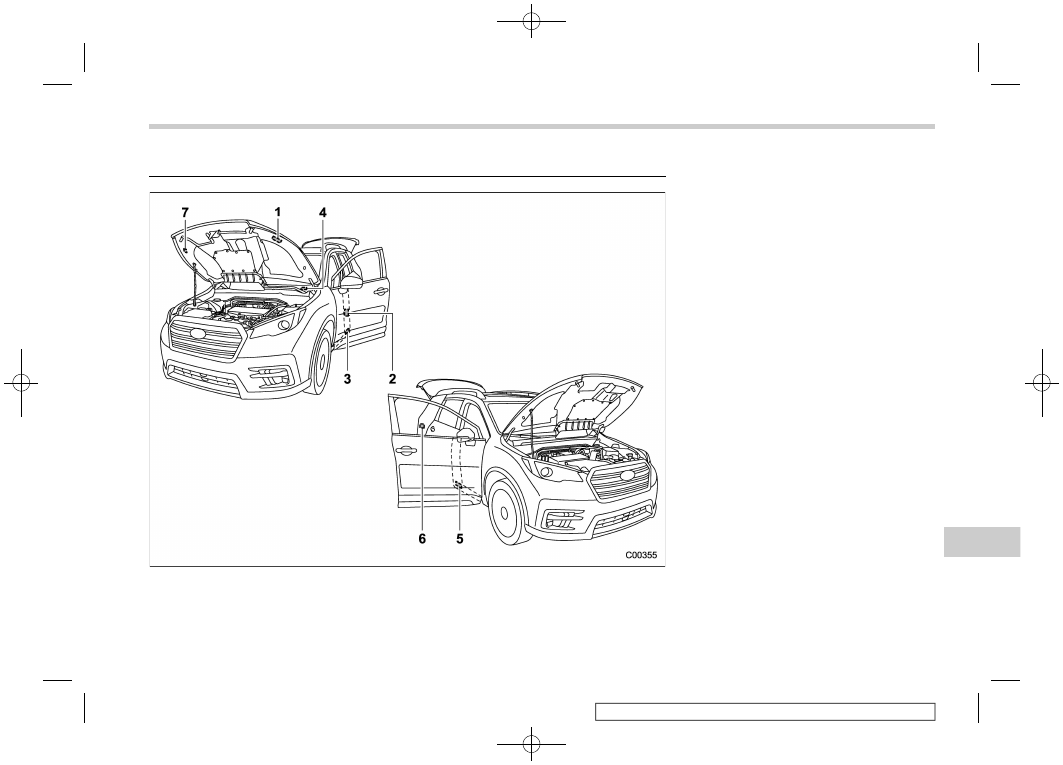

12-4. Vehicle identification

Emission control label

Tire inflation pressure label

Certification label

Vehicle identification number plate

Model number label

Fuel label

Air conditioner label

Vehicle identification

495

Specifications

(499,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

13-1. For U.S.A. ...................................................... 498
13-2. Tire information ............................................ 498

Tire labeling ....................................................... 498
Recommended tire inflation pressure.................. 500
Glossary of tire terminology ............................... 501
Tire care – maintenance and safety practices ...... 506
Determining compatibility of tire and vehicle

load capacities ................................................. 506

Adverse safety consequences of overloading

on handling and stopping and on tires.............. 506

Steps for Determining Correct Load Limit ........... 507

13-3. Vehicle load limit – how to determine .........507

Calculating total and load capacities varying

seating configurations...................................... 508

13-4. Uniform tire quality grading standards .......510

TREADWEAR ..................................................... 511
TRACTION AA, A, B, C ....................................... 511
TEMPERATURE A, B, C ...................................... 511

13-5. Reporting safety defects (U.S.A.).................512

Consumer information and reporting safety defects
