SRS airbag system servicing

WARNING

When discarding an airbag mod-

ule or scrapping the entire vehi-
cle damaged by a collision, con-
sult your SUBARU dealer.

The SRS airbag has no user-

serviceable parts. Do not use
electrical test equipment on any
circuit related to the SRS airbag
system. For required servicing of
the SRS airbag, consult your
nearest SUBARU dealer. Tamper-
ing with or disconnecting the
system’s wiring could result in
accidental inflation of the SRS
airbag or could make the system
inoperative, which may result in
serious injury.

CAUTION

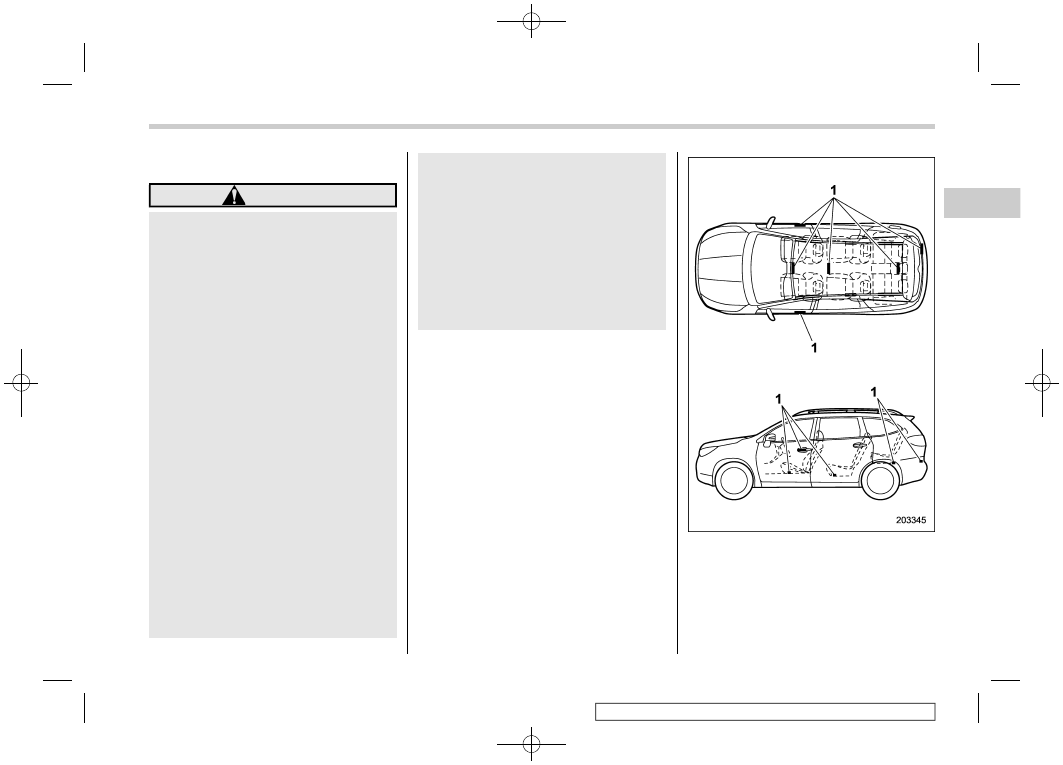

If you need service or repair in areas
indicated in the following list, have
the work performed by an author-
ized SUBARU dealer. The SRS air-
bag control module, impact sensors
and airbag modules are stored in
these areas.

Under the center of the instru-

ment panel

On both the right and left sides at

the front of the vehicle

Steering wheel and column and

nearby areas

Bottom of the steering column

and nearby areas

Top of the dashboard on front

passenger’s side and nearby
areas

Each front seat and nearby area

Inside each center pillar

Inside each front door

In each roof side (from the front

pillar to a point over the rear seat)

Between the rear seat cushion

and rear wheel house on each
side

Under the second-row center

seat

In the event that the SRS airbag is
deployed, replacement of the system
should be performed only by an author-
ized SUBARU dealer. When the compo-
nents of the SRS airbag system are
replaced, use only genuine SUBARU
parts.

NOTE

In the following cases, contact your
SUBARU dealer as soon as possible.
.

The front part of the vehicle was

involved in an accident in which only
the driver’s SRS frontal airbag or both
driver’s and front passenger’s SRS
frontal airbags did not deploy.
.

The pad of the steering wheel, the

cover over the front passenger’s SRS
frontal airbag, or either roof side (from
the front pillar to a point over the rear
seat) is scratched, cracked, or other-
wise damaged.
.

The center pillar, front door, rear

wheel house or rear sub frame, or an
area near these parts, was involved in
an accident in which the SRS side
airbag and SRS curtain airbag did not
deploy.
.

The fabric or leather of either front

seatback is cut, frayed, or otherwise
damaged.
.

The rear part of the vehicle was

involved in an accident in which no
SRS airbag was deployed.

– CONTINUED –

SRS airbag (Supplemental Restraint System airbag)

113

Seat,

seatbelt

and

SRS

airbags

(116,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Precautions against vehicle
modification

WARNING

To avoid accidental activation of

the system or rendering the sys-
tem inoperative, which may re-
sult in serious injury, no modifi-
cations should be made to any
components or wiring of the SRS
airbag system.
This includes following modifica-
tions.

– Installation of custom steering

wheels

– Attachment of additional trim

materials to the dashboard

– Installation of custom seats

– Replacement of seat fabric or

leather

– Installation of additional fabric

or leather on the front seat

– Attachment of a hands-free

microphone or any other ac-
cessory to a front pillar, a
center pillar, a rear pillar, the
windshield, a side window, an
assist grip, or any other cabin
surface that would be near a
deploying SRS curtain airbag.

– Installation of additional elec-

trical/electronic equipment
such as a mobile two-way
radio on or near the SRS air-
bag system components and/
or wiring is not advisable. This
could interfere with proper
operation of the SRS airbag
system.

– Modifications on or inside the

front door panels for the pur-
pose of a speaker replace-
ment or sound insulation

The impact sensors, which detect

the pressure of an impact, are
located in the doors. Do not
modify any components of the
doors or door trims, such as the
addition of door speakers for
example. Any modifications to
the doors will create a risk of the
airbag system becoming inop-
erative or unintended airbag de-
ployment.

CAUTION

Do not perform any of the following
modifications. Such modifications
can interfere with proper operation
of the SRS airbag system.

Attachment of any equipment

(bush bar, winches, snow plow,
skid plate, etc.) other than genu-
ine SUBARU accessory parts to
the front end.

Modification of the suspension

system or front end structure.

Installation of a tire of different

size and construction from the
tires specified on the vehicle
placard attached to the driver’s
door pillar or specified for indivi-
dual vehicle models in this Own-
er’s Manual.

Attachment of any equipment

(side steps or side sill protectors,
etc.) other than genuine SUBARU
accessory parts to the side body.

Always consult your SUBARU dealer if you
want to install any accessory parts on your
vehicle.

SRS airbag (Supplemental Restraint System airbag)

114

(117,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

How to contact the vehicle
manufacturer concerning
modifications for persons
with disabilities that may af-
fect the advanced airbag
system

Changing or moving any parts of the front
seats, rear seat, seatbelts, front bumper,
front side frame, radiator panel, instrument
panel, combination meter, steering wheel,
steering column, tire, suspension or floor
panel can affect the operation of the
SUBARU advanced airbag system. If you
have any questions, you may contact the
following SUBARU distributors.

<Continental U.S., Alaska and the District
of Columbia>
Subaru of America, Inc.
Customer Retailer Services Department
P.O. Box 6000
Cherry Hill, NJ 08034-6000
1-800-SUBARU3 (1-800-782-2783)

<Hawaii>
Subaru Hawaii
2850 Pukoloa Street, Suite 202,
Honolulu, HI 96819-4467
808-839-2273

<Guam>
Shen’s Corporation dba Prestige Automo-
bile
491, East Marine Corps Drive, Route 1
Dededo, Guam 96921-6225
671-633-2698

<Puerto Rico>
Trebol Motors
P.O. Box 11204, San Juan, Puerto Rico
00910
787-793-2828

<Canada>
Subaru Canada, Inc.
Consumer Support Department
560 Suffolk Court, Mississauga, Ontario
L5R 4J7
1-800-894-4212

There are currently no SUBARU distribu-
tors in any other U.S. territories. If you are
in such an area, please contact the
SUBARU distributor or dealer from which
you bought your vehicle.

SRS airbag (Supplemental Restraint System airbag)

115

Seat,

seatbelt

and

SRS

airbags

(118,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

(119,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

2-1. Keys ................................................................. 119

Key number plate ............................................... 119

2-2. Keyless access with push-button start

system (if equipped) ..................................... 120

Safety precautions.............................................. 121
Locking and unlocking by holding the access

key fob ............................................................. 124

Unlock using PIN Code Access........................... 127
Power saving function ........................................ 129
Power saving function of access key fob ............ 130
Disabling keyless access function ...................... 130
Selecting audible signal operation ...................... 132
Warning chimes and warning indicator ............... 132
When access key fob does not operate

properly............................................................ 132

Replacing battery of access key fob.................... 132
Replacing access key fob ................................... 132
Certification for keyless access with push-

button start system .......................................... 133

2-3. Immobilizer...................................................... 133

Security indicator light........................................ 134
Key replacement................................................. 134
Certification for immobilizer system .................... 134

2-4. Remote keyless entry system ....................... 135

Locking the doors .............................................. 136
Unlocking the doors ........................................... 136
Unlocking the rear gate....................................... 137
Vehicle finder function ........................................ 137

Sounding a panic alarm ..................................... 137
Setting audible signal operation (models

without “keyless access with push-button
start system”) .................................................. 137

Replacing the battery ......................................... 137
Replacing lost transmitters................................. 138
Certification for remote keyless entry system ..... 138

2-5. Door locks........................................................139

Locking and unlocking from the outside............. 139
Locking and unlocking from the inside ............... 140
Automatic door locking/unlocking ...................... 141
Key lock-in prevention function .......................... 141
Battery drainage prevention function.................. 142

2-6. Alarm system...................................................143

Alarm system operation ..................................... 143
Arming the system ............................................. 143
Disarming the system ........................................ 144
Alarm system setting ......................................... 145
If you have accidentally triggered the alarm

system............................................................. 145

Valet mode......................................................... 145

2-7. Child safety locks............................................146
2-8. Windows...........................................................146

Power window operation .................................... 146
Initialization of power window (if equipped) ........ 149

2-9. Rear gate..........................................................149

Manual rear gate ................................................ 149
Power rear gate (if equipped) ............................. 150

Keys and doors

(121,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

2-1. Keys

NOTE

For models with “keyless access with
push-button start system”, refer to
“Keyless access with push-button start
system” FP120.

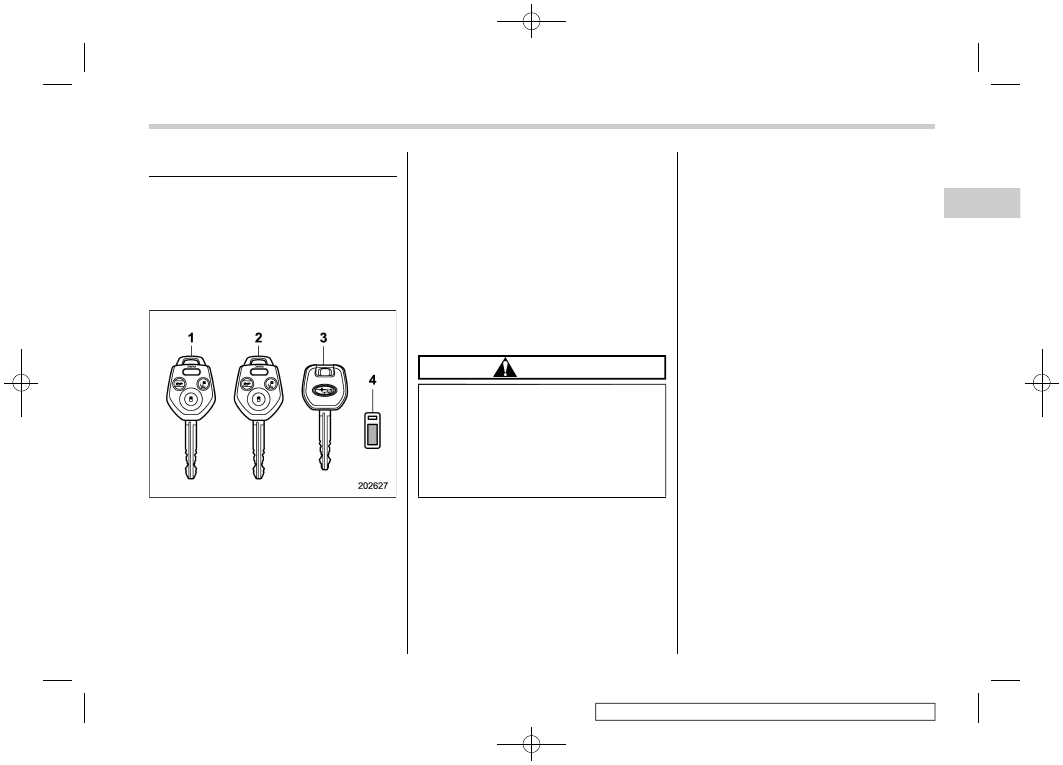

The following keys are provided with the
vehicle.

Master key

Submaster key

Valet key

Key number plate

These keys can be used in the following
locations.
.

Ignition switch

Driver’s door

Glove box (except the valet key)

The valet key fits only the ignition switch
and door locks. You can keep the glove
box locked when you leave your vehicle
and valet key at a parking facility.

NOTE

Locking/unlocking using the remote
keyless entry system can also be con-
trolled with the buttons on the key. For
detailed information, refer to “Remote
keyless entry system” FP135.

CAUTION

Do not attach a large key holder or
key case to either key. If it bangs
against your knees while you are
driving, it could turn the ignition
switch from the “ON” position to
the “ACC” or “LOCK” position,
thereby stopping the engine.

Key number plate

The key number is stamped on the key
number plate attached to the key set. Write
down the key number and keep it in
another safe place, not in the vehicle. This
number is needed to make a replacement
key if you lose your key or lock it inside the
vehicle. Refer to “Key replacement”
FP134.

Keys

119

Keys

and

doors

(122,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

2-2. Keyless access with
push-button start system (if
equipped)

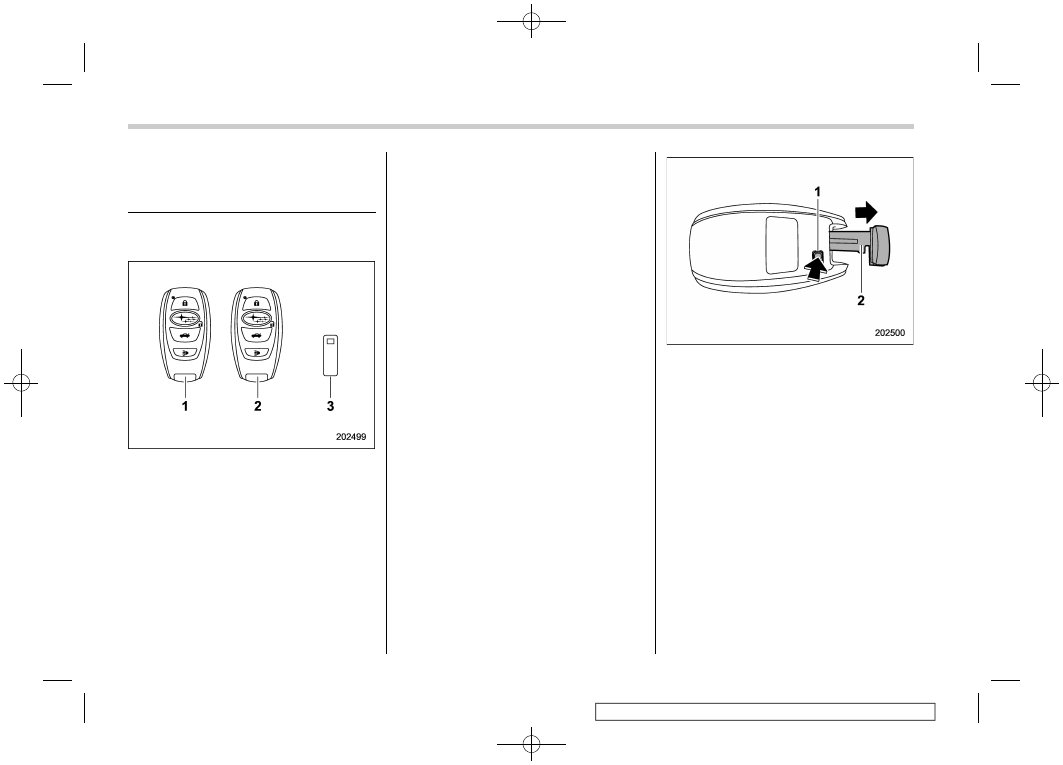

The following access key fobs are pro-
vided with the vehicle.

Access key fob (main)

Access key fob (sub)

Key number plate

The “keyless access with push-button start
system” allows you to perform the follow-
ing functions when you are carrying the
access key fob.
.

Locking and unlocking of the doors,

rear gate and fuel lid. For details, refer to
“Locking and unlocking by holding the
access key fob” FP124.
.

Starting and stopping the engine. For

detailed information, refer to “Starting and
stopping engine (models with push-button
start system)” FP320.
.

Arming and disarming the alarm sys-

tem. For detailed information, refer to
“Alarm system” FP143.

NOTE

Locking/unlocking using the remote

keyless entry system can also be con-
trolled with the buttons on the access
key fob. For detailed information, refer
to “Remote keyless entry system”
FP135.
.

Carefully store the key number plate

supplied with the access key fob. It is
necessary for vehicle repair and addi-
tional registration of access key fobs.
For details, refer to “Key replacement”
FP134.

An emergency key is attached to each
access key fob.

Release button

Emergency key

While pressing the release button of the
access key fob, take out the emergency
key.
The emergency key is used for the follow-
ing operations.
.

Locking and unlocking the driver’s door

Locking and unlocking the glove box

NOTE

The glove box can be kept locked when
you leave your vehicle and the access
key fob (with the emergency key re-
moved) at a parking facility.

Keyless access with push-button start system

120

(123,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Safety precautions

WARNING

If you wear an implanted pacemaker
or an implanted defibrillator, stay at
least 8.7 in (22 cm) away from the
transmitting antennas installed on
the vehicle.

The radio waves from the transmit-
ting antennas on the vehicle could
adversely affect the operation of
implanted pacemakers and im-
planted defibrillators.

If you wear electronic medical equip-
ment other than an implanted pace-
maker or an implanted defibrillator,
before using the keyless access
with push-button start system, refer
to “Radio waves used for the key-
less access with push-button start
system” mentioned later, and con-
tact the electronic medical equip-
ment manufacturer for more infor-
mation. The radio waves from the
transmitting antennas on the vehicle
could adversely affect the operation
of the electronic medical equipment.

“Radio waves used for the keyless
access with push-button start sys-
tem”

The keyless access with push-

button start system uses radio
waves of the following fre-
quency* in addition to the radio
waves used for the remote key-
less entry system. The radio
waves are periodically output
from the antennas installed on
the vehicle as shown in the
following illustrations.

* Radio frequency: 134 kHz

Antenna

– CONTINUED –

Keyless access with push-button start system

121

Keys

and

doors

(124,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

CAUTION

Never leave or store the access

key fob inside the vehicle or
within 6.6 ft (2 m) around the
vehicle (e.g., in the garage). The
access key fob may be locked
inside the vehicle, or the battery
may discharge rapidly. Note that
the push-button ignition switch
may not turn on in some cases
depending on the location of the
access key fob.

The access key fob contains

electronic components. Observe
the following precautions to pre-
vent malfunctions.

– It is recommended to have the

access key battery replaced at
an authorized SUBARU dealer
to avoid the risk of damage.

– Do not get the access key fob

wet. If the access key fob gets
wet, wipe it off immediately
and let it dry completely.

– Do not apply strong impacts to

the access key fob.

– Never leave the access key

fob in direct sunlight or any-
where that may become hot,
such as on the dashboard. It

may damage the battery or
cause circuit malfunctions.

– Do not wash the access key

fob in an ultrasonic washer.

– Do not leave the access key

fob in humid or dusty loca-
tions. Doing so may cause
malfunctions.

– Keep the access key fob away

from magnetic sources.

– Do not leave the access key

fob near a personal computer
or home electrical appliance.

– Do not leave the access key

fob near a battery charger or
any electrical accessories.

– Do not apply metallic window

tint or attach metallic objects
to the windows.

– Do not fit non genuine acces-

sories or parts.

If the access key fob is dropped,

the integrated emergency key in-
side may become loose. Be care-
ful not to lose the emergency key.

When traveling in an airplane, do

not press the button of the ac-
cess key fob. If any button of the
access key fob is pressed, radio
waves are emitted and may affect

the operation of the airplane. in a
bag, take measures to prevent
the buttons from being pressed
accidentally.

NOTE

The operational/non-operational

setting for the keyless access function
can be changed. For the setting proce-
dure, refer to “Disabling keyless ac-
cess function” FP130.
.

For detailed information about the

operation method for the push-button
ignition switch while the keyless ac-
cess function is switched to the non-
operational mode, refer to “Access key
fob – if access key fob does not operate
properly” FP423.
.

The keyless access with push-but-

ton start system uses weak radio
waves. The status of the access key
fob and environmental conditions may
interfere with the communication be-
tween the access key fob and the
vehicle under the following conditions,
and it may not be possible to lock or
unlock the doors or start the engine.

– When operating near a facility
where strong radio waves are trans-
mitted, such as a broadcast station
and power transmission lines

Keyless access with push-button start system

122

(125,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

– When products that transmit
radio waves are used, such as an
access key fob or a remote trans-
mitter key of another vehicle
– When carrying the access key fob
of your vehicle together with the
access key fob or the remote trans-
mitter of another vehicle
– When the access key fob is
placed near wireless communica-
tion equipment such as a cell phone
– When the access key fob is
placed near a metallic object
– When metallic accessories are
attached to the access key fob
– When carrying the access key fob
with an electronic appliances such
as a laptop computer
– When the battery of the access
key fob is discharged

The access key fob is always com-

municating with the vehicle and is
continuously using the battery.
Although the life of the battery varies
depending on the operating conditions,
it is approximately 1 to 2 years. If the
battery becomes fully discharged, re-
place it with a new one.
.

If an access key fob is lost, it is

recommended that all of the remaining
access key fobs be reregistered. For
reregistration of an access key fob,

contact a SUBARU dealer.
.

For a spare access key fob, contact a

SUBARU dealer.
.

Up to 7 access key fobs can be

registered for one vehicle.
.

Do not leave the access key fob in

the storage spaces inside the vehicle,
such as the door pocket, dashboard or
inside the corner of the cargo area.
Vibrations may damage the key fob or
turn on the switch, possibly resulting in
a lockout.
.

After the vehicle battery is dis-

charged or replaced, initialization of
the steering lock system may be re-
quired to start the engine. In this case,
perform the following procedure to
initialize the steering lock.

(1) Turn the push-button ignition
switch to the “OFF” position. For
details, refer to “Switching power
status” FP167.
(2) Open and close the driver’s
door.
(3) Wait for approximately 10 sec-
onds.

When the steering is locked, the initi-
alization is completed.
.

Do not leave the access key fob in

the following places.

– On the instrument panel

– On the floor
– Inside the glove box
– Inside the door trim pocket
– On the rear seat
– In the cargo area

If you do, the following situations
may occur.

– The access key fob is mistakenly
locked inside the vehicle.
– A false warning issues although
no malfunction actually occurs.
– No warning issues even when a
malfunction occurs.

– CONTINUED –

Keyless access with push-button start system

123

Keys

and

doors

(126,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Locking and unlocking by
holding the access key fob

When the access key fob is carried within
the operating range, the doors, the rear
gate and the fuel lid can be locked/
unlocked just by touching the door handle.

NOTE

The vehicle can also be locked/un-
locked with the remote keyless entry
system. For details, refer to “Remote
keyless entry system” FP135.

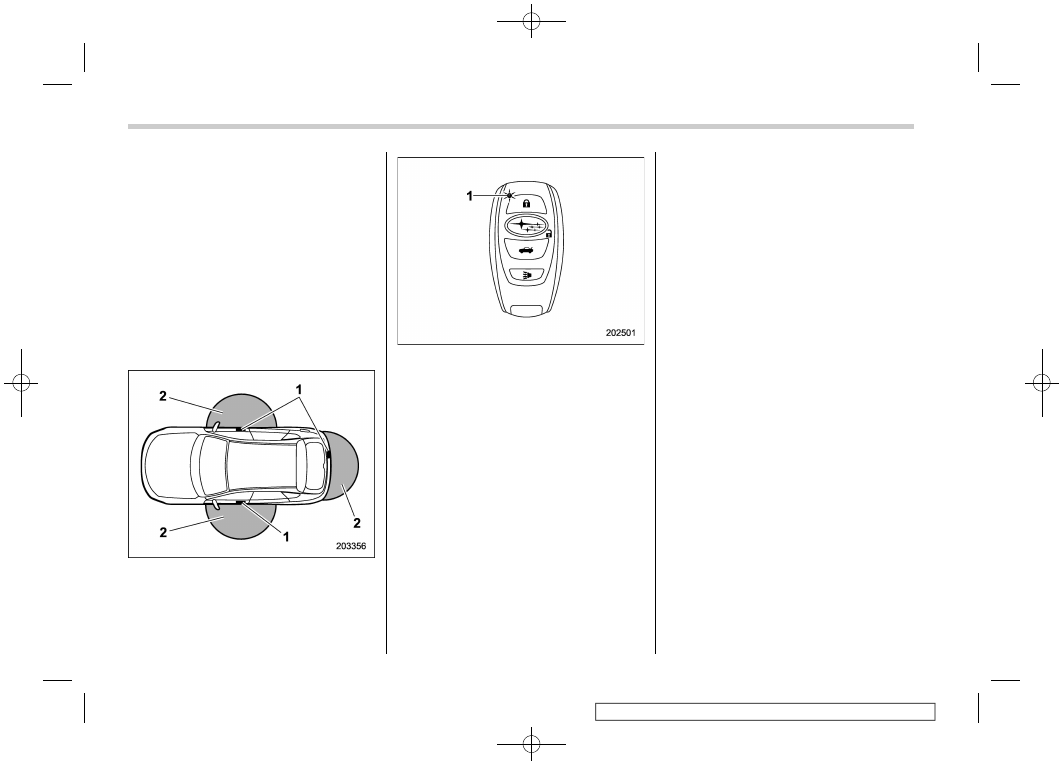

Operating ranges

Antenna

Operating range (approximately 16 to 32
in (40 to 80 cm))

LED indicator

When the access key fob is within either of
the operating ranges of the front doors, the
LED indicator on the access key fob
flashes. When the keyless access func-
tions are disabled, the LED indicator does
not flash unless a button on the access key
fob is pressed.

NOTE

If the access key fob is placed too

close to the vehicle body, the keyless
access functions may not operate
properly. If it does not operate properly,
repeat the operation from farther away.
.

If the access key fob is placed near

the ground or in an elevated location
from the ground, even if it is in the
indicated operating range, the keyless

access function may not operate prop-
erly.
.

When the access key fob is within

the operating range, it is possible for
anyone, even someone who is not
carrying the access key fob, to operate
the keyless access function. Note that
the keyless access function can be
operated only by the door handle, door
lock sensor, rear gate opener button or
rear lock button in the operating range
in which the access key fob is detected.
.

It is not possible to lock the doors,

rear gate and fuel lid using the keyless
access function when the access key
fob is inside the vehicle. However,
depending on the status of the access
key fob and the environmental condi-
tions, the access key fob may be locked
inside the vehicle. Before locking the
vehicle, make sure that you have the
access key fob.
.

When the battery of the access key

fob is discharged, or when operating it
in a location with strong radio waves or
noise (e.g., near a radio tower, power
plant, broadcast station or an area
where wireless equipment is used), or
while talking on a cell phone, the
operating ranges may be reduced, or
the keyless access function may not
operate.
In such a case, perform the procedure

Keyless access with push-button start system

124

(127,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

described in “Locking and unlocking”
FP424.
.

The doors may lock or unlock when

the car is being washed or exposed to a
significant amount of water that con-
tacts the door handle while the key fob
is still in the operating range.

How to lock and unlock

It is possible to perform the following
operations when you are carrying the
access key fob.
.

Lock and unlock the doors

Unlock and lock rear gate

Lock and unlock the fuel lid

NOTE

It is not possible to lock the doors,

rear gate and fuel lid using the keyless
access function when the push-button
ignition switch is in the “ACC” or “ON”
position. Refer to “Switching power
status” FP167.
.

If the door handle is gripped with a

gloved hand, the door lock may not be
released.
.

If the door lock sensor is touched

three times or more repeatedly, the
system will ignore the sensor opera-
tion.
.

When performing the locking proce-

dure too quickly, locking may not

complete. After performing the locking
procedure, it is recommended to pull
the REAR door handle to confirm that
the doors have been locked.
.

If any of the doors (or the rear gate)

are not fully closed, the following will
occur to alert you that the doors (or the
rear gate) are not properly closed.

– an electronic chirp sounds five
times.
– the hazard warning flashers flash
five times.

It is possible to lock the doors even

when one of the doors is open. After
performing the locking procedure,
close the opened door or rear gate to
lock it.
.

Within 3 seconds after locking the

doors and the rear gate using the
keyless access function, it is not pos-
sible to unlock doors and/or the rear
gate using the keyless access function.
.

When locking, be sure to carry the

access key fob to prevent locking the
access key fob in the vehicle.
.

The setting of the hazard warning

flasher operation and the volume of the
audible signal can be changed by your
SUBARU dealer. Contact your SUBARU
dealer for details. Also, for models with
the combination meter display, the
setting of the hazard warning flasher

operation and the audible signal opera-
tion can be changed by operating the
combination meter display. For details,
refer to “Menu screens” FP197.

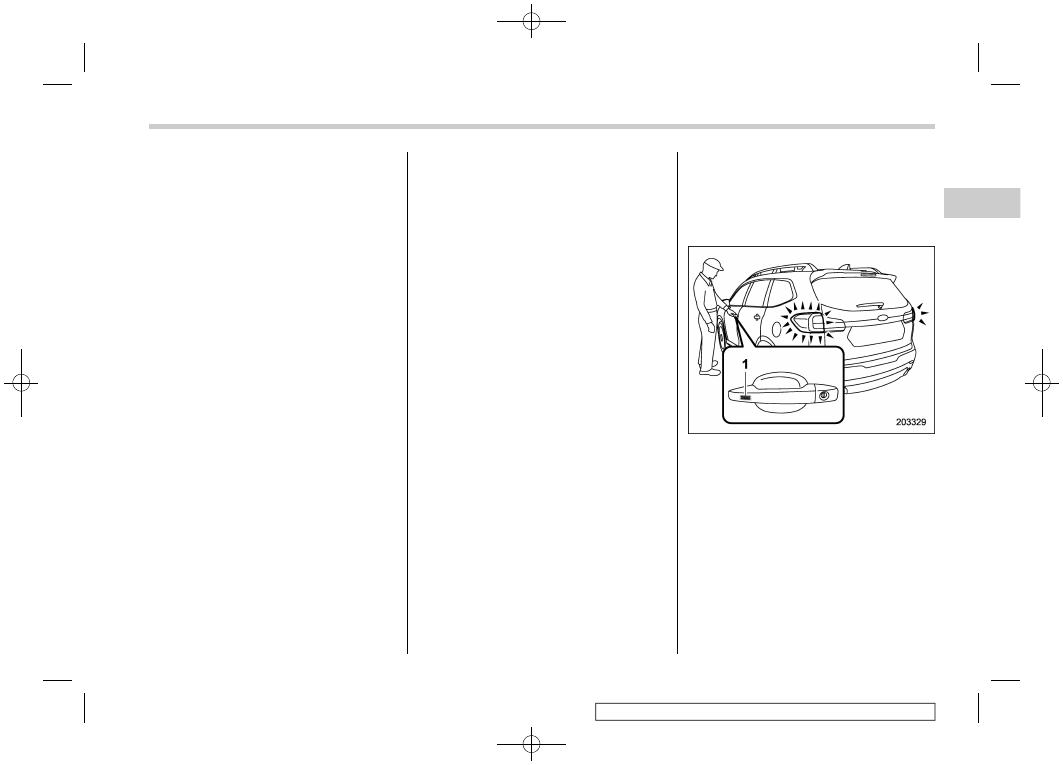

Locking with the door lock sensor

Door lock sensor

Carry the access key fob, close all doors
including the rear gate and fuel lid, and
touch the door lock sensor on the door
handle. All doors including the rear gate
and fuel lid will be locked. Also, an
electronic chirp will sound once and the
hazard warning flashers will flash once.

– CONTINUED –

Keyless access with push-button start system

125

Keys

and

doors

(128,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

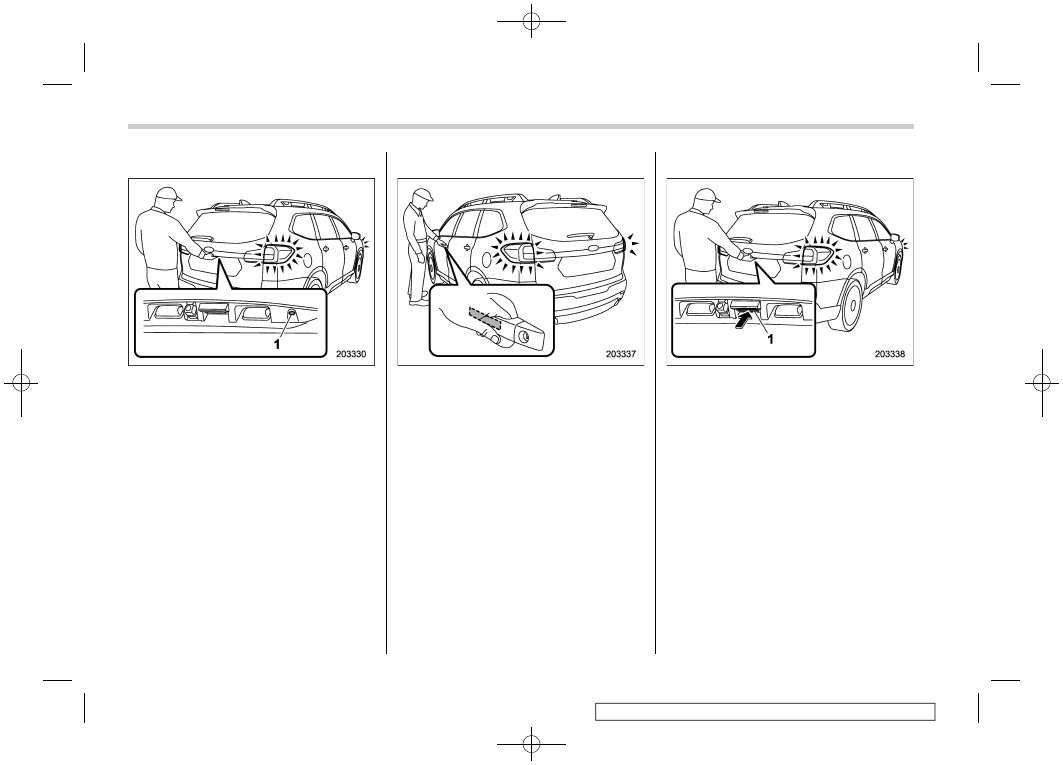

Locking with the rear lock button

Rear lock button

Carry the access key fob, close all doors
including the rear gate and fuel lid, and
press the rear lock button. The rear gate,
all doors and fuel lid will be locked. Also, an
electronic chirp will sound once and the
hazard warning flashers will flash once.

Unlocking

Carry the access key fob, and grip the
following door handle.
.

The driver’s door handle:

Either only the driver’s door will unlock, or
all doors and fuel lid will unlock.
.

The front passenger’s door handle:

All doors, rear gate and fuel lid will be
unlocked.

Also, an electronic chirp will sound twice
and the hazard warning flashers will flash
twice.

Unlocking rear gate

Rear gate opener button

Carry the access key fob, and press the
rear gate opener button. Either only the
rear gate will unlock, or all doors and fuel
lid will unlock. Also, an electronic chirp will
sound twice and the hazard warning
flashers will flash twice.

Keyless access with push-button start system

126

(129,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Door unlock selection function

When the door is unlocked using the
keyless access function, only the doors
that were set can be unlocked.
The settings can be changed with the
following methods.
.

The setting can be changed by operat-

ing the combination meter display. Refer to
“Menu screens” FP197.
.

The setting can be changed by a

SUBARU dealer.

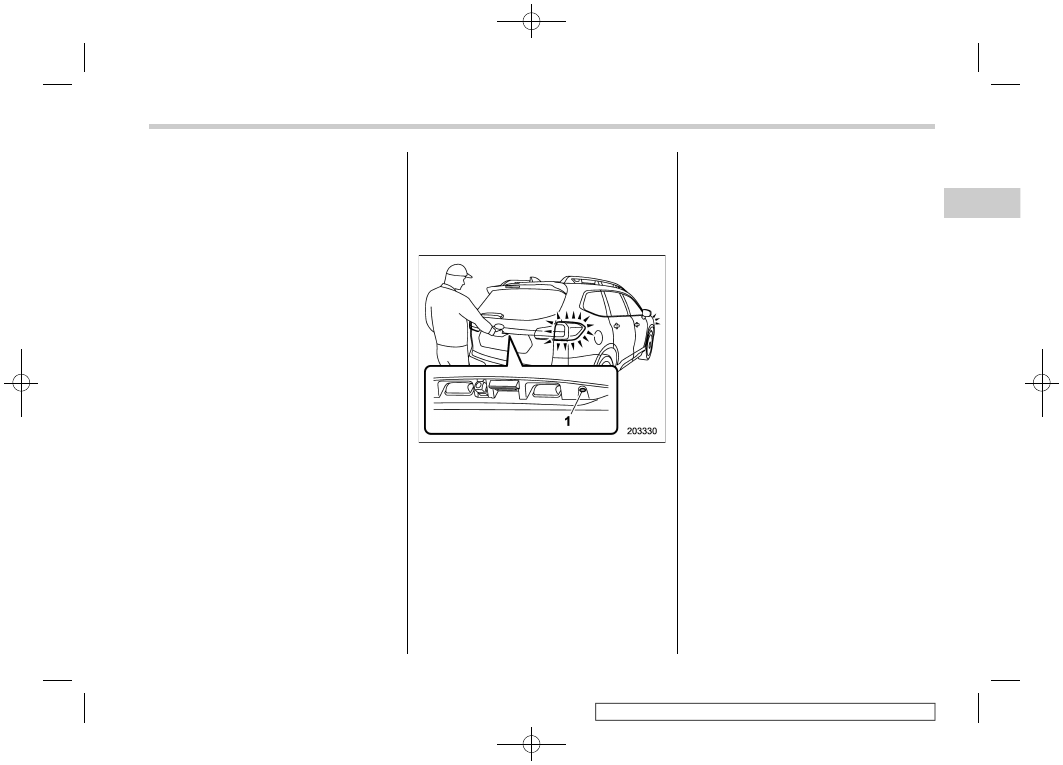

Unlock using PIN Code Ac-
cess

When all doors including the rear gate are
locked, you can unlock the driver’s door
without a key by pressing the rear lock
button.

Rear lock button

NOTE

PIN Code Access will be helpful if the
key fob is accidentally left in the
vehicle. It is recommended that a 5-
digit security code (PIN code) be regis-
tered.

– CONTINUED –

Keyless access with push-button start system

127

Keys

and

doors

(130,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Registration for a PIN code

Steps

Operation

Time from the previous step

Turn off the ignition switch.

Close all doors (including rear gate).

Press and hold the “ ” button on the access key fob, and press and hold the
rear lock button until a chirp sounds intermittently.

Press the “ ” button on the access key fob.

Within 30 seconds

The PIN code is inputted by using the rear lock button within 30 seconds after
the chirp sound of step 4.
For example, to register “32468” as the PIN code, perform the following
procedure.

Within 30 seconds

(1)

Press the button three times.

(2)

After a chirp sounds once, press the button twice.

(3)

After a chirp sounds once, press the button four times.

(4)

After a chirp sounds once, press the button six times.

(5)

After a chirp sounds once, press the button eight times.

Perform step 5 again within approximately 30 seconds after the chirp starts
sounding intermittently.

All doors will be unlocked and locked. Then the PIN code will be registered.

NOTE

Press the “ ” button within 30 seconds of step 6 to end the preparation mode and move on to the registration stage. Unless the
“ ” button is pressed within 30 seconds after step 6, the PIN code registration will be canceled.

Keyless access with push-button start system

128
