Subaru Ascent (2019 year). Instruction - part 2

(19,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

1)

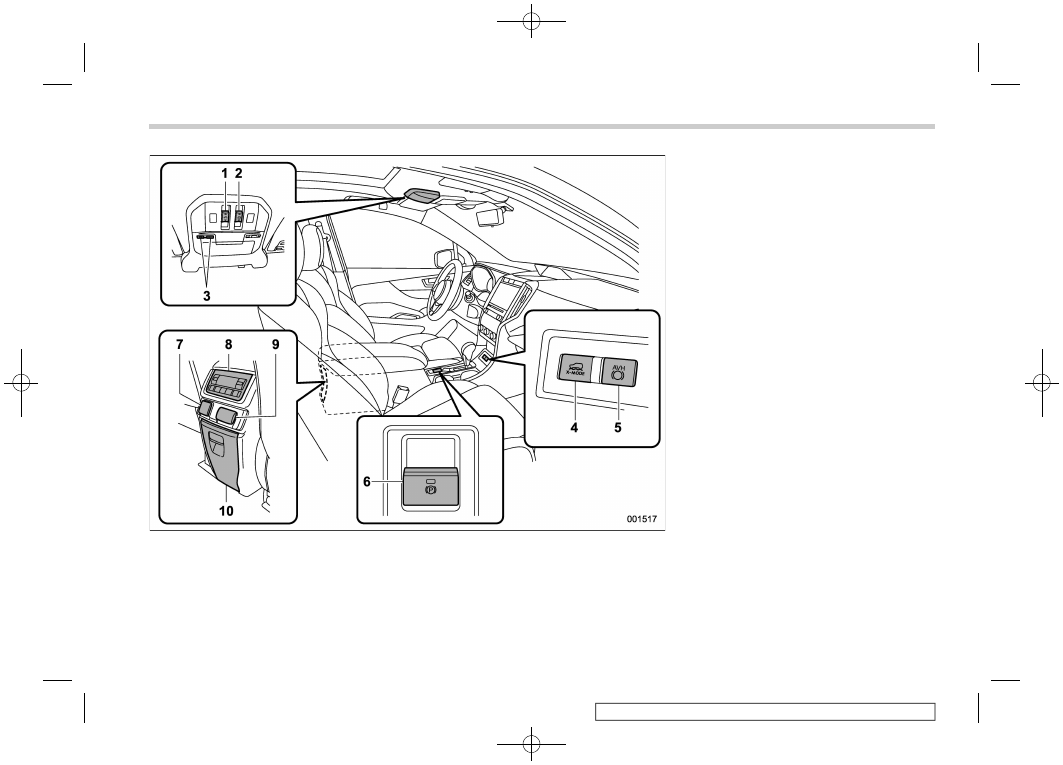

Moonroof switch (page 158)

2)

Sunshade switch (page 158)

3)

Button for SUBARU STARLINK

4)

X-MODE switch (page 343)

5)

Auto Vehicle Hold switch (page 349)

6)

Electronic parking brake switch (page
348)

7)

Power outlet (page 296)

8)

Rear climate control (page 270)

9)

USB power supply (page 297)

10) Cup holder (models with second-row

captain seat) (page 292)

NOTE

For U.S.-spec. models with SUBARU
STARLINK: Refer to the Owner’s Man-
ual supplement for SUBARU STARLINK
Safety and Security.

– CONTINUED –

17

0

(20,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

&

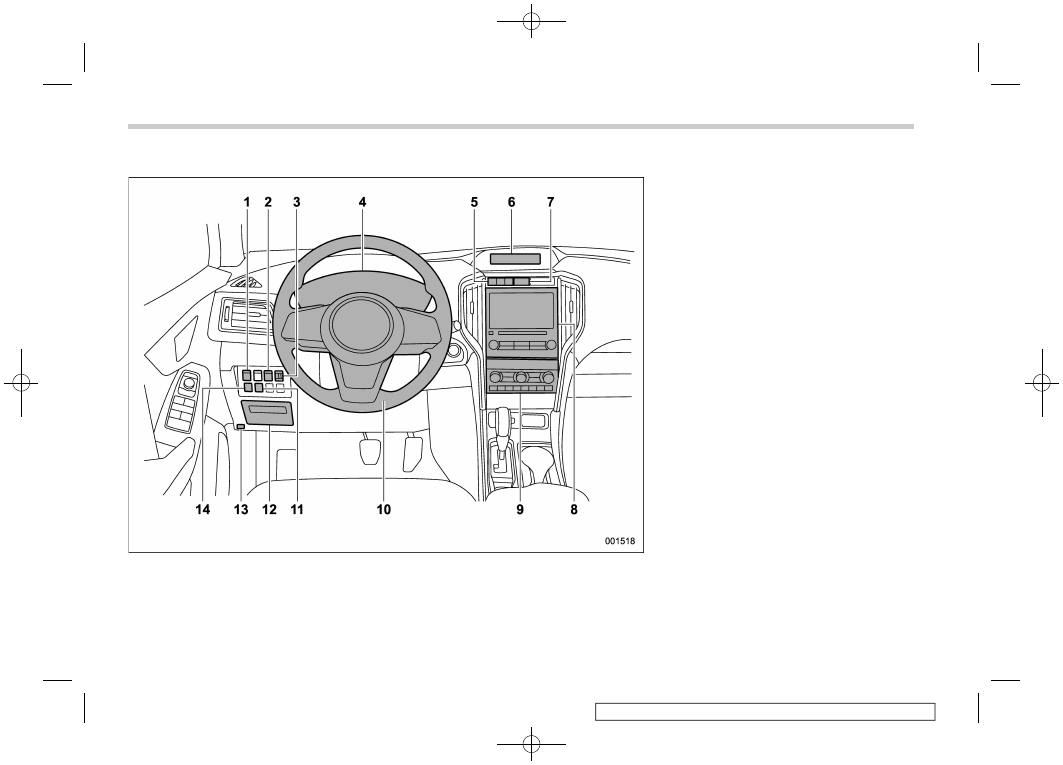

Instrument panel

1)

Power rear gate switch (page 150)

2)

Memory switch (page 150)

3)

Illumination brightness control dial
(page 171)

4)

Combination meter (page 168)

5)

ENTER button for type A multi-function
display (black and white) (page 199)/
Multi-function display control switches for
type B multi-function display (color LCD)
(page 204)

6)

Type A multi-function display (black and
white) (page 199)/Type B multi-function
display (color LCD) (page 204)

7)

Hazard warning flasher switch (page
168)

8)

Audio and navigation system*

9)

Climate control (page 269)

10) Tilt/Telescopic steering (page 263)
11) BSD/RCTA OFF switch (page 356)
12) Fuse box (page 468)
13) Hood lock release knob (page 441)
14) Vehicle Dynamics Control OFF switch

(page 342)

*: For details about how to use the audio
and navigation system, refer to the sepa-
rate navigation/audio Owner’s Manual.

NOTE

For models with the EyeSight system:
Refer to the Owner’s Manual supple-
ment for the EyeSight system.

18

(21,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

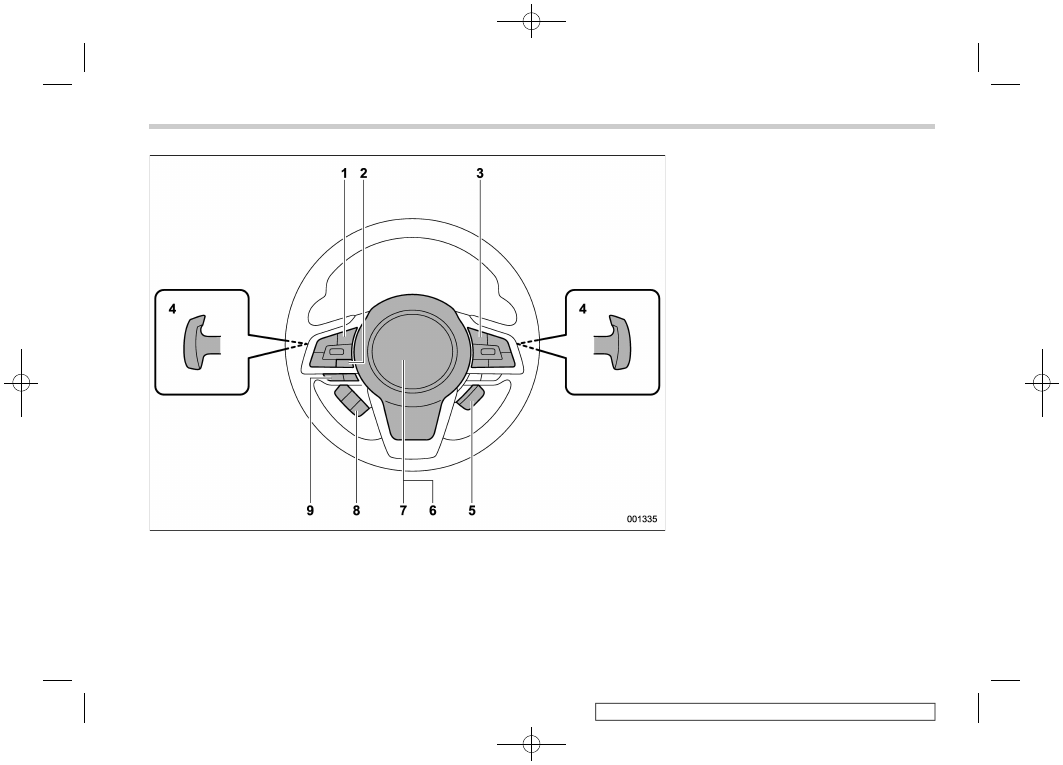

1)

Audio control switches*

1

2)

Talk switch for voice command system*

1

3)

Cruise control*

2

4)

Shift paddle (page 332)

5)

Heated Steering Wheel switch (page
264)

6)

SRS airbag (page 83)

7)

Horn (page 265)

8)

Combination meter display control
switches (page 192)

9)

Hands-free phone switches*

1

*1: For details about how to use the
switches, refer to the separate naviga-
tion/audio Owner’s Manual.
*2: For details about how to use the
switches, refer to the Owner’s Manual
supplement for the EyeSight system.

– CONTINUED –

19

0

(22,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

&

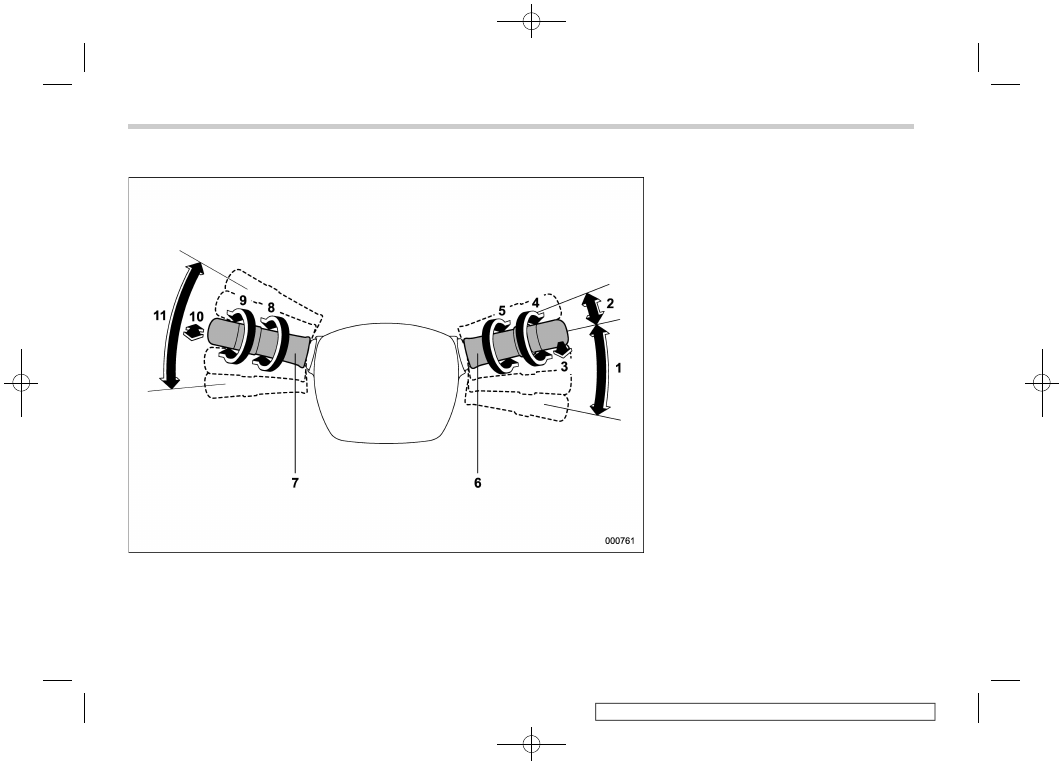

Light control and wiper control levers/switches

1)

Windshield wiper (page 234)

2)

Mist (page 236)

3)

Windshield washer (page 238)

4)

Rear window wiper and washer switch
(page 239)

5)

Wiper intermittent time control switch
(page 238)/Sensor sensitivity control
(page 237)

6)

Windshield wiper and washer switches
(page 236)

7)

Light control switch (page 225)

8)

Fog light switch (page 233)

9)

Headlight ON/OFF/AUTO (page 225)

10) Headlight flasher High/Low beam change

(page 227)

11) Turn signal lever (page 233)

20

(23,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

&

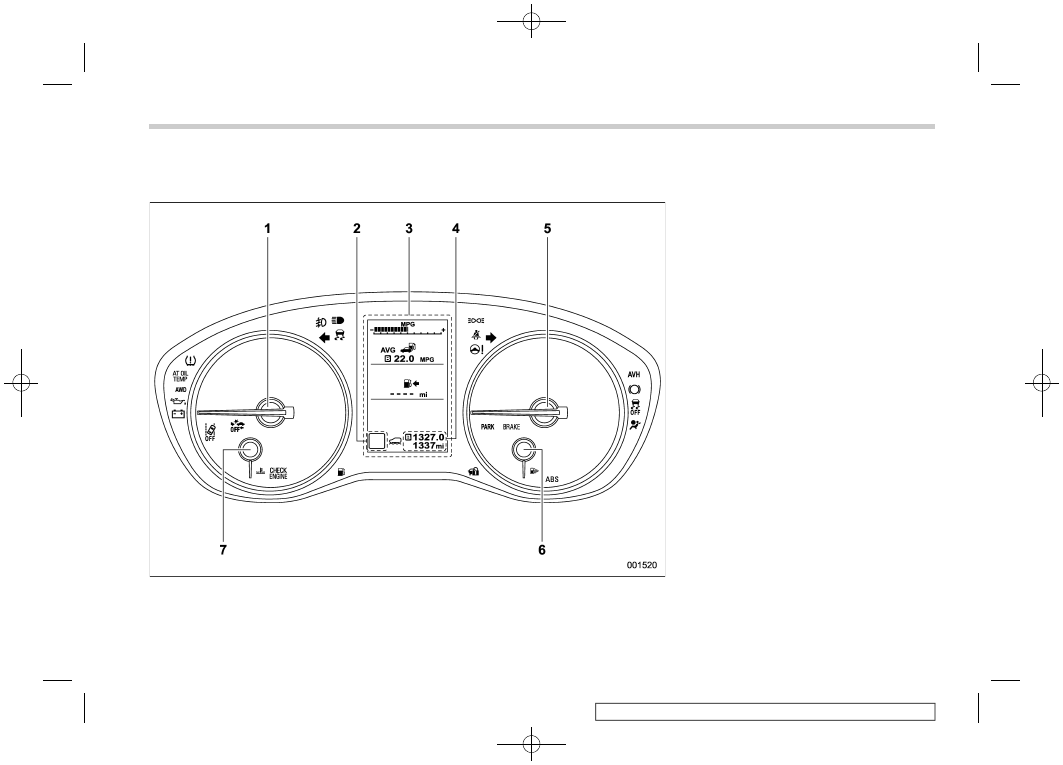

Combination meter

!

U.S.-spec. models

The illustration above is a typical example. For some models, the combination meter may be
slightly different than that shown in the illustration.

1)

Tachometer (page 168)

2)

Select lever/gear position indicator
(page 190)

3)

Combination meter display (page 192)

4)

Trip meter and odometer (page 169)

5)

Speedometer (page 168)

6)

Fuel gauge (page 170)

7)

Engine coolant temperature gauge (page
170)

– CONTINUED –

21

0

(24,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

!

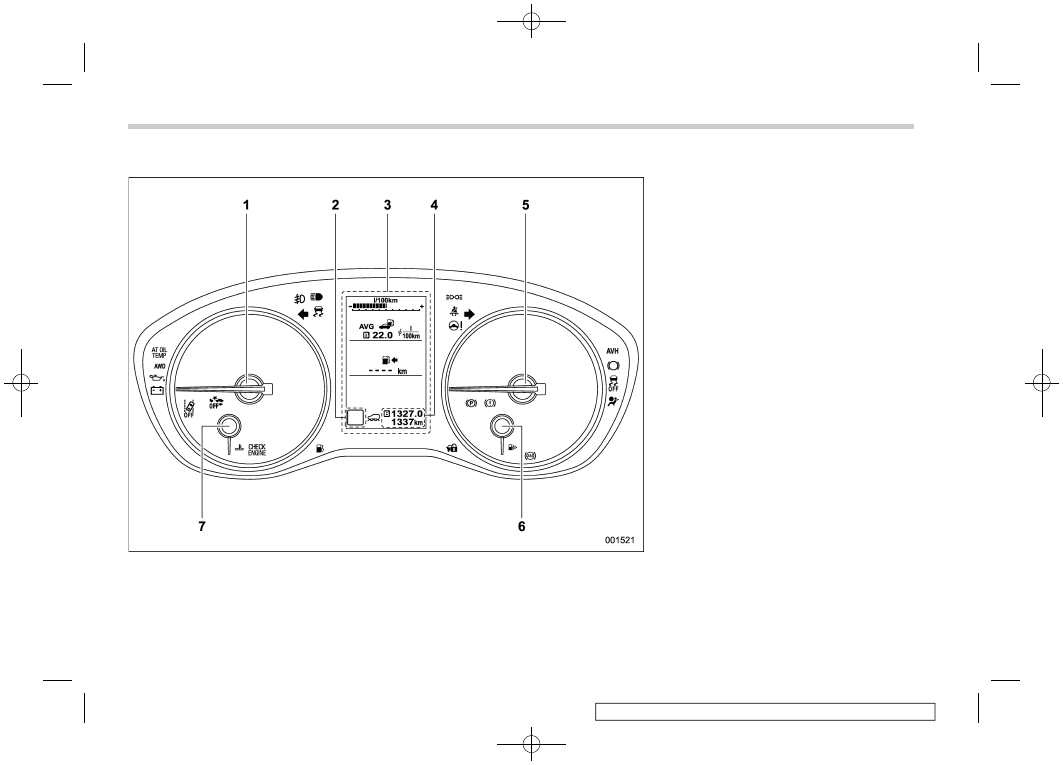

Except U.S.-spec. models

The illustration above is a typical example. For some models, the combination meter may be
slightly different than that shown in the illustration.

1)

Tachometer (page 168)

2)

Select lever/gear position indicator
(page 190)

3)

Combination meter display (page 192)

4)

Trip meter and odometer (page 169)

5)

Speedometer (page 168)

6)

Fuel gauge (page 170)

7)

Engine coolant temperature gauge (page
170)

22

(25,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

– CONTINUED –

23

0

(26,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

&

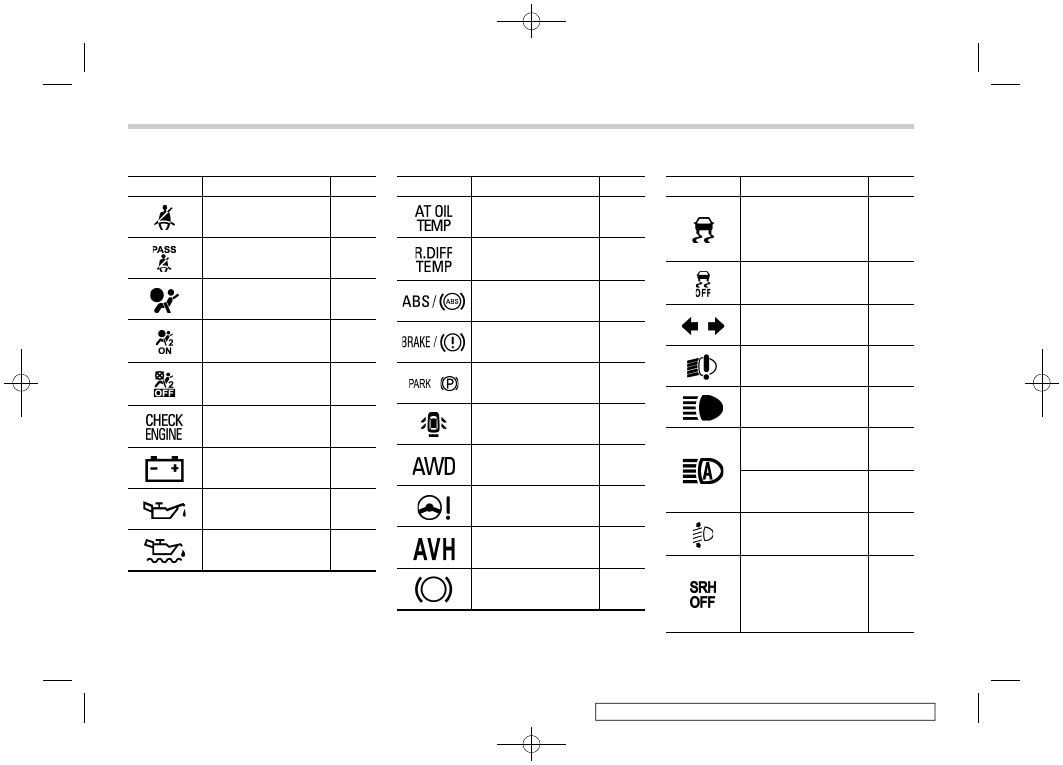

Warning and indicator lights

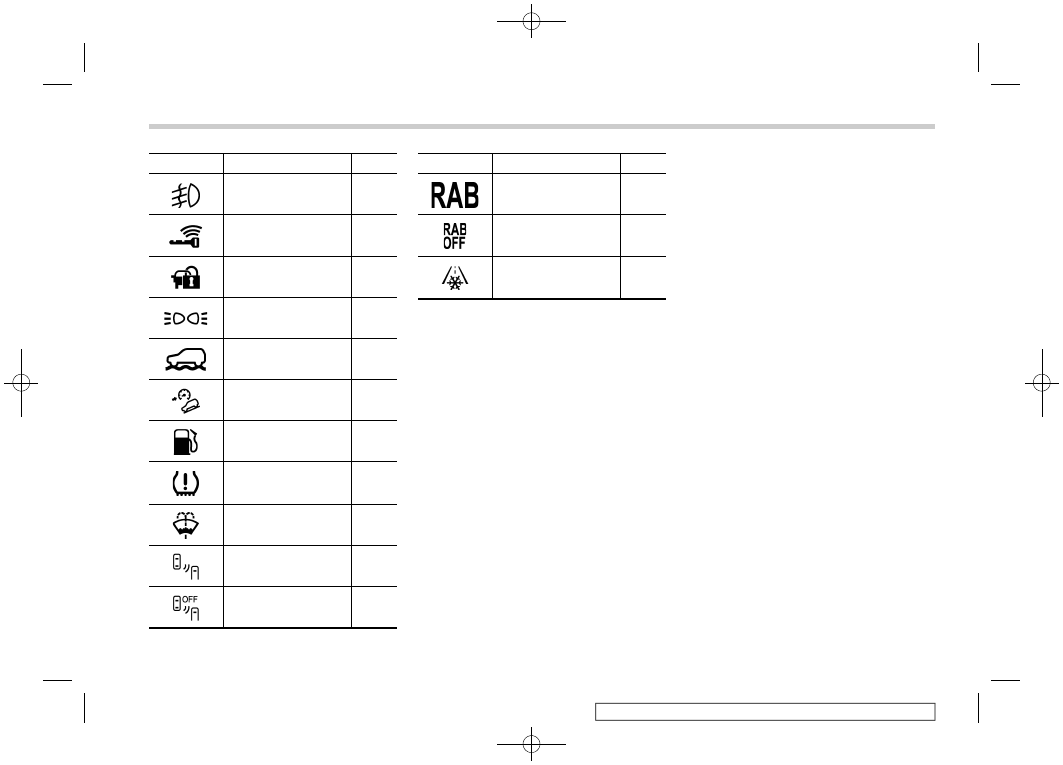

Mark

Name

Page

Seatbelt warning light

Front passenger’s
seatbelt warning light

SRS airbag system
warning light

Front passenger’s
frontal airbag ON indi-
cator

Front passenger’s
frontal airbag OFF in-
dicator

CHECK ENGINE
warning light/Malfunc-
tion indicator light

Charge warning light

Oil pressure warning
light

Engine oil level warn-
ing light

Mark

Name

Page

AT OIL TEMP warning
light

Rear differential oil
temperature warning
light (if equipped)

ABS warning light

Brake system warning
light

/

Electronic parking
brake indicator light

Door open warning
light

AWD warning light

Power steering warn-
ing light

Auto Vehicle Hold ON
indicator light

Auto Vehicle Hold op-
eration indicator light

Mark

Name

Page

Vehicle Dynamics
Control warning light/
Vehicle Dynamics
Control operation indi-
cator light

Vehicle Dynamics
Control OFF indicator
light

Turn signal indicator
lights

LED headlight warning
light (if equipped)

High beam indicator
light

High beam assist indi-
cator light (green) (if
equipped)

High Beam Assist
warning indicator (yel-
low) (if equipped)

Automatic headlight
beam leveler warning
light (if equipped)

Steering Responsive
Headlight warning
light/Steering Respon-
sive Headlight OFF in-
dicator light (if
equipped)

24

(27,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Mark

Name

Page

Front fog light indicator
light (if equipped)

Access key warning
indicator (if equipped)

Security indicator light

Headlight indicator
light

X-MODE indicator

Hill descent control in-
dicator

Low fuel warning light

Low tire pressure
warning light
(U.S.-spec. models)

Windshield washer
fluid warning light

BSD/RCTA warning
indicator (if equipped)

BSD/RCTA OFF indi-
cator (if equipped)

Mark

Name

Page

RAB warning indicator
(if equipped)

RAB OFF indicator (if
equipped)

Icy road surface warn-
ing indicator (if
equipped)

25

0

(28,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Function settings

&

Function settings and adjustments on the combination meter display

Setting adjustments to the following items can be manually changed within the combination meter display to meet your personal
requirements.

NOTE

For setting adjustments to the following items, refer to the appropriate page for details.

Item

Available settings

Factory default setting

Page refer-

ence for the

vehicle sys-

tem opera-

tion

1st menu/vehicle system

2nd menu/adjustable ve-
hicle system setting

3rd menu/selectable ve-
hicle system setting

Screen Settings

Welcome Screen

—

On/Off

On

Good-bye Screen

—

On/Off

On

Gauge Initial Movement

—

On/Off

On

Units

—

km, km/h, Liter/mile,
MPH, Gallon

U.S.-spec models: mile,
MPH, Gallon
Other models: km, km/h,
Liter

Tire Pressure Units
(U.S.-spec. models)

—

kPa/PSi

PSi

Languages

English/Español/Fran-
çais

U.S.-spec models: English
Other models: Français

26

(29,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Item

Available settings

Factory default setting

Page refer-

ence for the

vehicle sys-

tem opera-

tion

1st menu/vehicle system

2nd menu/adjustable ve-
hicle system setting

3rd menu/selectable ve-
hicle system setting

Warning Volume*

—

—

Max/Mid/Min

Mid

360 and 372
For details
about
EyeSight
system, refer
to the Own-
er’s Manual
supplement
for the
EyeSight
system.

Eyesight

Lead Vehicle Acquisition
Sound

—

On/Off

On

Refer to the
Owner’s
Manual sup-
plement for
the EyeSight
system.

Lead Vehicle Moving
Monitor Function

—

On/Off

On

Cruise Control Accelera-
tion Characteristics*

—

Lv.4 (Dynamic)/Lv.3
(Standard)/Lv.2 (Com-
fort)/Lv.1 (ECO)

Lv.3 (Standard)

EyeSight Assist monitor

EyeSight Assist Monitor
Red Indicator

On/Off

On

EyeSight Assist Monitor
Yellow Indicator

On/Off

On

EyeSight Assist Monitor
Green Indicator

On/Off

On

RAB (if equipped)

Sonar Audible Alarm

—

On/Off

On

SRH (if equipped)

—

—

On/Off

On

– CONTINUED –

27

0

(30,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Item

Available settings

Factory default setting

Page refer-

ence for the

vehicle sys-

tem opera-

tion

1st menu/vehicle system

2nd menu/adjustable ve-
hicle system setting

3rd menu/selectable ve-
hicle system setting

Vehicle Setting

Keyless Entry System

Audible Signal

On/Off

On

Hazard Warning Flasher

On/Off

On

Driver Door Unlock

Driver’s Door Only/All

Driver’s Door Only

Rear Gate/Trunk Unlock

Rear Gate/Trunk Only/All Rear Gate/Trunk Only

Defogger

—

15 minutes/Continuous

15 minutes

Interior Light

—

10 seconds/20 seconds/
30 seconds/Off

30 seconds

Auto Door Lock and Un-
lock

Auto Door Lock

Vehicle Speed/Shift Into
or Out of PARK/Off

Vehicle Speed

Auto Door Unlock

Shift Into or Out of PARK/
Ignition OFF/Driver Door
Open/Off

Driver Door Open

Auto Light Sensor

—

Max/Mid/Low/Min

Mid

Welcome Lighting

Approaching Time Set

30 seconds/60 seconds/
90 seconds/Off

30 seconds

Leaving Time Set

30 seconds/60 seconds/
90 seconds/Off

30 seconds

One-touch lane changer

—

On/Off

On

Ambient Lighting

—

On/Off

On

Default Settings

—

—

No/Yes

—

*: You can also set this while driving.

28

(31,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

&

Individual settings and adjustments excluding combination meter display

NOTE

For setting adjustments to the following items, refer to the appropriate page for details.

Item

Function

Available settings

Factory default setting

Page

Alarm system

Alarm system

Operation/Non-operation

Operation

Remote keyless entry system

Audible signal

Operation/Non-operation

Operation

&

Function settings and adjustments performed by a dealer

A SUBARU dealer can change the setting adjustments of the following items to meet your personal requirements. Contact the nearest
SUBARU dealer for details.

Item

Function

Available settings

Factory default setting

Alarm system

Monitoring start delay time (after
closure of doors)

0 seconds/30 seconds

30 seconds

Reading lights, cargo area light, and
map lights illumination

ON/OFF

OFF

Keyless Access (if equipped)

Audible signal volume

Level 1 to 7

Level 5

Remote keyless entry system

Hazard warning flasher

Operation/Non-operation

Operation

Audible signal volume

Level 1 to 7

Level 5

Key lock-in prevention

Key lock-in prevention

Operation/Non-operation

Operation

Battery drainage prevention func-
tion

Battery drainage prevention func-
tion

Operation/Non-operation

Operation

Seatbelt warning

Sounds a chime while driving

Operation/Non-operation

Operation

Auto on/off headlights

Auto-on/off wiper-linked

Operation/Non-operation

Operation

Reverse gear interlocked rear wiper Reverse gear interlocked rear wiper Operation/Non-operation

U.S.-spec. models: Non-operation
Other models: Operation

Auto dimmer cancel

Sensitivity of the operation of the
auto dimmer cancel

OFF/Min/Low/Mid/Hi/Max

Mid

– CONTINUED –

29

0

(32,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Item

Function

Available settings

Factory default setting

High beam assist function (if
equipped)

High beam assist function

Operation/Non-operation

Operation

Remote trunk open/Power rear gate
open function

Activation of trunk opening/Power
rear gate opening by remote control
key/access key

Operation/Non-operation

Operation

30

(33,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

1-1. Seats .................................................................. 32

Safety tips ............................................................32
Manual seat (if equipped)......................................35
Power seat (if equipped) .......................................36
Second-row seats .................................................40
Third-row seat ......................................................44
Head restraints .....................................................47

1-2. Seat heater (if equipped).................................. 51

Front seat heater ..................................................51
Second-row seat heater ........................................52

1-3. Seat ventilation (if equipped)........................... 53
1-4. Seatbelts............................................................ 54

Seatbelt safety tips ...............................................54
Emergency Locking Retractor (ELR) .....................56
Automatic Locking Retractor/Emergency

Locking Retractor (ALR/ELR) ..............................56

Seatbelt warning light and chime ..........................56
Fastening the seatbelt ..........................................56
Seatbelt maintenance............................................63

1-5. Seatbelt pretensioners ..................................... 63

Front seatbelt with shoulder belt and lap belt

pretensioners .....................................................63

Second-row (window-side) seatbelts with

shoulder belt pretensioner ..................................64

System monitors ..................................................65
System servicing ..................................................65
Precautions against vehicle modification ..............66

1-6. Child restraint systems.................................... 66

Safety tips for installing child restraint systems ...67
Where to place a child restraint system ................68
Choosing a child restraint system ........................71
Installing child restraint systems with ALR/ELR

seatbelt..............................................................71

Installing a booster seat .......................................76
Installation of child restraint systems by use of

lower and top tether anchorages (LATCH) ..........77

Top tether anchorages .........................................81

1-7. SRS airbag (Supplemental Restraint

System airbag) ............................................... 83

General precautions regarding SRS airbag

system...............................................................83

General precautions regarding SRS airbag

system for accessories and any objects .............85

General precautions regarding SRS airbag

system and children...........................................88

Components ........................................................91
SUBARU advanced frontal airbag system .............93
SRS side airbag and SRS curtain airbag ............. 104
SRS airbag system monitors .............................. 111
SRS airbag system servicing.............................. 113
Precautions against vehicle modification............ 114
How to contact the vehicle manufacturer

concerning modifications for persons with
disabilities that may affect the advanced
airbag system .................................................. 115

Seat, seatbelt and SRS airbags

1

(34,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

1-1. Seats

&

Safety tips

!

Safety tips for seat

WARNING

.

Never adjust the seat while driv-

ing, as it may cause loss of
vehicle control or personal injury.

.

Before adjusting the seat, make

sure the hands and feet of rear
seat passengers and cargo are
clear of the adjusting mechan-
ism.

.

After adjusting the seat, move it

back and forth to make sure it is
securely locked. If the seat is not
securely locked, it may move or
the seatbelt may not operate
properly.

.

Do not put objects under the front

seats. They may interfere with
front seat locking and cause an
accident.

.

Seatbelts provide maximum re-

straint when the occupant sits
well back and upright in the seat.
To reduce the risk of sliding
under the seatbelt in a collision,
the front seatbacks should be

always used in the upright posi-
tion while the vehicle is running.
If the front seatbacks are not
used in the upright position in a
collision, the risk of sliding under
the lap belt and of the lap belt
sliding up over the abdomen will
increase, and both can result in
serious internal injury or death.

.

The SRS airbags deploy with

considerable speed and force.
Occupants who are out of the
proper position when the SRS
airbag deploys could suffer very
serious injuries. Because the
SRS airbag needs enough space
for deployment, the driver should
always sit upright and well back
in the seat as far from the steer-
ing wheel as practical while still
maintaining full vehicle control
and the front passenger should
move the seat as far back as
possible and sit upright and well
back in the seat.

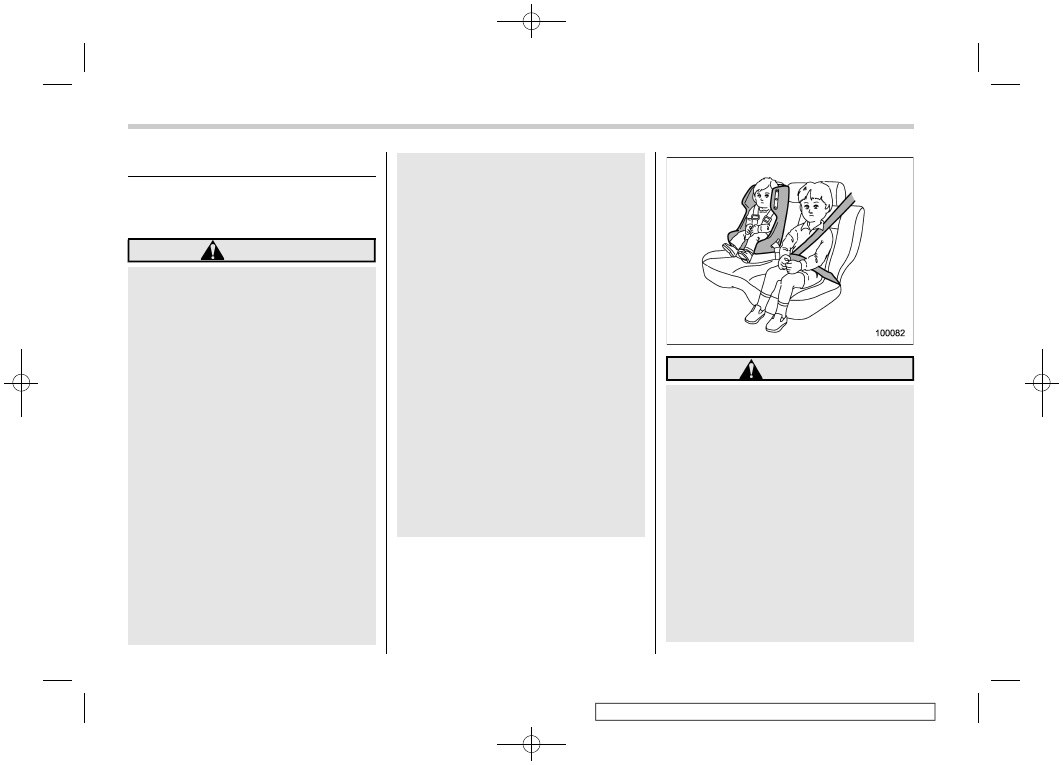

WARNING

Seat children in the rear seat prop-
erly restrained at all times. The SRS
airbag deploys with considerable
speed and force and can injure or
even kill children, especially if they
are not restrained or improperly
restrained. Because children are
lighter and weaker than adults, their
risk of being injured from deploy-
ment is greater. For that reason, we
strongly recommend that ALL chil-
dren (including those in child seats
and those that have outgrown child
restraint devices) sit in the REAR
seat properly restrained at all times
in a child restraint device or in a
seatbelt, whichever is appropriate

Seats

32

Content .. 1 2 3 ..
