ABS(diag)-43

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ABS (DIAGNOSTICS)

Q: DTC C0127 REAR OUTLET SOLENOID VALVE RH MALFUNCTION IN ABS

CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM&H/U)

DTC DETECTING CONDITION:
• Defective harness connector
• Defective outlet solenoid valve in ABSCM&H/U
TROUBLE SYMPTOM:
• ABS does not operate.
• EBD does not operate.

NOTE:
Brake warning light illuminates as well as the ABS warning light.

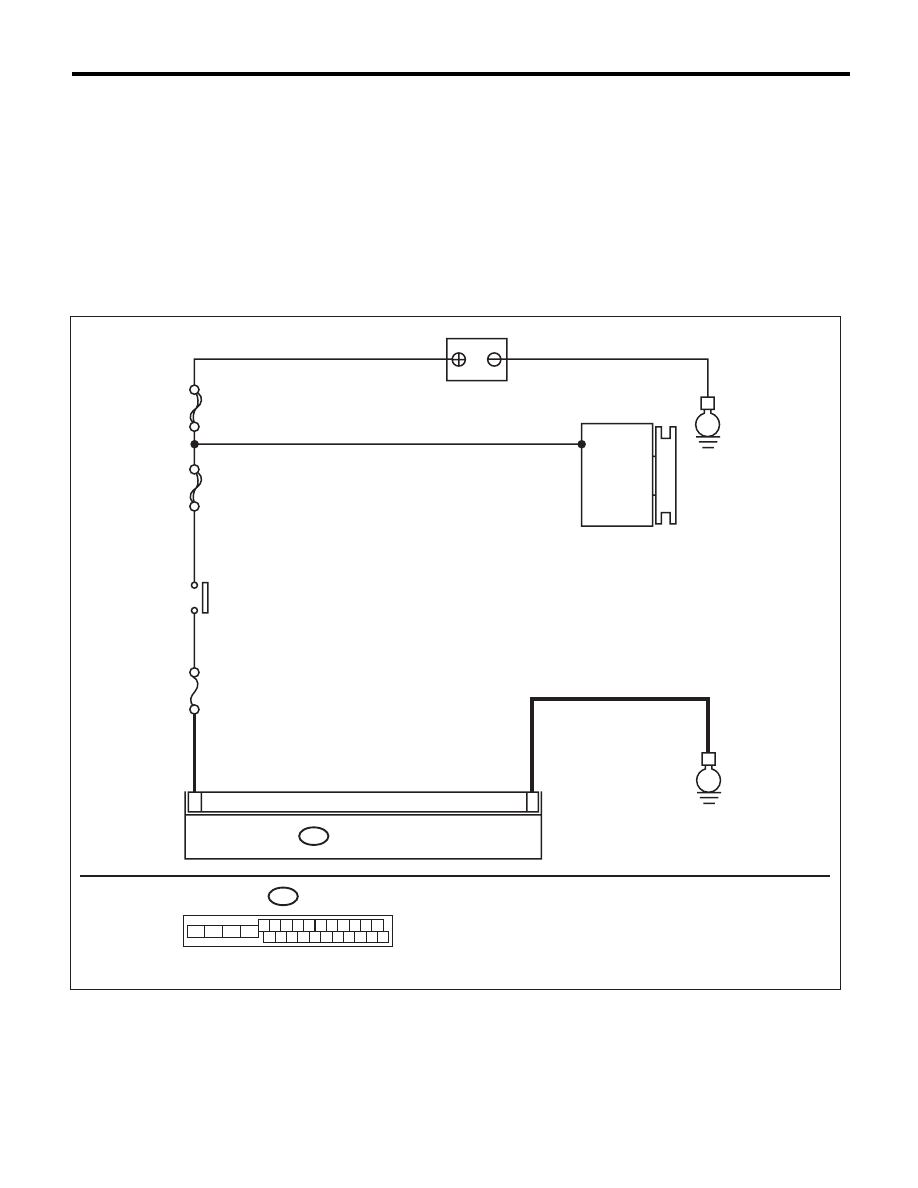

WIRING DIAGRAM:

ABS00805

MAIN SBF

SBF-6

No.33

B301

ABSCM & H/U

BATTERY

GENERATOR

IGNITION
SWITCH

B301

1 2 3 4 5 6 7 8 9 10 11

16 17 18 19 20 21 22 23 24 25 26

ABS(diag)-44

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ABS (DIAGNOSTICS)

Step

Check

Yes

CHECK INPUT VOLTAGE OF ABSCM&H/U.
1) Turn the ignition switch to OFF.
2) Disconnect the ABSCM&H/U connectors.
3) Run the engine at idle.
4) Measure the voltage between ABSCM&H/U
connector and chassis ground.

Connector & terminal

(B301) No. 18 (+) — Chassis ground (–):

Is the voltage 10 — 15 V?

Go to step 2.

Repair the
ABSCM&H/U
power circuit.

CHECK THE ABSCM&H/U GROUND CIR-
CUIT.
1) Turn the ignition switch to OFF.
2) Measure the resistance between the
ABSCM&H/U connector and chassis ground.

Connector & terminal

(B301) No. 15 — Chassis ground:

Is the resistance less than 0.5

:? Go to step 3.

Repair the
ABSCM&H/U
ground harness.

CHECK POOR CONTACT IN CONNECTOR.

Is there poor contact in connec-
tor between generator, battery
and ABSCM&H/U?

Repair the connec-
tor.

Go to step 4.

CHECK ABSCM&H/U.
1) Connect all connectors.
2) Clear the memory. <Ref. to ABS(diag)-20,
Clear Memory Mode.>
3) Perform the Inspection Mode. <Ref. to
ABS(diag)-19, Inspection Mode.>
4) Read the DTC.

Is the same DTC displayed?

Replace the
ABSCM&H/U.
<Ref. to ABS-6,
ABS Control Mod-
ule and Hydraulic
Control Unit
(ABSCM&H/U).>

Go to step 5.

CHECK FOR ANY OTHER DTC ON DISPLAY. Is any other DTC displayed?

Check DTC using
“List of Diagnostic
Trouble Code
(DTC)”. <Ref. to
ABS(diag)-29, List
of Diagnostic Trou-
ble Code (DTC).>

Temporary poor
contact occurs.

ABS(diag)-45

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ABS (DIAGNOSTICS)

R: DTC C0110 ABS CONTROL MODULE MALFUNCTION

DTC DETECTING CONDITION:
Defective ABSCM&H/U
TROUBLE SYMPTOM:
• ABS does not operate.
• EBD does not operate.

NOTE:
Brake warning light illuminates as well as the ABS warning light.
WIRING DIAGRAM:

ABS00415

ABSCM & H/U

B301

1 2 3 4 5 6 7 8 9 10 11

16 17 18 19 20 21 22 23 24 25 26

ABS(diag)-46

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ABS (DIAGNOSTICS)

Step

Check

Yes

CHECK THE ABSCM&H/U GROUND CIR-
CUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the ABSCM&H/U connectors.
3) Measure the resistance between the
ABSCM&H/U and chassis ground.

Connector & terminal

(B301) No. 15 — Chassis ground:

Is the resistance less than 0.5

:? Go to step 2.

Repair the
ABSCM&H/U
ground harness.

CHECK POOR CONTACT IN CONNECTOR.

Is there poor contact of the con-
nector between the battery,
ignition switch and ABSCM&H/
U?

Repair the connec-
tor.

Go to step 3.

CHECK CAUSE OF SIGNAL NOISE.

Is the car telephone or the radio
properly installed?

Go to step 4.

Properly install the
car telephone or
the radio.

CHECK CAUSE OF SIGNAL NOISE.

Is there a noise source (such as
an antenna) installed near the
sensor harness?

Install the noise
source apart from
the sensor har-
ness.

Go to step 5.

Is the same DTC displayed?

Replace the
ABSCM only. <Ref.
to ABS-8,
REPLACEMENT,
ABS Control Mod-
ule and Hydraulic
Control Unit
(ABSCM&H/U).>

Go to step 6.

CHECK FOR ANY OTHER DTC ON DISPLAY. Is any other DTC displayed?

Check DTC using
“List of Diagnostic
Trouble Code
(DTC)”. <Ref. to
ABS(diag)-29, List
of Diagnostic Trou-
ble Code (DTC).>

Temporary poor
contact occurs.
