2) Install the clutch cover to the flywheel and tight-
en the bolts to the specified torque.

NOTE:
• When installing the clutch cover to the flywheel,
position the clutch cover so that the distance be-
tween unbalance marks (

 paint marks) is at least

120°. (The unbalance mark

 indicates the direc-

tion of residual unbalance.)
• Note the front and rear of the clutch disc when in-
stalling.
• Temporarily tighten the bolts by hand. Each bolt
should be tightened to the specified torque in a
crisscross order.

Tightening torque:

16 N·m (1.6 kgf-m, 11.8 ft-lb)

3) Remove the ST.
ST

499747100

CLUTCH DISC GUIDE

4) Install the transmission assembly. <Ref. to 5MT-
27, INSTALLATION, Manual Transmission Assem-
bly.> <Ref. to 6MT-34, INSTALLATION, Manual
Transmission Assembly.>

C: INSPECTION

NOTE:
The illustration below is for a Non-turbo model.
However, perform the same procedures for the
Turbo model.

1. CLUTCH DISC

1) Facing wear:
Measure the depth from the facing surface to the
rivet head. Replace if the face is worn locally or
worn down to less than the specified value.

Depth to rivet head:

Limit of sinking

0.3 mm (0.012 in)

NOTE:
Do not wash the clutch disc with any type of clean-
ing fluid.

2) Hardened facing
Replace the clutch disc.
3) Oil soakage on facing
Replace the clutch disc and inspect the transmis-
sion front oil seal, transmission case mating sur-
face, engine rear oil seal and other locations for oil
leakage.

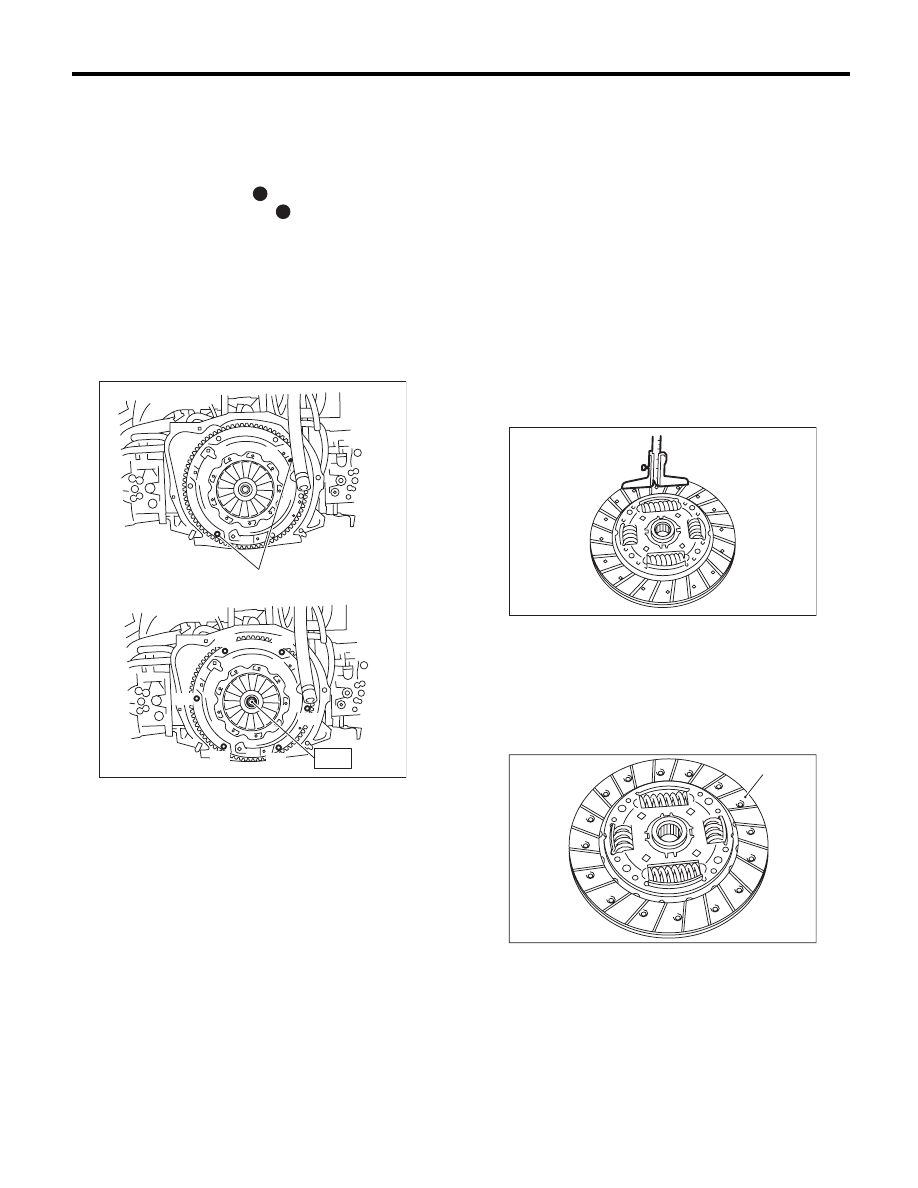

(A) Unbalance mark (paint)

CL-00013

( A )

S T

( 2 )

( 5 )

( 3 )

( 1 )

( 6 )

( 4 )

(A) Clutch facing

CL-00014

CL-00015

(A)

CL-15

Clutch Disc and Cover

CLUTCH SYSTEM

4) Deflection on facing:
If deflection exceeds the specified value at the out-
er circumference of the facing, replace the clutch
disc.
ST

499747100

CLUTCH DISC GUIDE

Limit for deflection:

0.7 mm (0.028 in) at R = 110 mm (4.33 in)

5) If there is spline wear, loose rivets, failed damper
springs, etc., replace the clutch disc.

2. CLUTCH COVER

NOTE:
Visually check the following items without disas-
sembling, and replace or repair if defective.
1) Loose thrust rivet
2) Damaged or worn bearing contact area at the
center of diaphragm spring

3) Damaged or worn disc contact surface of the
pressure plate
4) Loose strap plate installation area
5) Worn diaphragm sliding area

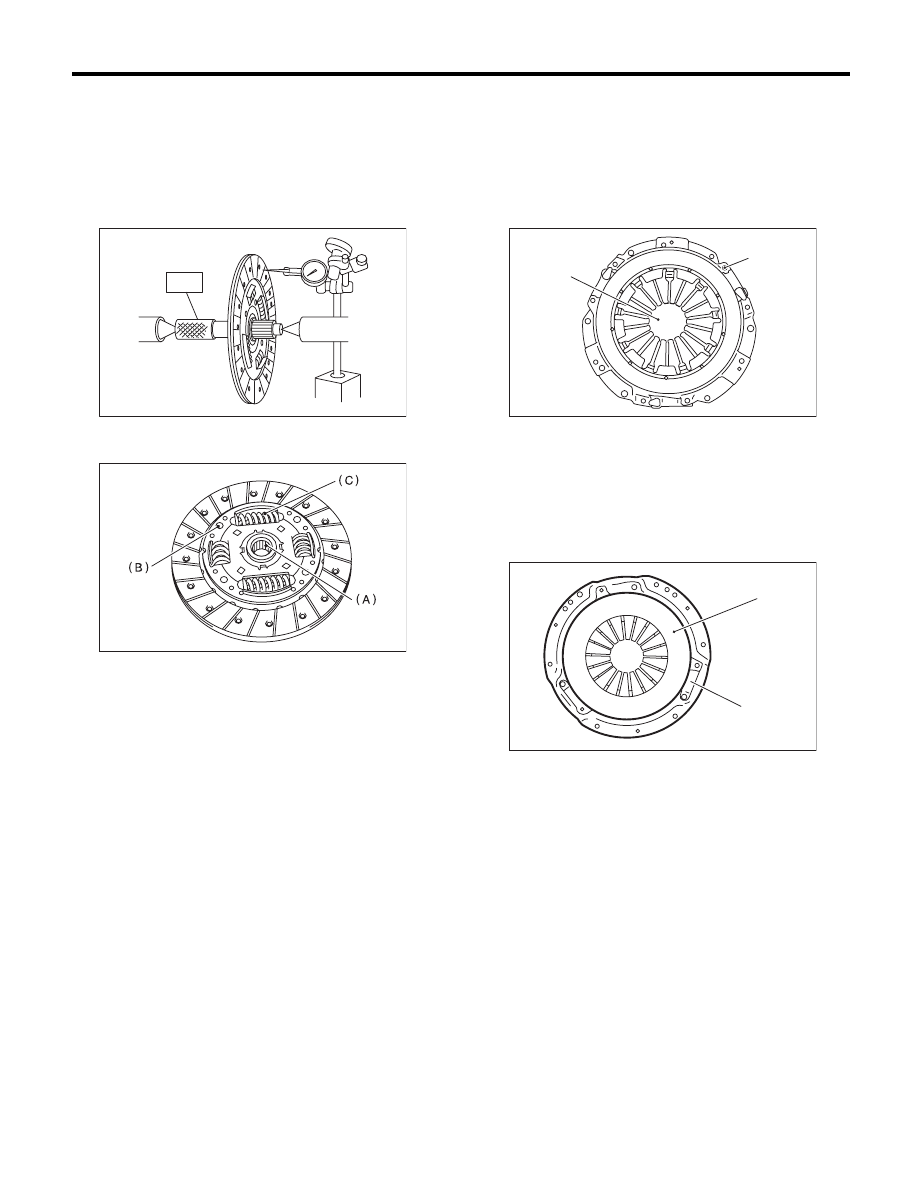

(A) Spline

(B) Rivet

(C) Damper spring

CL-00016

S T

CL-00017

(A) Thrust rivet

(B) Diaphragm spring

(A) Pressure plate

(B) Strap plate

CL-00018

(A)

(B)

CL-00177

(A)

(B)

CL-16

Flywheel

CLUTCH SYSTEM

3. Flywheel

A: REMOVAL

1) Remove the transmission assembly. <Ref. to
5MT-24, REMOVAL, Manual Transmission As-
sembly.> <Ref. to 6MT-32, REMOVAL, Manual
Transmission Assembly.>
2) Remove the clutch cover and clutch disc. <Ref.
to CL-13, REMOVAL, Clutch Disc and Cover.>

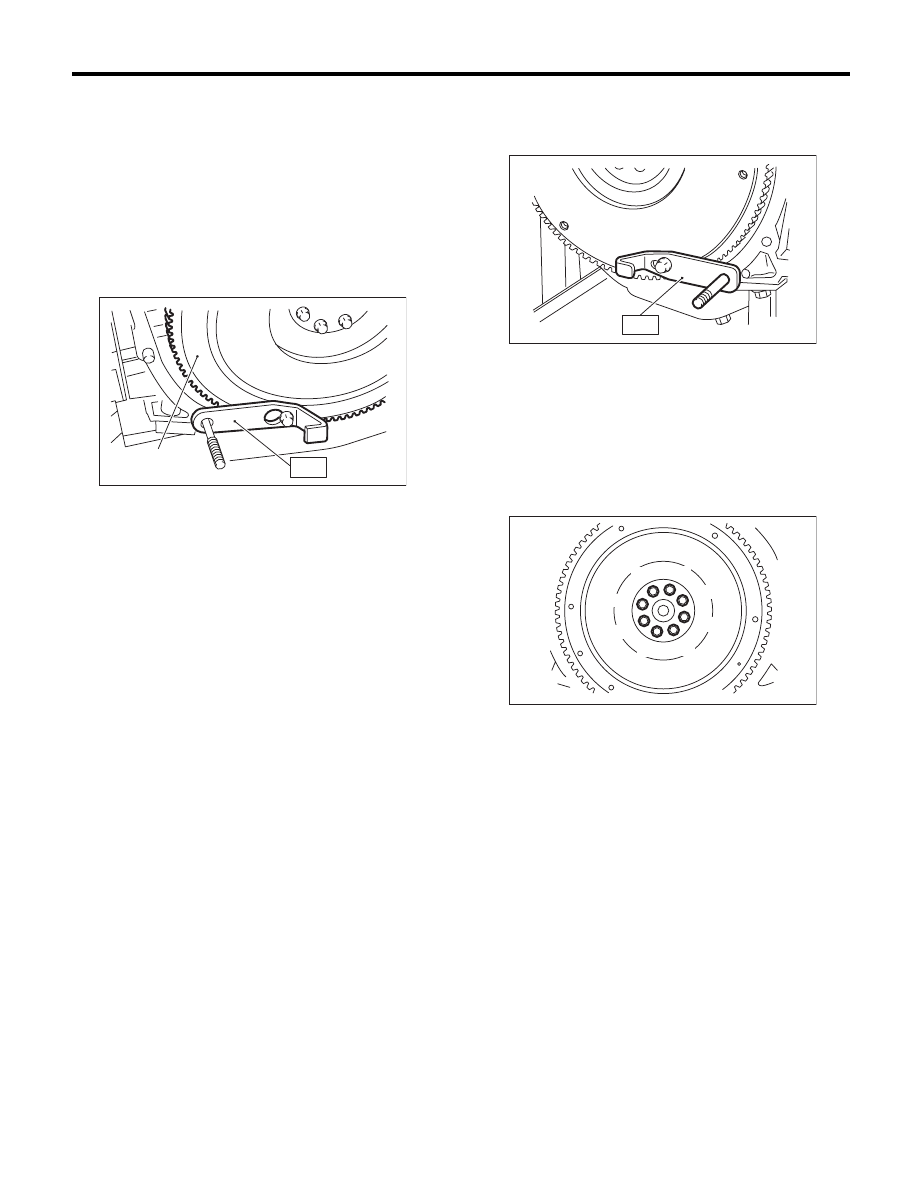

3) Using the ST, remove the flywheel.
ST

498497100

CRANKSHAFT STOPPER

B: INSTALLATION

1) Install the flywheel and ST.
ST

498497100

CRANKSHAFT STOPPER

2) Tighten the flywheel mounting bolts to the spec-
ified torque.

NOTE:
Tighten the flywheel attachment bolts gradually.
Each bolt should be tightened to the specified
torque in crisscross order.

Tightening torque:

72 N·m (7.3 kgf-m, 53.1 ft-lb)

3) Install the clutch disc and cover. <Ref. to CL-13,
INSTALLATION, Clutch Disc and Cover.>
4) Install the transmission assembly. <Ref. to 5MT-
27, INSTALLATION, Manual Transmission Assem-
bly.> <Ref. to 6MT-34, INSTALLATION, Manual
Transmission Assembly.>

(A) Flywheel

CL-00019

S T

( A )

CL-00020

S T

CL-00021

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

CL-17

Flywheel

CLUTCH SYSTEM

C: INSPECTION

NOTE:
The illustration below is for a Turbo model. Howev-
er, perform the same procedures for the Non-turbo
model.

CAUTION:
Since this bearing is grease-sealed and is a
non-lubrication type, do not wash with gasoline
or any solvents.
1) If there is damage or defectiveness in the facing
sliding surface or ring gear, replace the flywheel.

2) Smoothness of rotation
Rotate the ball bearing while applying pressure in
the thrust direction.
3) If noise or excessive play is noted, replace the
flywheel.

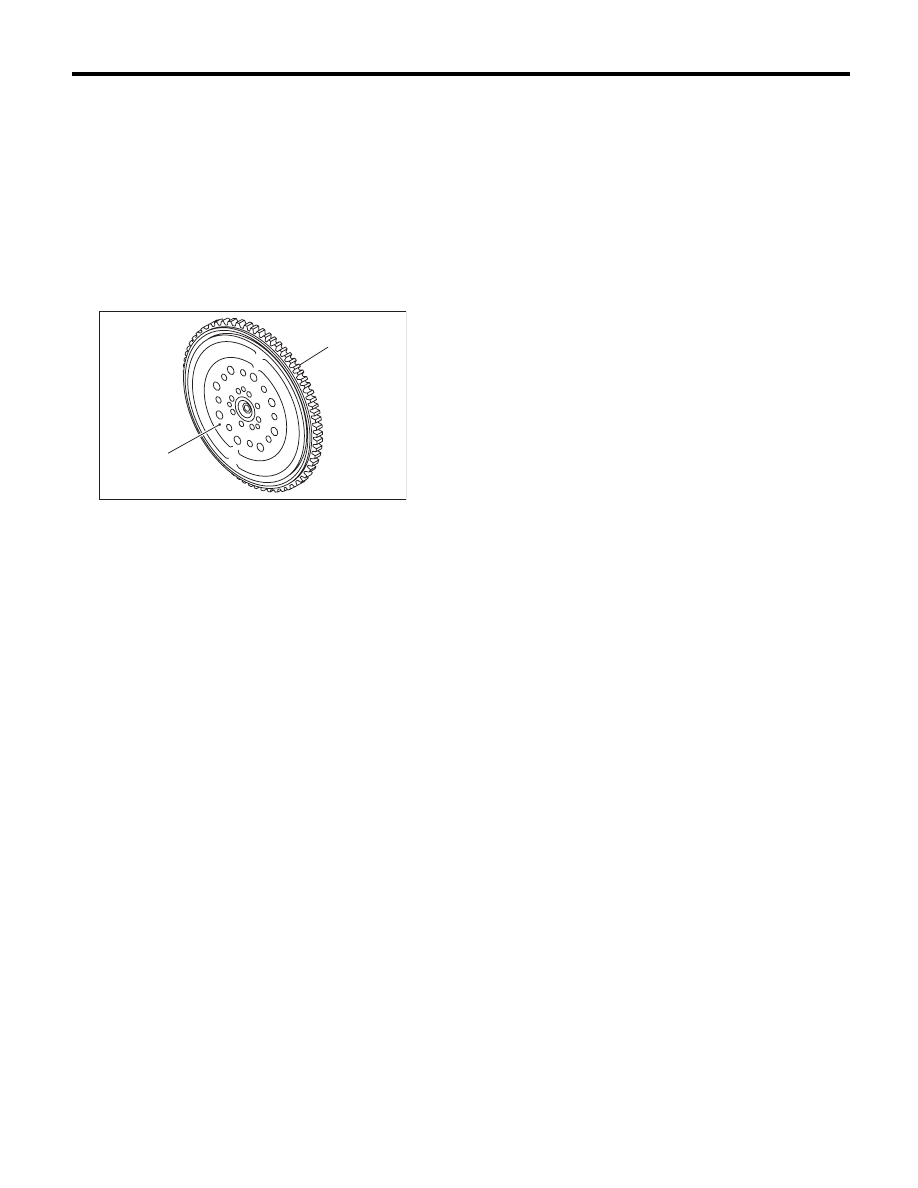

(A) Flywheel

(B) Ring gear

CL-00366

(A)

(B)
