CL-2
General Description
CLUTCH SYSTEM
1. General Description
A: SPECIFICATION

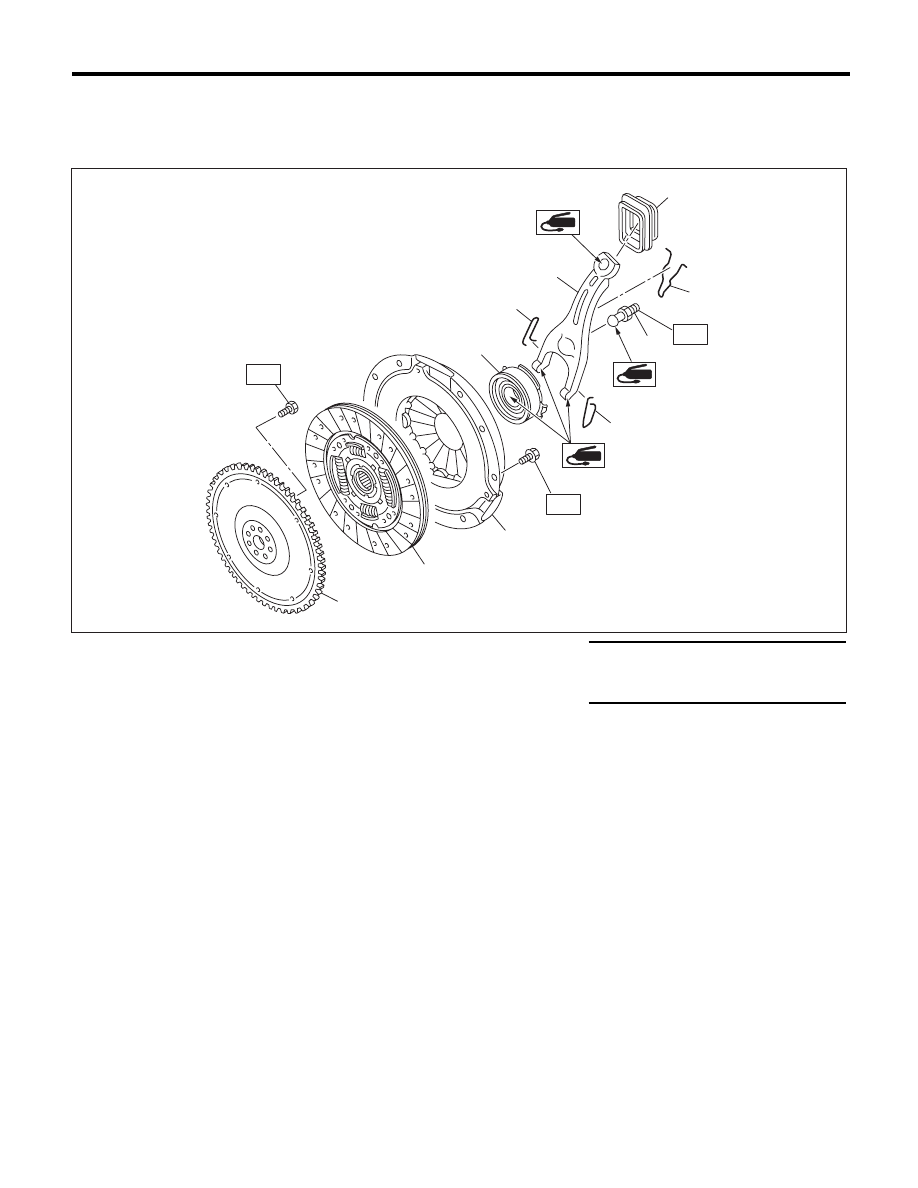

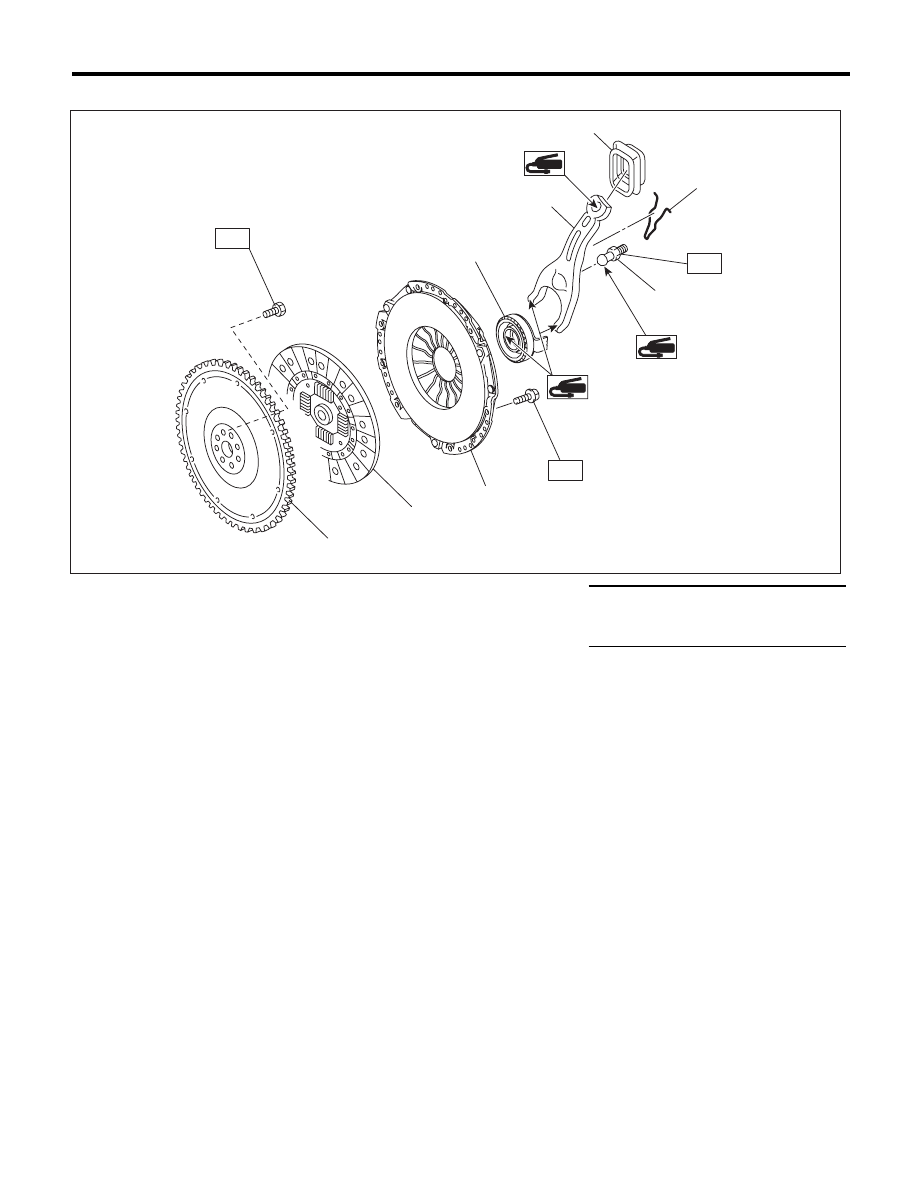

Model
2.5 L Non-turbo
2.5 L Turbo
Transmission type
5MT
Clutch cover
Type
Push type
Diaphragm set load
N (kgf, lbf)
5,688 (580, 1,279)
7,450 (760, 1,675)
Clutch disc
Facing material
Woven
O.D. × I.D. × thickness
mm (in)
Flywheel
side
225 × 150 × 3.5
(8.86 × 5.91 × 0.138)
230 × 155 × 3.2
(9.06 × 6.10 × 0.126)
Clutch
cover side
230 × 155 × 3.5
(9.06 × 6.10 × 0.138)
Spline outer diameter
mm (in)
25.2 (0.992)
Depth of rivet head
mm (in)
Flywheel
side
1.7 — 2.2 (0.067 — 0.087)
1.4 — 1.9 (0.055 — 0.075)
Clutch
cover side
1.7 — 2.2 (0.067 — 0.087)
Limit of
sinking
0.3 (0.012)
Deflection limit
mm (in)
0.7 (0.028) at R = 110 (4.33)
Clutch release lever ratio
1.6
Release bearing
Grease-packed self-aligning
Clutch pedal
Full stroke
mm (in)
130 — 135 (5.12 — 5.31)
135 — 140 (5.31 — 5.51)
Free play
mm (in)
4 — 13 (0.16 — 0.51)
Flywheel
Type
Flexible

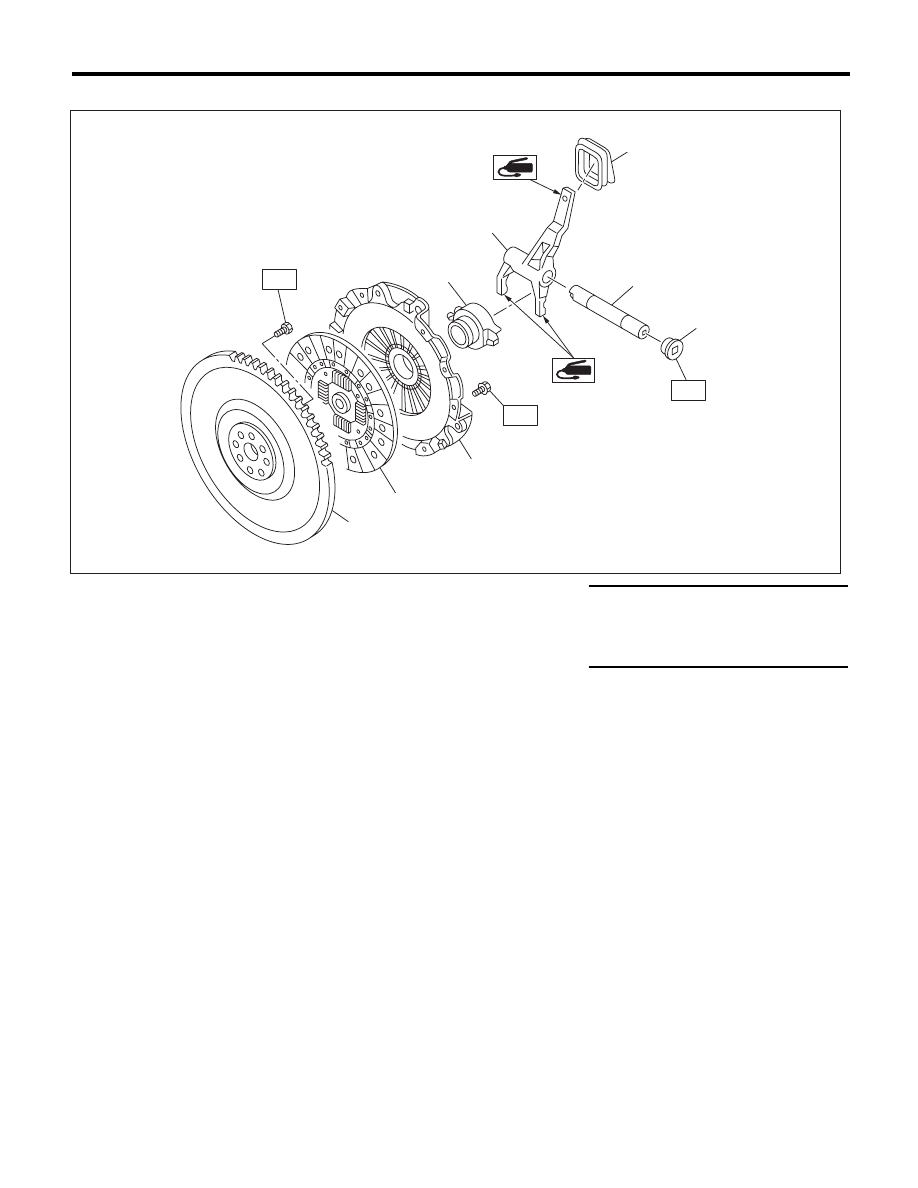

Model
2.5 L Turbo
Transmission type
6MT
Clutch cover
Type
Pull type
Diaphragm set load
N (kgf, lbf)
7,430 (758, 1,671)
Clutch disc
Facing material
Woven
O.D. × I.D. × thickness
mm (in)
Flywheel
side
230 × 155 × 3.2 (9.06 × 6.10 × 0.126)
Clutch
cover side
230 × 155 × 3.5 (9.06 × 6.10 × 0.138)
Spline outer diameter
mm (in)
25.2 (0.992)
Depth of rivet head
mm (in)
Flywheel
side
1.4 — 1.9 (0.055 — 0.075)
Clutch
cover side
1.7 — 2.2 (0.067 — 0.087)
Limit of
sinking
0.3 (0.012)
Deflection limit
mm (in)
0.7 (0.028) at R = 110 (4.33)
Clutch release lever ratio
1.7
Release bearing
Grease-packed self-aligning
Clutch pedal
Full stroke
mm (in)
130 — 135 (5.12 — 5.31)
Free play
mm (in)
4 — 13 (0.16 — 0.51)
Flywheel
Type
Conventional
