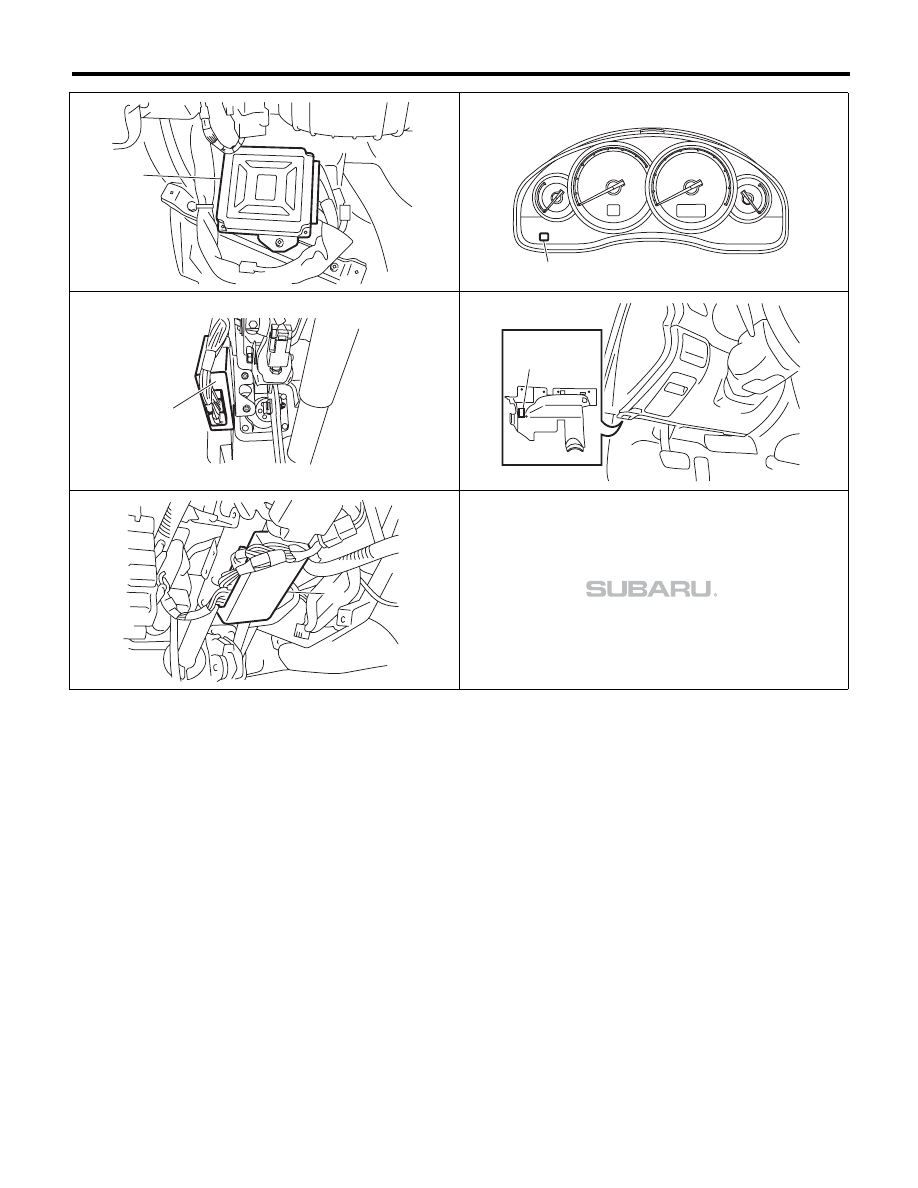

4AT(diag)-9

Electrical Component Location

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

(1)

AT-01874

AT-03759

(2)

AT-04968

(3)

AT-01877

(4)

AT-01876

(5)

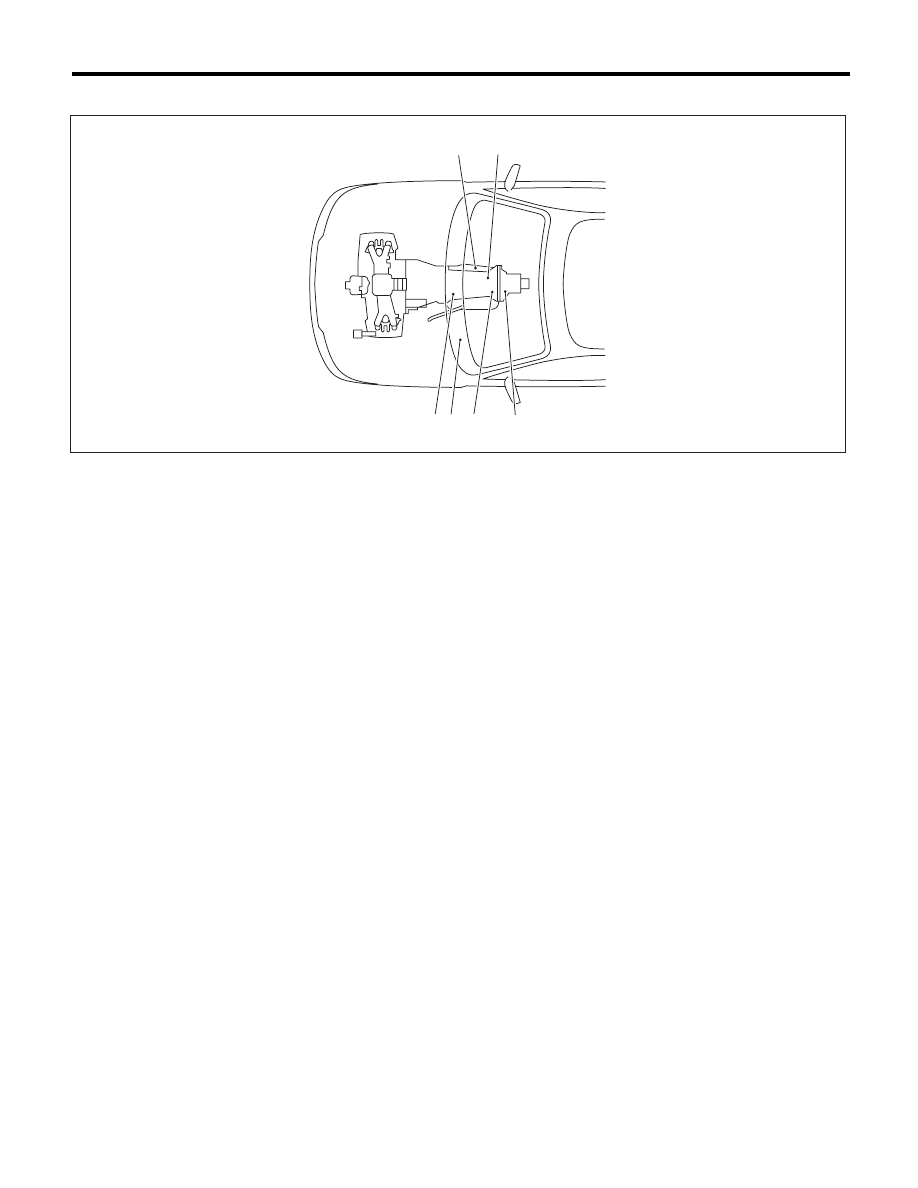

4AT(diag)-10

Electrical Component Location

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

2. SENSOR

(1)

Accelerator pedal position sensor

(4)

Rear vehicle speed sensor

(6)

ATF temperature sensor

(2)

Front vehicle speed sensor

(5)

Torque converter turbine speed
sensor

(3)

Inhibitor switch





(3)

(6)

(5) (1) (2)

(4)

AT-02979

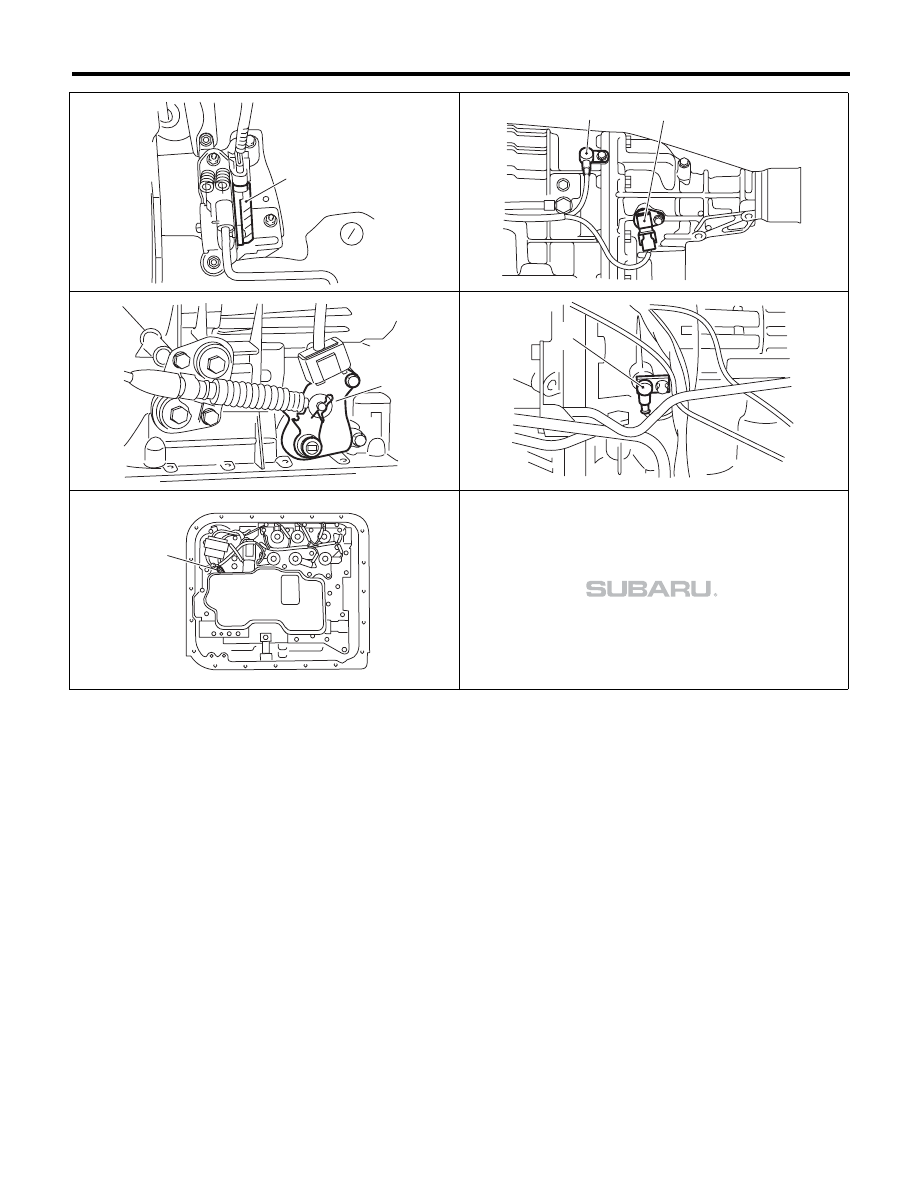

4AT(diag)-11

Electrical Component Location

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

(1)

AT-00375

AT-01474

(2)

(4)

AT-04909

(3)

(5)

AT-00331

(6)

AT-04842

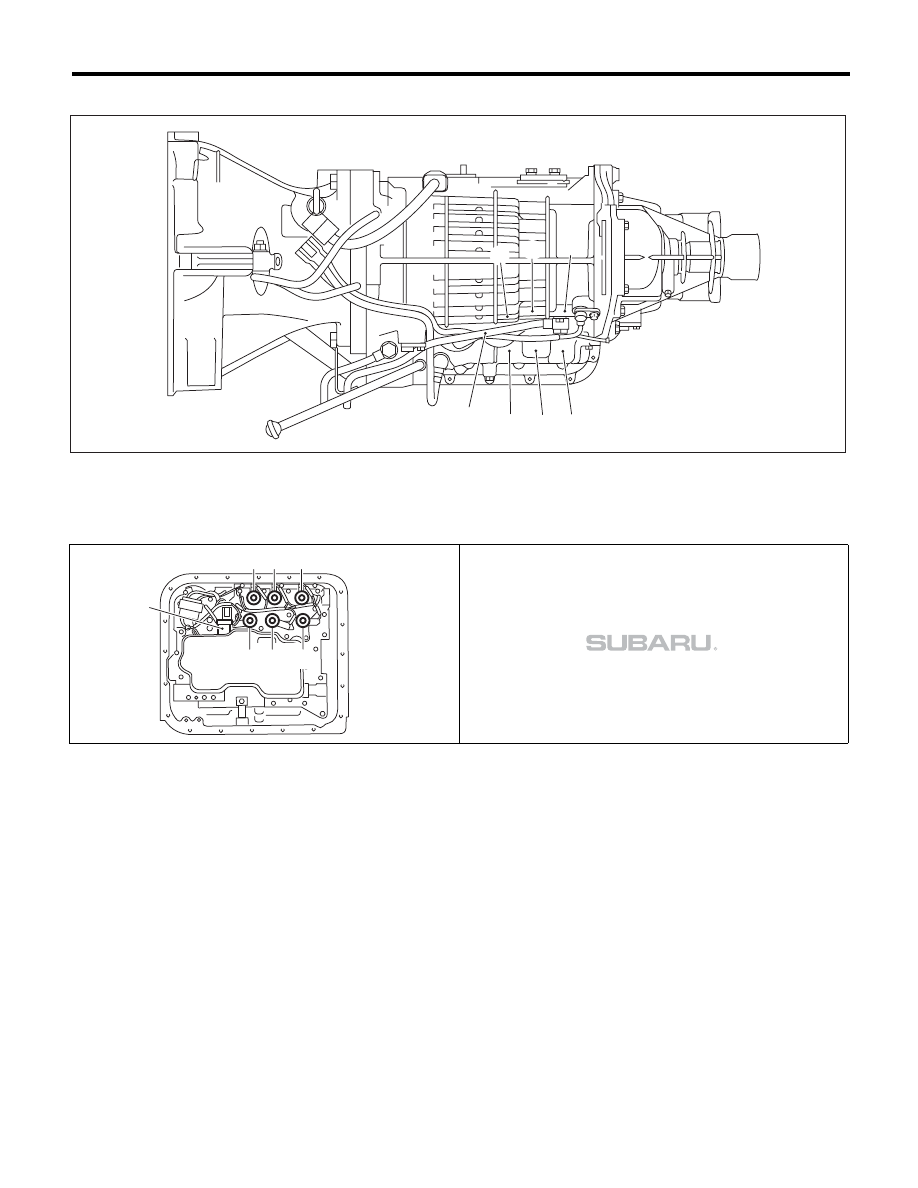

4AT(diag)-12

Electrical Component Location

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

3. SOLENOID

(1)

Line pressure linear solenoid

(4)

Low & reverse duty solenoid

(6)

Transfer duty solenoid

(2)

High clutch duty solenoid

(5)

Low clutch duty solenoid

(7)

Lock-up duty solenoid

(3)

2-4 brake duty solenoid









AT-04844

(1)

(2)

(3) (4)

(5)

(6)

(7)

(2) (3)

(4)

(7) (6)

(5)

(1)

AT-04843
