4AT-12

General Description

AUTOMATIC TRANSMISSION

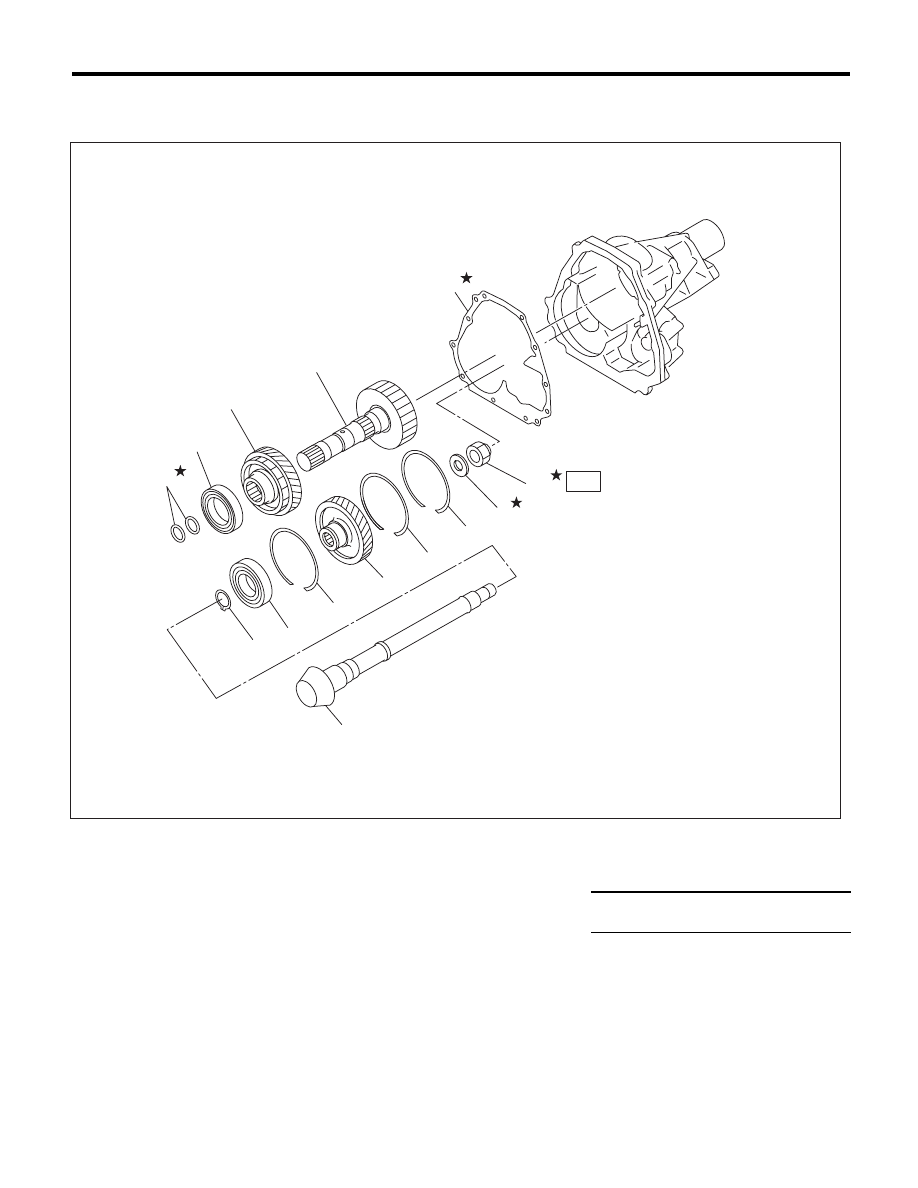

8. REDUCTION GEAR

MP-T MODEL

(1)

Seal ring

(6)

Snap ring

(11)

Lock nut

(2)

Ball bearing

(7)

Ball bearing

(12)

Gasket

(3)

Reduction drive gear

(8)

Snap ring



(4)

Reduction drive shaft

(9)

Reduction driven gear

Tightening torque:N·m (kgf-m, ft-lb)

(5)

Drive pinion shaft

(10)

Washer

T: 100 (10.2, 73.8)

AT-04780

(2)

(3)

(4)

(1)

(5)

(7)

(8)

(9)

(10)

T

(11)

(8)

(8)

(6)

(12)

4AT-13

General Description

AUTOMATIC TRANSMISSION

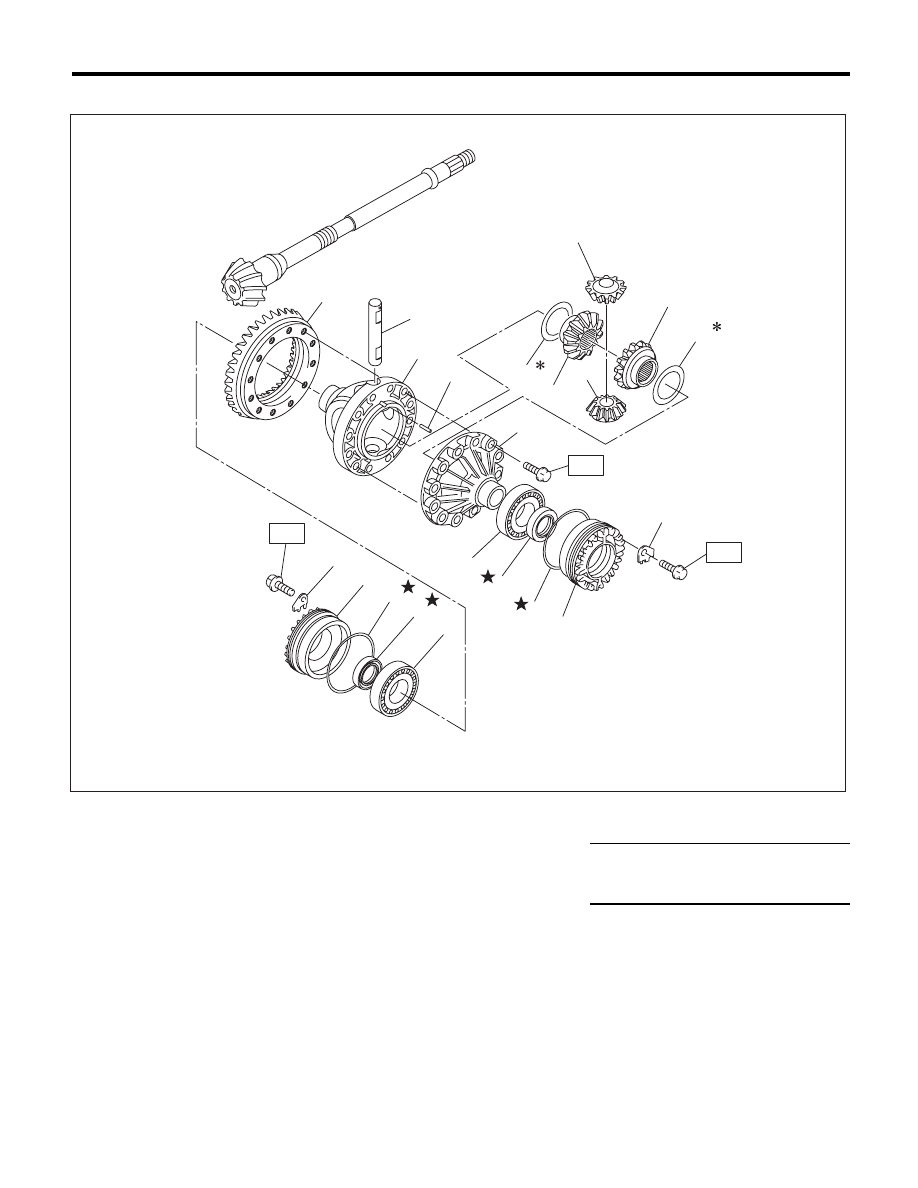

9. DIFFERENTIAL GEAR

(1)

Hypoid driven gear

(7)

Oil seal

(13)

Differential bevel gear

(2)

Pinion shaft

(8)

O-ring





(3)

Differential case (RH)

(9)

Differential side retainer

Tightening torque:N·m (kgf-m, ft-lb)

(4)

Straight pin

(10)

Lock plate

T1: 25 (2.5, 18.4)

(5)

Differential case (LH)

(11)

Washer

T2: 62 (6.3, 45.7)

(6)

Taper roller bearing

(12)

Differential bevel pinion





AT-00011

T2

T1

T1

(8)

(8)

(9)

(9)

(7)

(7)

(6)

(6)

(10)

(13)

(13)

(1)

(2)

(3)

(4)

(5)

(10)

(11)

(11)

(12)

(12)

4AT-14

General Description

AUTOMATIC TRANSMISSION

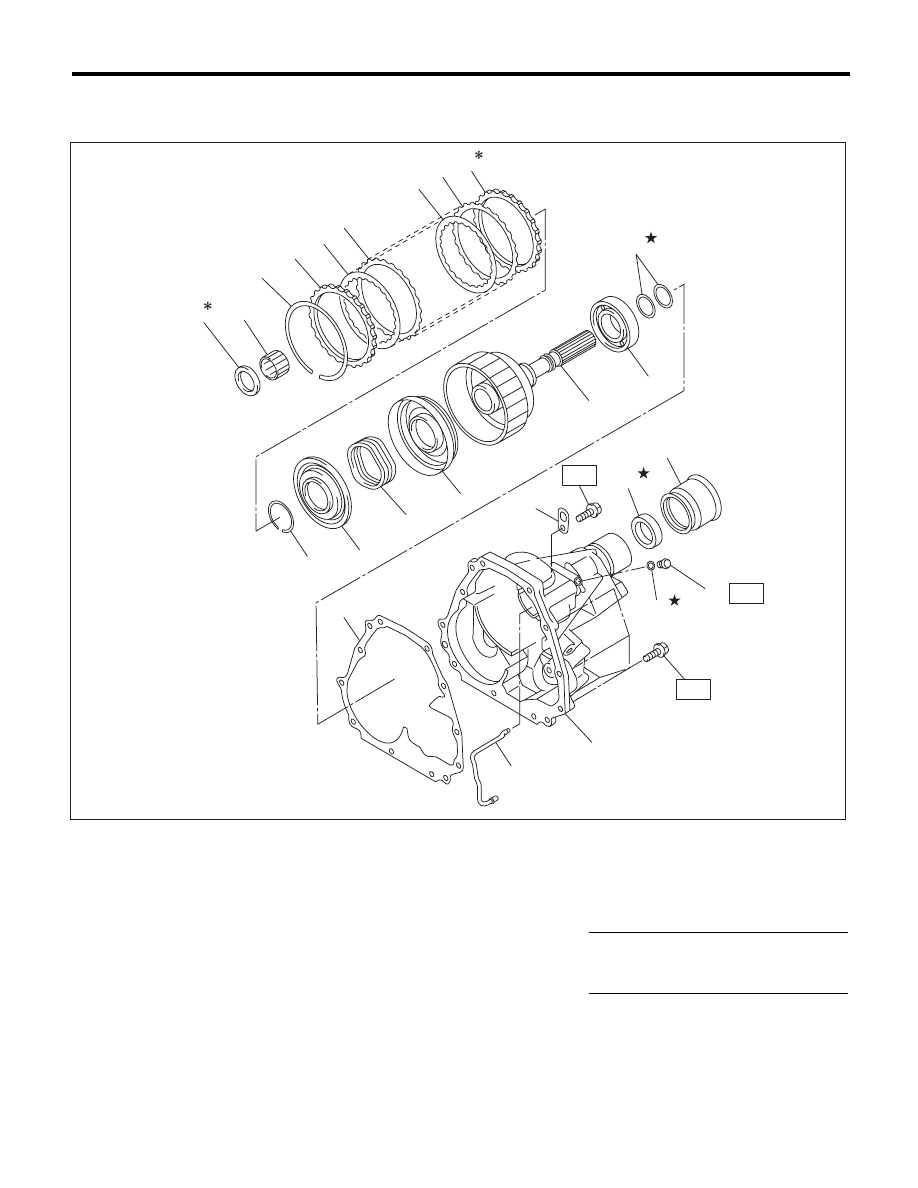

10.TRANSFER AND EXTENSION CASE

MP-T MODEL

(1)

Thrust needle bearing

(10)

Return spring

(19)

Oil seal

(2)

Needle bearing

(11)

Transfer clutch piston

(20)

Dust cover

(3)

Snap ring

(12)

Rear drive shaft

(21)

Test plug

(4)

Driven plate (Thick)

(13)

Ball bearing

(22)

O-ring

(5)

Drive plate

(14)

Seal ring





(6)

Driven plate (Thin)

(15)

Gasket

Tightening torque:N·m (kgf-m, ft-lb)

(7)

Retaining plate

(16)

Transfer clutch pipe

T1: 13 (1.3, 9.6)

(8)

Snap ring

(17)

Extension case

T2: 25 (2.5, 18.4)

(9)

Transfer clutch piston seal

(18)

Transmission hanger





AT-01784

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(16)

(18)

(19)

(22)

(21)

(12)

(13)

(14)

(15)

(5)

(17)

(20)

T2

T2

T1

(6)

4AT-15

General Description

AUTOMATIC TRANSMISSION

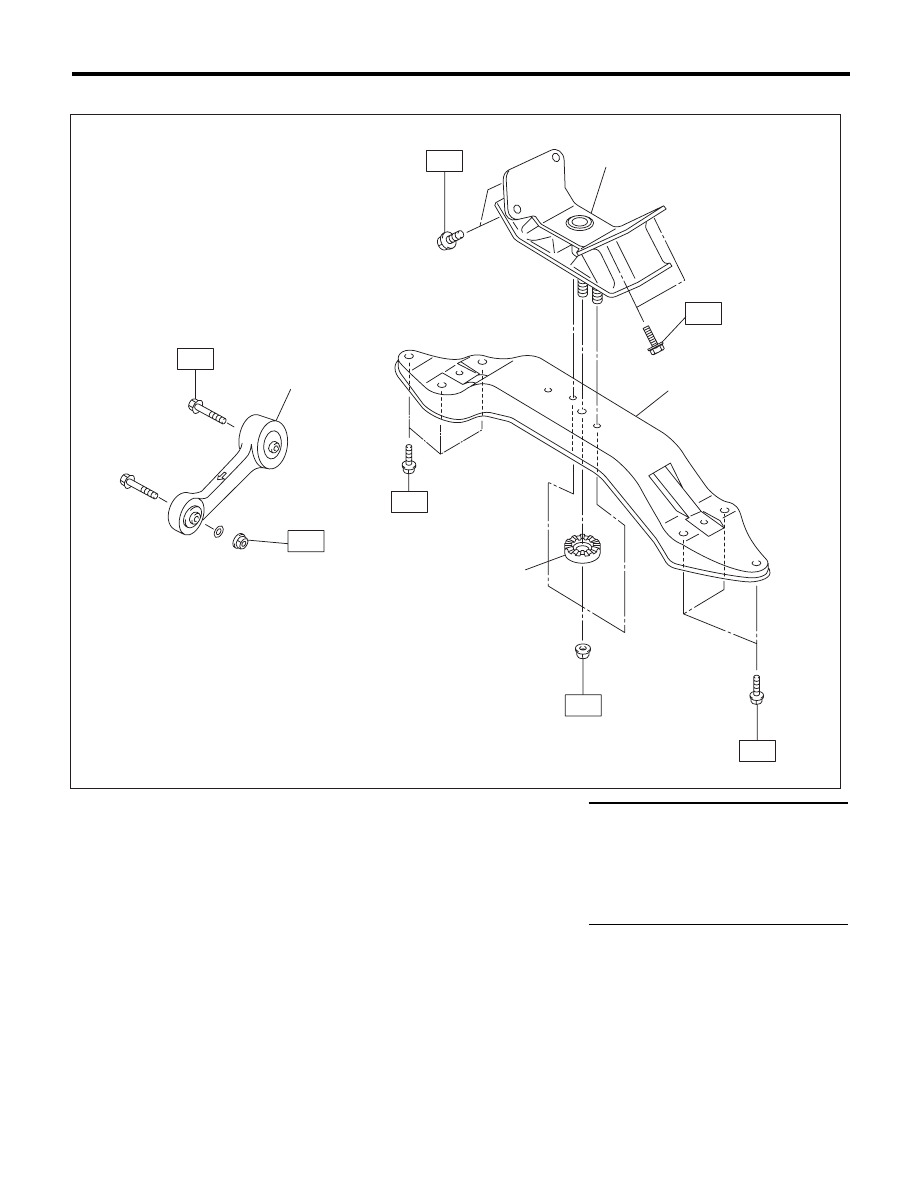

11.TRANSMISSION MOUNTING

(1)

Pitching stopper

(3)

Transmission rear crossmember

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Rear cushion rubber

(4)

Stopper

T1: 35 (3.6, 25.8)









T2: 40 (4.1, 29.5)









T3: 50 (5.1, 36.9)









T4: 58 (5.9, 42.8)









T5: 75 (7.6, 55.3)

(2)

(3)

(4)

(1)

T4

T3

T5

T5

T2

T2

T1

AT-03876
