GD(H6DO)-48

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

5. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 2500 ms
Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cy-
cles.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: Less than 1 second

Judgement Value

Malfunction Criteria

Threshold Value

Engine coolant temperature at the last
engine stop — Minimum engine coolant
temperature after the engine start

< 2.5 °C (36.5 °F)

Fuel temperature at the last engine stop
— fuel temperature

t 5 °C (41 °F)

Intake air temperature — fuel tempera-
ture

< 2.5 °C (36.5 °F)

Fuel temperature

< 35 °C (95 °F)

Judgement Value

Malfunction Criteria

Threshold Value

Engine coolant temperature at the last
engine stop — Minimum engine coolant
temperature after the engine start

t 2.5 °C (36.5 °F)

GD(H6DO)-49

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

AJ:DTC P0128 COOLANT THERMOSTAT (ENGINE COOLANT TEMPERATURE

BELOW THERMOSTAT REGULATING TEMPERATURE)

1. OUTLINE OF DIAGNOSIS

Detect malfunctions of the thermostat function.
Judge as NG when the engine coolant temperature is lower than the estimated engine coolant temperature
and the difference between them is large. Judge as OK when the engine coolant temperature becomes to
75°C (167°F), and the difference is small, before judging NG.

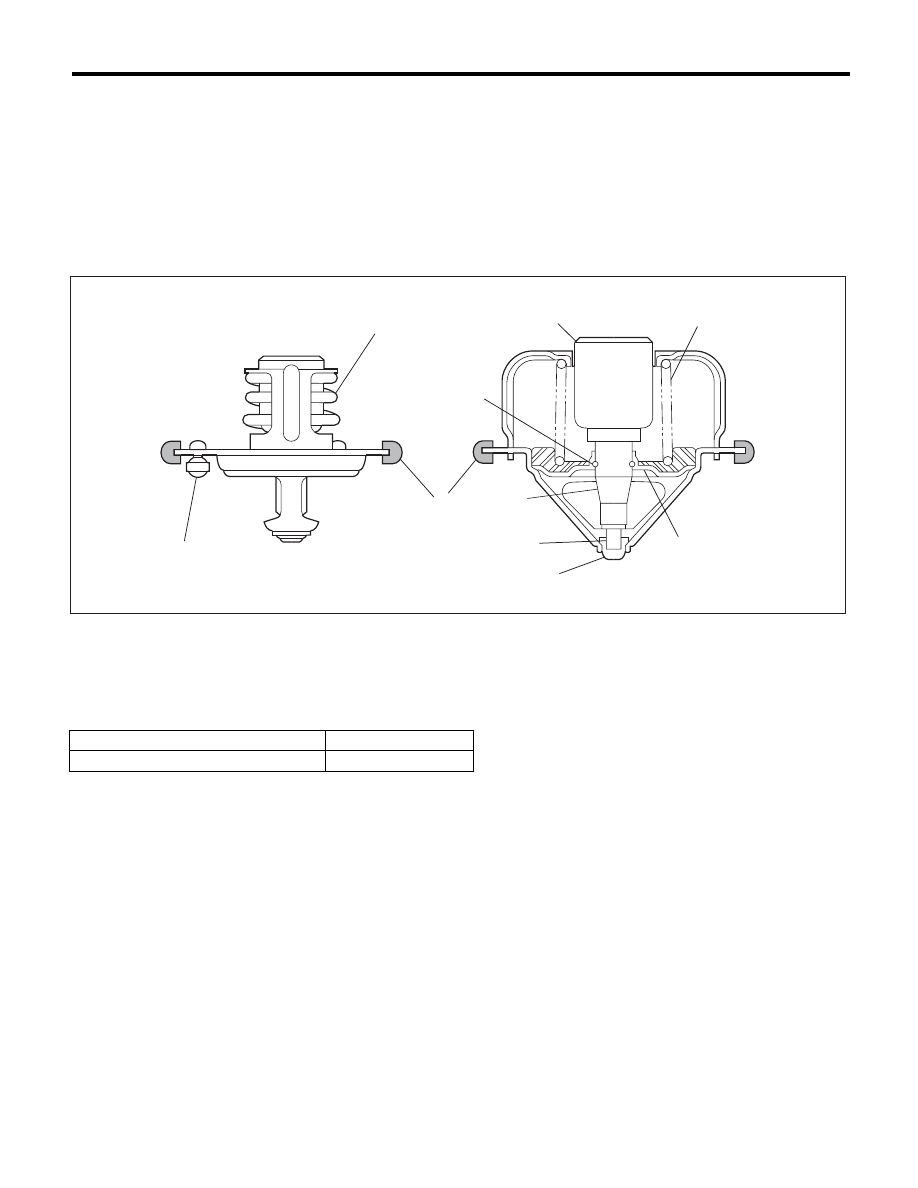

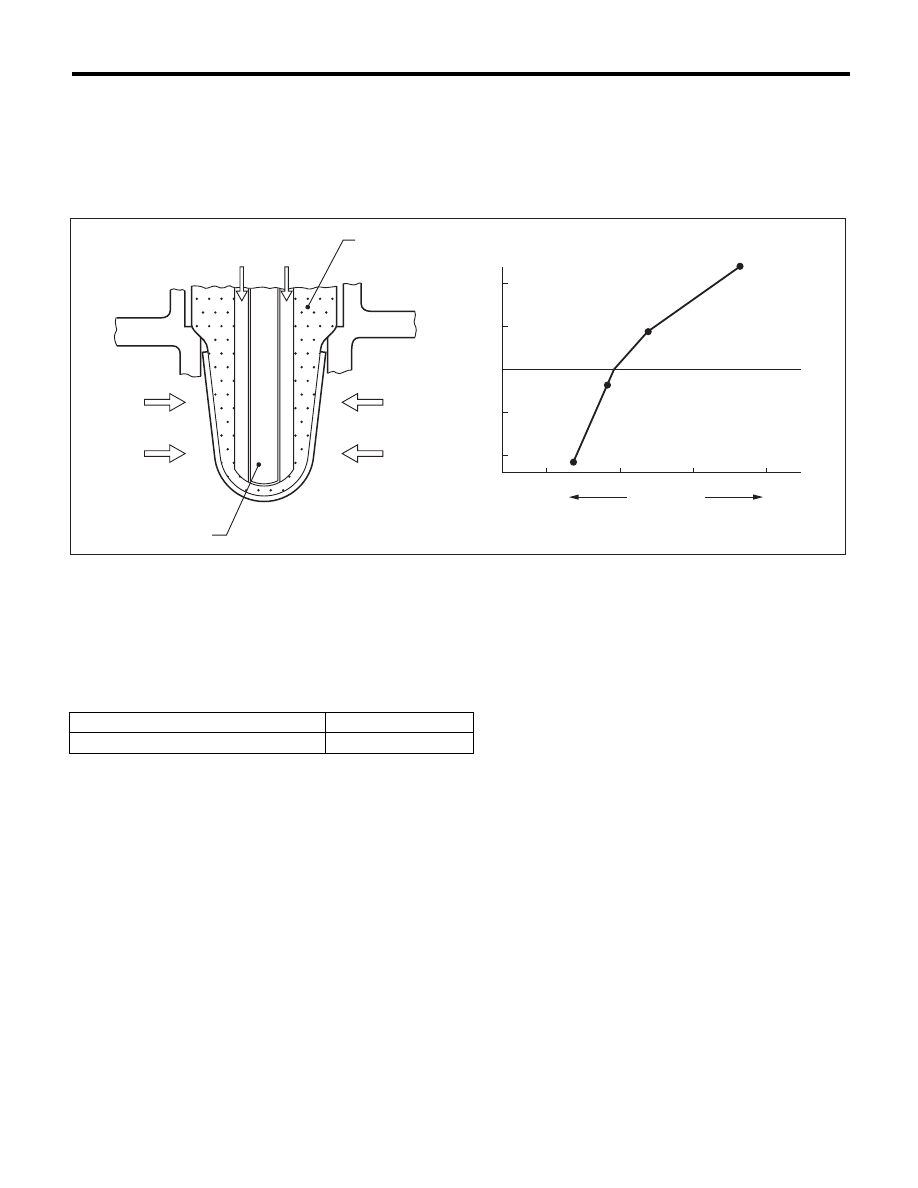

2. COMPONENT DESCRIPTION

3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE

Always perform the diagnosis continuously.

(1)

Valve

(4)

Piston

(7)

Stop ring

(2)

Spring

(5)

Guide

(8)

Wax element

(3)

Stopper

(6)

Rubber seal

(9)

Jiggle valve

Secondary Parameters

Enable Conditions

None



EN-01692

(9)

(2)

(6)

(8)

(7)

(5)

(4)

(3)

(1)

(2)

GD(H6DO)-50

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

5. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 64 ms × 3 time(s) × 120 time(s)
Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cy-
cles.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: Less than 1 second

Judgement Value

Malfunction Criteria

Threshold Value

Battery voltage

t 10.9 V

Estimate ambient temperature

t –7 °C (19.4 °F)

Thermostat malfunction diagnosis

Incomplete

Engine coolant temperature at engine
starting

< 55 °C (131 °F)

Estimated coolant temperature

t 75 °C (167 °F)

Engine coolant temperature

d 75 °C (167 °F)

(Estimated – Measured) Engine coolant
temperature

> 20 °C (68 °F)

Vehicle speed

t 20 km/h (12.4 MPH)

Judgement Value

Malfunction Criteria

Threshold Value

Battery voltage

t 10.9 V

Estimate ambient temperature

t –7 °C (19.4 °F)

Thermostat malfunction diagnosis

Incomplete

Engine coolant temperature at engine
starting

< 55 °C (131 °F)

Engine coolant temperature

t 75 °C (167 °F)

(Estimated – Measured) Engine coolant
temperature

d 20 °C (68 °F)

GD(H6DO)-51

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

AK:DTC P0131 O2 SENSOR CIRCUIT LOW VOLTAGE (BANK 1 SENSOR 1)

1. OUTLINE OF DIAGNOSIS

Detect the open or short circuit of sensor.
Judge as NG when the element applied voltage is out of range, or the element current is out of range.

2. COMPONENT DESCRIPTION

3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE

Always perform the diagnosis continuously.

(A)

Electromotive force

(C)

Lean

(D)

Rich

(B)

Air fuel ratio

(1)

Atmosphere

(3)

ZrO

2

(4)

Ceramic heater

(2)

Exhaust gas





Secondary Parameters

Enable Conditions

Battery voltage

t 10.9 V

(1)

(2)

(4)

(2)

(3)

EN-01693

(C)

(B)

(D)

(A)
