EN(H6DO)(diag)-185
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)

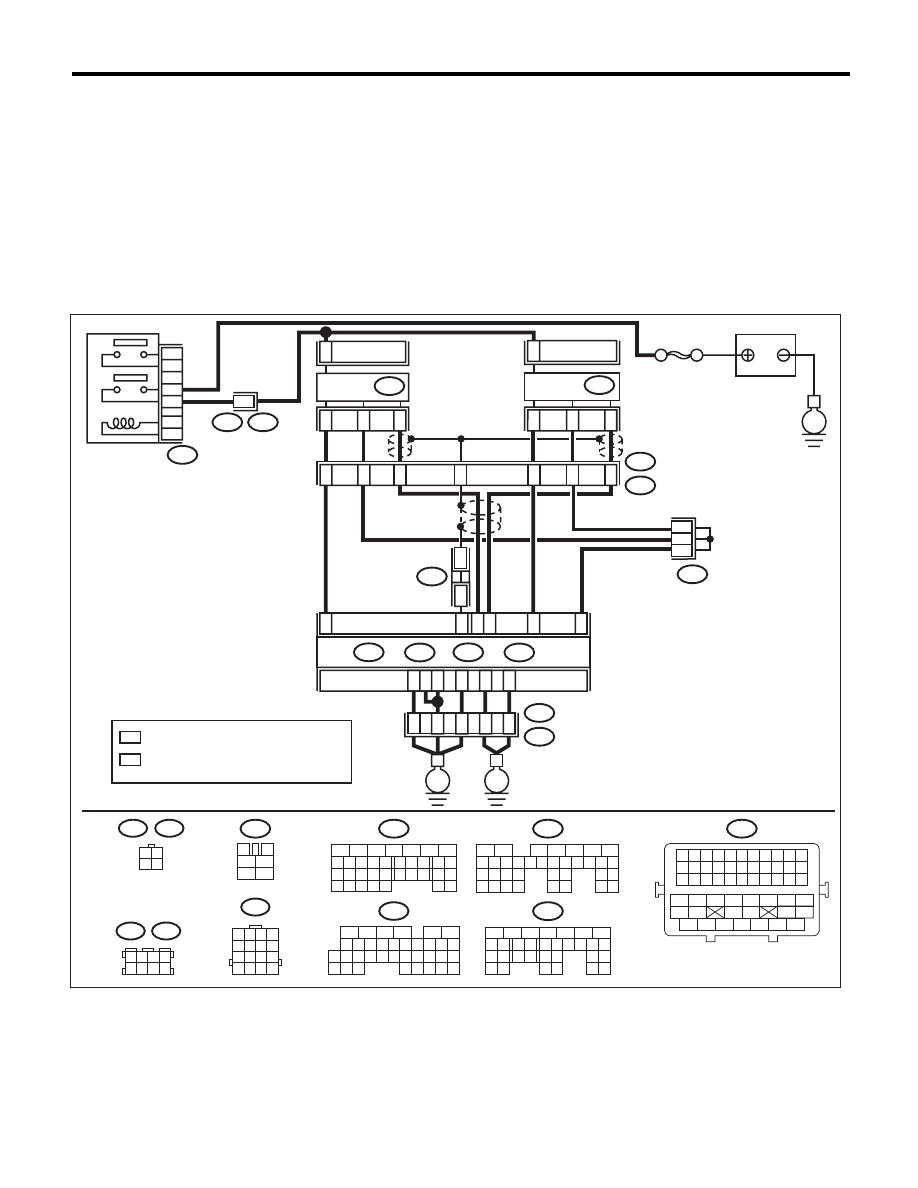

Step
Check
Yes
No
1
CHECK HARNESS BETWEEN ECM AND
REAR OXYGEN SENSOR CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from ECM and
rear oxygen sensor.
3) Measure the resistance of harness between
ECM and rear oxygen sensor connector.
Connector & terminal
(B135) No. 15 — (E25) No. 3:
Is the resistance less than 1
:? Go to step 2.
Repair the harness
and connector.
NOTE:
In this case, repair
the following item:
• Open circuit in
harness between
ECM and rear oxy-
gen sensor con-
nector
• Poor contact of
coupling connector
2
CHECK HARNESS BETWEEN ECM AND
REAR OXYGEN SENSOR CONNECTOR.
Measure the resistance between rear oxygen
sensor connector and chassis ground.
Connector & terminal
(B25) No. 3 — Chassis ground:
Is the resistance 1 M
: or
more?
Go to step 3.
Repair the ground
short circuit of har-
ness between
ECM and rear oxy-
gen sensor con-
nector.
3
CHECK REAR OXYGEN SENSOR.
Measure the resistance between rear oxygen
sensor terminals.
Terminals
No. 3 — No. 4
Is the resistance less than 1
:? Replace the rear
oxygen sensor.
<Ref. to
FU(H6DO)-34,
Rear Oxygen Sen-
sor.>
Even if DTC is
detected, the cir-
cuit has returned to
a normal condition
at this time. Repro-
duce the failure,
and then perform
the diagnosis
again.
NOTE:
In this case, tem-
porary poor con-
tact of connector
may be the cause.
