EN(H6DO)(diag)-145

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

AE:DTC P0118 ENGINE COOLANT TEMPERATURE CIRCUIT HIGH

DTC DETECTING CONDITION:
• Immediately at fault recognition
• GENERAL DESCRIPTION <Ref. to GD(H6DO)-42, DTC P0118 ENGINE COOLANT TEMPERATURE
CIRCUIT HIGH, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
• Hard to start
• Improper idling
• Poor driving performance

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H6DO)(diag)-52,
OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H6DO)(diag)-44, PROCEDURE,
Inspection Mode.>.

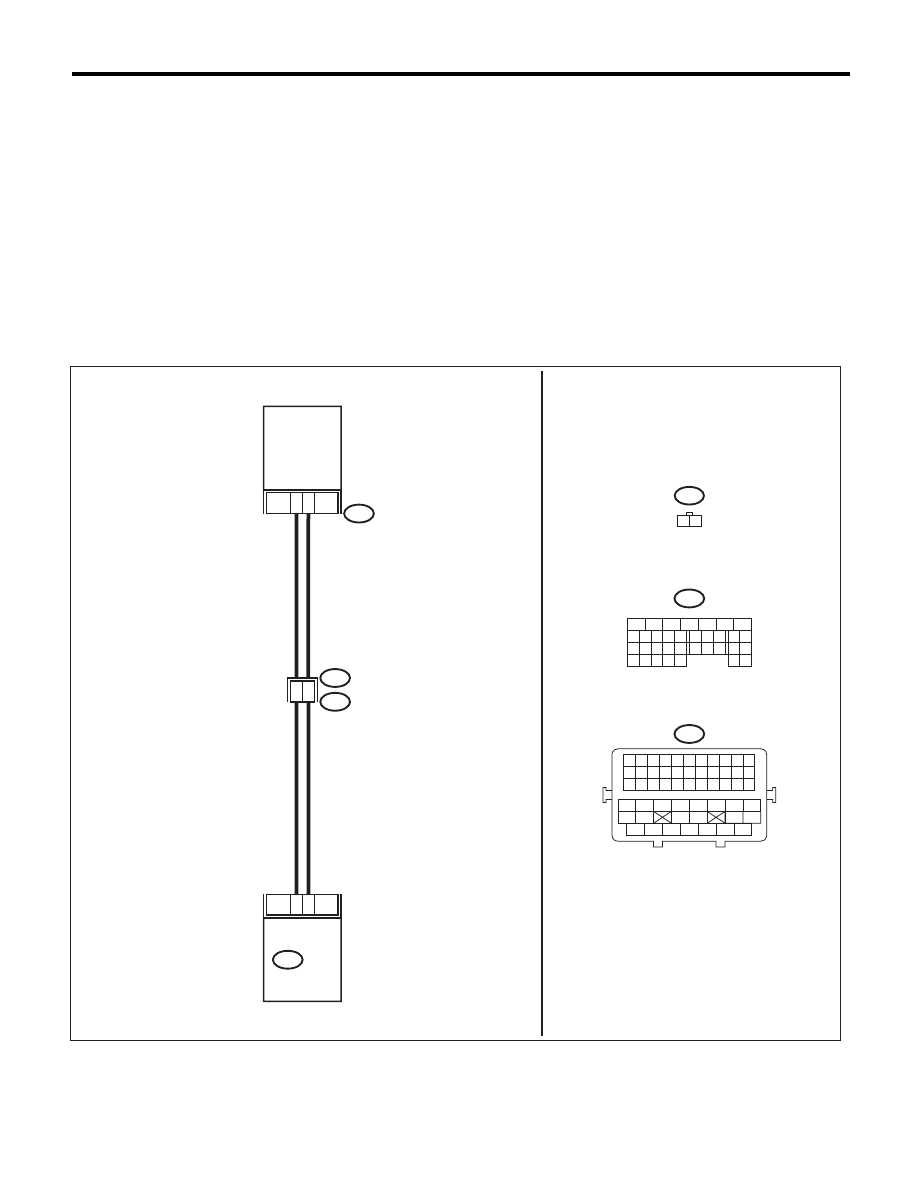

WIRING DIAGRAM:

EN-06872

29

34

19

8

B134

ECM

1

2

E2

B21

E8

ENGINE

COOLANT

TEMPERATURE

SENSOR

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

E8

1 2

B21

1 2 3 4 5 6 7 8 9 10 11

12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33

34

35

42

43

36

37

38

39

48

49

50

51

52

53

54

40

41

44

45

46

47

EN(H6DO)(diag)-146

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of engine coolant tempera-
ture sensor signal using Subaru Select Monitor
or general scan tool.

NOTE:
• SUBARU SELECT MONITOR
For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H6DO)(diag)-34, Subaru Select Moni-
tor.>
• General Scan Tool
For detailed operation procedures, refer to the
general scan tool operation manual.

Is the engine coolant tempera-
ture less than –40°C (–40°F) ?

Go to step 2.

Even if DTC is
detected, the cir-
cuit has returned to
a normal condition
at this time. Repro-
duce the failure,
and then perform
the diagnosis
again.

NOTE:
In this case, tem-
porary poor con-
tact of connector
may be the cause.

2

CHECK POOR CONTACT.
Check for poor contact in ECM and engine cool-
ant temperature sensor connector.

Is there poor contact in ECM or
engine coolant temperature
sensor connector?

Repair the poor
contact in ECM or
engine coolant
temperature sen-
sor connector.

Go to step 3.

3

CHECK HARNESS BETWEEN ECM AND EN-
GINE COOLANT TEMPERATURE SENSOR
CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from ECM and
engine coolant temperature sensor.
3) Measure the resistance of harness between
ECM and engine coolant temperature sensor
connector.

Connector & terminal

(B134) No. 34 — (E8) No. 2:
(B134) No. 29 — (E8) No. 1:

Is the resistance less than 1

:? Go to step 4.

Repair the harness
and connector.

NOTE:
In this case, repair
the following item:
• Open circuit in
harness between
ECM and engine
coolant tempera-
ture sensor con-
nector
• Poor contact of
coupling connector

4

CHECK HARNESS BETWEEN ECM AND EN-
GINE COOLANT TEMPERATURE SENSOR
CONNECTOR.
1) Connect all connectors.
2) Turn the ignition switch to ON.
3) Measure the voltage between ECM and
chassis ground.

Connector & terminal

(B134) No. 34 (+) — Chassis ground (–):

Is the voltage 5 V or more?

Repair the short
circuit to power in
harness between
ECM and engine
coolant tempera-
ture sensor con-
nector.

Replace the
engine coolant
temperature sen-
sor. <Ref. to
FU(H6DO)-20,
Engine Coolant
Temperature Sen-
sor.>

EN(H6DO)(diag)-147

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

AF:DTC P0122 THROTTLE/PEDAL POSITION SENSOR/SWITCH “A” CIRCUIT

LOW

DTC DETECTING CONDITION:
• Immediately at fault recognition
• GENERAL DESCRIPTION <Ref. to GD(H6DO)-43, DTC P0122 THROTTLE/PEDAL POSITION SEN-
SOR/SWITCH “A” CIRCUIT LOW, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
• Improper idling
• Engine stalls.
• Poor driving performance

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H6DO)(diag)-52,
OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H6DO)(diag)-44, PROCEDURE,
Inspection Mode.>.

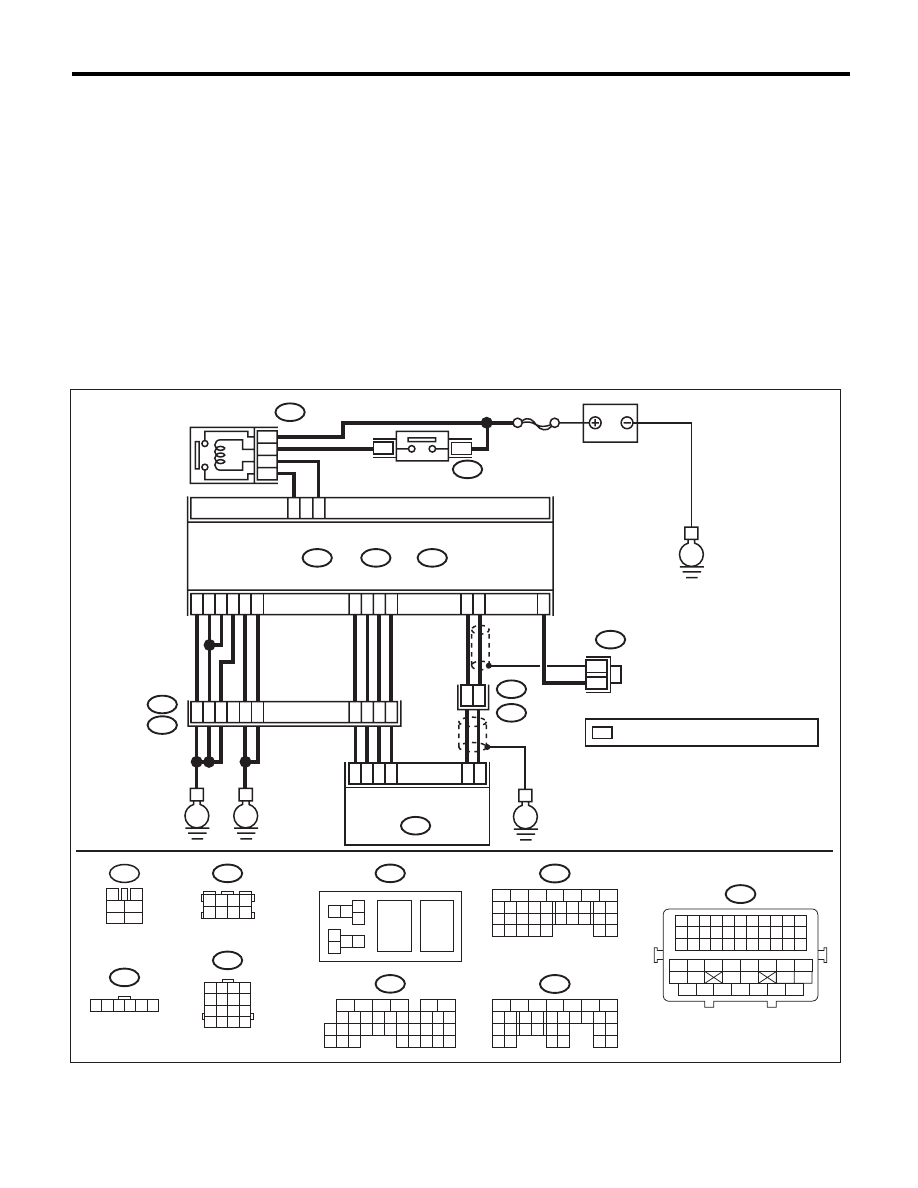

WIRING DIAGRAM:

1 2 3 4
5 6 7 8
9 10 11 12

13 14 15 16

B20

1 2 3 4 5 6

E57

1 2 3 4
5 6 7 8

B122

1 2

7 8

3
4

5
6

B362

36

52

34

35

37

E

E2

B21

E

A5

C21

C1

A29

19

E1

B20

A18

C6

A28

6

4

15

*

*

B122

16

E

38

39

20

D5

D4

A19

D7

D1

A3

D2

D3

3

E57

ELECTRONIC THROTTLE

CONTROL

2

1

5

B134

B362

5

7

6

A:

B137

B136

D:

C:

ECM

*

: TERMINAL No. OPTIONAL ARRANGEMENT

E

SBF-7

BATTERY

ELECTRONIC
THROTTLE
CONTROL RELAY

MAIN RELAY

8

6

4

B47

B47

3

4

1

2

5

6

EN-06873

16

10 11 12 13 14 15

25

24

30

9

8

7

17 18 19 20
28

21 22 23

29

32

31

1

2

3

4

5

6

27

26

33 34 35

B136

C:

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

B137

D:

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

B134

A:

B21

1 2 3 4 5 6 7 8 9 10 11

12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33

34

35

42

43

36

37

38

39

48

49

50

51

52

53

54

40

41

44

45

46

47

EN(H6DO)(diag)-148

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from ECM and
electronic throttle control.
3) Measure the resistance between ECM and
chassis ground.

Connector & terminal

(B134) No. 19 — Chassis ground:
(B134) No. 18 — Chassis ground:
(B134) No. 18 — (B136) No. 6:

Is the resistance 1 M

: or

more?

Go to step 2.

Repair the short
circuit to ground in
harness between
ECM and elec-
tronic throttle con-
trol connector.

2

CHECK SHORT CIRCUIT INSIDE THE ECM.
1) Connect the connector to ECM.
2) Measure the resistance between electronic
throttle control connector and engine ground.

Connector & terminal

(E57) No. 6 — Engine ground:

Is the resistance 1 M

: or

more?

Replace the elec-
tronic throttle con-
trol. <Ref. to
FU(H6DO)-13,
Throttle Body.>

Repair the short
circuit to ground in
harness between
ECM and elec-
tronic throttle con-
trol connector.
Replace the ECM if
defective. <Ref. to
FU(H6DO)-38,
Engine Control
Module (ECM).>
