Subaru Legacy IV (2008 year). Manual - part 523





EN(H6DO)(diag)-65

Malfunction Indicator Light

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK DELIVERY (TEST) MODE CONNEC-
TOR.
1) Disconnect the delivery (test) mode connec-
tor.
2) Turn the ignition switch to ON.

Does the malfunction indicator
light blink?

Go to step 2.

System is normal.

NOTE:
Malfunction indica-
tor light blinks
when delivery
(test) mode con-
nector is connect-
ed.

2

CHECK HARNESS BETWEEN ECM CON-
NECTOR AND CHASSIS GROUND TERMI-
NAL.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from ECM.
3) Measure the resistance of harness between
ECM connector and chassis ground.

Connector & terminal

(B135) No. 27 — Chassis ground:

Is the resistance less than 5

:? Repair the short

circuit to ground in
harness between
ECM and delivery
(test) mode con-
nector.

Replace the ECM.
<Ref. to
FU(H6DO)-38,
Engine Control
Module (ECM).>

EN(H6DO)(diag)-66

Diagnostics for Engine Starting Failure

ENGINE (DIAGNOSTICS)

17.Diagnostics for Engine Starting Failure

A: PROCEDURE

1. Check of the fuel amount

p

2. Inspection of starter motor circuit. <Ref. to EN(H6DO)(diag)-67, STARTER MOTOR CIRCUIT, Diagnostics for Engine Starting
Failure.>

p

3. Inspection of ECM power supply and ground line. <Ref. to EN(H6DO)(diag)-71, CHECK POWER SUPPLY AND GROUND
LINE OF ENGINE CONTROL MODULE (ECM), Diagnostics for Engine Starting Failure.>

p

4. Inspection of ignition control system. <Ref. to EN(H6DO)(diag)-73, IGNITION CONTROL SYSTEM, Diagnostics for Engine
Starting Failure.>

p

5. Inspection of fuel pump circuit. <Ref. to EN(H6DO)(diag)-76, FUEL PUMP CIRCUIT, Diagnostics for Engine Starting Failure.>

p

6. Inspection of fuel injector circuit. <Ref. to EN(H6DO)(diag)-77, FUEL INJECTOR CIRCUIT, Diagnostics for Engine Starting Fail-
ure.>

EN(H6DO)(diag)-67

Diagnostics for Engine Starting Failure

ENGINE (DIAGNOSTICS)

B: STARTER MOTOR CIRCUIT

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H6DO)(diag)-52,
OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H6DO)(diag)-44, PROCEDURE,
Inspection Mode.>.

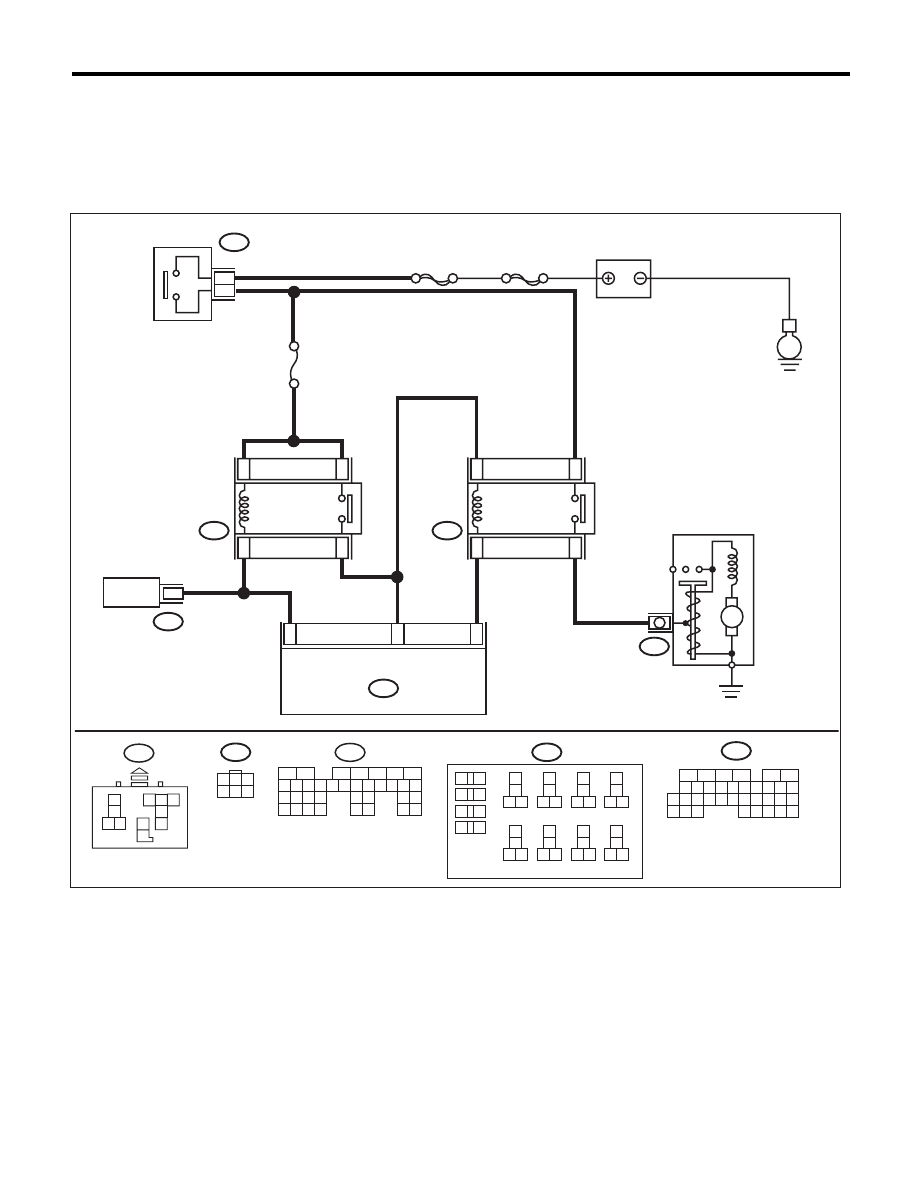

WIRING DIAGRAM:

16

10 11 12 13 14 15

25

24

30

9

8

7

17 18 19 20
28

21 22 23

29

32

31

1

2

3

4

5

6

27

26

33 34 35

32

31

20

No.21

B225

MAIN SBF

SBF-6

E

15

13

16

14

ECM

B136

TCM

B55

B72

B14

M

2

3

B225

B72

B136

10

11 12

13
14

15 16

17
18

19 20

21
22

23 24

25
26

27 28

29

30

31 32

33
34

35 36

39 40

37
38

1

2

9

3

4

5

6

7

8

1

3

4 5 6

2

B226

9

11

7

10

11

EN-05651

B226

B55

5

6

7

2

1

3

4

29

10 11 12 13 14 15

25

24

16

30

9

8

17 18 19

20
28

21 22 23

32

31

26 27

33

34 35

2

3 4

8

10
11

7

5
6

1

9

IGNITION

SWITCH

INHIBITOR

RELAY

STARTER

RELAY

STARTER MOTOR

BATTERY

EN(H6DO)(diag)-68

Diagnostics for Engine Starting Failure

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK BATTERY.
Check the battery voltage.

Is the voltage 12 V or more?

Go to step 2.

Charge or replace
the battery.

2

CHECK OPERATION OF STARTER MOTOR. Does the starter motor oper-

ate?

Go to step 3.

Go to step 4.

3

CHECK DTC.

Is DTC displayed? <Ref. to
EN(H6DO)(diag)-43, OPERA-
TION, Read Diagnostic Trouble
Code (DTC).>

Check the appro-
priate DTC using
the “List of Diag-
nostic Trouble
Code (DTC)”.
<Ref. to
EN(H6DO)(diag)-
81, List of Diagnos-
tic Trouble Code
(DTC).>

The circuit has
returned to a nor-
mal condition at
this time. Repro-
duce the failure,
and then perform
the diagnosis
again.

NOTE:
In this case, tem-
porary poor con-
tact of connector
may be the cause.

4

CHECK INPUT SIGNAL FOR STARTER MO-
TOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from starter
motor.
3) Place the select lever in “P” range or “N”
range.
4) Turn the ignition switch to START.
5) Measure the voltage between the starter
motor connector and the engine ground.

Connector & terminal

(B14) No. 1 (+) — Engine ground (–):

Is the voltage 10 V or more?

Check the starter
motor. <Ref. to
SC(H4SO)-6,
Starter.>

Go to step 5.

5

CHECK INPUT SIGNAL FOR STARTER MO-
TOR.
1) Place the select lever in “P” range or “N”
range.
2) Turn the ignition switch to START.
3) Measure the voltage between starter relay
connector and chassis ground.

Connector & terminal

(B225) No. 14 (+) — Chassis ground (–):

Is the voltage 10 V or more?

Repair the open
circuit of the har-
ness between
starter relay con-
nector and starter
motor.

Go to step 6.

6

CHECK HARNESS BETWEEN BATTERY
AND IGNITION SWITCH CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ignition
switch.
3) Measure the voltage between ignition
switch connector and chassis ground.

Connector & terminal

(B72) No. 3 (+) — Chassis ground (–):

Is the voltage 10 V or more?

Go to step 7.

Check the follow-
ing item and repair
if necessary.
• Blown out of fuse
• Open or ground
short circuit of har-
ness between igni-
tion switch
connector and bat-
tery

7

CHECK IGNITION SWITCH.
Measure the resistance between ignition switch
terminals after turning the ignition switch to
START position.

Terminals

No. 2 — No. 3:

Is the resistance less than 1

:? Go to step 8.

Replace the igni-
tion switch. <Ref.
to SL-49,
REPLACEMENT,
Ignition Key Lock.>
