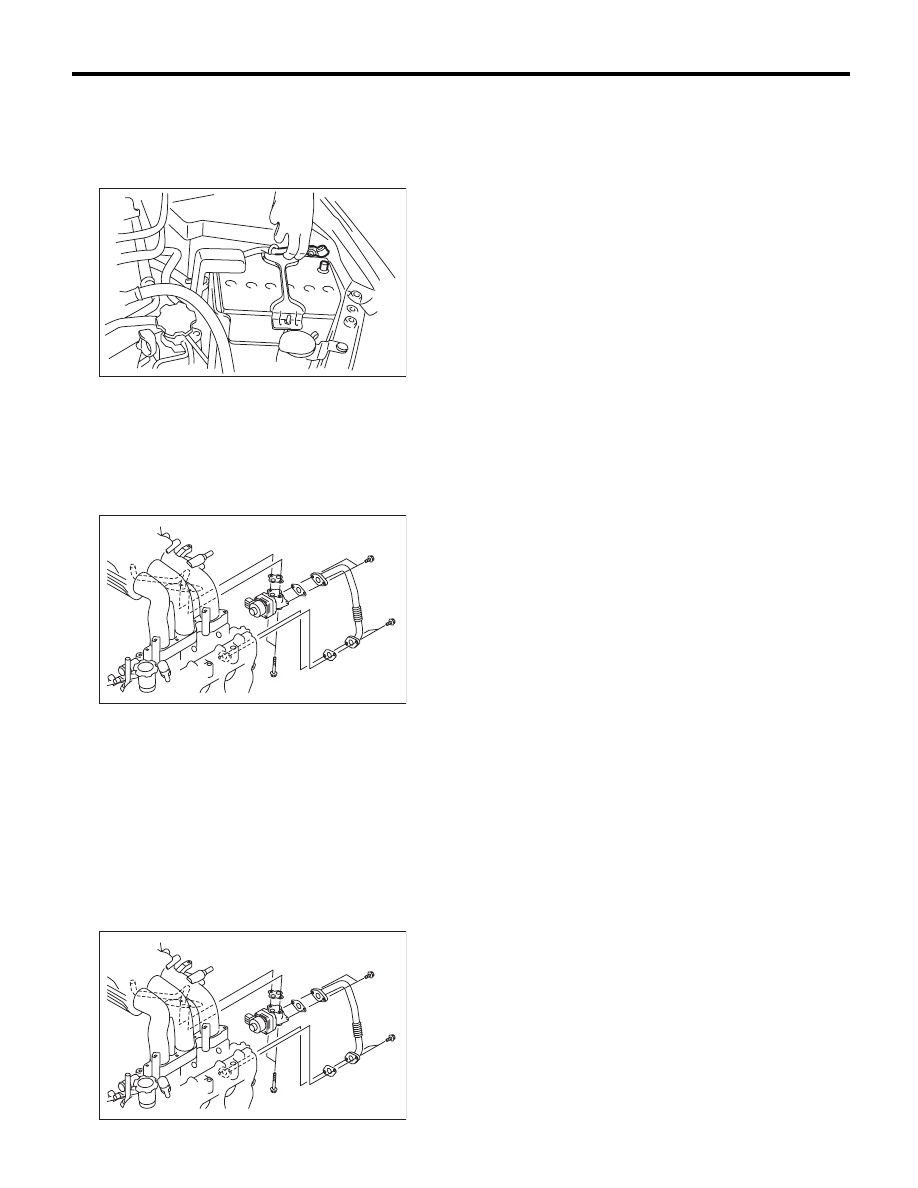

FU(H6DO)-27

EGR Valve

FUEL INJECTION (FUEL SYSTEMS)

11.EGR Valve

A: REMOVAL

1) Remove the collector cover.
2) Disconnect the ground cable from battery.

3) Remove the air intake chamber. <Ref. to
IN(H6DO)-7, REMOVAL, Air Intake Chamber.>
4) Remove the starter. <Ref. to SC(H4SO)-6, RE-
MOVAL, Starter.>
5) Remove the EGR pipe from EGR valve and cyl-
inder head.
6) Remove the EGR valve from intake manifold.

7) Disconnect the connector from the EGR valve.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Use a new gasket.

Tightening torque:

EGR valve

19 N·m (1.9 kgf-m, 14.0 ft-lb)

EGR pipe

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

IN-00203

FU-02133

FU-02133

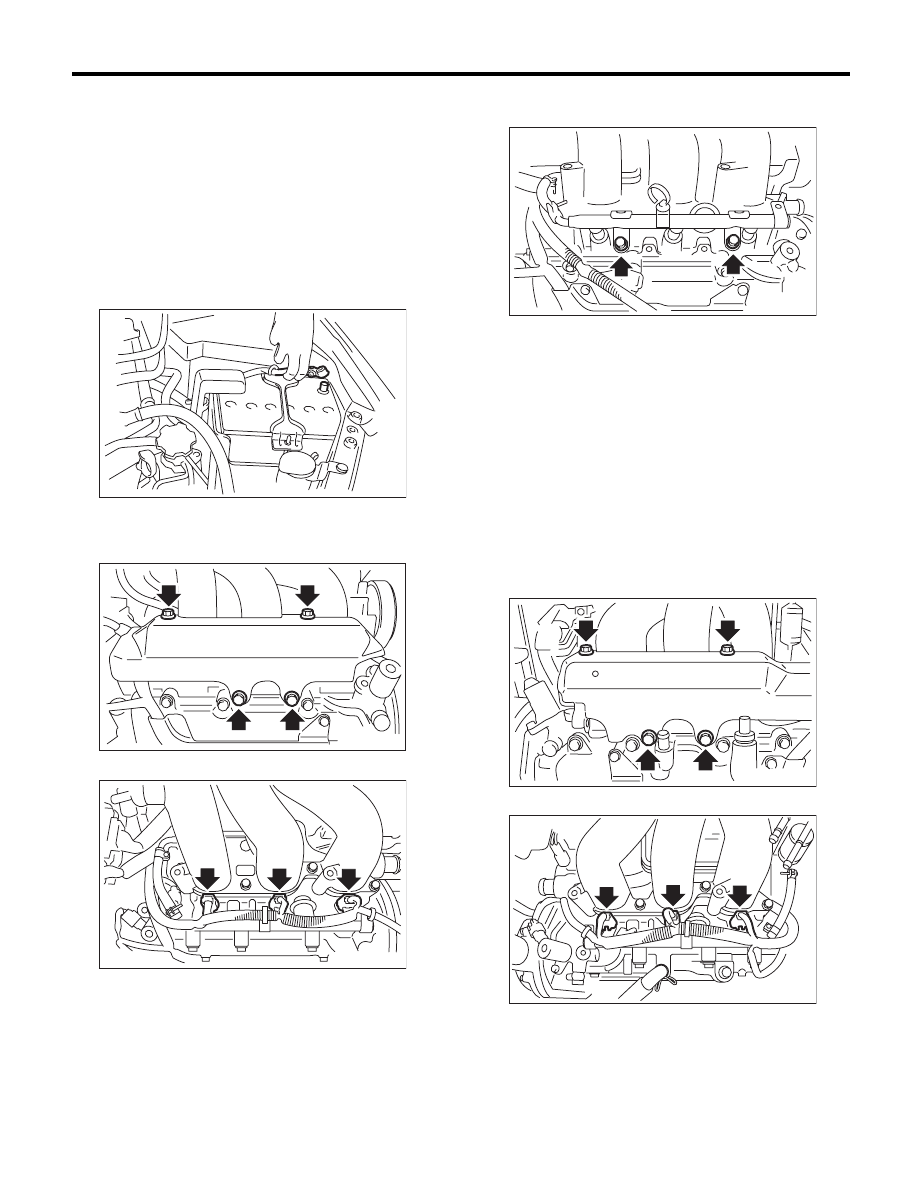

FU(H6DO)-28

Fuel Injector

FUEL INJECTION (FUEL SYSTEMS)

12.Fuel Injector

A: REMOVAL

1. RH SIDE

1) Remove the collector cover.
2) Release the fuel pressure. <Ref. to FU(H6DO)-
43, RELEASING OF FUEL PRESSURE, PROCE-
DURE, Fuel.>
3) Open the fuel filler lid, and remove the fuel filler
cap.
4) Disconnect the ground cable from battery.

5) Remove the air cleaner case. <Ref. to
IN(H6DO)-5, REMOVAL, Air Cleaner Case.>
6) Remove the fuel pipe protector RH.

7) Disconnect the connector from fuel injector.

8) Remove the engine harness from the fuel injec-
tor pipe RH.

9) Remove the bolt which holds fuel injector pipe
onto cylinder head.

10) Remove the fuel injector while lifting up the fuel
injector pipe.

2. LH SIDE

1) Remove the collector cover.
2) Release the fuel pressure. <Ref. to FU(H6DO)-
43, RELEASING OF FUEL PRESSURE, PROCE-
DURE, Fuel.>
3) Open the fuel filler lid, and remove the fuel filler
cap.
4) Remove the battery. <Ref. to SC(H4SO)-20,
REMOVAL, Battery.>
5) Remove the generator harness from the fuel
pipe protector LH.
6) Remove the fuel pipe protector LH.

7) Disconnect the connector from fuel injector.

8) Remove the engine harness from the fuel injec-
tor pipe LH.

IN-00203

FU-02119

FU-02134

FU-02120

FU-02117

FU-02135

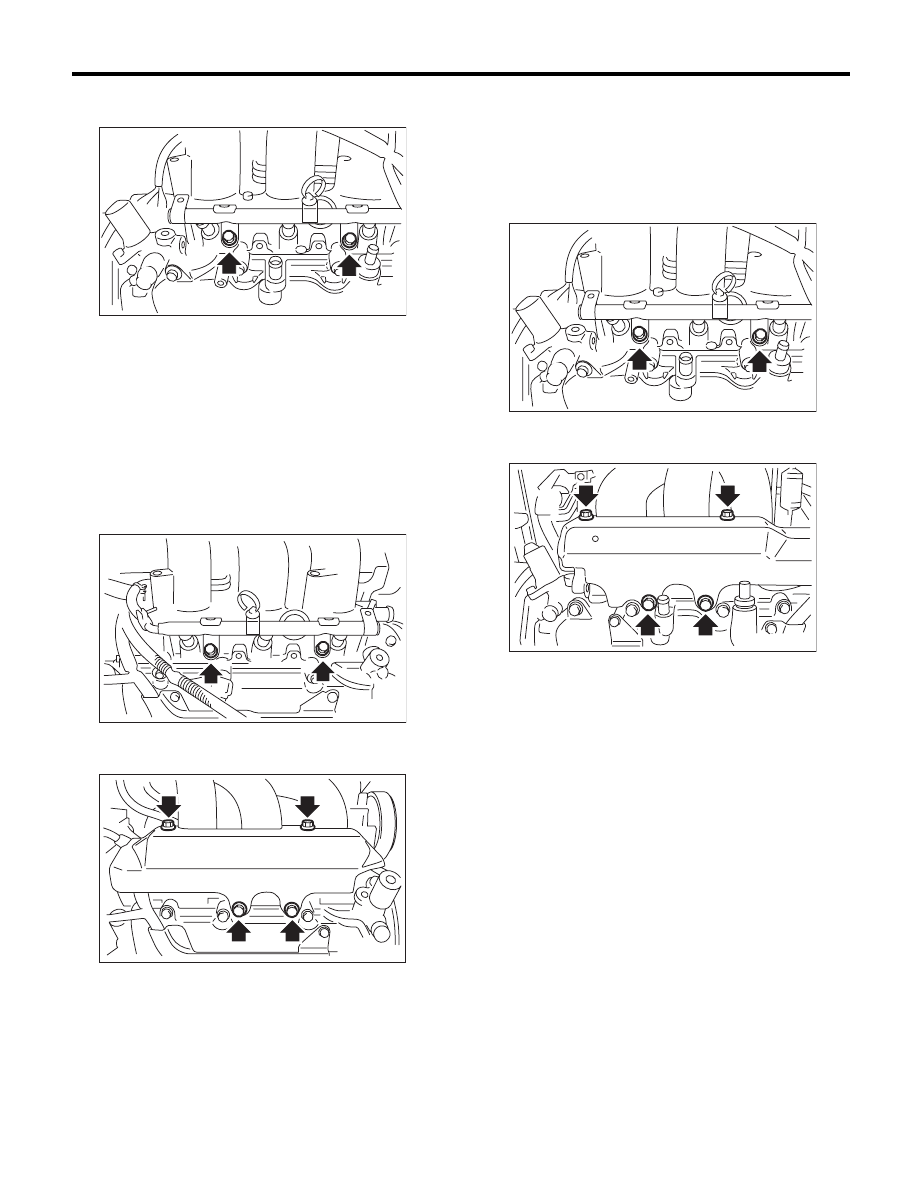

FU(H6DO)-29

Fuel Injector

FUEL INJECTION (FUEL SYSTEMS)

9) Remove the bolt which holds fuel injector pipe
onto cylinder head.

10) Remove the fuel injector while lifting up the fuel
injector pipe.

B: INSTALLATION

1. RH SIDE

Install in the reverse order of removal.

NOTE:
Use new O-rings.

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

2. LH SIDE

Install in the reverse order of removal.

NOTE:
Use new O-rings.

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

FU-02118

FU-02120

FU-02119

FU-02118

FU-02117

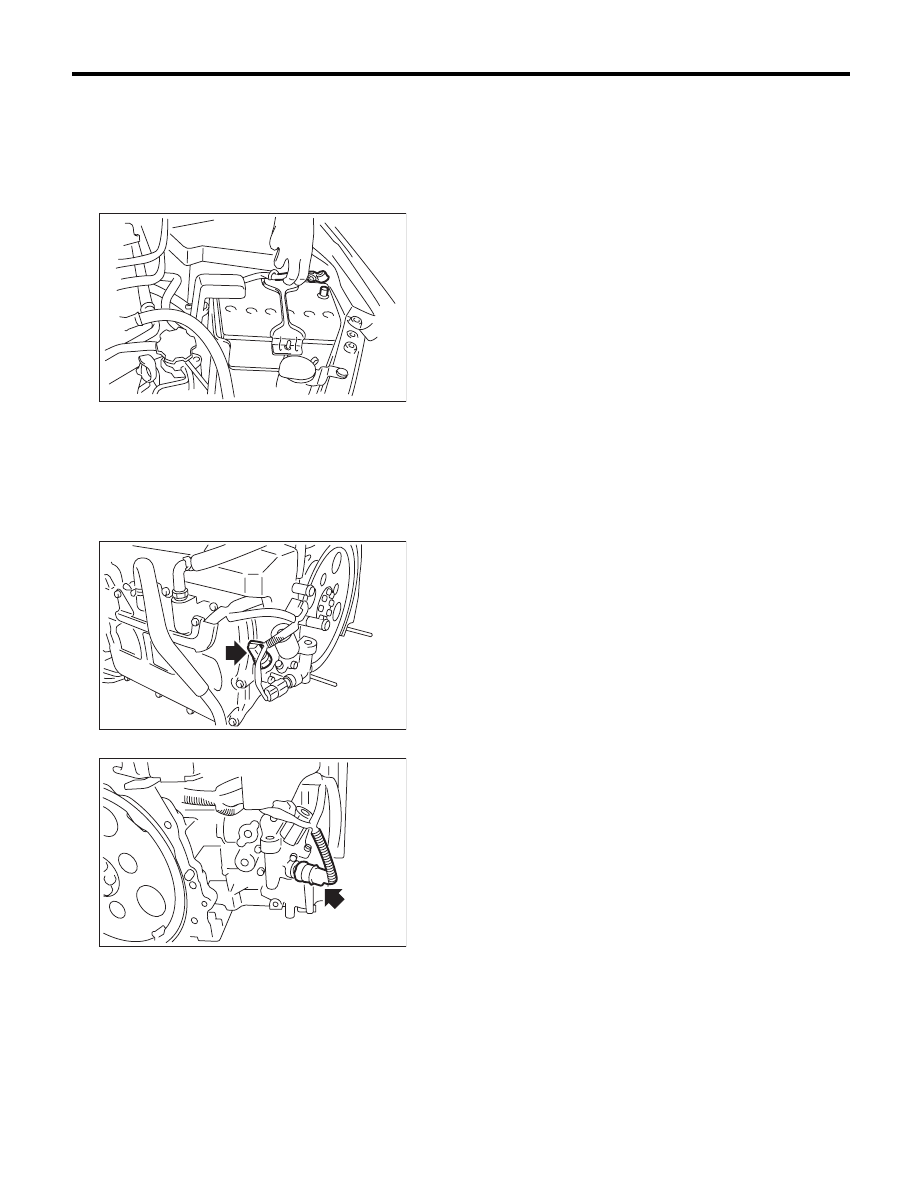

FU(H6DO)-30

Variable Valve Lift Diagnosis Oil Pressure Switch

FUEL INJECTION (FUEL SYSTEMS)

13.Variable Valve Lift Diagnosis

Oil Pressure Switch

A: REMOVAL

1) Remove the collector cover.
2) Disconnect the ground cable from battery.

3) Remove the air intake chamber. <Ref. to
IN(H6DO)-7, REMOVAL, Air Intake Chamber.>
4) Disconnect the connector from the variable
valve lift diagnosis oil pressure switch.
5) Remove the variable valve lift diagnosis oil pres-
sure switch.
• LH  side

• RH side

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Apply liquid gasket to the variable valve lift diagno-
sis oil pressure switch threads.

Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or
equivalent

Tightening torque:

17 N·m (1.7 kgf-m, 12.5 ft-lb)
