FU(H4DOTC)-71

Fuel Pump

FUEL INJECTION (FUEL SYSTEMS)

B: INSTALLATION

Install in the reverse order of removal while being
careful of the following.
• Make sure the sealing portion is free from fuel or
foreign matter before installation.

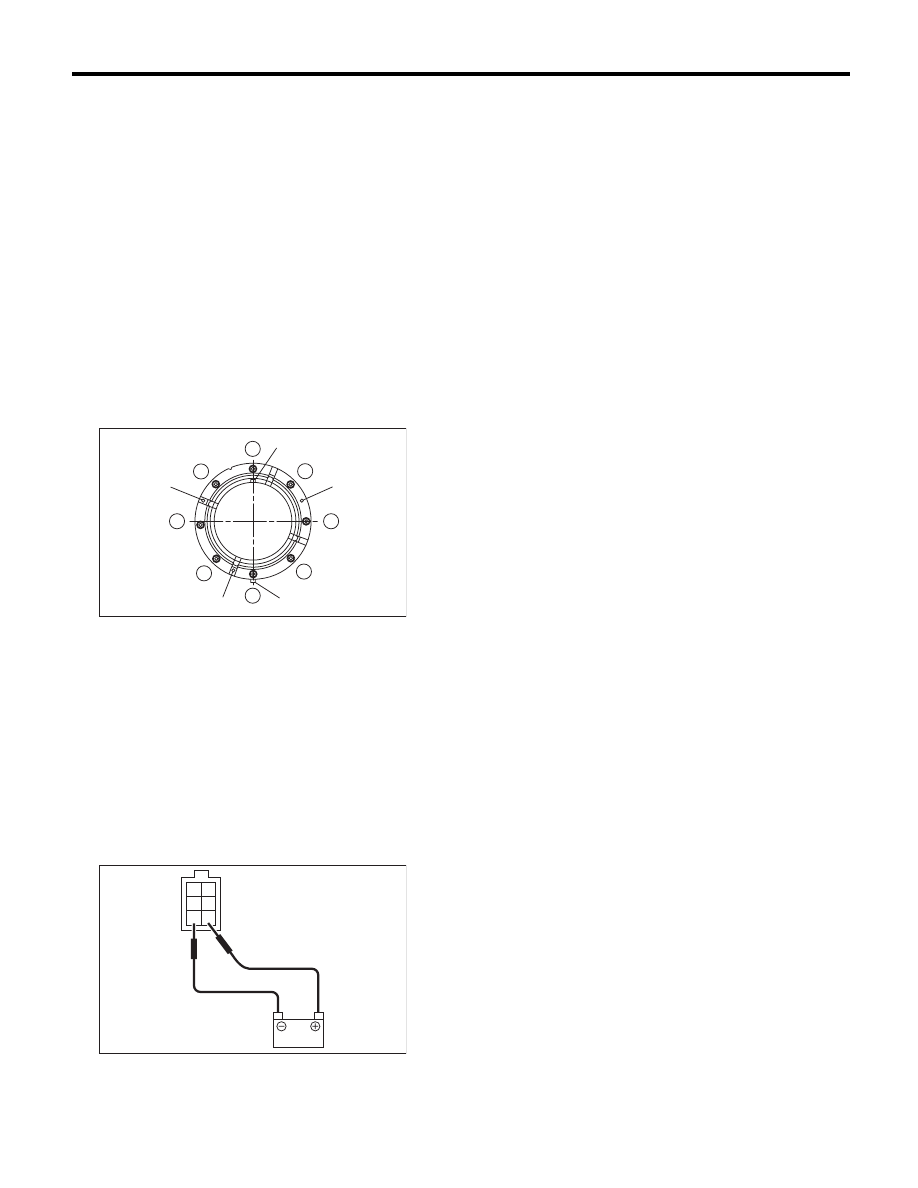

• Install with the protrusion (A) of gasket aimed at
the front side of the vehicle.
• Insert the protrusion (B) of the gasket into the up-
per plate. (3 places)
• Align the protrusion (C) of the fuel pump assem-
bly to the cutout in the upper plate.
• Tighten the nuts to the specified torque in the or-
der as shown in the figure.

NOTE:
Use a new gasket and retainer.

Tightening torque:

4.4 N·m (0.4 kgf-m, 3.2 ft-lb)

C: INSPECTION

Connect the lead harness to the connector terminal
of fuel pump, and apply the battery power supply to
check whether the pump operates.

WARNING:
• Wipe off fuel completely.
• Keep the battery as far apart from fuel pump
as possible.
• Be sure to perform the ON/OFF operation on
the battery side.
• Do not run the fuel pump for a long time un-
der non-load condition.

1

2

3

4

5

6

7

8

(C)

(B)

(B)

(B)

(A)

FU-02835

FU-01330

2
4
6

1
3
5

FU(H4DOTC)-72

Fuel Level Sensor

FUEL INJECTION (FUEL SYSTEMS)

30.Fuel Level Sensor

A: REMOVAL

WARNING:
Place “NO OPEN FLAMES” signs near the
working area.

CAUTION:
• Be careful not to spill fuel.
• If the fuel gauge indicates that two thirds or
more of the fuel is remaining, be sure to drain
fuel before starting work to avoid the fuel to
spill.

NOTE:
The fuel level sensor is built in fuel pump assembly.
1) Remove the fuel pump assembly. <Ref. to
FU(H4DOTC)-70, REMOVAL, Fuel Pump.>
2) Disconnect the connector from fuel pump brack-
et.
3) Remove the fuel level sensor and fuel tempera-
ture sensor.

B: INSTALLATION

Install in the reverse order of removal.

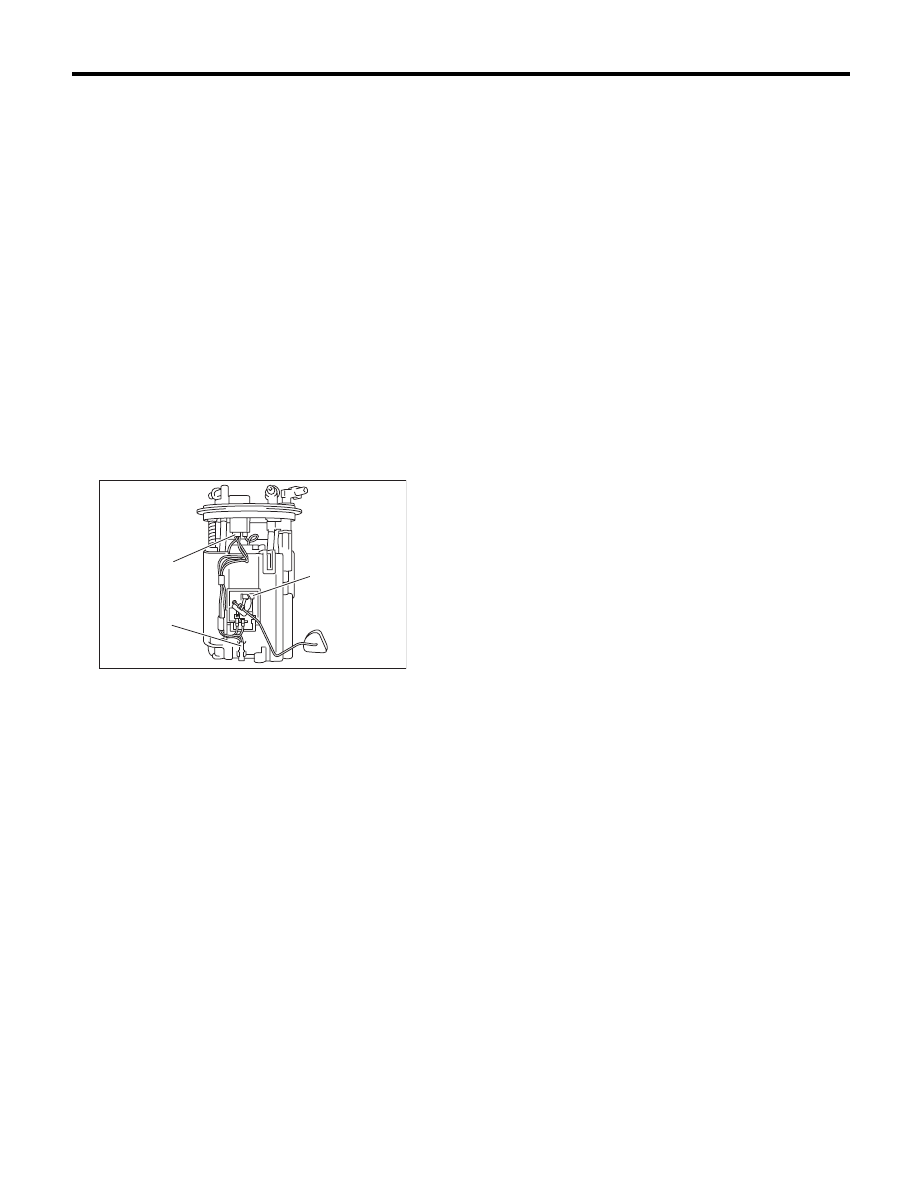

(A) Connector

(B) Fuel temperature sensor

(C) Fuel level sensor

FU-02401

(A)

(B)

(C)

FU(H4DOTC)-73

Fuel Sub Level Sensor

FUEL INJECTION (FUEL SYSTEMS)

31.Fuel Sub Level Sensor

A: REMOVAL

WARNING:
Place “NO OPEN FLAMES” signs near the
working area.

CAUTION:
• Be careful not to spill fuel.
• If the fuel gauge indicates that two thirds or
more of the fuel is remaining, be sure to drain
fuel before starting work to avoid the fuel to
spill.
1) Release the fuel pressure. <Ref. to
FU(H4DOTC)-57, RELEASING OF FUEL PRES-
SURE, PROCEDURE, Fuel.>
2) Drain fuel. <Ref. to FU(H4DOTC)-57, DRAIN-
ING FUEL (WITH SUBARU SELECT MONITOR),
PROCEDURE, Fuel.>

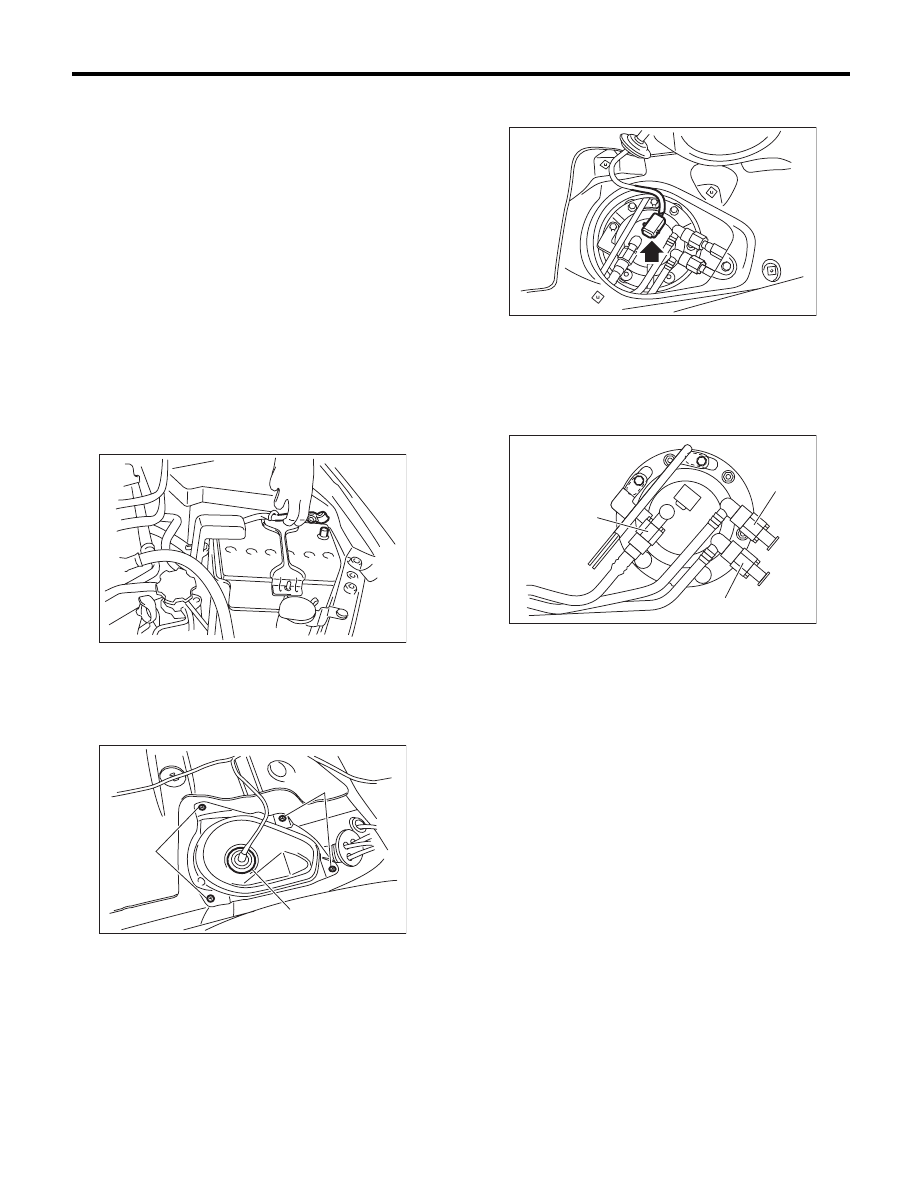

3) Disconnect the ground cable from battery.

4) Remove the rear seat.
5) Remove the service hole cover.

(1) Remove bolt (A).
(2) Push the grommet (B) down and remove the
service hole cover.

6) Disconnect the connector from the fuel sub level
sensor.

7) Disconnect the quick connector of fuel delivery
tube, fuel return tube and jet pump tube. <Ref. to
FU(H4DOTC)-80, REMOVAL, Fuel Delivery, Re-
turn and Evaporation Lines.>
8) Remove the nuts and bolts which install fuel sub
level sensor on fuel tank.

9) Remove the fuel sub level sensor.

IN-00203

FU-01126

(B)

(A)

(A)

(A) Jet pump tube

(B) Fuel delivery tube

(C) Fuel return tube

 FU-01143

FU-01144

(B)

(C)

(A)

FU(H4DOTC)-74

Fuel Sub Level Sensor

FUEL INJECTION (FUEL SYSTEMS)

B: INSTALLATION

Install in the reverse order of removal while being
careful of the following.
• Make sure the sealing portion is free from fuel or
foreign matter before installation.

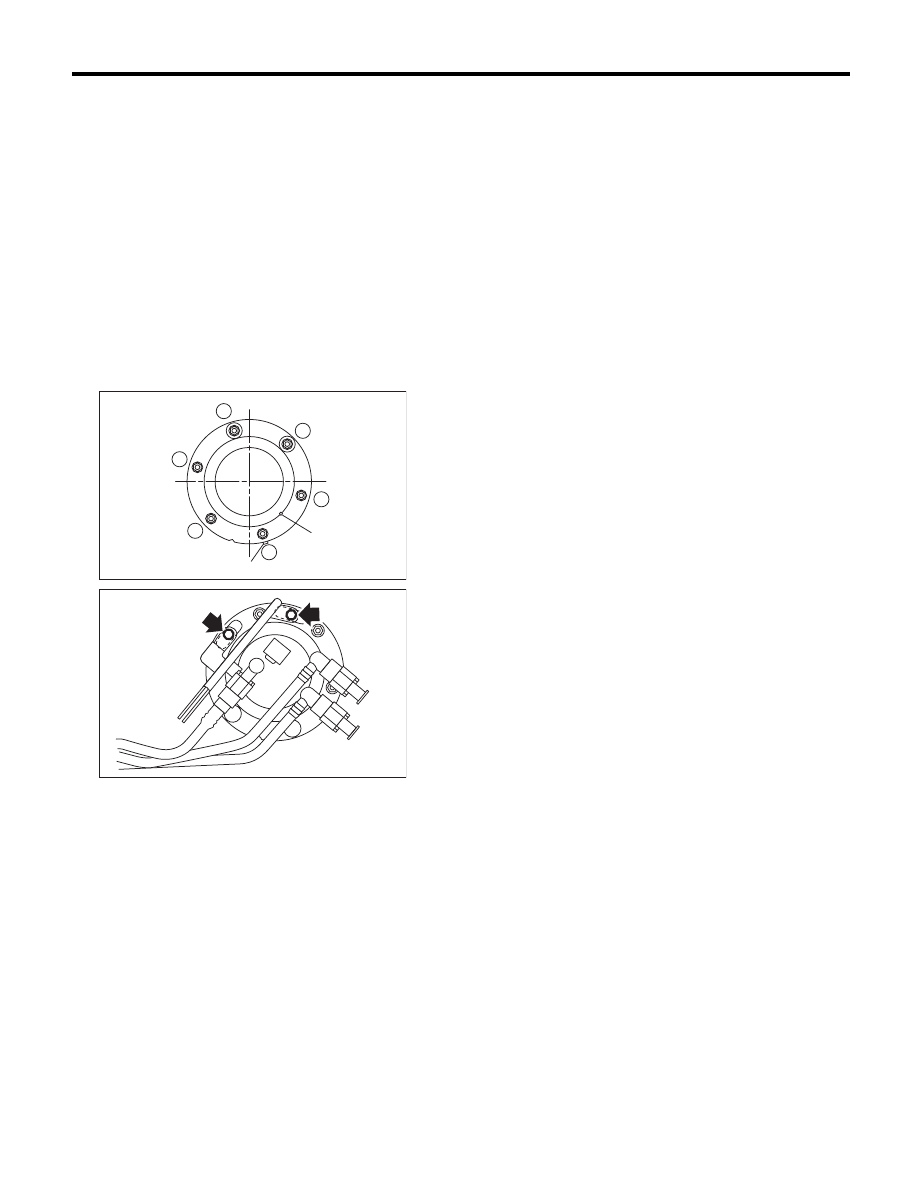

• Align protrusion (A) of the gasket to the position
shown in the following figure.
• Align protrusion (B) of the fuel sub level sensor to
the cut out in the fuel sublevel sensor upper plate.
• Tighten the nuts and bolts to the specified torque
in the order as shown in the figure.

NOTE:
Use a new gasket and retainer.

Tightening torque:

4.4 N·m (0.4 kgf-m, 3.2 ft-lb)

1

6

5

2

4

3

(B)

(A)

FU-02836

FU-01146
