FU(H4DOTC)-51

SI-DRIVE (SUBARU Intelligent Drive) S# Switch

FUEL INJECTION (FUEL SYSTEMS)

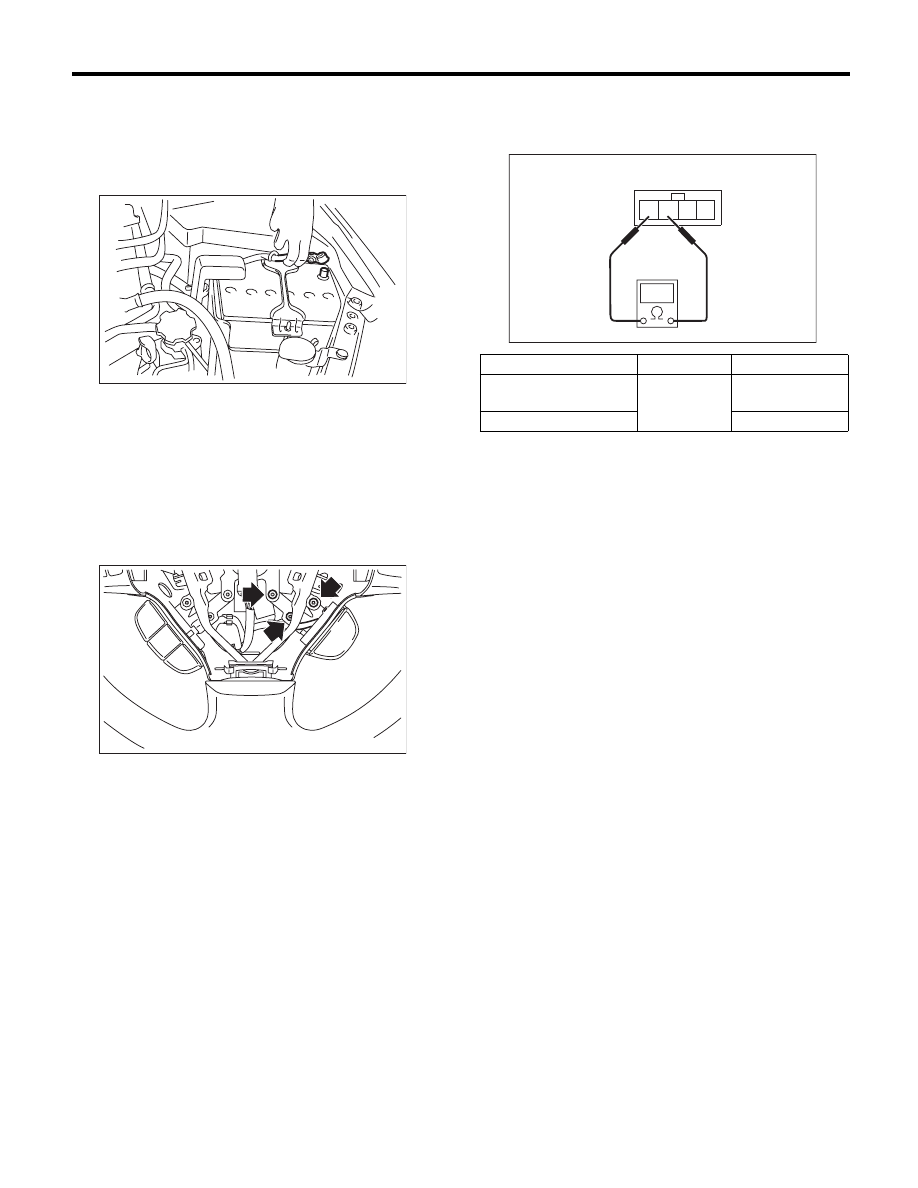

20.SI-DRIVE (SUBARU Intelligent

Drive) S# Switch

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the airbag module. <Ref. to AB-14, RE-
MOVAL, Driver’s Airbag Module.>

WARNING:
Always refer to “Airbag System” before per-
forming service on the airbag modules. <Ref. to
AB-4, CAUTION, General Description.>
3) Remove the screws which secure the SI-DRIVE
S# switch to the steering wheel, and remove the SI-
DRIVE S# switch.

4) Disconnect the connectors from the SI-DRIVE
S# switch.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

Measure the resistance between SI-DRIVE S#
switch terminals.

IN-00203

FU-03122

Switch position

Terminal No.

Standard value

ON (When the SI-DRIVE

S# switch is pressed)

3 and 4

Less than 10

:

OFF

1 M

: or more

2

3

4

1

FU-03121

FU(H4DOTC)-52

Engine Control Module (ECM)

FUEL INJECTION (FUEL SYSTEMS)

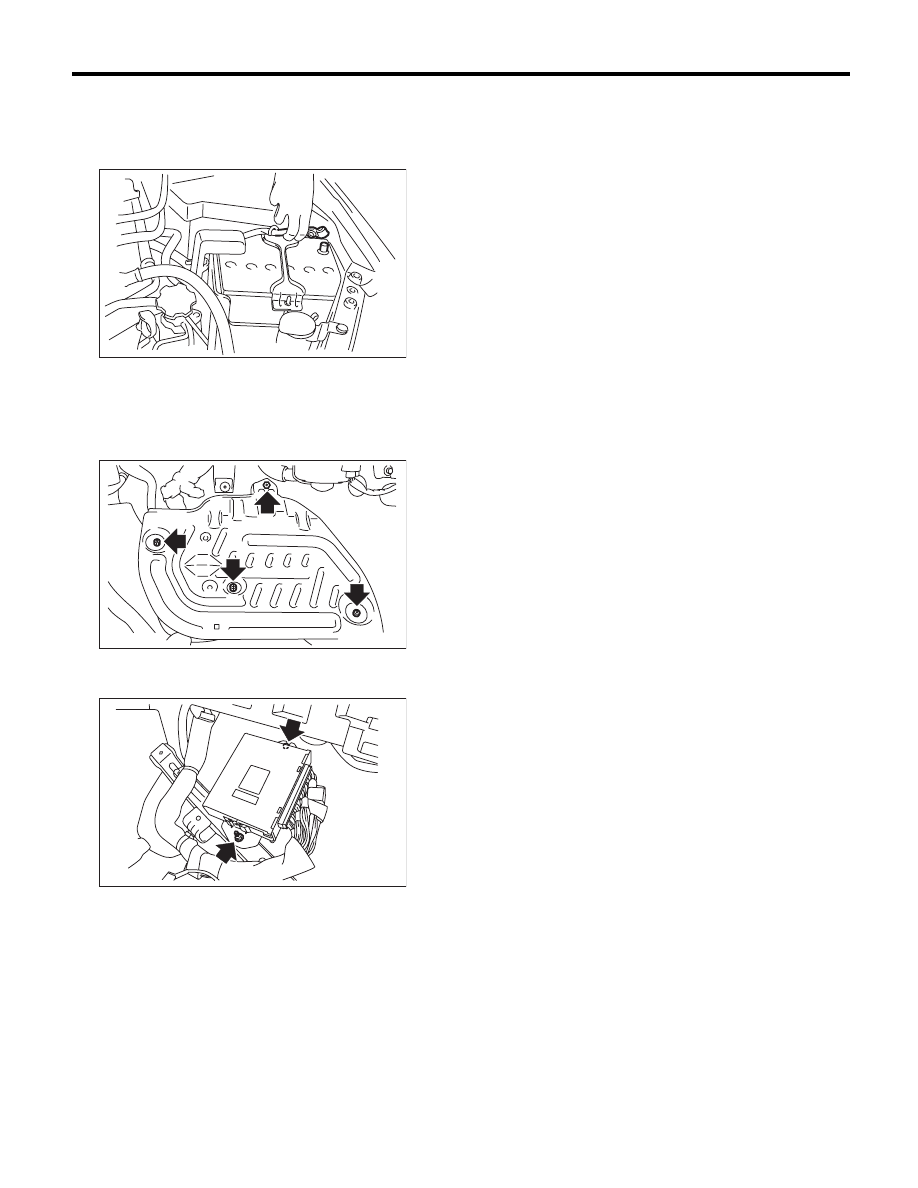

21.Engine Control Module (ECM)

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the lower inner trim of passenger’s
side.
<Ref. to EI-61, REMOVAL, Lower Inner Trim.>
3) Detach the floor mat of passenger’s seat.
4) Remove the protect cover.

5) Remove the nuts and bolts which hold the ECM
to the bracket.

6) Disconnect the ECM connectors, and take out
the ECM.

B: INSTALLATION

Install in the reverse order of removal.

CAUTION:
When the ECM of model with immobilizer has
been replaced, be sure to perform the registra-
tion of immobilizer system. (Refer to the “PC
application help for Subaru Select Monitor”.)

NOTE:
When replacing the ECM, be careful not to use the
wrong spec. ECM to avoid any damage on the fuel
injection system.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

IN-00203

FU-03416

FU-03417

FU(H4DOTC)-53

Main Relay

FUEL INJECTION (FUEL SYSTEMS)

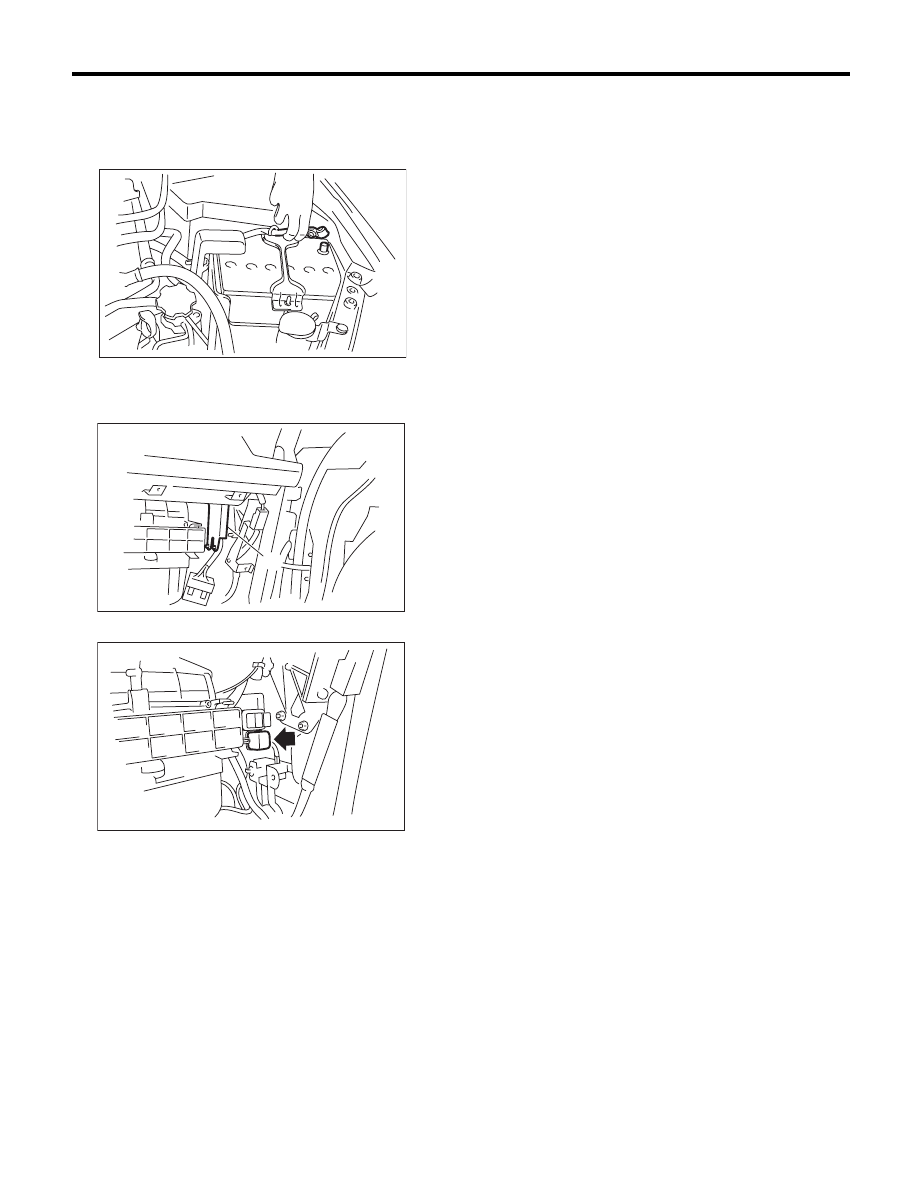

22.Main Relay

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the glove box. <Ref. to EI-52, REMOV-
AL, Glove Box.>
3) Remove the harness cover (A).

4) Disconnect the connectors from main relay.

B: INSTALLATION

Install in the reverse order of removal.

IN-00203

FU-02092

(A)

FU-02093

FU(H4DOTC)-54

Fuel Pump Relay

FUEL INJECTION (FUEL SYSTEMS)

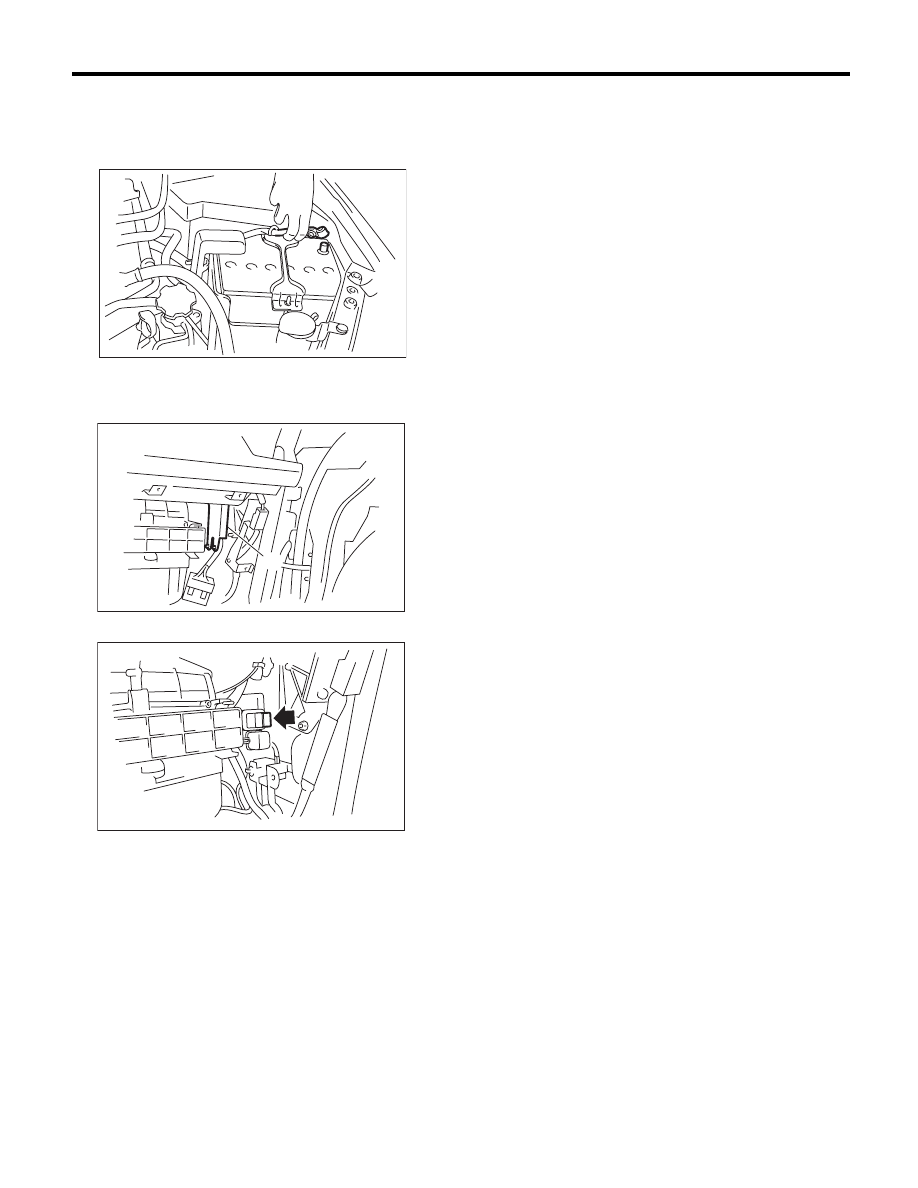

23.Fuel Pump Relay

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the glove box. <Ref. to EI-52, REMOV-
AL, Glove Box.>
3) Remove the harness cover (A).

4) Disconnect the connector from fuel pump relay.

B: INSTALLATION

Install in the reverse order of removal.

IN-00203

FU-02092

(A)

FU-02094
