EB-28

Rear Gate

EXTERIOR BODY PANELS

B: INSTALLATION

1. REAR GATE PANEL

1) Install in the reverse order of removal.
2) Install with attention to make uniform clearance
between rear gate panel and body. For the dimen-
sion of clearance, refer to “SPECIFICATION” in
“General Description”. <Ref. to EB-5, REAR
(WAGON MODEL), SPECIFICATION, General
Description.>

Tightening torque:

Refer to “COMPONENT” of “General Descrip-
tion”. <Ref. to EB-11, REAR GATE PANEL,
COMPONENT, General Description.>

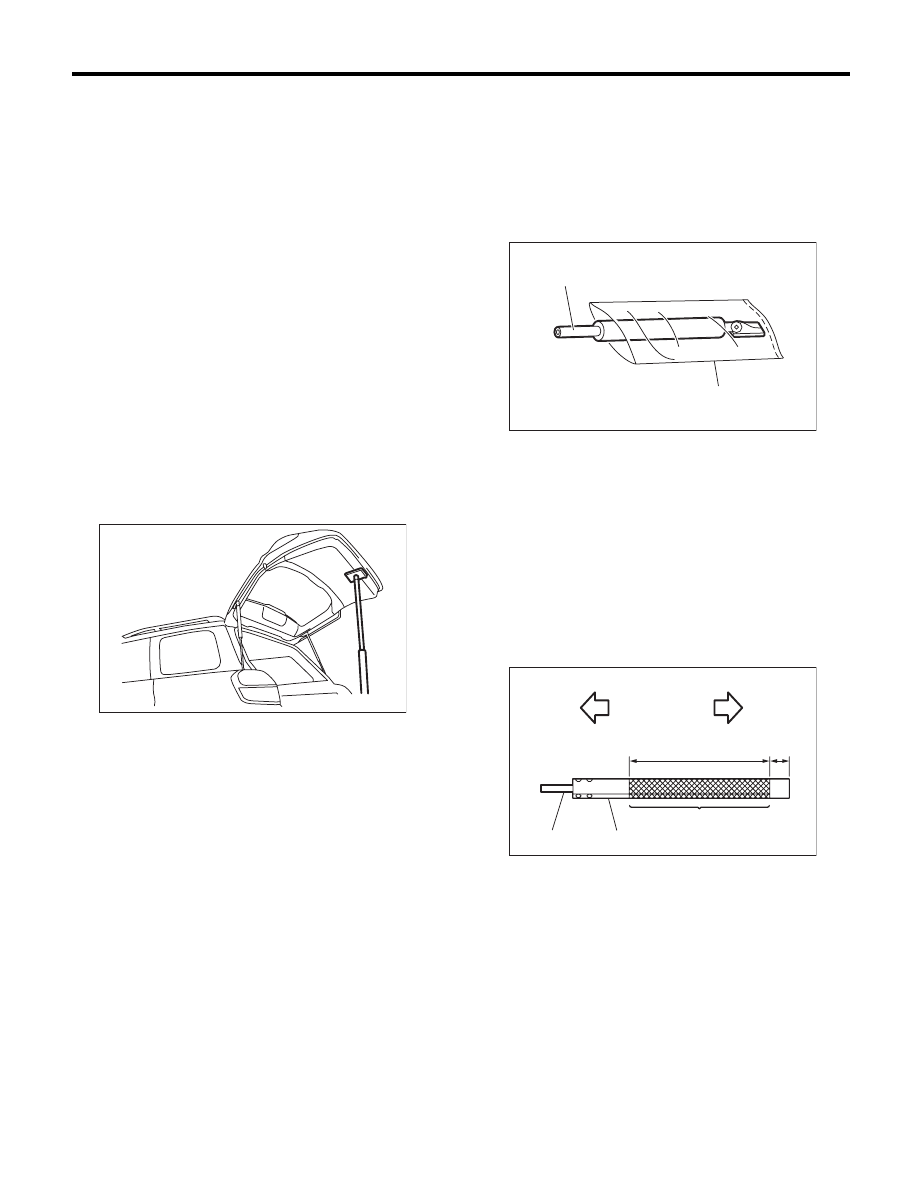

2. REAR GATE DAMPER STAY

1) Prevent the rear gate from closing using prop or
the like.

CAUTION:
If the prop comes off, operators may get injured
and vehicle may get damaged. Make sure to
support the rear gate with secure material to
prevent injury or damage.

2) Install in the reverse order of removal.

Tightening torque:

Refer to “COMPONENT” of “General Descrip-
tion”. <Ref. to EB-11, REAR GATE PANEL,
COMPONENT, General Description.>

C: DISPOSAL

1. REAR GATE DAMPER STAY

CAUTION:
Gas is colorless, odorless, and harmless. How-
ever, gas pressure may spray cutting powder or
oil. Be sure to wear dust-resistant goggles.
1) Cover with a vinyl sack as shown in the figure.

NOTE:
Prevent the vinyl sack from being caught by drill
cutting edge
2) Lift the body side slightly with piston rods fully
extended, and secure the body side with vise.
Drill a hole in 2 to 3 mm (0.08 to 0.12 in) diameter at
a point 10 to 200 mm (0.39 to 7.87 in) from door
side, and bleed rear gate damper stay gas stay
completely.

EB-00069

(1) Rear gate damper stay

(2) Vinyl sack

(1) Door side

(2) Body side

(3) 190 mm (7.48 in)

(4) 10 mm (0.39 in)

(5) Piston rod

(6) Cylinder

(7) Portion to be drilled

(1)

(2)

EB-00031

(3)

(4)

(1)

(5)

(6)

(7)

(2)

EB-00032

CC-2

General Description

CRUISE CONTROL SYSTEM

1. General Description

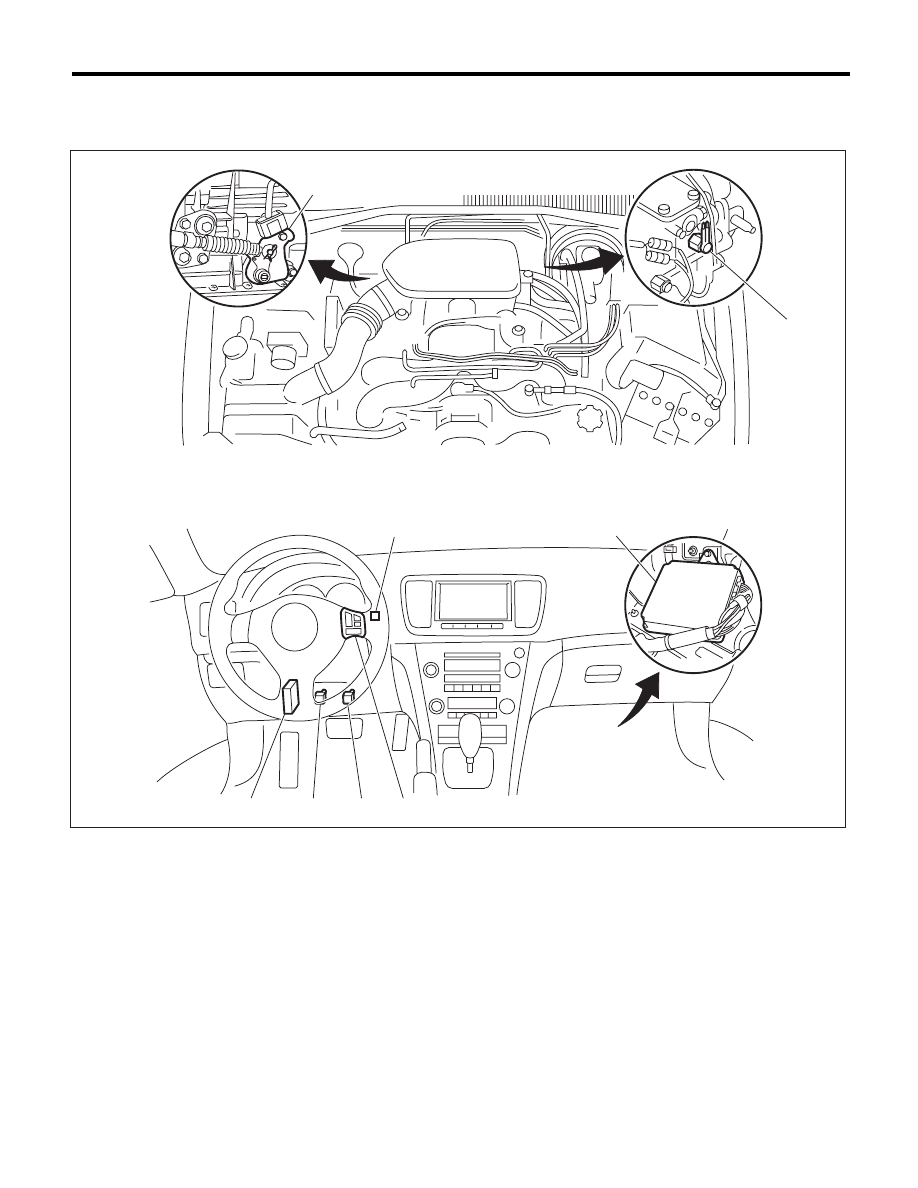

A: COMPONENT

(1)

Engine control module (ECM)

(5)

Transmission control module
(TCM) (AT model)

(7)

Neutral position switch (MT
model)

(2)

Cruise control command switch

(3)

Stop light & brake switch

(6)

Inhibitor switch (AT model)

(8)

Clutch switch (MT model)

(4)

Cruise indicator light and cruise
set indicator light

CC-00696

(7)

(1)

(4)

(2)

(3)

(8)

(5)

(6)

CC-3

General Description

CRUISE CONTROL SYSTEM

B: CAUTION

• Before disassembling or reassembling parts, always disconnect the battery ground cable from battery.
When repairing the audio, control module, etc. which are provided with memory functions, record the mem-
ory contents before disconnecting the ground cable from battery. Otherwise, the memory will be cleared.
• Reassemble the parts in the reverse order of disassembly unless otherwise indicated.
• Adjust the parts to specifications specified in this manual.
• Connect the connectors securely during reassembly.
• After reassembly, ensure functional parts operate properly.

C: PREPARATION TOOL

TOOL NAME

REMARKS

Circuit tester

Used for measuring resistance and voltage.

TORX

®

 bit T30

Used for removing/installing driver’s airbag module.

CC-4

Cruise Control Module

CRUISE CONTROL SYSTEM

2. Cruise Control Module

A: NOTE

The control of cruise control system is carried out in
engine control module (ECM).

B: REMOVAL

• 2.5 L non-turbo model <Ref. to FU(H4SO)-39,
REMOVAL, Engine Control Module (ECM).>
• 2.5 L turbo model <Ref. to FU(H4DOTC)-52, RE-
MOVAL, Engine Control Module (ECM).>
• 3.0 L model <Ref. to FU(H6DO)-38, REMOVAL,
Engine Control Module (ECM).>

C: INSTALLATION

• 2.5 L non-turbo model <Ref. to FU(H4SO)-39,
INSTALLATION, Engine Control Module (ECM).>
• 2.5 L turbo model <Ref. to FU(H4DOTC)-52, IN-
STALLATION, Engine Control Module (ECM).>
• 3.0 L model <Ref. to FU(H6DO)-38, INSTALLA-
TION, Engine Control Module (ECM).>
